Brown & Sharpe Optical Comparator w/ Heidenhain Quadra-Chek ND 1200 DRO 32-3552

Brown & Sharpe Optical Comparator w/ Heidenhain Quadra-Chek ND 1200 DRO 32-3552

Contact us for price

Location:Ohio

orCall 419-350-2986

Description

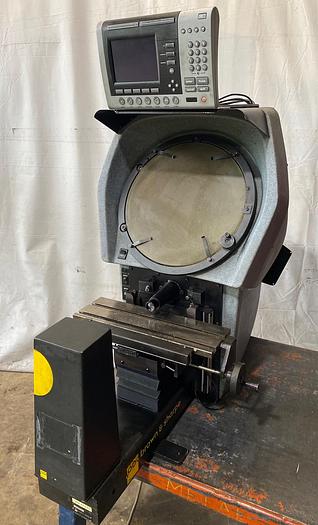

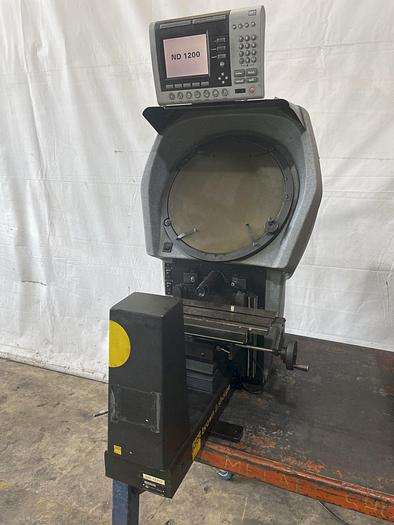

14" BROWN & SHARPE OPTICAL COMPARATOR

  HORIZONTAL PROJECTION BENCH TYPE



HEIDENHAIN QUADRA CHEK ND1200 DIGITAL READOUT DISPLAY WITH PROGRAMMABLE GEOMETRIC FUNCTIONS



MODEL: 32-3552

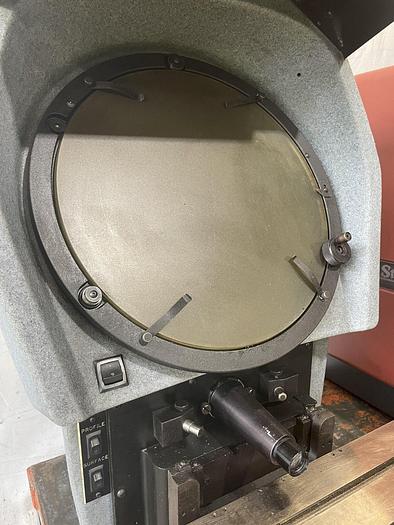

SCREEN DIAMETER ................... 14"

TABLE SIZE ........................ 16" X 5"

WEIGHT CAPACITY ON TABLE .......... 50 LBS.

HORIZONTAL TRAVEL ................. 7"

VERTICAL TRAVEL ................... 4"

FOCUS ............................. 2.5"

HELIX ANGLE ....................... +/- 6 DEG.



APPROXIMATE DIMS. OF MACHINE ...... 21.5W" x 53"L x 41.8"H

APPROX. MACHINE WEIGHT ............ 170 LBS.

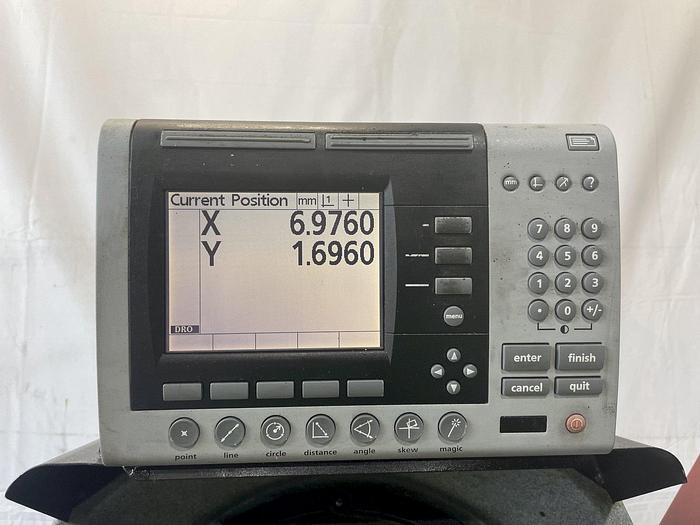

HEIDENHAIN QUADRA CHEK ND1200 DIGITAL READOUT DISPLAY

 WITH PROGRAMMABLE GEOMETRIC FUNCTIONS

SCALE RESOLUTION IS 0.00005"

PROTRACTOR RESOLUTION:

 VERNIER ....... 5 MINUTE

 DIGITAL ....... 1 MINUTE

FIBER OPTIC SURFACE ILLUMINATION

DIGITAL DISPLAY FOR ANGLE ADJUSTMENT OF SCREEN

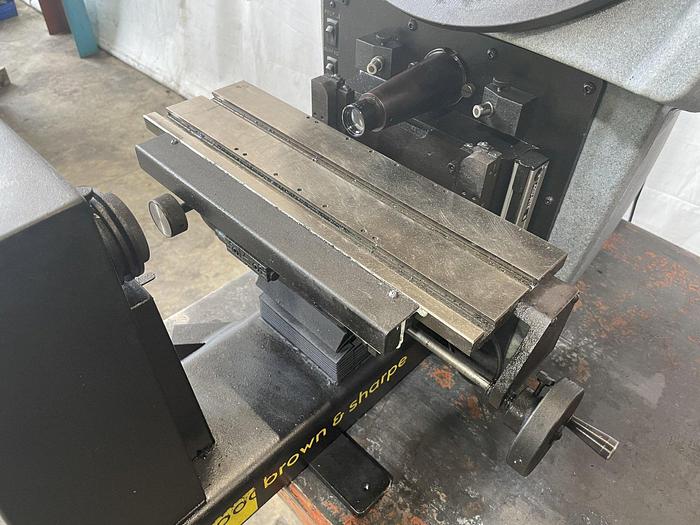

FLOATING TYPE STAGE FOR EFFORTLESS MOVEMENT

HELIX ADJUSTMENT

PROFILE ILLUMINATION LAMP: 24 VOLT, 150 WATT

SURFACE ILLUMINATION LAMP: 12 VOLT, 100 WATT

(1) LENS, 10X MAGNIFICATION

115 VOLT/1 PHASE ELECTRICS



Specifications

ManufacturerBrown & Sharpe Optical Comparator w/ Heidenhain Quadra-Chek ND 1200 DRO
Model32-3552
ConditionUsed
Stock Number0307194
