80,000 / 100,000 LB. BRISTOL RIGGER SPECIAL FORK LIFT

80,000 / 100,000 LB. BRISTOL RIGGER SPECIAL FORK LIFT

MFG: Bristol

Model: 80-100

YOM: 2001

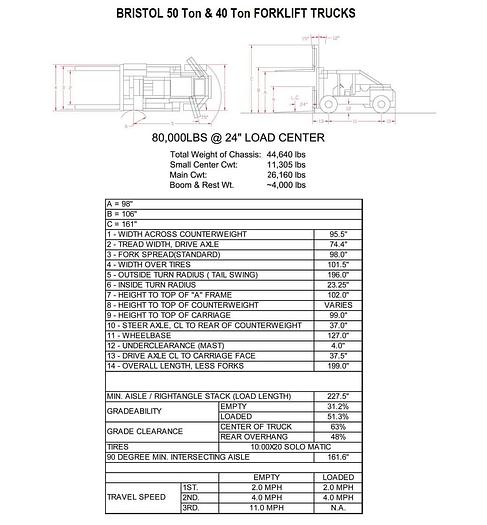

80,000 Lb. At 24” Load Center Counter Weight Retracted

100,000 Lb. At 24” Load Center Counter Weight Extended

Hydraulic Boom With Stand, Max. Lift Height 22’ 6”

8’ 6” Max. Lift Height Forks

102” Min. Height to Top of “A” Frame

98” Fork Spread & Length

74” Thread Width, Drive Axle

101.” Width Over Tires

99” Height to Top of Carriage

37” Steer Axle CL to Rear of Counter Weight

4” Clearance Under Mast

199” Overall Length, Less Forks

235” Overall Length With Hydraulic C.W. Ext.

100 - 10 Tires

196” Outside Turn Radius (Tail Swing)

460 Ford Propane Engine (LP)

For Hydraulic Sliding Counter Weight, Add 8,000 Lbs.

Weight: 78,000 Lbs.
