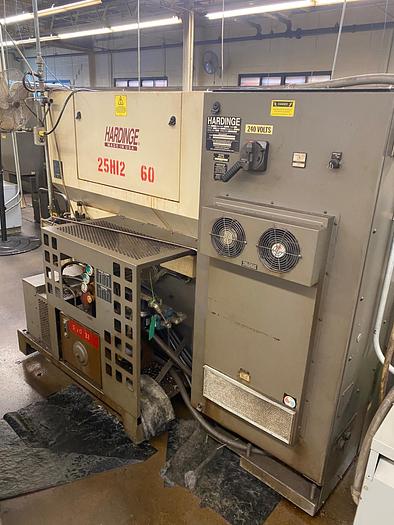

HARDINGE CONQUEST T42 CNC LATHE

SPECIFICATIONS

MFG: Hardinge

Model: SG-42 (Conquest T42)

Max Swing: 21.2″

Max Turning Diameter: 9"

Max Machining Length: 13.1"

X-Axis Travel: 5.31″

Z-Axis Travel with Collet: 13.9″

Chuck Size: 6″

Spindle: 5,000 RPM

Speed Range: 44 - 4400 RPM

Hole Through Spindle: 1.625″

Turret Positions: 12

X-Axis Traverse Rate: 472 IPM

Z-Axis Traverse Rate: 630 IPM

Max Z-Axis (Drilling) Thrust: 1500 Lbs

Max Spindle Face Distance to Turret Face: 14″

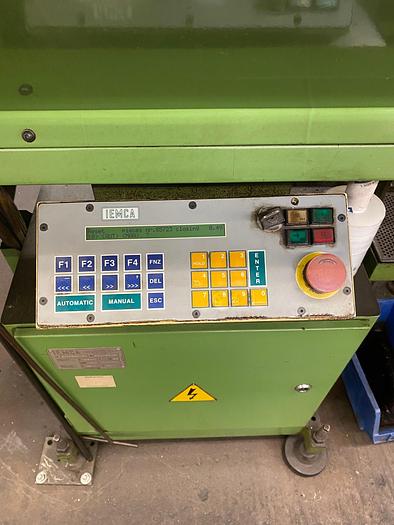

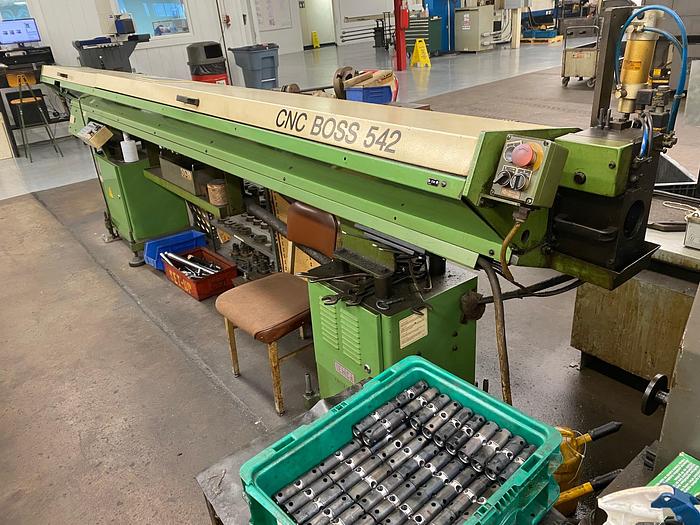

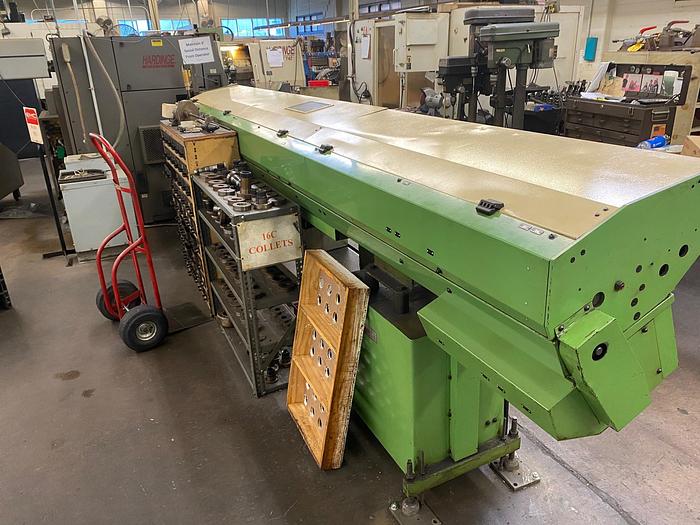

Equipped with: Iemeca CNC Boss 542 Bar Feeder, Model: Boss 542/37, CNC Control: Fanuc 18-T

Electrical: 230V/3PH

Approx. Weight: 9,000 Lbs

Approx. Lathe Dimensions (l x w x h): 84” x 66" x 68"

Conveyor Dimensions (l x w x h): 86” x 24" x 55"

EQUIPPED WITH:

GE Fanuc Series 18-T CNC Control

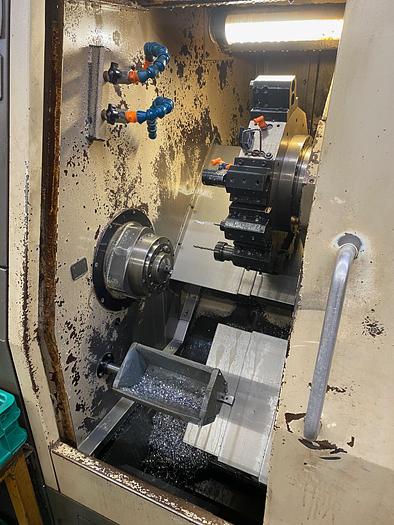

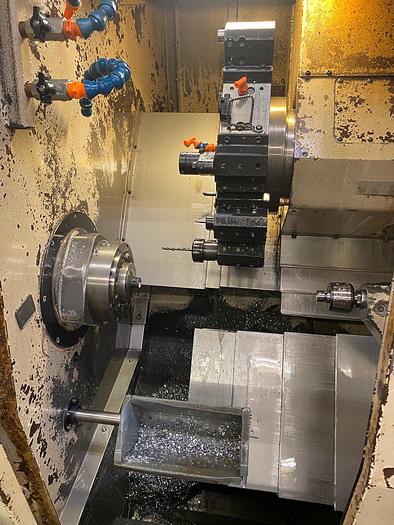

12 Position Turret

Turbo Chip Conveyor

Parts Catcher

Coolant
