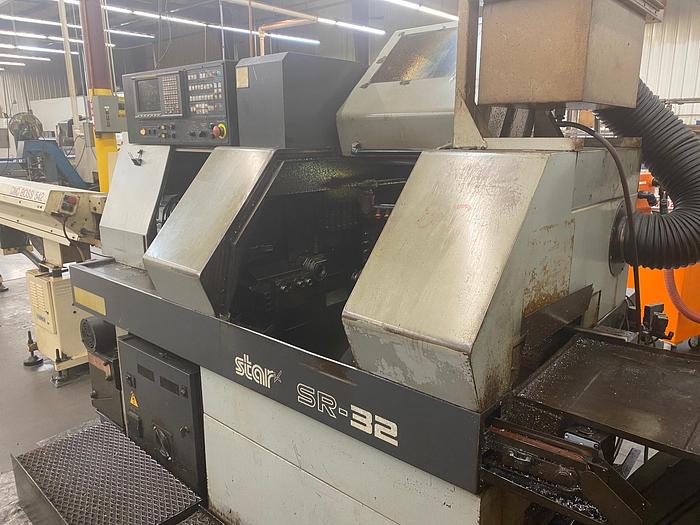

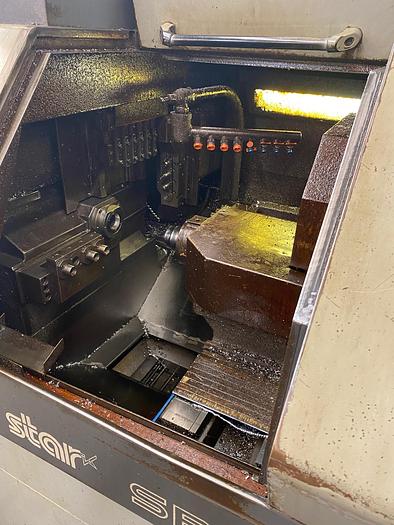

Star SR-32 CNC Swiss Lathe

Mfg: Star

YOM: 1995

Control: Fanuc 16-T

No of Axis: 5

Max. Turning Diameter: 1-1/4"

Max. Headstock Stroke:

Standard: 12-13/64" (310 mm)

When Using Gripping Unit: 11-39/64" (295 mm)

Max. Drilling Capacity, Stationary Tool: 35/64" (14 mm)

Power-Driven Attachment: 5/16" (8 mm)

Max. Tapping Capacity, Stationary Tool: M12 x P1.25

Power-Driven Attachment: M6 x P1.0

Max. Milling Capacity: 25/64"

Max. Die Cutting Capacity: M10 x P1.5

Spindle Speed: 400-8000 RPM

Max. Slotting Capacity: 2mm (W) x 3.5mm (D)

Main Spindle Speed: 350-7000 RPM

Number of Tools: 6 + 4 (Power Driven

Power Driven Attachment: Speed: 350-5,000 RPM

Four-Spindle Endworking Attachment:

Number of Tools: 4

Max. Drilling Capacity: 14 mm

Max. Tapping Capacity: M12 x P1.75

Max. Die Cutting Capacity: M10 x P1.5

Backworking Attachment Specifications:

Max Chucking Diameter: 1-1/4" (32 mm)

Max. Length For Front End Ejection: 4-29/32" (125 mm)

Max. Parts Projection Length: 1-49/64" (45 mm)

Sub-Spindle Speed: 350-7000 RPM

Sub-Spindle Min. Indexing Angle: 15 or 1 Degrees (option)

Four Spindle Unit For Backworking:

Number of Tools: 4

Max. Drilling Capacity: 13 mm

Max. Tapping Capacity: M10 x P1.5

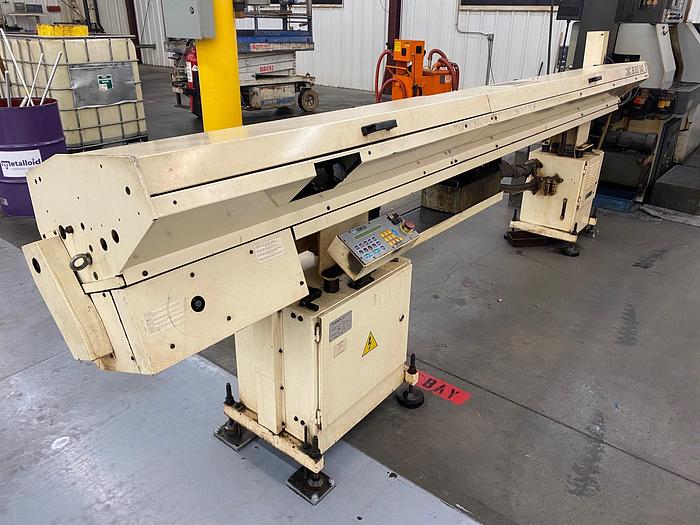

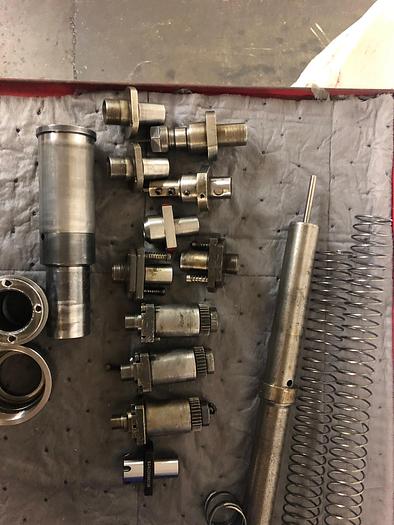

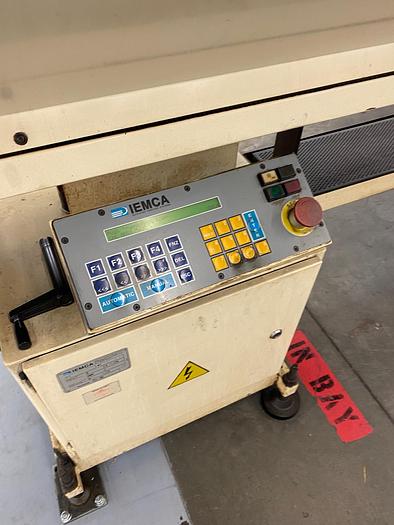

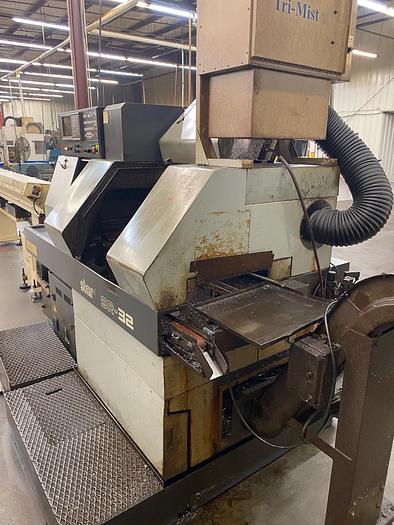

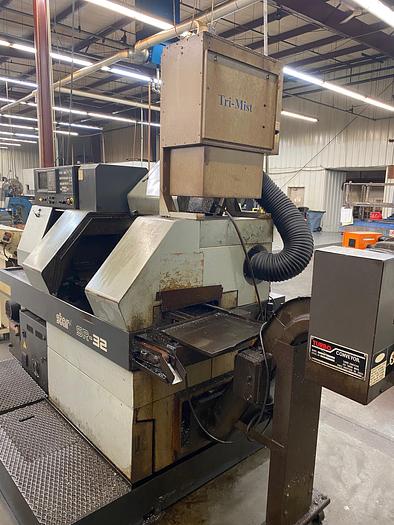

Iemca CNC Boss 542 Automatic Magazine Loading Bar Feed, Turbo Chip Conveyor, Model: 6475-8900, Tri-Mist, Mist Collector, High Pressure Coolant, Tooling as seen in photo.

(All Specifications Subject to Verification)


ManufacturerStar CNC Swiss Lathe
Stock Number0307155
Capacity1.25" (32 mm)
