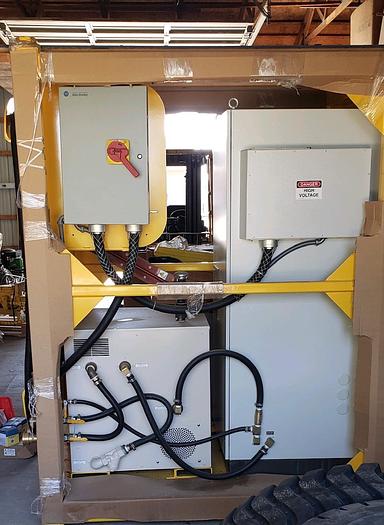

Ameritherm, Parts assembly induction heater EKOHEAT 125/10


Ameritherm, Parts assembly induction heater EKOHEAT 125/10



Item has been Sold - Ameritherm, Parts assembly induction heater EKOHEAT 125/10

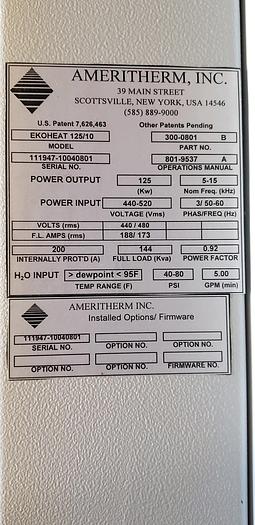

EKOHEAT 125kW - 10kHz

Max Power: 125 kW

Frequency: 5-15 kHz

Line Voltage: 360 - 520, 3 ph Vac

Input Max: 145 kVA

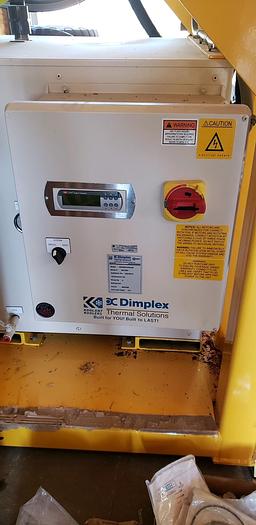

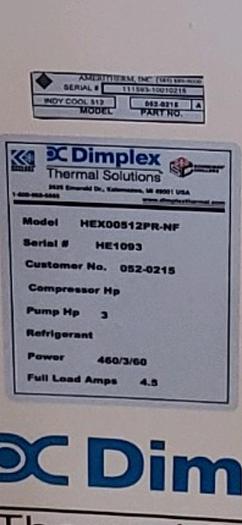

Include Thermal Solutions, Chiller Unit -

EKOHEAT induction heating systems for the 5 to 15 kHz frequency range provide reliable and repeatable solutions for heating with large coils or for heating larger parts. Typical applications include heating parts that require deeper heat penetration, heat treating steel, preheating for forging of steel, aluminum, copper or brass, and melting in crucibles.

With the versatile EKOHEAT power contrai System you get rapid tuning, efficient and précisé heating of your parts, power contrai within 0.2% resolution and an easy-to-use, easy-to-read front panel. Remote control is accomplished with 0-10V, 4-20mA inputs, RS485 serial port, 24V contrais and remote E-Stop input so intégration with your automated production lines is easy. EKOHEAT technology improves return on investment by reducing your energy usage compared to gas-fired and résistive heating techniques. Flameless, non-contact induction heating minimizes energy waste by focusing energy only on the part and zone to be heated. With very efficient power conversion and a power factor greater than 0.9, utility demand charges are reduced, lowering monthly energy bills. EKOHEAT Systems are designed for efficient use of cooling water, further lowering your operating costs.

This is a water-cooled System, requiring connection to a heat exchanger or other means of dissipating heat.


ManufacturerAmeritherm, Parts assembly induction heater
ModelEKOHEAT 125/10
Stock Number0307143
