2013 Ace Equipment Company Batch Oven, Model 8815

2013 Ace Equipment Company Batch Oven

Mfg: The ACE Equipment Co.

Model: 8815

YOM: 2013

Batch Oven Specifications

Recirculating Fan: 15" FC, 5,600 CFM @ 1.4" SP, 3 HP 1750 HP CDP

Exhaust Fan Motor: Compact GI 125, 670 ACFM 1.1" SP@ 70* F

Burner Capacity: 1-1/2 FT Maxon NP-1 900,000 BT/Hr

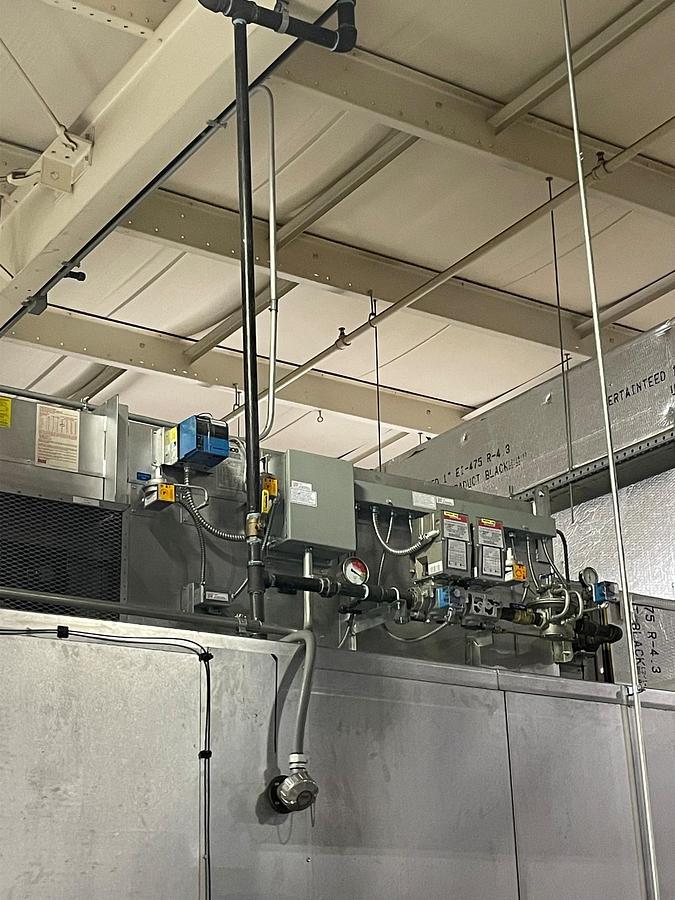

Gas Train: Factory Mutual 1-1/4" NPT

Supply Gas Pressure: 14" W.C. Min @ Full Flow 5 PSI (Maximum)

Fuel Heating Value: Natural Gas: 1000/BTU/CU FT or Propane: 2500 BTU/ C.F.

Electrics: 460V / 3PH / 50

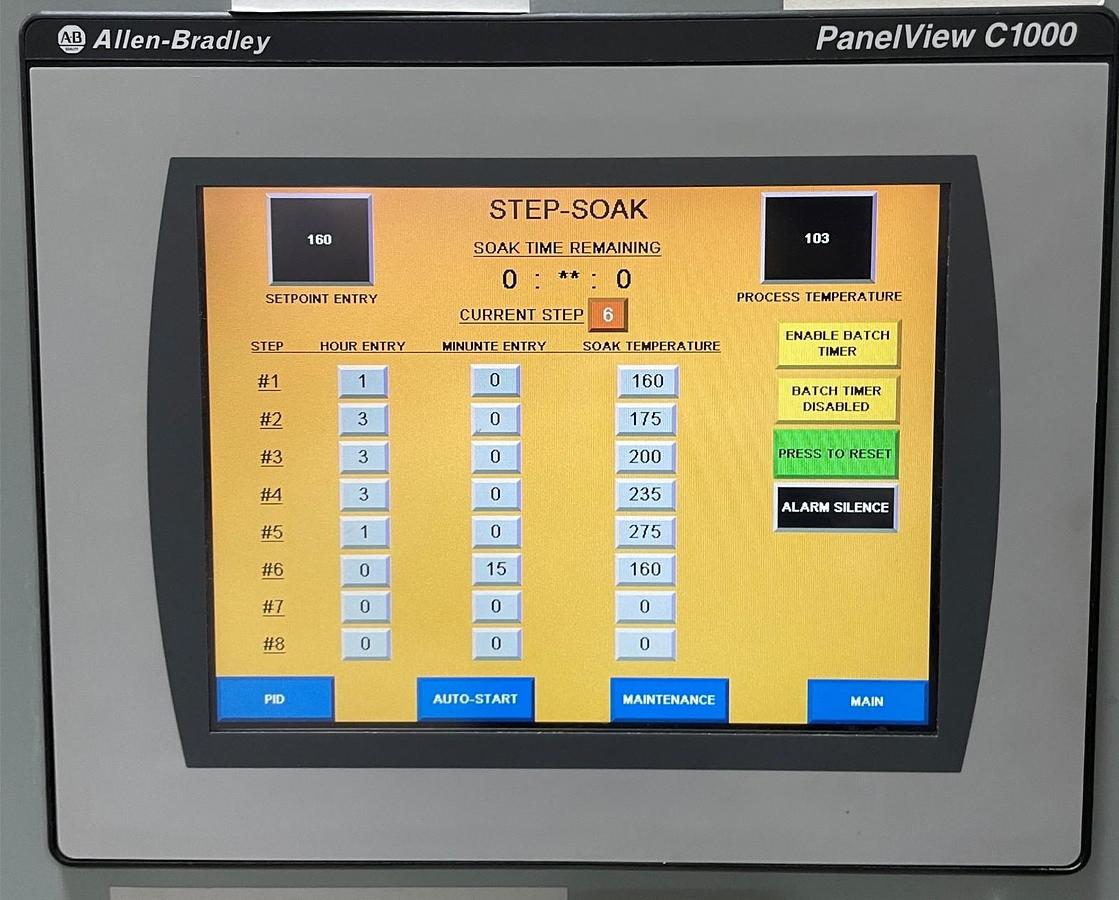

Control: Allen Bradley PanelView C1000 Touch Screen Control

Altitude: Less than 4000 Ft

Max. Powder Loading: 24 Lb/Batch

Max Solvent Loading: 0.33 Gallon / Batch

Min. Pre-Ignition Purge: 12 minutes @ 570 CFM Exhaust

Operating Temp: 450* F

Oven Floor: None

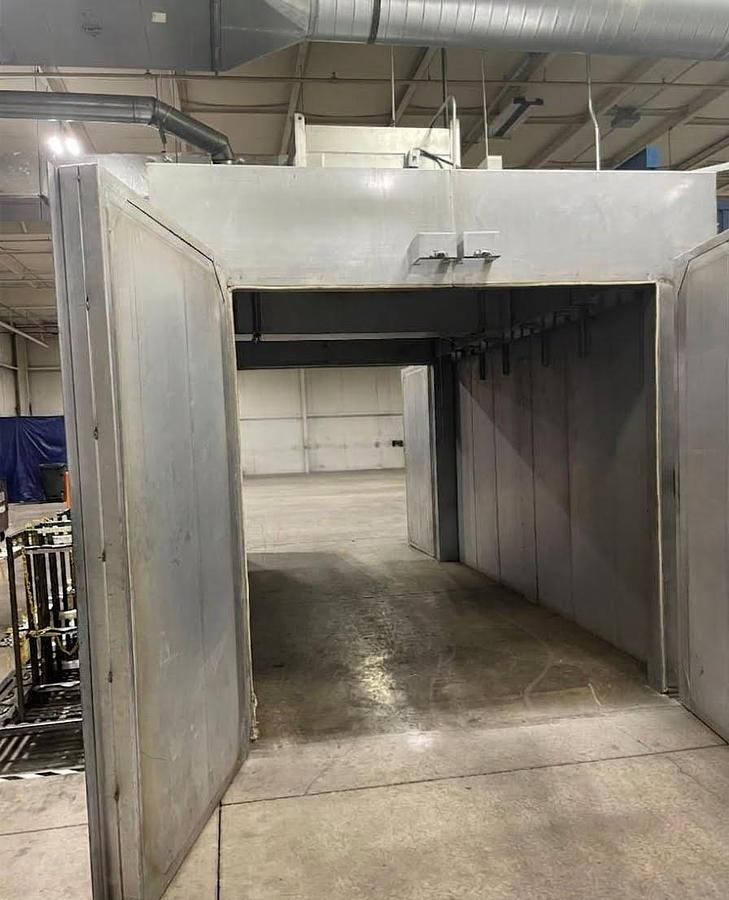

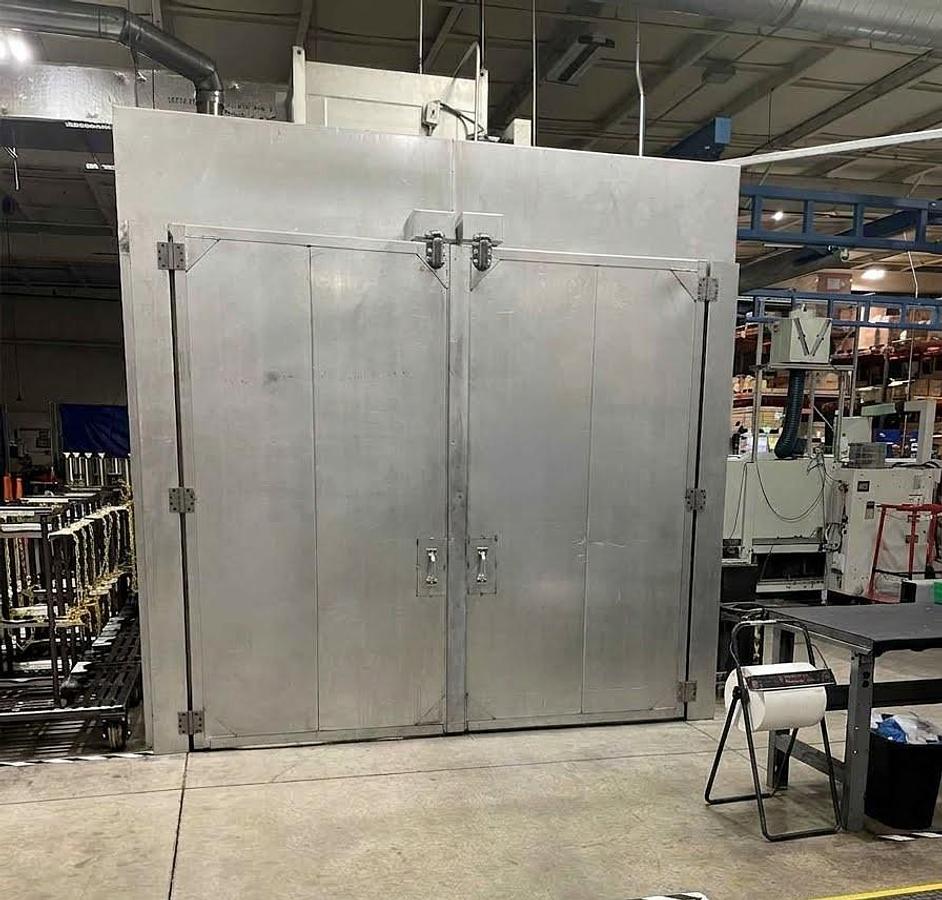

Clear Working Opening: 8' W x 8' H x 15' Length -- Double Doors on Both ends of Booth (Length with Doors Shut)

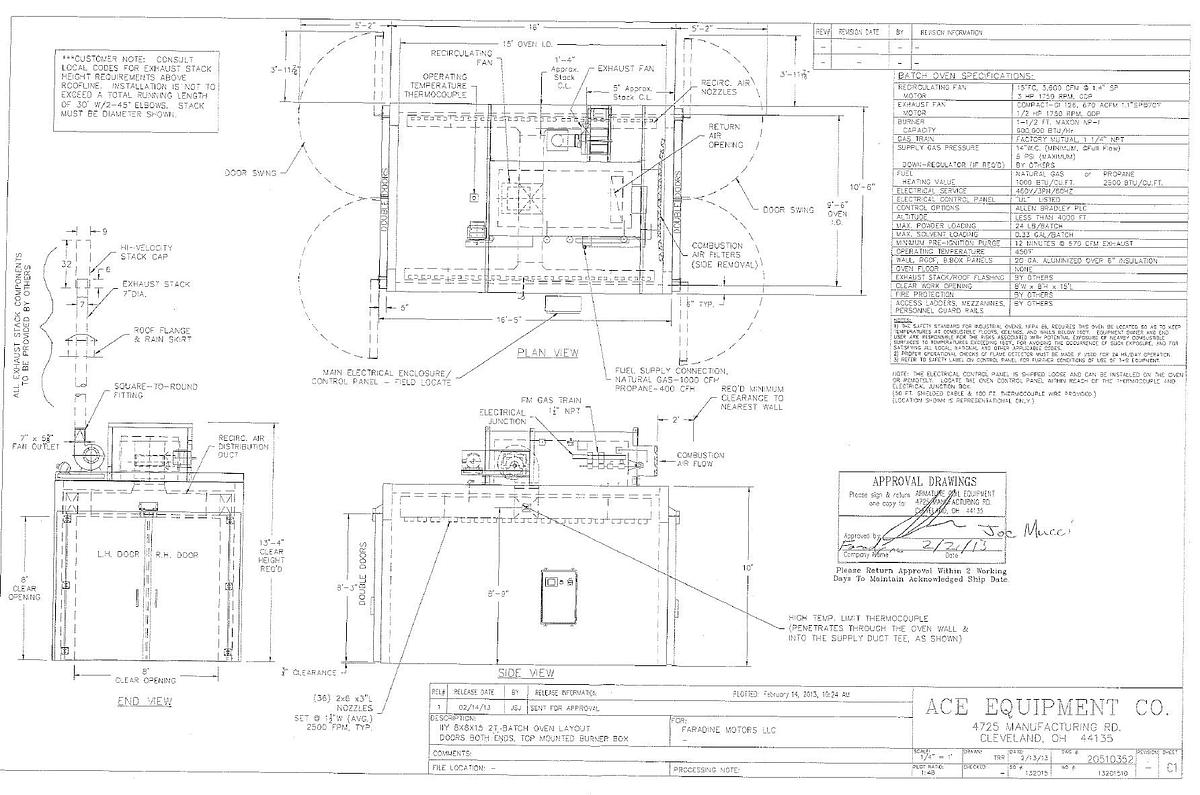

Overall Dimensions: Width: 10'-6" x Length: 18' x Height: 13'-4"
