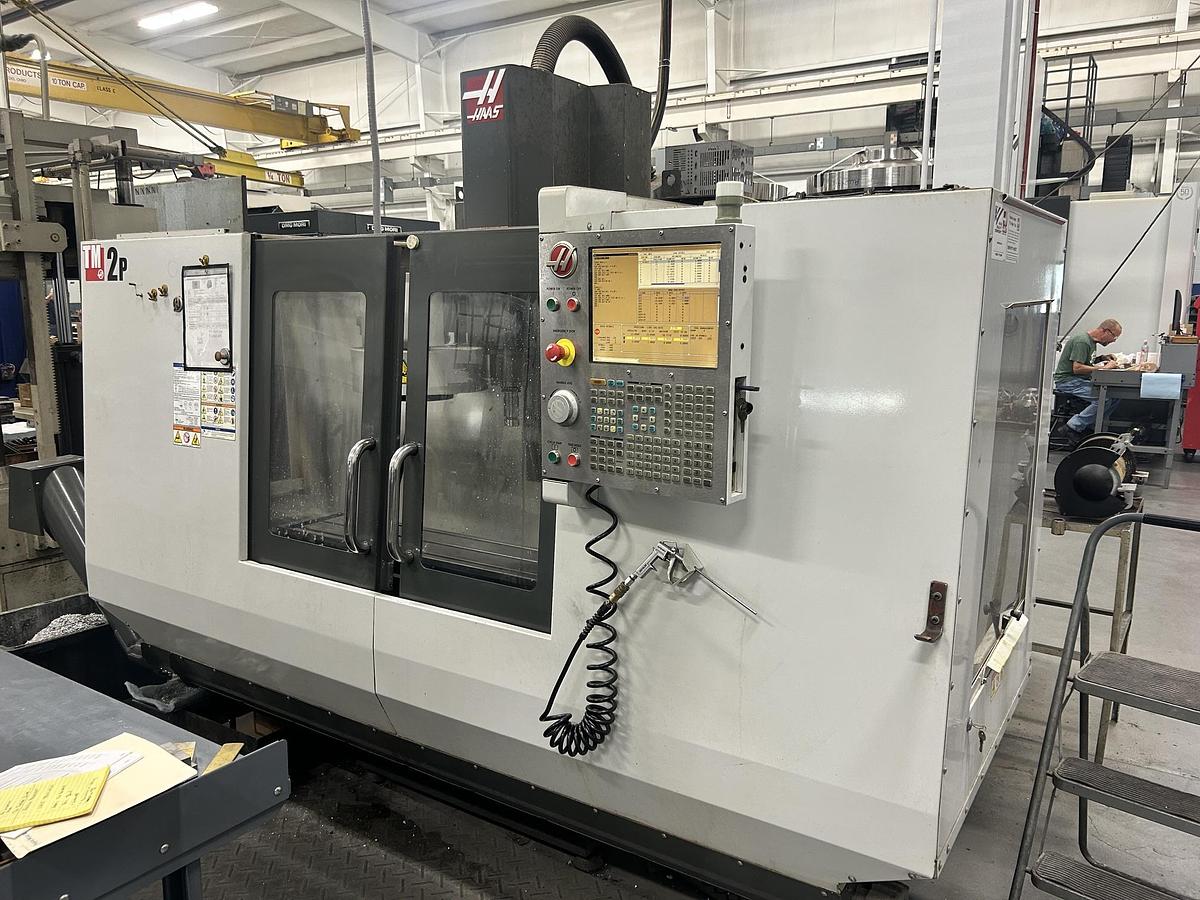

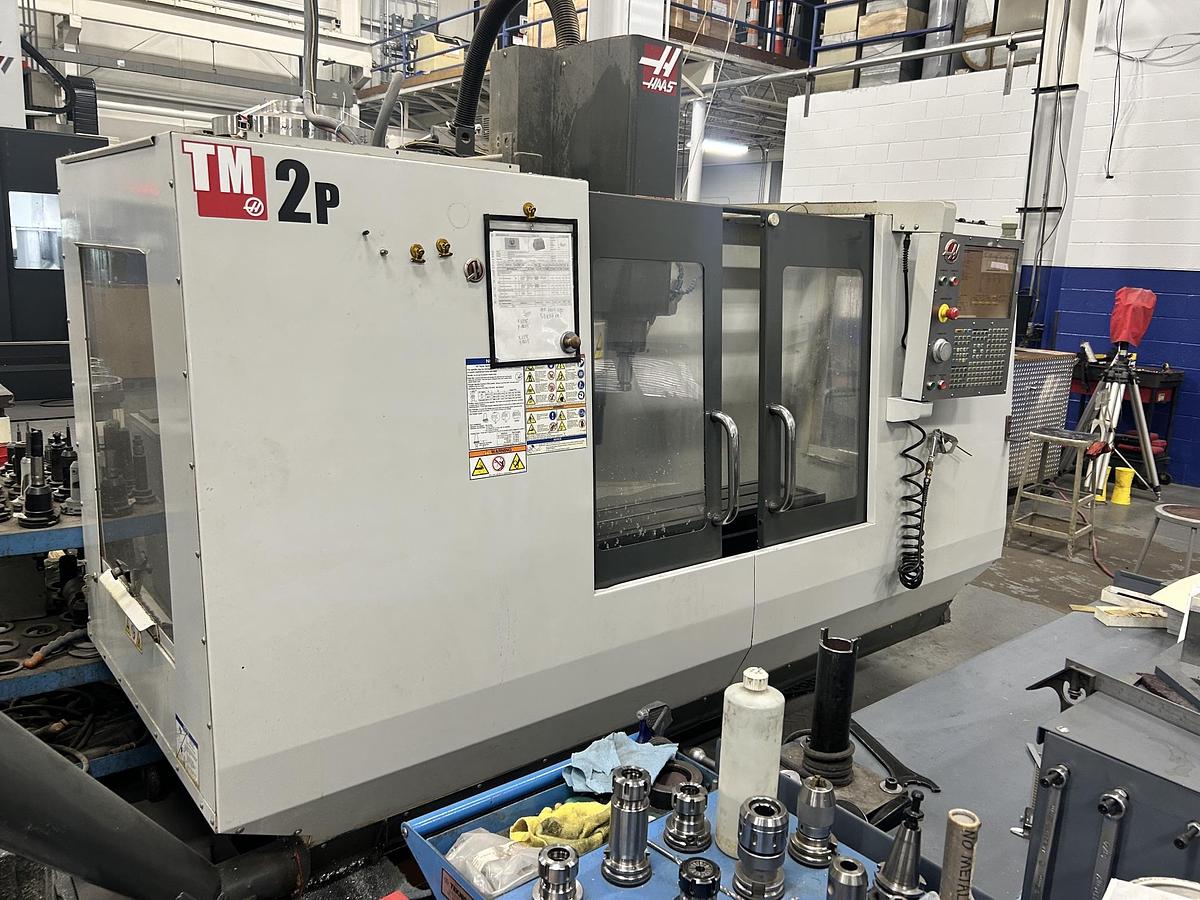

Haas TM-2P Vertical Machining Tool Room Mill

Haas TM-2P Vertical Machining Tool Room Mill

Model: TM-2P (2010)

Travels

• X-axis travel: 40.0 in (1,016 mm)
• Y-axis travel: 16.0 in (406 mm)
• Z-axis travel: 16.0 in (406 mm)
• Spindle nose to table: 4.0 in – 20.0 in (102 mm – 508 mm)

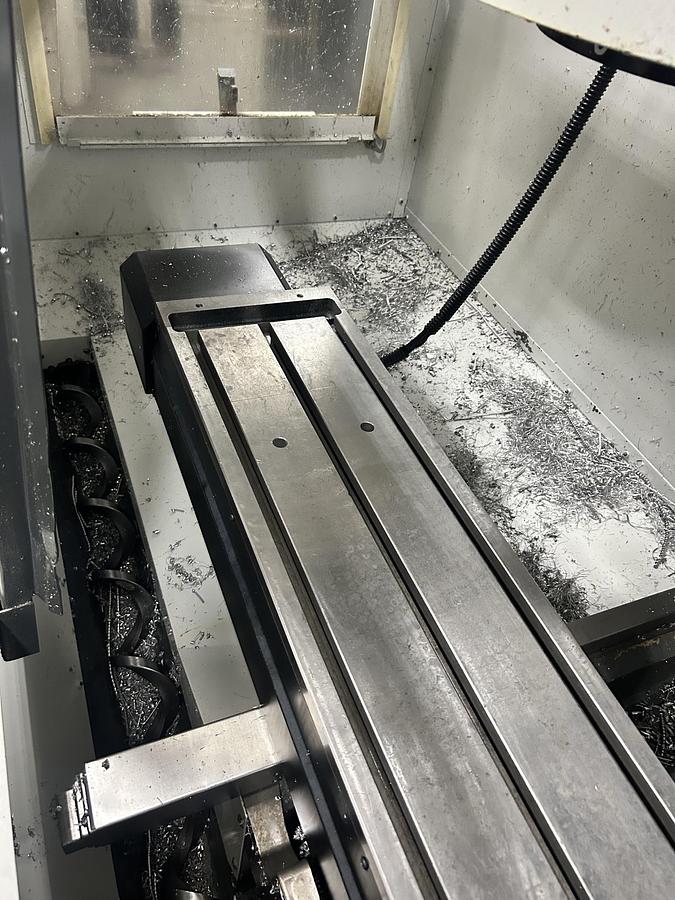

Table

• Length: 57.75 in (1,467 mm)
• Width: 10.5 in (267 mm)
• Max weight on table: 1,000 lb (454 kg)
• T-slots width: 0.625 in (16 mm)

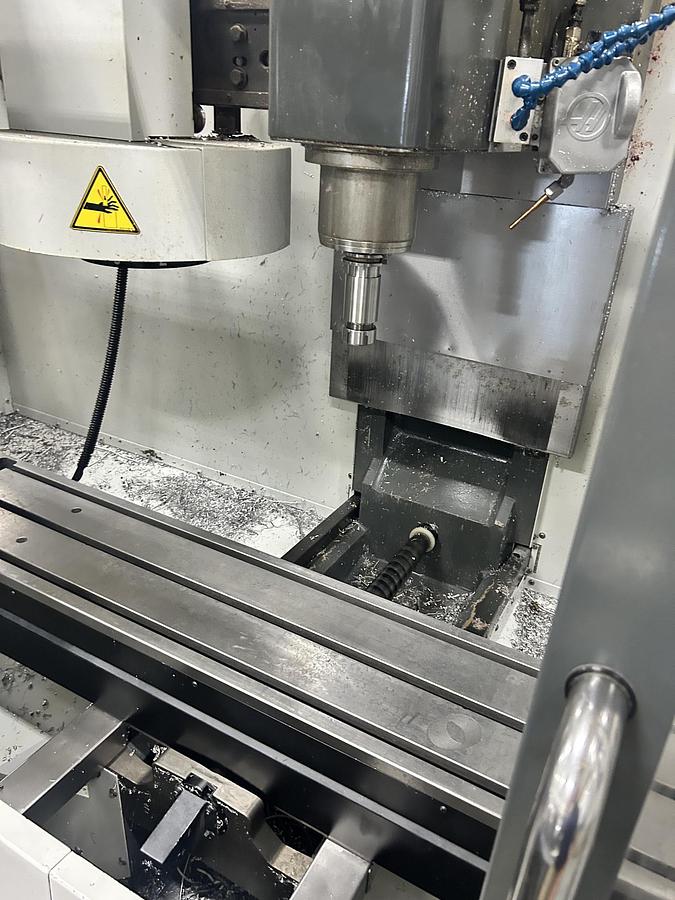

Spindle

• Max rating: 7.5 hp (5.6 kW)
• Max speed: 6,000 rpm
• Max torque: 33 ft-lb @ 1,200 rpm (45 Nm)
• Drive system: Belt drive
• Taper: CT40 or BT40

Tool changer

• Capacity: 10-station carousel (umbrella style)

Feedrates

• Rapids on X, Y, Z: 400 ipm (10.2 m/min)
• Max cutting: 400 ipm (10.2 m/min)

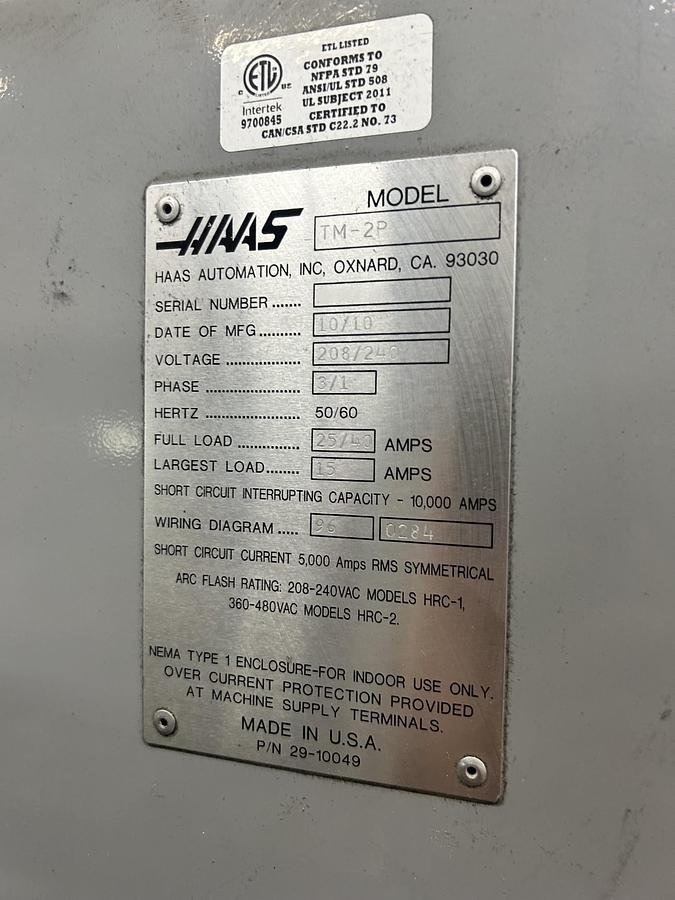

General & electrical

• Machine weight: Approx. 5,200 lb (2,359 kg)
• Power requirement: 208/240 VAC, 3-phase (can run on single-phase)
