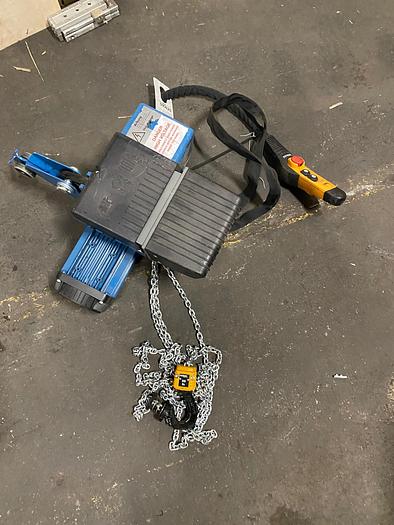

Demag H4 Electric Chain Hoist, 500 lb Load Capacity, 230V, 16 ft Hoist Lift, 32/8 fpm

Technical Specs

Mfr. Model #DCPRO 2-250 1/1 H5

Demag 2-speed Electric Chain Hoist has a 16-ft. lift and comes with a chain container and 2- to 12-ft. long control cord. An overload limiting clutch helps prevent accidents due to hoist failure. Pre-lubricated for maintenance-free operation for up to 10 years.

• Push-button pendant control

• CSA and HMI certified

• H4 Rated

• FEM Classification: 2M+

• Electric Hoist ItemChain Hoist
• Load Capacity500 lb
• Hoist Lift16 ft
• ClassificationH4
• Number of Speeds2
• Lift Speed32/8 fpm
• Motor HP0.59 hp
• Voltage230
• Phase3
• Min. Between Hooks13 7/8 in
• Amps @ Low Volts3.3 A
• Housing Depth16 1/2 in
• Housing Length10 1/2 in
• Housing Width6 13/16 in
• Reeving1
• BrakeMultiple Disc Motor
• ClutchOverload Limiting
• ControlPush Button Pendant
• Control Cord2 to 12 ft
• ColorBlue
• FinishPowder Coated
• Hz60
• LubricationMaintenance Free for Up to 10 Yr.
• Thermal ProtectionYes
• StandardsCSA and HMI certified
• IncludesChain Container
• Hoist MountHook Mounted - N

All specifications subject to verification
