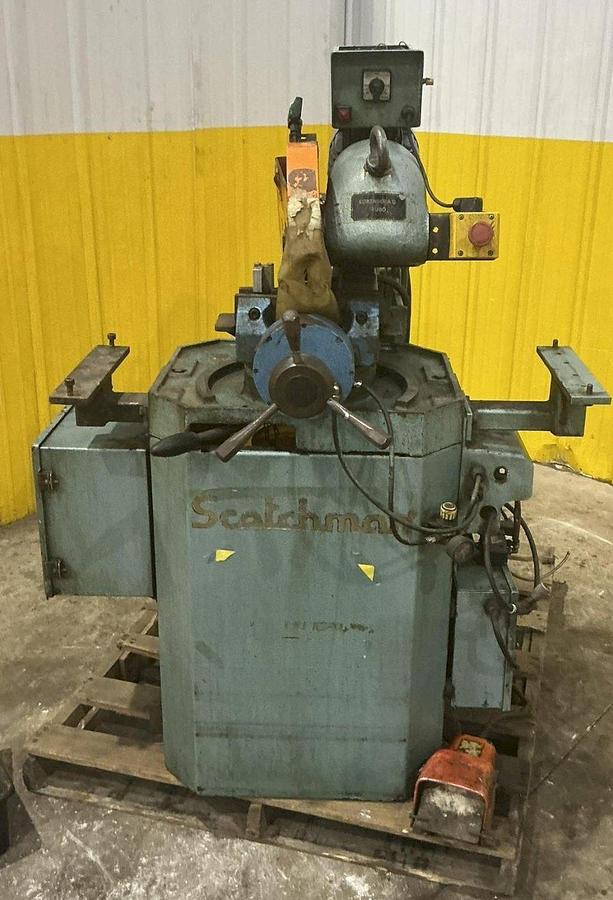

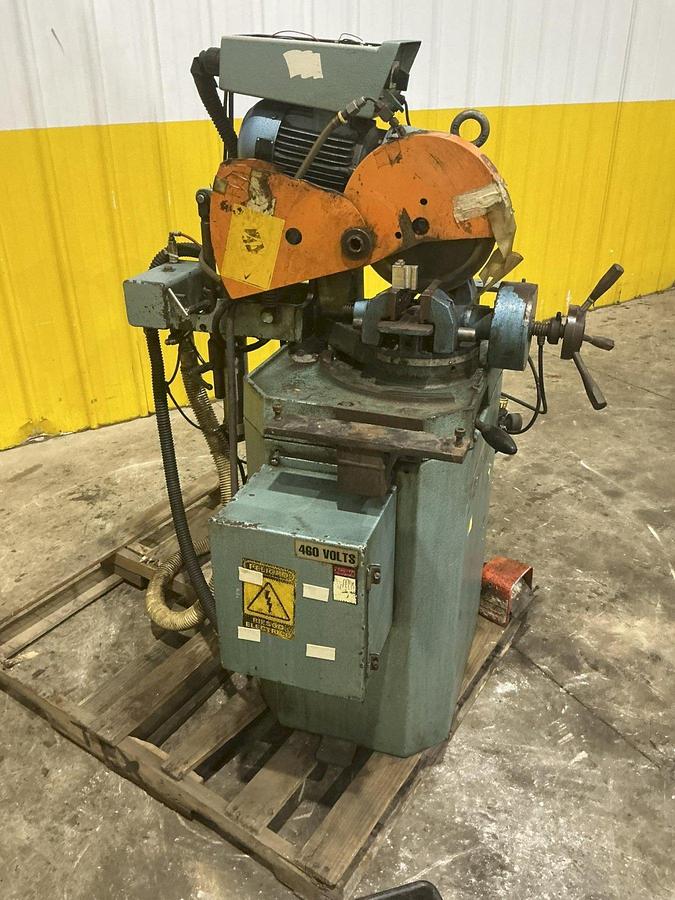

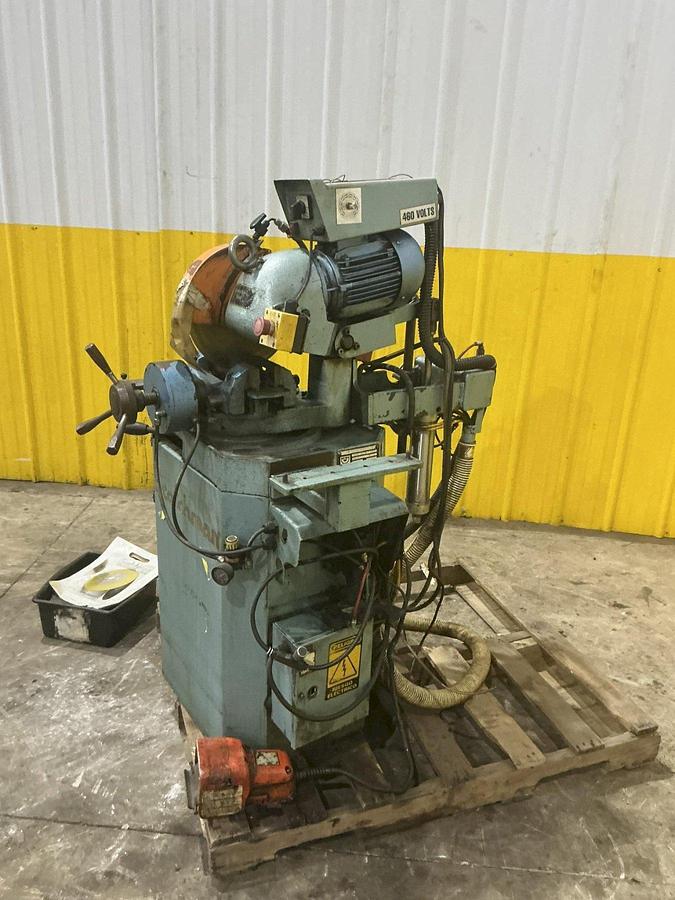

Scotchman Industries, Inc. Model: VS-275LTPK/PD Cold Saw

Scotchman BEWO CPO 275 LTPKPD Circular Cold Saw

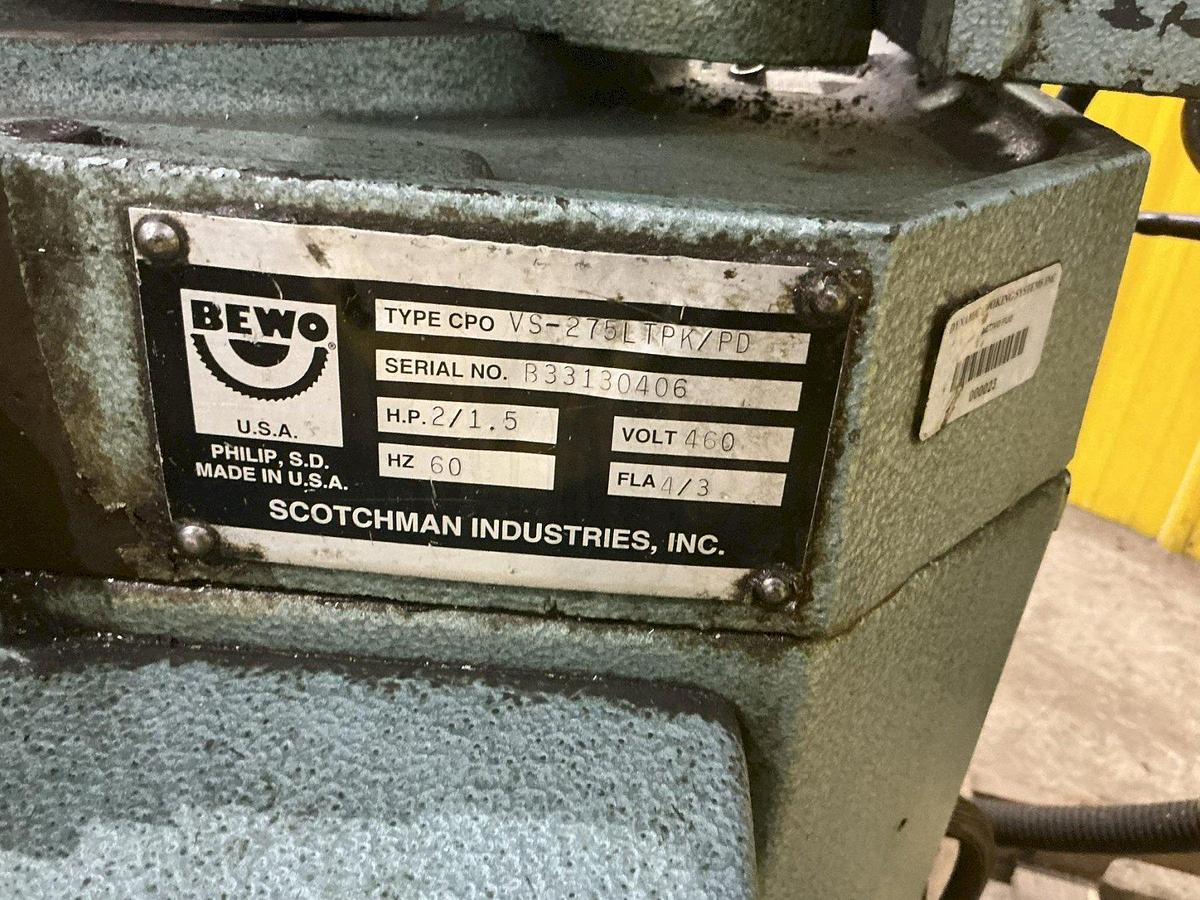

Mfg: Scotchman BEWO

Model: VS-275LTPK/PD

Phase/Frequency: 3-Phase / 60 Hz

Horsepower (H.P.): Dual-rated 2.0 / 1.5 HP

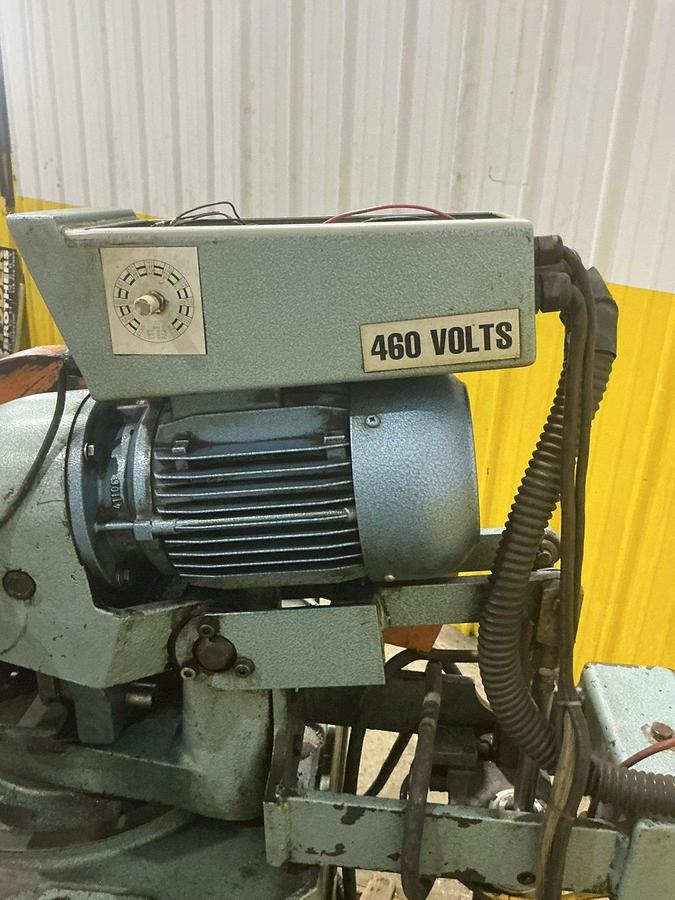

Voltage: 460 Volts

Full Load Amps (FLA): 4 / 3 Amps

Serial Number: B3313040

Mechanical & Performance Specifications

The breakdown of the model suffix letters identifies the distinct capabilities built into this low-speed ferrous metal-cutting saw:

• LT (Low Turn): Operates at low RPM (typically 30 / 60 RPM) optimized for solid materials, stainless steel, and thick-walled pipes.

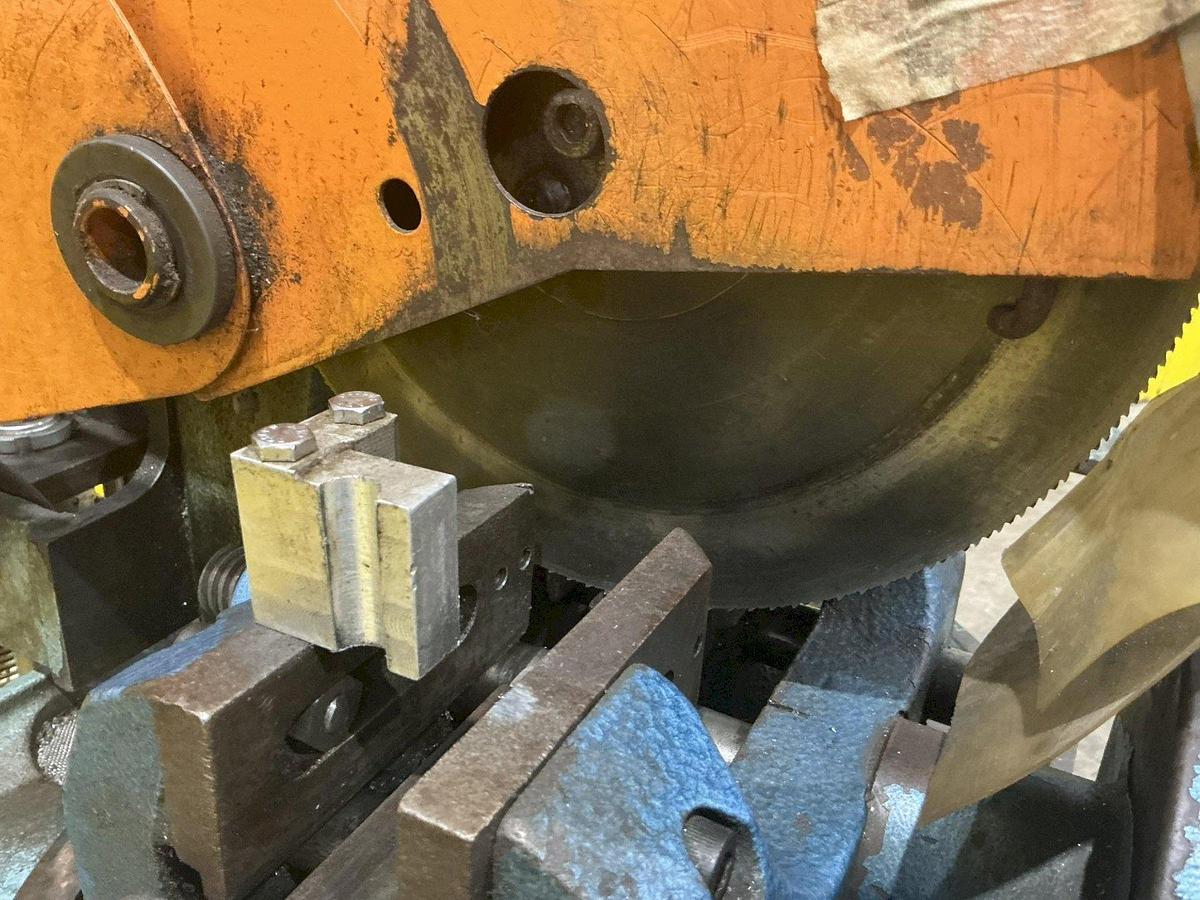

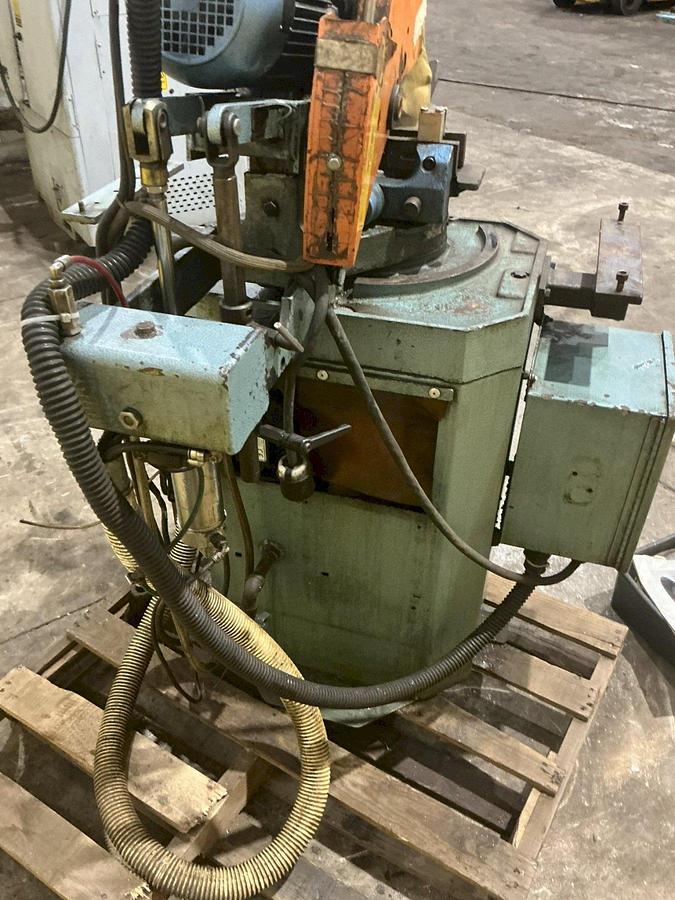

• PK (Power Klamp): Equipped with a pneumatic, air-operated material clamping vise.
• PD (Power Downfeed): Features a semi-automatic pneumatic power downfeed stroke with electric controls.

Capacity & Sizing (Standard CPO 275 Series)

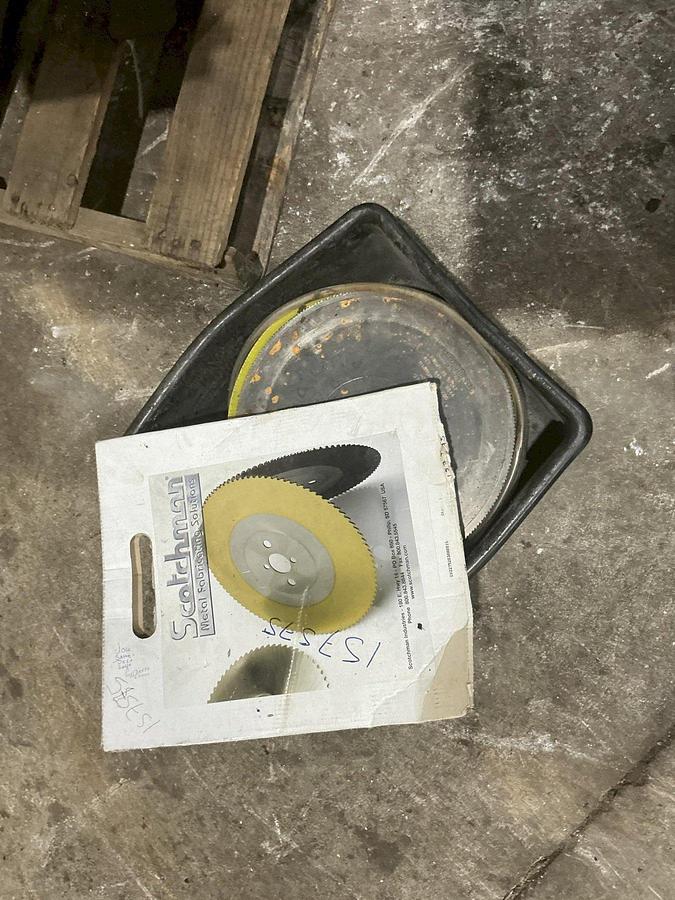

• Maximum Blade Diameter: 10-3/4 inches (275 mm)
• Arbor Bore Size: 32 mm
• Mitering Range: Rotates 90° left to 90° right with positive locking pins at 45° left, 90°, and 45° right.

Cutting Capacities (At 90° Straight Cut)

• Tubing (Round): 3-3/8" max diameter
• Tubing (Square): 3" x 3"
• Tubing (Rectangle): 3" x 2-3/8"
• Solid Bar (Round): 1-1/2" max diameter
• Solid Bar (Square): 1-1/2" x 1-1/2" [1]

Physical Footprint

• Width x Depth: 21-7/8" x 43-1/2"
• Height: Approximately 53-1/4" (excluding the feed handle)
• Base Weight: Approximately 580 to 670 lbs depending on the air cylinder configuration.
