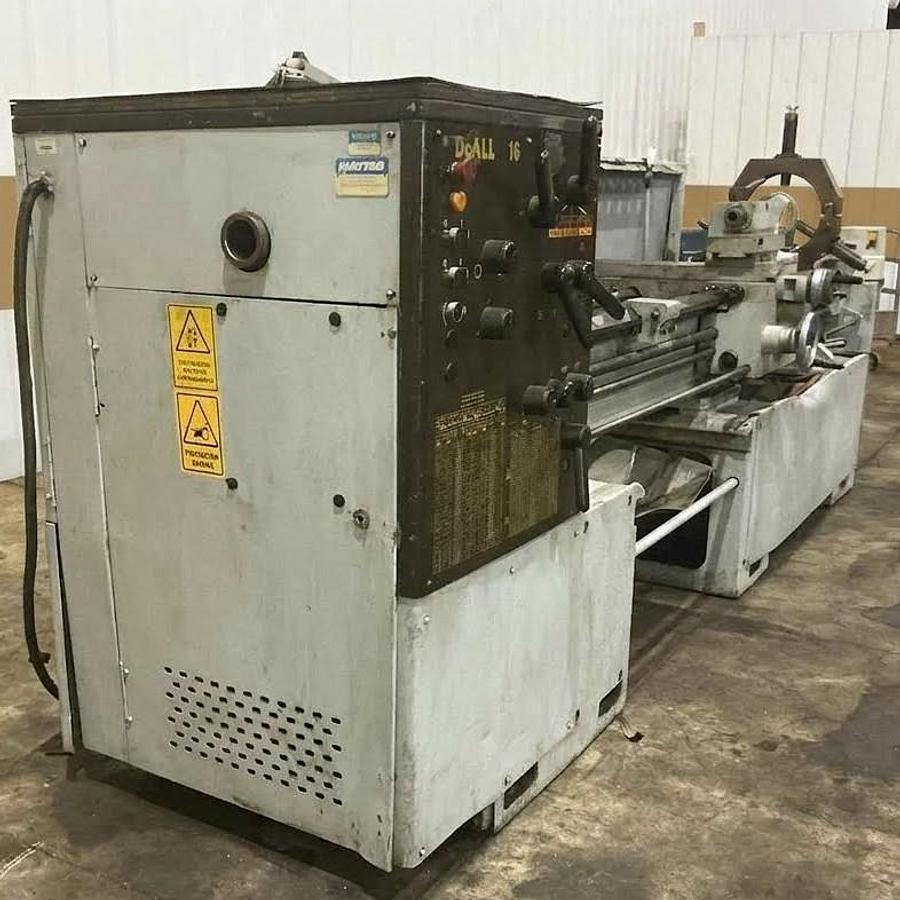

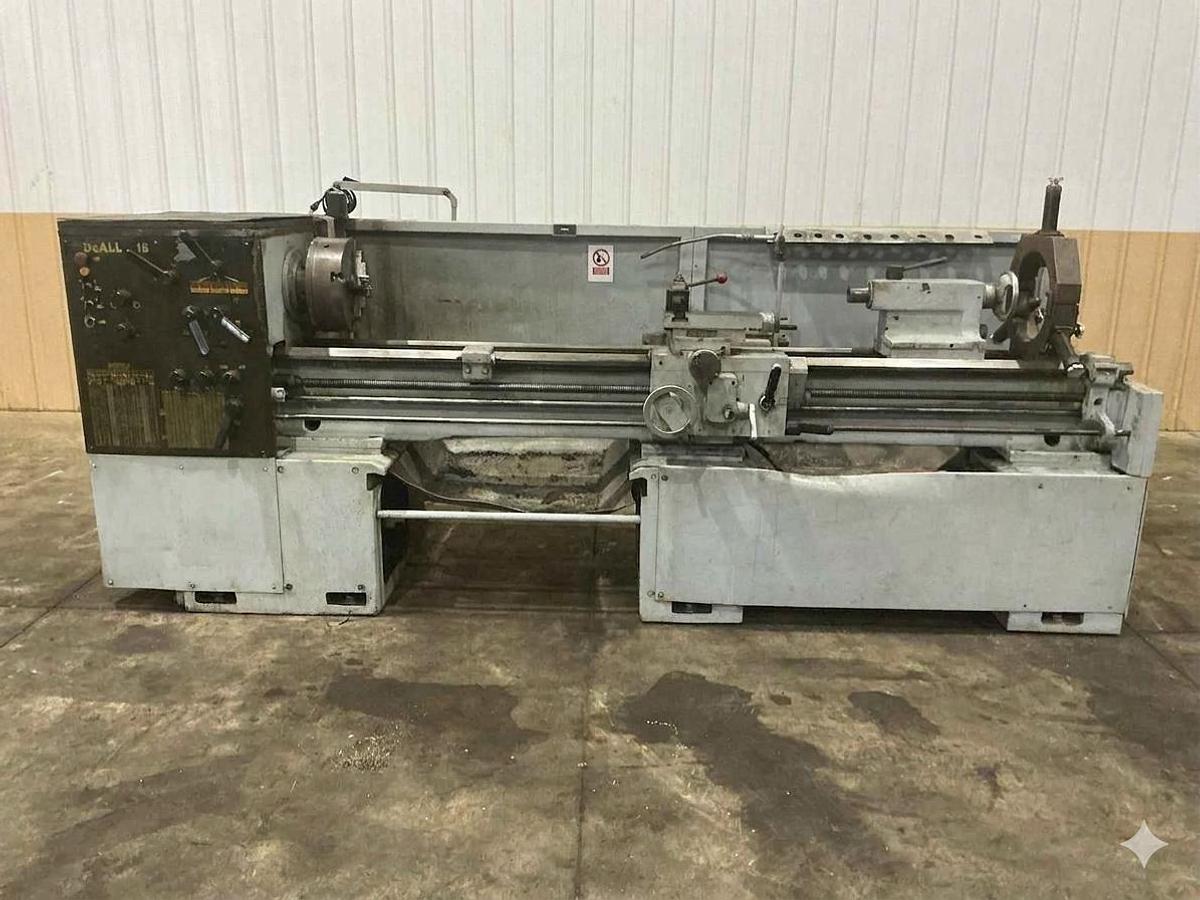

17" X 84" DOALL MODEL #16 ENGINE LATHE

17" X 84" DOALL MODEL #16 ENGINE LATHE 2-5/8" HOLE

MODEL .............................. 16

SWING OVER WAYS .................... 17"

SWING OVER CROSS SLIDE ............. 10"

DISTANCE BETWEEN CENTERS ........... 84"

SPINDLE SPEEDS ..................... (12) 56 TO 1,800 RPM

HOLE THRU SPINDLE .................. 2-5/8"

ENGLISH FEEDS ...................... (38) .0016 TO .028 IP

METRIC FEEDS ....................... (35) .04 TO 208 MMPR

ENGLISH THREADS .................... (38) 2 TO 72 TPI

METRIC THREADS ..................... (39) .2 TO 14 TPMM

TAPER .............................. YES

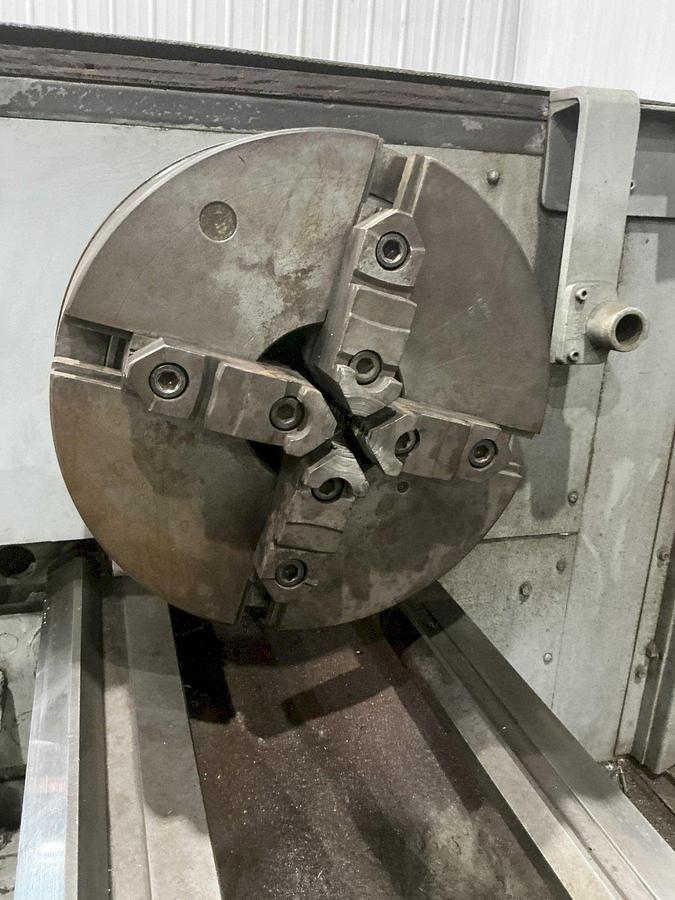

CHUCK .............................. 12" 4 JAW

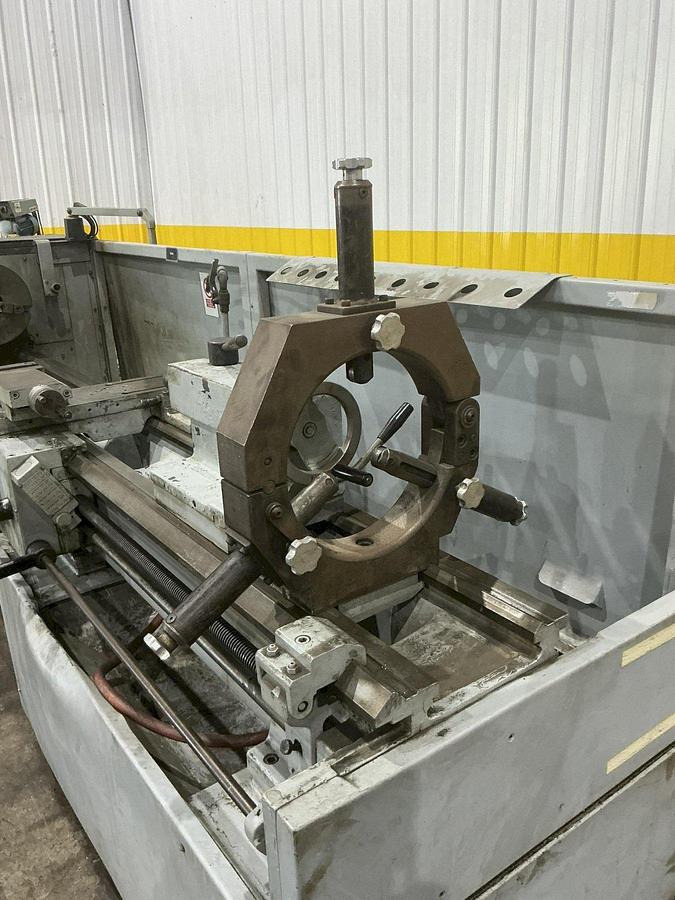

STEADY REST ........................ 11" 3 POINT ROLLER

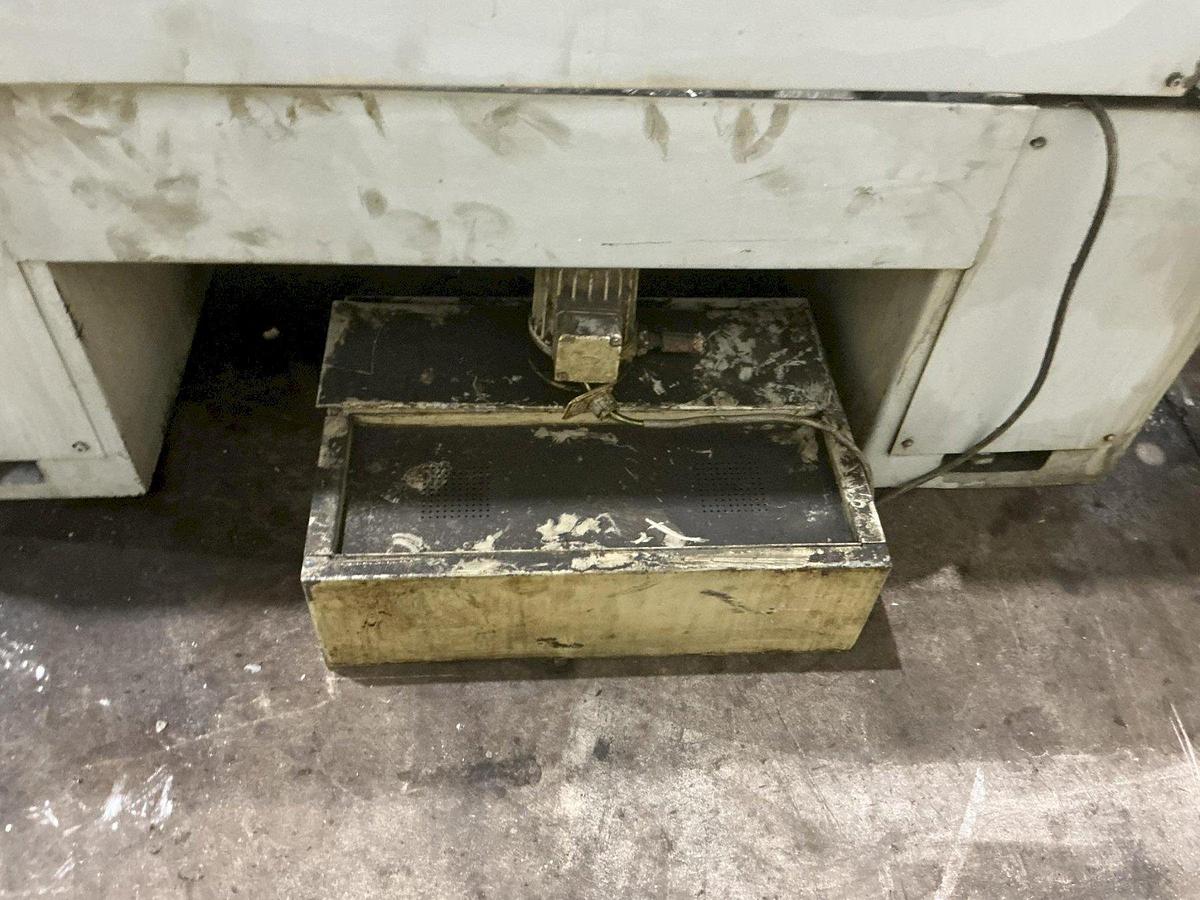

CHIP PAN WITH COOLANT .............. YES

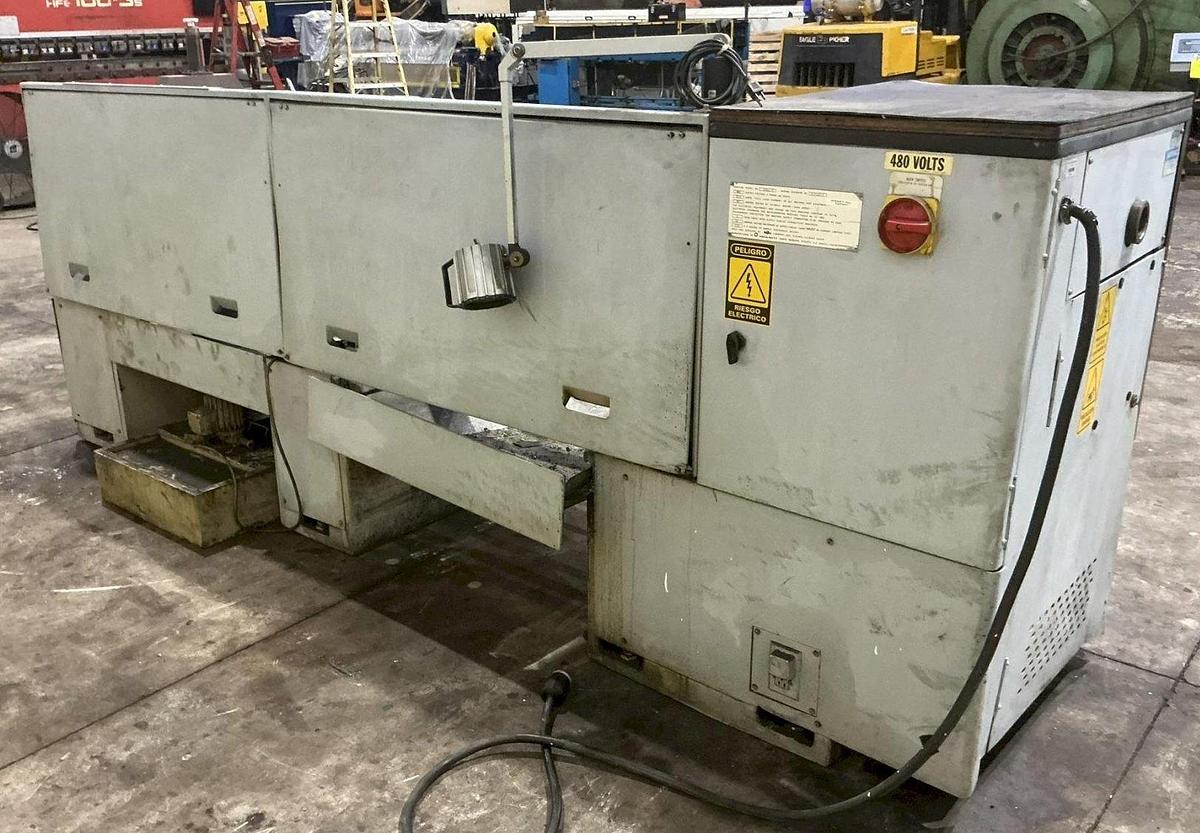

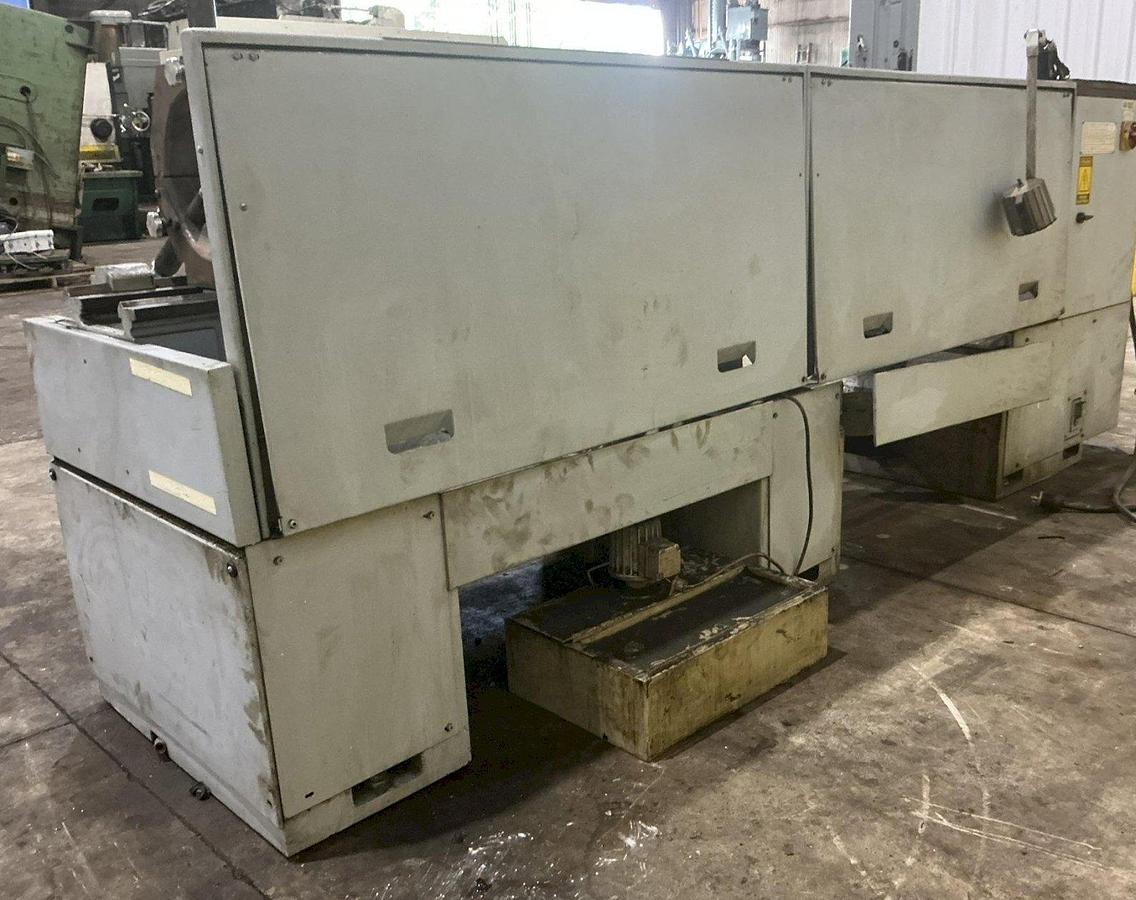

REAR SPLASH GUARD .................. YES

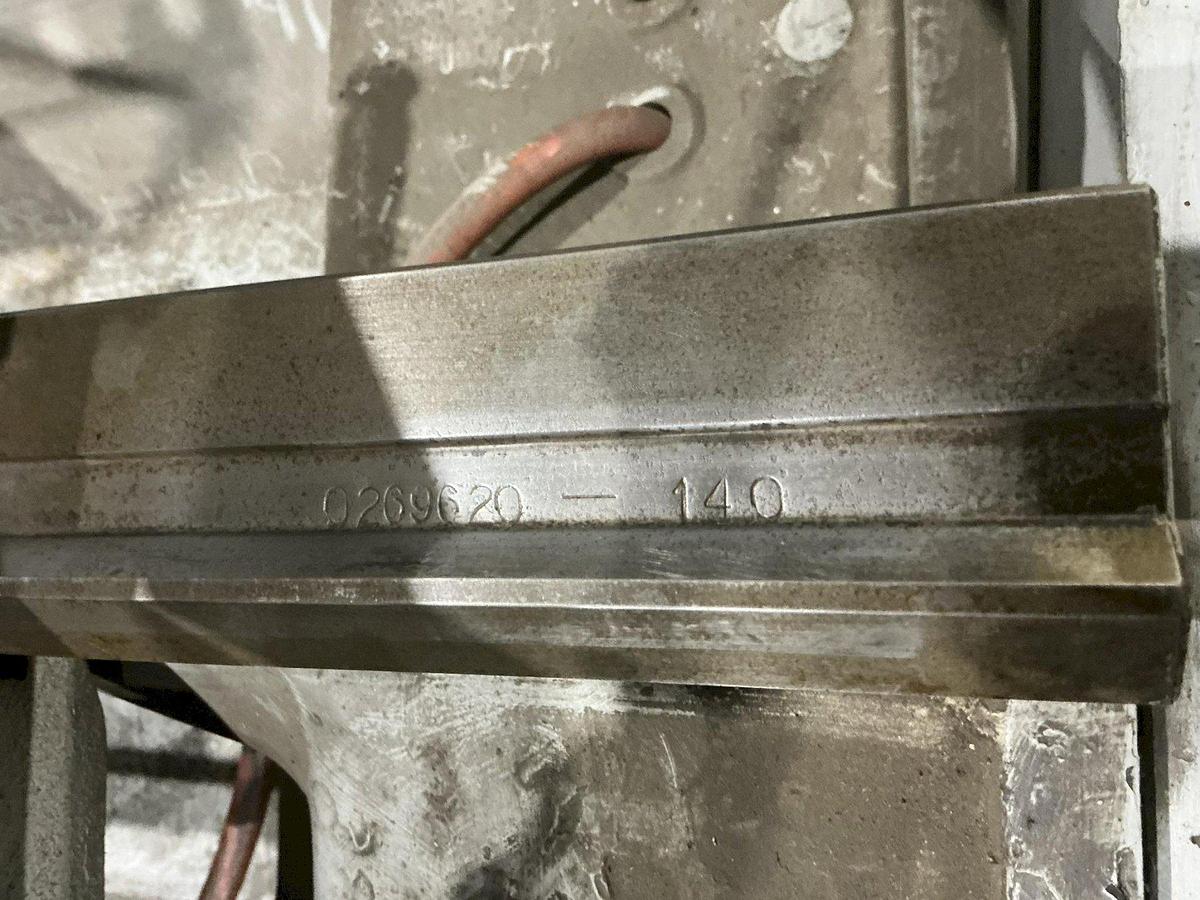

INDUCTION HARDENED WAYS ............ YES

THREAD DIAL ........................ YES

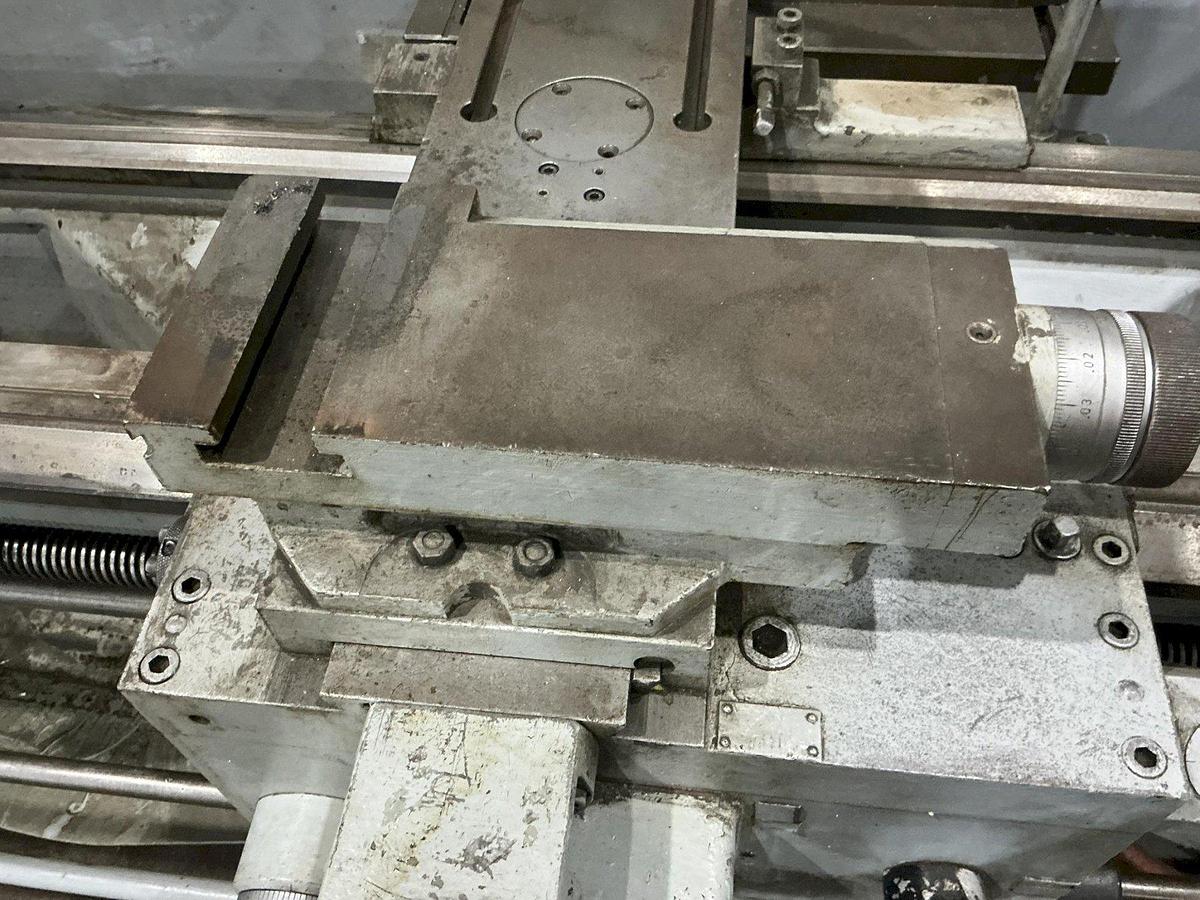

SWIVEL COMPOUND .................... YES

MOTOR .............................. 10 HORSEPOWER
