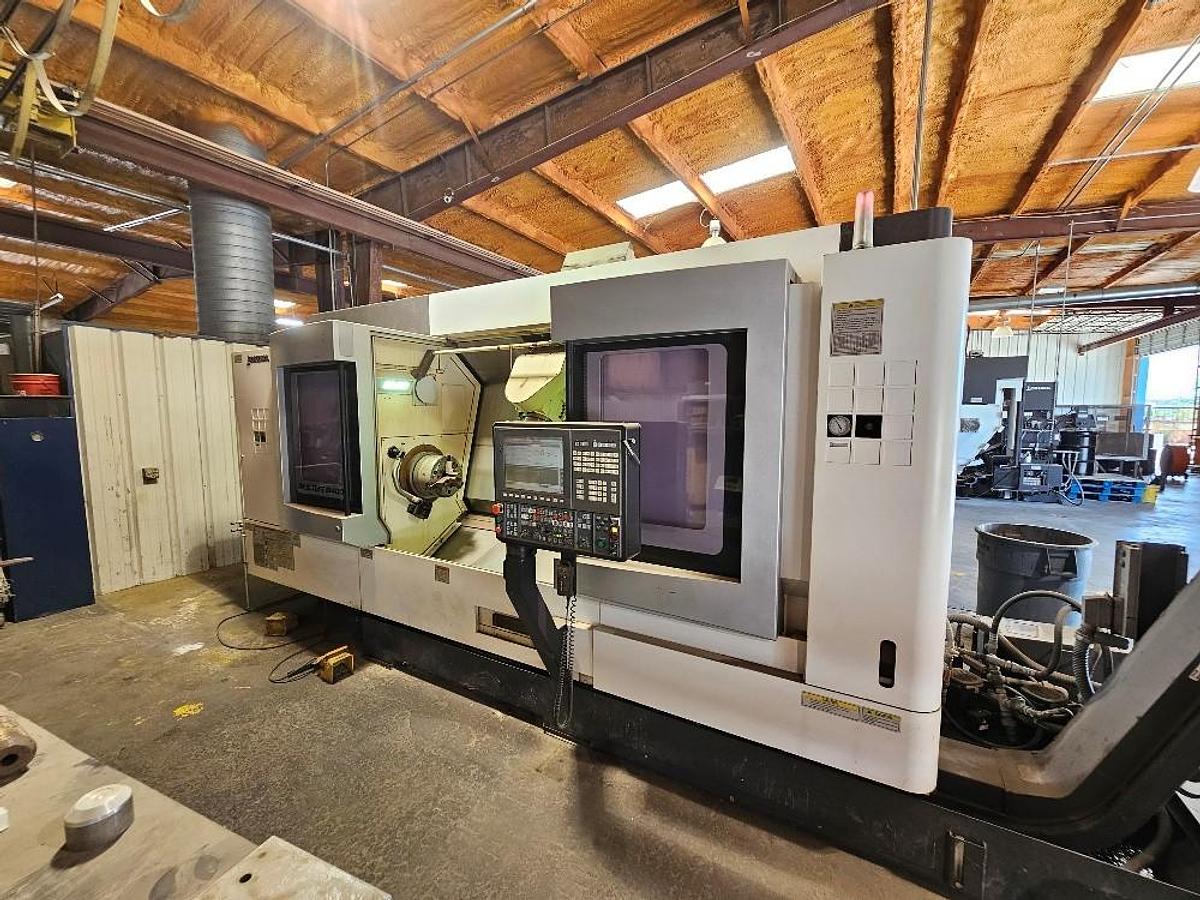

Okuma Multis B400-II-W CNC Lathe

Okuma Multis B400-II-W CNC lathe

Mfg: Okuma

Model: B400-II-W

YOM: 2012

Max Swing Over Saddle: 27.95"

Max Machining Diameter: 27.95"

Main Spindle Chuck Size: 12" Kitagawa B-12" 3-Jaw Power Chuck

sub spindle chuck size: 12" Kitagawa B-12, 12" 3-Jaw Power Chuck

Max Working Distance Between Spindles: 59.06"

X-Axis (Cross Travel): 27.17"

Z-Axis (Longitudinal Travel): 60.83"

Y-Axis Travel: 9.02"

B-Axis (Rotation of Universal Head): 225°

C-Axis (Indexing Positions of Main Spindle): .001°

Spindle Bore: 4.33"

Spindle Nose: A2-11

Spindle Horsepower: 40 HP

SPINDLE SPEED RANGE: 38 - 3,800 RPM

Capacity: 80 Station Capto C6 ATC

Live Tooling Horsepower: 14 HP

Live Tooling Speed Range: 90 - 6,000 RPM

B-axis range: 225°

0.001° with 6,000 rpm:

Main spindle and Sub-spindle: 12" Kitagawa B-15 12" 3-Jaw Power Chuck

5 components for shipping the Multus:

Dimensions Below: L x W x H:

Machine: 193”X9’X9’

Chip Conveyor: 200”X49 1/2”X6’

Chip Blaster: 25 ½”X 54”X 80”

Spindle Chiller: 40 ½”X14 ¼”X39”

Oil Cooler: 17 ¾” X 17”X39”

Weight: 34,000lbs

Okuma OSP P300S CNC Control

Hi-Cut Pro

Hi-G Control

Admac 3D Virtual Monitor

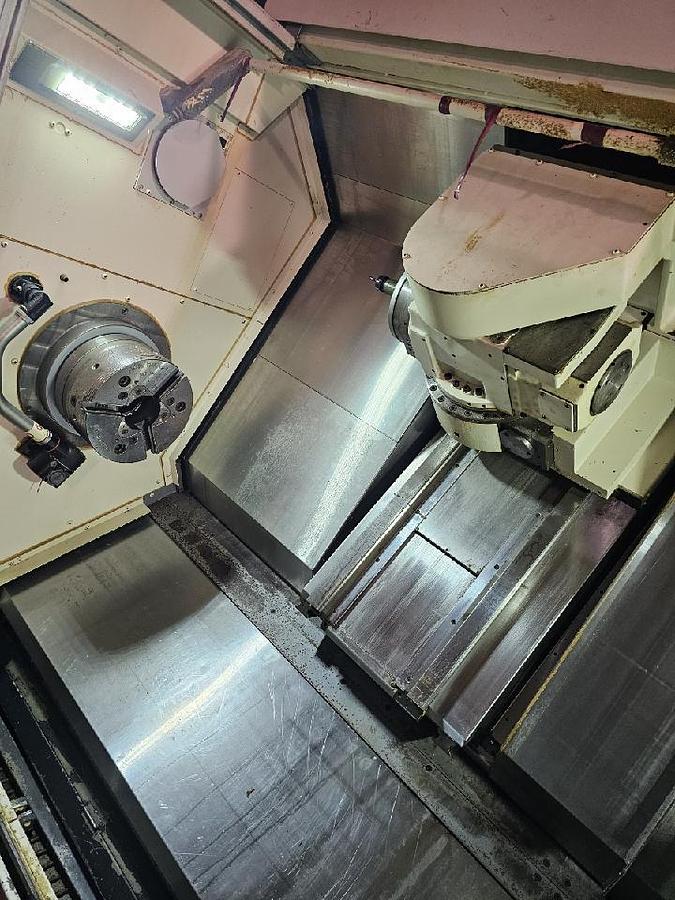

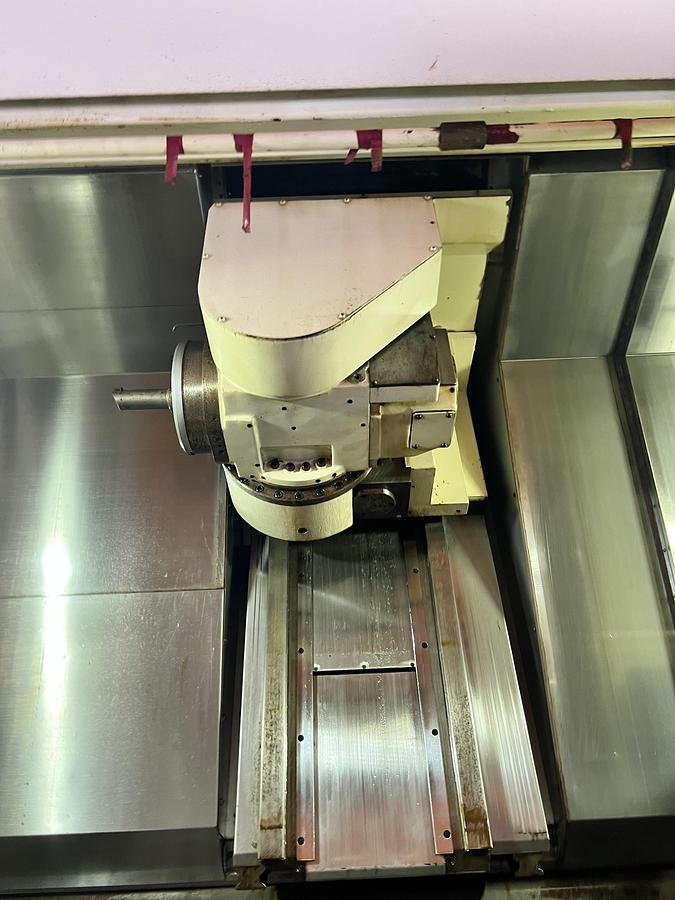

Full Contouring B-Axis Universal Head

Lathe Tool Indexing

Complete with Chip Blaster 1

1000 PSI Coolant Though Spindle

Touch Setter

Touch Sensor

H1 Turret

Elevated Chip Conveyor

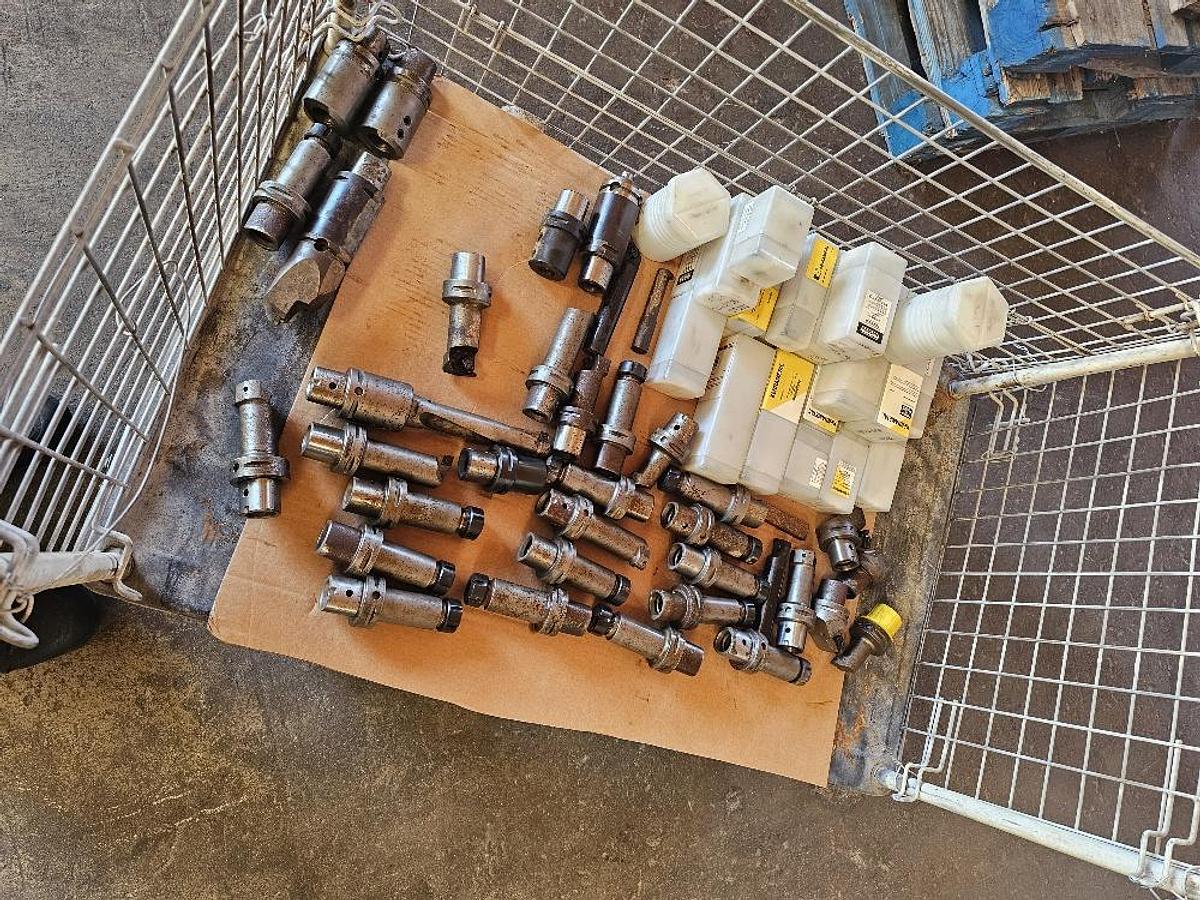

2- Tooling Carts with Tooling

EQUIPPED WITH:

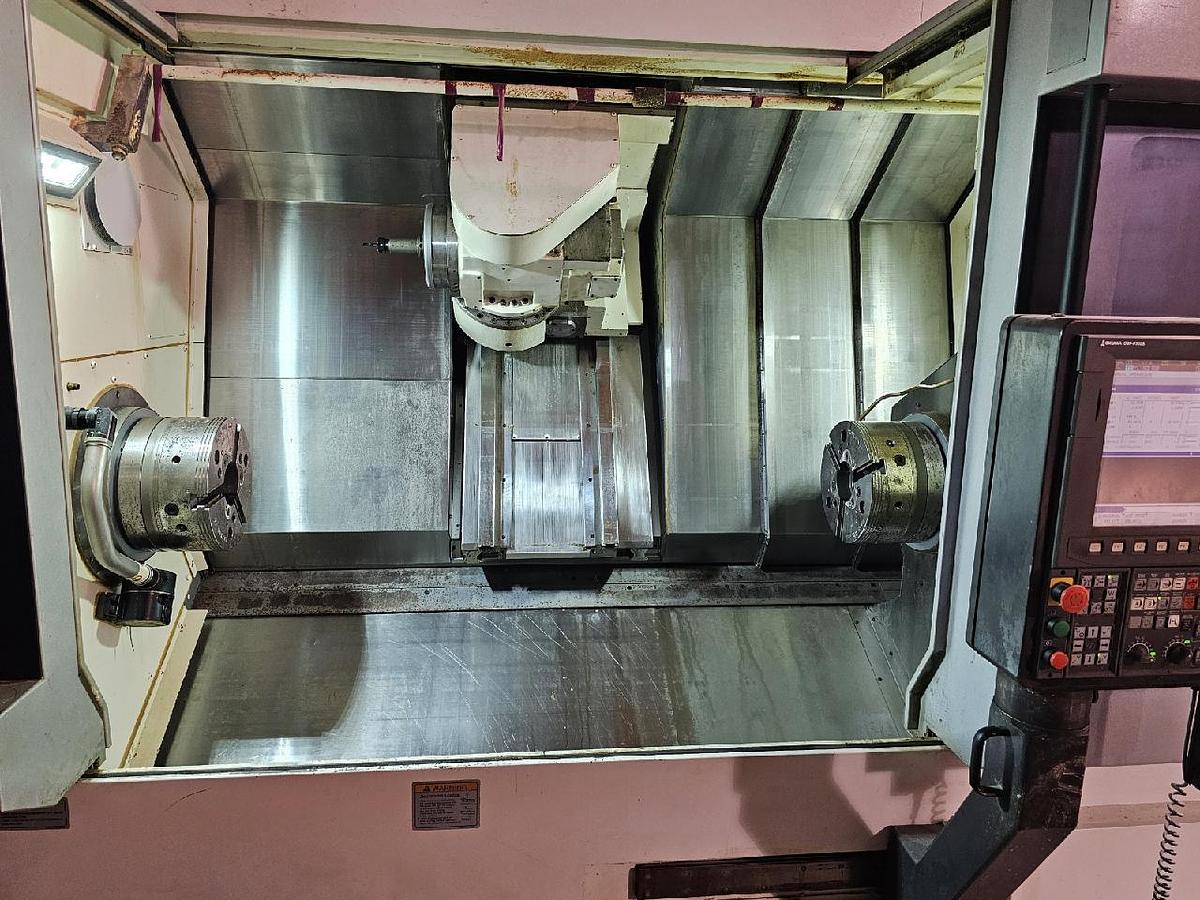

Universal head, sub-spindle, live tooling, and Y-axis. . Equipped with features such as Hi-Cut Pro, Admac 3D monitor, 80 station ATC.

Ball bar test results available done on all Axis's. and spindle tested.

ALL SPECIFICATIONS SUBJECT TO BUYERS VERIFICATION
