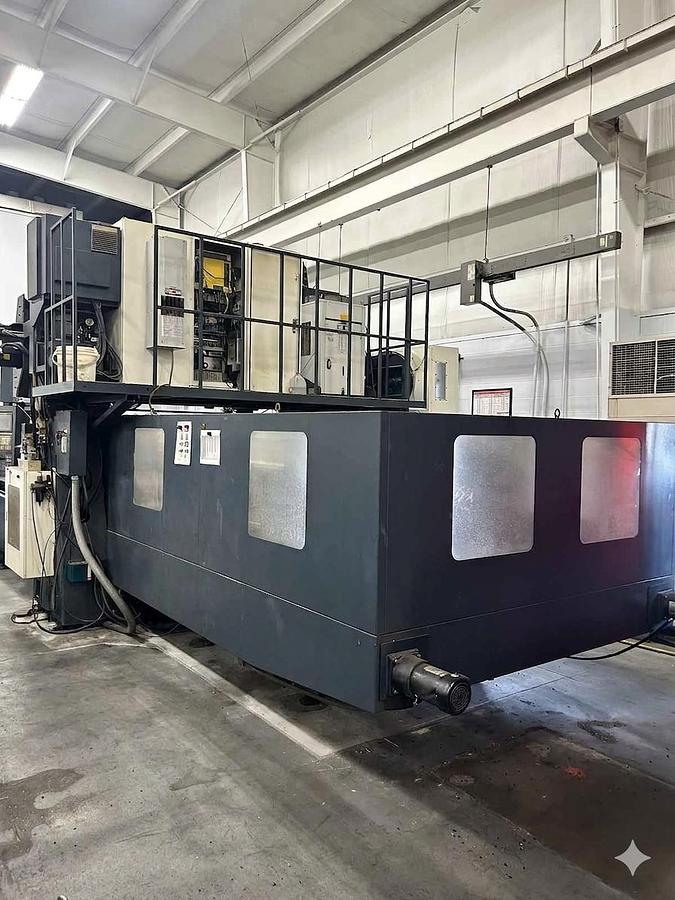

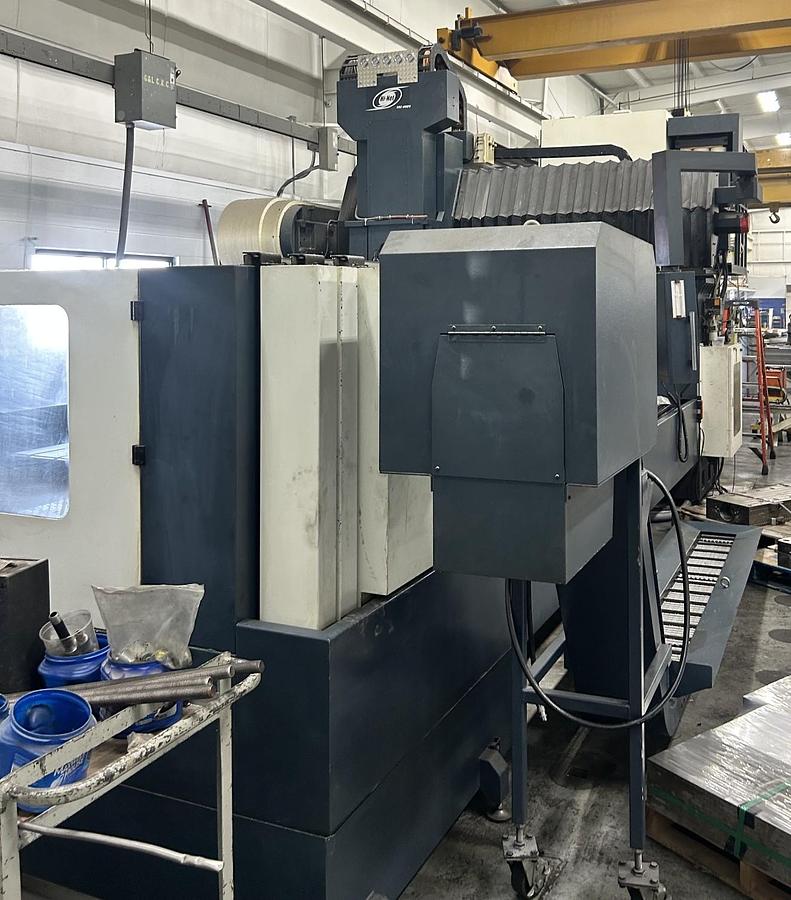

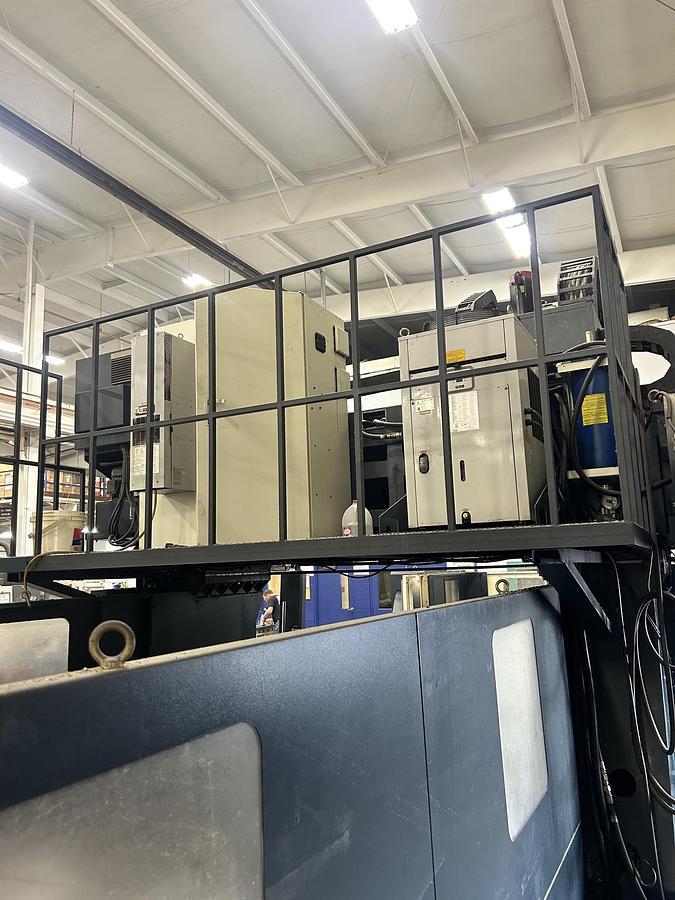

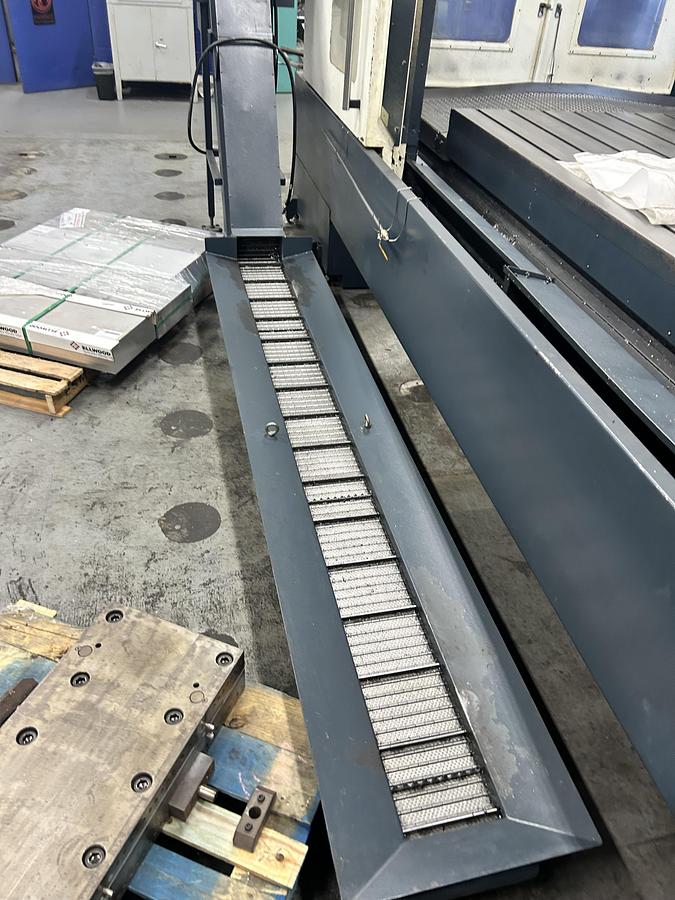

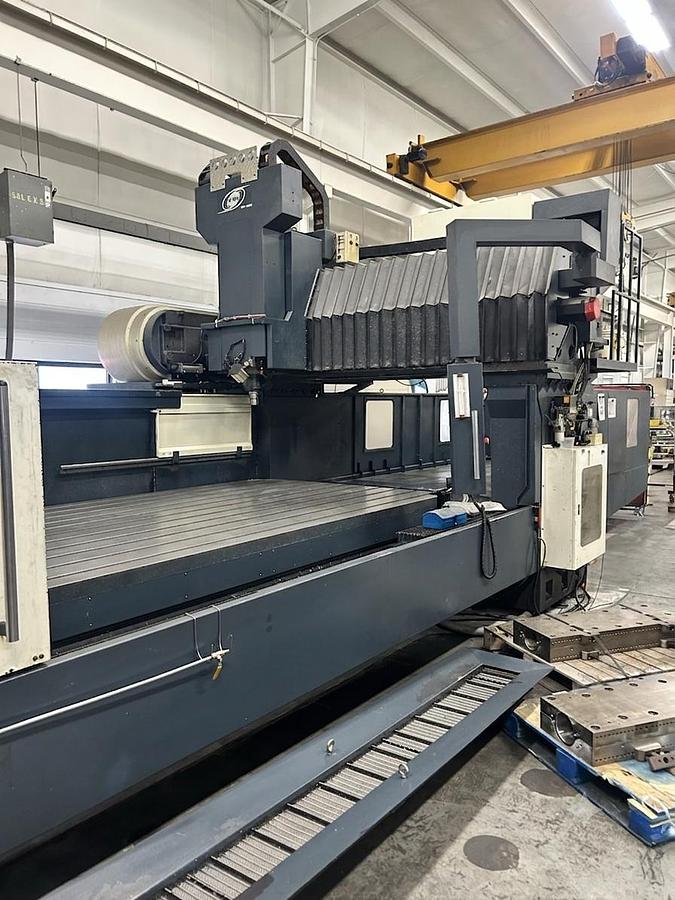

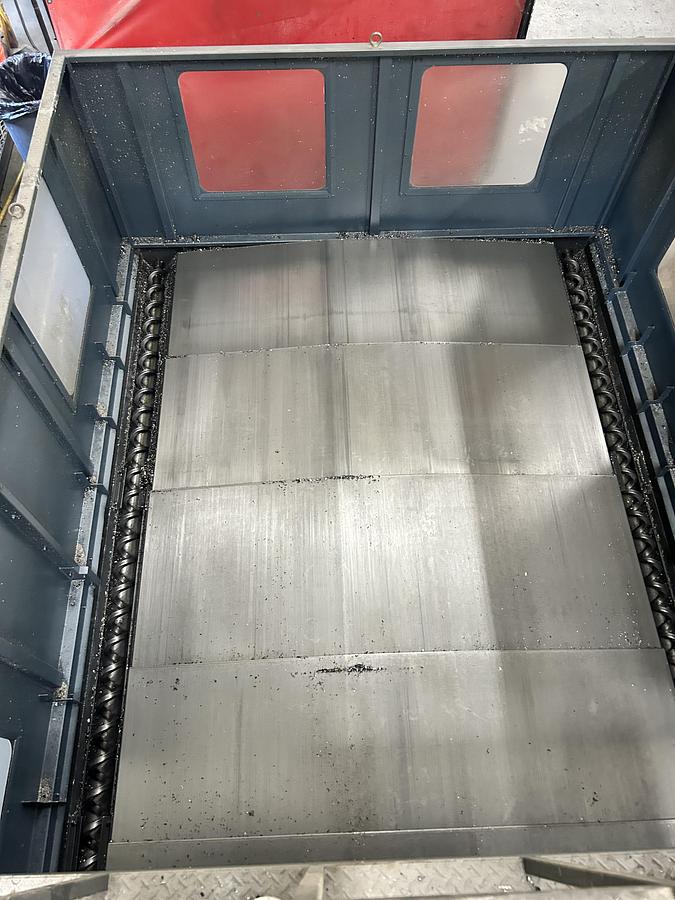

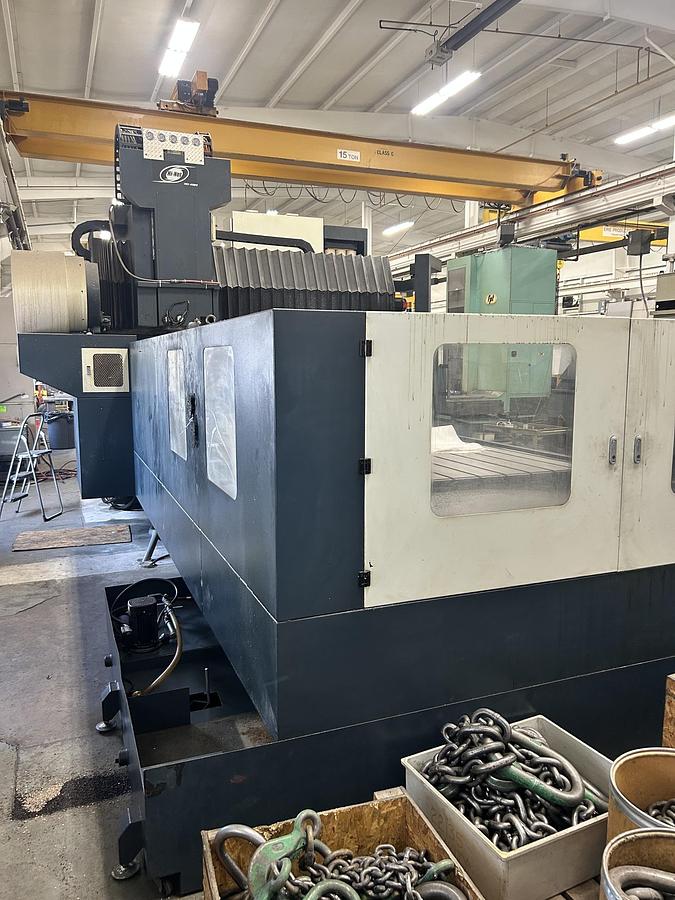

Johnford 3-Axis DMC-4100PH Hi-Net Double Column Vertical Machining Bridge Mill

2006 Johnford 3-Axis DMC-4100PH Hi-Net Double Column Vertical Machining Bridge Mill

Mfg: Johnford

Model: DMC-4100 PH Hi-Net

YOM: 2006

Travel Specifications

• X-Axis Travel: 161.4 inches
• Y-Axis Travel: 90.5 inches
• Z-Axis Travel: 31.5
• Distance Between Columns: 95.0 to 110.2 inches

Spindle Specifications

• Spindle Taper: HSK-100A
• Spindle Motor: 32/42 HP
• Spindle Speed: Standard 15,000 RPM

Table & Capacity

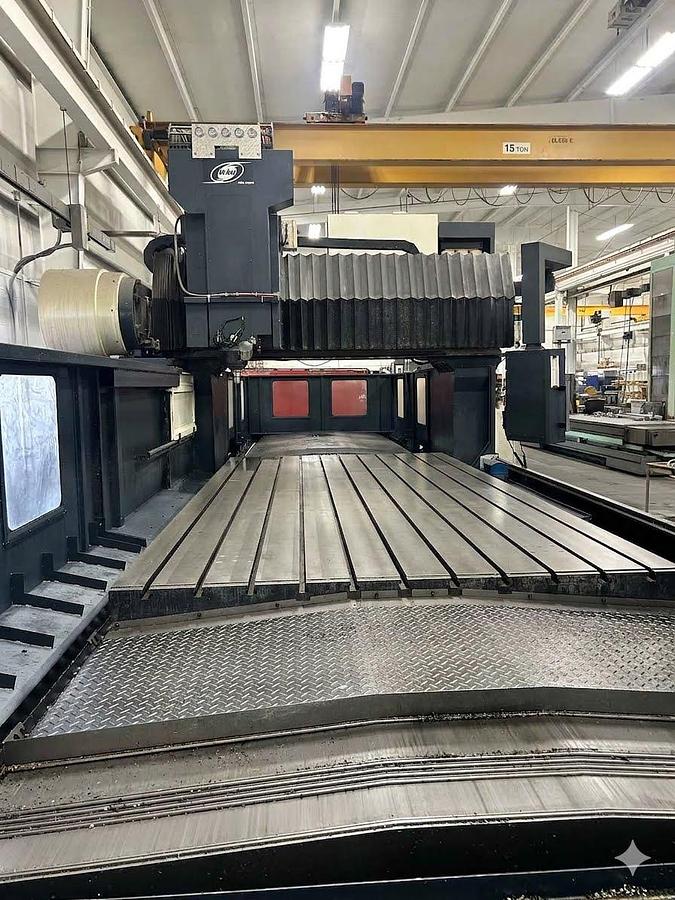

• Table Load Capacity: 22,000 lbs.

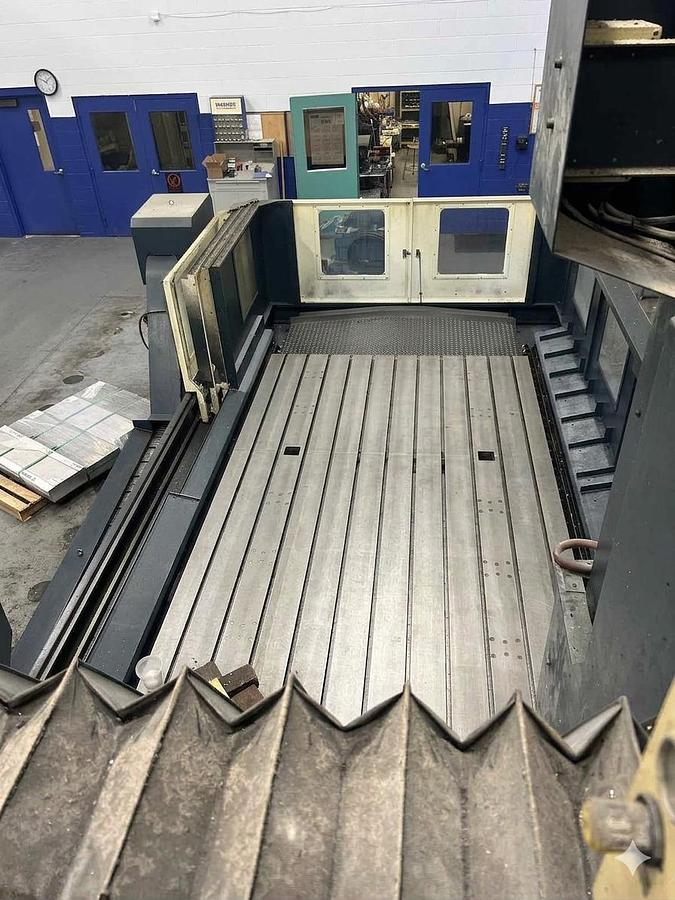

• Table Dimensions: 165.3" x 80.7"

Tooling & Motion

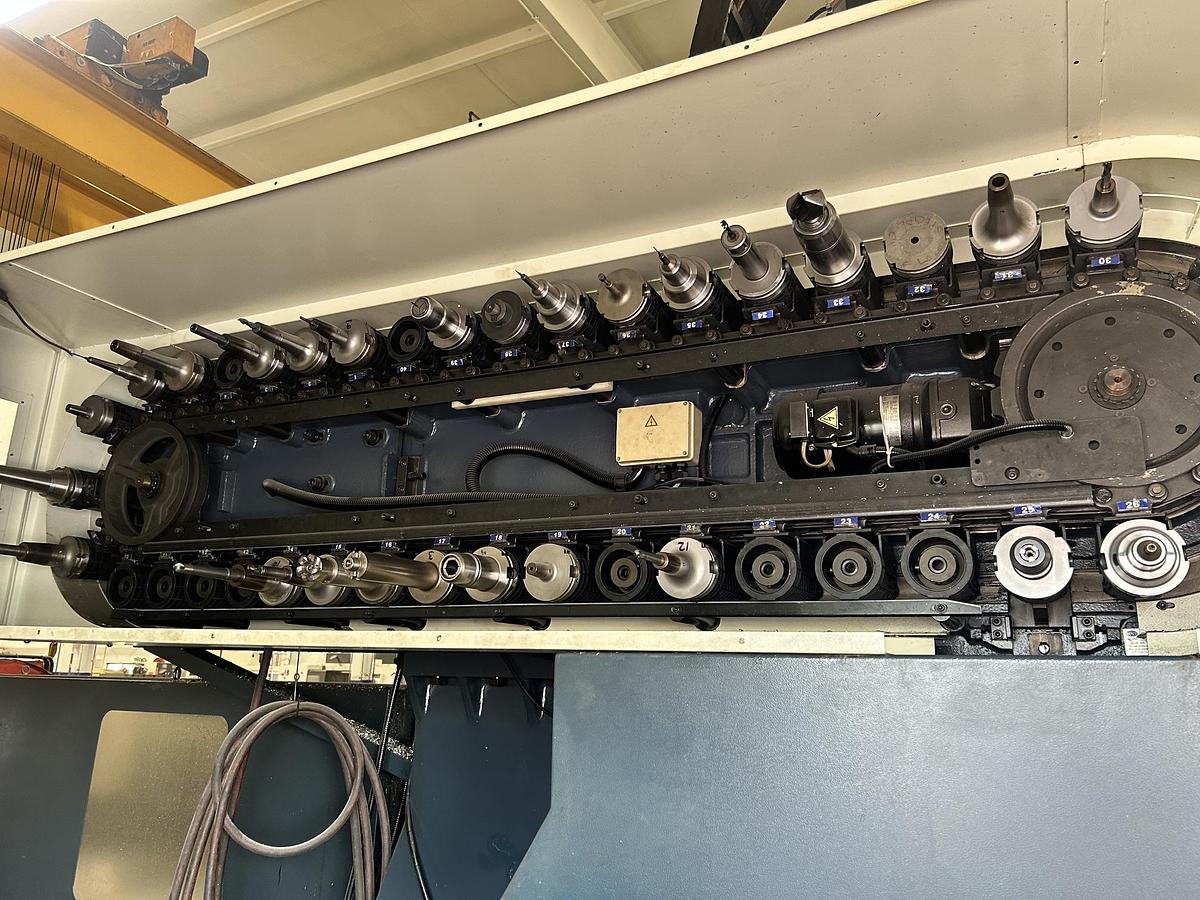

• Automatic Tool Changer (ATC): Standard 40-tool capacity (up to 60+ optional)
• Rapid Traverse Rate (X, Y, Z): 472 in/min

Equipped with:

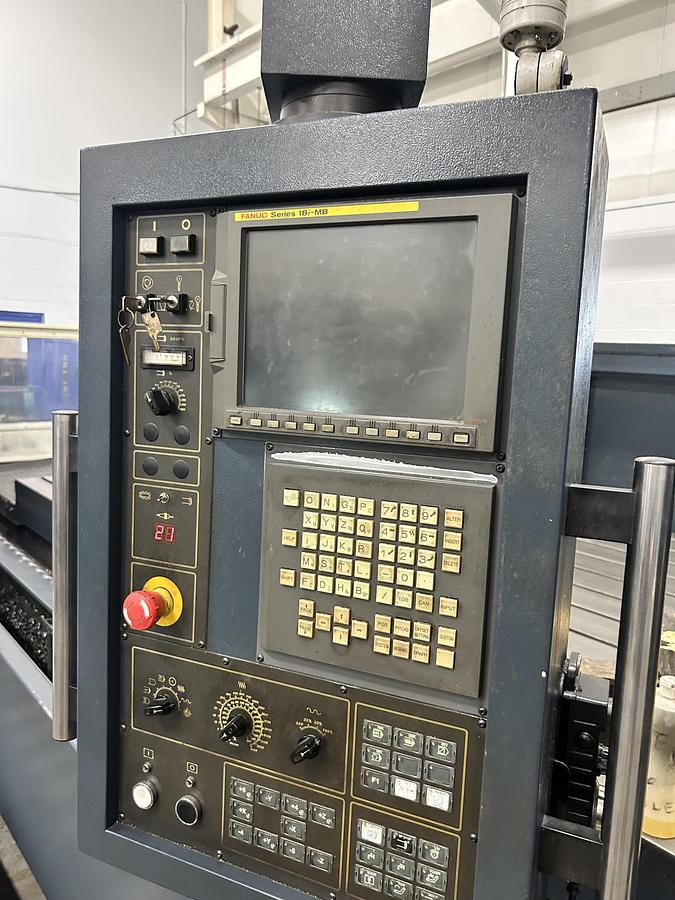

Hi-Net option for are Massive, heavy-duty moving-table bridge mill designed for large-part gantry machining, Fanuc Series 18i-MB Control , Marposs Mida Laser 75 non-contact laser tool setting system.

ALL SPECIFICATIONS SUBJECT TO BUYER'S VERIFICATIONS.
