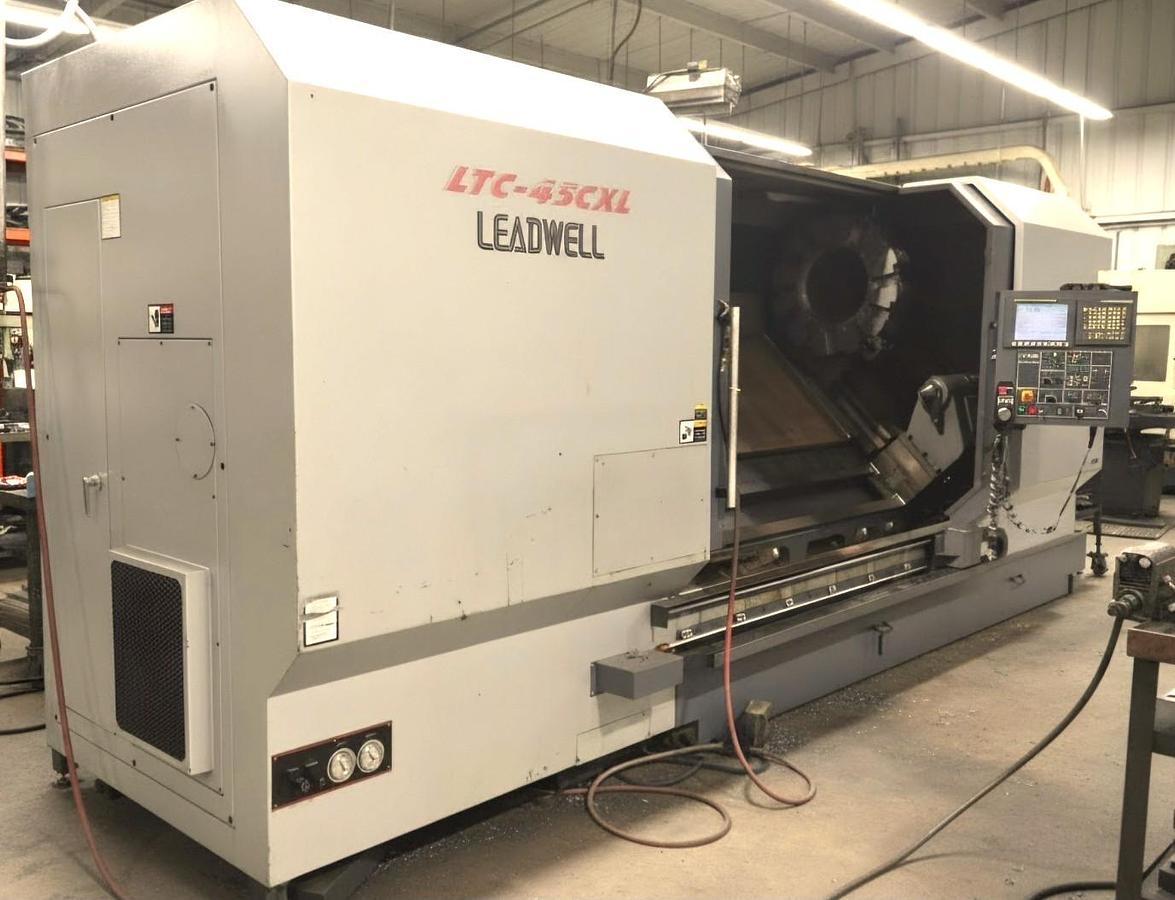

Leadwell Model LTC 45CXL CNC Slant Bed Turning Center

Leadwell Model LTC 45CXL CNC Slant Bed Turning Center

Swing Over Bed: 29.1"

Swing Over Cross Slide: 27.5"

Max Turning Diameter: 25.6"

X-Axis Travel: 12.5"

Z Axis Travel: 83.0"

Max. Turning Length: 79.9"

X-Axis Feedrate: 590 IPM

Z-Axis Feedrate: 787 IPM

Spindle Bore: 5.0"

Bar Capacity: 4.5"

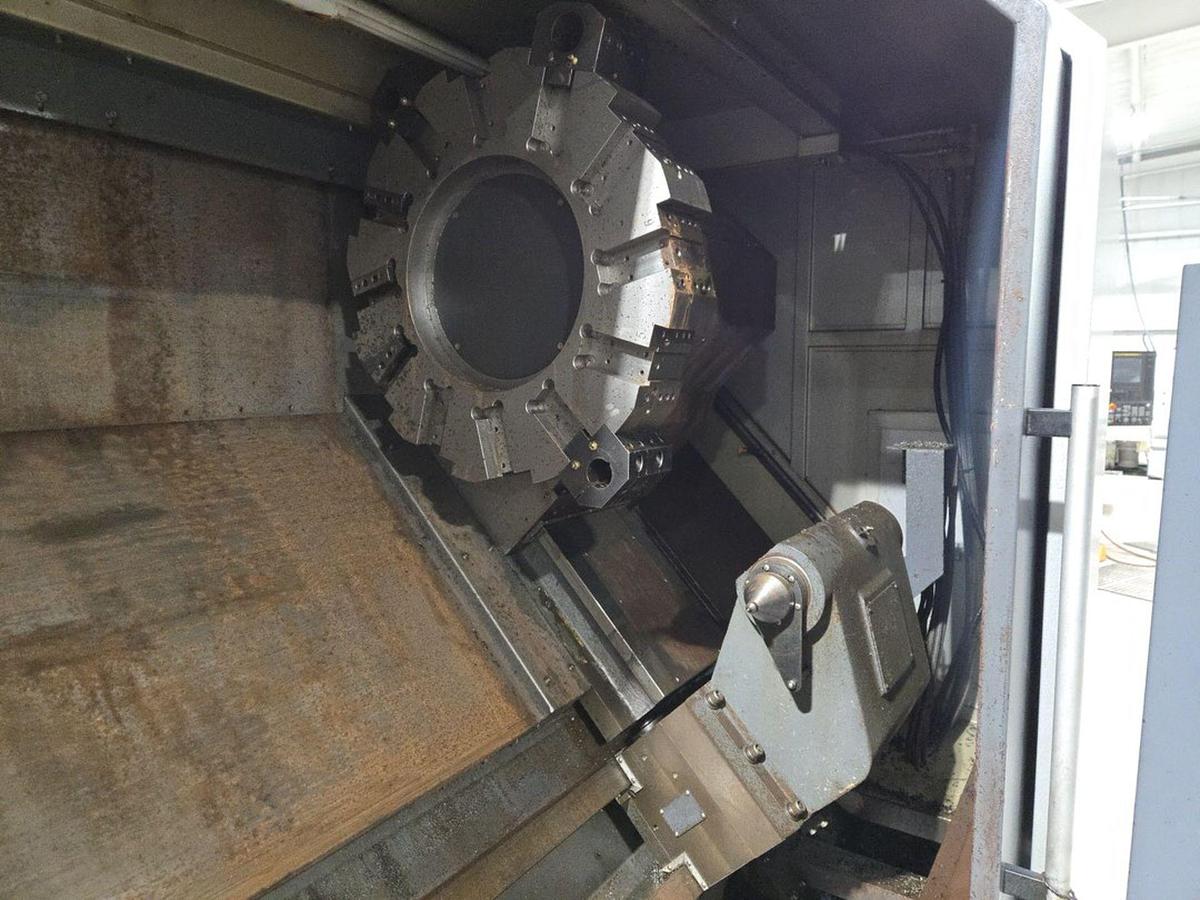

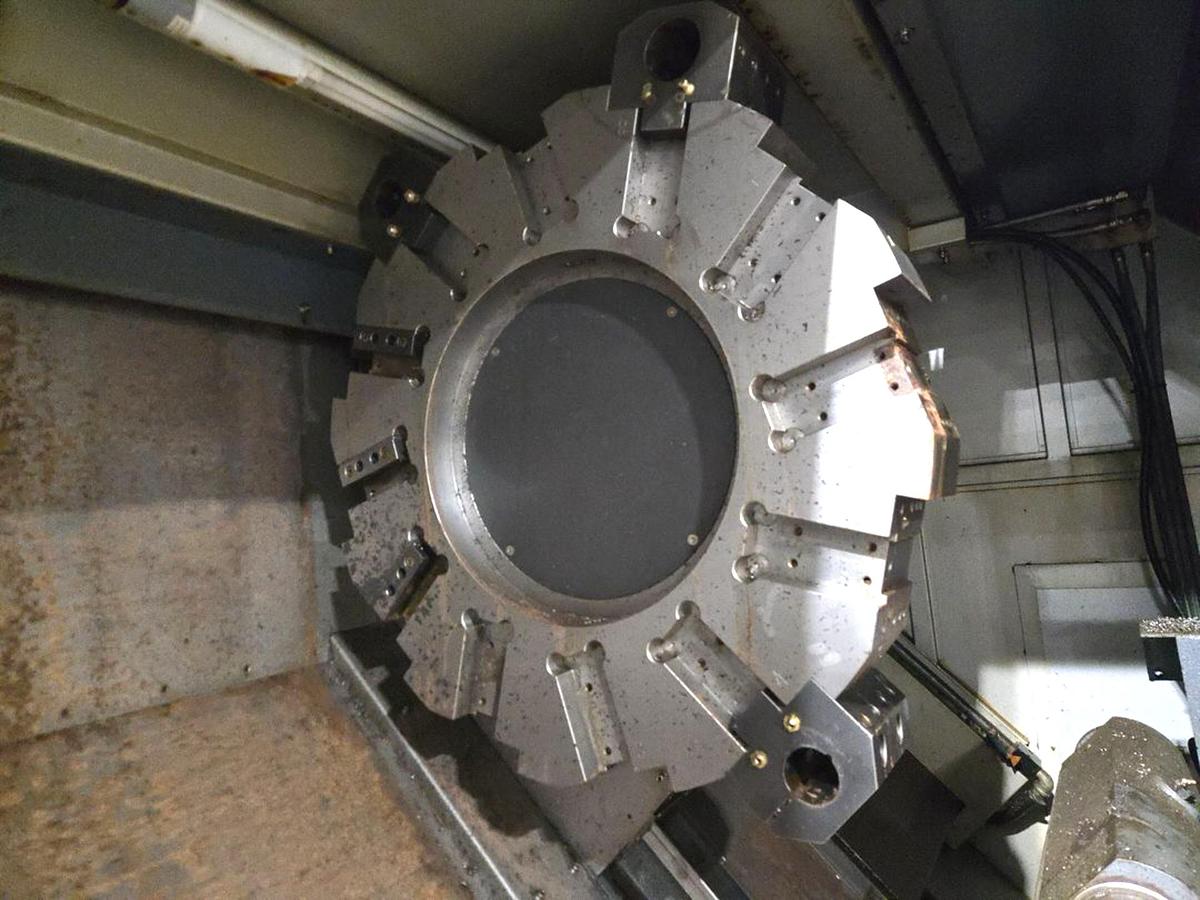

Turret Positions: 12

Spindle Nose: A2-11

Spindle Speeds: 2,000 RPM

Main Motor Drive: 50 HP

Equipped with:

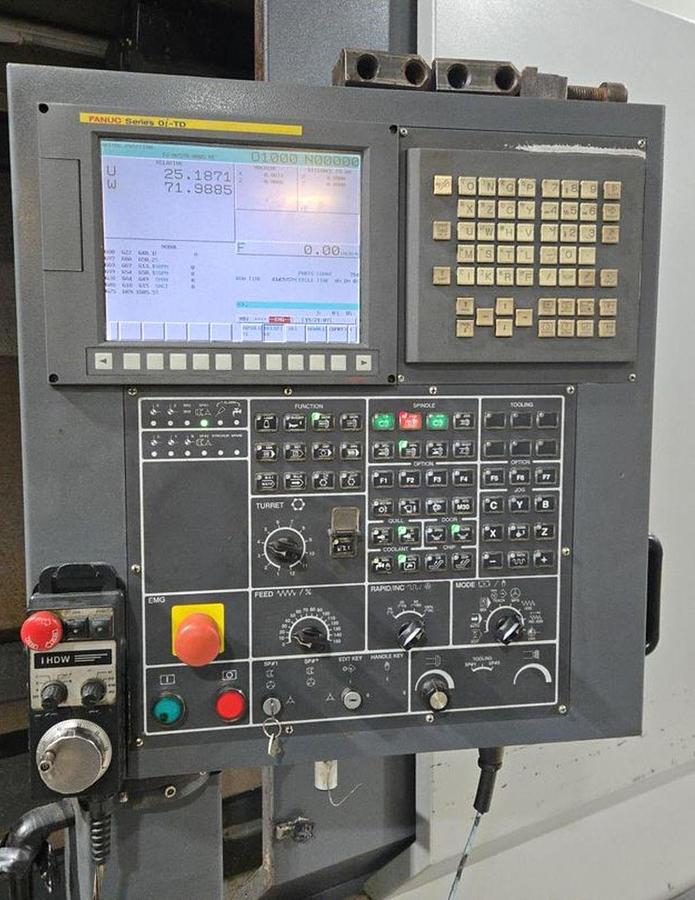

Fanuc 0iTD CNC Control

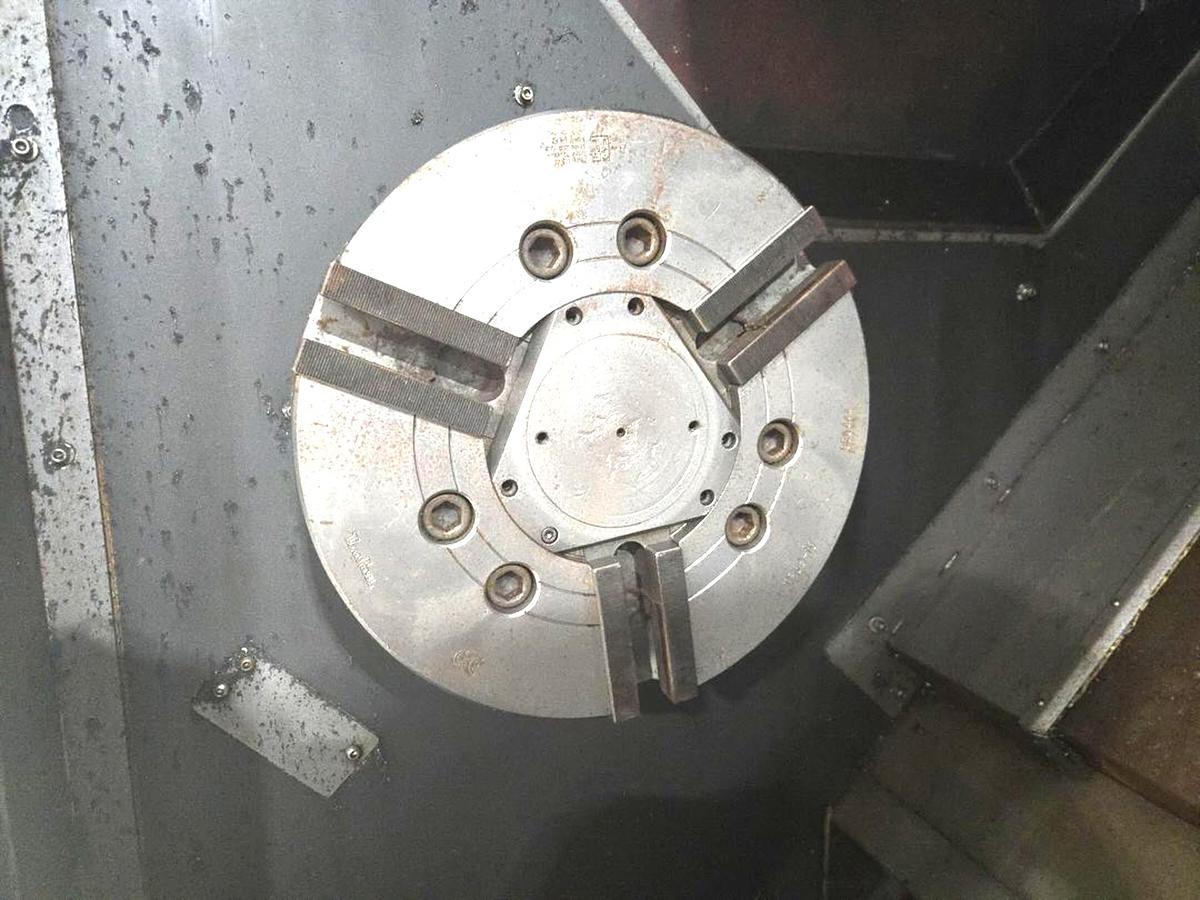

15" 3-Jaw Power Chuck

45 Degree Slant Bed Construction

Chip Conveyor and Bucket

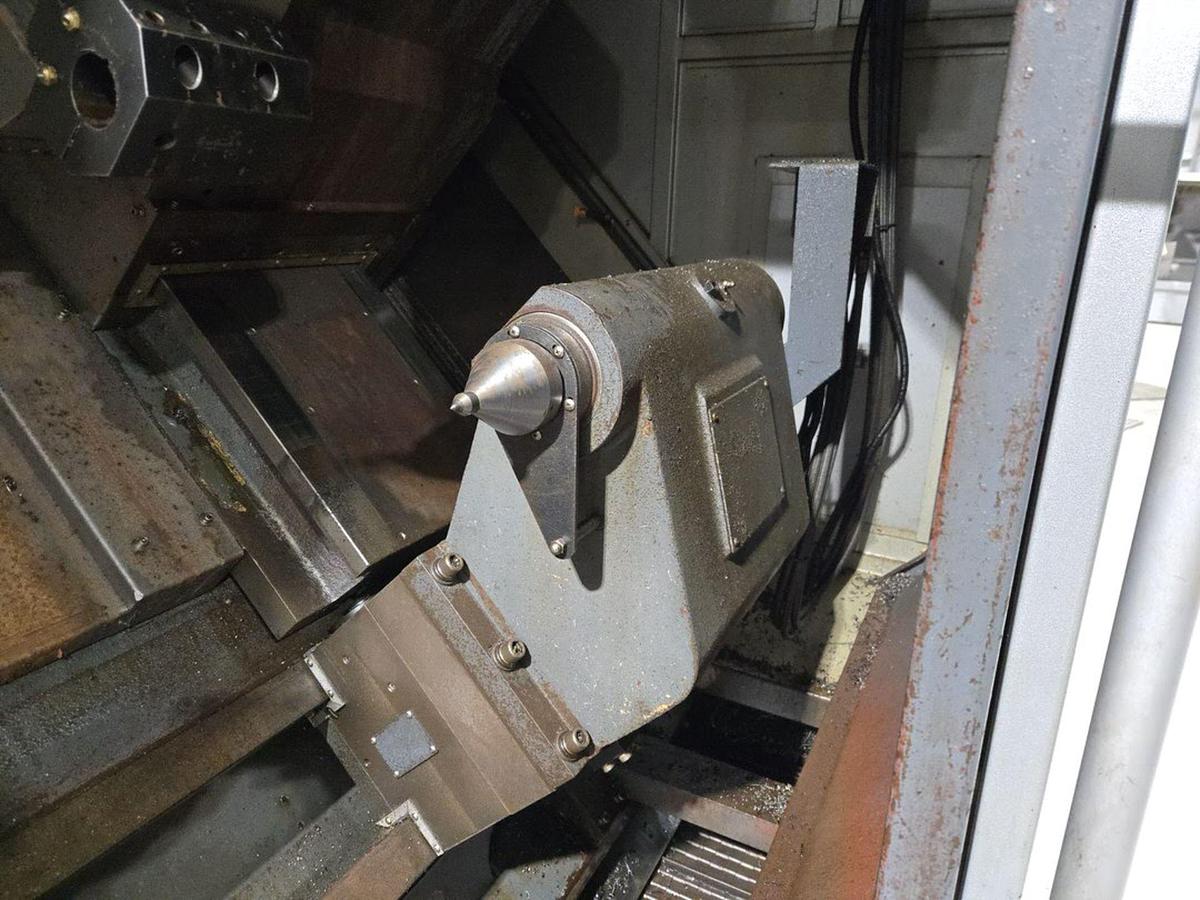

Programmable Tailstock Body

Flood Coolant Unit

Rigid Box Way Construction
