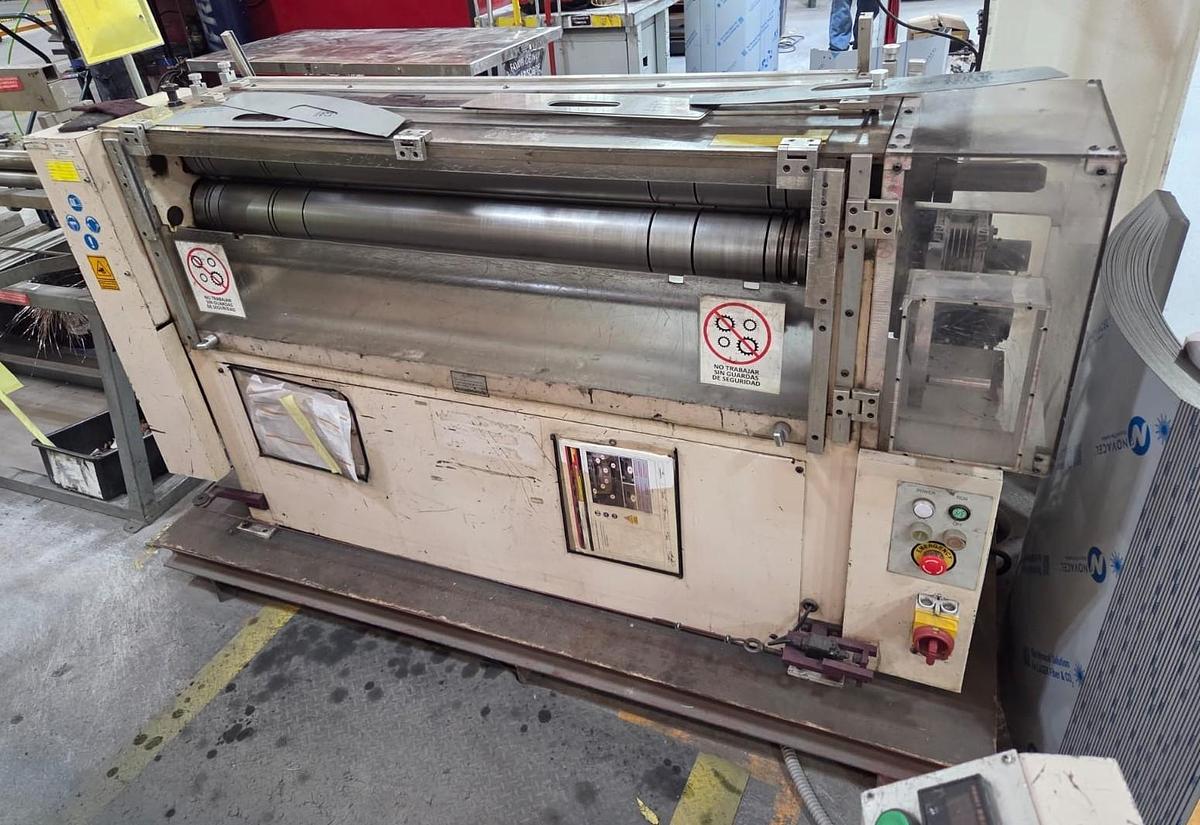

4' x 3/16" GMC (Gallop Machines Corp.) Heavy-Duty Power Bending Roll, Model: PBR-04316

4' x 3/16" GMC (Gallop Machines Corp.) Heavy-Duty Power Bending Roll

Model: PBR-04316

Mild Steel Capacity: 4' 3" x 3/16"

Stainless Steel Capacity: 4' 3" x 10 Gauge

Soft Aluminum Capacity: 4' 3" x 5/16"

Minimum Bending Thickness: 26 Gauge

Roll Diameter: 4-3/4"

Minimum Bending Diameter: 6"

Pre-bend Capability: 0.16"

Roll Opening Maximum: 1/2"

Roll Bending Speed: 20 feet per minute

Main Motor: 3 HP

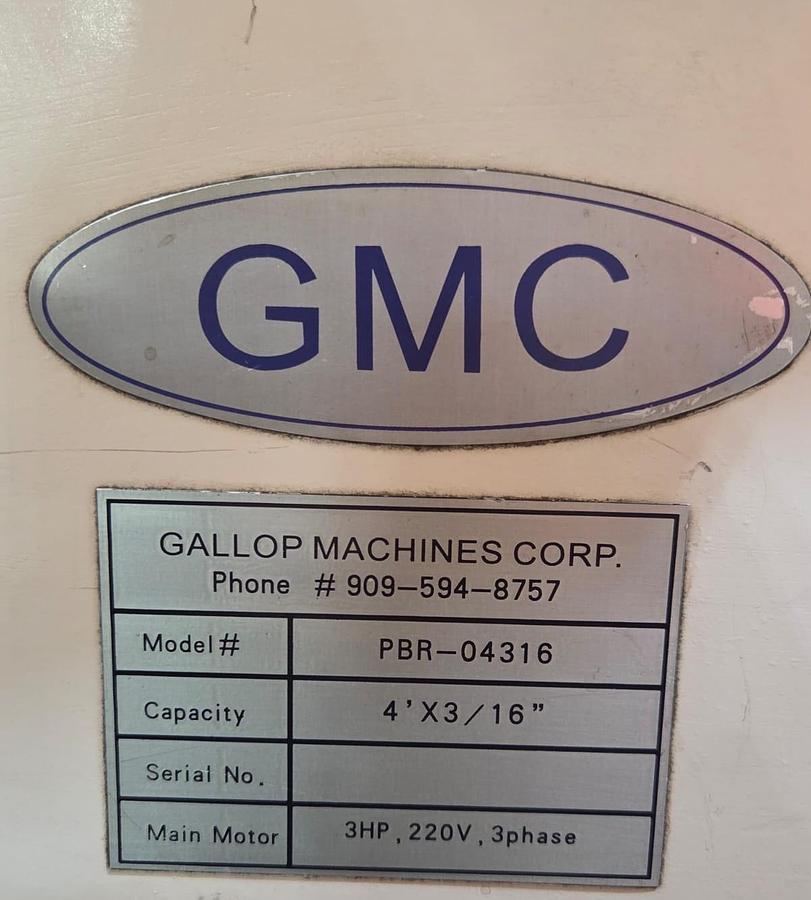

Electrical Configuration: 220V, 3-Phase (Note: Nameplate shows it is pre-wired for 220V 3-phase, though some units have a 440V option)

Hardened Rolls: All 3 rolls are hardened up to 50-52 HRC.

Driven Rollers: All 3 rollers are fully driven for precise grip and high accuracy.

Wire Grooves: Built-in grooves measuring 3/8", 1/2", and 5/8" on the rollers for rolling wire or rod.

Crowned Rollers: The middle 1/3 of the roller length is straight, while both ends feature slight crowning to achieve ideal round alignment during heavy use.

Safety Mechanisms: Perimeter safety cable line around the machine for instant emergency stops.

Material Removal: Equipped with an easy swing-out top roller to smoothly unload completed cylinders.

Approximate Weight: 2,750 lbs.

Overall Physical Footprint: 78" L x 30" W x 52" H

All Specifications Subject to Buyer's Verification
