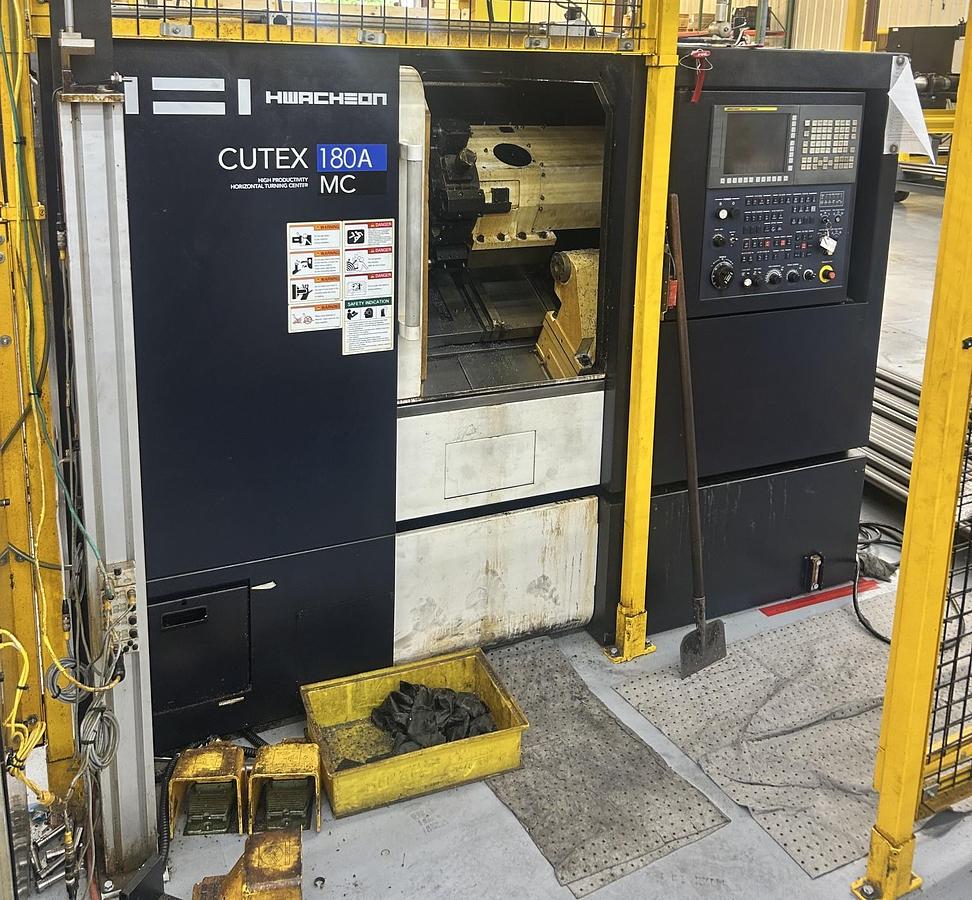

2017 Hwacheon CUTEX-180A MC Horizontal CNC turning center (Live Tooling)

2017 Hwacheon CUTEX-180A MC Horizontal CNC turning center (Live Tooling)

Mfg: Hwacheon

Model: CUTEX-180A MC

YOM: 2017

Capacity & Workpiece Dimensions

Chuck Size: 6 inches

Swing Over Bed: Ø 545 mm (21.46 inches)

Maximum Cutting Diameter: Ø 300 mm (11.81 inches)

Standard Cutting Diameter: Ø 206 mm (8.11 inches)

Maximum Cutting Length: 278.5 mm (10.96 inches)

Maximum Bar Size Capacity: Ø 51 mm (2.01 inches)

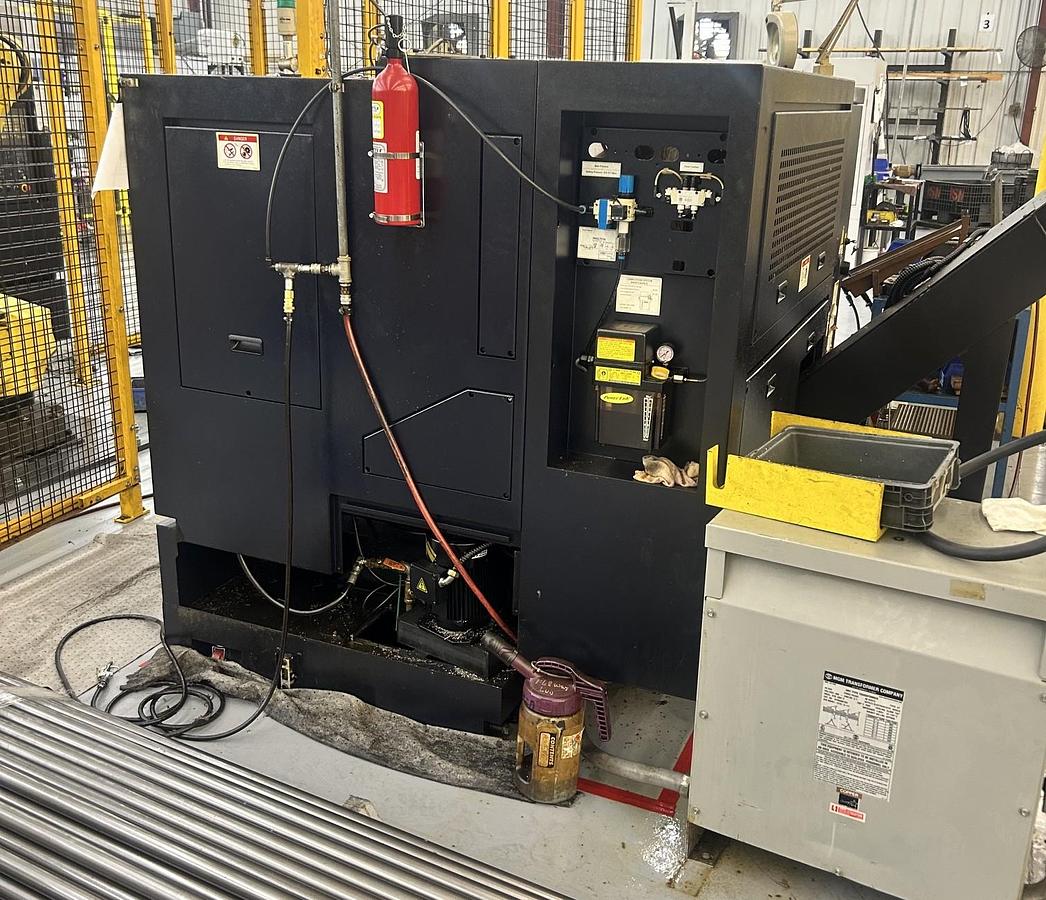

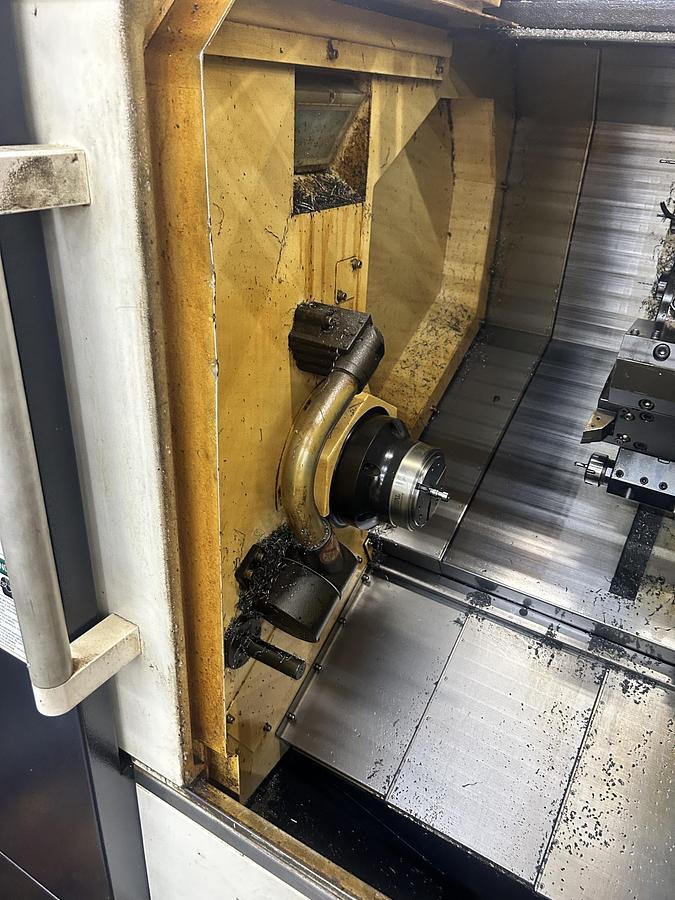

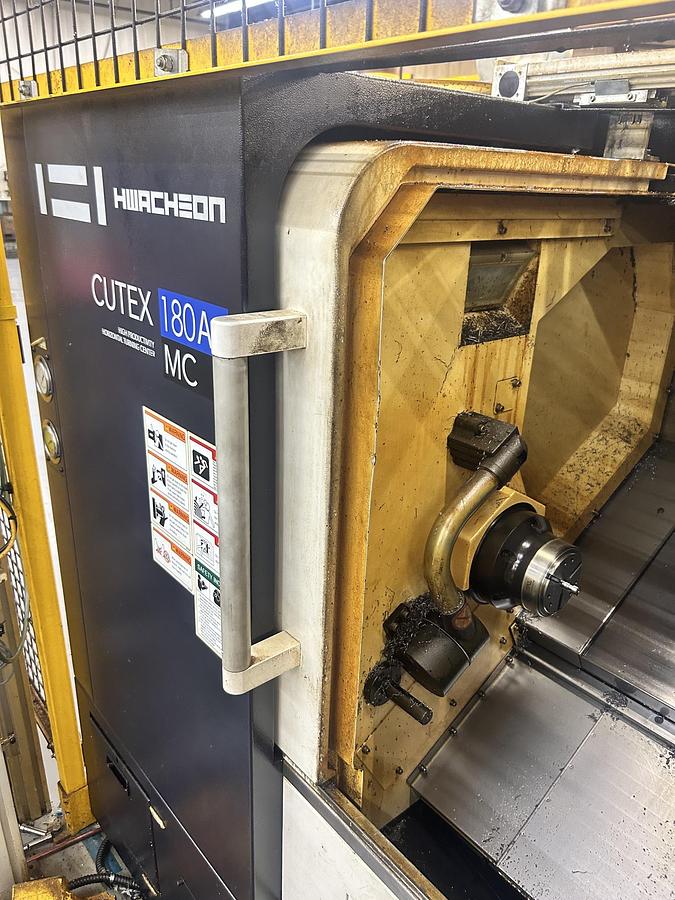

Main Spindle & C-Axis

Maximum Spindle Speed: 6,000 RPM

Spindle Motor Power: 15 kW / 11 kW (20 HP / 15 HP)

Maximum Spindle Torque: 143.1 Nm

Spindle Nose Type: ASA A2-5

Through Spindle Hole Diameter: Ø 62 mm (2.44 inches)

C-Axis Control: Full contouring C-axis for driven-tool synchronizatio

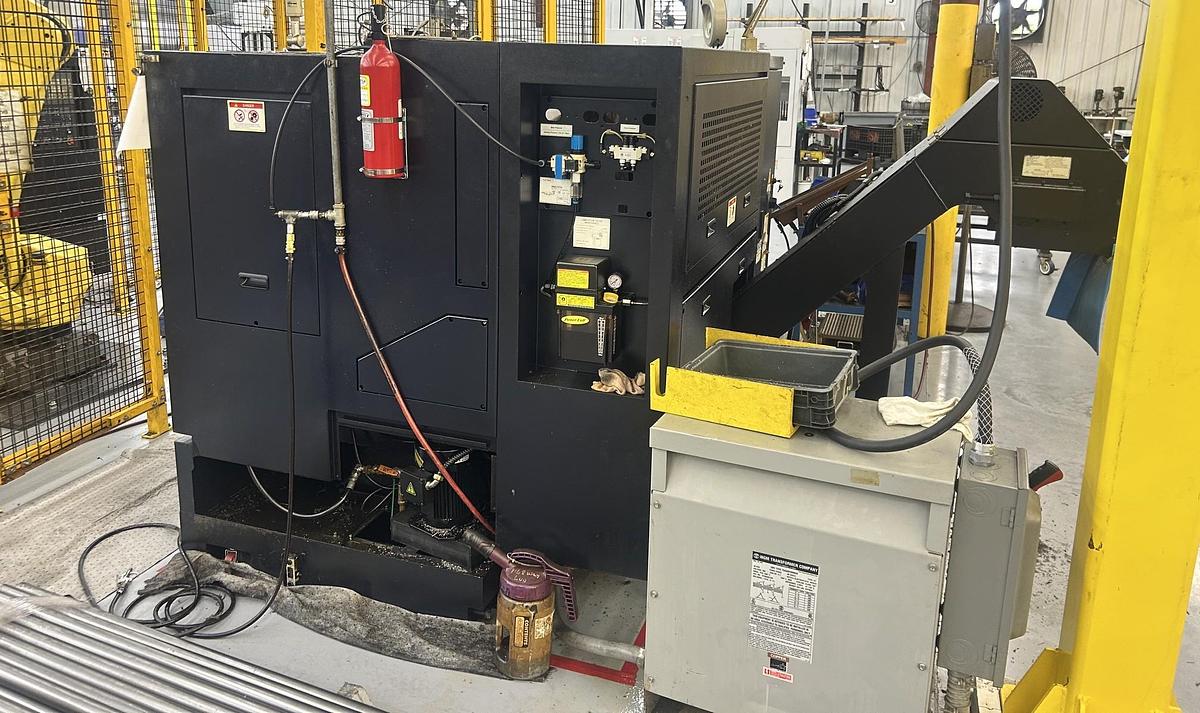

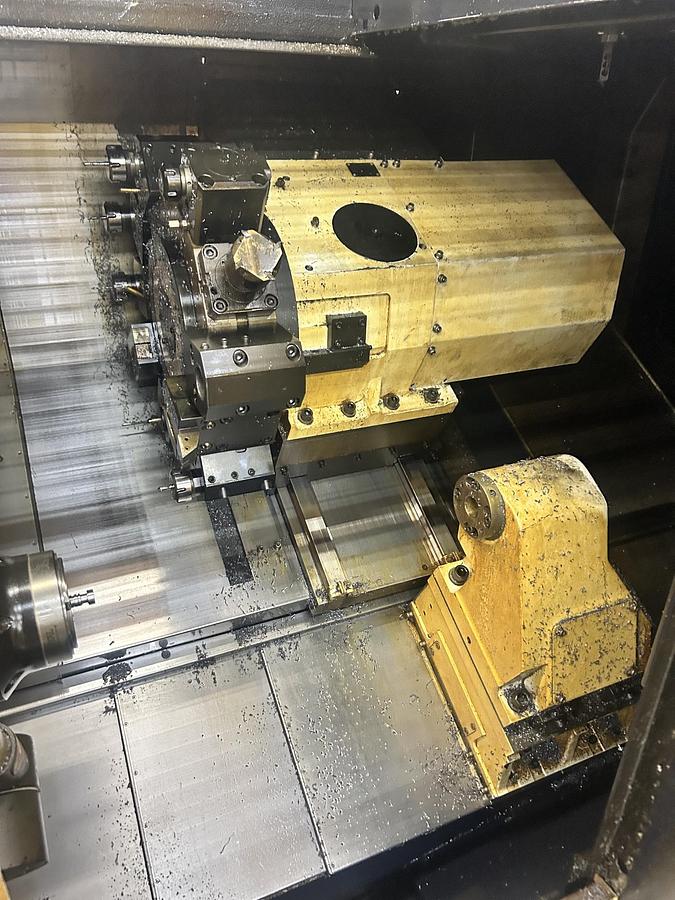

Turnmill Turret & Driven Tools

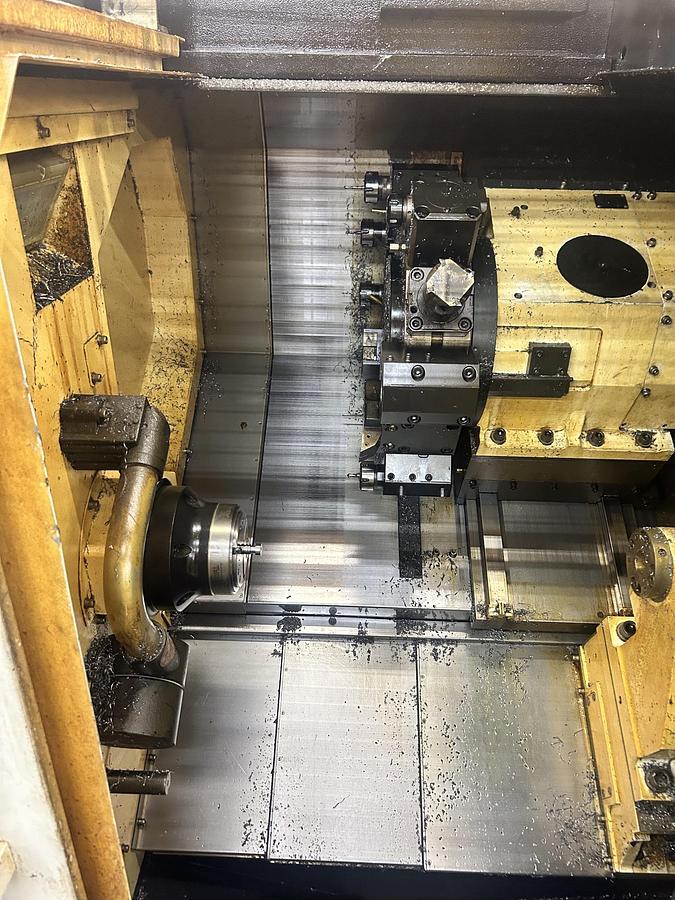

Turret Interface: BMT55 rigid tool disk

Number of Tool Stations: 12 Stations (with optional 24-position indexing capability)

Turnmill (Live Tool) Motor: 5.5 kW / 3.7 kW (7.5 HP / 5 HP)

Maximum Driven Tool Speed: 5,000 RPM

Turret Indexing Time: 0.344 seconds/step

Tool Shank Sizes: O.D. Square: 25 mm (1") | I.D. Boring Bar: Ø 40 mm (1.5")

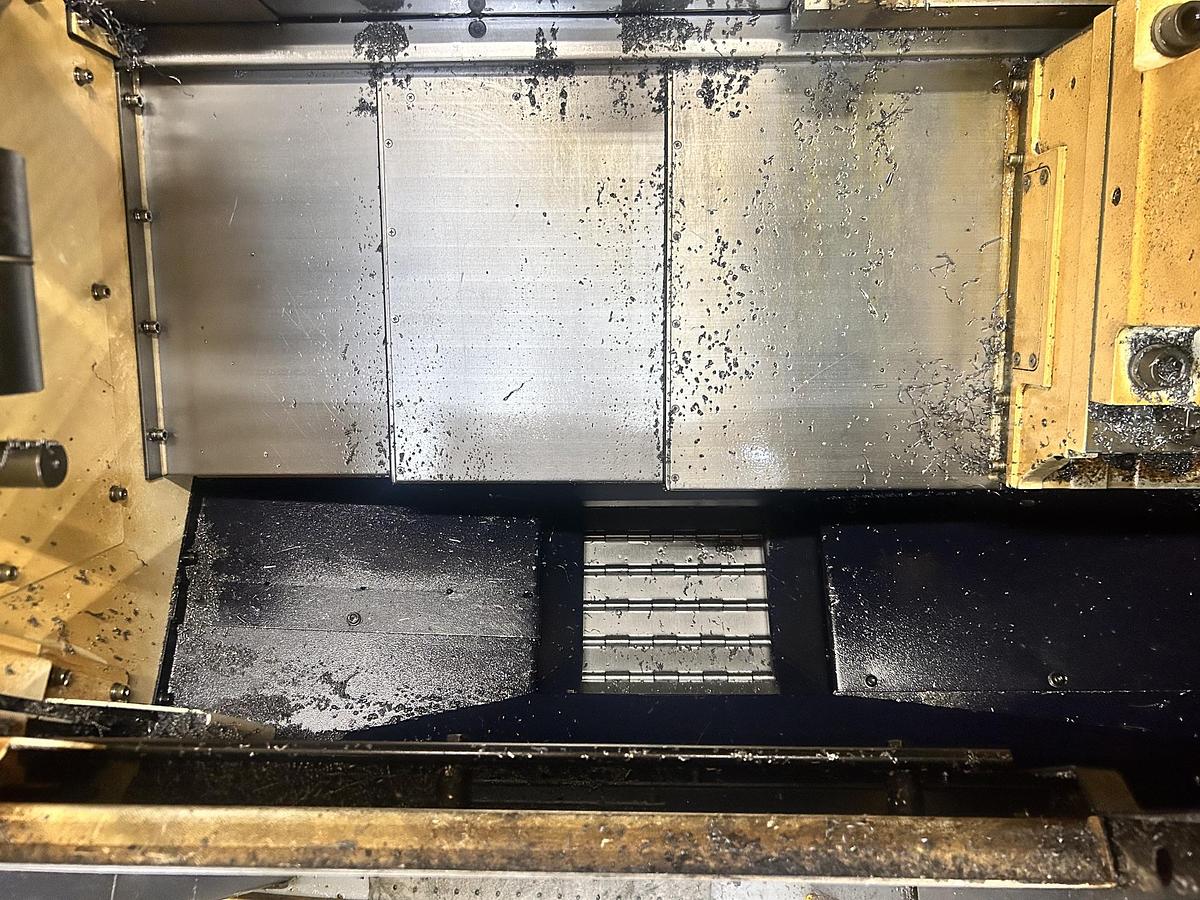

Motion & Travel Axes

X-Axis Stroke: 205 mm (8.07 inches)

Z-Axis Stroke: 380 mm (14.96 inches) (580 mm / 22.83" on the extended 'L' version)

Y-Axis Stroke: Not equipped on the MC model (requires the "YMC" configuration)

Rapid Traverse Speed (X / Z): 36 m/min / 36 m/min

Guideways: High-dynamics linear roller LM guides on all axes

Tailstock (Hydraulic)

Maximum Stroke: 390 mm (15.35 inches) (590 mm / 23.23" on the 'L' version)

Cylinder Diameter: Ø 40 mm (1.57 inches)

Center Taper: MT #4

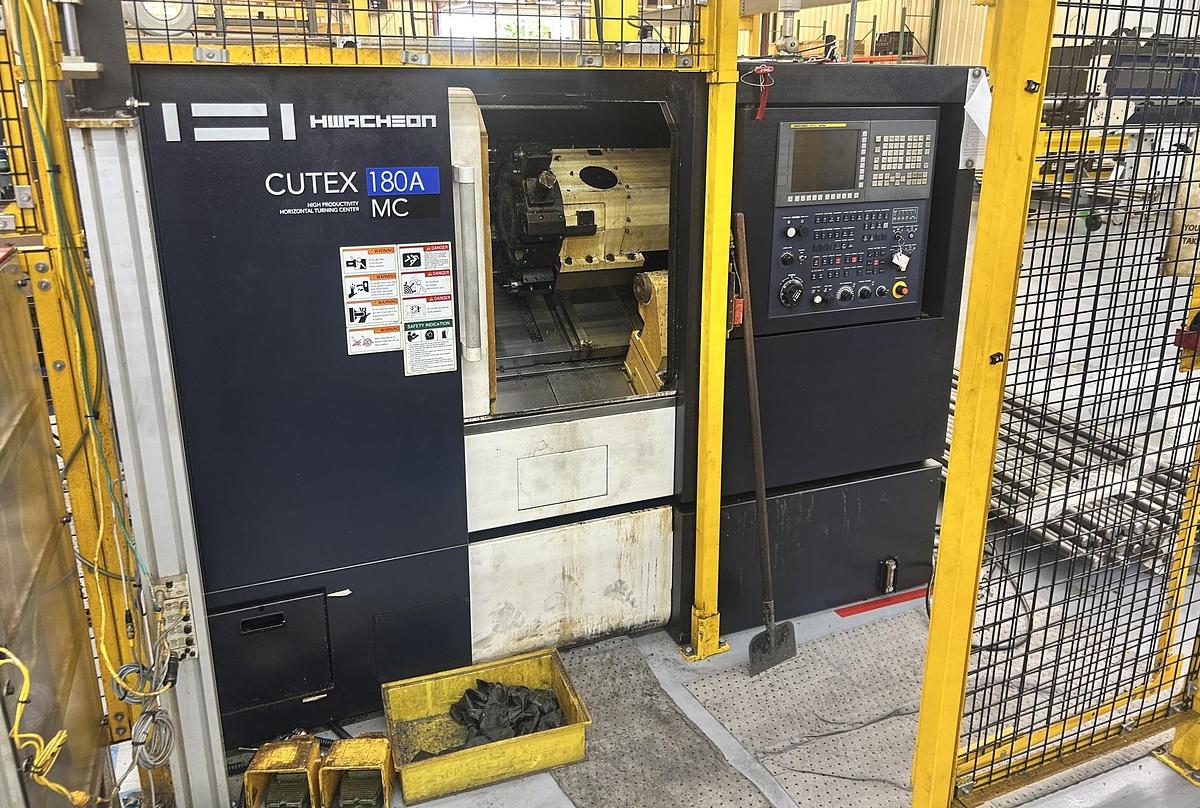

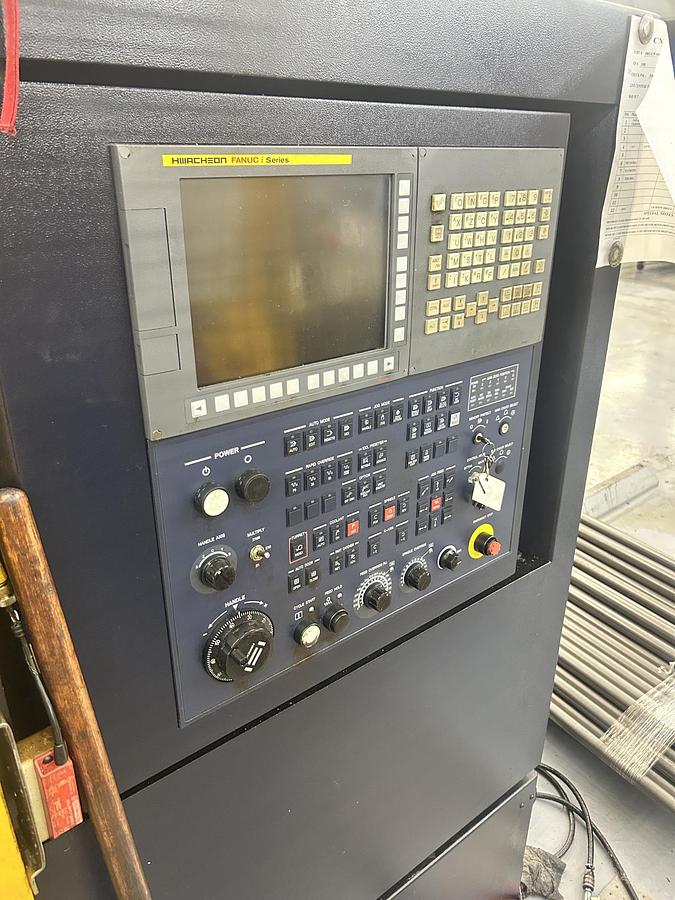

CNC Control – Hwacheon Fanuc i Series

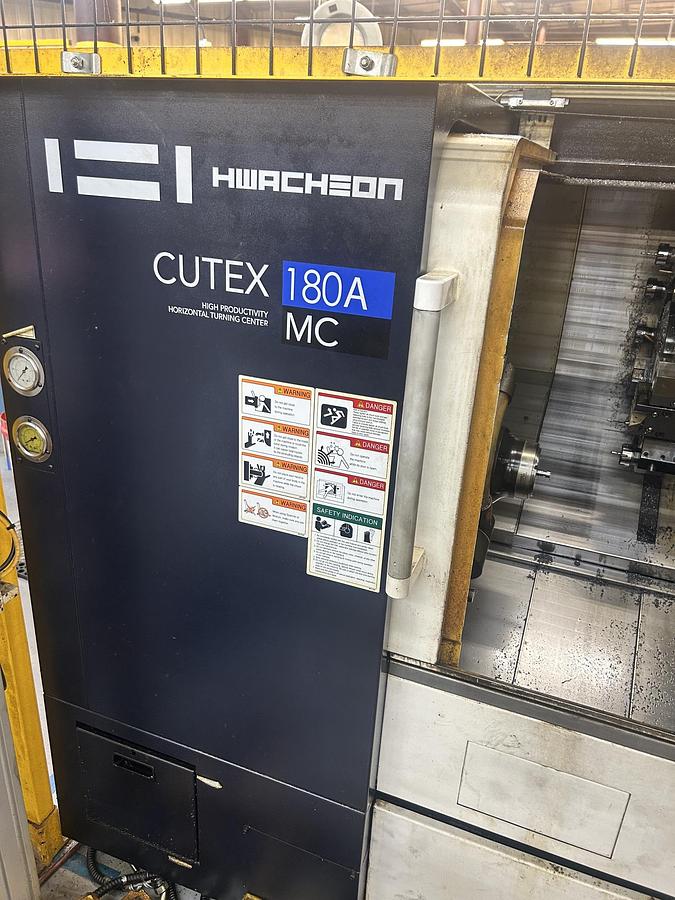

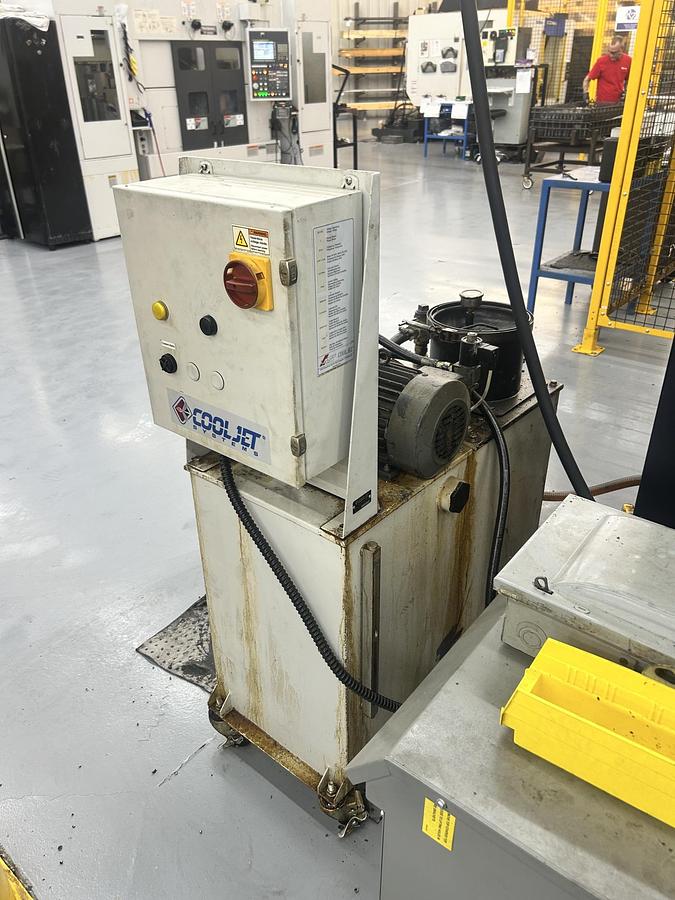

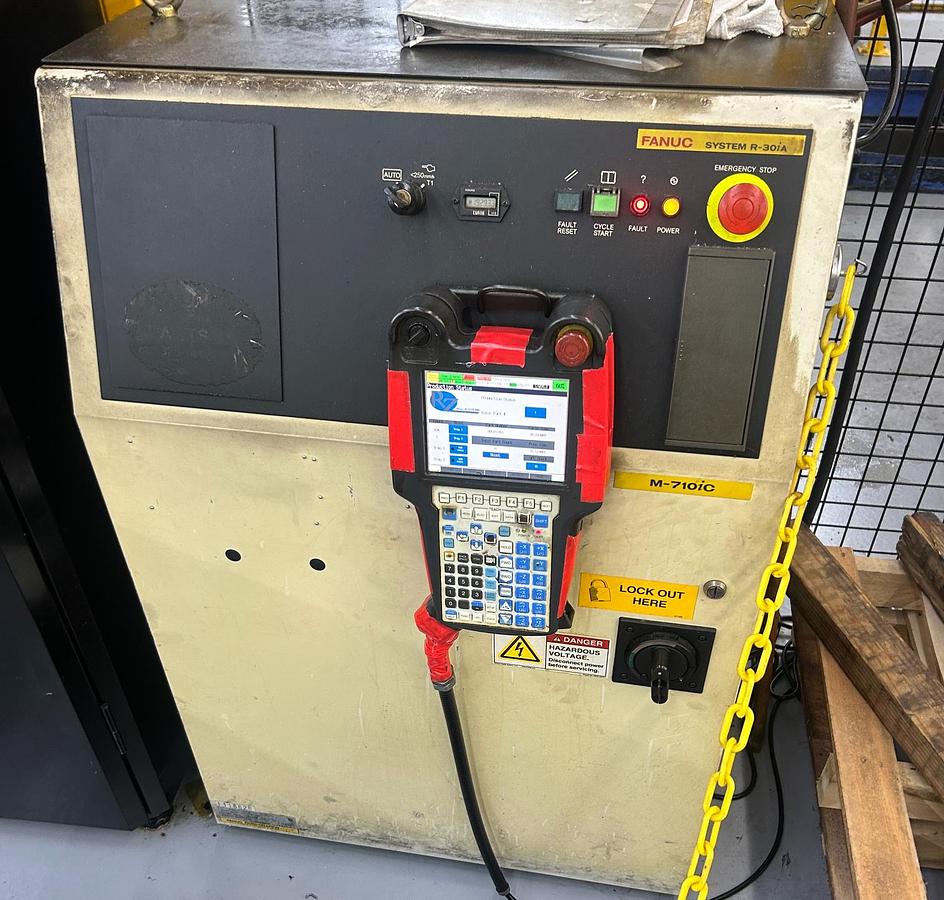

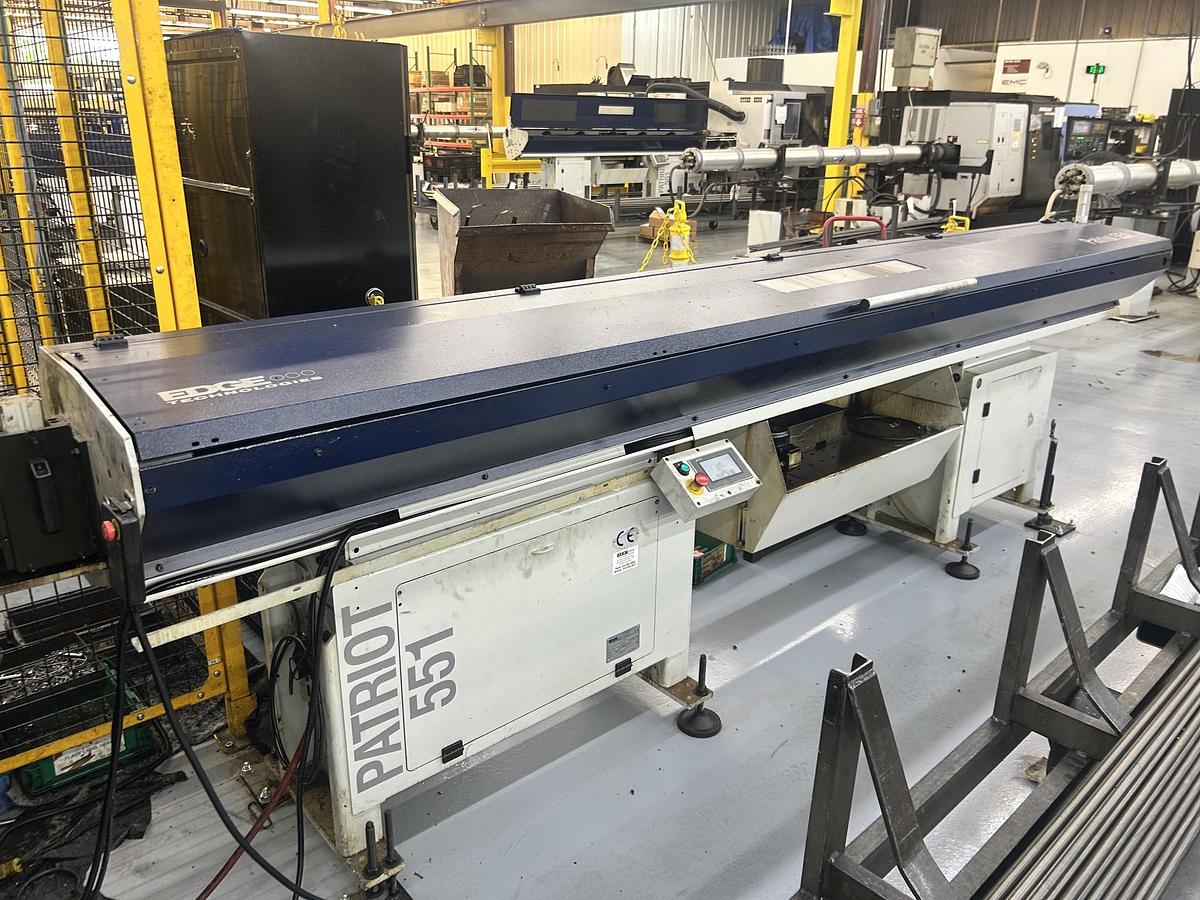

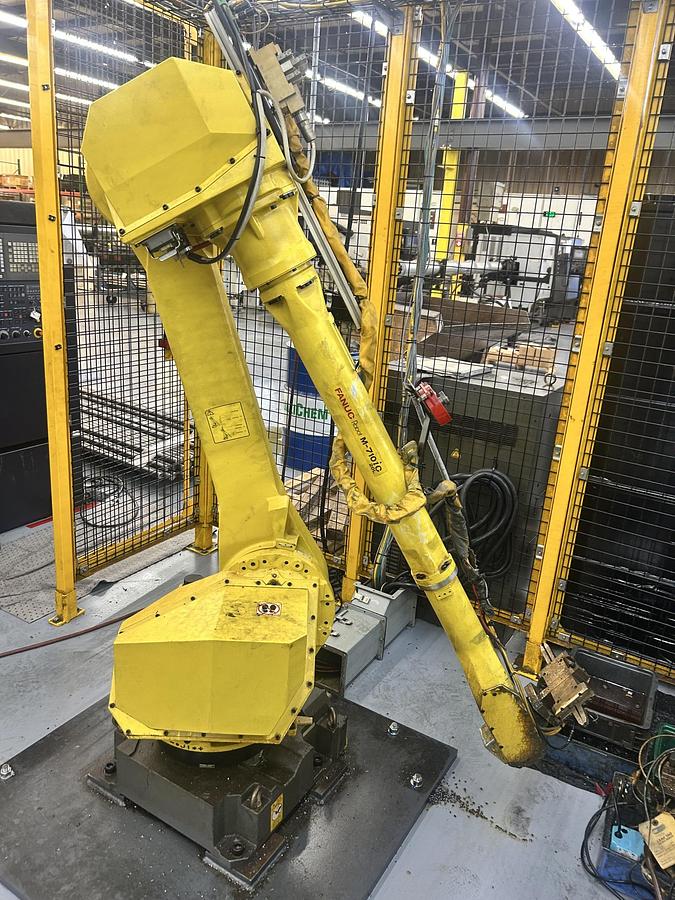

NOTE: This unit is offer by itself, although it in a Fanuc Robotic Cell with with Hwacheon CUTEX-180A MC & a Edge Technologies, Patroit 551 Barfeeder. Inquire with seller on this option.

ALL SPECIFICATIONS ARE SUBJECT TO BUYER'S VERIFICATION
