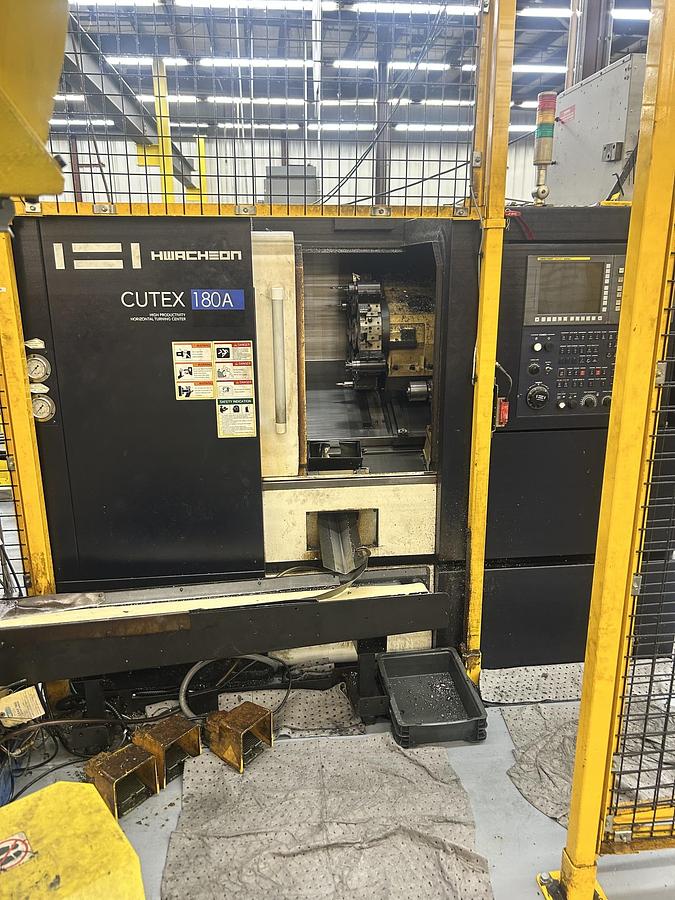

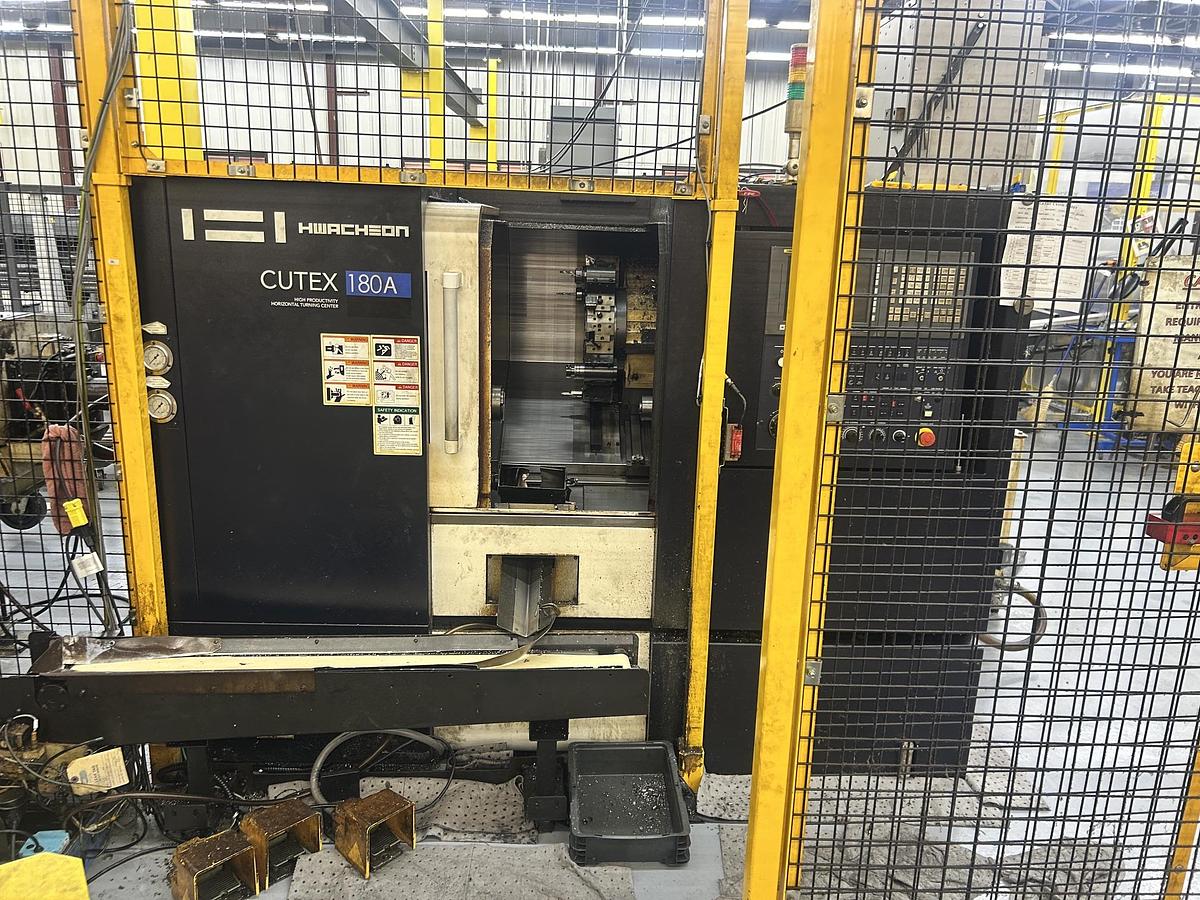

2017 Hwacheon CUTEX-180A Horizontal CNC turning center

2017 Hwacheon CUTEX-180A Horizontal CNC turning center

Mfg: Hwacheon

Model: CUTEX-180A

YOM: 2017

Capacity & Workpiece Dimensions

Chuck Size: 6 inches (155 mm)

Swing Over Bed: Ø 545 mm (21.46 inches)

Maximum Cutting Diameter: Ø 350 mm (13.78 inches)

Standard Cutting Diameter: Ø 206 mm (8.11 inches)

Maximum Cutting Length: 328 mm (12.91 inches) (Note: 528 mm on the extended 'L' model)

Maximum Bar Size Capacity: Ø 51 mm (2.01 inches)

======================

Main Spindle Specifications

Maximum Spindle Speed: 6,000 RPM

Spindle Motor Power: 15 kW / 11 kW (20 HP / 15 HP)

Maximum Spindle Torque: 143.1 Nm

Spindle Nose Type: ASA A2-5

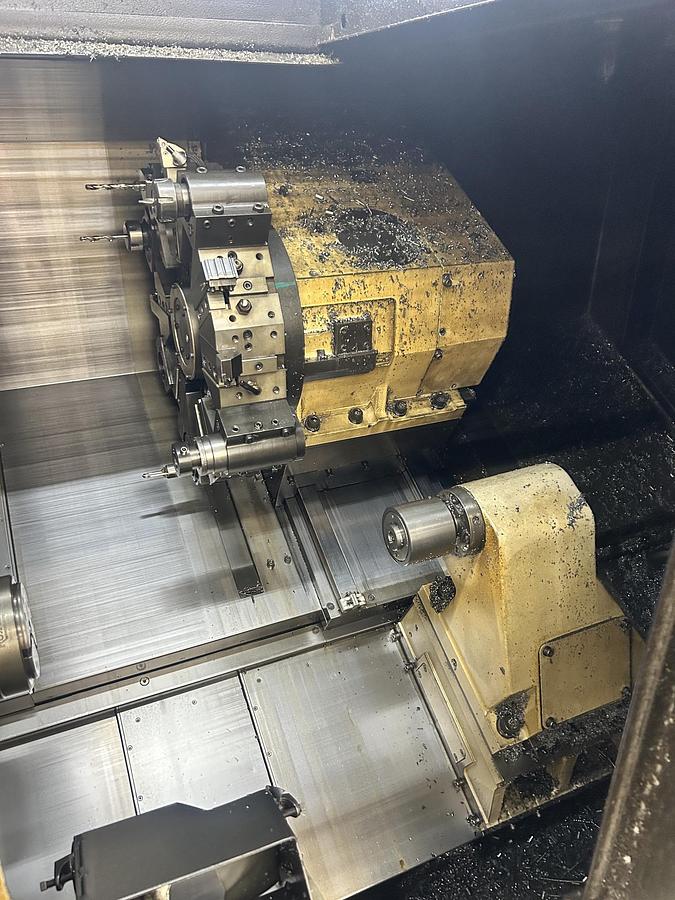

Turret & Tooling:

Number of Tool Stations: 12 Stations

Motion & Travel Axes

X-Axis Stroke: 220 mm (8.66 inches)

Z-Axis Stroke: 580 mm (22.83 inches)

Y-Axis Stroke (If Equipped): ±55 mm (±2.17 inches)

Rapid Traverse Speed: Up to 36 m/min

Guideway Type: High-rigidity linear roller LM guides on all axes

Tailstock (Hydraulic)

Maximum Stroke: 390 mm (15.35 inches) (590 mm on the 'L' version)

Cylinder Diameter: Ø 40 mm (1.57 inches)

Center Taper: MT #4

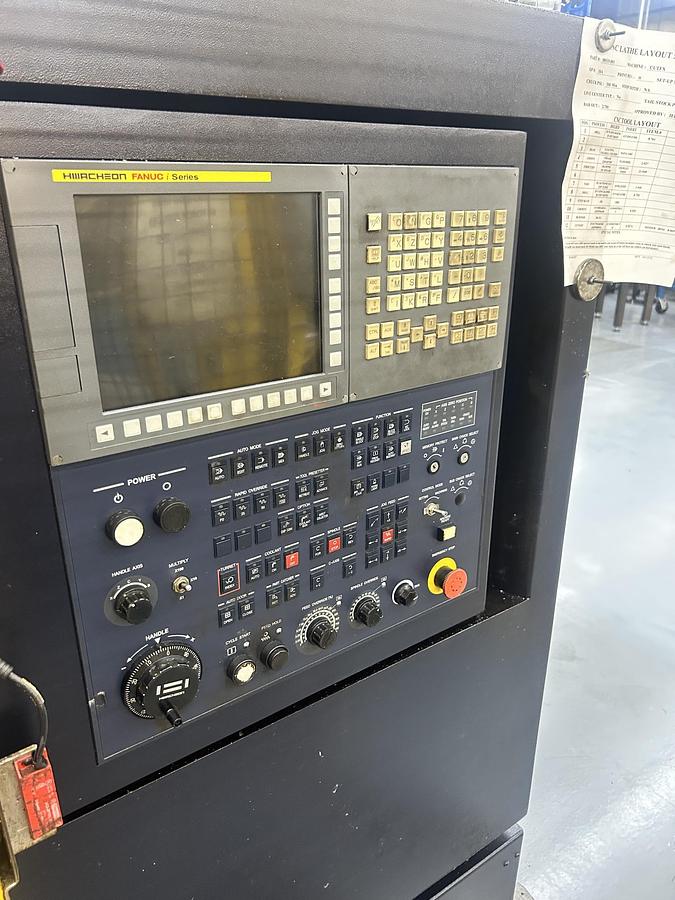

CNC Control – Hwacheon Fanuc i Series

Featuring: high-speed linear roller guideways designed for high productivity.

NOTE: This unit is offer by itself, although it in a Fanuc Robotic Cell with with Hwacheon CUTEX-180A MC & a Edge Technologies, Patroit 551 Barfeeder. Inquire with seller on this option.

ALL SPECIFICATIONS ARE SUBJECT TO BUYER'S VERIFICATION
