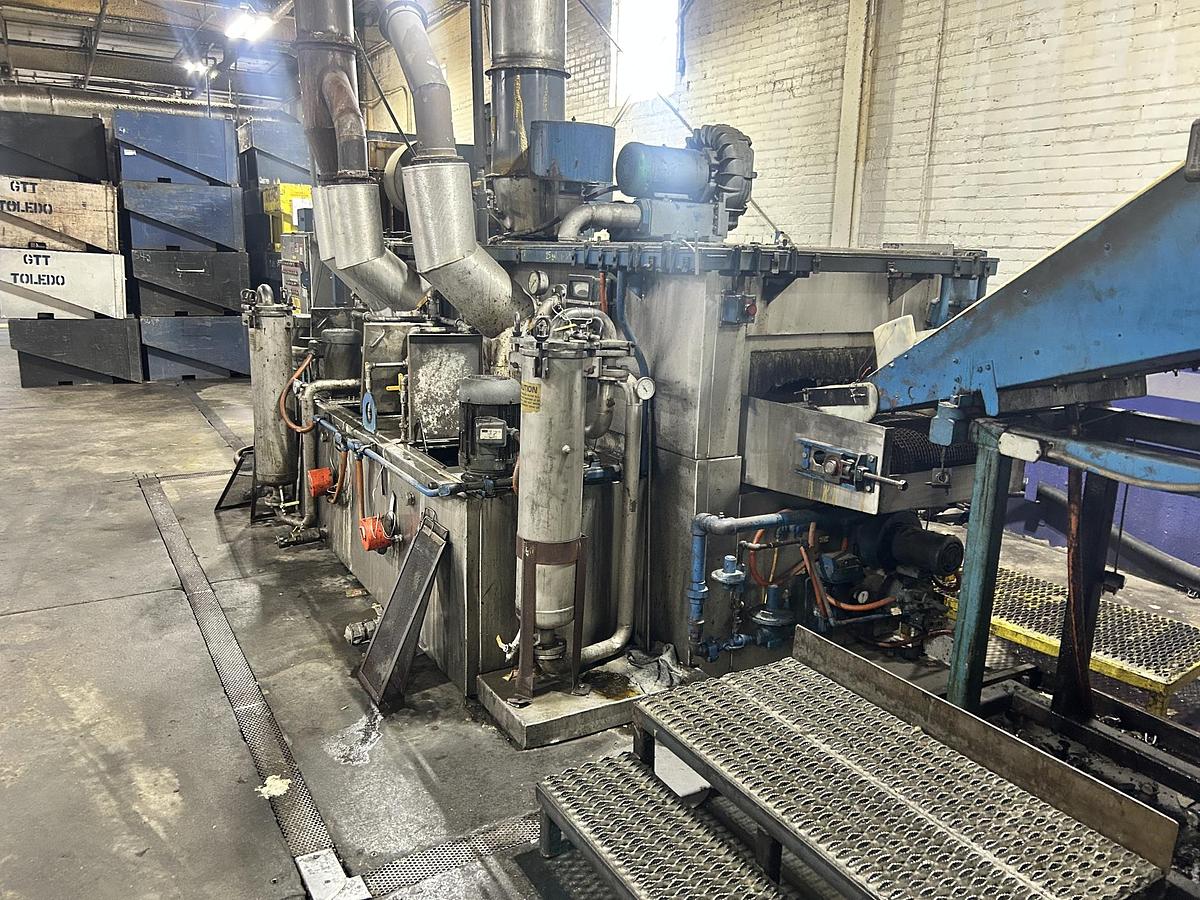

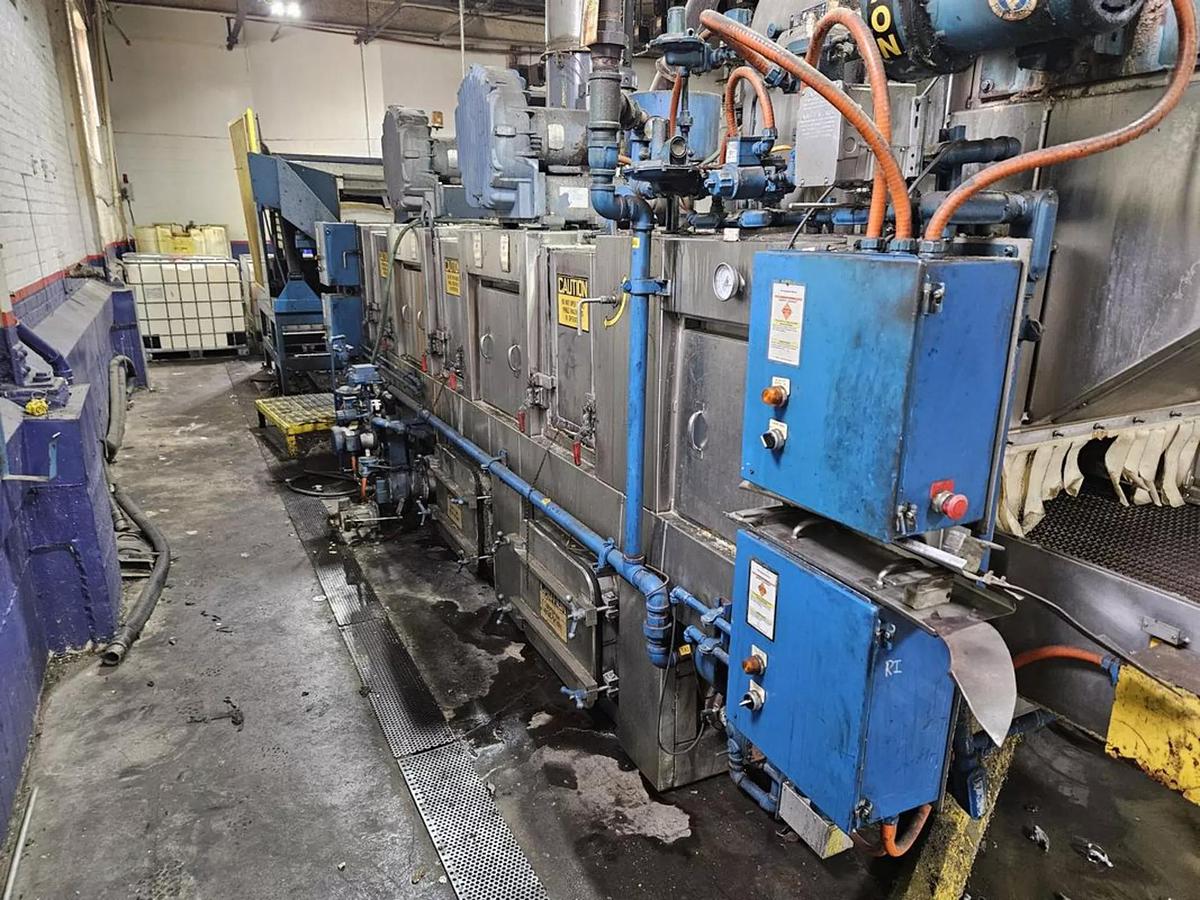

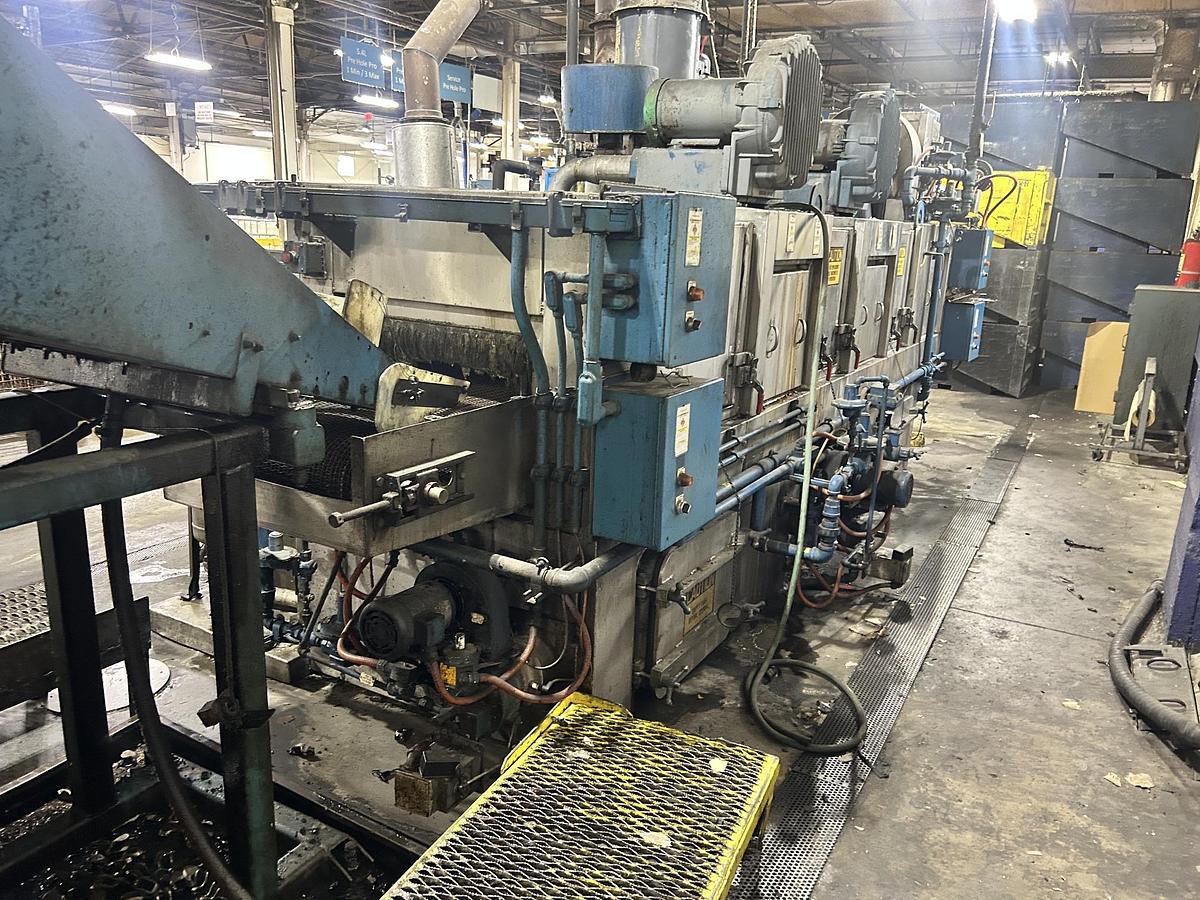

4-Stage Ransohoff Natural Gas Washer (w/Rust Inhibitor)

4-Stage Ransohoff Natural Gas Washer (w/Rust Inhibitor)

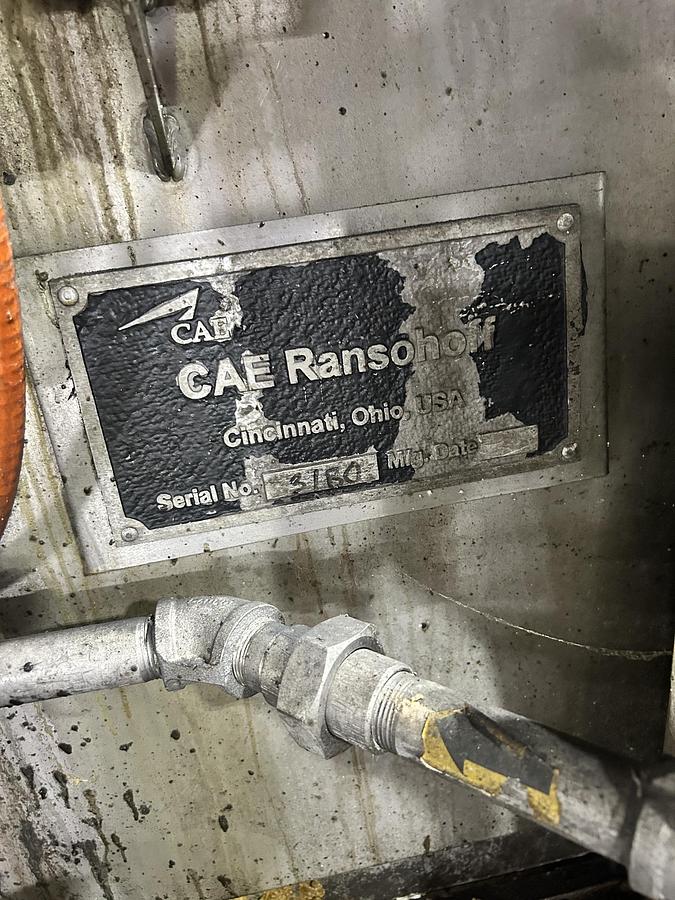

Mfg: Ransohoff (CAE)

Process & Thermal Parameters

Heat Source: Natural Gas (< 1 PSI)

Wash Stage Temperature:160°F

Rinse Stage Temperature :160°F Approx.

R.I. Temperature: 160°F

Blowoff Temperature: 300°F

Structural & Materials Construction

Tank & Housing: #10 GA 304 Stn. Stl.

Duct Work: #14 GA 304 S.S.

External Piping: Sch. 40 S.S. except Drain & Gas B.I., F. W. 304 S.S.

Internal Piping: Sch. 40-304 S.S.

Flue Piping: Sch. 10-304 S.S.

Insulation: Entire machine 2" Thk. Insulation and #18 GA S.S. Cover with #3 Finish

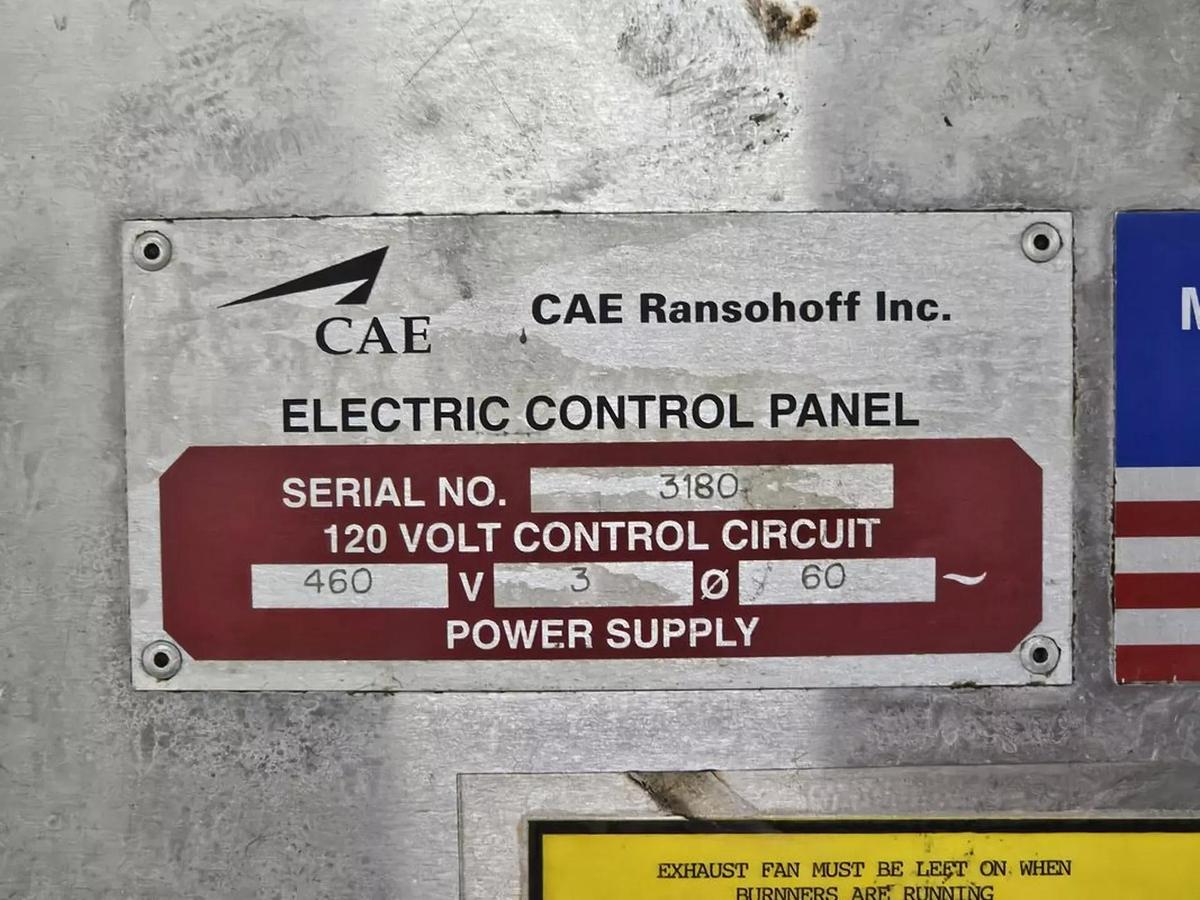

Electrical System, Enviromental & Finish: 460V / 3P / 60Hz, 90 VDC Drive, Relay Logic

Sound Level: 85db with 70db Ambient Level

Paint (Machine): Polished S.S. / Blue Paint on non-S.S. areas

Paint (Elec. Control Panel): Polished S.S. Exterior, White Interior

Standard Machine Features:

Insulation

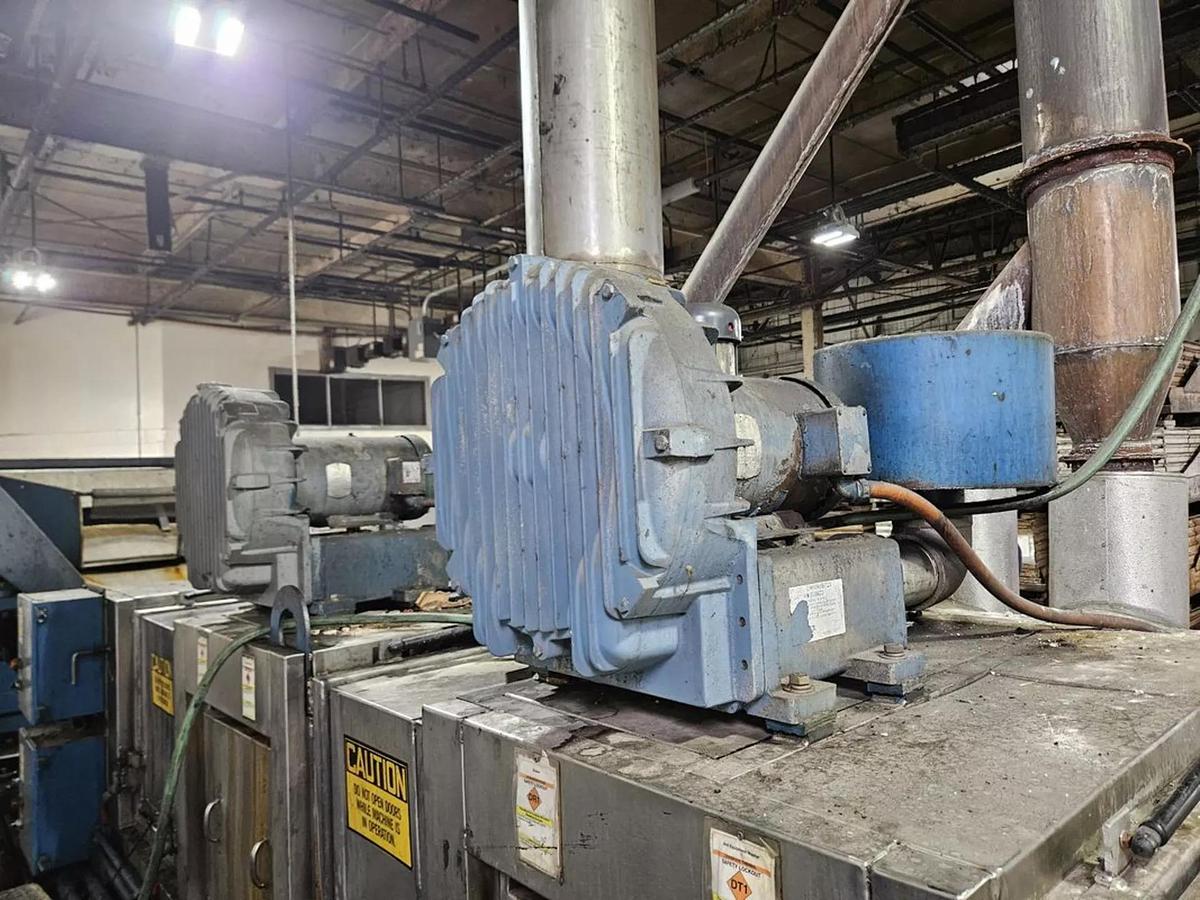

Exhaust Fan

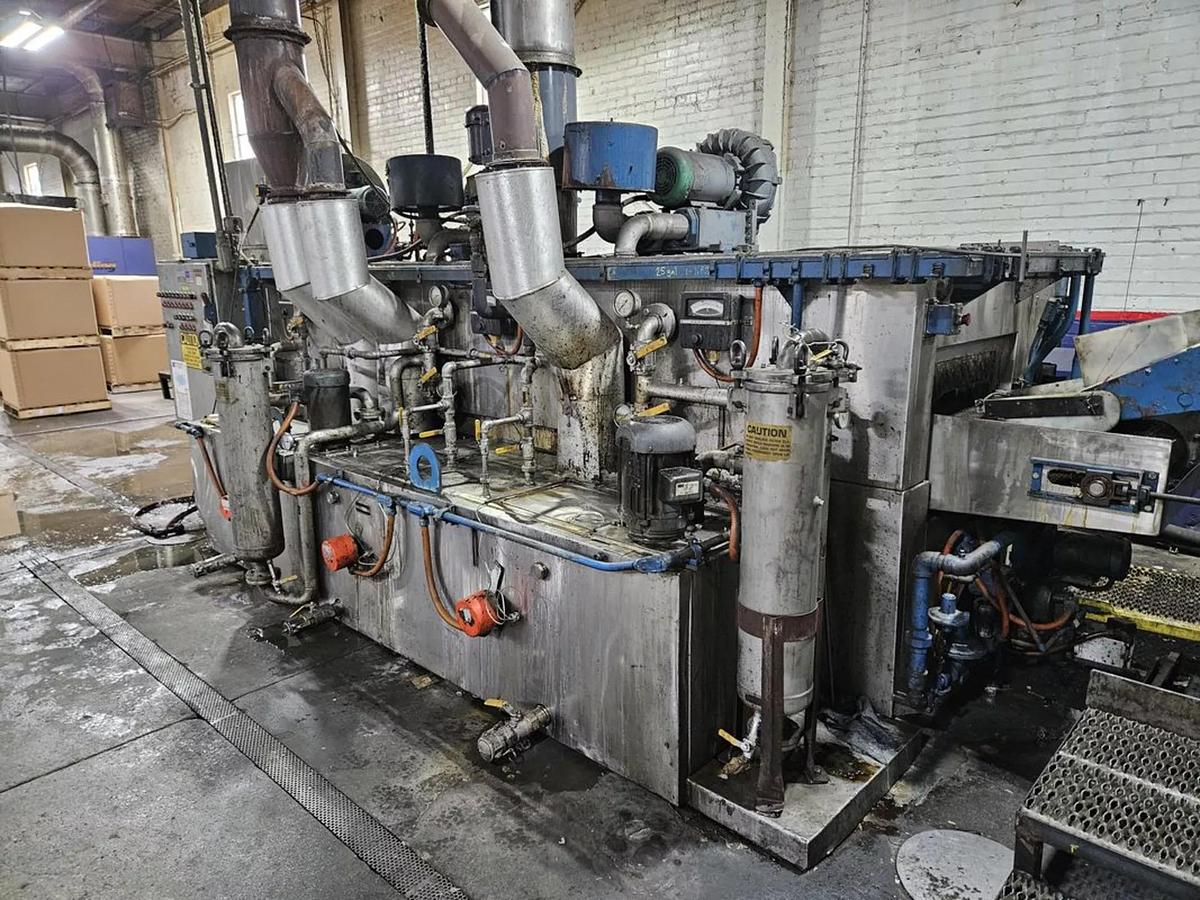

Wash Stage Single Bag Filter

Rinse Stage Single Bag Filter

Side Guards

Dual Valves

 Belt Motion Sensor

 "A-B" 700P Relays

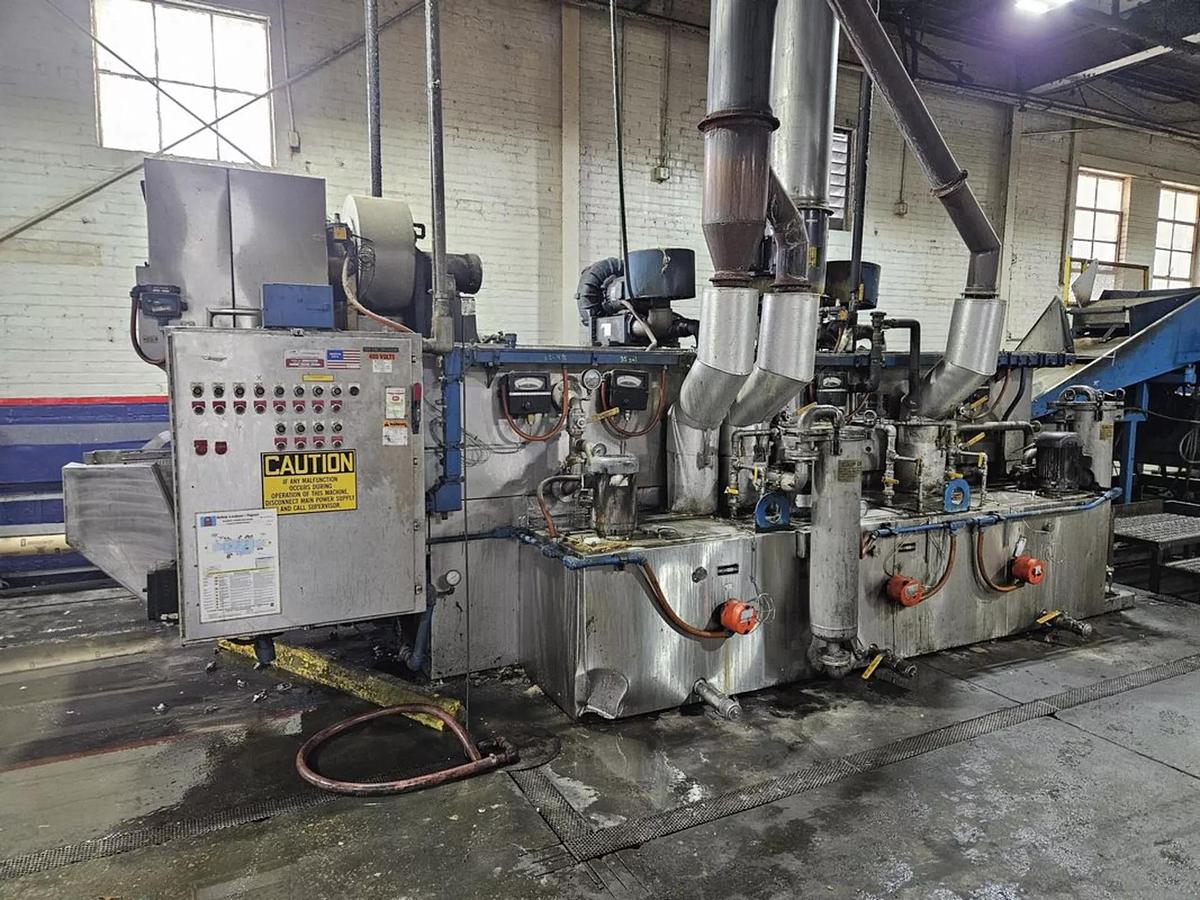

 S.S. Control Enclosure

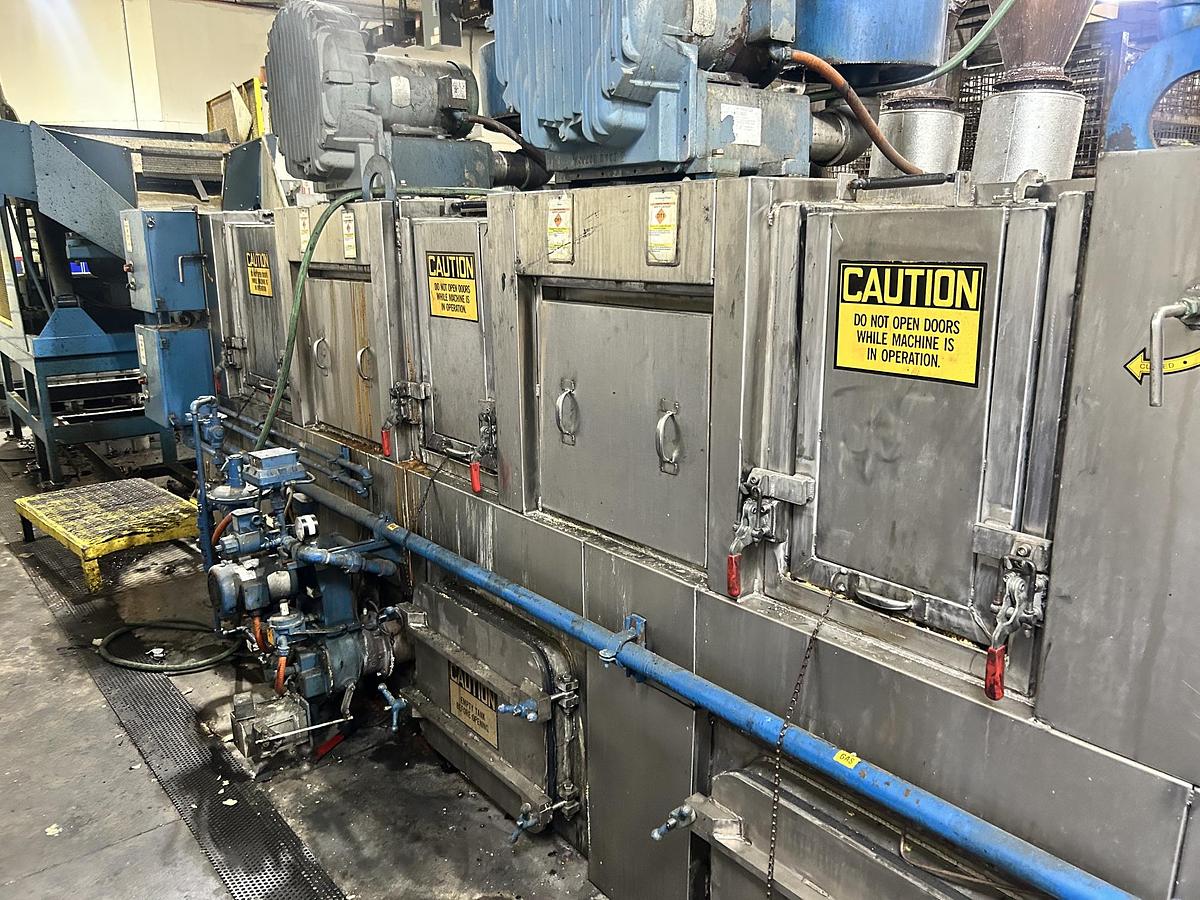

 All S.S. Marine Doors

 8 FPM Variable Speed

 #3 Polished Finish

 Load/Unload E-Stops

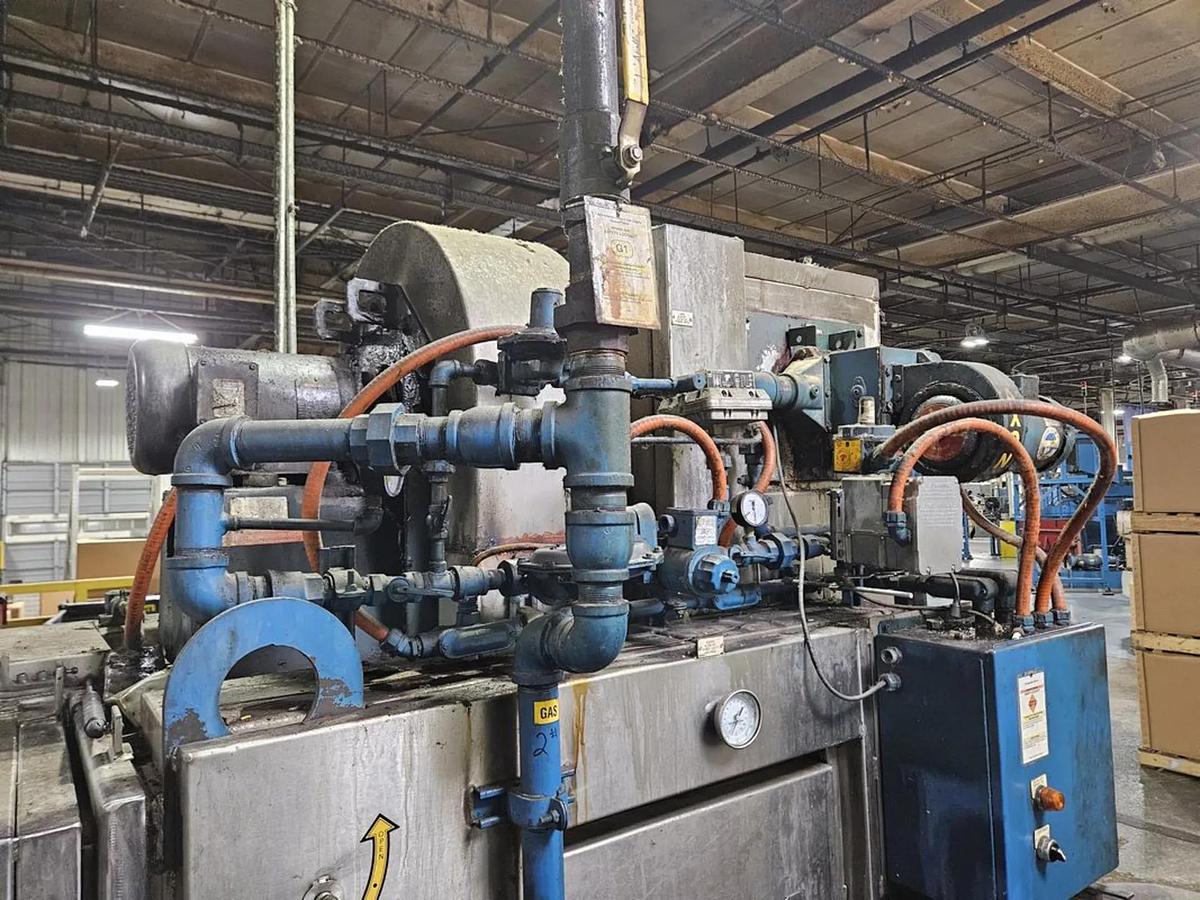

Gas Solution Heat

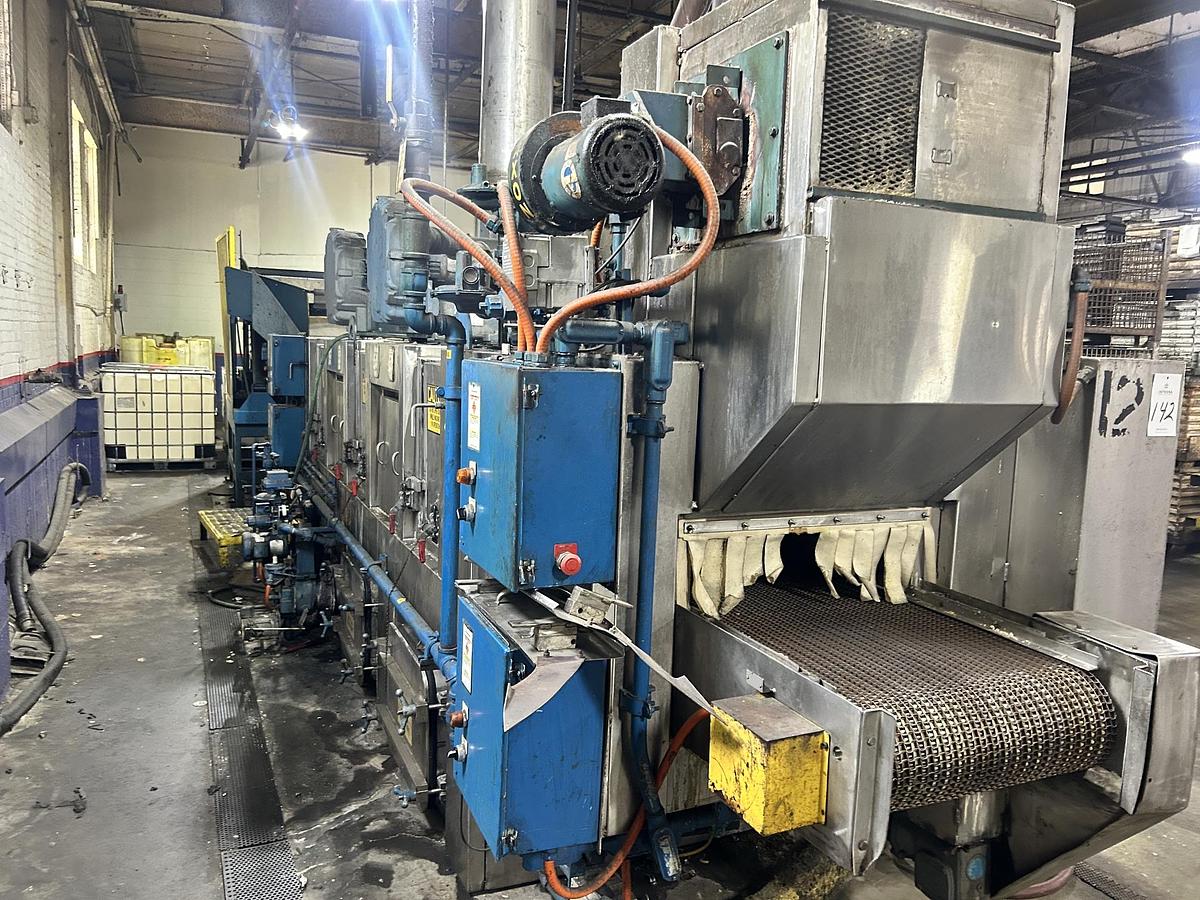

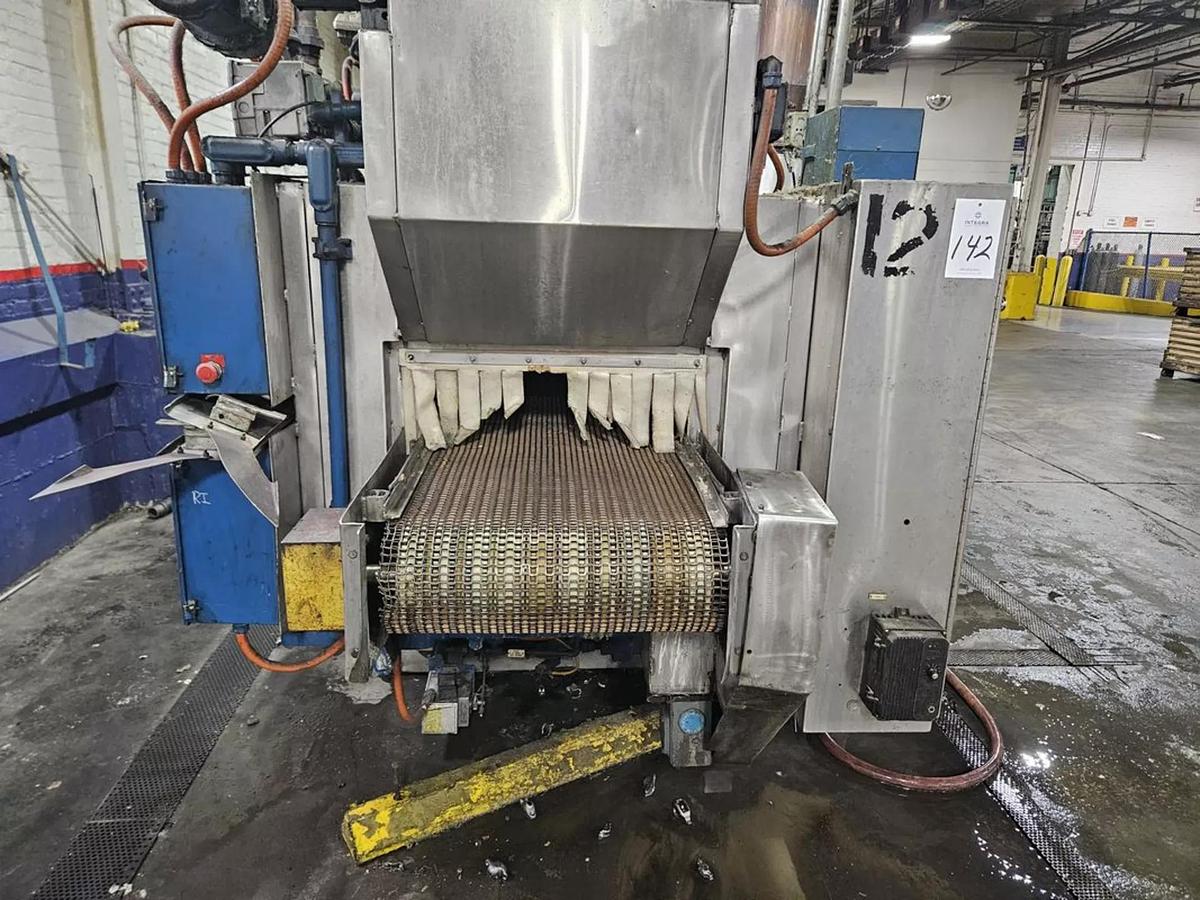

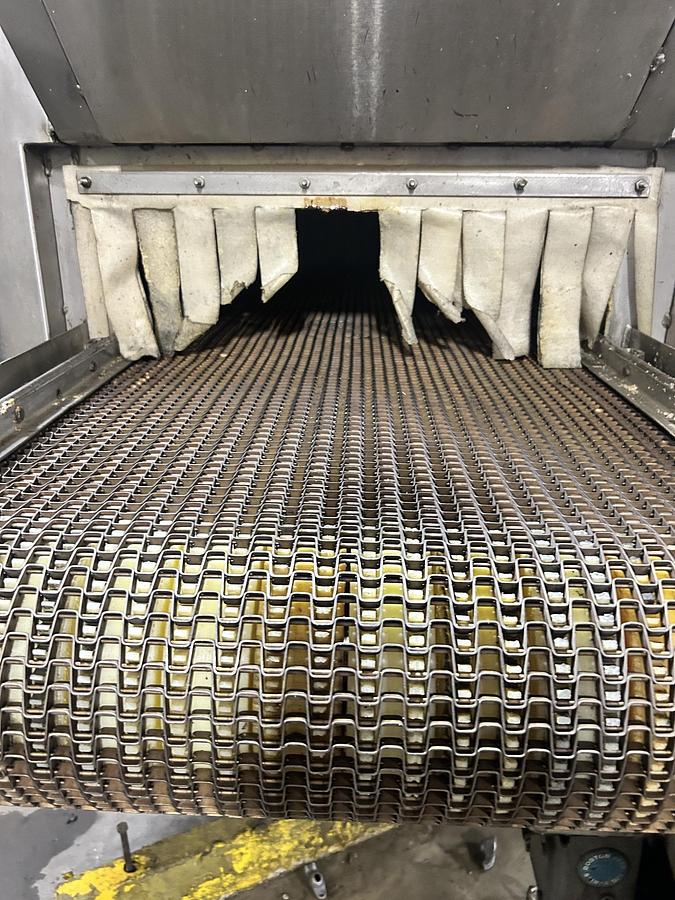

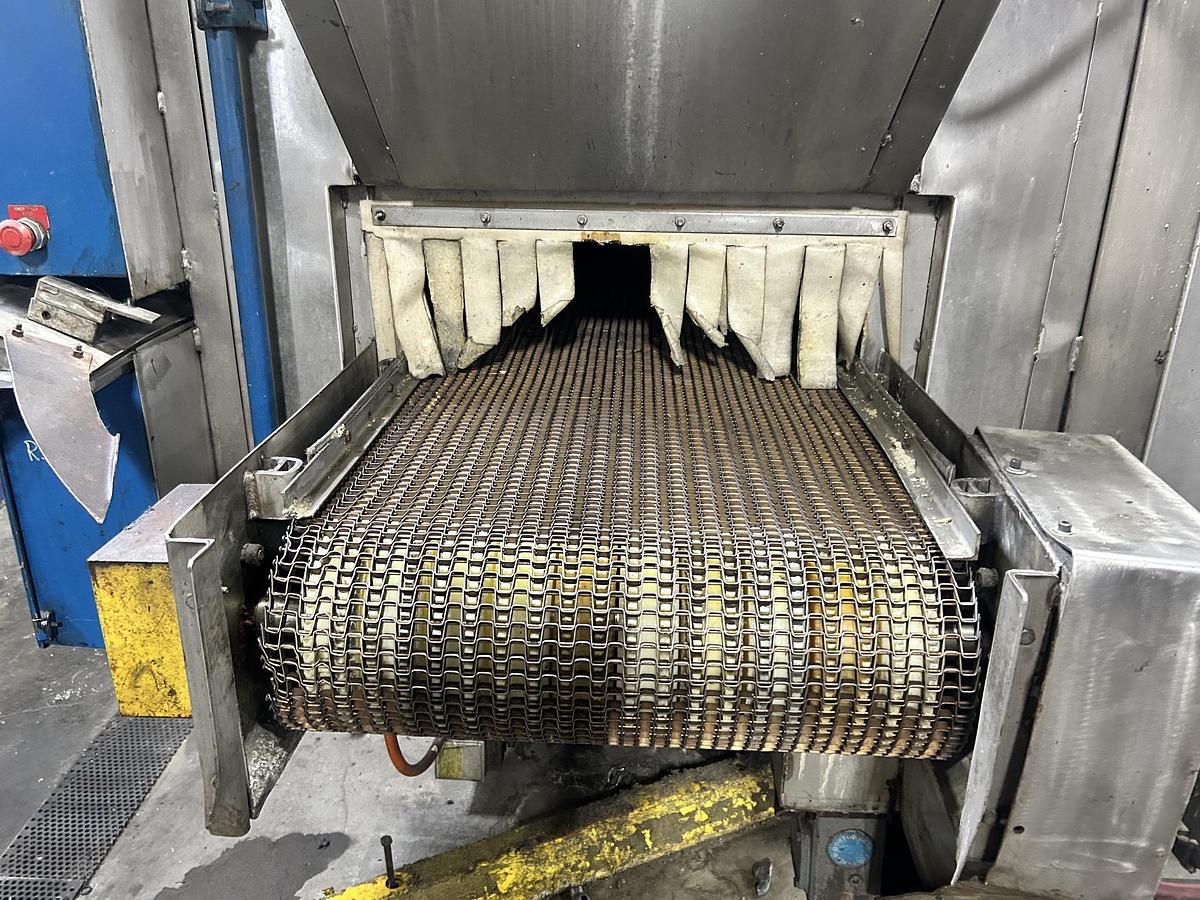

Conveyor Type: 1/2" x 1/2" x 24" Flatwire Belt 304 S.S.

Conveyor Speed: Variable 2 to 8 FPM with a design speed of 5 FPM
