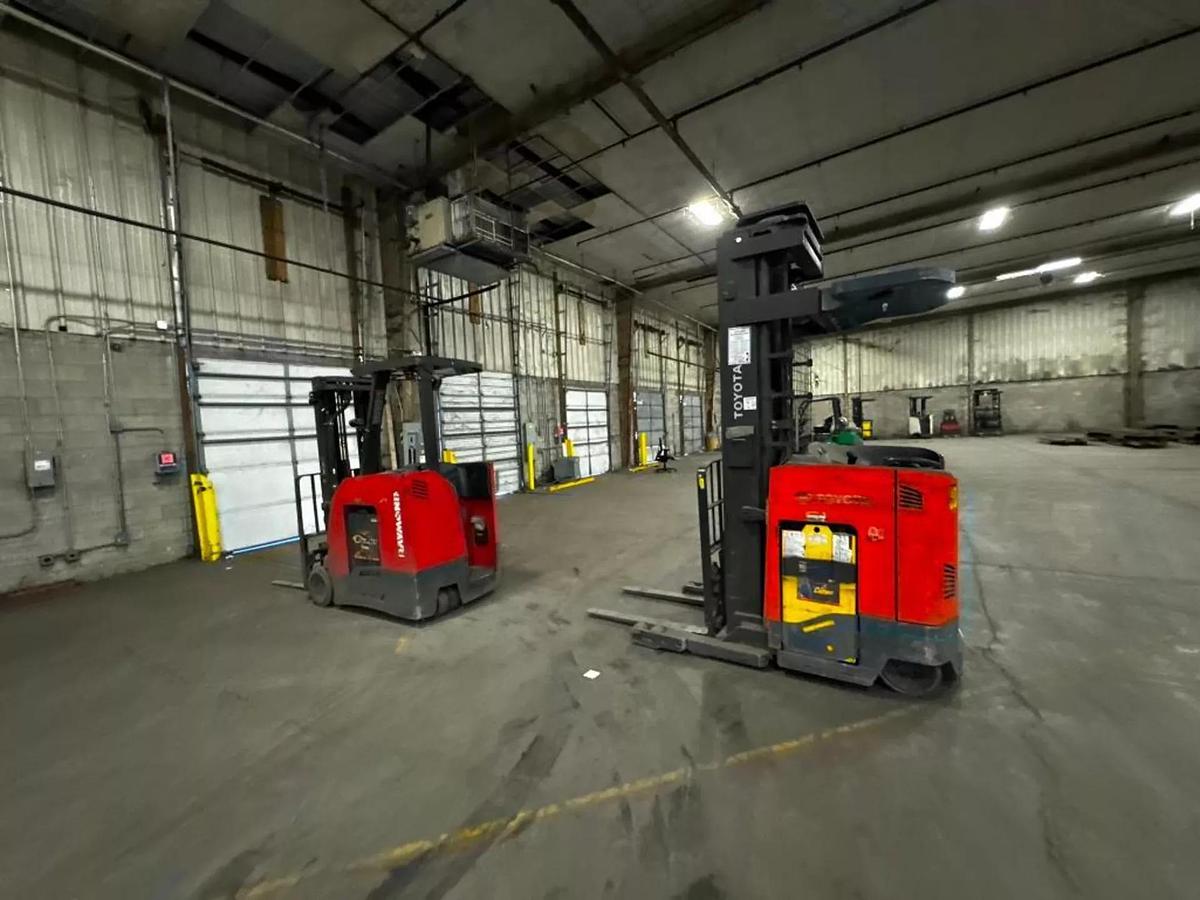

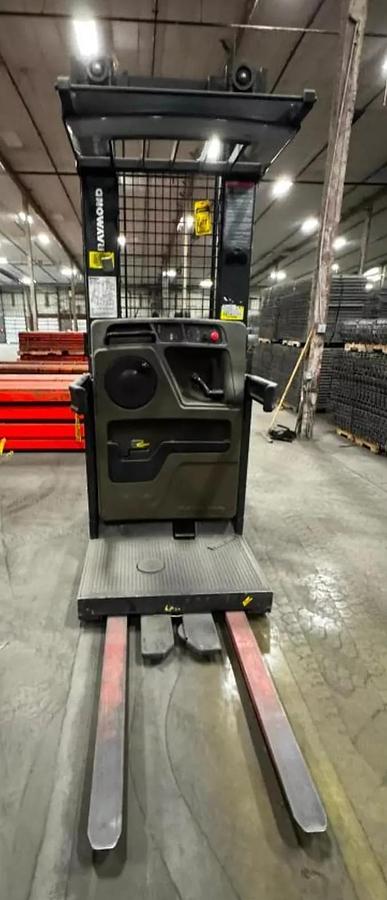

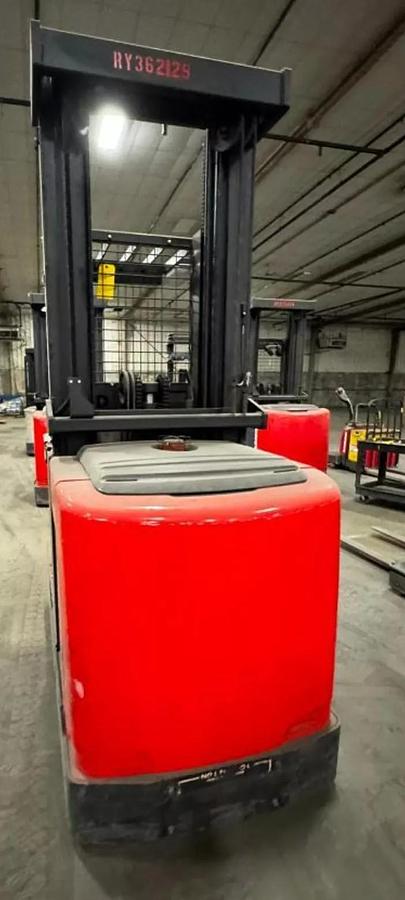

3000 lb Raymond 550-OP30TT Triple Master Electric Order Picker (2 Available)

3000 lb Raymond 550-OP30TT Triple Master Electric Order Picker - (2 Available)

Manufacturer: The Raymond Corporation

Equipment Type: Stand-Up Narrow Aisle Electric Order Picker

Load Capacity: 3,000 lbs

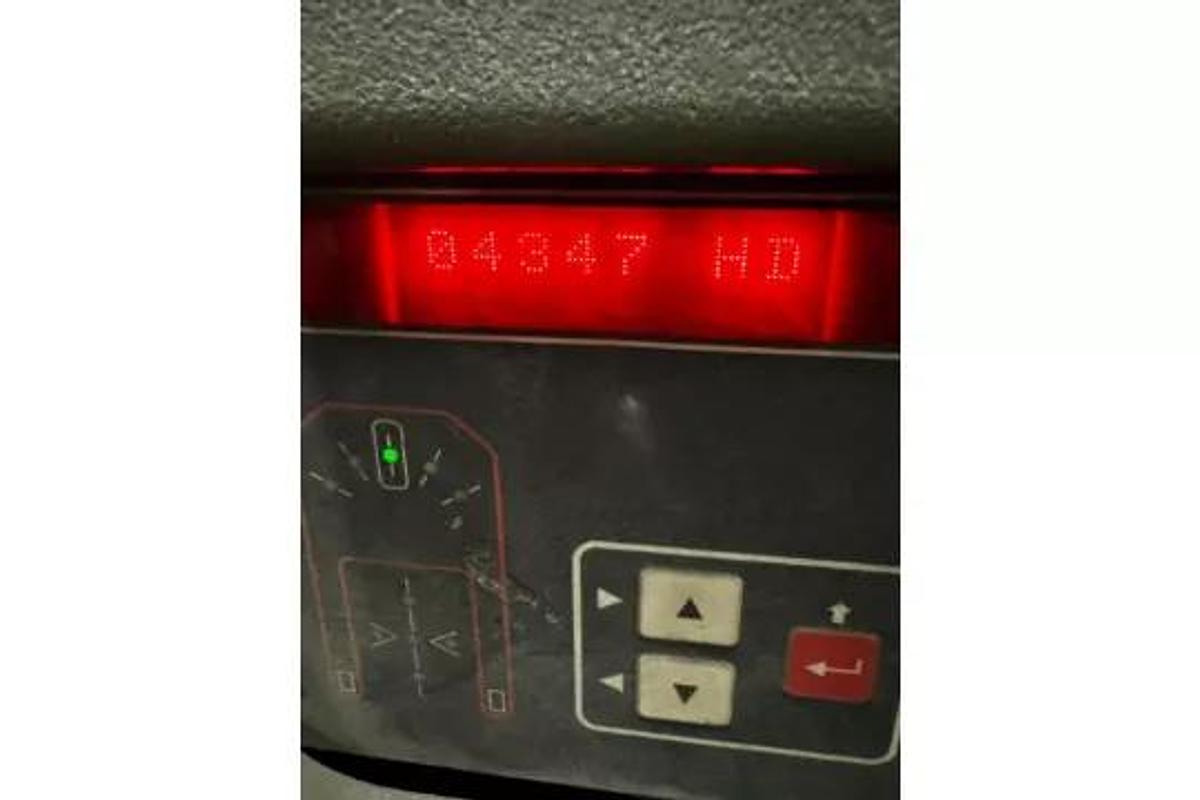

Hours: 4,347

Operator Position: Stand-Up, Platform

Mast & Lift Specs:Mast Type: 3-Stage (TT)

Maximum Elevated Height: Varies by configuration, commonly found between \(210"\) and \(390"\)

Lowered (Down) Height: Usually \(107"\) to \(108"\)

Performance:Travel Speed: ~5.5 mph (laden) / 6.5 mph (unladen)

Lift Speed: Up to 60 ft/min (unladen) / 45 ft/min (laden)

Drive System: 24V AC Motor

Gradeability: 15% (when laden)

Dimensions & Weight:Overall Length: ~117 inches

Overall Width: ~35.5 to 40 inches (depending on battery/model configuration)

Truck Weight: ~7,000 to 7,500 lbs (with battery)

Tires: Polyurethane (drive and load wheels)

Power: Battery Voltage: 24V

BATTERY CHARGER INCLUDED

ALL SPECIFICATIONS SUBJECT TO BUYER'S VERIFICATIONS
