40" x 40" CINCINNATI 3-STAGE HEATED WASHER & PARTS DEGREASER

40" x 40" CINCINNATI 3-STAGE HEATED WASHER & PARTS DEGREASER

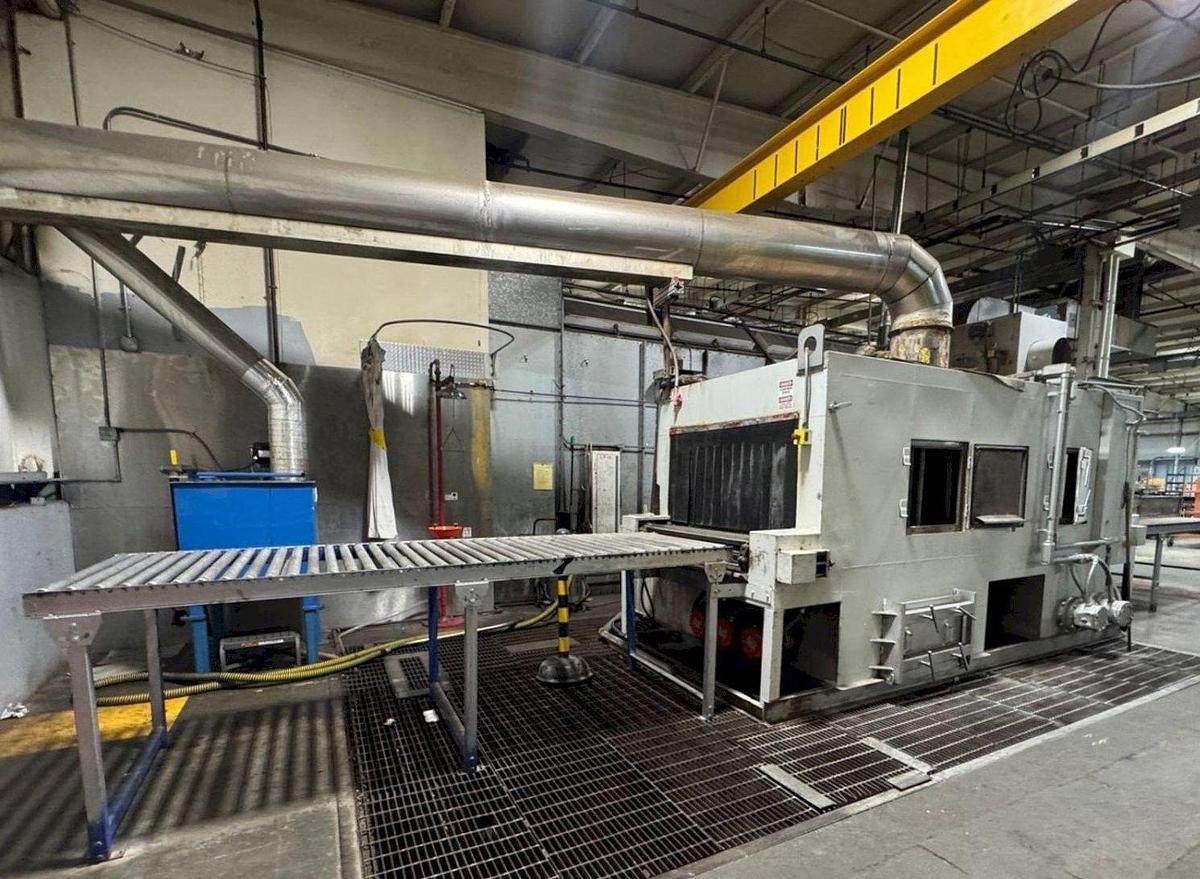

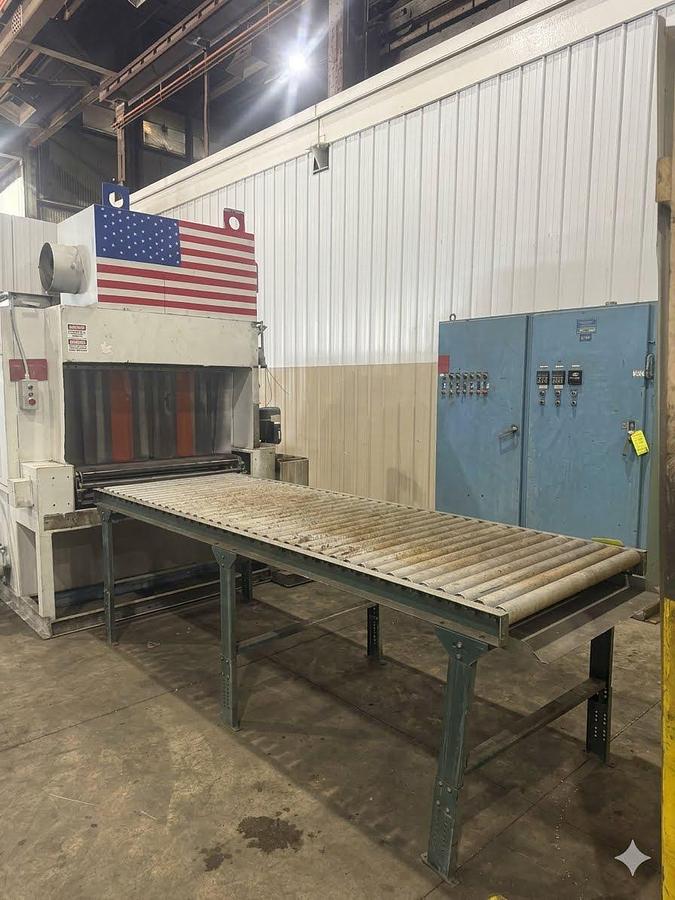

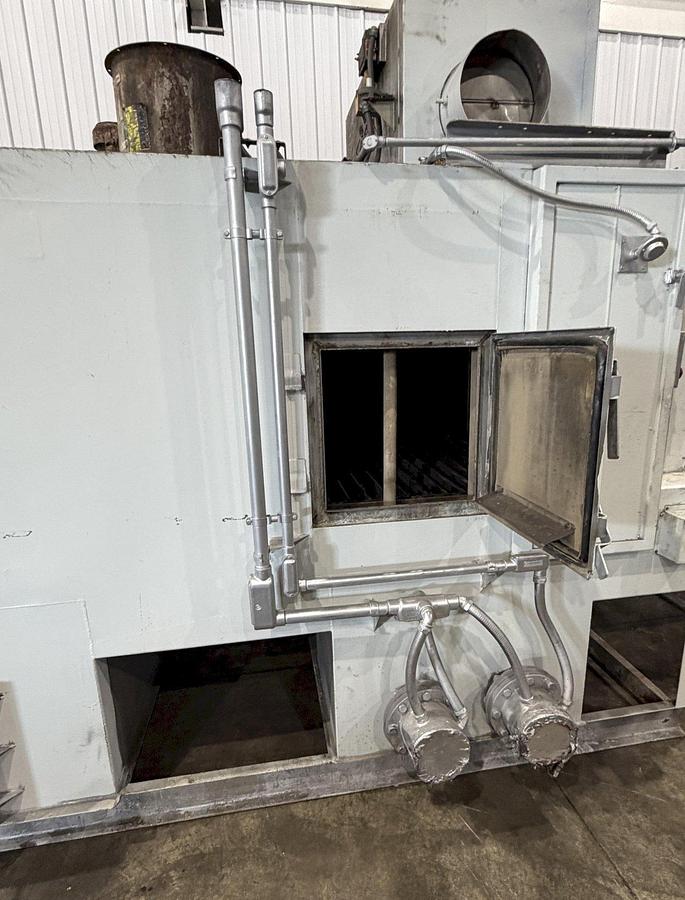

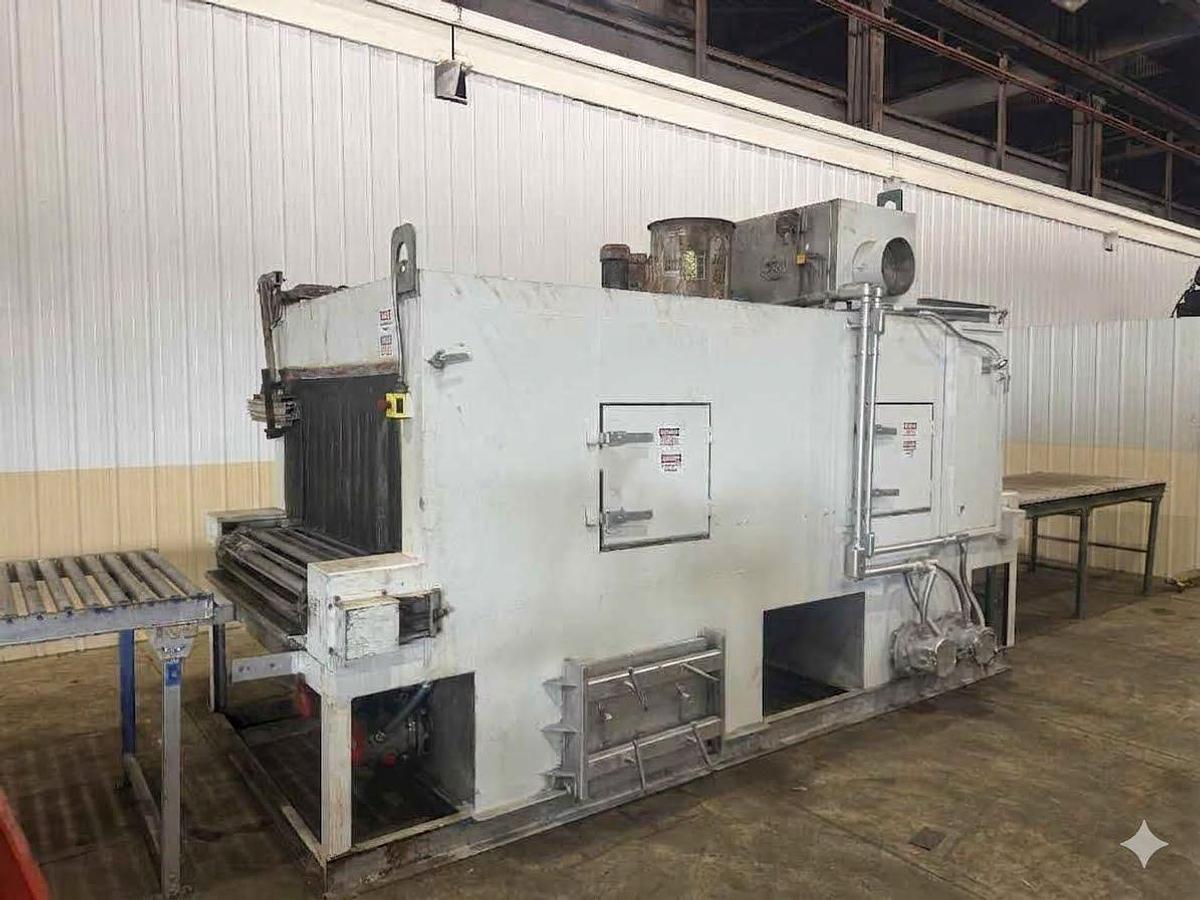

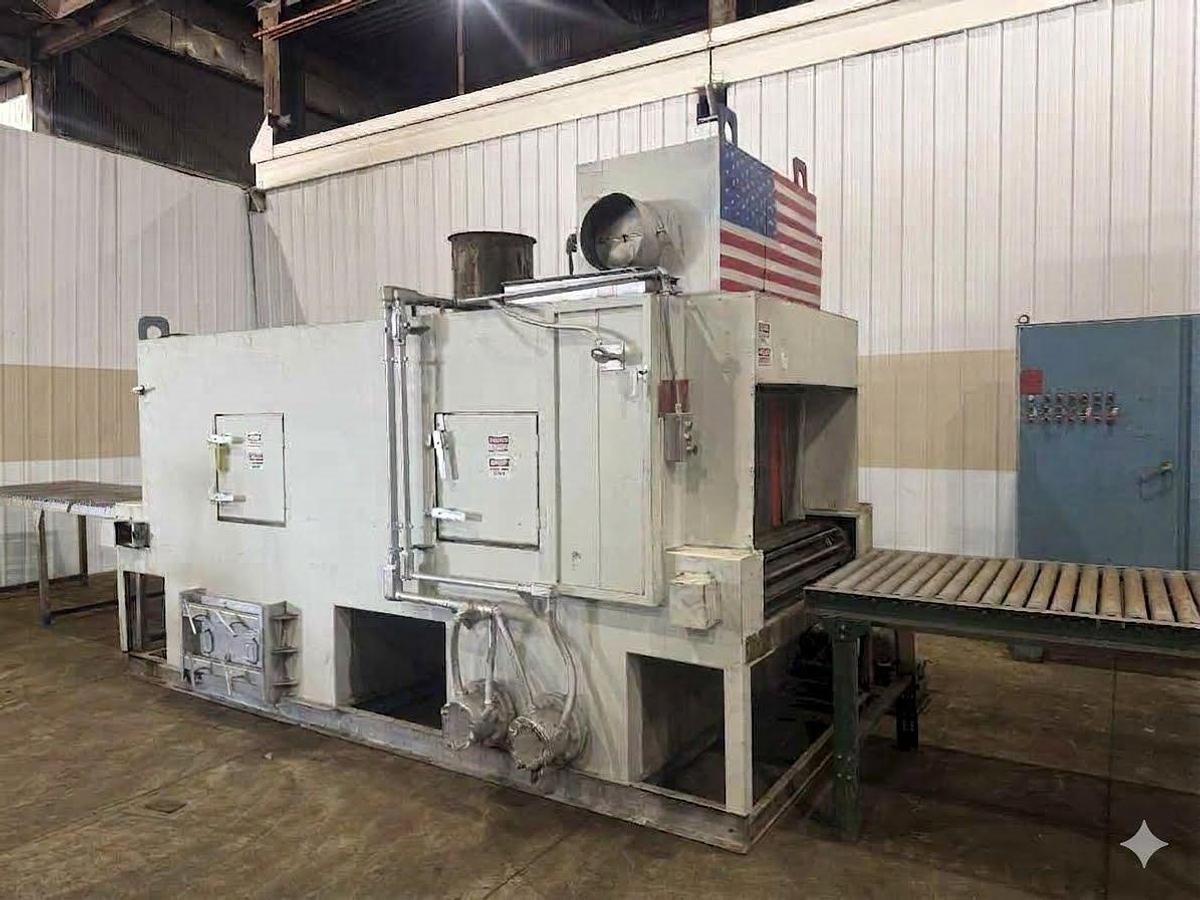

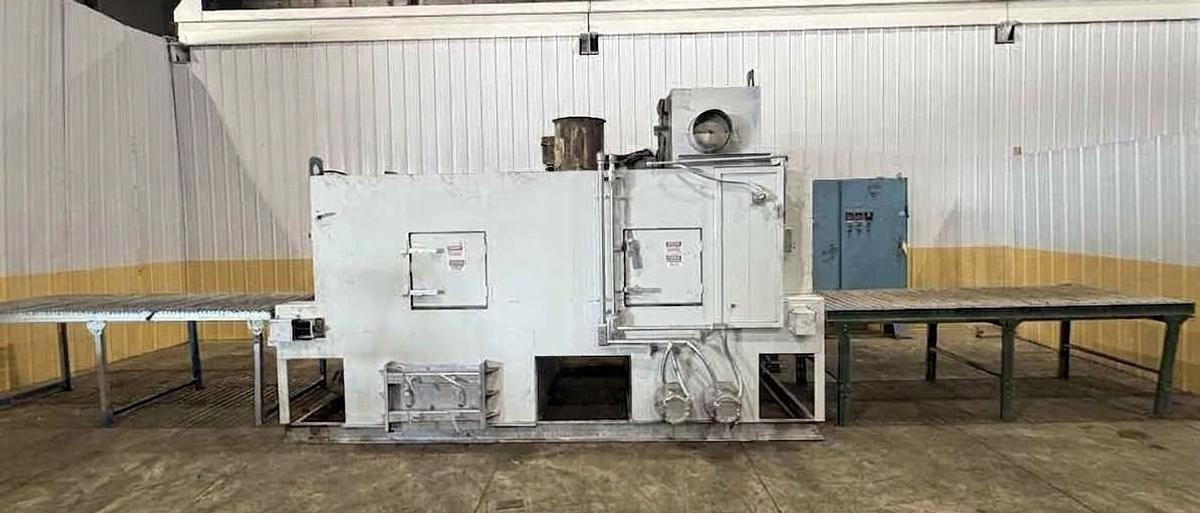

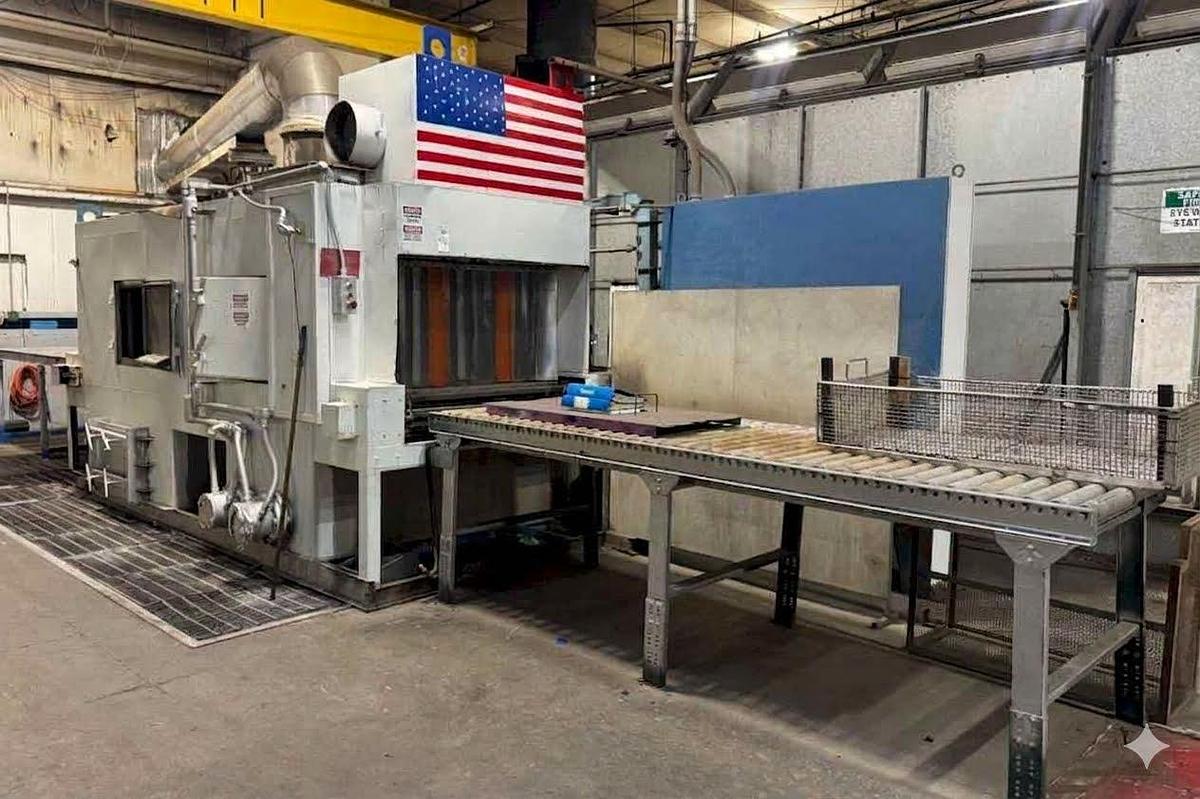

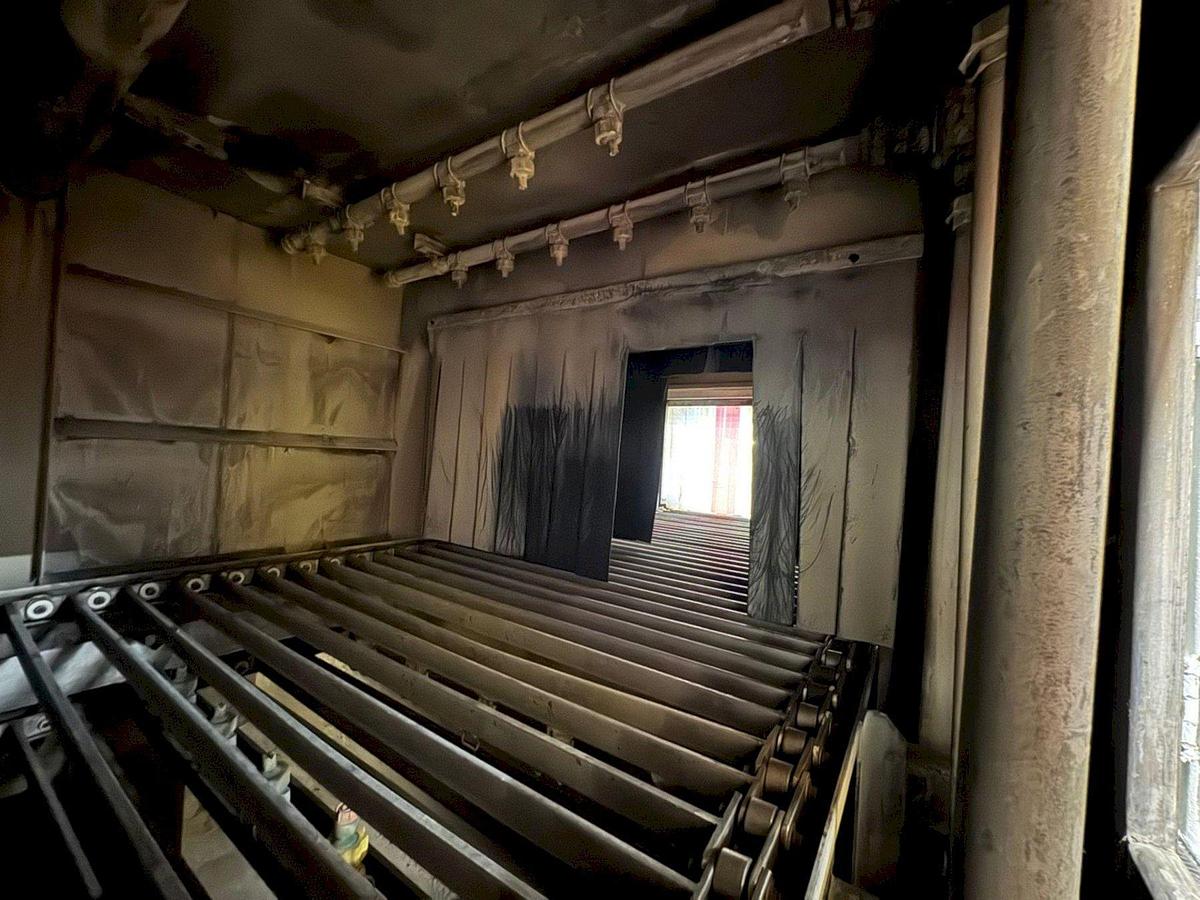

Cincinnati Industrial Machinery – Heavy-Duty Conveyor Washer

Constructed for long service life in demanding production environments, the machine features:

3/16" thick 304L stainless steel tanks

1/8" thick 304L stainless steel housings

1/8" thick 304L stainless steel drain decks

Heavy-duty conveyor rated for 20,000 lbs/hour throughput

Variable conveyor speed: 1.4 TO 3.8 FPM

Designed for continuous industrial duty, this washer delivers exceptional durability, corrosion resistance, and reliable performance for high-volume cleaning applications.

Heat Type: Electrical

Industrial Solvent-Type Parts Cleaner

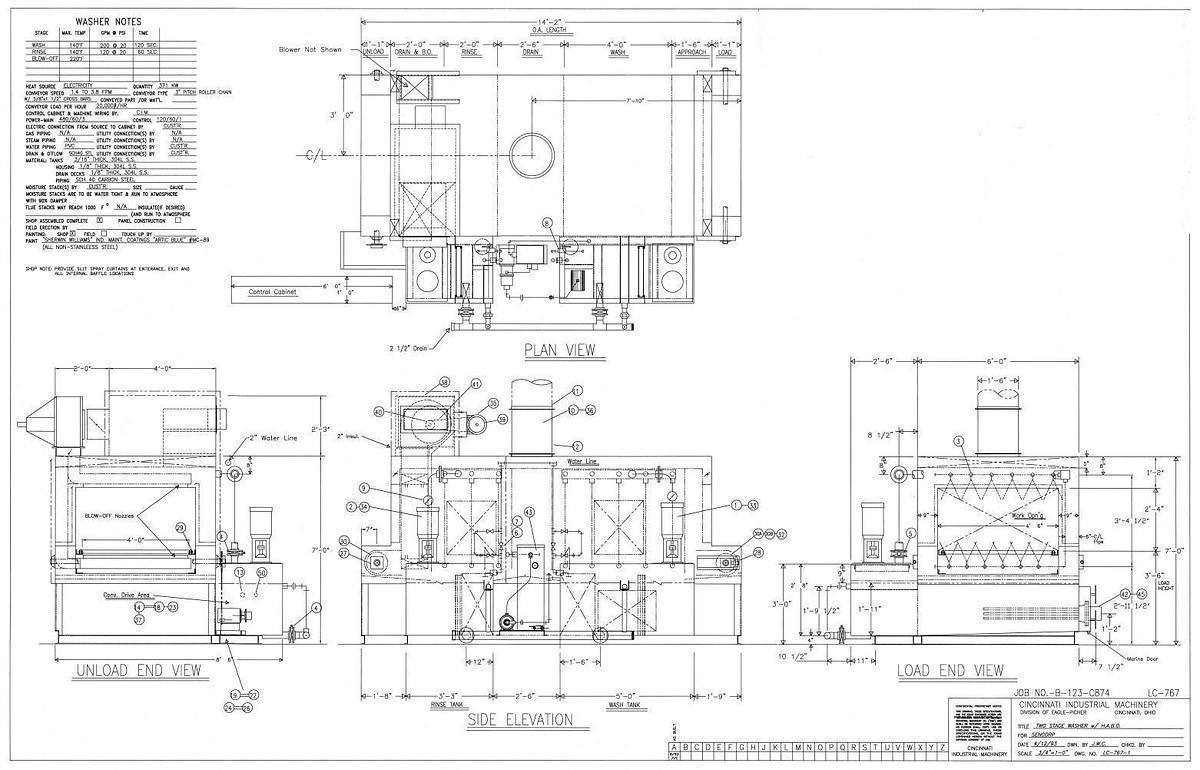

 DIMENSIONS 14'-2" L x 8'-6" W x 9'-3" T

WEIGHT 12000 lbs.

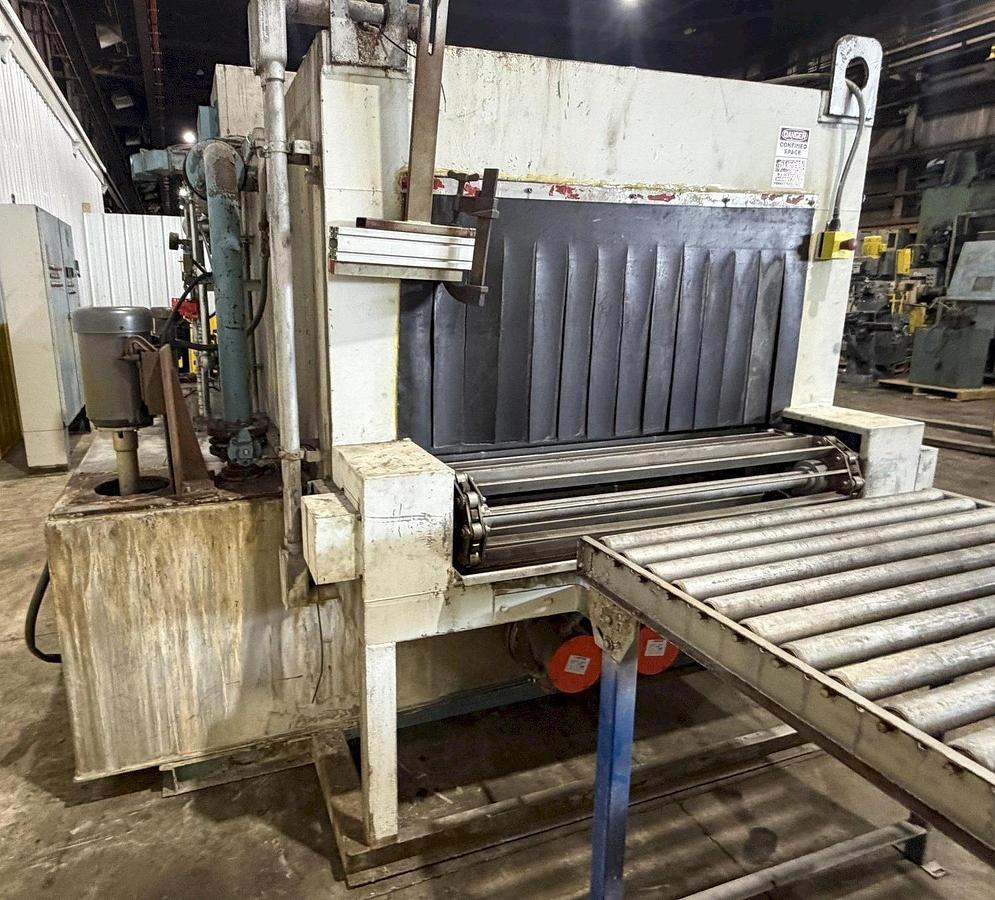

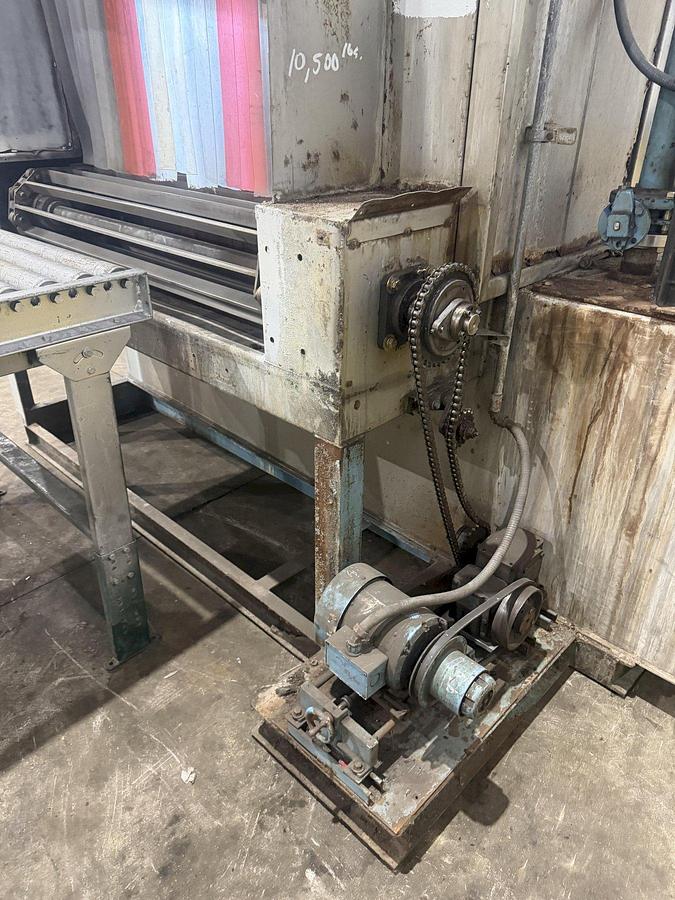

48" Wide Belt X 54" Opening 3/8"x1 1/2" Cross Bars 3" Pitch Roller Chain

20,000 lbs. Per Hour

30" Part Height

 3'6" Load Height

1'1" Load

1'6" Approach

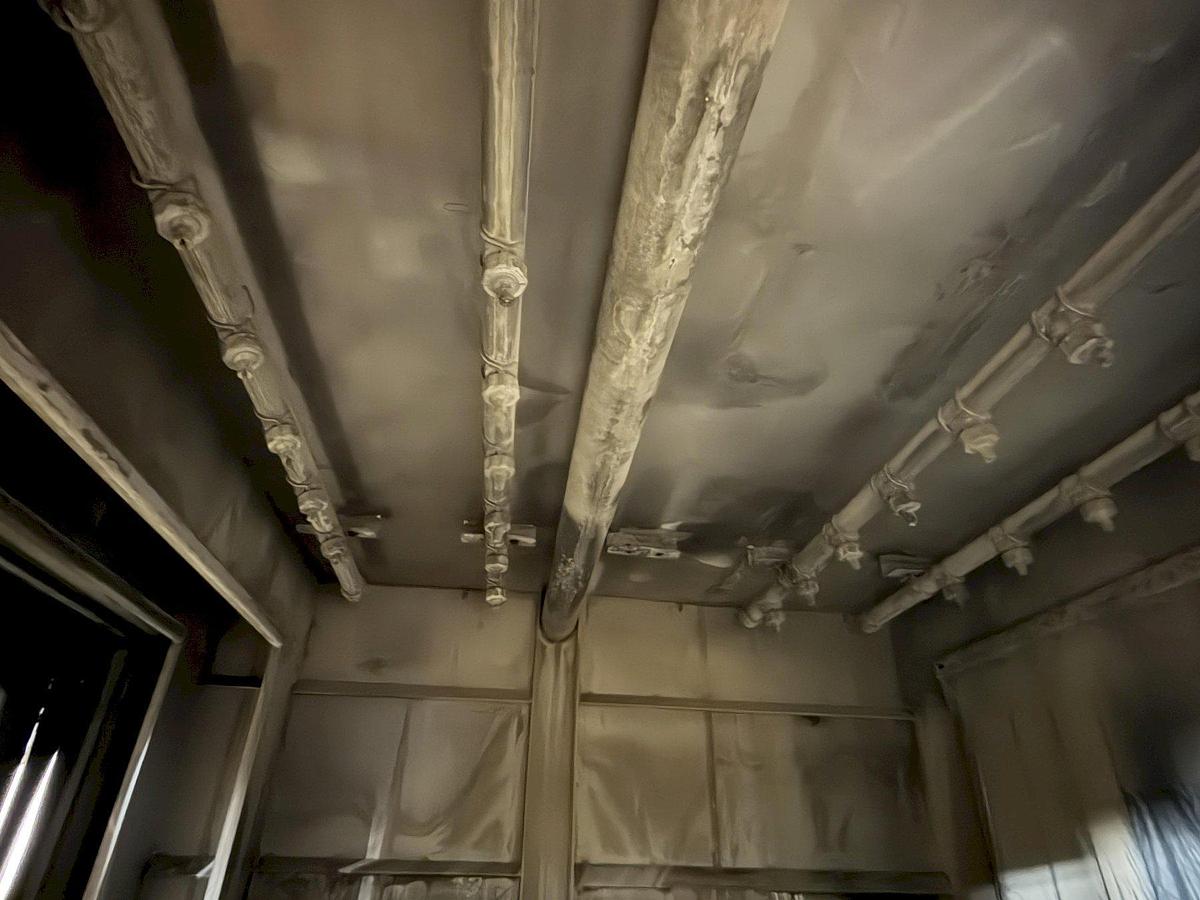

4' Wash

2'6" Drain

2' Rinse

2' Drain and Blow Off

1'1" Unload

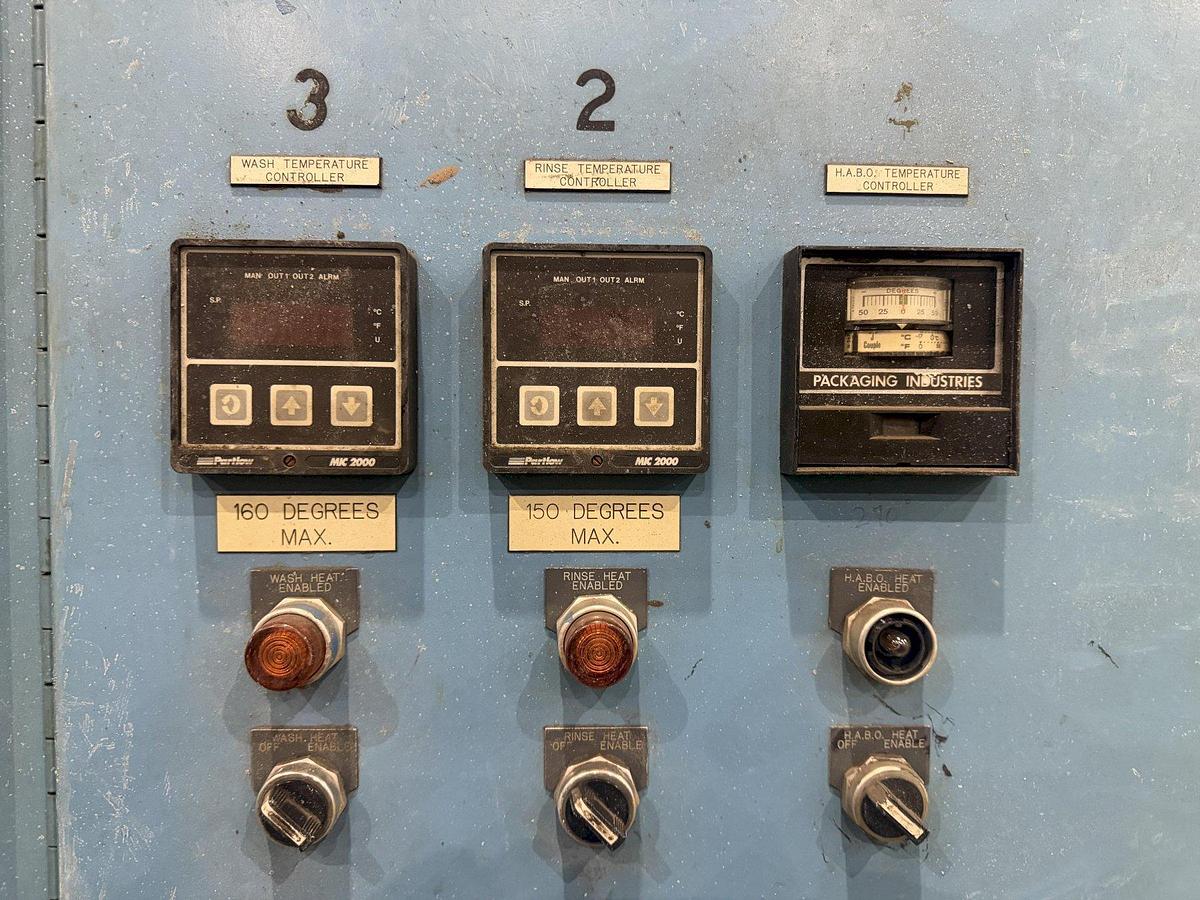

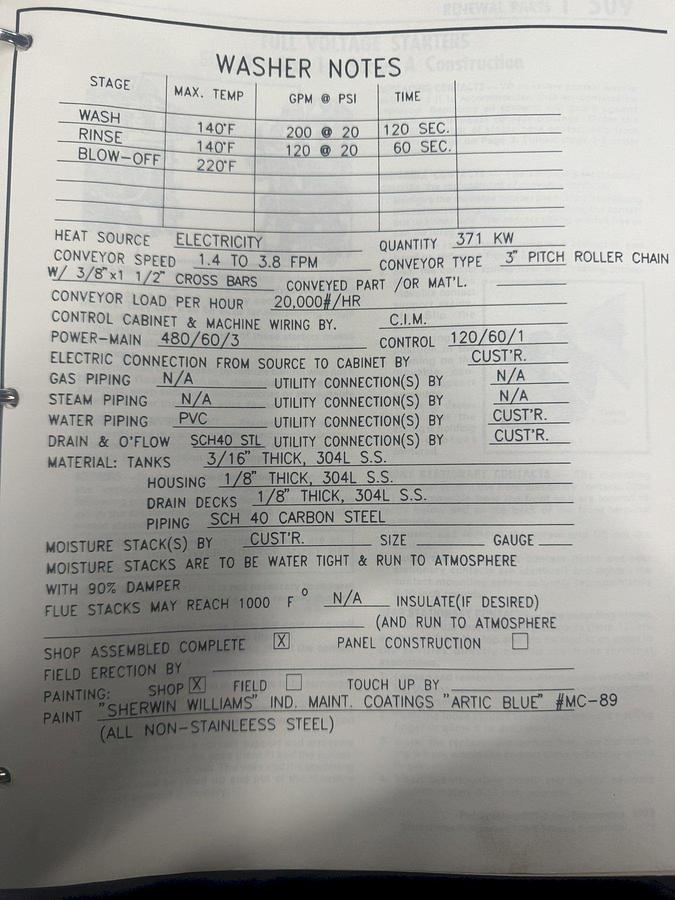

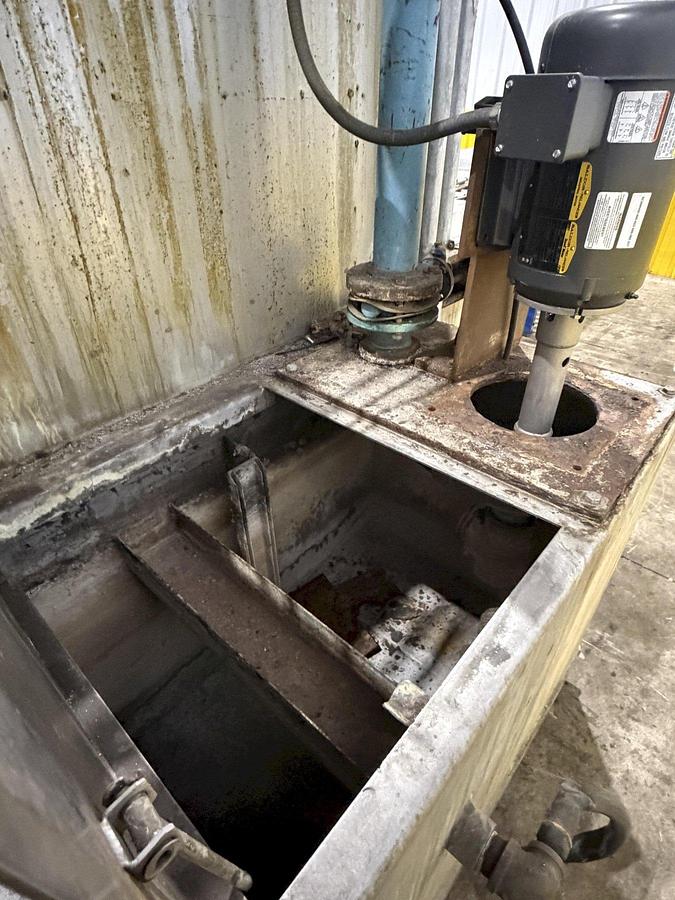

 5' Wash Tank 140 Deg. F. 200GPM @ 20 PSI 120 Seconds

3'-3" Rinse Tank 140 Deg. F. 120 GPM@20 PSI 60 Seconds

Blow Off 220 Deg. F.

  EQUIPPED WITH:

 Stainless Construction

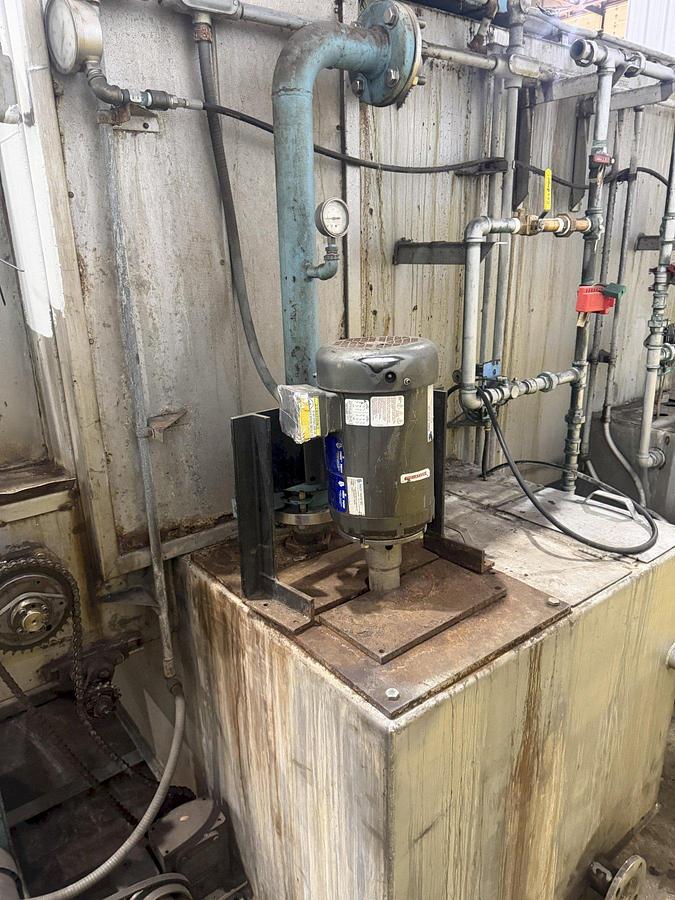

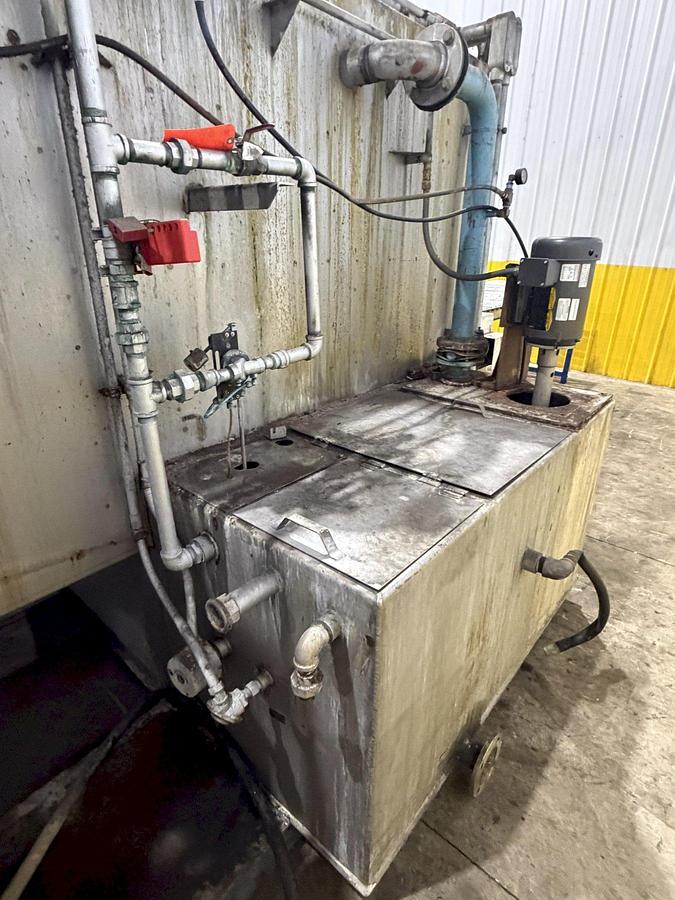

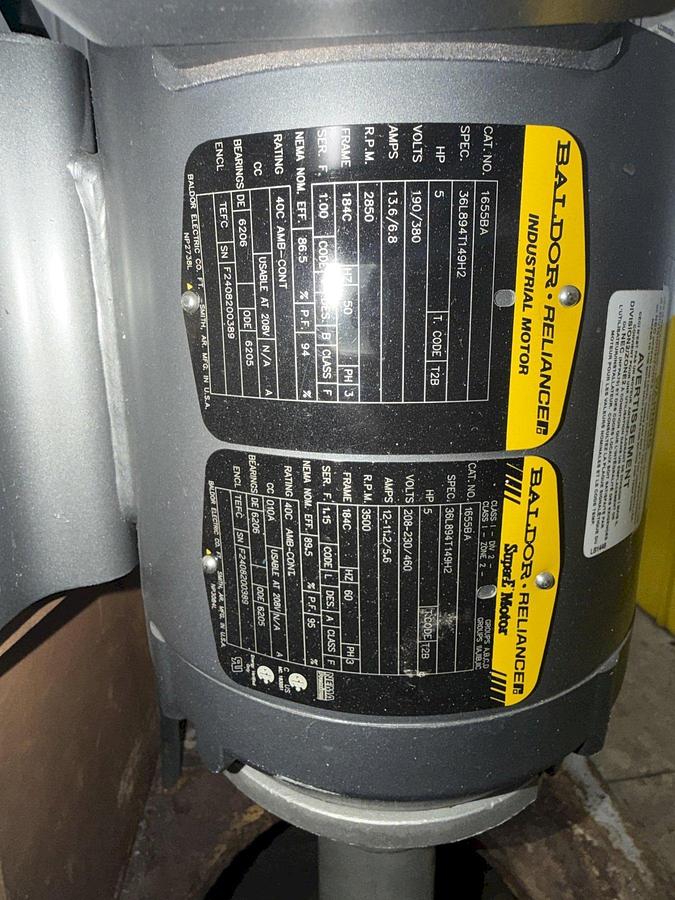

Wash Pump and Rinse Pumps Carbon

Carbon Plumbing

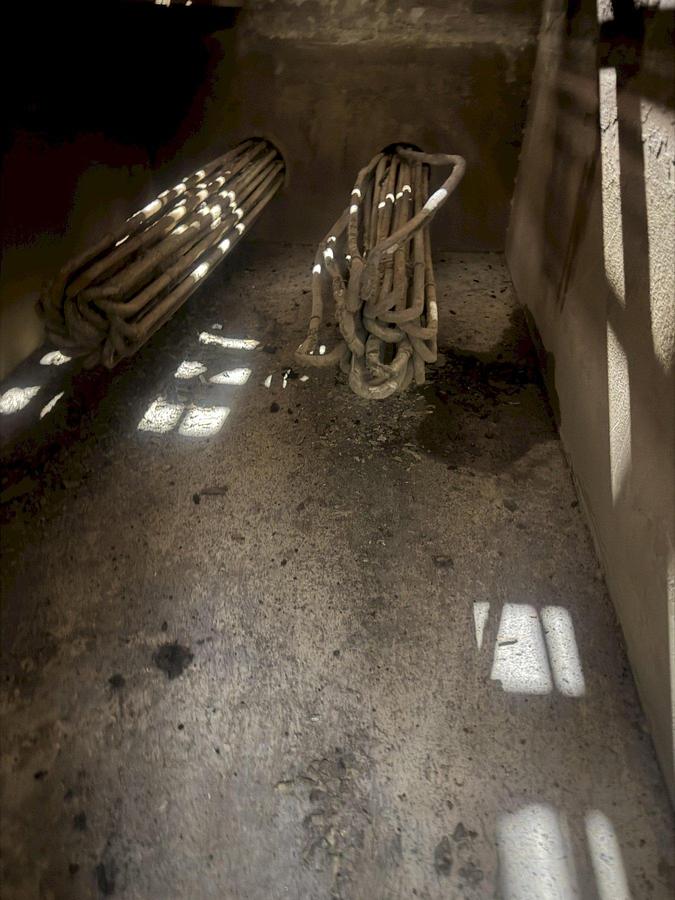

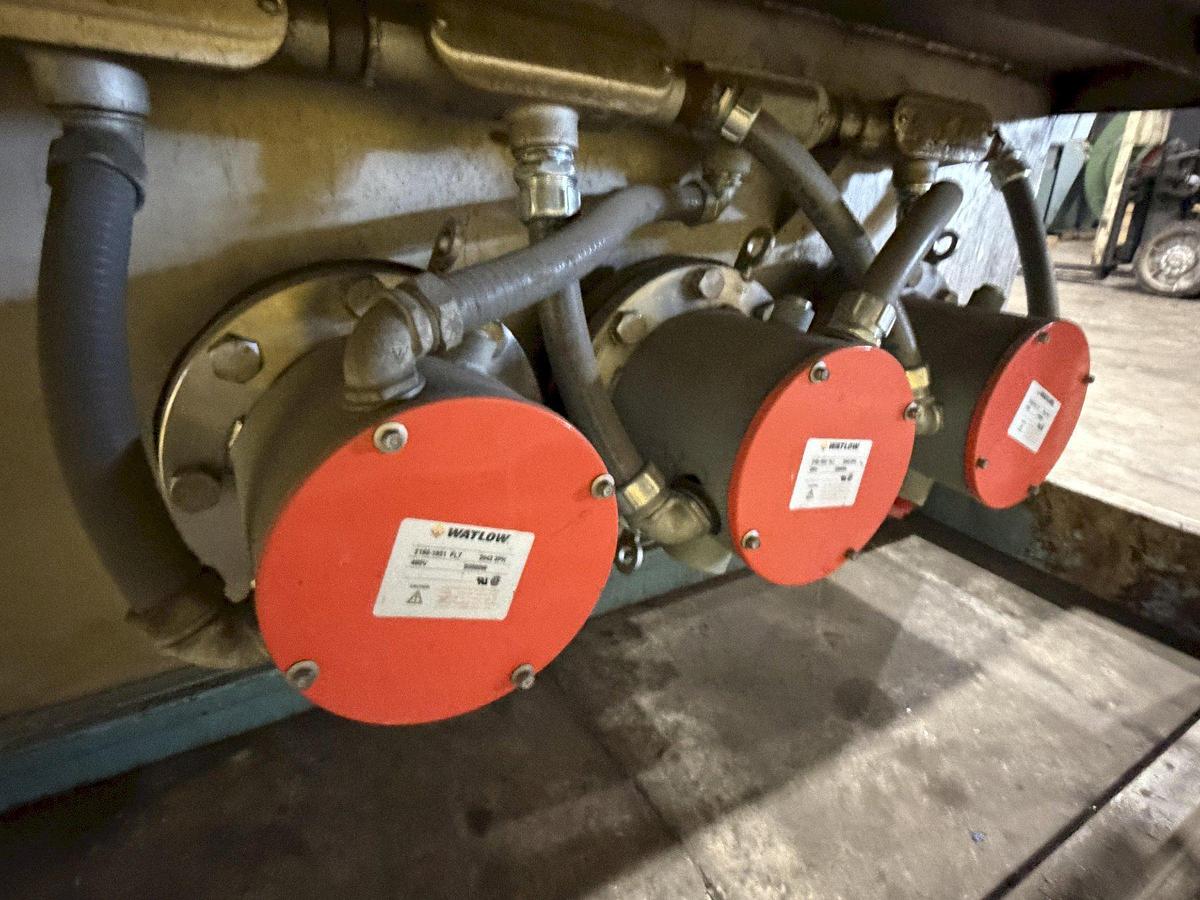

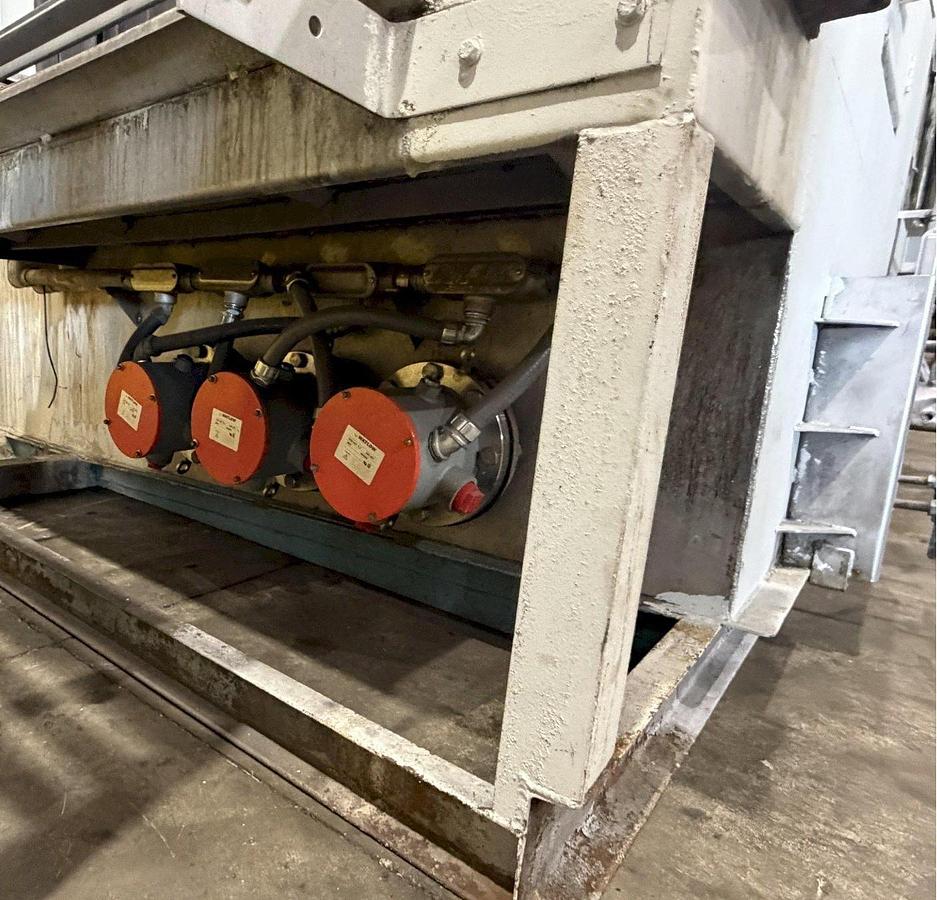

Electric Heat 371KW

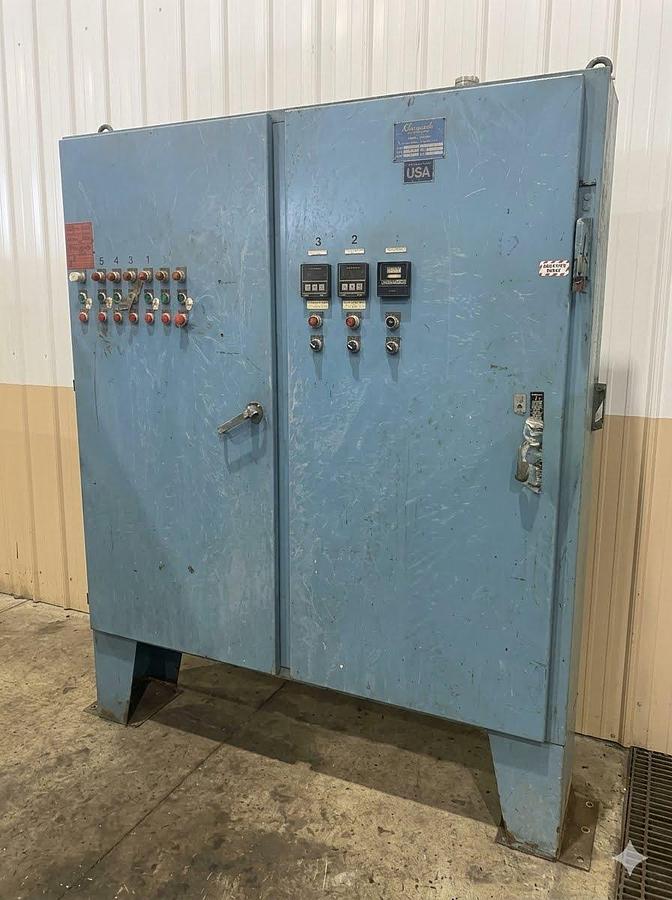

480 Volt 3 Phase 600 FLA
