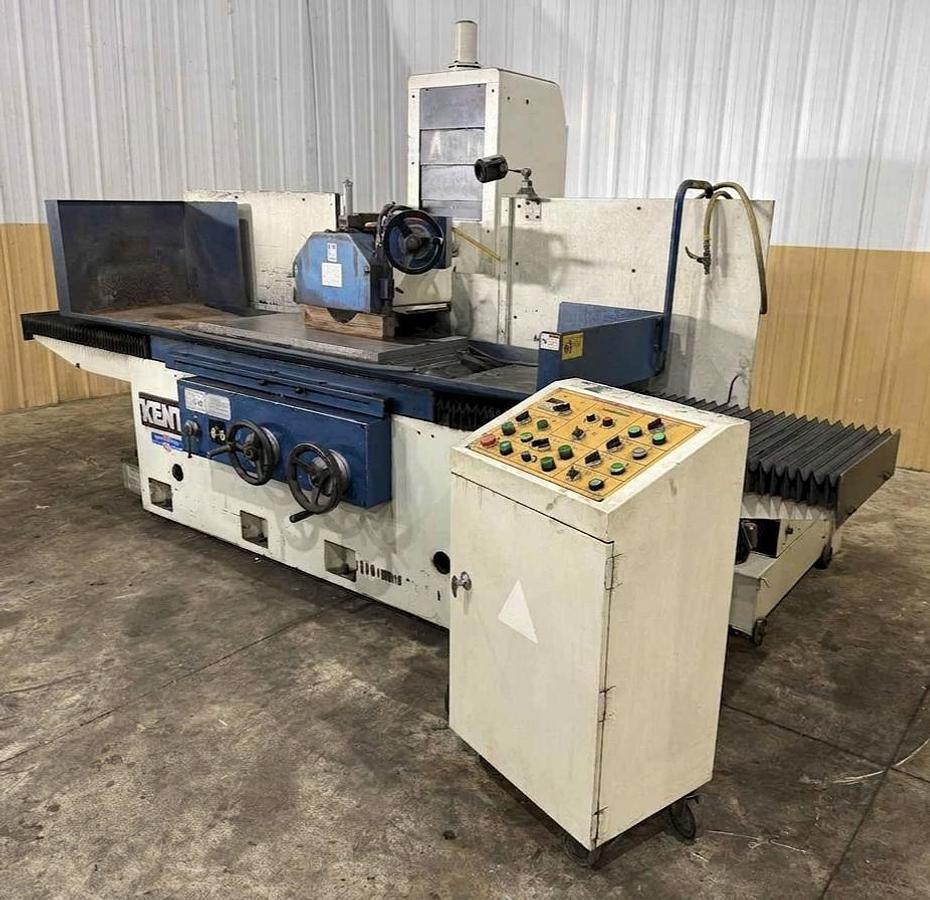

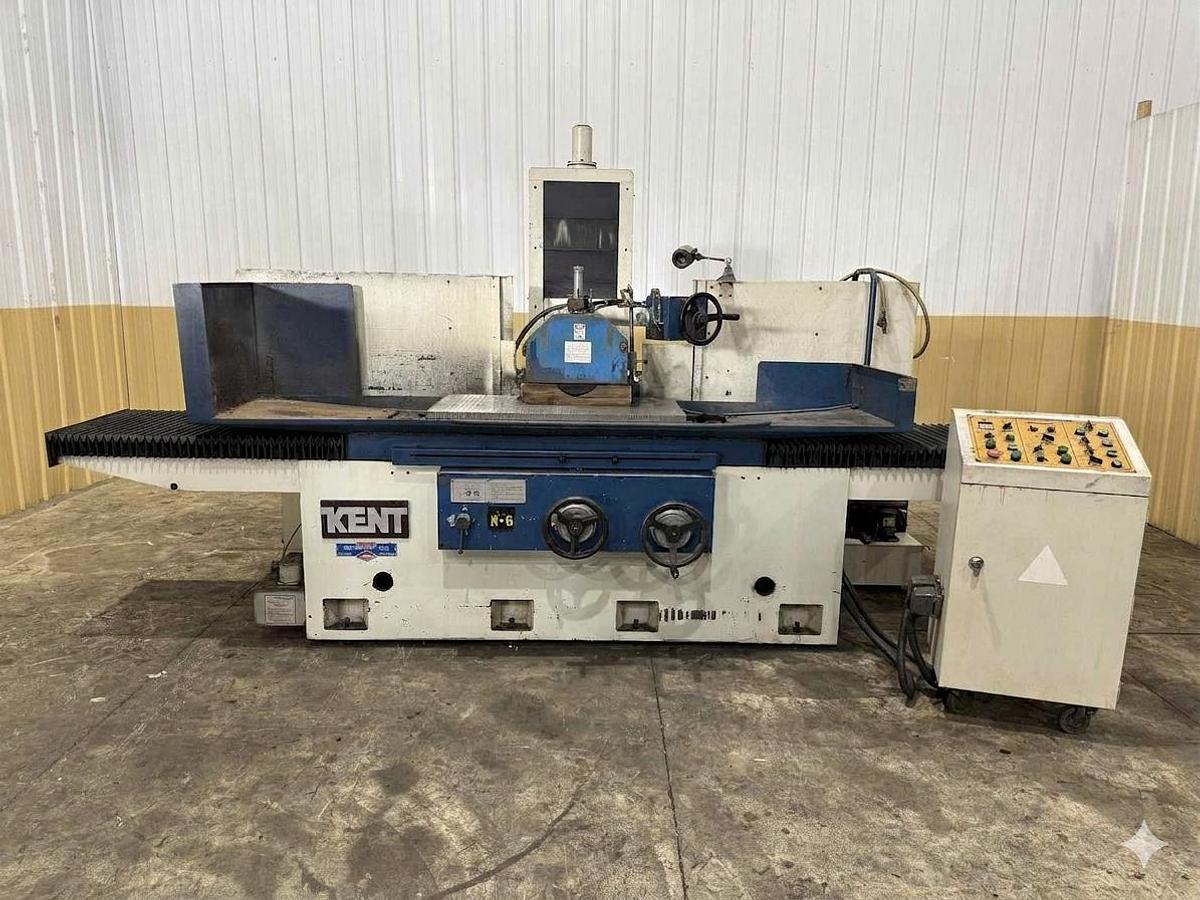

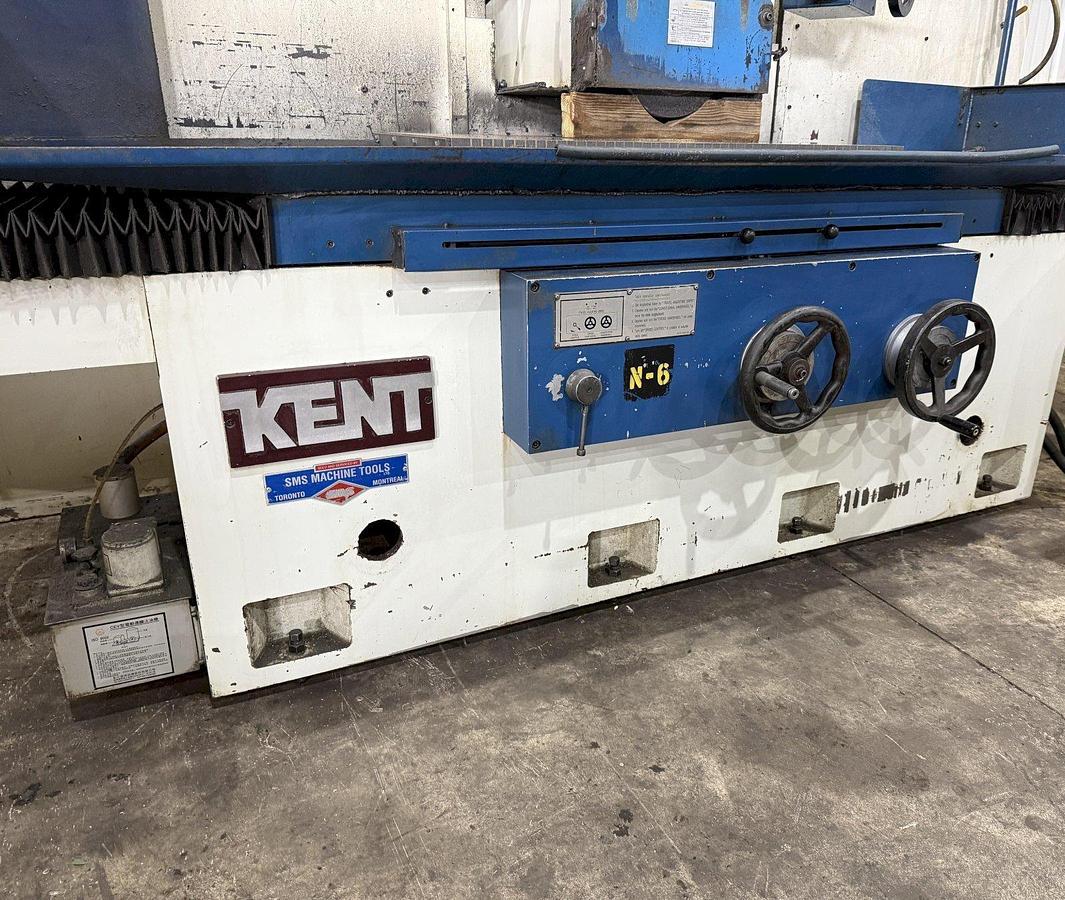

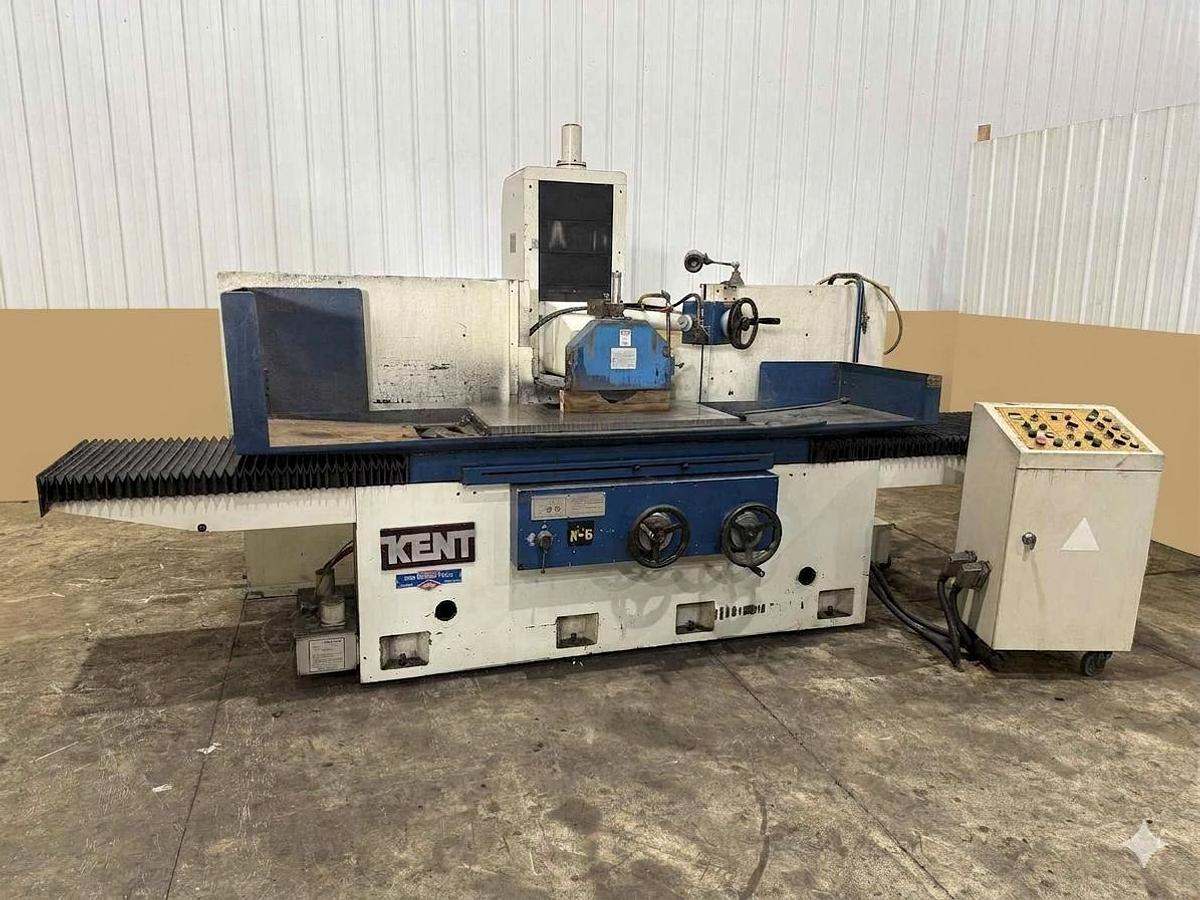

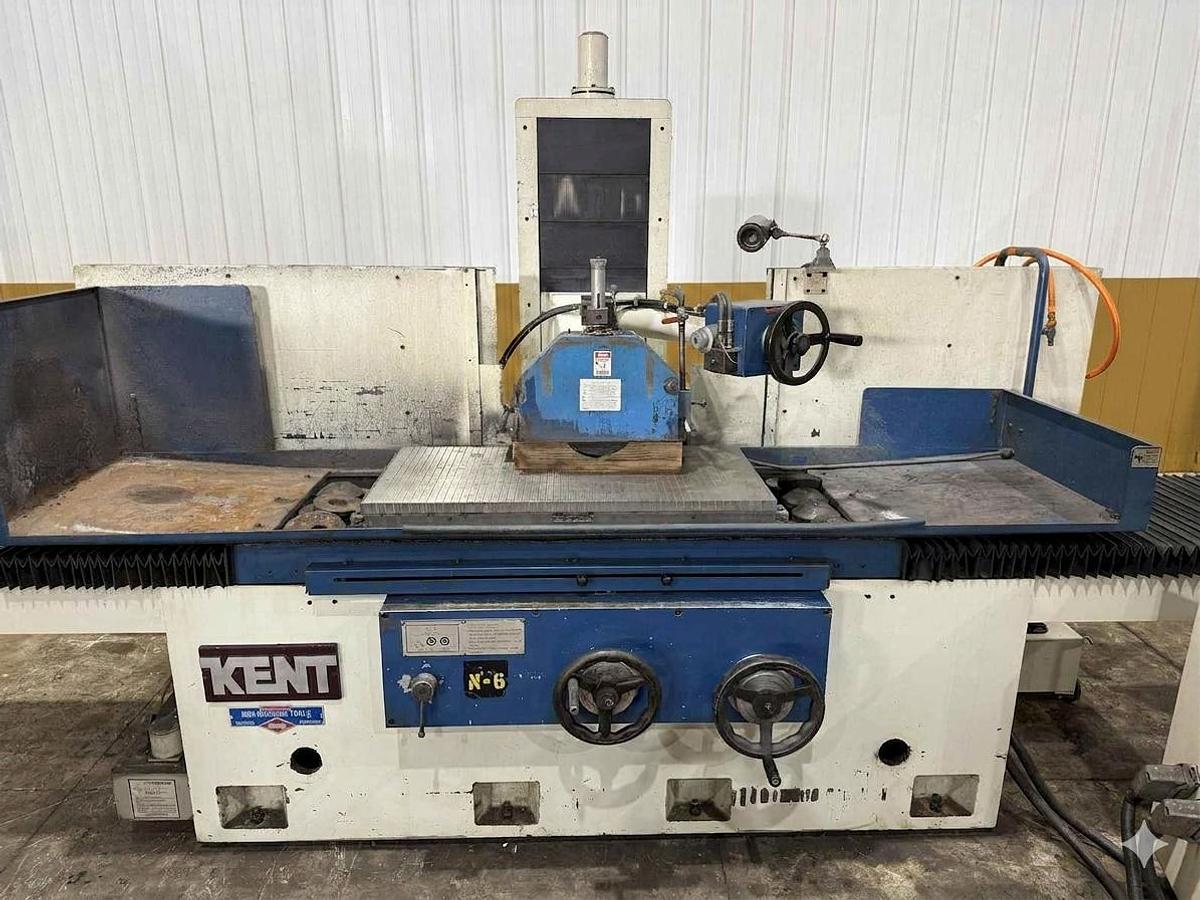

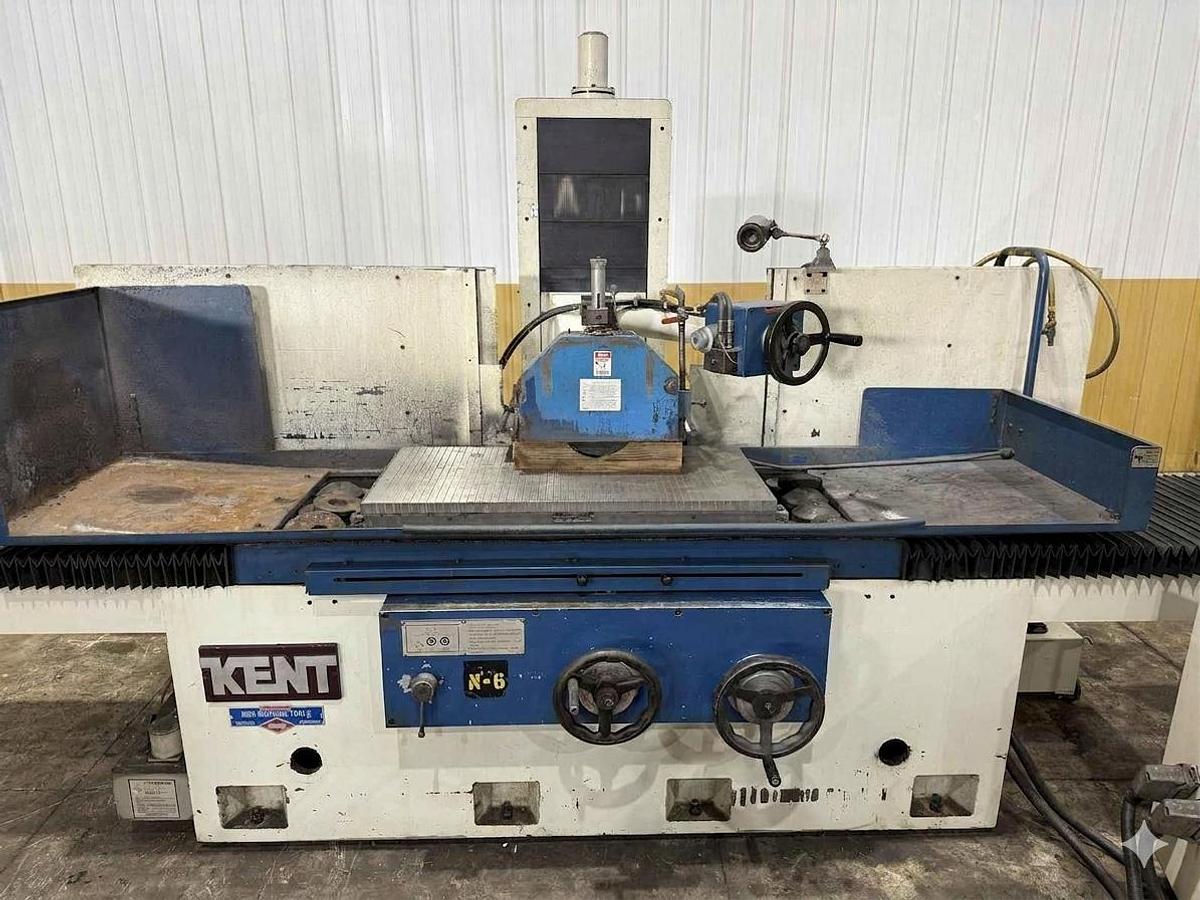

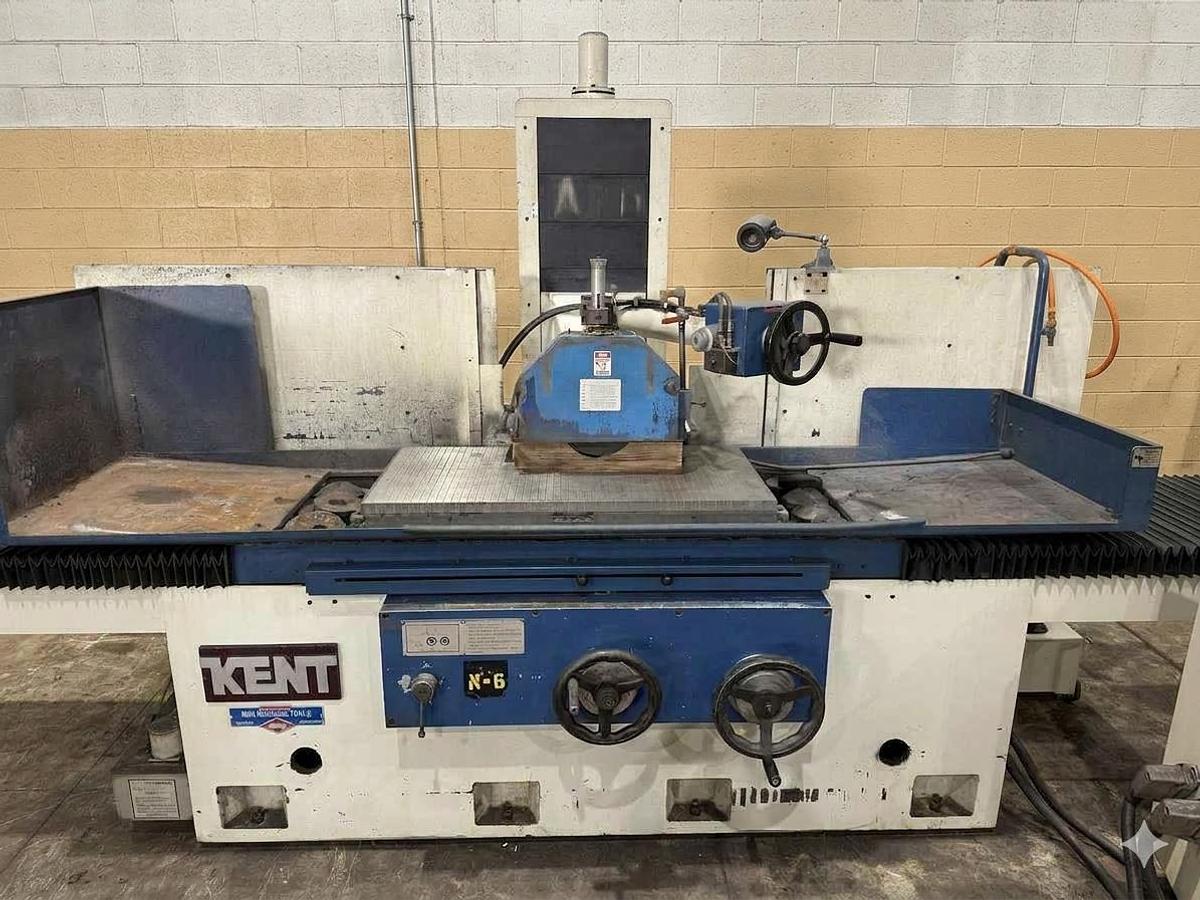

20" X 40" KENT MODEL # KGS-510AHD HYDRAULIC SURFACE GRINDER

20" X 40" KENT MODEL # KGS-510AHD HYDRAULIC SURFACE GRINDER

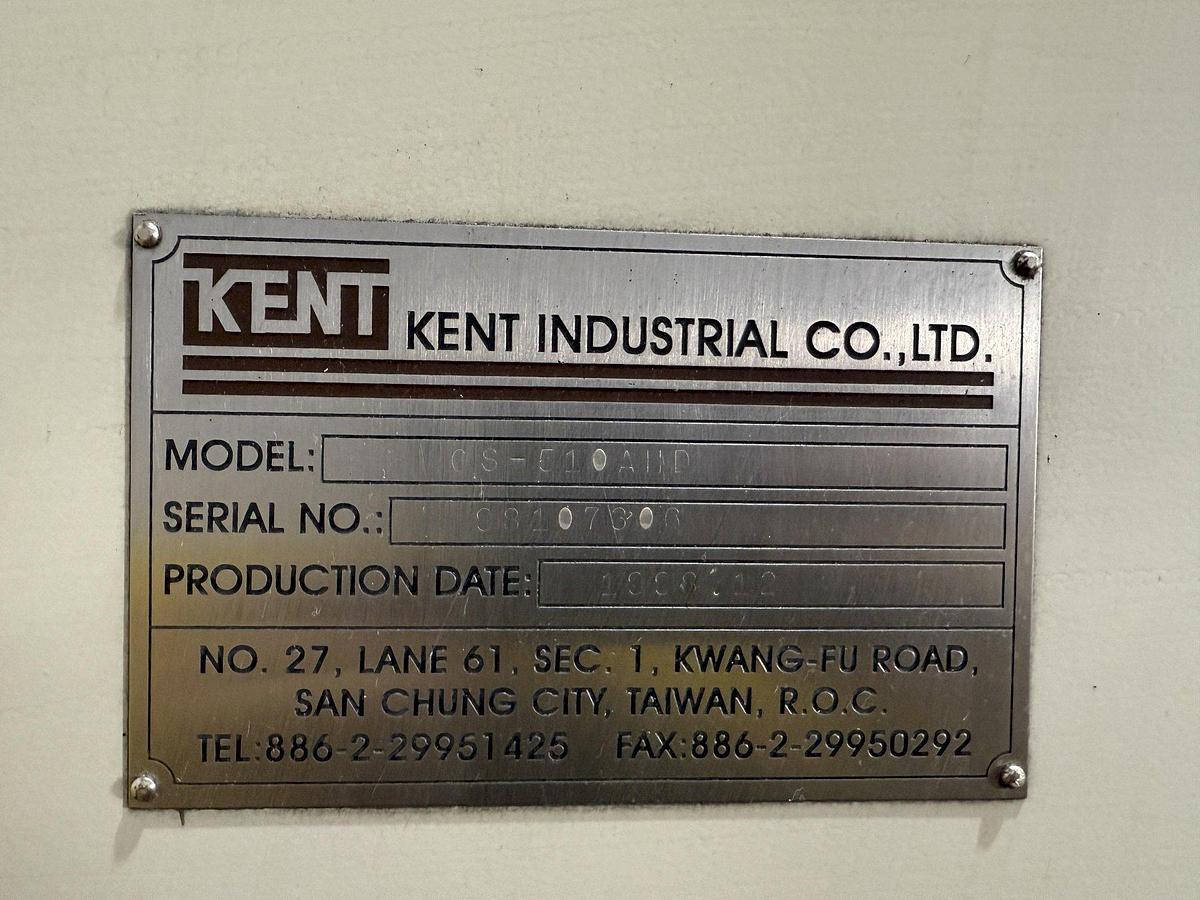

MODEL ............................. KGS-510AHD

NEW ............................... 1998

CAPACITY .......................... 20" X 40"

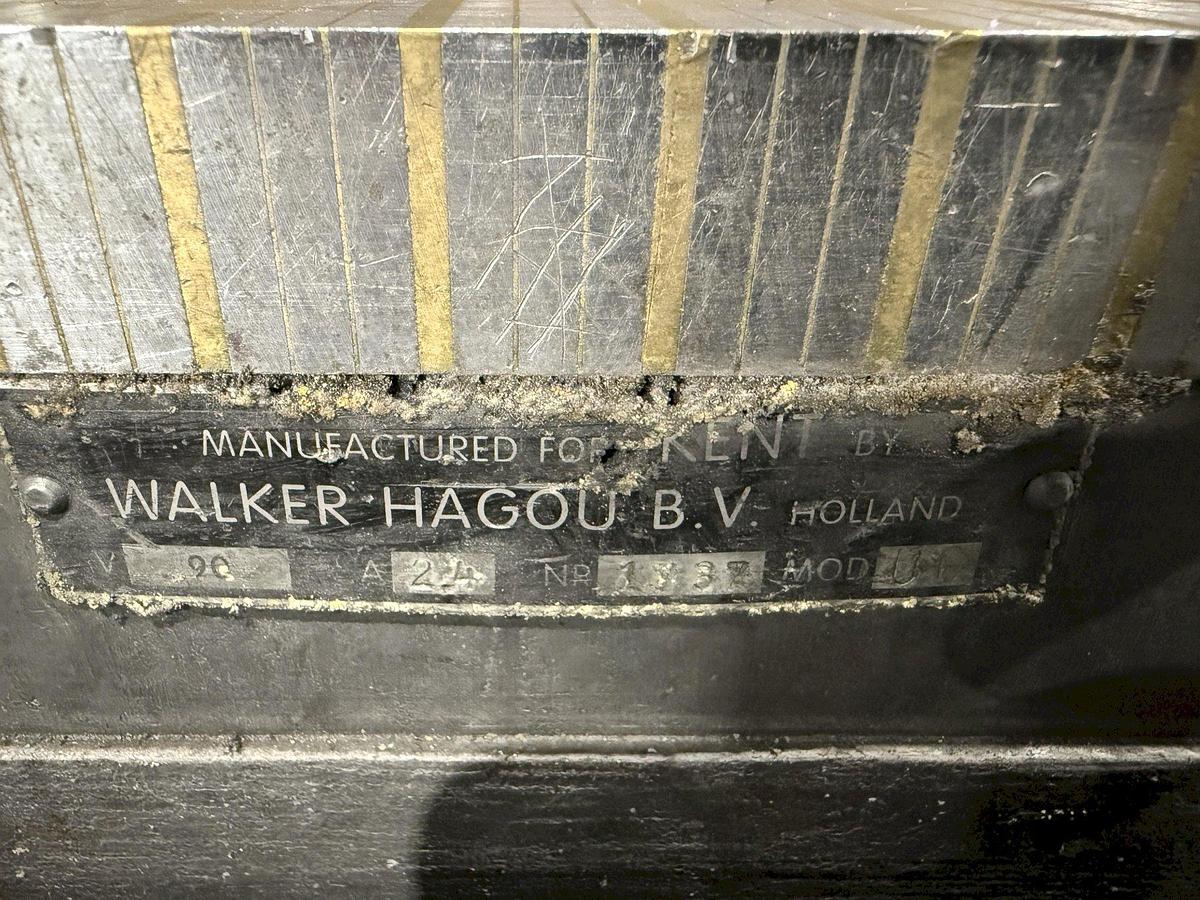

CHUCK SIZE ........................ 20"W x 40"L

MAX SPINDLE CENTER TO TABLE TOP ... 23"

MAX LONGITUDINAL TRAVEL ........... 44-1/2"

MAX CROSS TRAVEL .................. 21-5/8"

HYDRAULIC FEED .................... 22.9-82FPM

HANDFEED PER REVOLUTION ........... 0.02

CONTINUOUS TRAVERSE FEED .......... 0-59 IPM

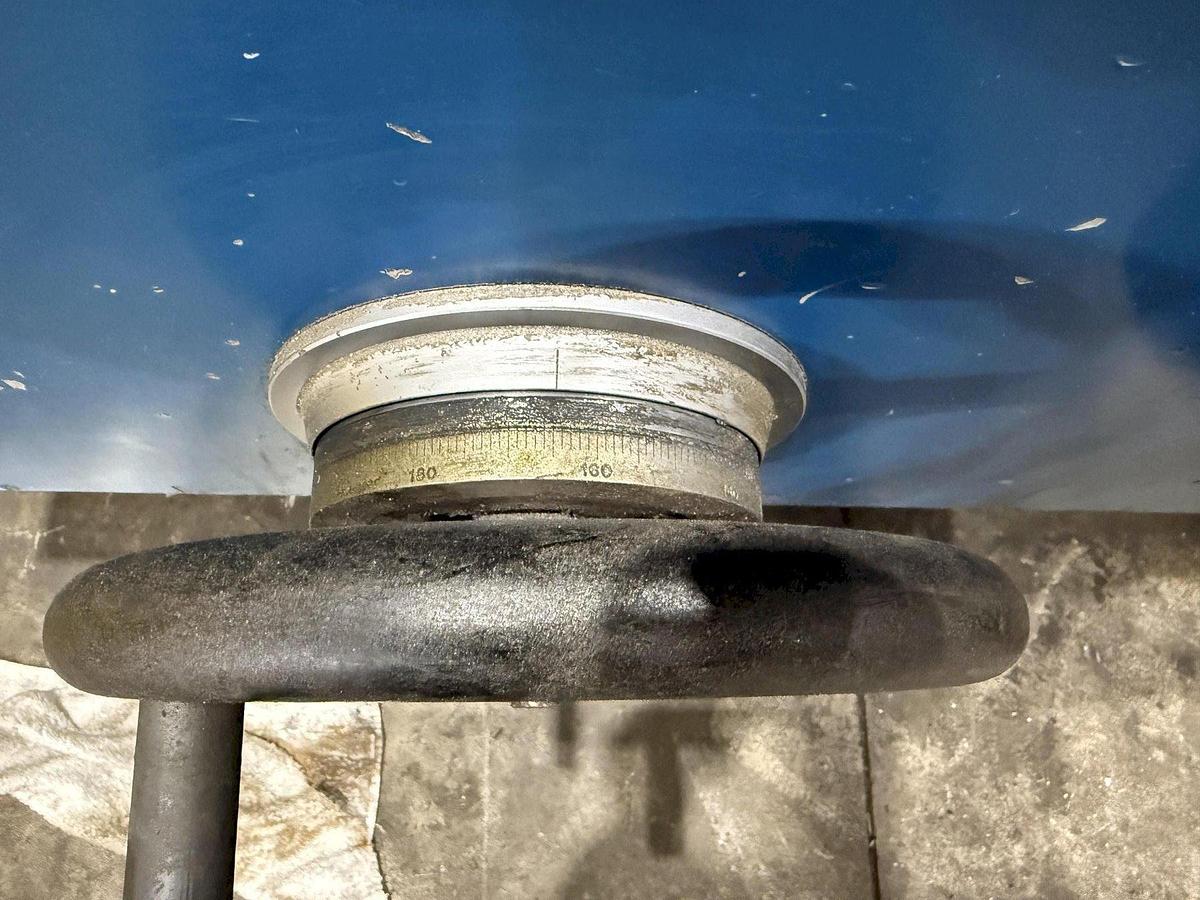

HANDWHEEL RADIUS .................. 0.00008

RAPID FEED ........................ 11 IPM

SPINDLE DRIVE MOTOR ............... 7.5 HP

WHEEL DIAMETER .................... 14"

WHEEL WIDTH ....................... 1-1/2″

WHEEL BORE ........................ 5"

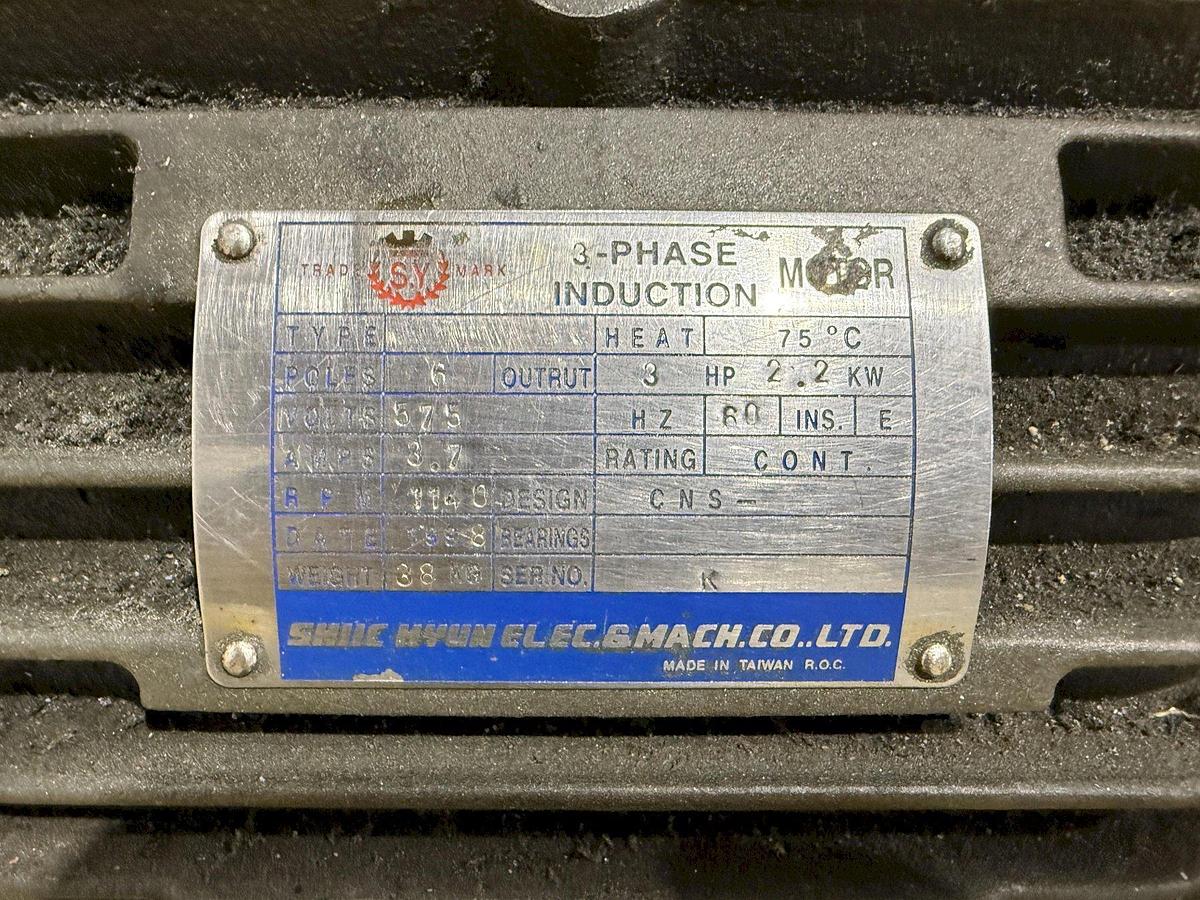

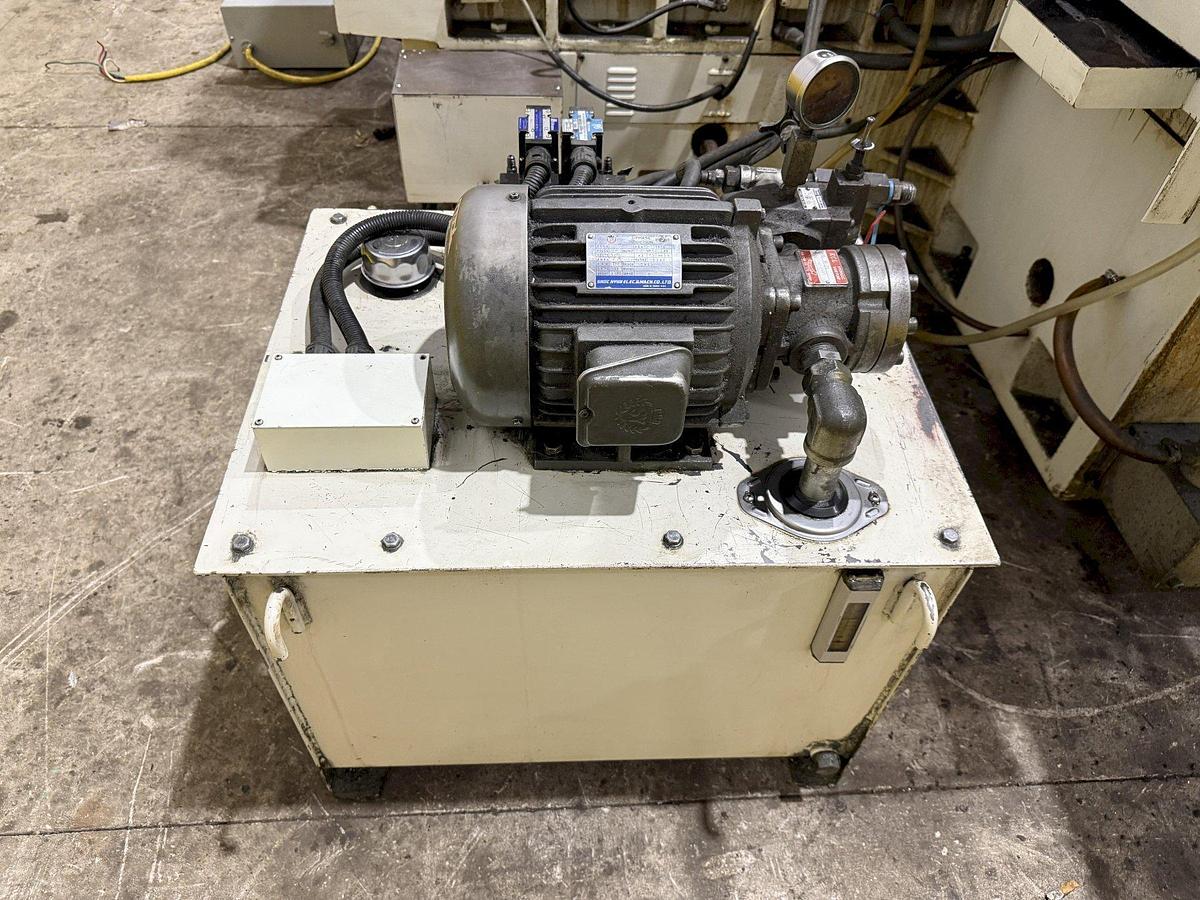

HYDRAULIC MOTOR ................... 3 HP

CROSS FEED MOTOR .................. 4/5 HP
