MODEL : LJ-19

YEAR NEW : 2021

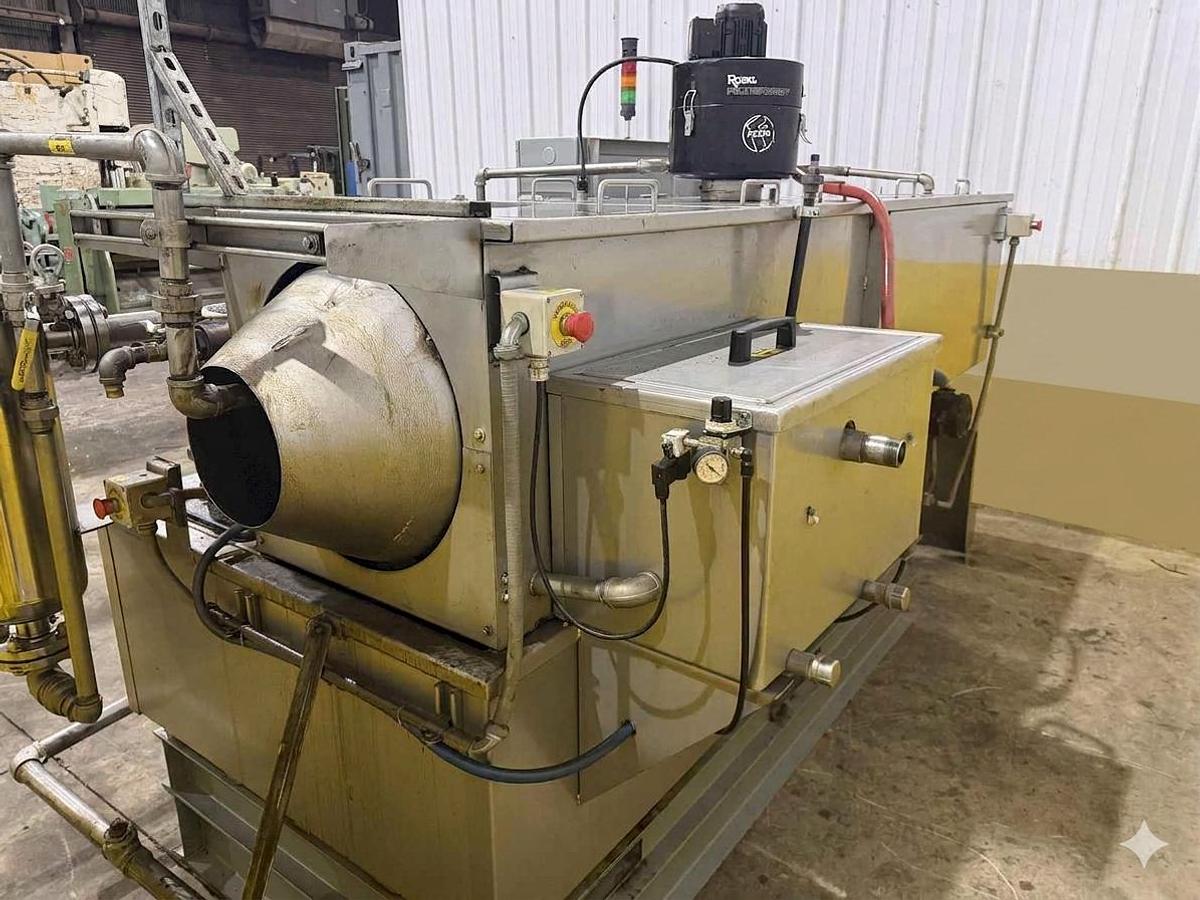

JENFAB LJ 19" Rotary Drum Washer – Wash / Rinse / Dry System

Key Machine Specifications

• Voltage: 460V / 3-Phase / 60Hz

• Overall Dimensions: 144 1/8" L x 72 3/8" W x 96 1/2" H

• Construction: 304 Stainless Steel

• Insulation: 2" insulated SS skin on dry tunnel & tank / 1" on tank

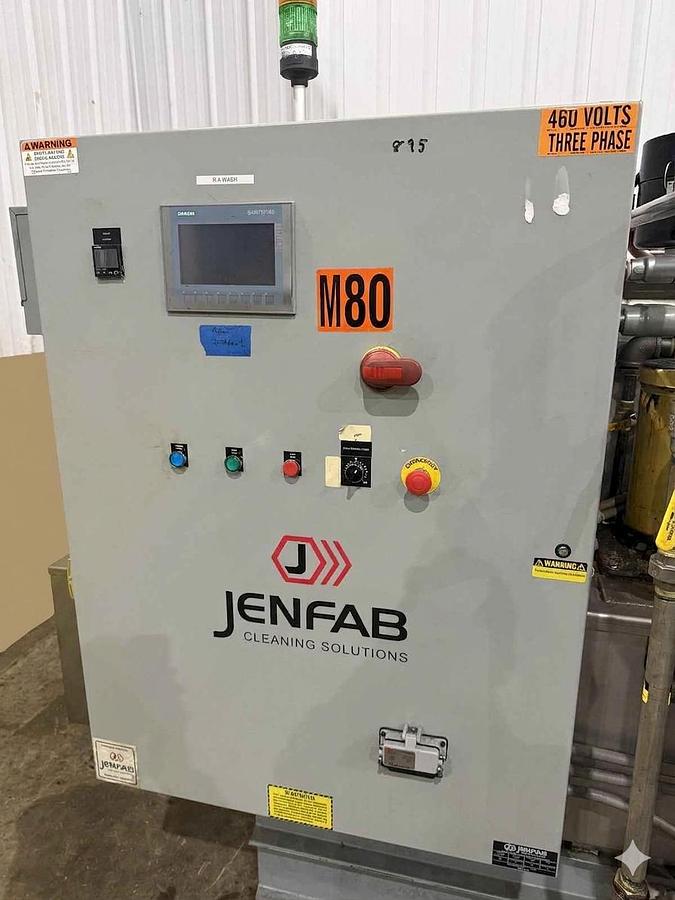

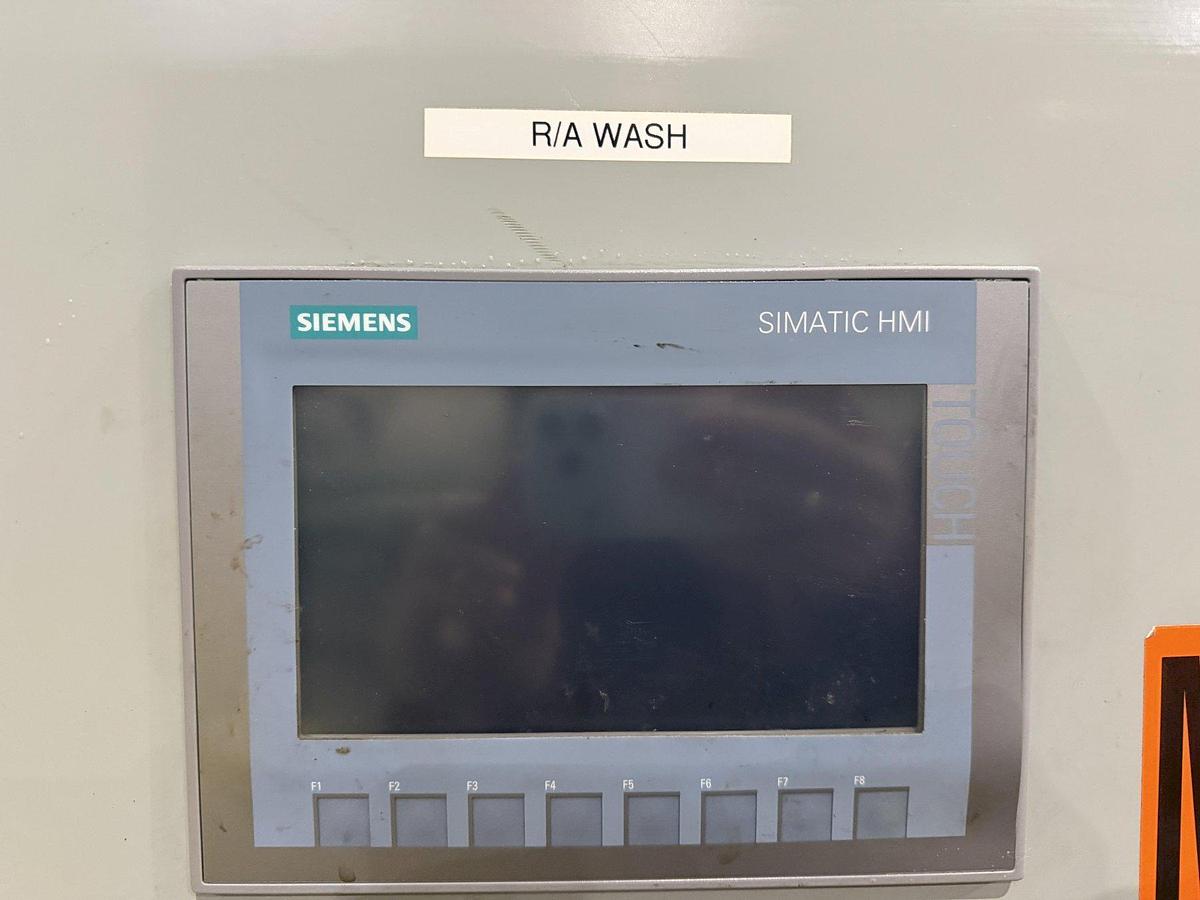

• PLC / Controls: Siemens PLC/HMI

• Stack light with audible alarm

• Unfused disconnect

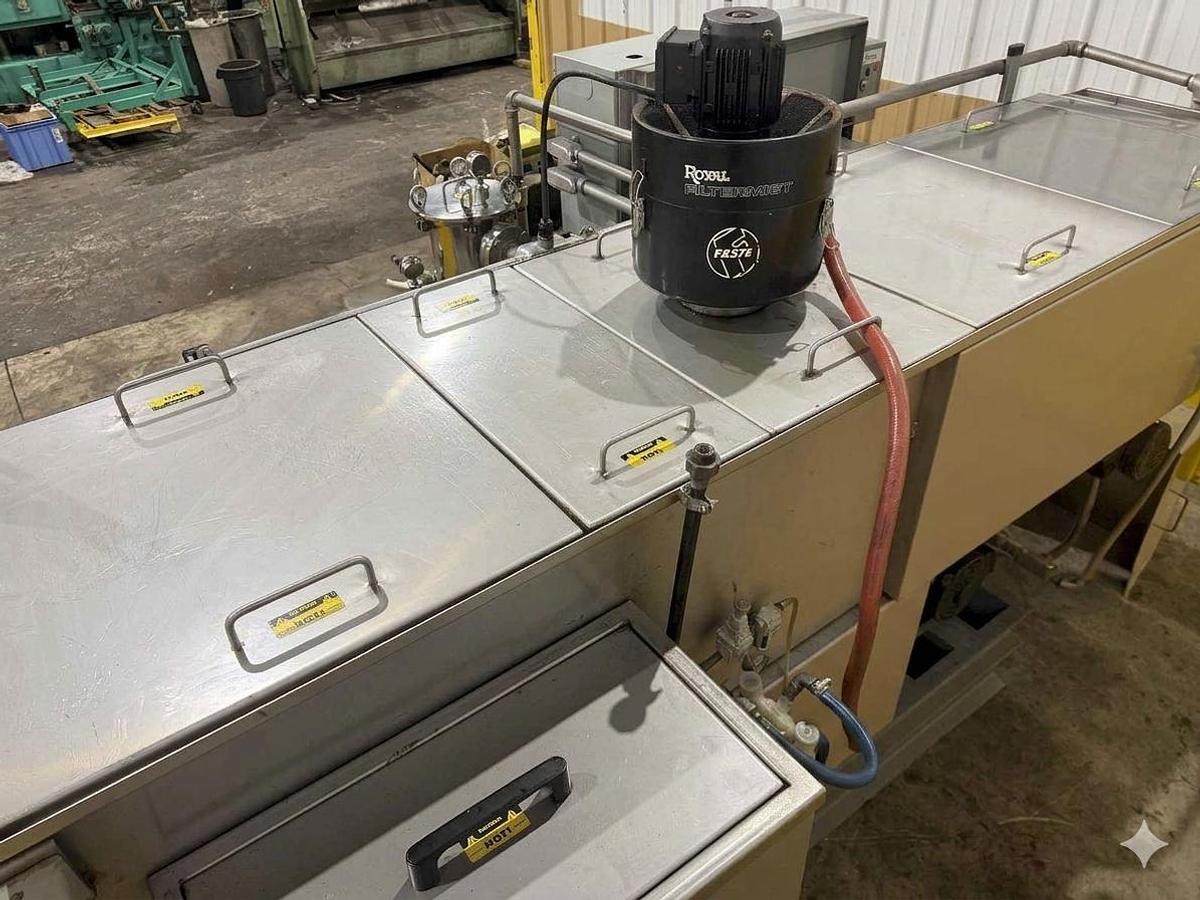

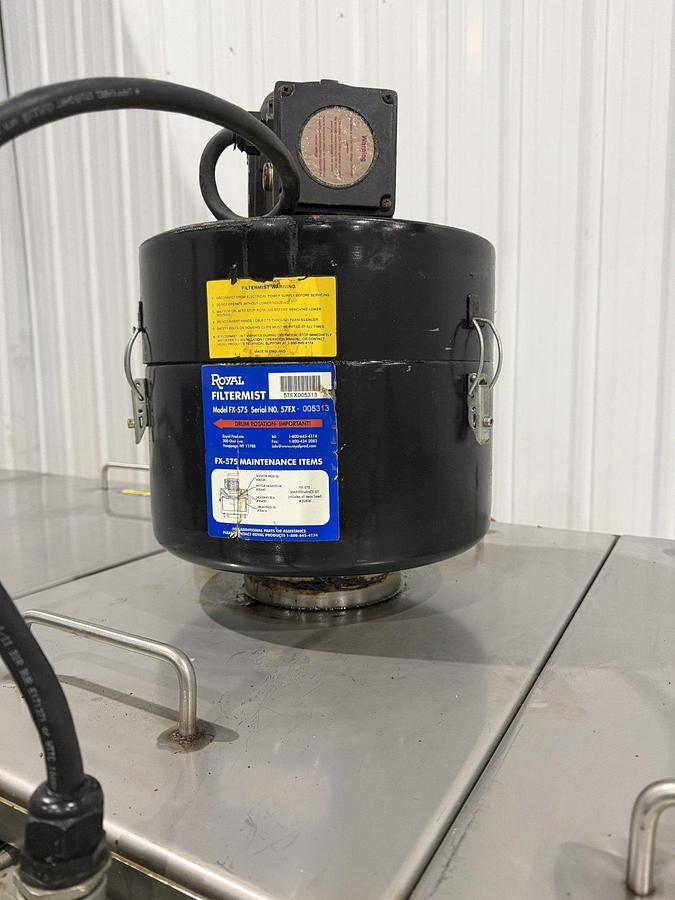

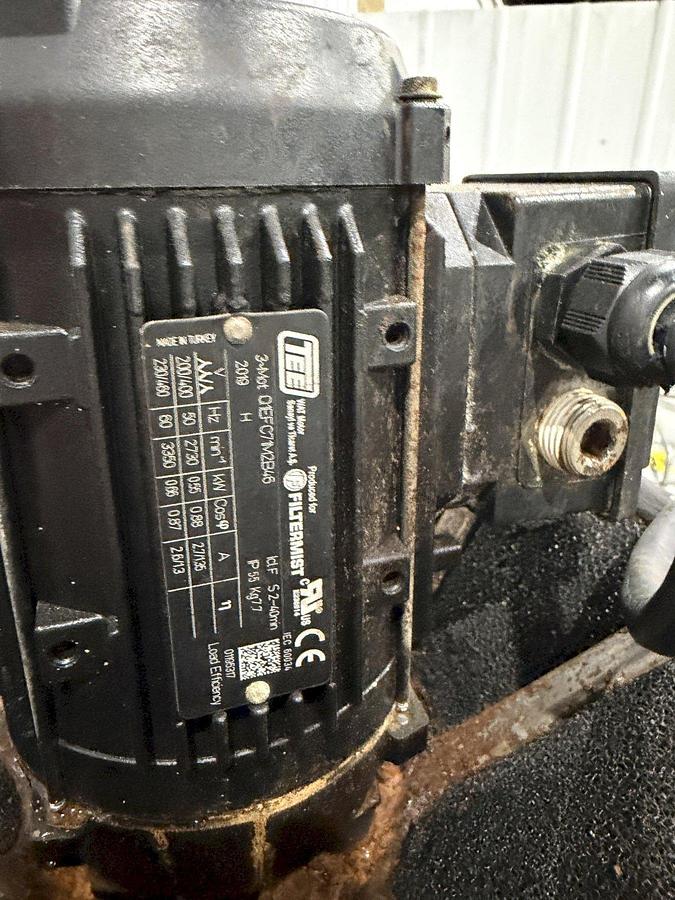

• Mounted FX-575 mist collector

• Finish: Stainless 2B finish, riser painted Jenfab gray

26895 LJ-19

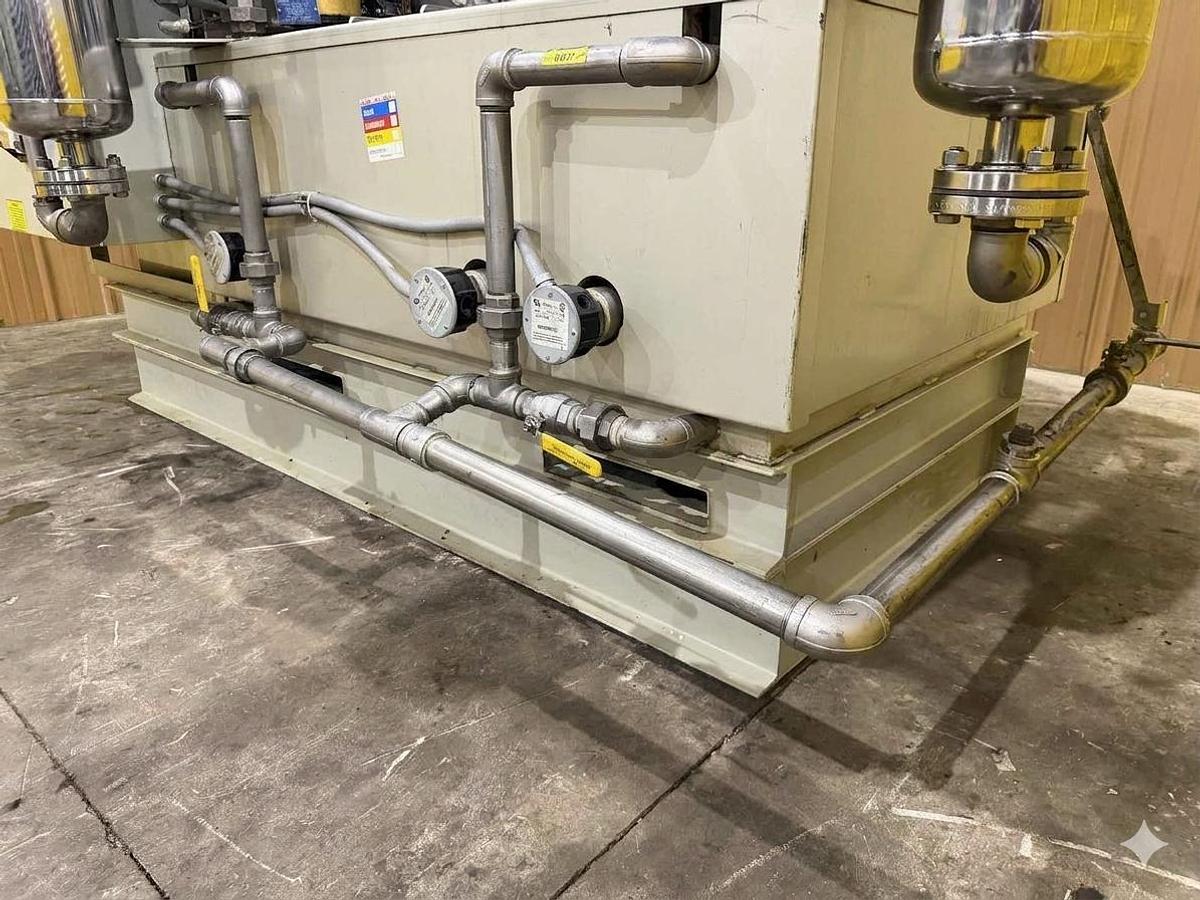

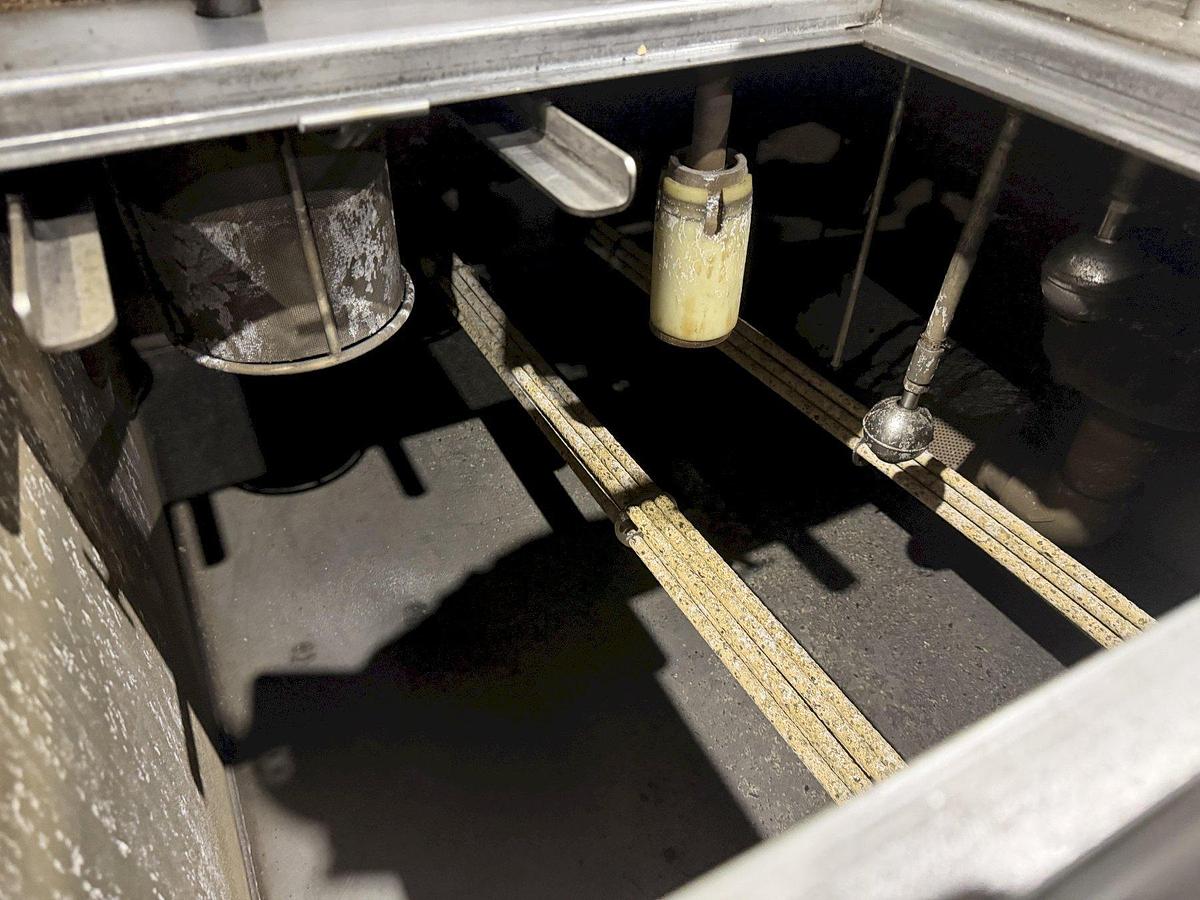

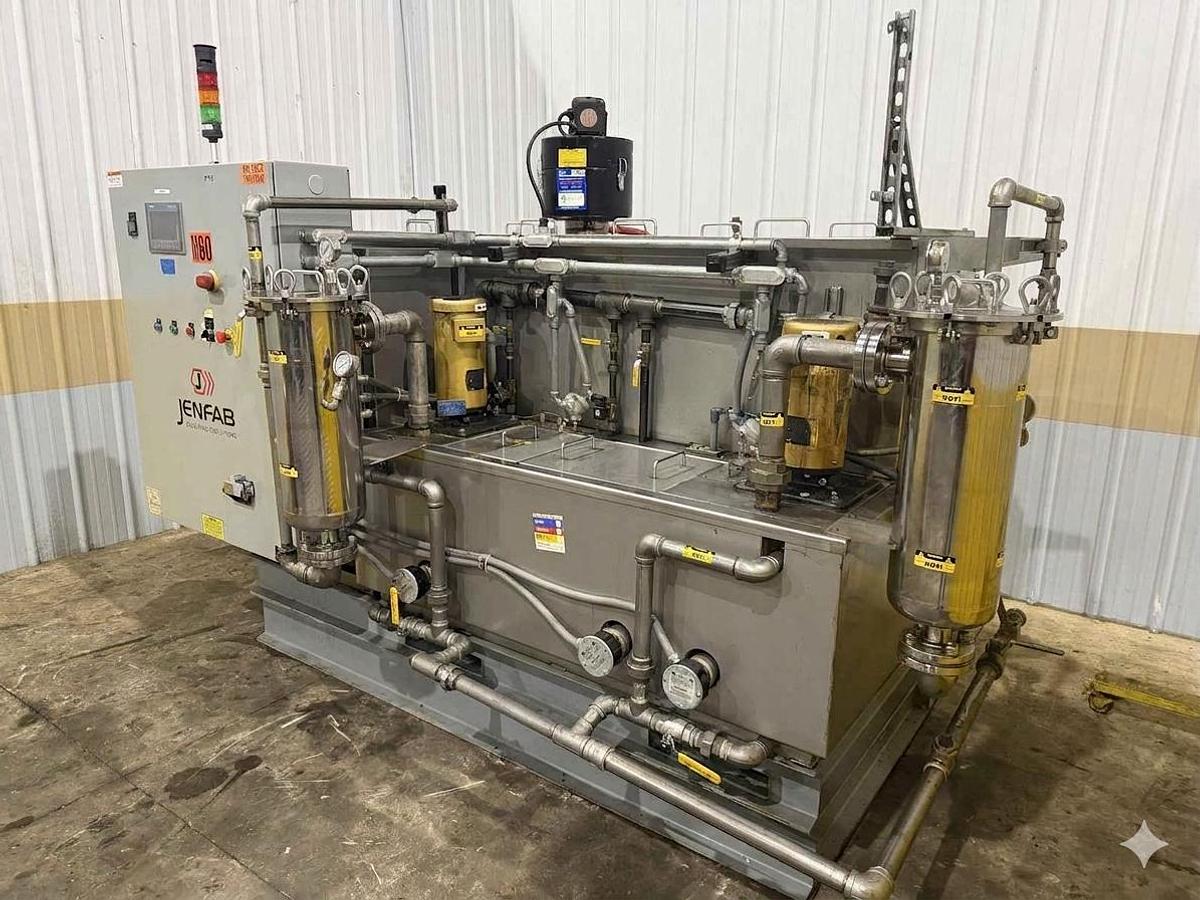

Tank & Heating System

• Wash tank: 115 gallons

• Rinse tank: 75 gallons

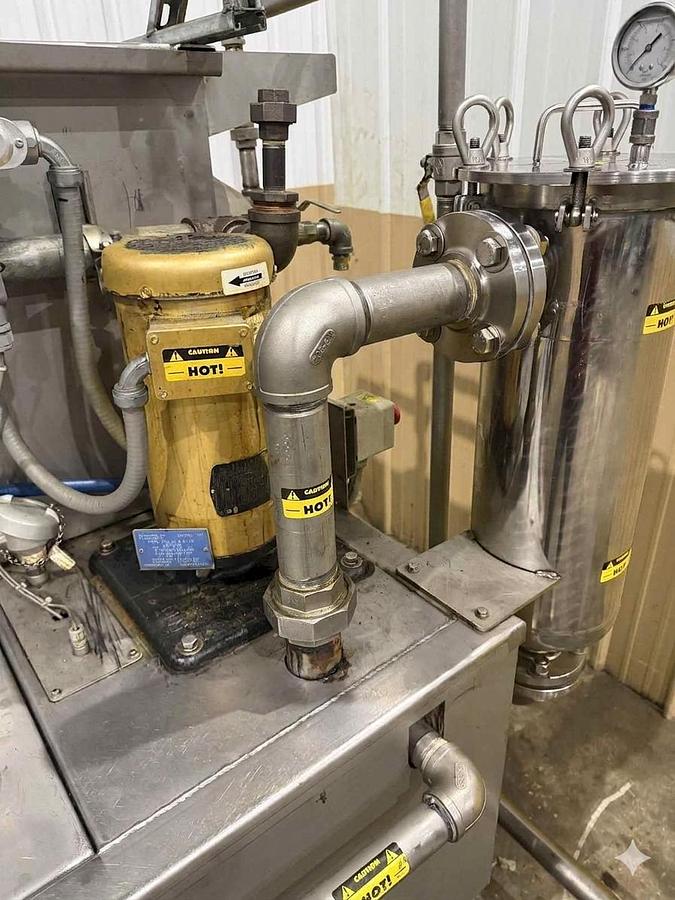

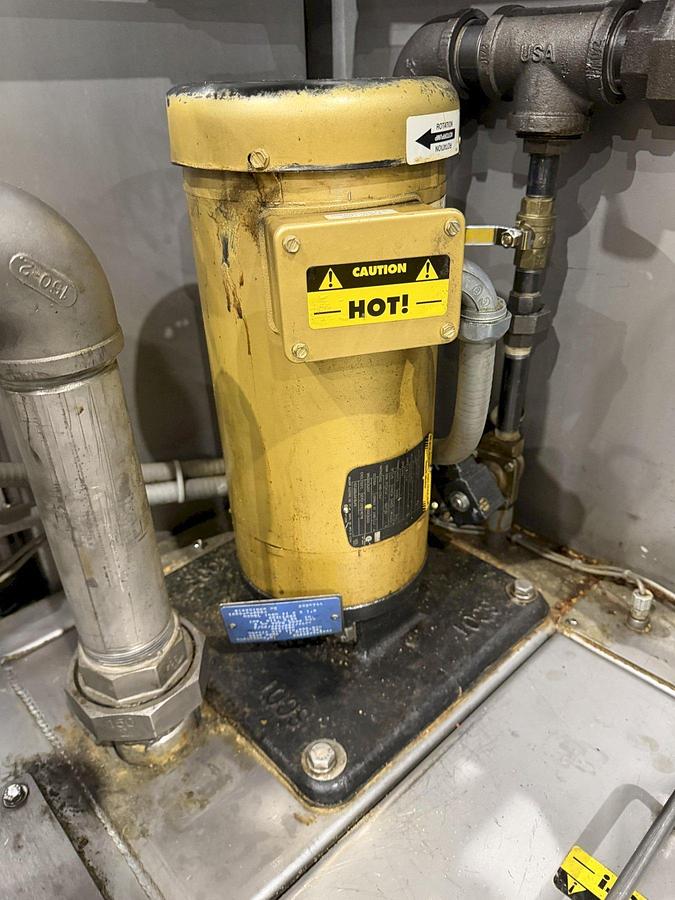

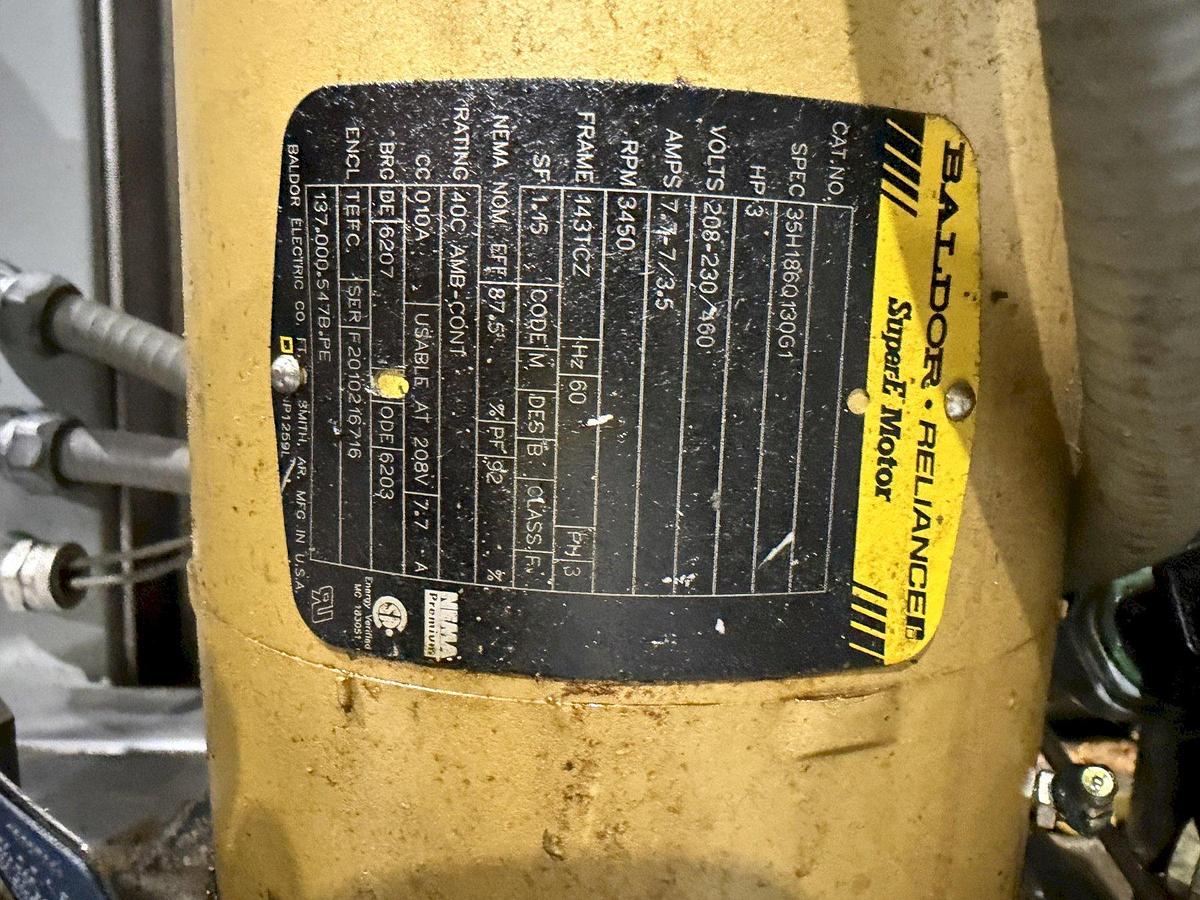

• Wash pump: 3 HP stainless vertical pump

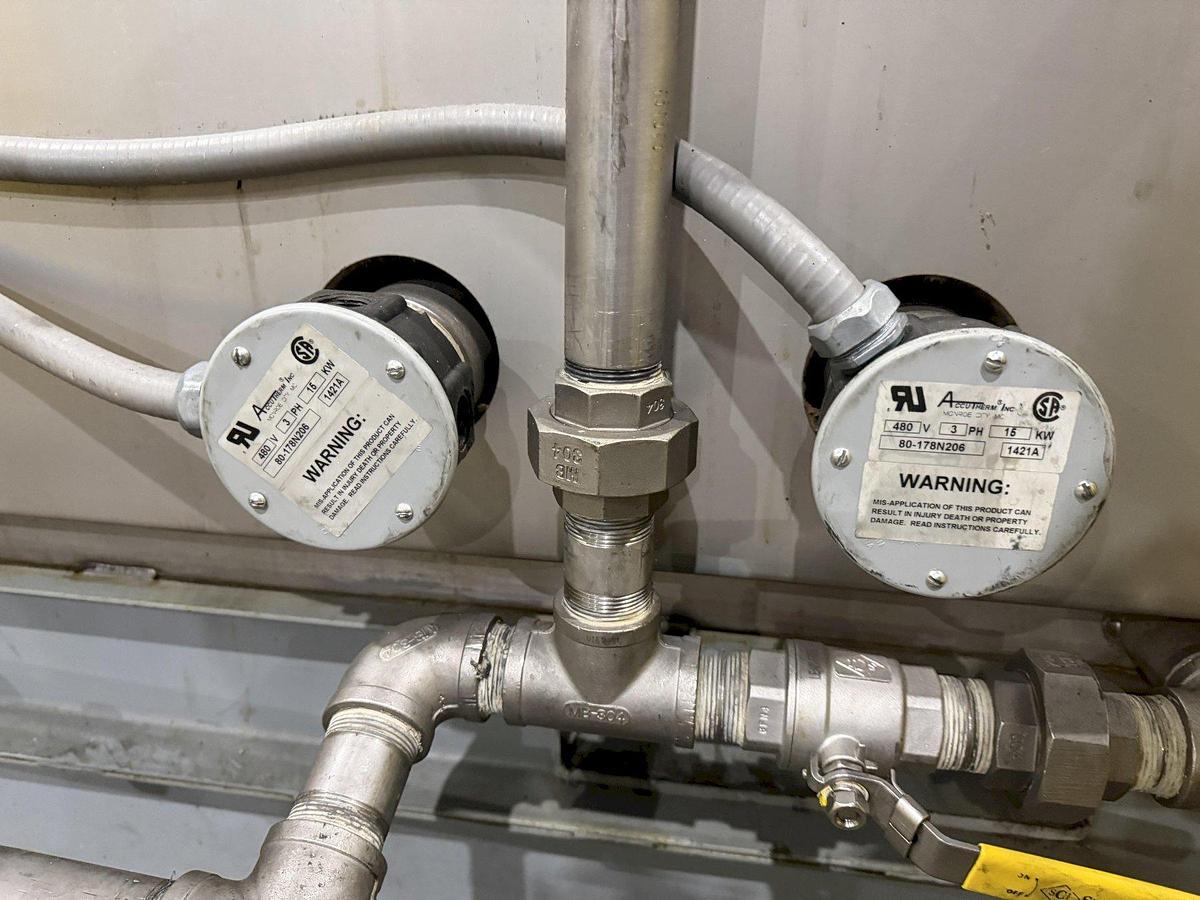

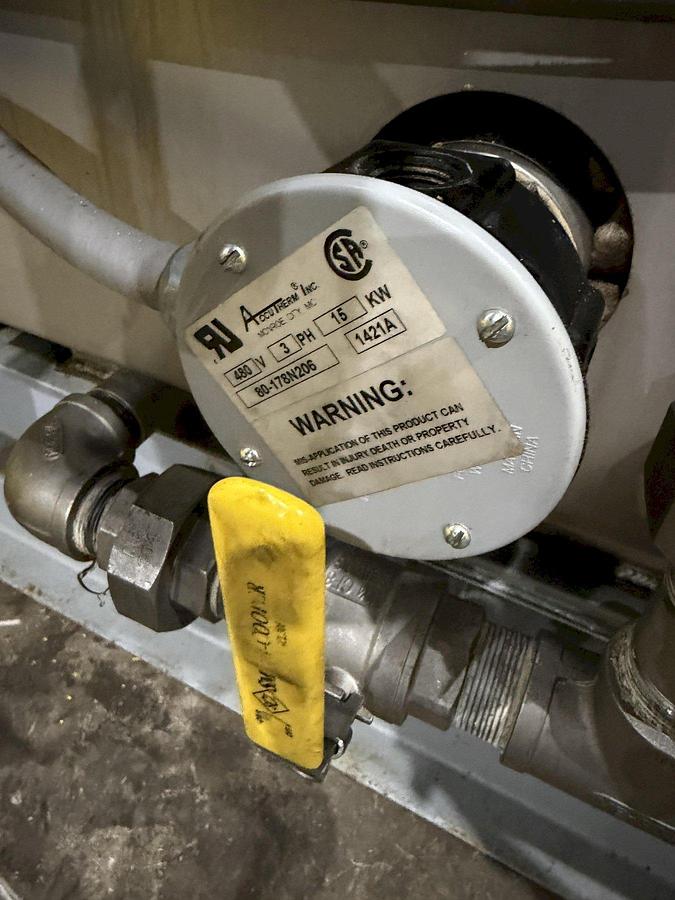

• Heating – Wash: (2) 15 kW SS screw-plug heaters

• Heating – Rinse: (1) 15 kW SS screw-plug heater

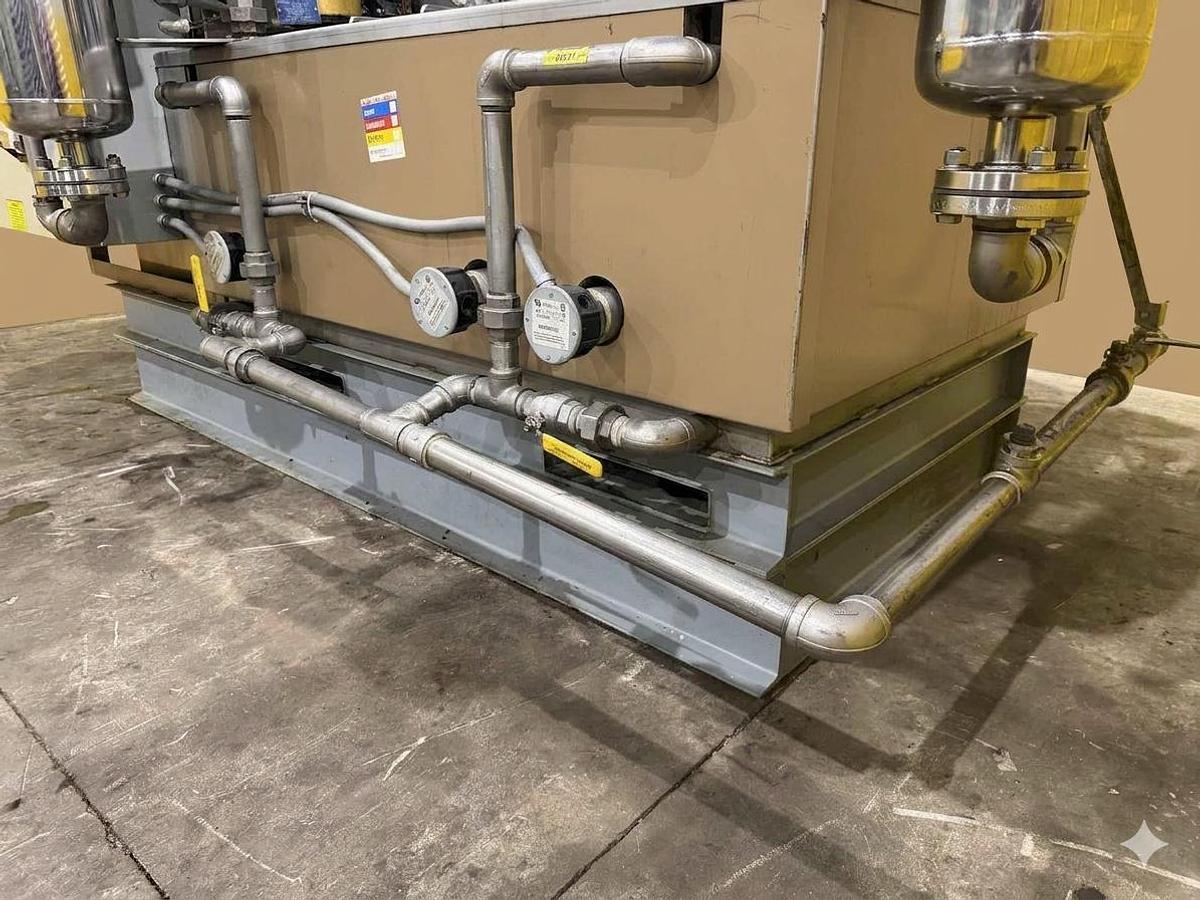

• Stainless spray piping, valves & nozzles

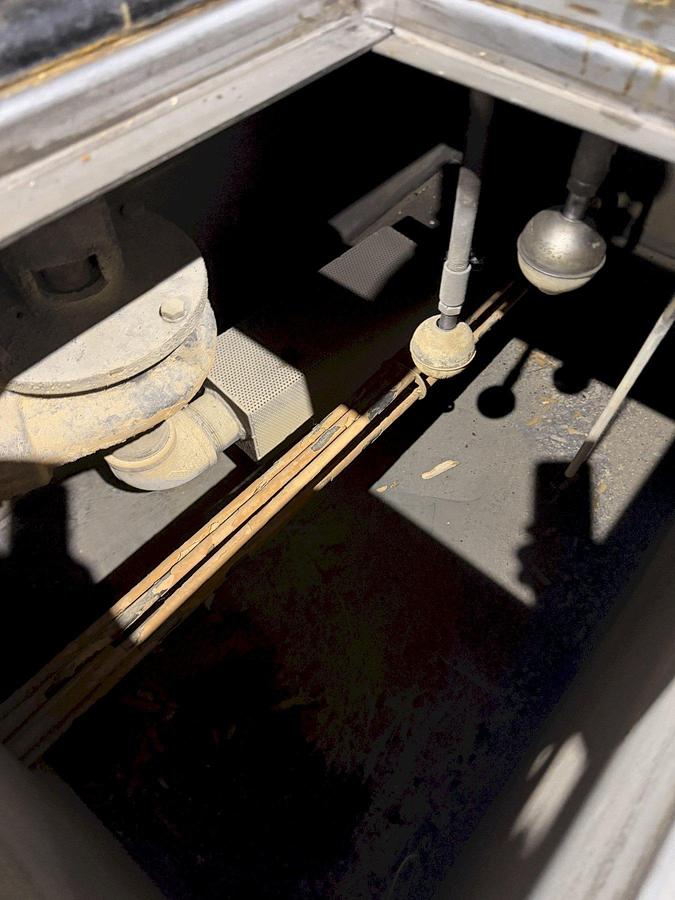

• CPVC fresh water supply with brass solenoids & SS float switches

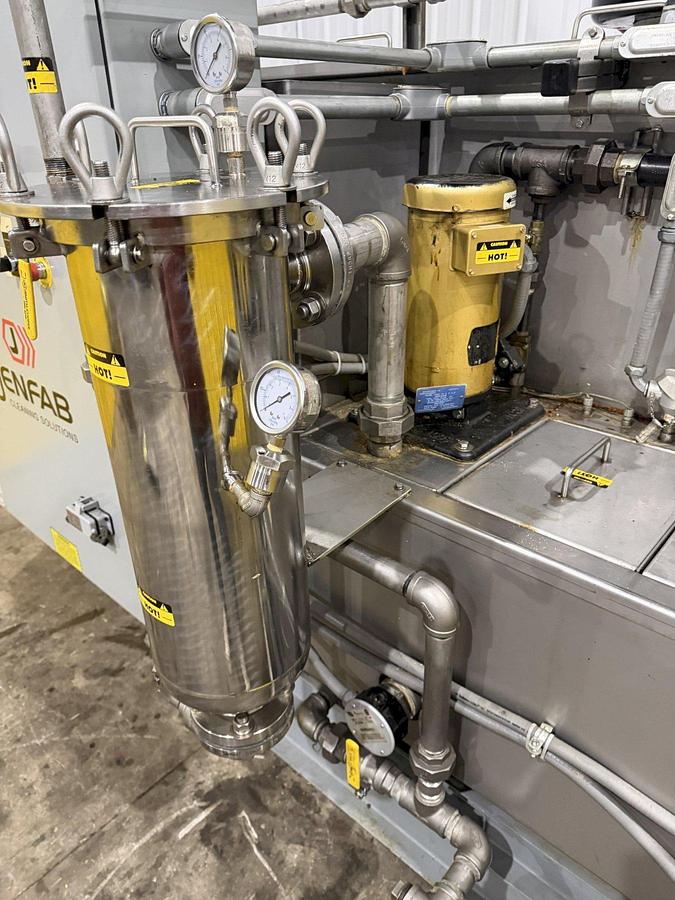

• Stainless inline filtration with gauge protection (wash circuit)

• Stainless steel drain valves & common 304SS drain header

26895 LJ-19

Drying System

• 48" “Super Dryer” recirculating hot air system

• Up to 210°F drying performance

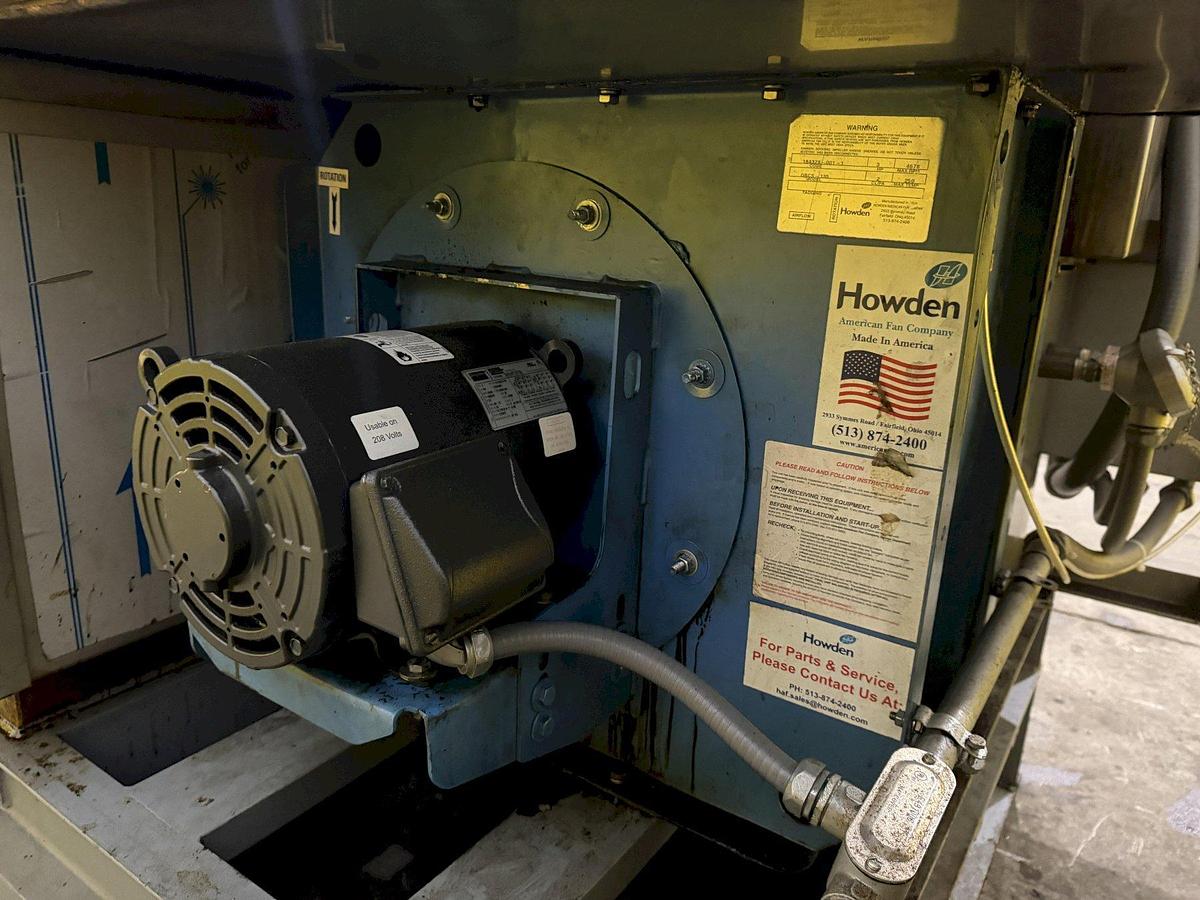

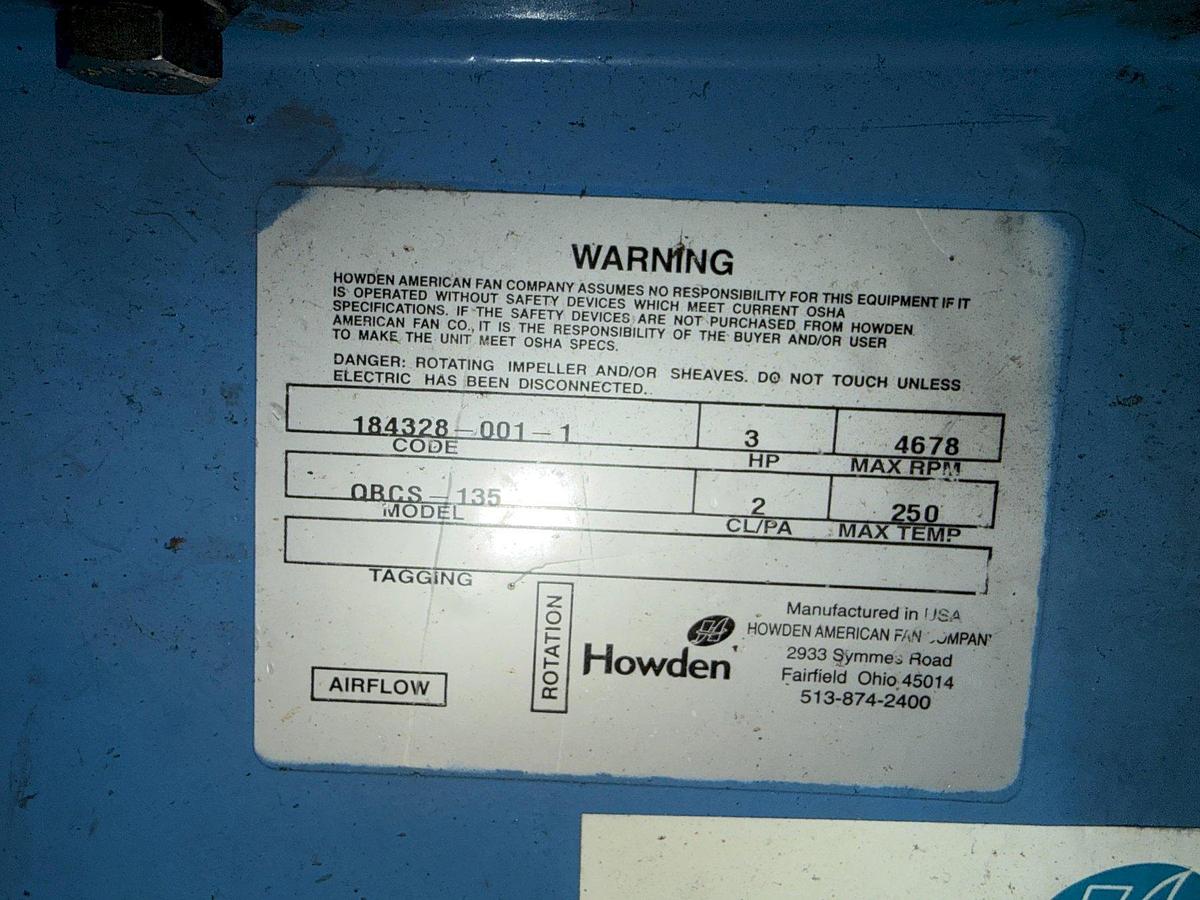

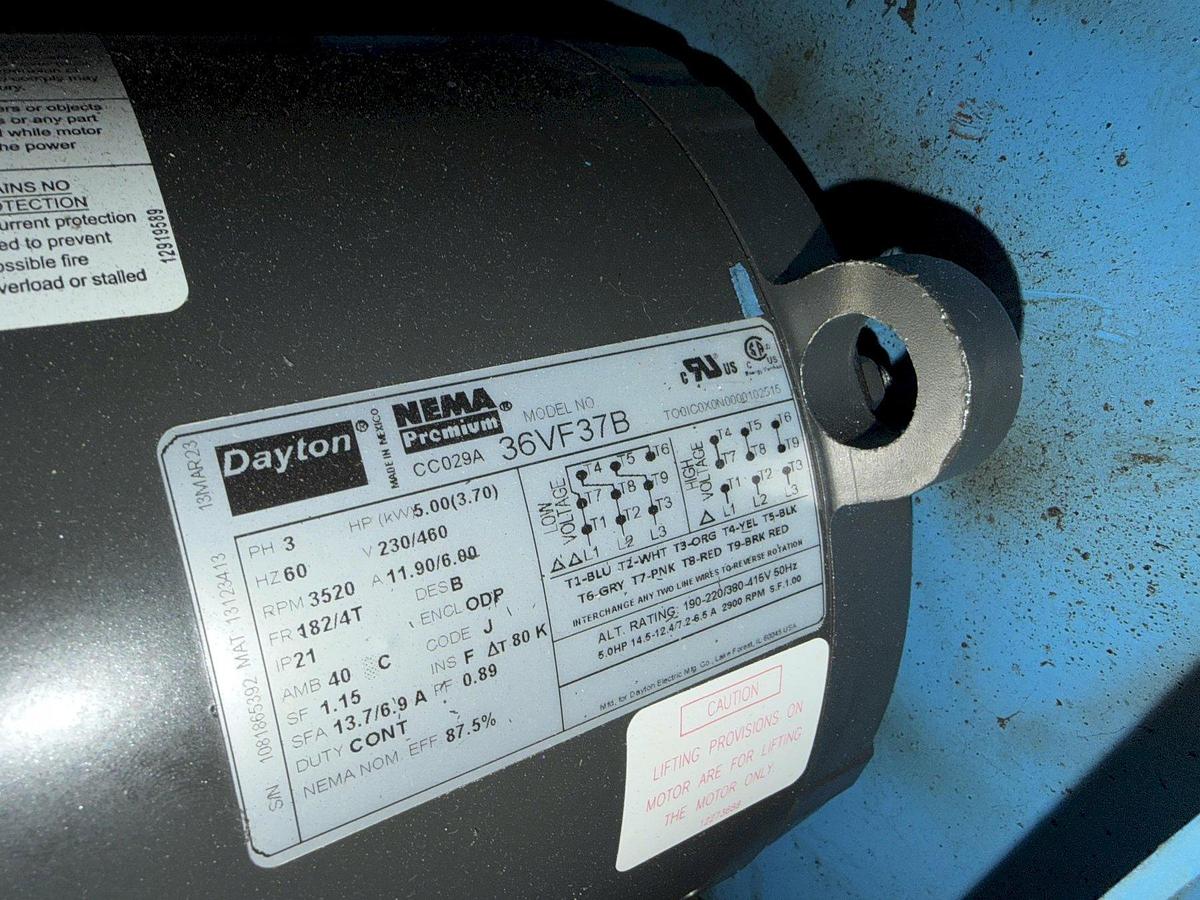

• 3 HP blower / 2500 CFM

• 30 kW electric heat

26895 LJ-19

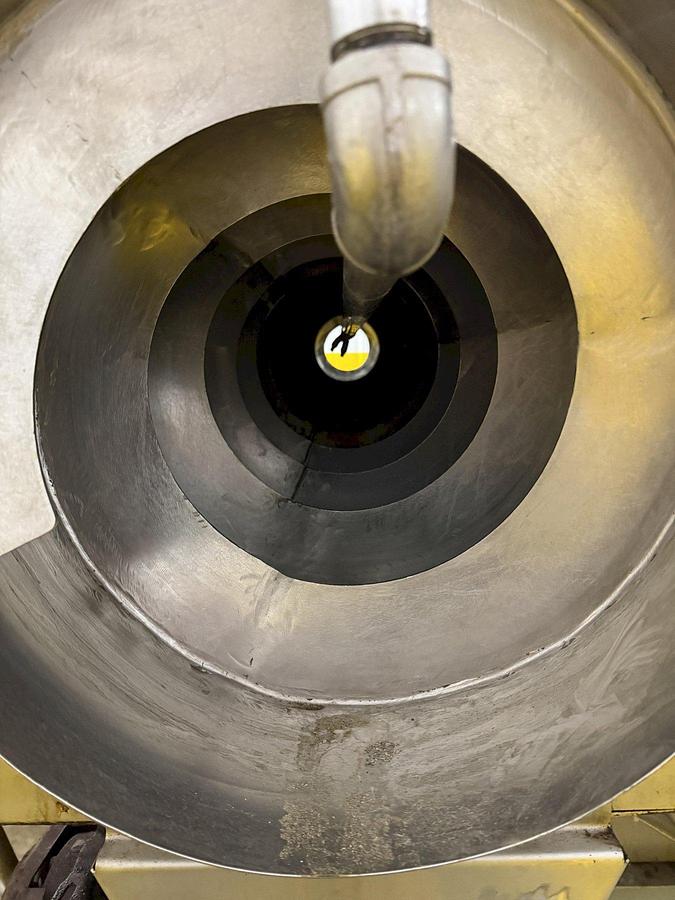

Rotary Drum Assembly

• 19" diameter 304SS cylinder

• 14 ga perforations w/ 0.25" holes

• Continuously welded helix – 8" pitch / 3.5" high

• (3) 3/4" bent-angle tumblers per revolution for superior agitation

• Stainless chip collection tray

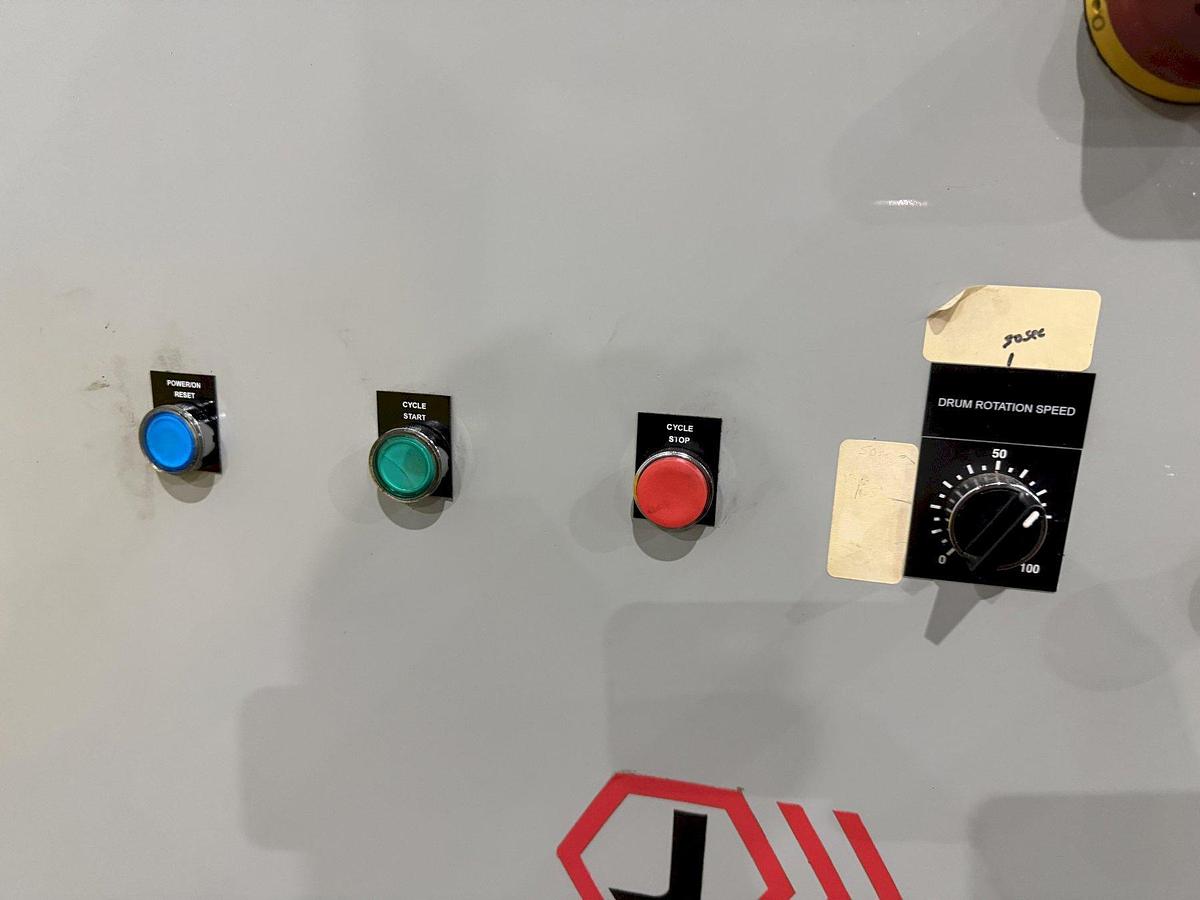

• VFD variable-speed drum drive: 1–4 RPM

• 1/2 HP motor & gearbox

26895 LJ-19

Zone Configuration

• 36" Wash section

• 24" Rinse section

• 48" Dry section

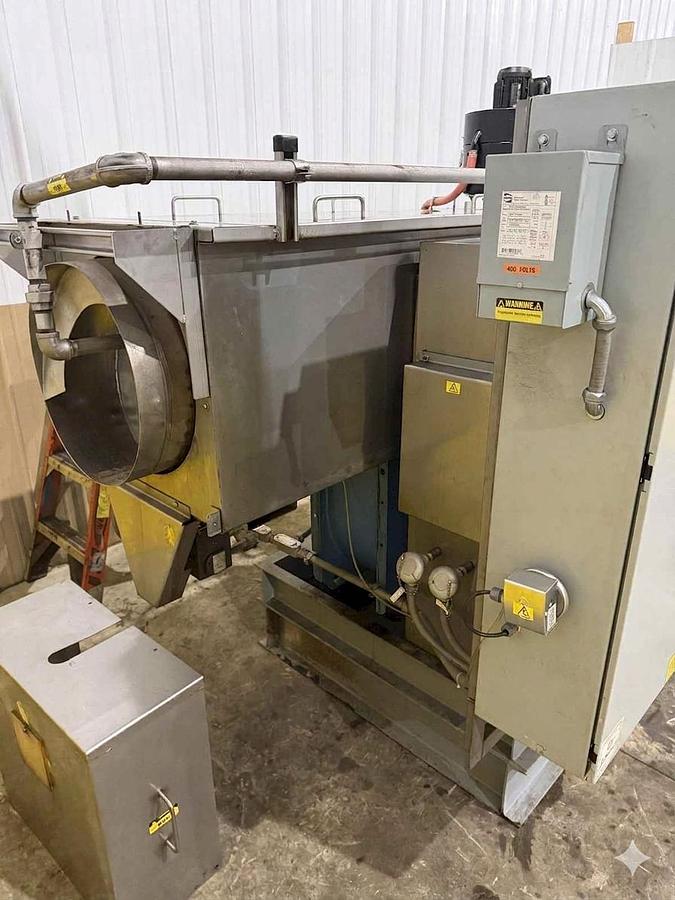

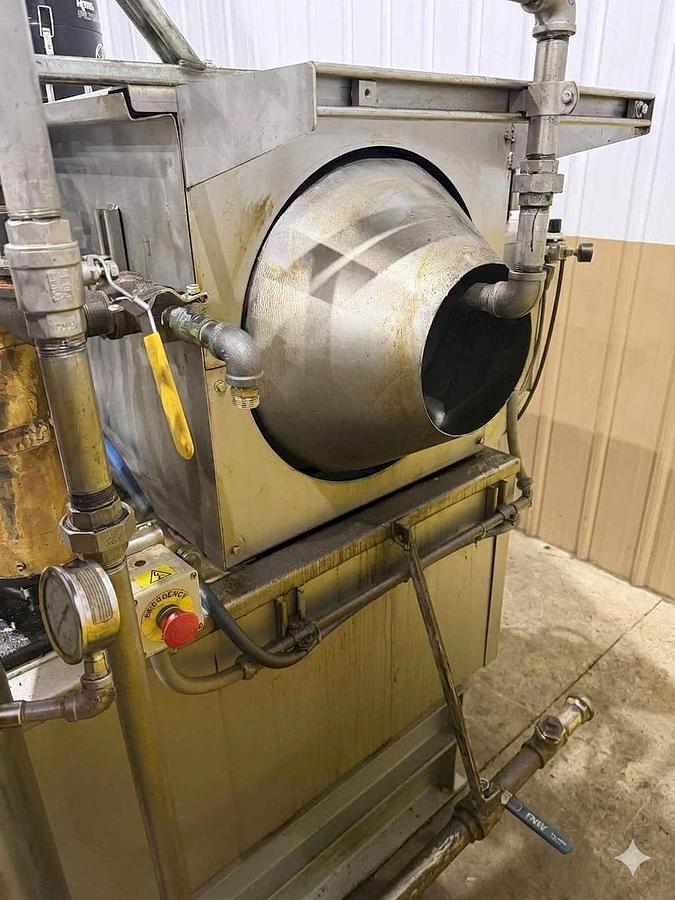

• Includes drum load cone with load chute

26895 LJ-19

Additional Features

• 8" mild-steel C-channel riser (raises load/unload height 8")

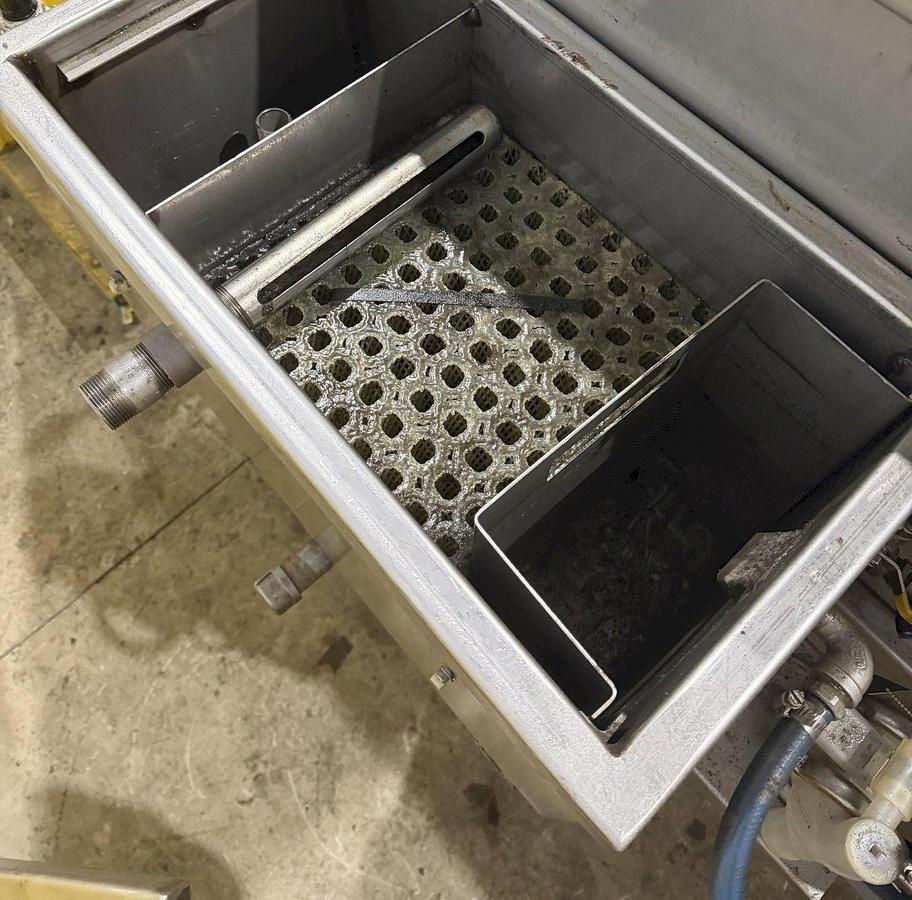

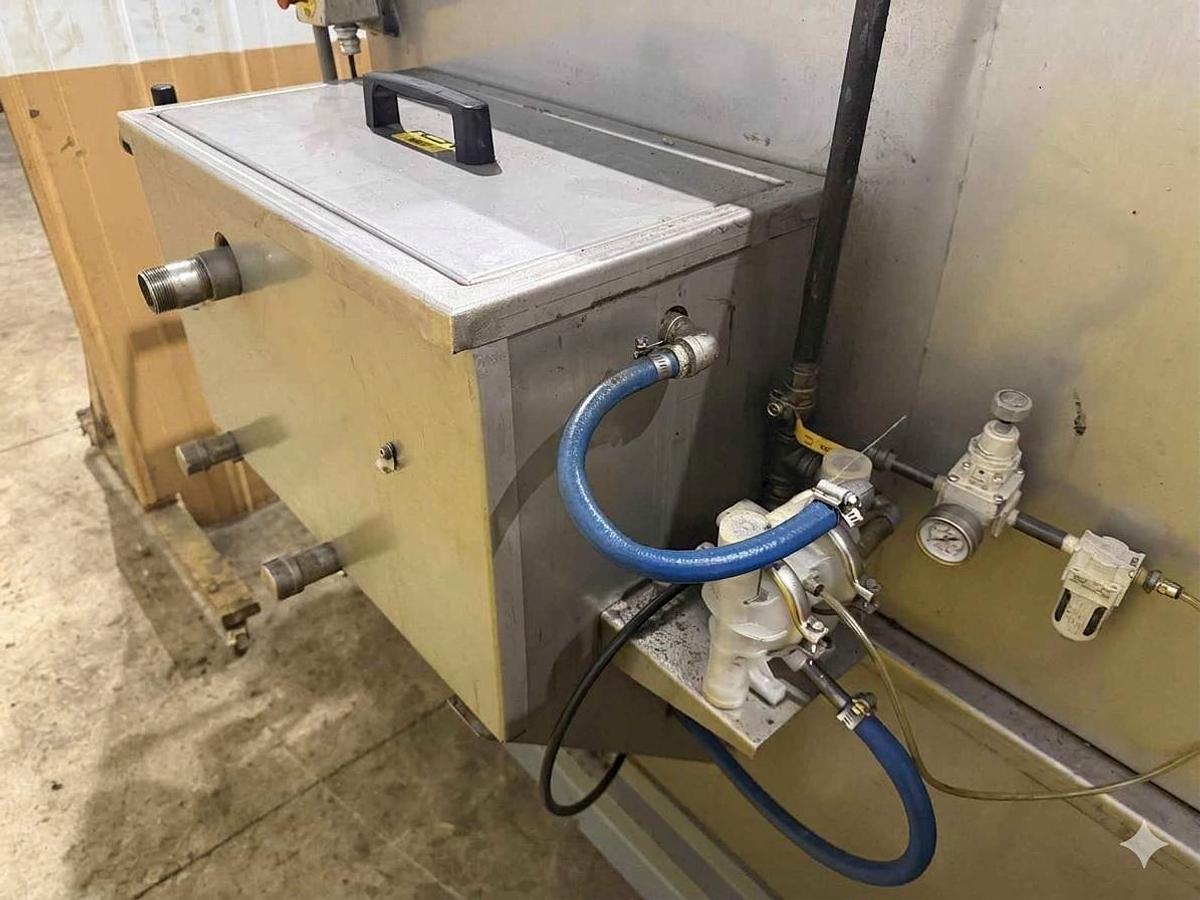

• 10-gallon oil coalescer

• Water inlet – 1-1/2" NPT

• Designed for production reliability, easy maintenance access, and long service life

26895 LJ-19

Performance & Application Advantages

• Fully stainless industrial build for durability and corrosion resistance

• Excellent chip separation and process cleanliness

• Adjustable processing speed allows tuning for various part types

• Strong, even wash coverage and consistent drying

• Ideal for small to mid-sized parts requiring reliable, repeatable cleaning
