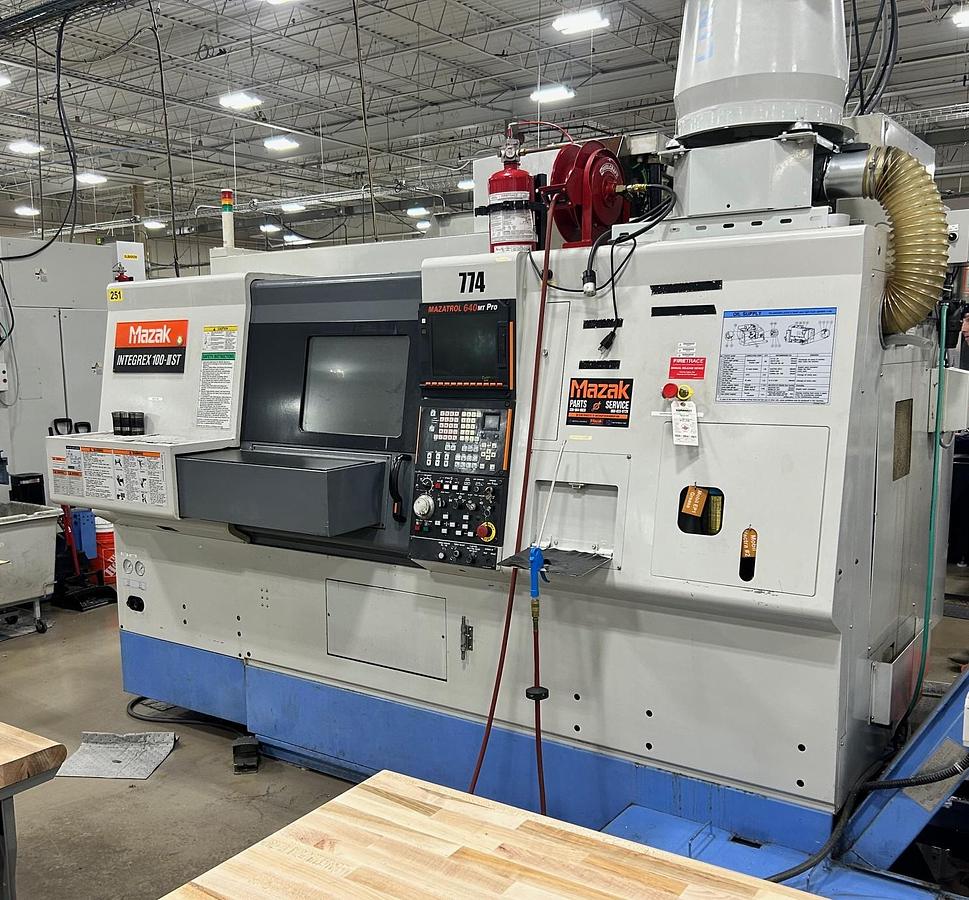

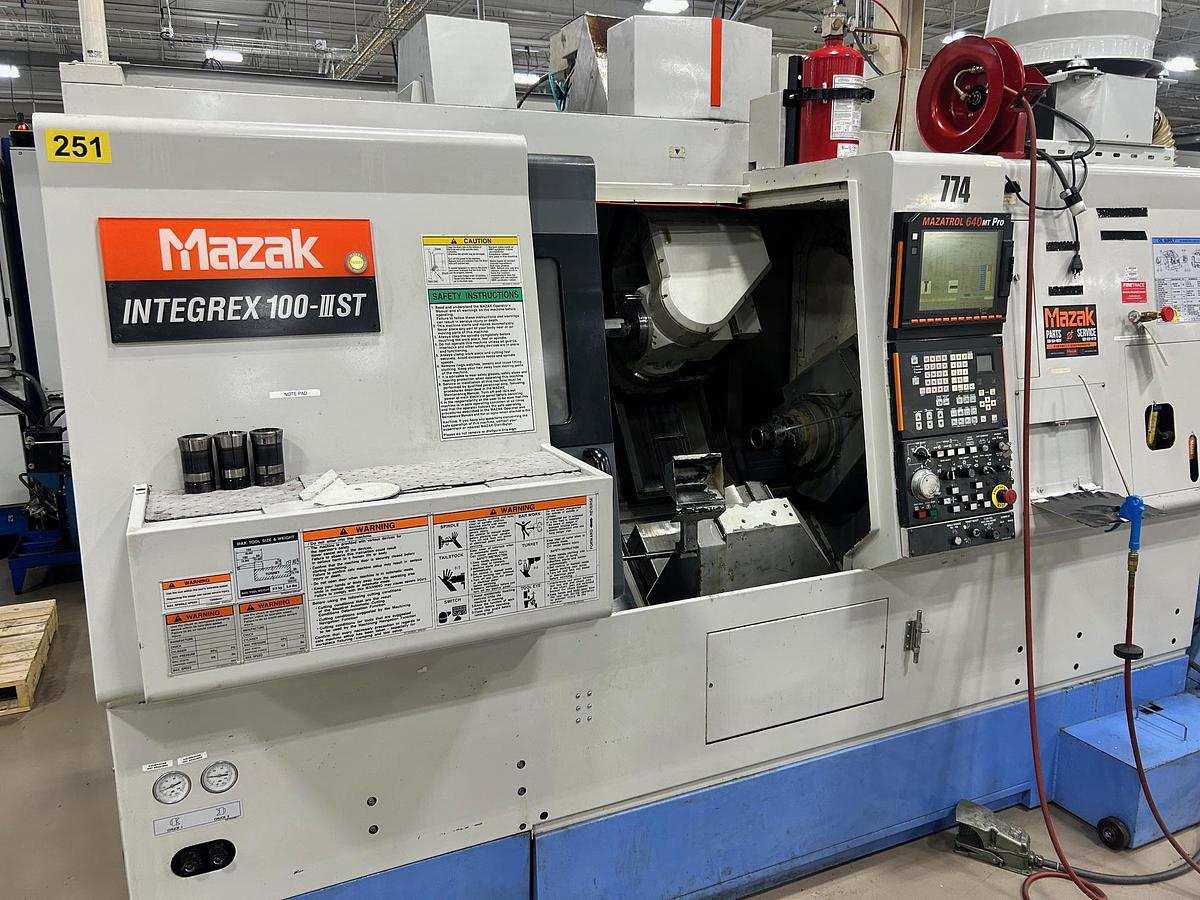

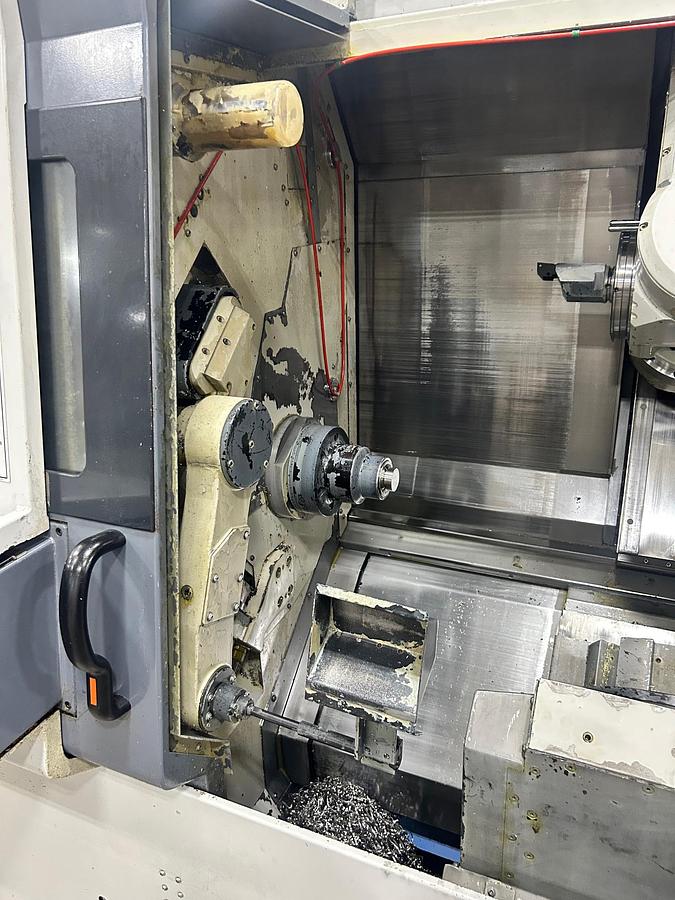

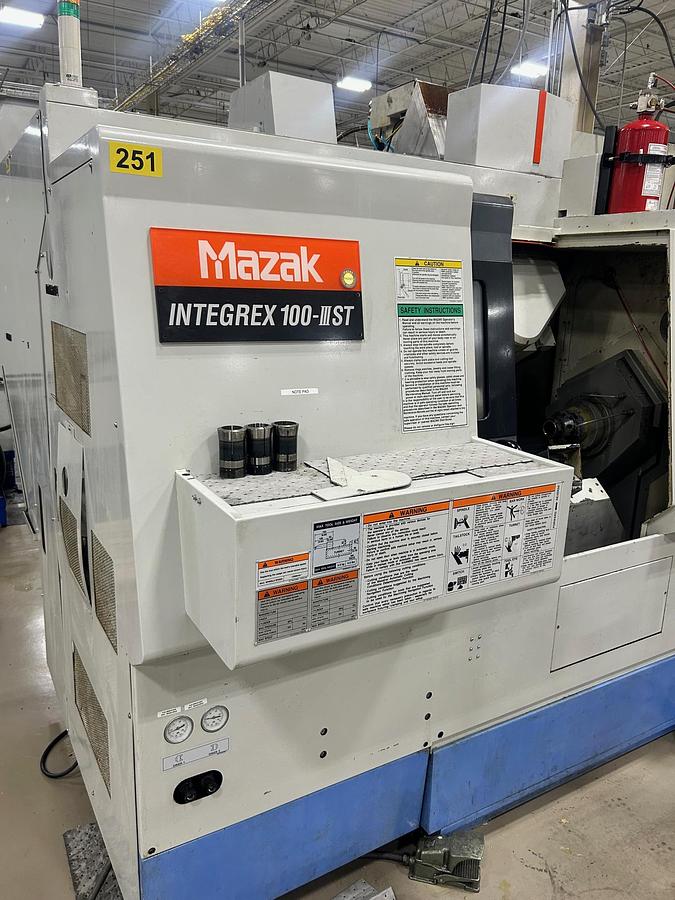

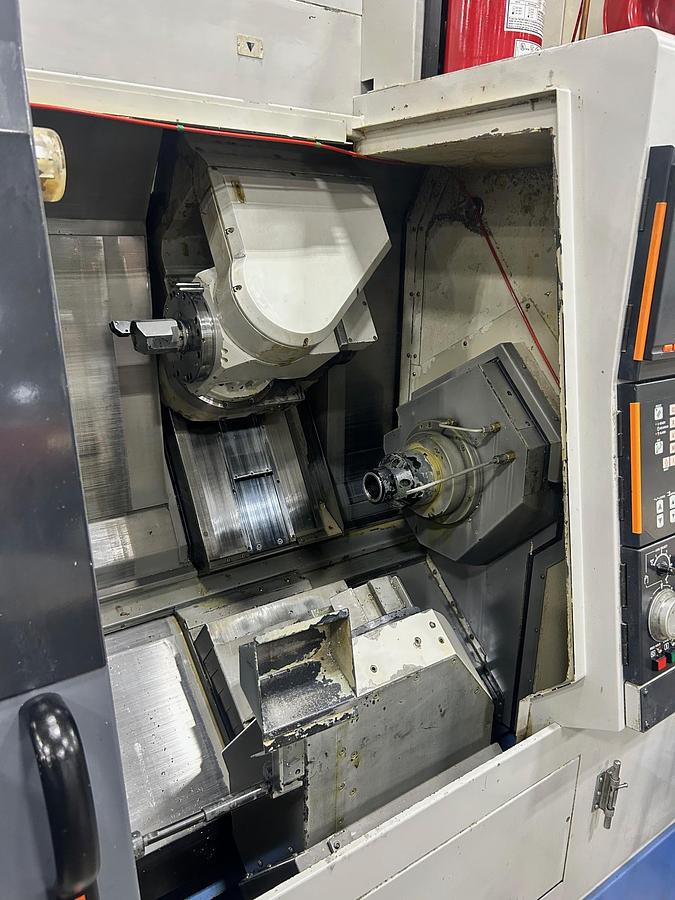

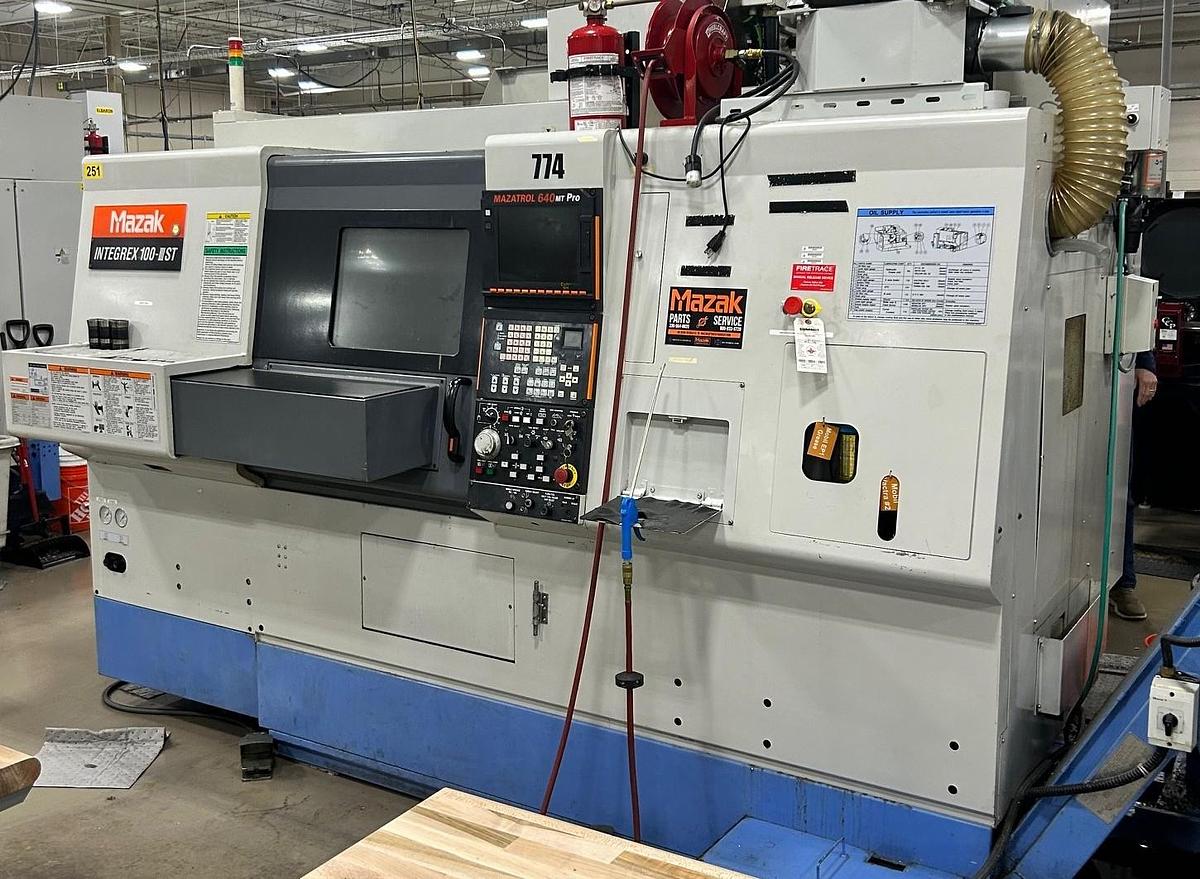

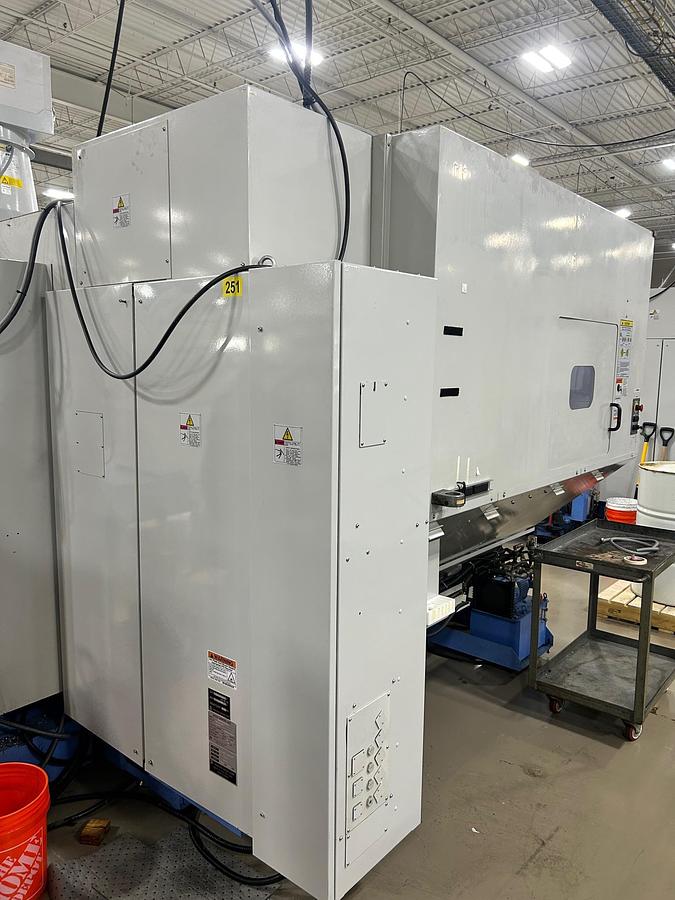

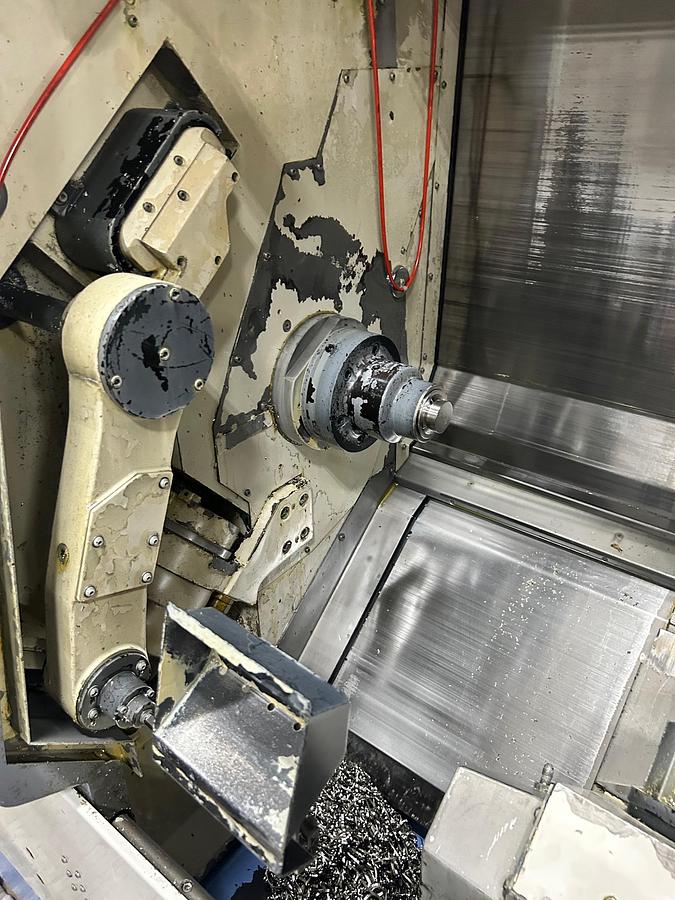

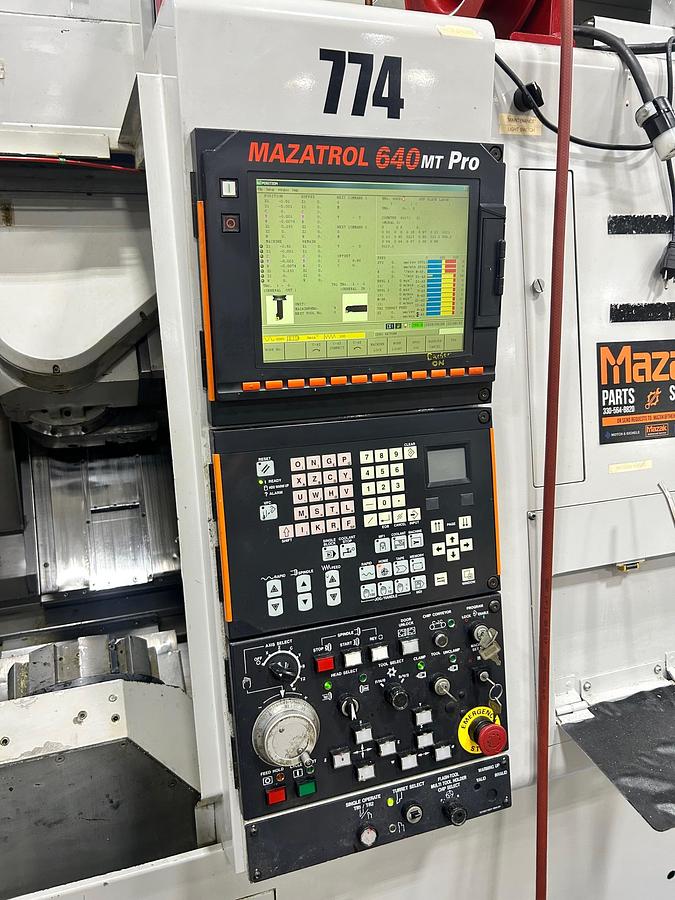

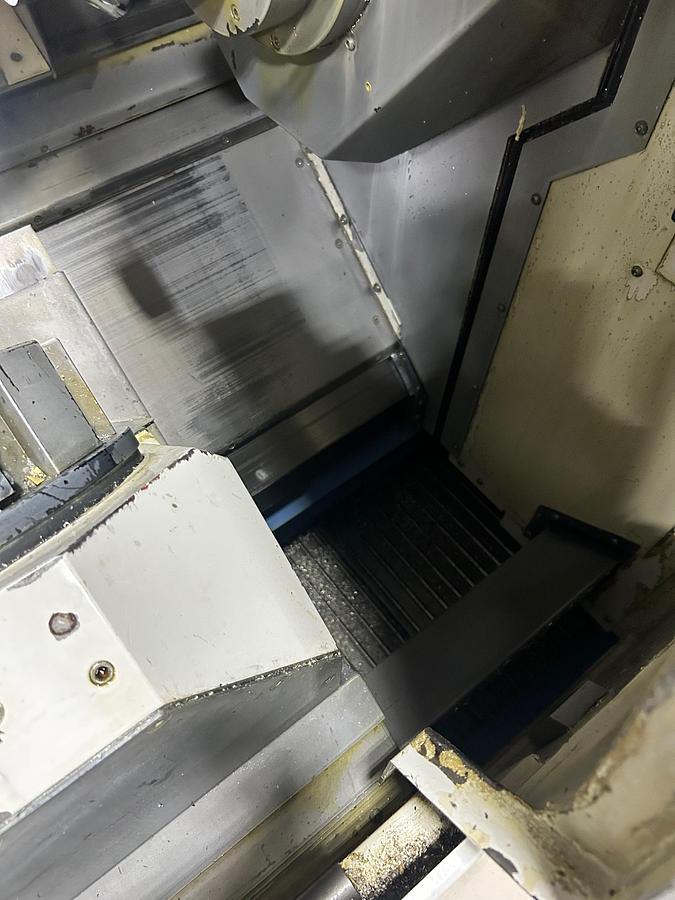

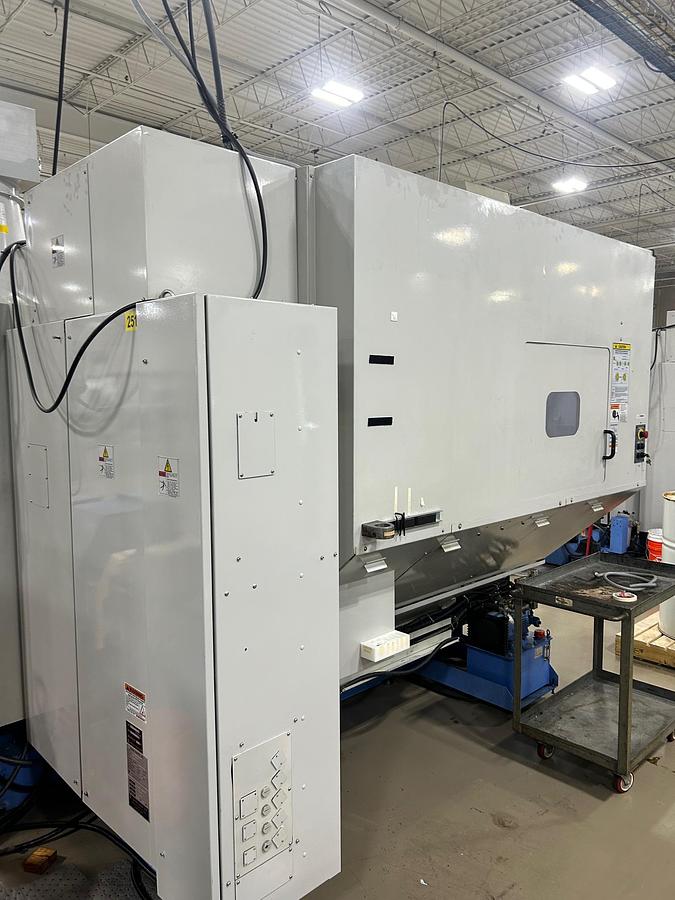

2007 Mazak Integrex 100-IIIST CNC Lathe

Mazak CNC Lathe, Model: Integrex 100-iiiST

Mfg: Mazak

Model: Integrex 100-iiiST

YOM: 2007

Chuck Size: 6" Main, 6" 2nd Spindle

Max. Swing: 21.46"

Swing Over Cross Slide: 13.86"

Swing During Y-Axis Process: 16.22 to 21.46"

Max Machining Diameter: 21.46"

Bar Work Capacity: 2"

Max Machining Length: 29.65

Max Support Weight: Main Spindle: 330 lbs., Secondary Spindle: 330lbs.

Main Spindle: Through-Hole Diameter: 2.40"

Tool Shank Type (Milling/Turning) KM63, CAPTO, C6/BT40

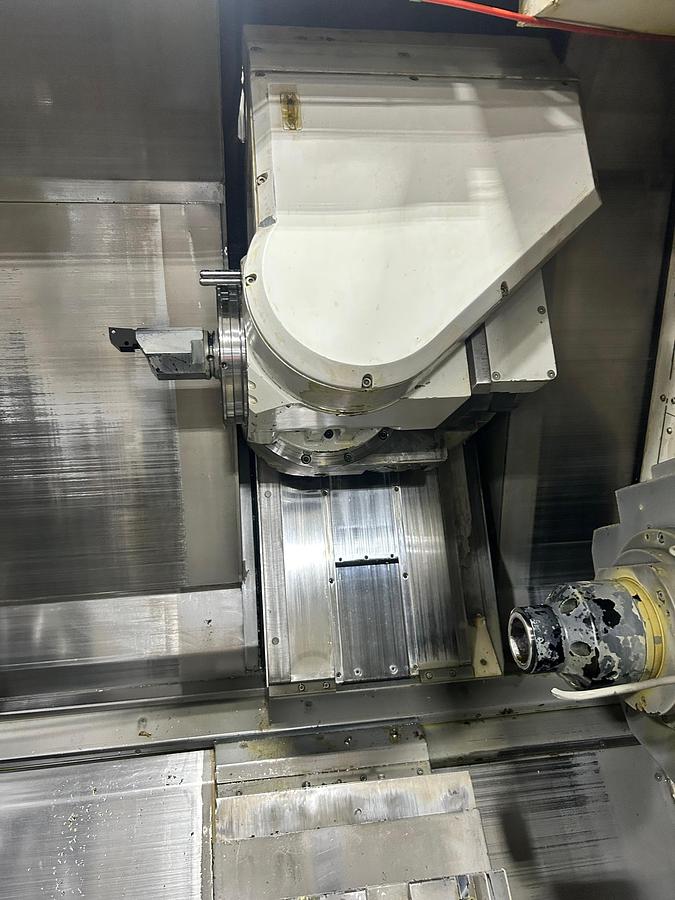

Milling Head Speed: 15-12,000

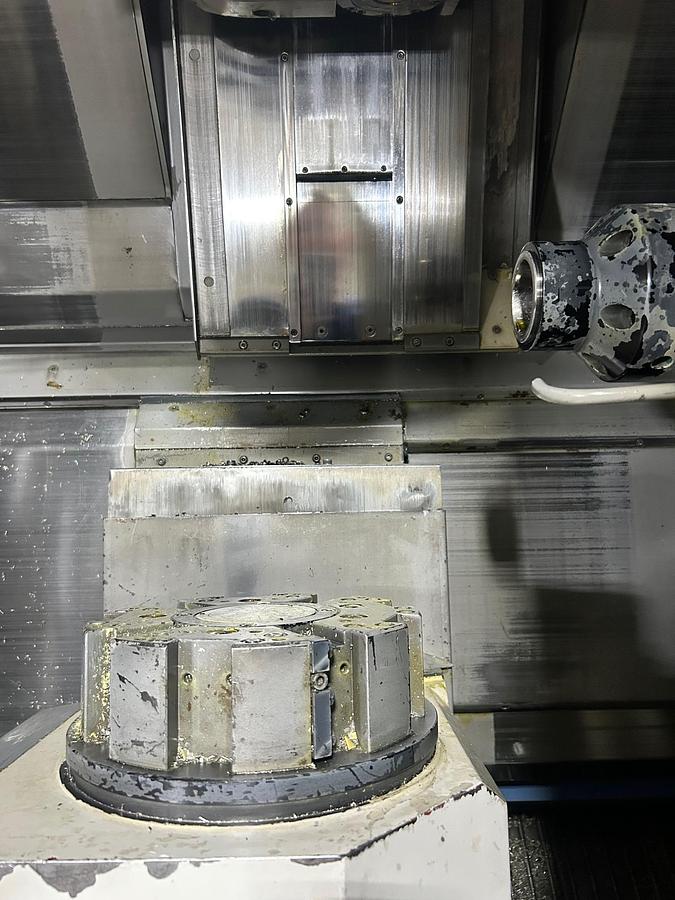

Lower Turret Type: Nine-Faced Drum turrett (Bolt Fixing Scheme)

Cooling Tank Capacity: 77.9 Gallons

Machine Dimensions: Height of Centers: 43.31", Length: 121.08", Width: 83.88", Height: 96.16"

Floor Space Required: 87 S.F.

Weight: 16,500 lbs.

New Spindle Installed in 2023 by Certified Mazak Technician

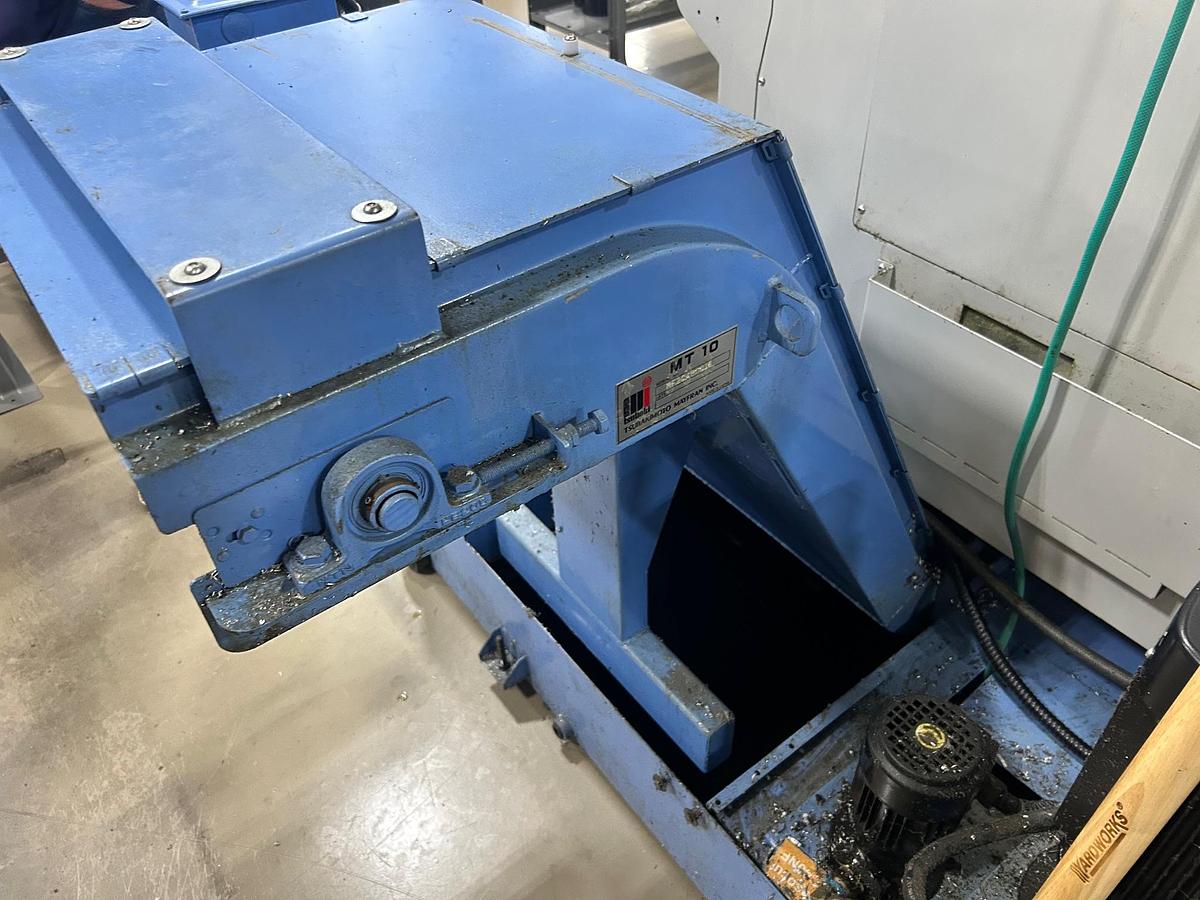

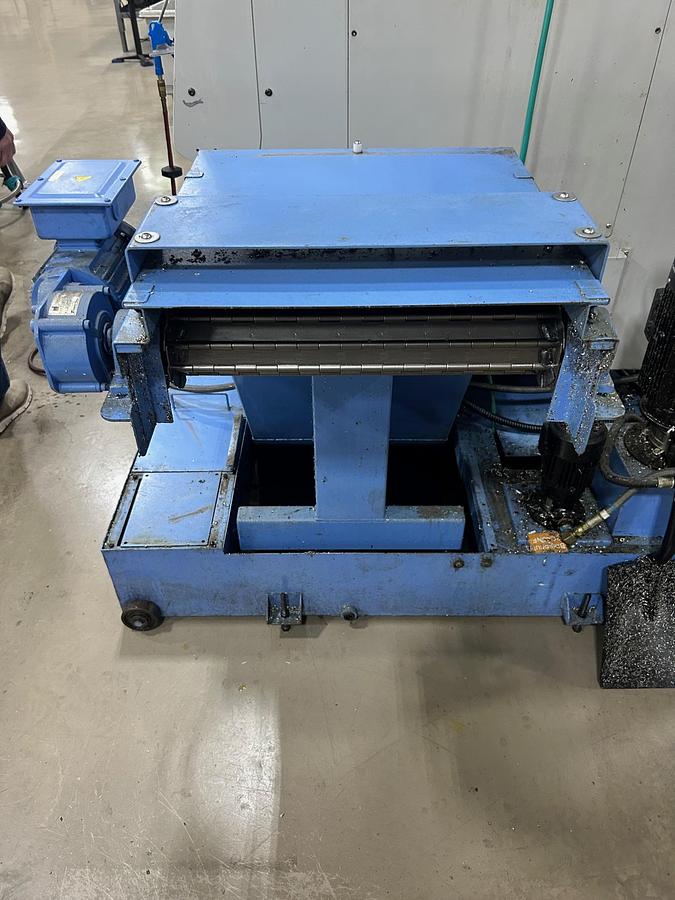

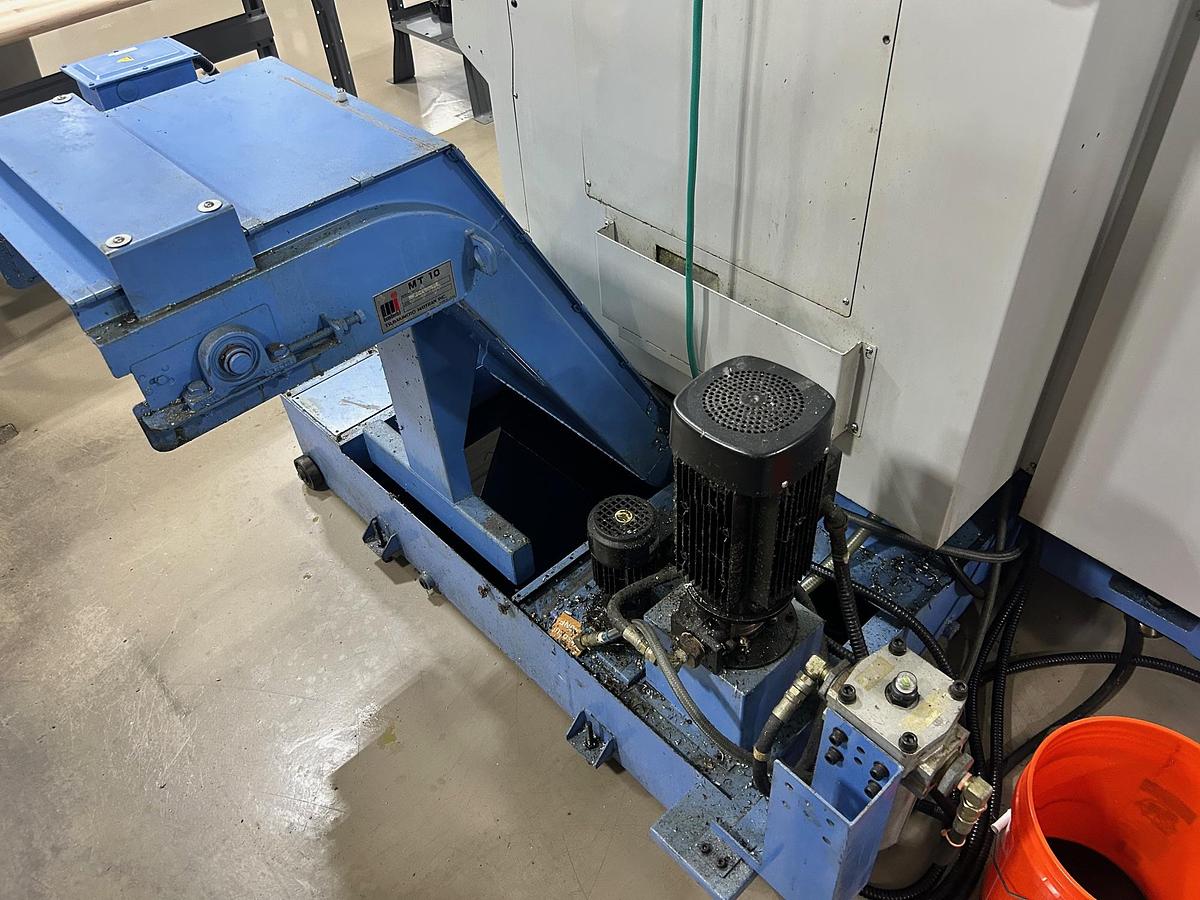

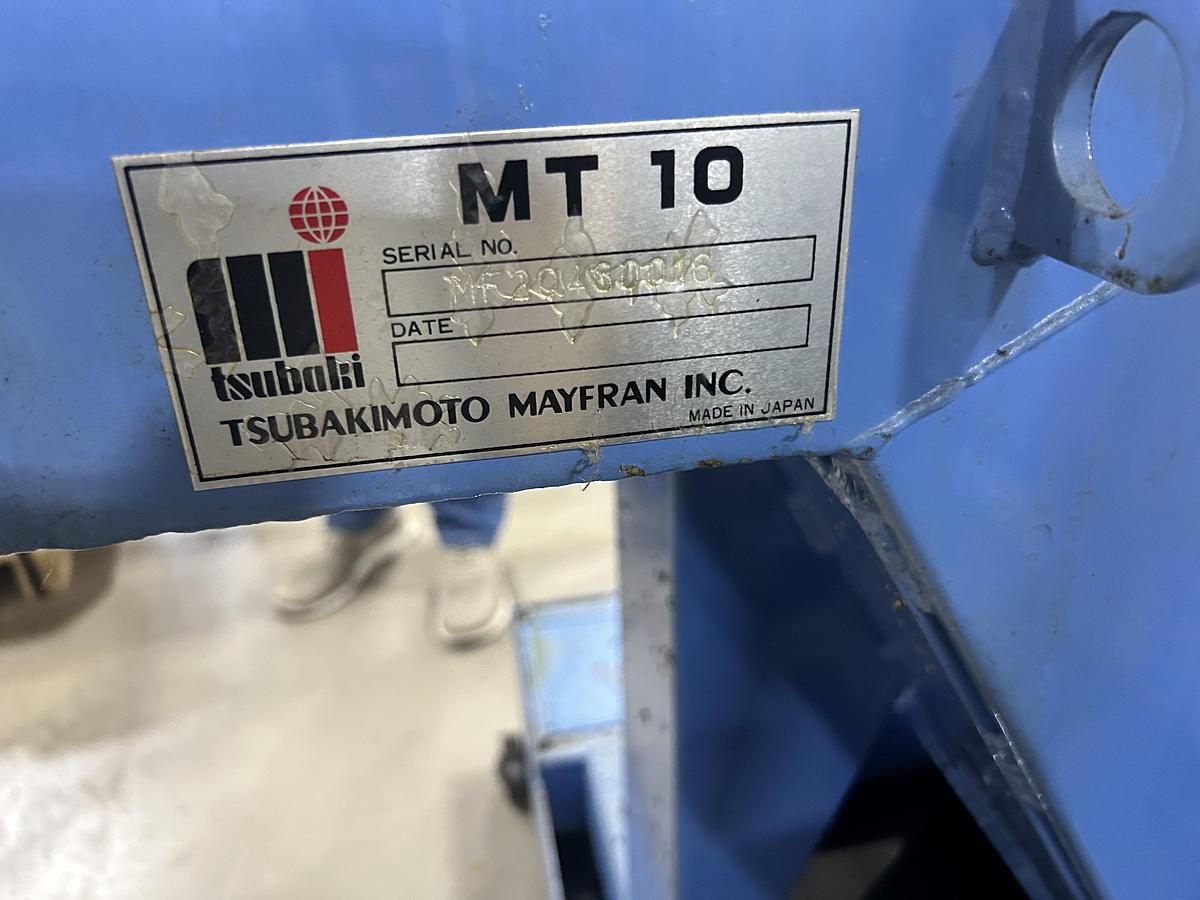

Fire Suppression, Mayfran MT10 Chip Conveyor

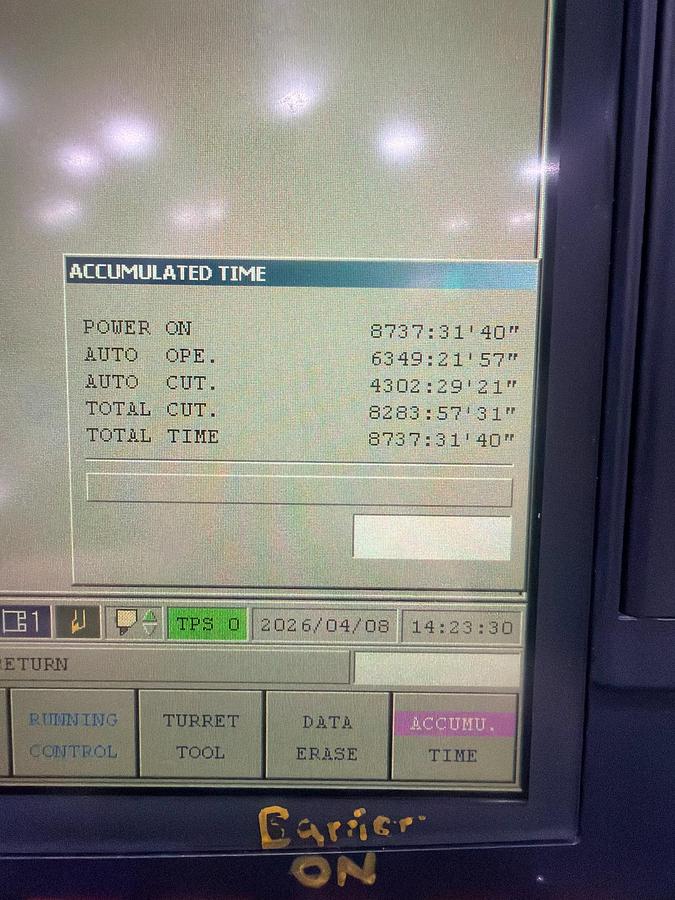

Hours:

Power On: 8,737

Total Cut: 8,283

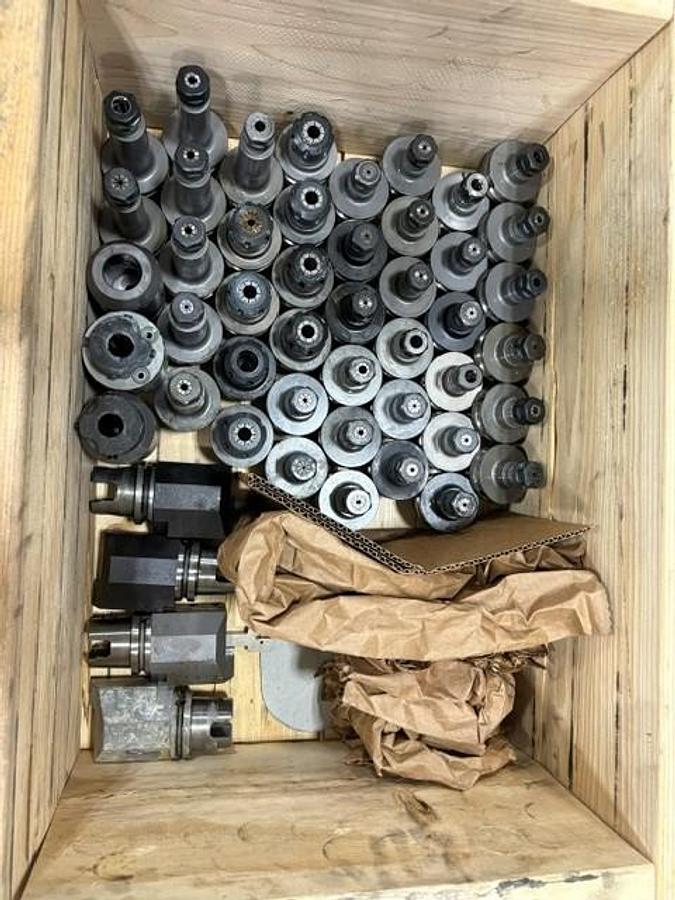

Some Tooling Included

Under-power in Aerospace/Medical Shop

All Specifications Subject To Buyer's Verification
