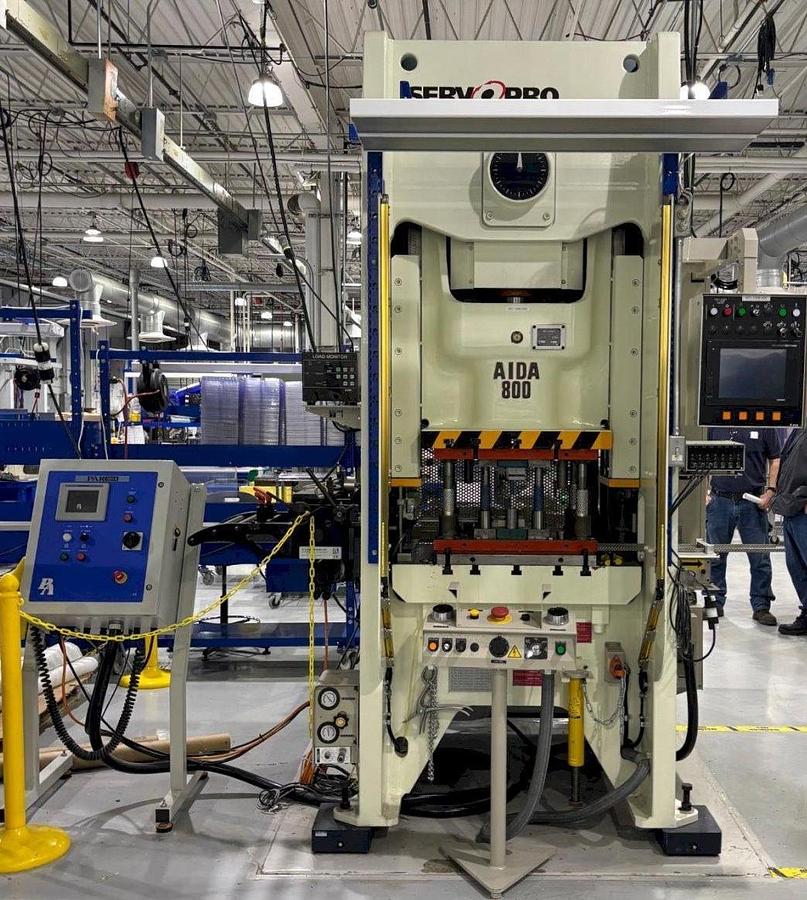

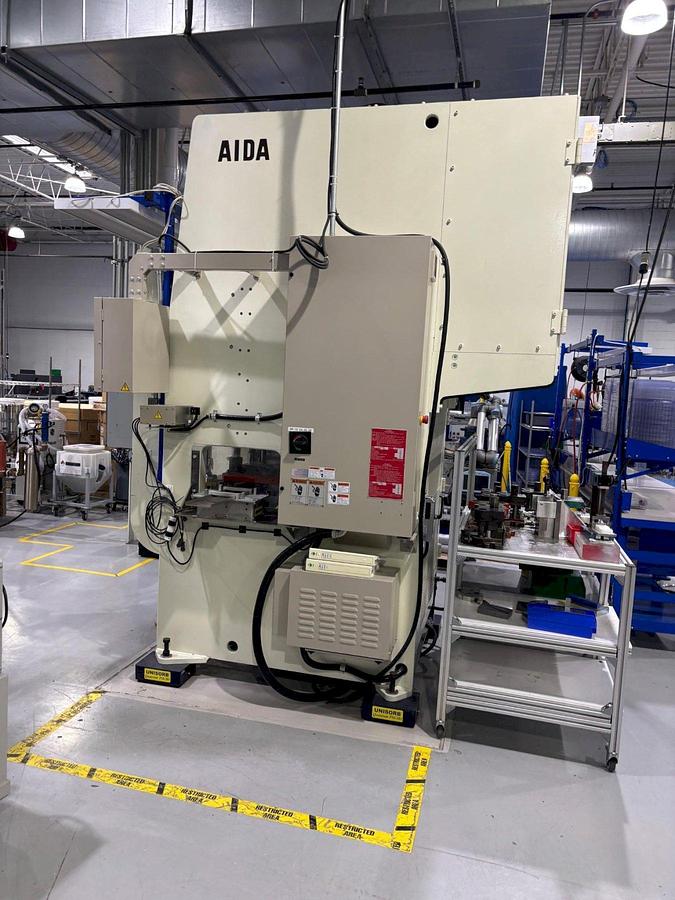

88 TON AIDA MODEL #DSF-N1-800 GAP FRAME PRESS 6.3” STROKE & PA SERVO COIL FEED LINE

88 TON AIDA MODEL #DSF-N1-800 GAP FRAME PRESS 6.3” STROKE & PA SERVO COIL FEED LINE

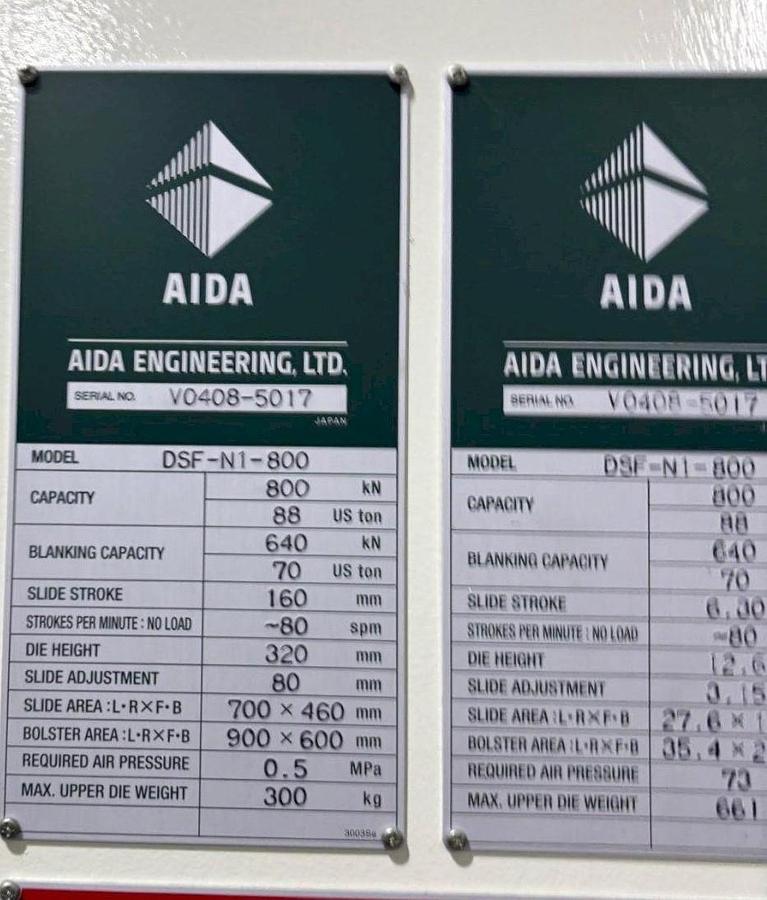

Mfg: Aida

Model: DSF-N1-800

Capacity: 88 Tons

Blanking Capacity: 70 Tons

Stroke: 6.30"

SPM 80

Die Height: 12.6"

Slide Adjustment: 3.15"

Slide Area: 27.6" x 18.11"

Bolster Area: 35.43" x 23.62"

Max Upper Die Weight: 661lbs.

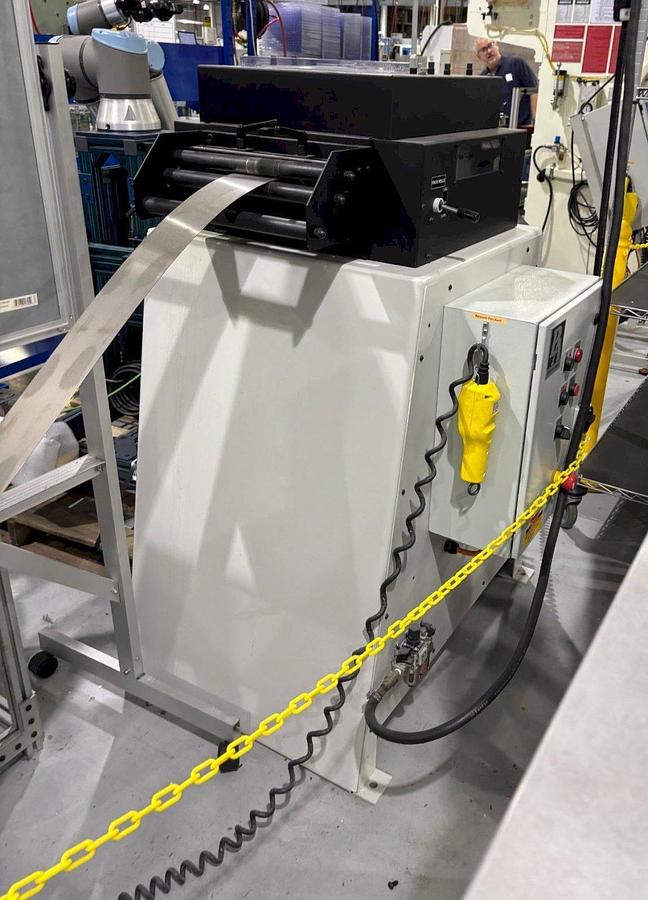

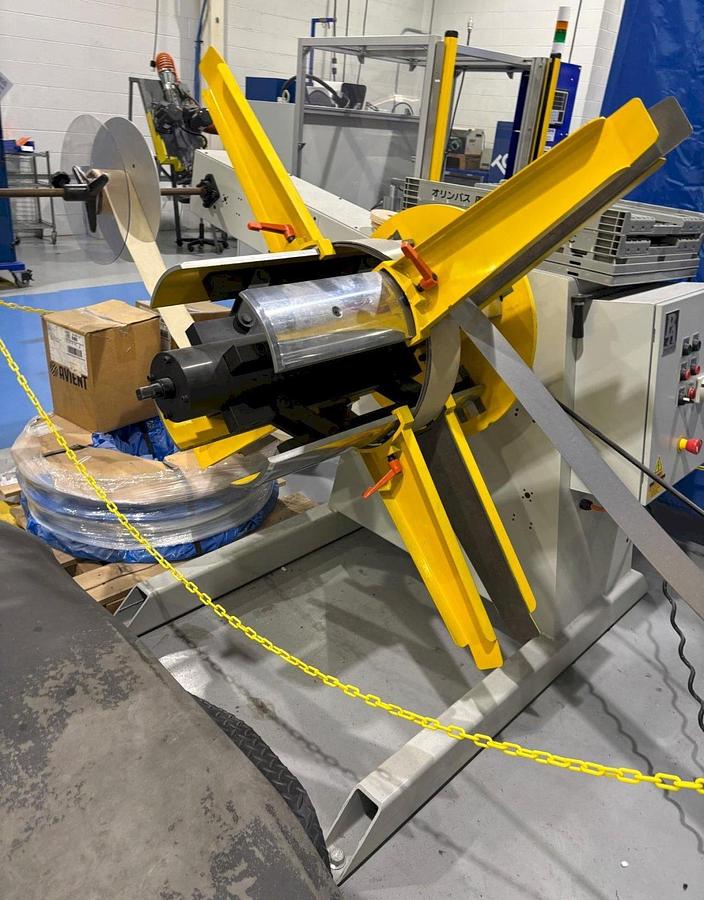

Equipped with: PA Servo Coil Feed Line
