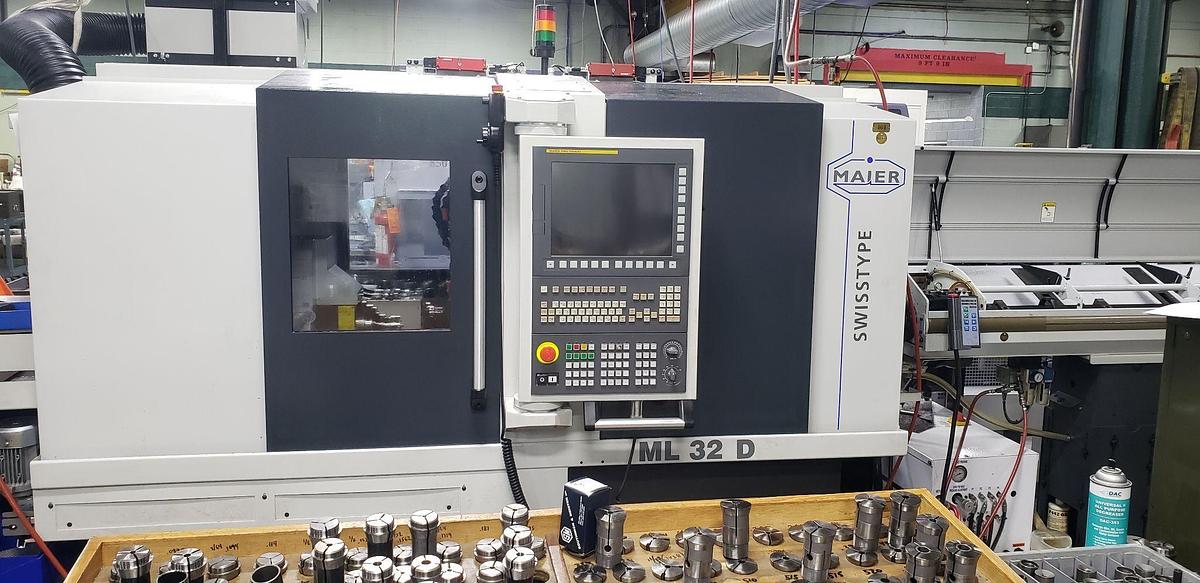

10-Axis Maier ML32DY CNC Swiss Type Automatic Screw Machine

10-Axis Maier ML32DY CNC Swiss Type Automatic Screw Machine

Specifications (2017 Model)

Bar Capacity: 32 mm (approximately 1.26").

• Axis Count: 10 axes, including Y-axis and C-axis capability on both spindles.

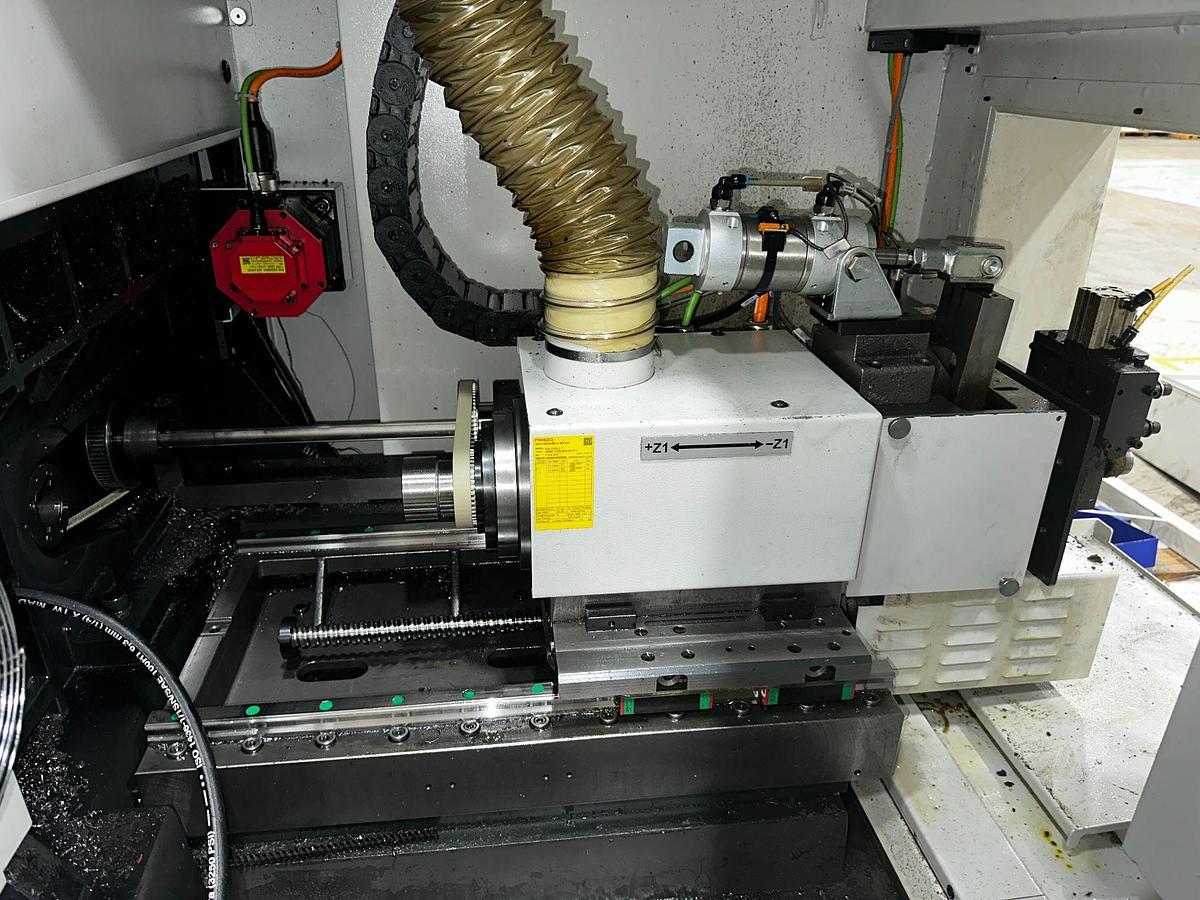

• Main Spindle:

o Max Speed: 8,000 RPM.

o Motor: 7.3 HP.

o Indexing (C1): 0.001°.

• Sub Spindle:

o Max Speed: 8,000 RPM.

o Motor: 7.3 HP.

o Indexing (C2): 0.001°.

• Control System: Fanuc 31i-TB.

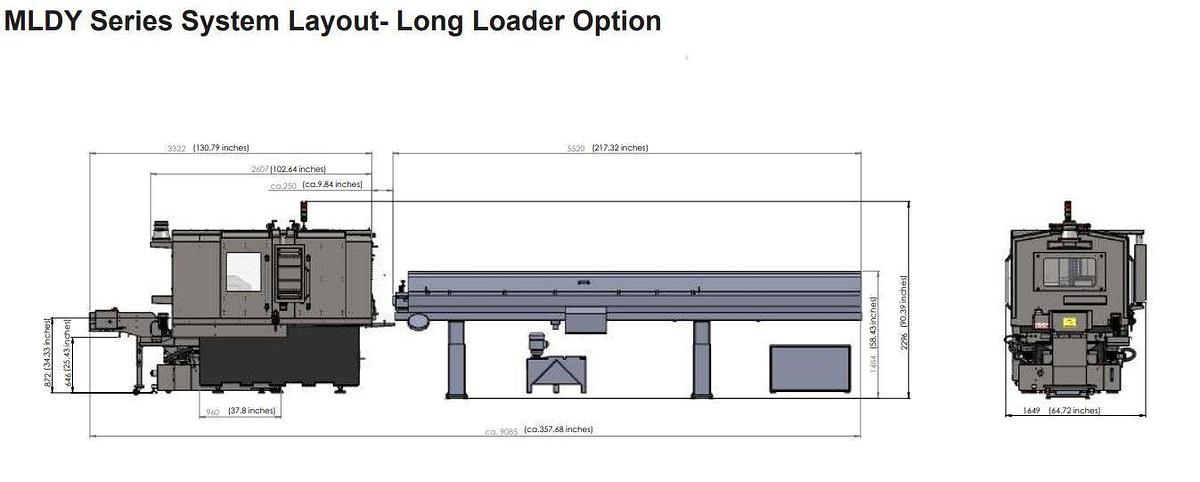

• Physical Footprint:

o Dimensions: 103" x 65" x 91".

o Weight: 8,500 lbs.

Axis Travel and Tooling

• Linear Travel:

o X1 / Z1 / Y1: 2.559" / 8.66" / 12.716".

o X2 / Z2 / Y2: 13.405" / 13.385" / 3.937".

o X3 / Z3: 14.173" / 7.48".

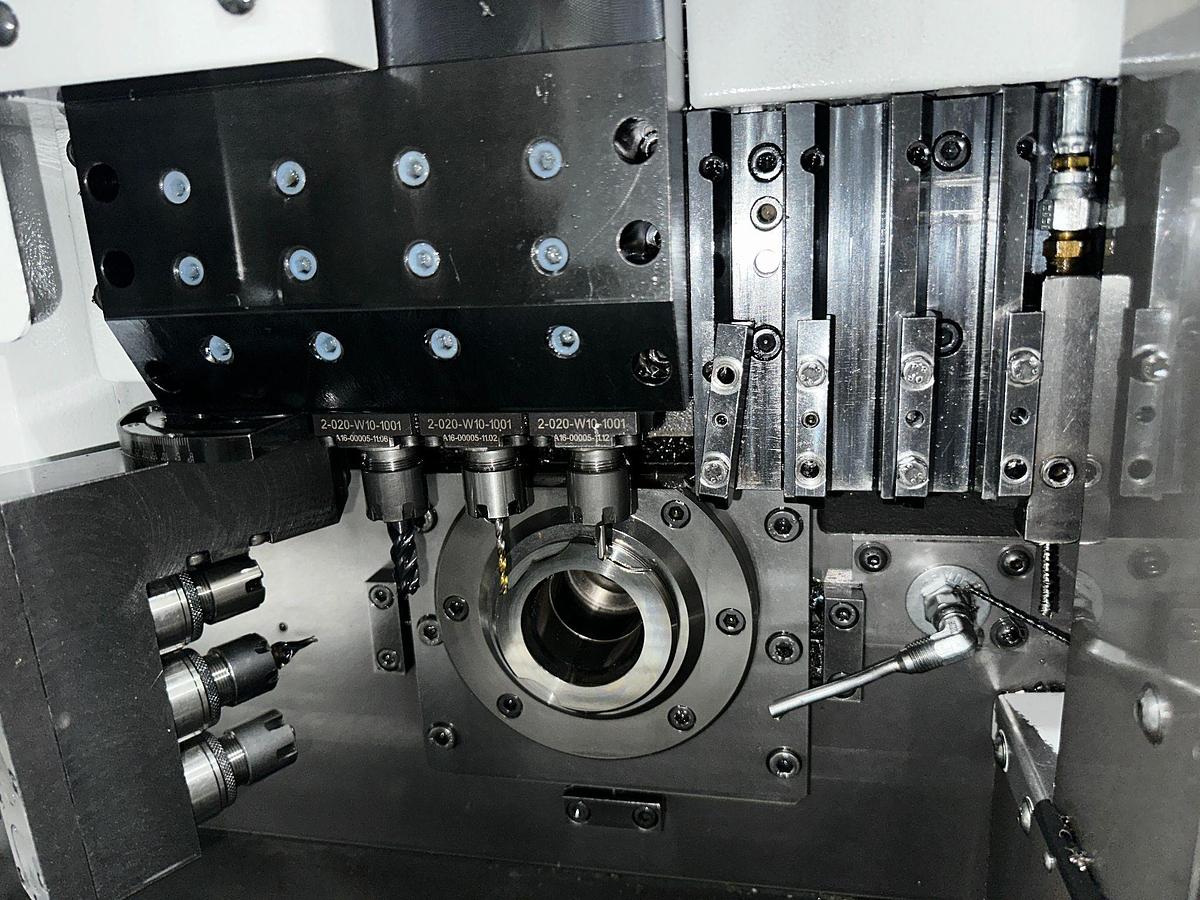

• Tooling: Features multiple live and static tooling positions to support off-center milling and drilling
