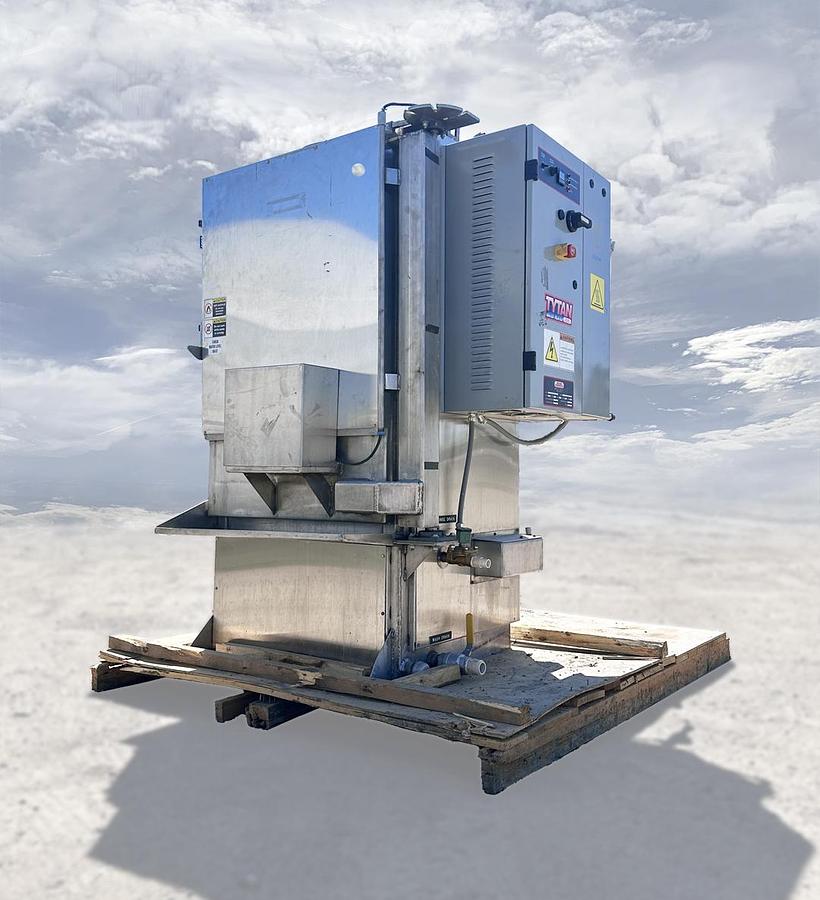

Stoelting CSW-123 Stainless Steel Washer

Stoelting CSW-123 Washer

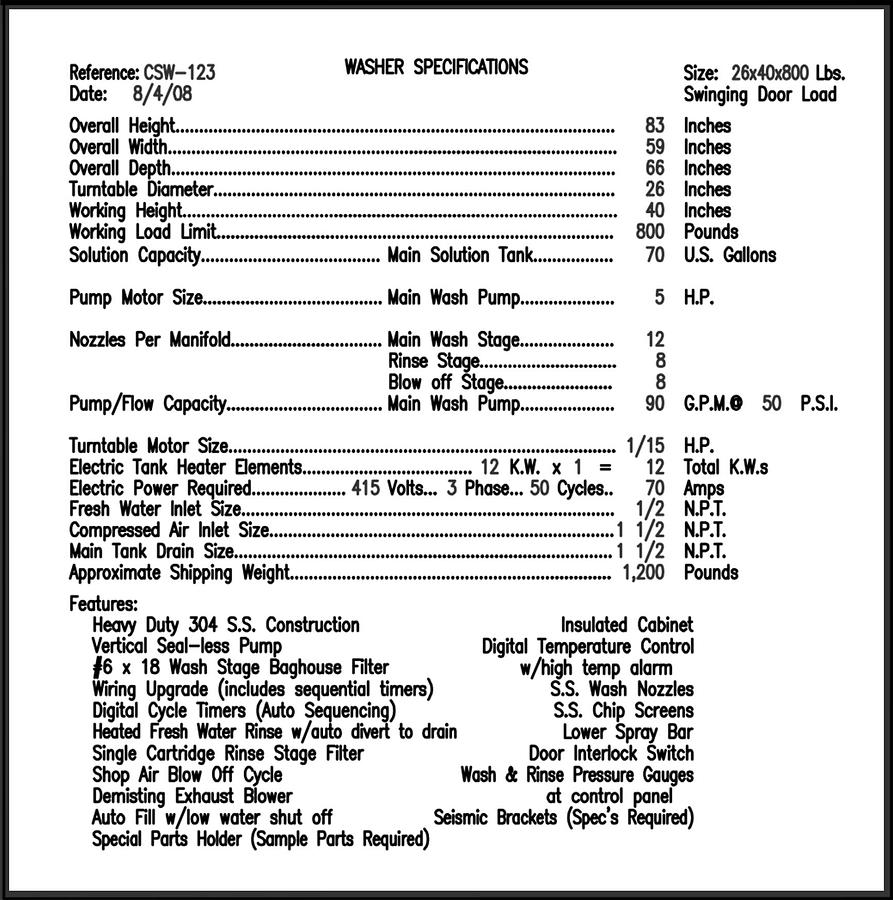

SPECIFICATIONS

Mfg: Stoelting

Model: CSW-123

YOM: 2008 (Never Put into Service)

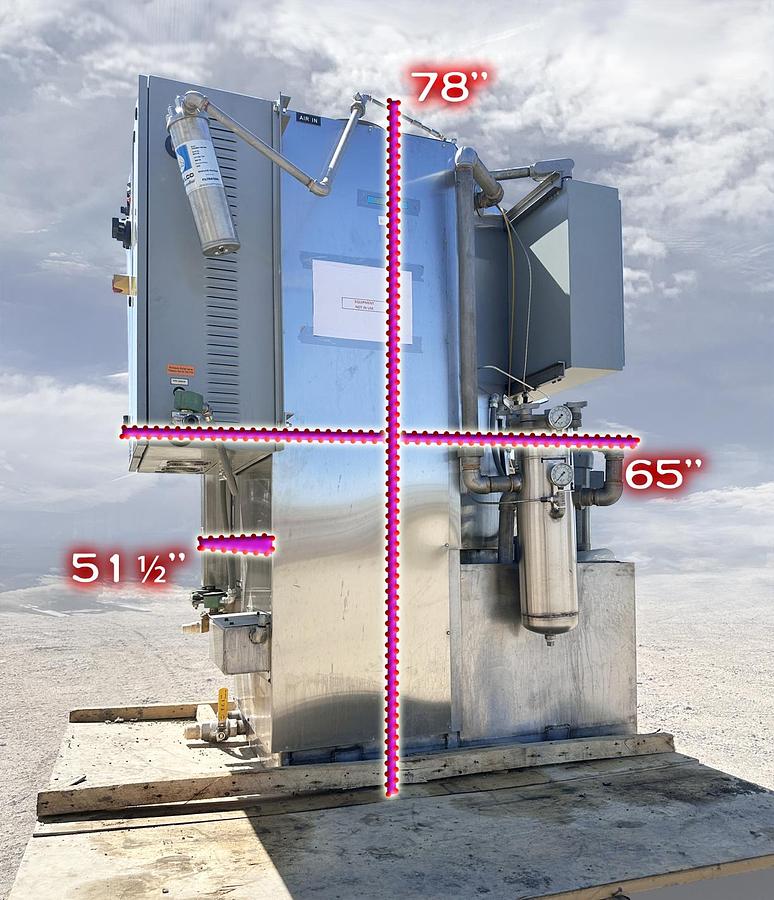

Overall Height: 83 Inches

Overall Width: 59 Inches

Overall Depth: 66 Inches

Turntable Diameter: 26 Inches

Working Height.: 40 Inches

Working Load Limit: 800 Pounds

Solution Capacity: Main Solution Tank: 70 U.S. Gallons

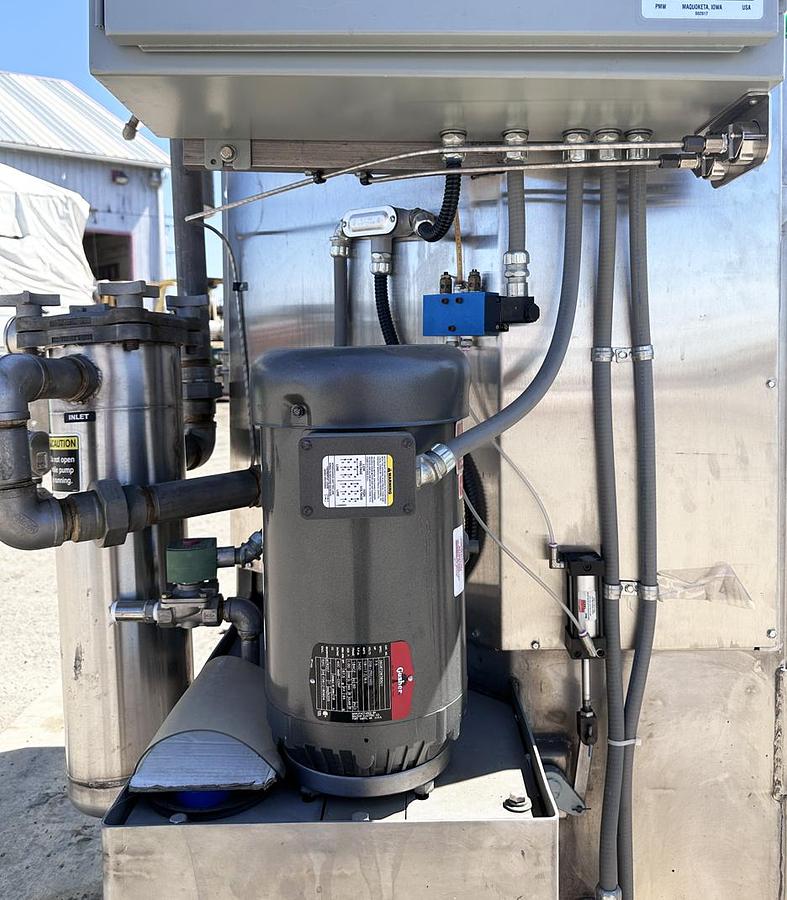

Pump Motor Size: Main Wash Pump: 5 H.P.

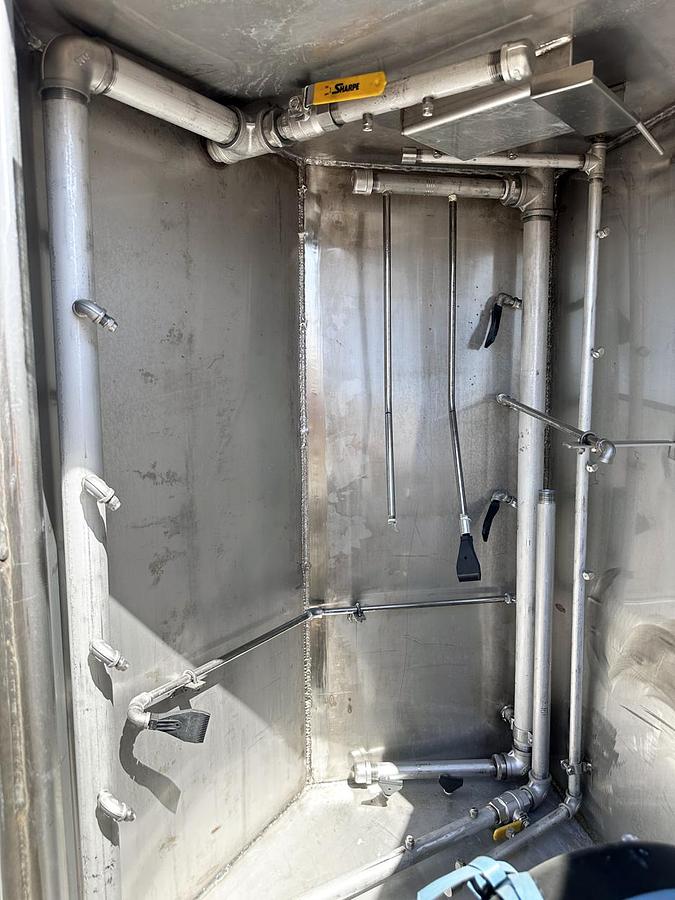

Nozzles Per Manifold: Main Wash Stage: 12

Rinse Stage: 8

Blow off Stage: 8

Pump/Flow Capacity: Main Wash Pump: 90 G.P.M. @ 50 P.S.I.

Turntable Motor Size: 1/15 H.P.

Electric Tank Heater Elements: 12 K.W. x 1 = 12 Total K.W.s

Electric Power Required: 415 Volts... 3 Phase... 50 Cycles.. 70 Amps

Fresh Water Inlet Size: 1/2 N.P.T.

Compressed Air Inlet Size: 1 1/2 N.P.T.

Main Tank Drain Size: 1 1/2 N.P.T.

Approximate Shipping Weight: 1,200 Pounds

Features:

Heavy Duty 304 S.S. Construction

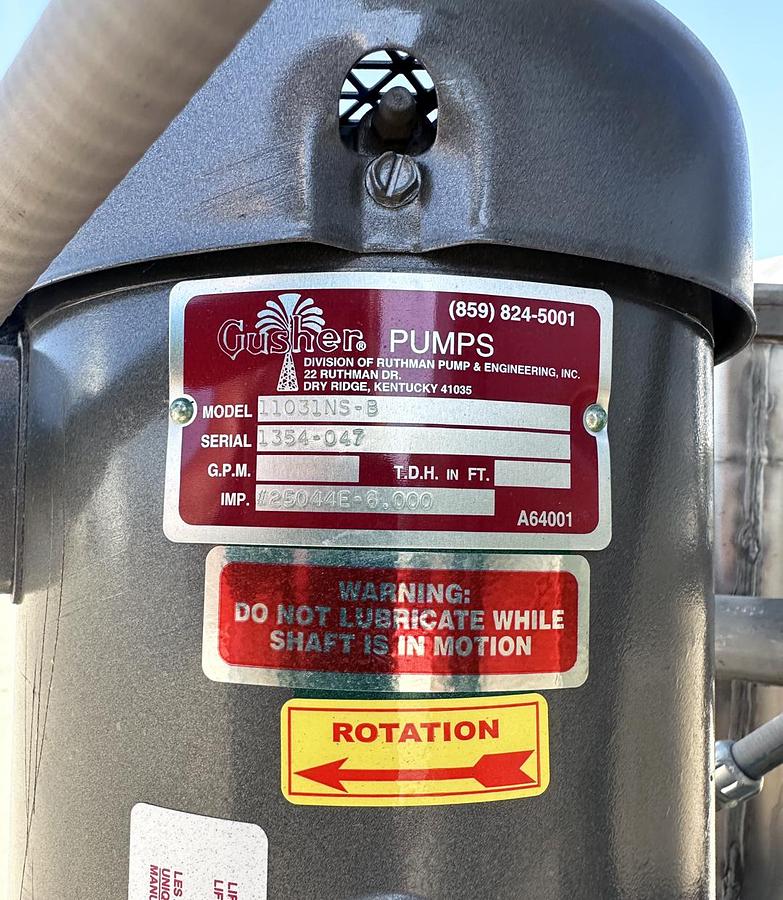

Vertical Seal-less Pump

6 x 18 Wash Stage Baghouse Filter

Wiring Upgrade (includes sequential timers)

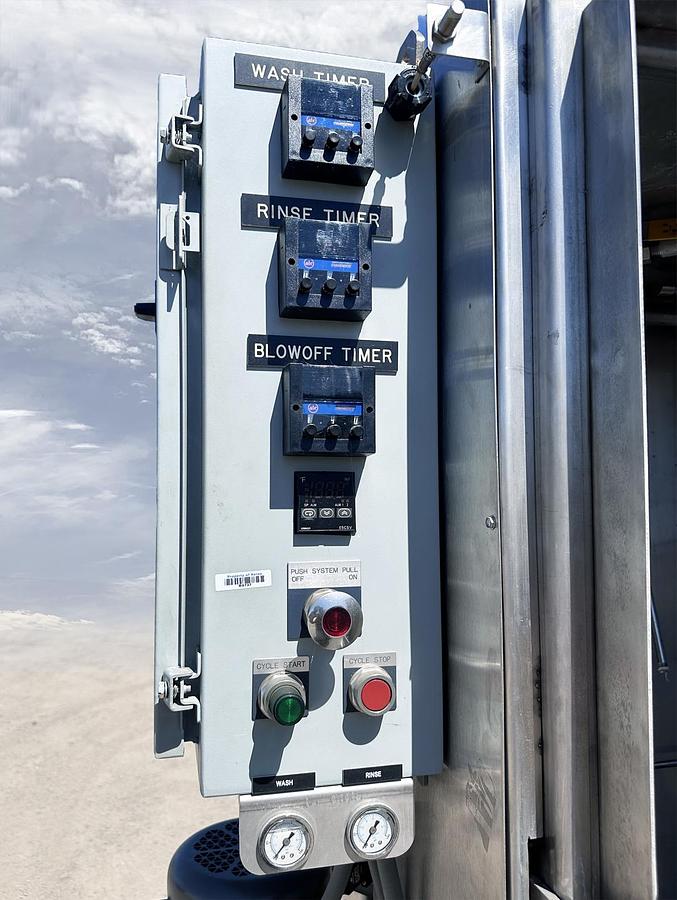

Digital Cycle Timers (Auto Sequencing)

Heated Fresh Water Rinse w/auto divert to drain

Single Cartridge Rinse Stage Filter

Shop Air Blow Off Cycle

Demisting Exhaust Blower

Auto Fill w/low water shut off

Special Parts Holder (Sample Parts Required)

Size: 26x40x800 Lbs.

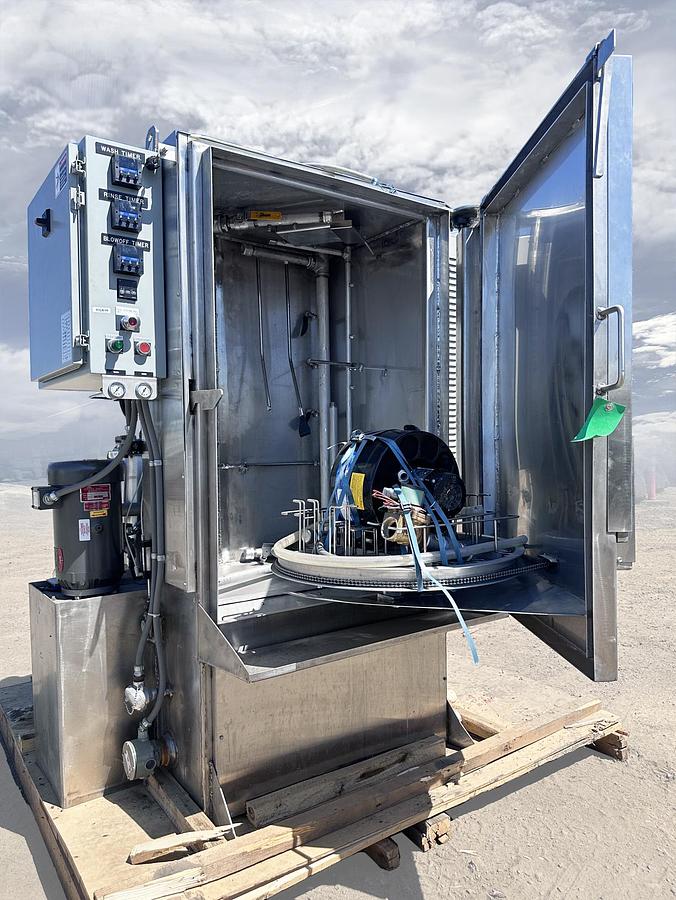

Swinging Door Load

Insulated Cabinet

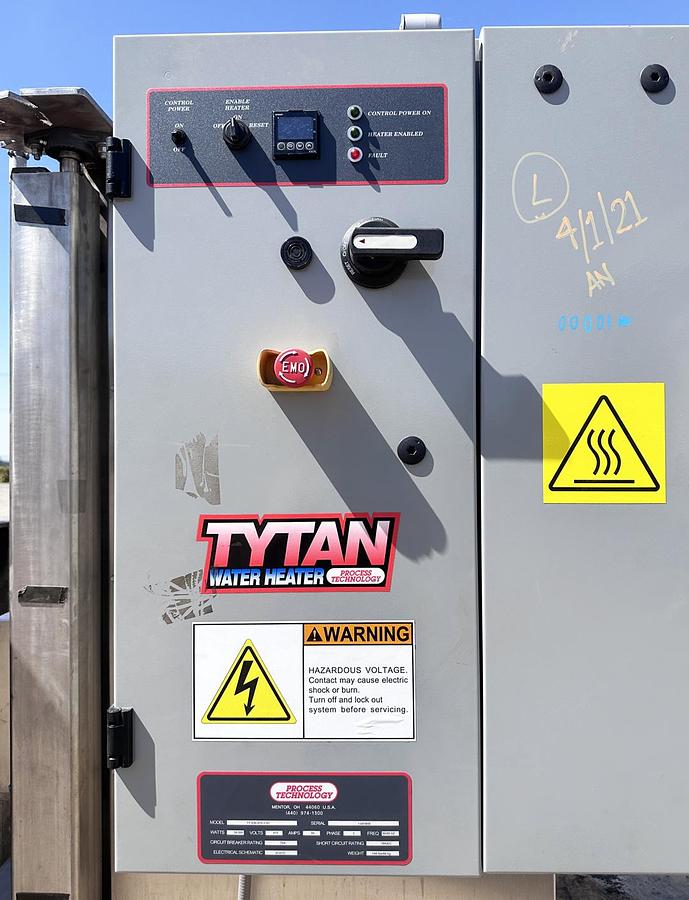

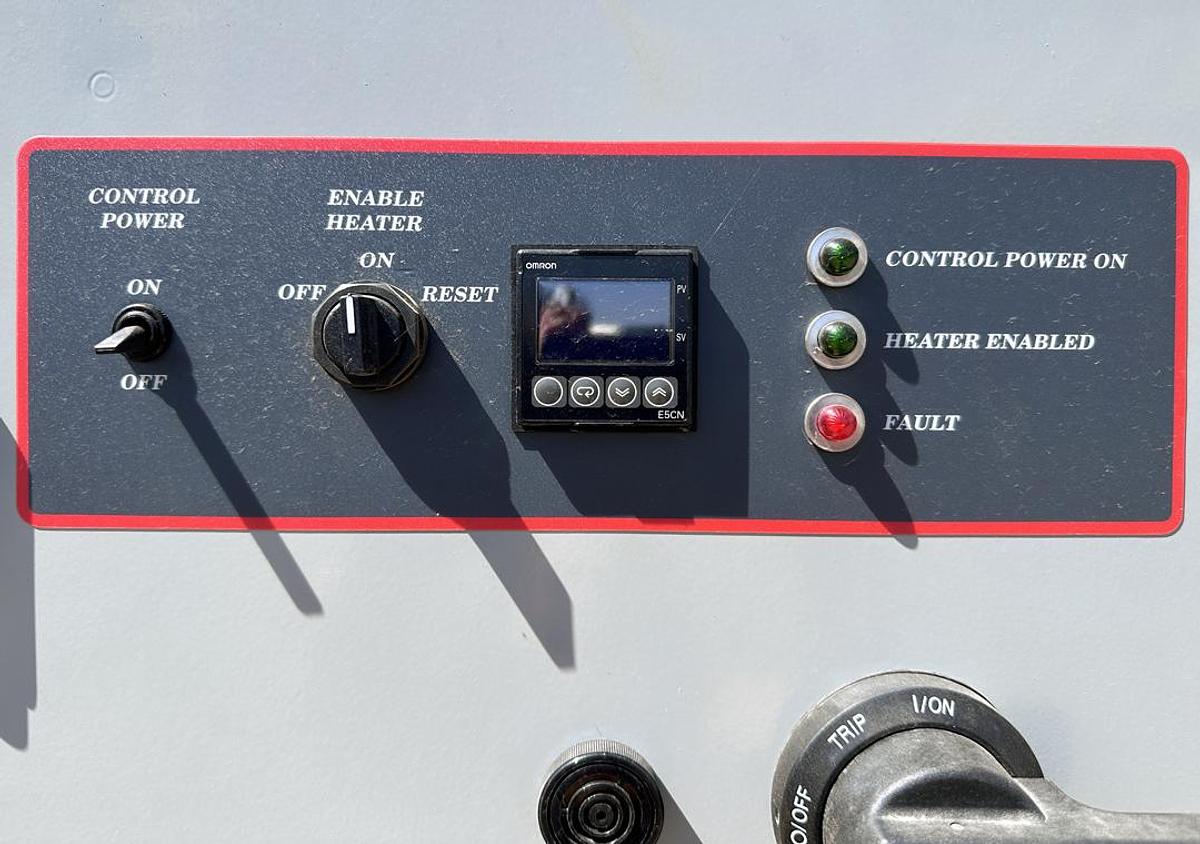

Digital Temperature Control

w/high temp alarm

S.S. Wash Nozzles

S.S. Chip Screens

Lower Spray Bar

Door Interlock Switch

Wash & Rinse Pressure Gauges

at control panel

Seismic Brackets (Spec's Required)
