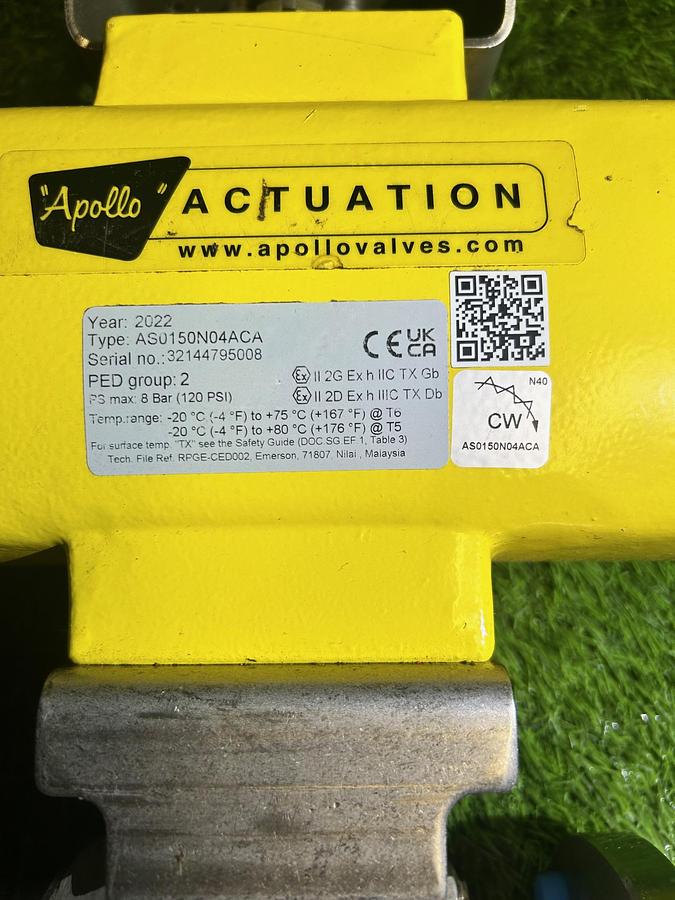

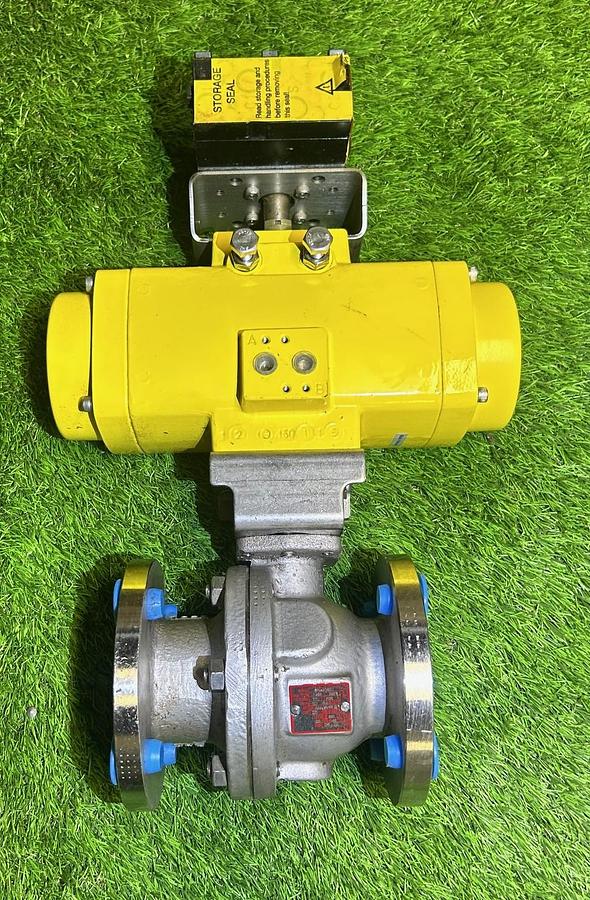

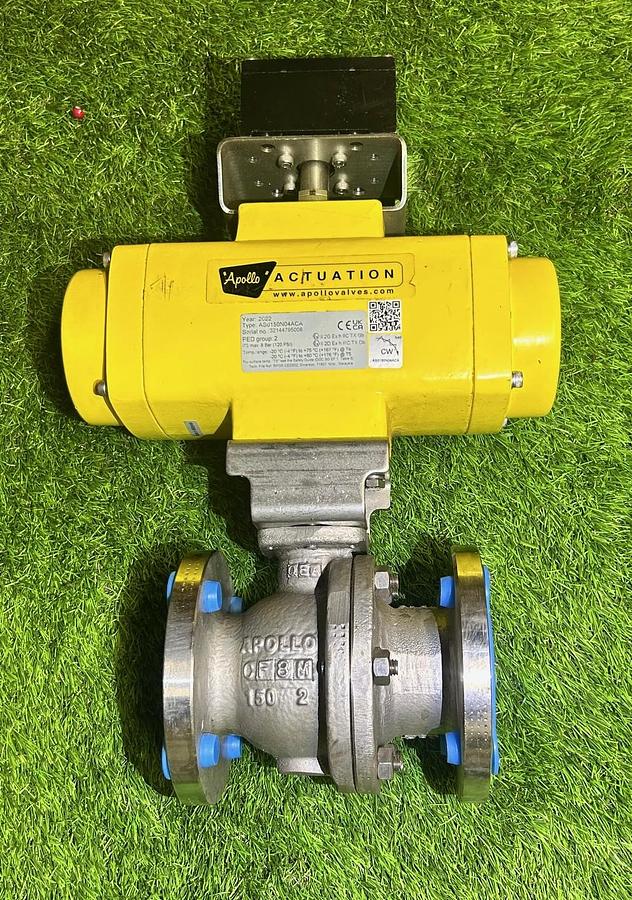

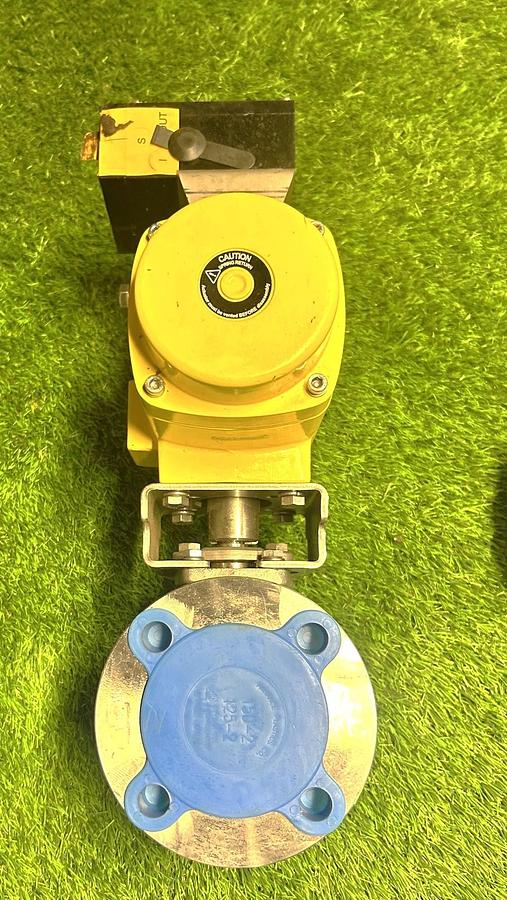

Apollo Model: AS0150N04ACA Quarter-Turn Rack and Pinion Pneumatic Actuator & SS Ball Valve

Apollo AS0150N04ACA Quarter-Turn Rack and Pinion Pneumatic Actuator designed for automating valve operations.

It is part of the Apollo AS Series, featuring a spring-return mechanism for fail-safe performance.

Specifications

Actuator Size: 0150.

Action Type: Spring Return (Fail Closed).

Output Torque: Ranges from 41 to 15,867 lbf-in, with a specific rating of approximately 2,227 in-lbs depending on configuration.

Pressure Rating: Maximum operating pressure of 120 to 150 psi.

Temperature Range: Rated for -4°F to 176°F (-20°C to 80°C).

Includes:

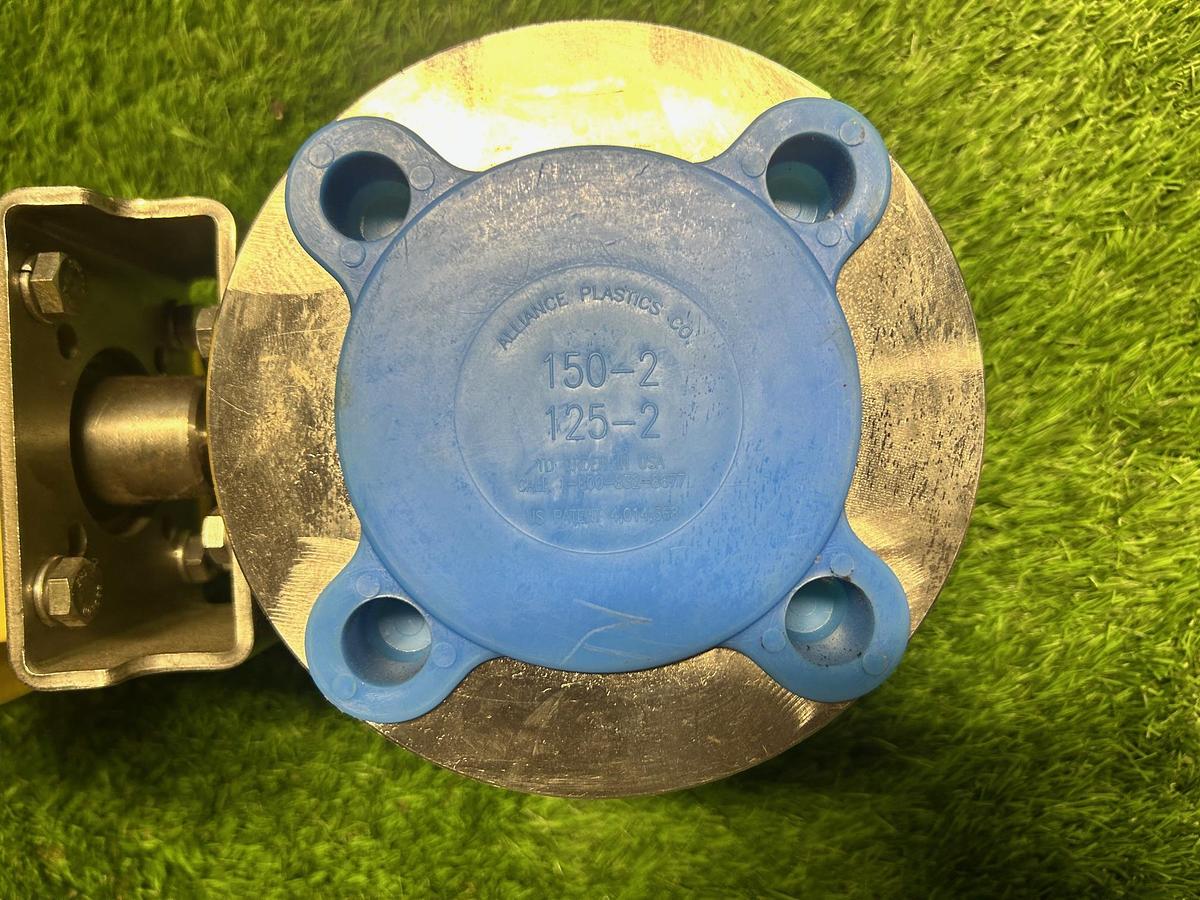

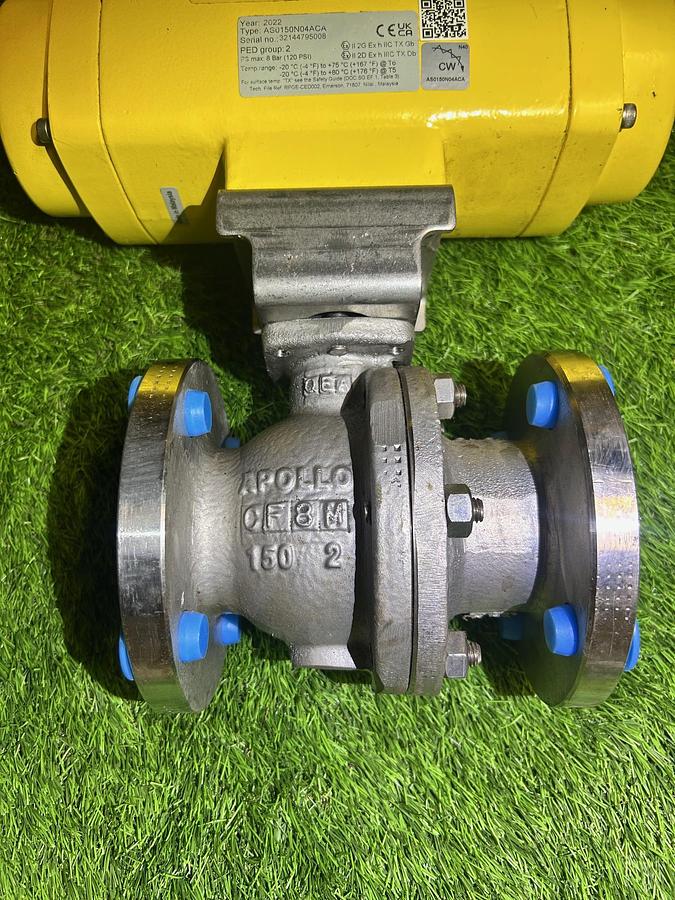

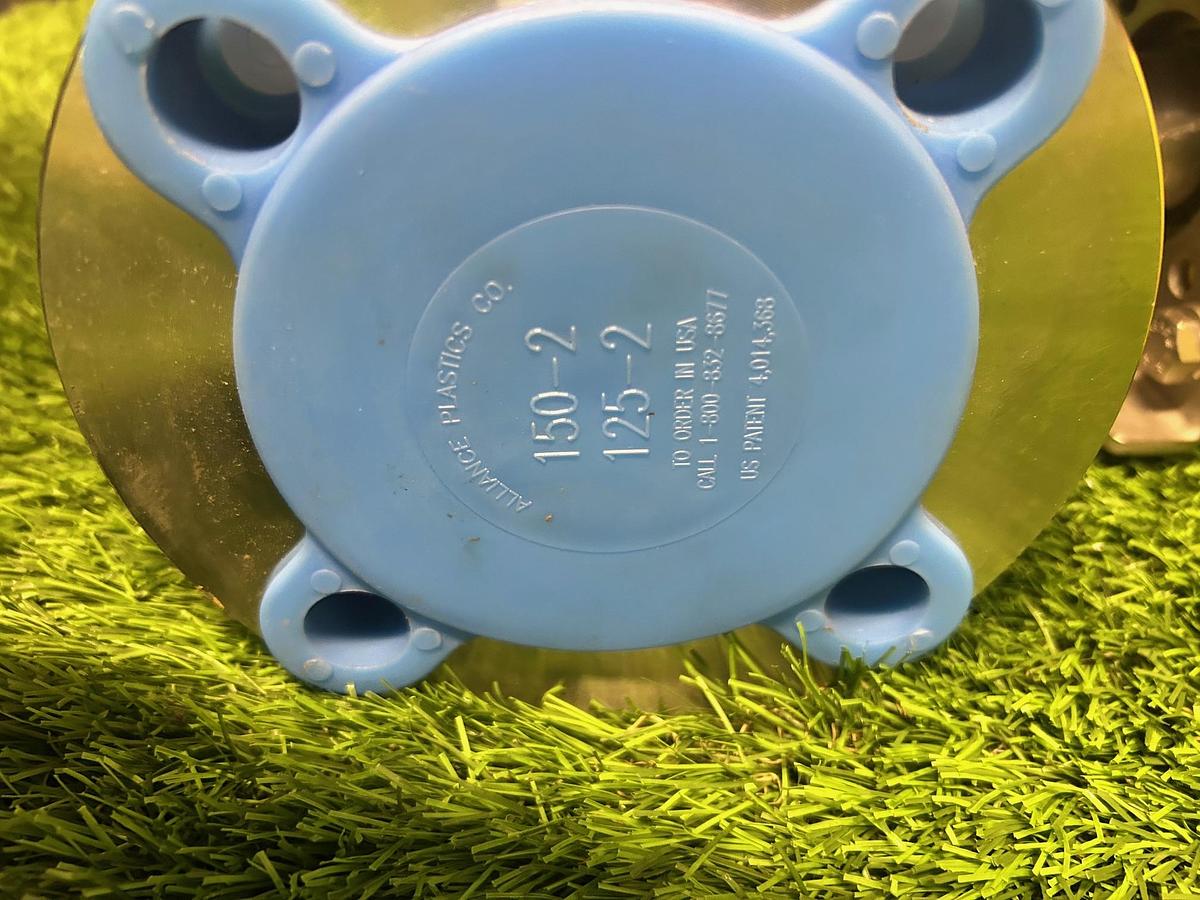

2" CF8M Valve Models

Apollo 87A-100/200 Series (Flanged)Type: 1-piece or 2-piece flanged ball valve.

Design: Class 150 flanged, typically standard or full port.

Model: 87A20801

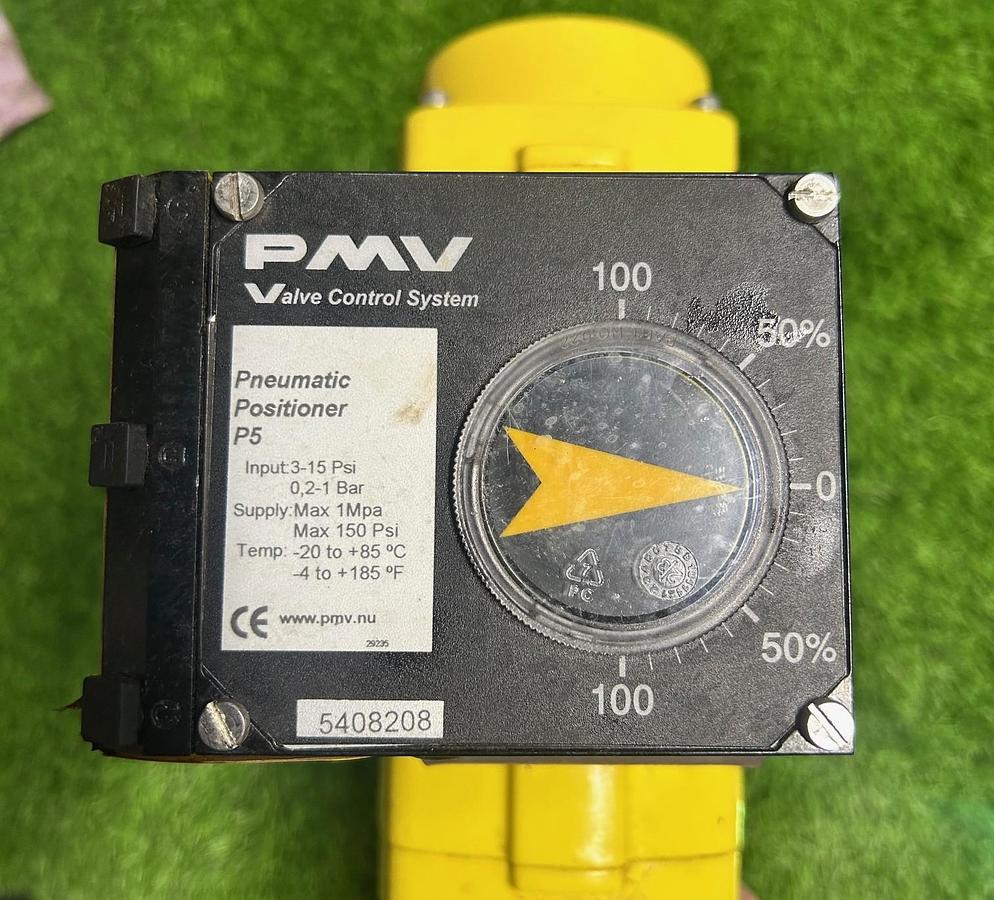

PMV Valve Control System, Pneumatic Positioner (P5)

All Specifications Subject to Buyer's Verification
