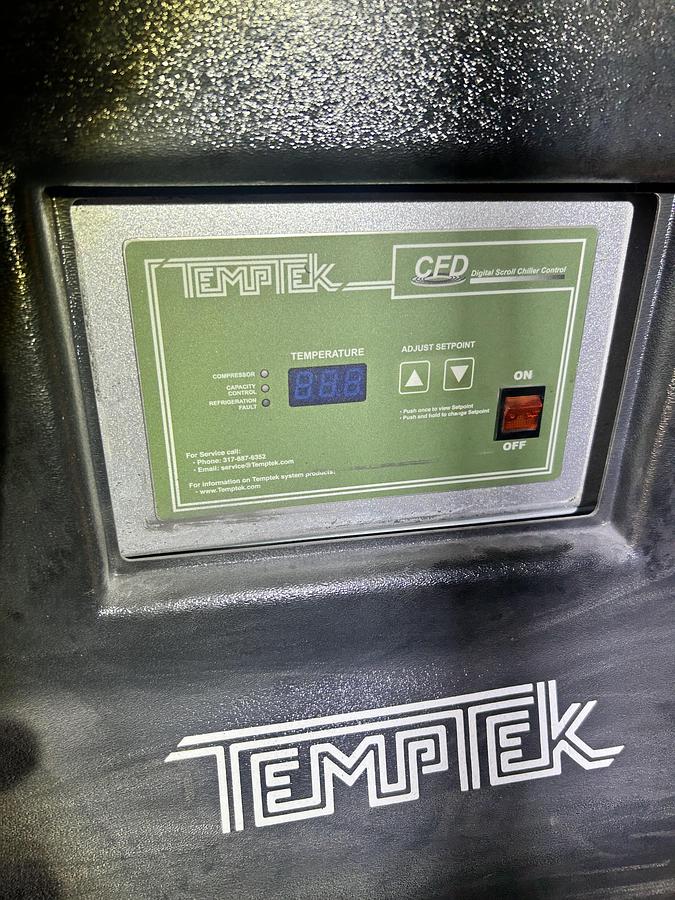

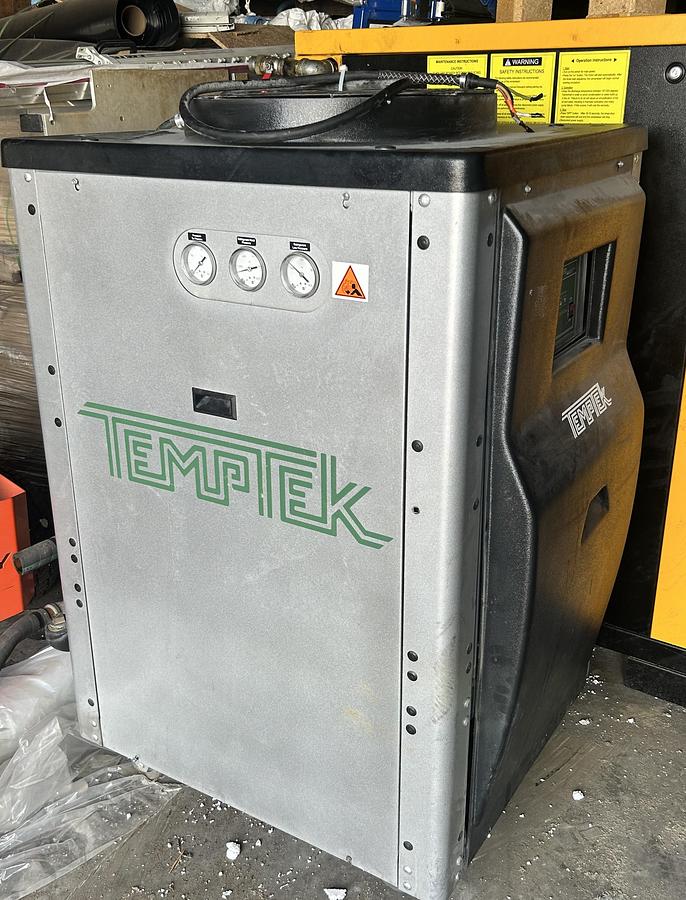

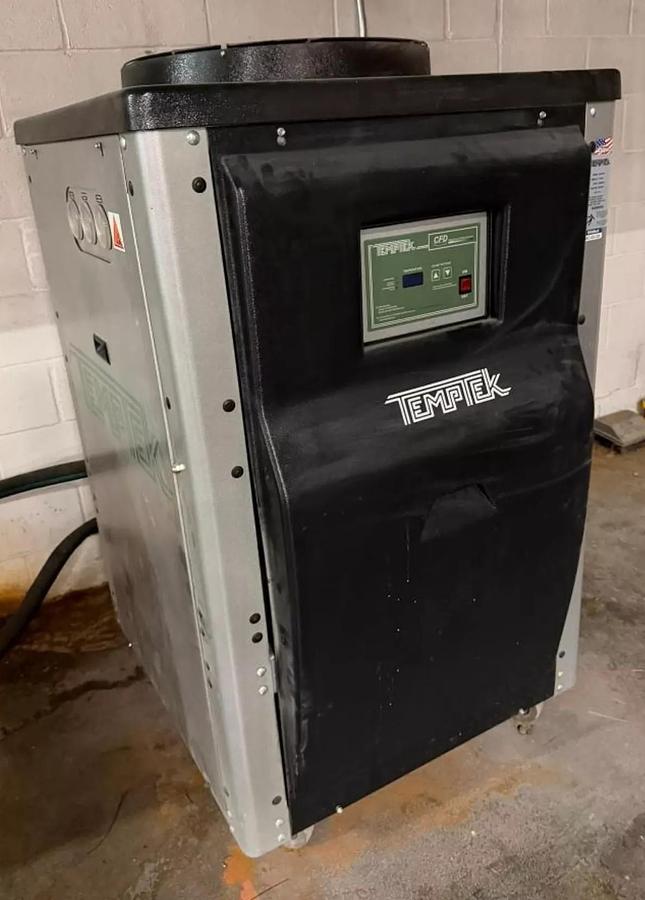

5-Ton Temptek Portable Air-Cooled Chiller, Model: CFD-5AR

5-Ton Temptek Portable Air-Cooled Chiller

Mfg: Temptek

Model: CFD-5AR

YOM: 2015

Core Specifications

Cooling Capacity: 5 Tons (approx. 4.9 Tons / 17.2 kW).

Compressor: 5 HP Digital Scroll, allowing capacity modulation from 20% to 100% for energy efficiency.

Process Pump: 2 HP Centrifugal pump.Flow Rate: 12 GPM @ 52 PSI.

Operating Temperature: Standard range of 20°F to 80°F (fluid temperatures).

Refrigerant: Originally R-22 in older units; modern CFD series units typically use R-410A.

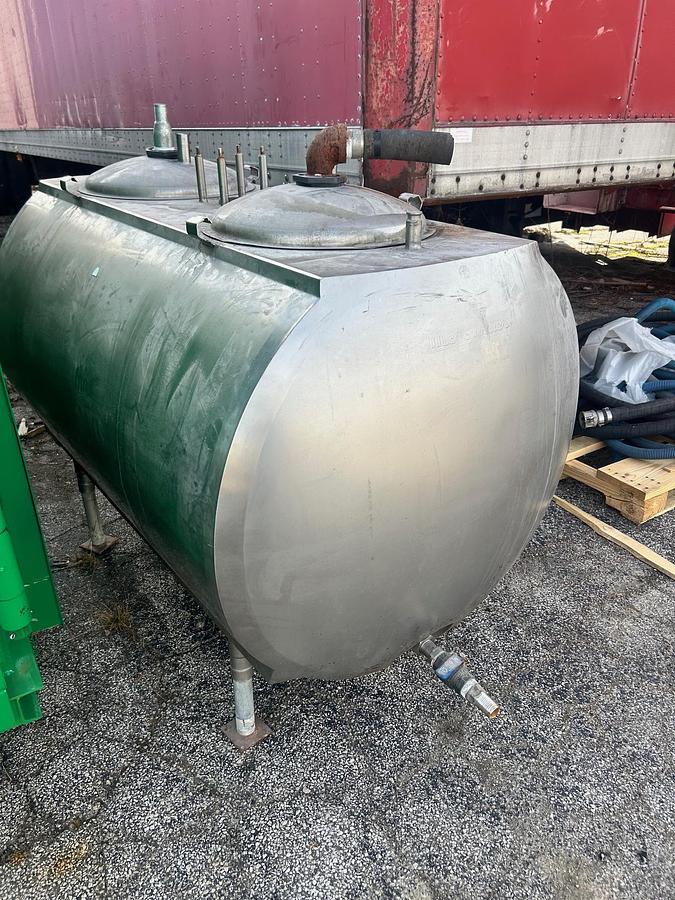

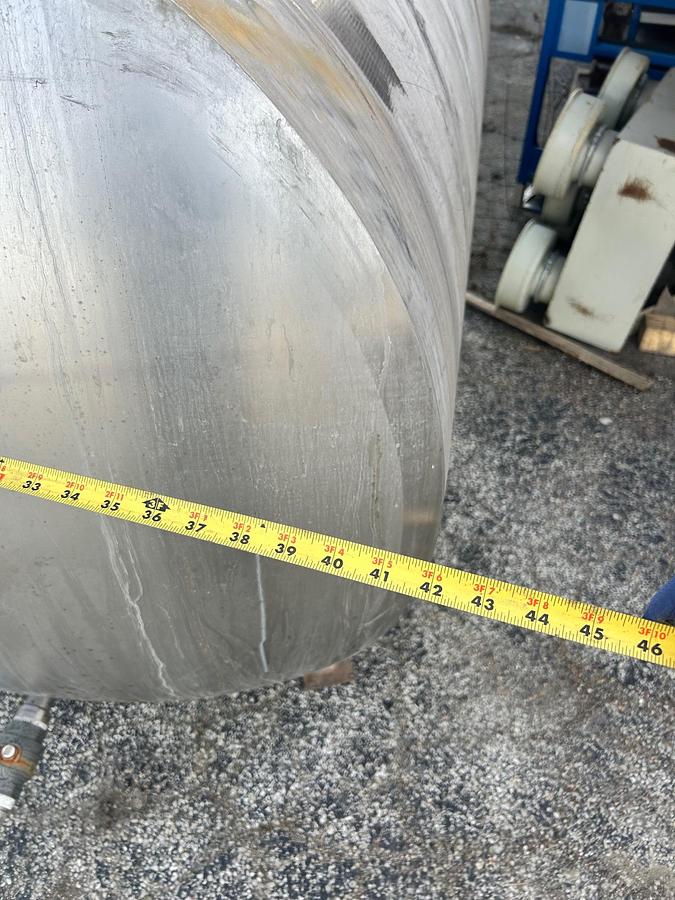

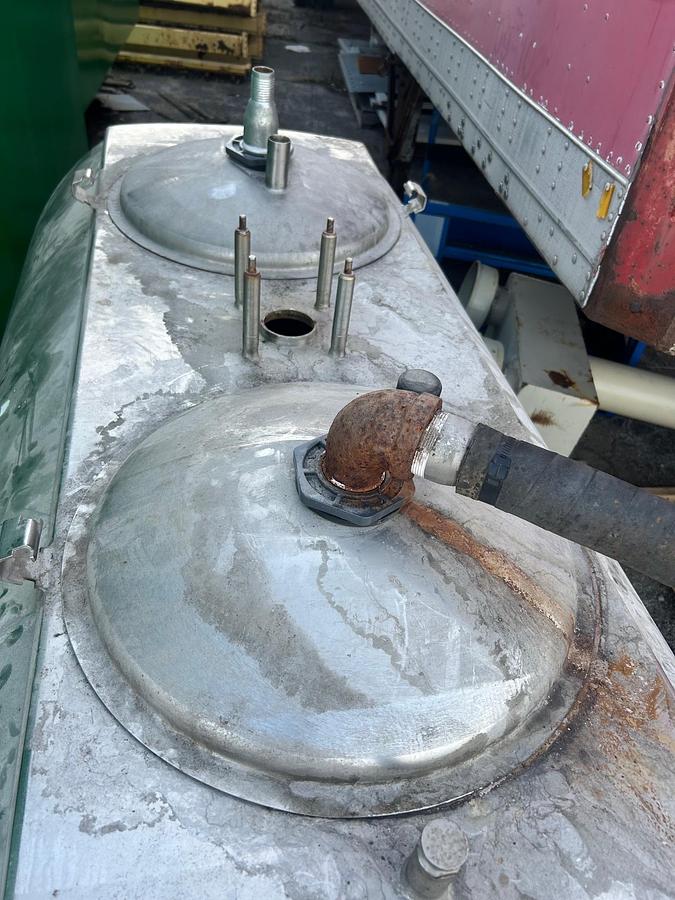

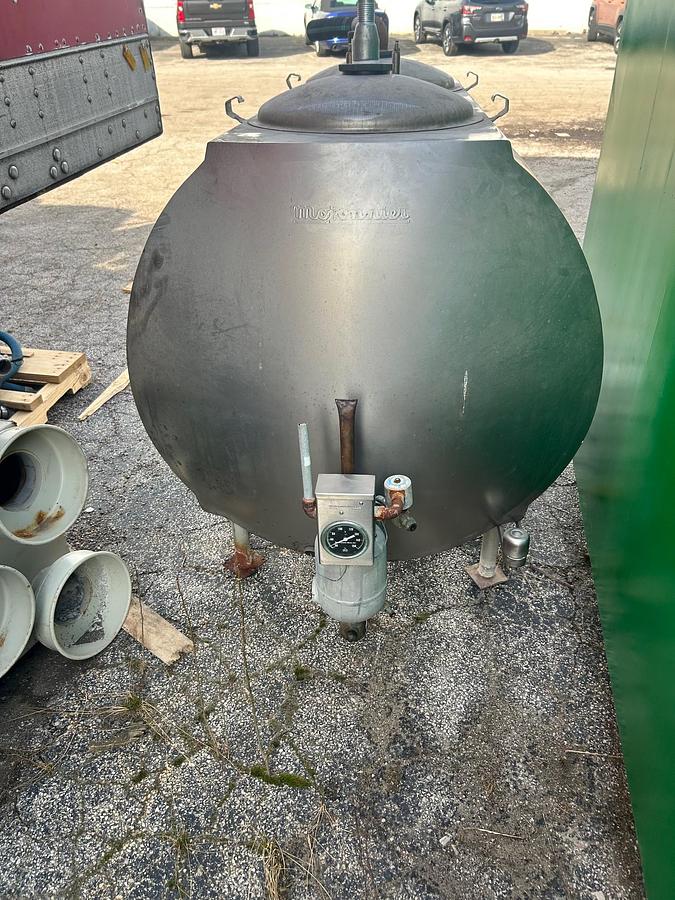

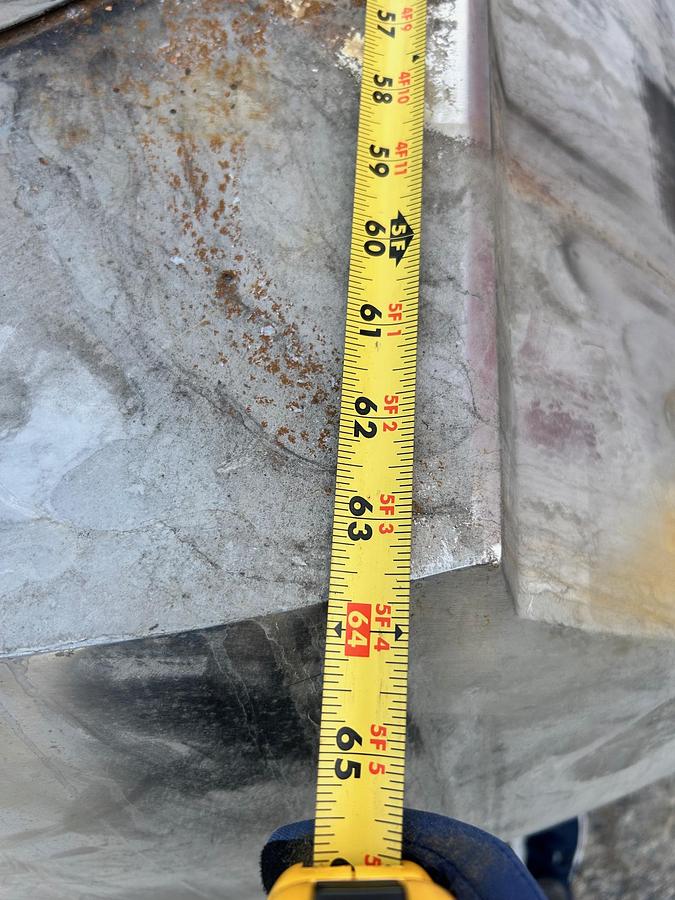

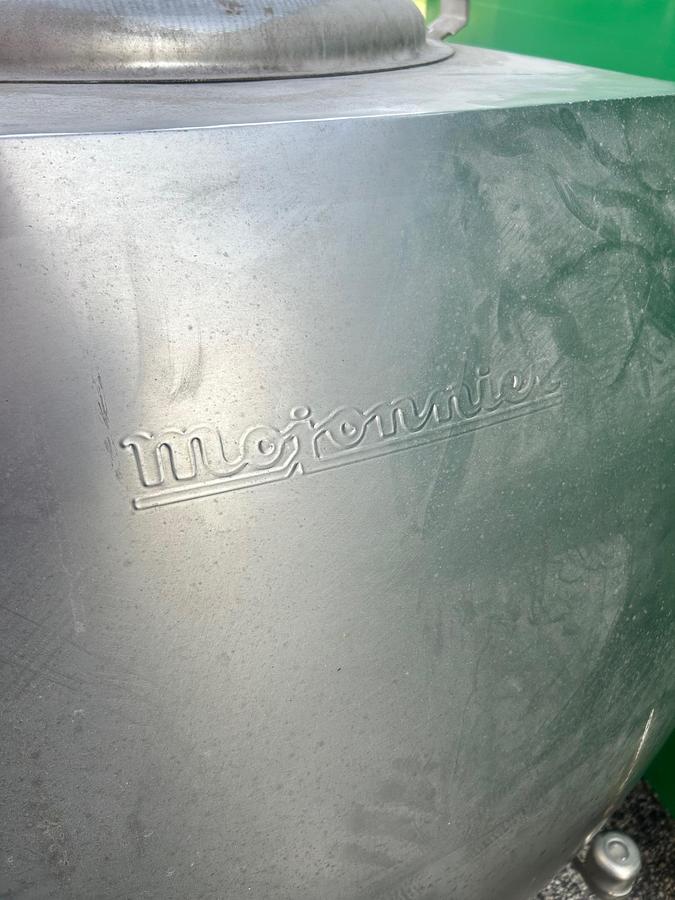

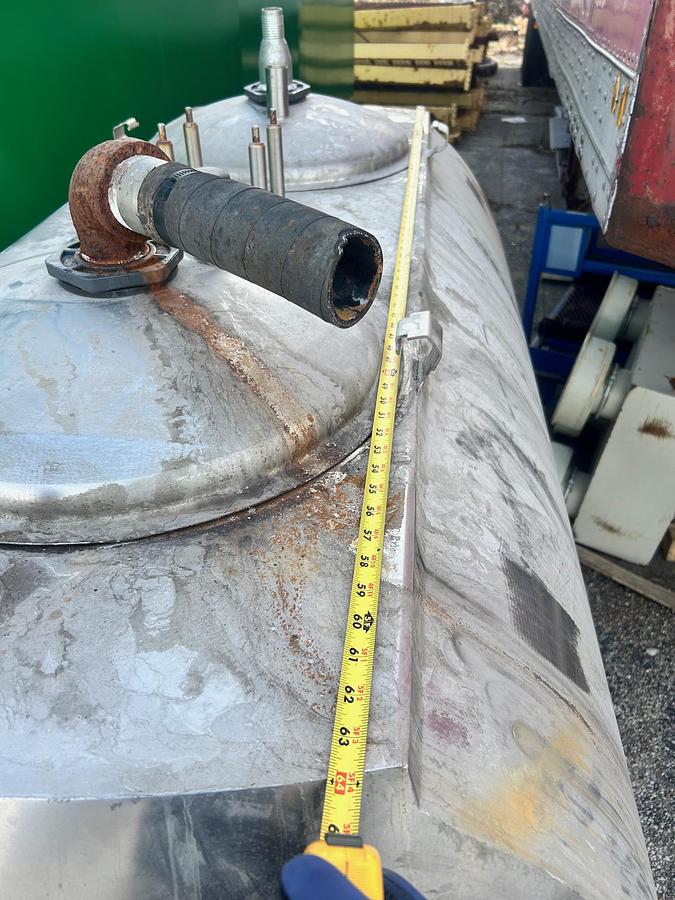

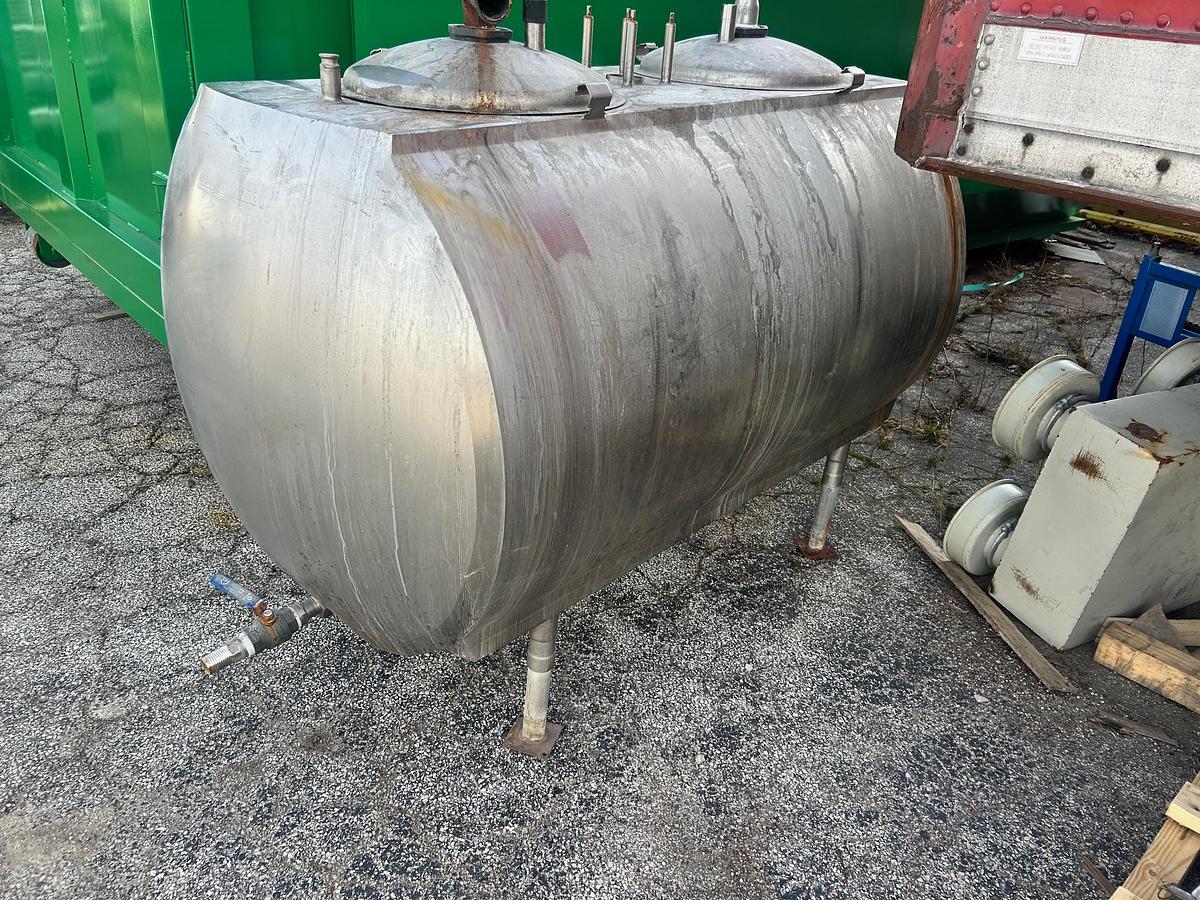

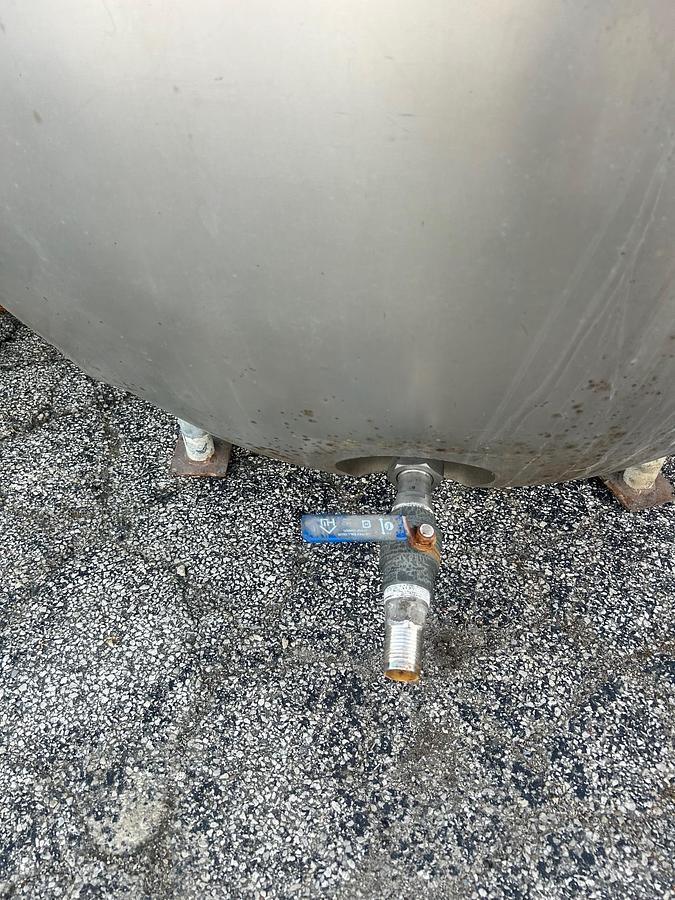

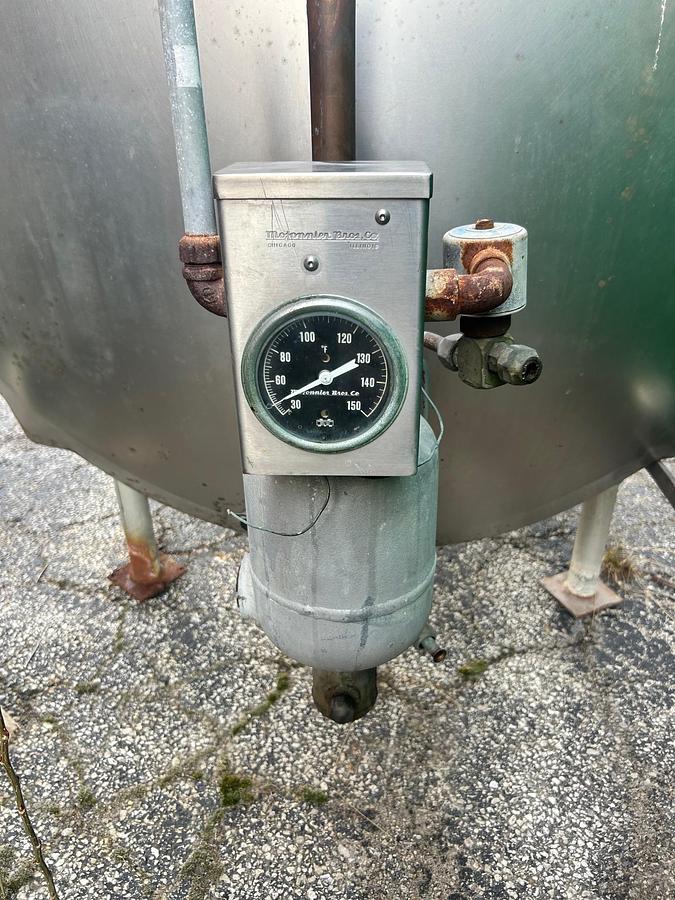

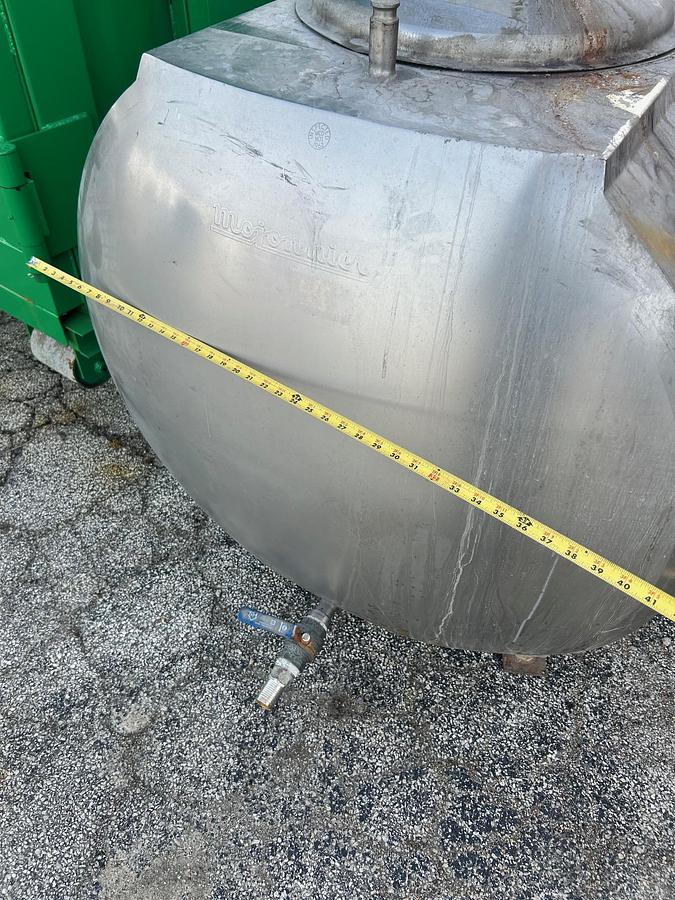

Unit is Reverse Flow, or Remote Configuration with an external Stainless Steel Tank

Electrical Requirements

These units are high-power industrial machines and require 3-phase power:

460V / 3 Phase / 60Hz: ~17.2 to 20 Amps.

230V / 3 Phase / 60Hz: ~34 to 35 Amps.

Physical Dimensions & Connections

Dimensions: Approximately 60" H x 34" W x 40" D.

Shipping Weight: Approximately 800 lbs.

Process Connections: 1-1/4" NPT (To/From Process) and 1/2" NPT (Water Make-Up).

All Specifications Subject to Buyer's Verification
