30000 lb. Perfecto #RS30-7272, coil feed line, 72" W x .218" stock, 72" OD, 19"-24" ID, 3-leaf mandrel, power lift & travel

Mfg: Perfecto Model: RS30-7272 / 55-72-7

YOM: 2000

Specifications

Coil weight capacity: 30000 pounds

Stock Width Capacity 72 inches

Max Stock Thickness Capacity At Full Width .218 inches

Minimum expansion range: 19 inches

Maximum expansion range: 24 inches

Coil O.D. capacity: 72 inches

Equipped With

Preliminary Specifications (Subject To Inspection):

Stock thickness capacity:

.218" x 72" Wide

.500" x 14" Wide

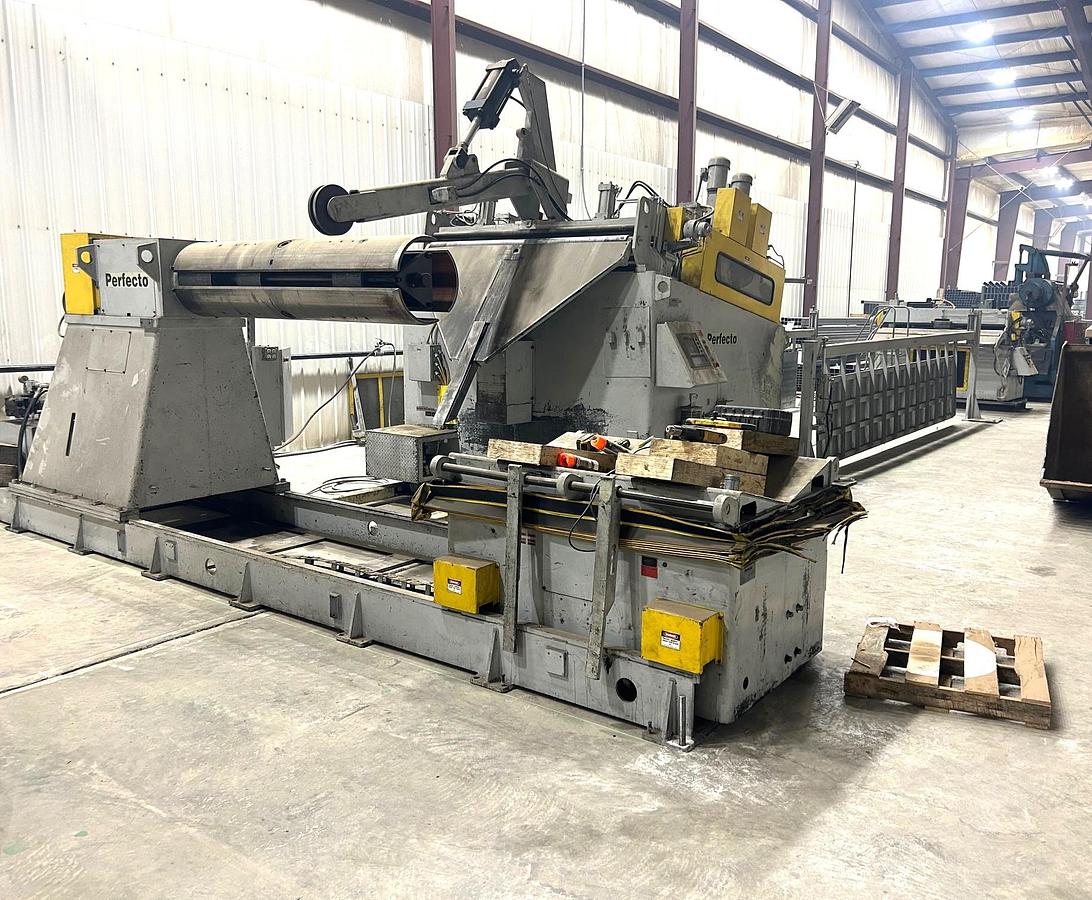

Perfecto Coil Reel Model No. RS30-7272

Three leaf mandrel with hydraulic expansion

Air brake for adjustable tensioning

Jog drive for threading

Traveling coil load car

Powered lift and travel

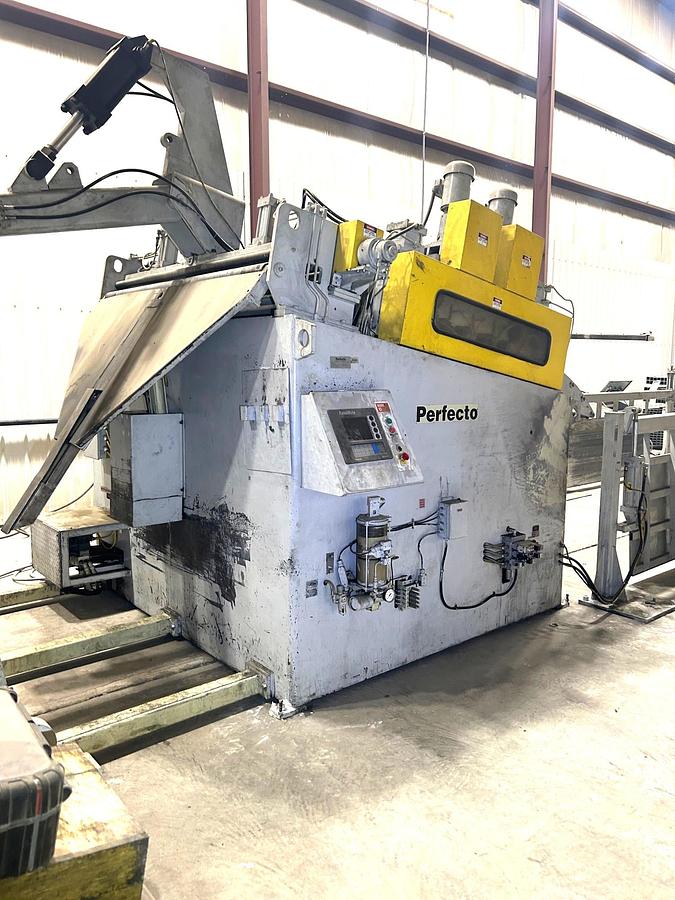

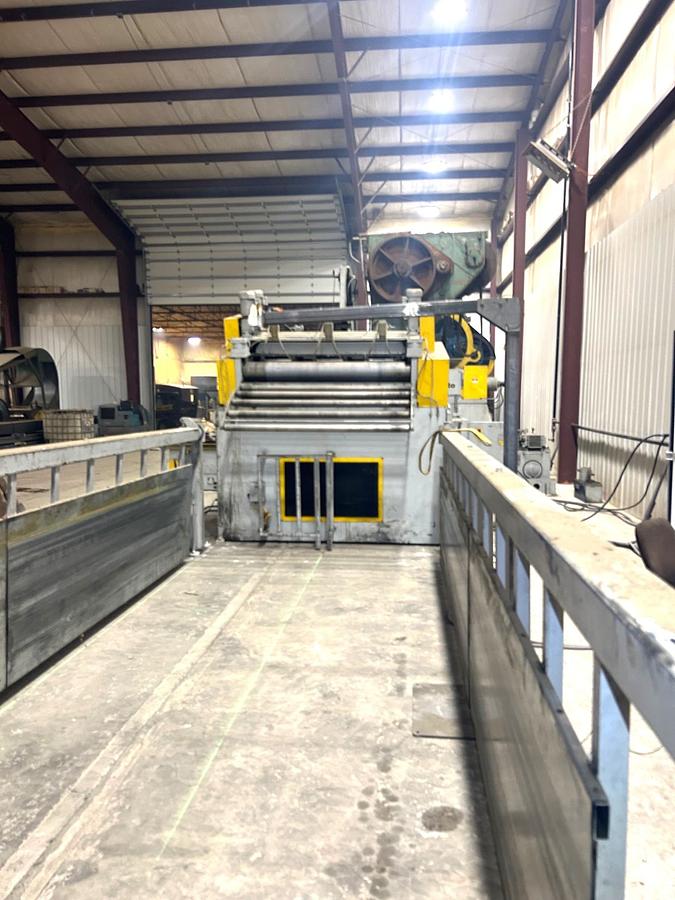

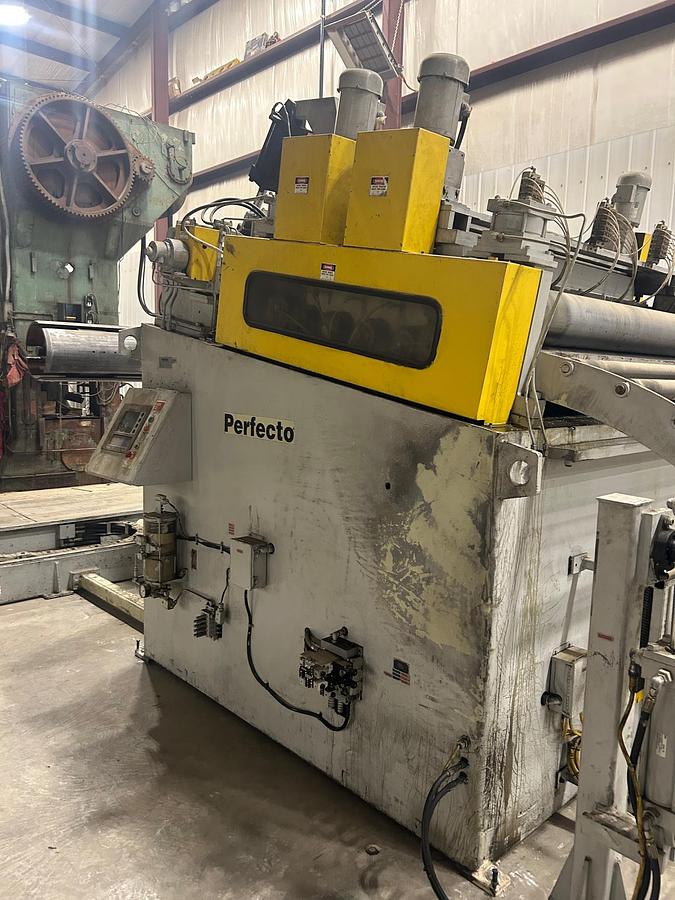

Perfecto Coil Straightener Model No. 55-72-7

Seven straightening rolls x 5.5" diameter

Motorized straightening roll adjustments

Back up support rollers on upper and lower straightening rolls

Entry and exit pinch rolls

Motorized edge guides

Coil hold down and peeler station

Automatic lubrication system

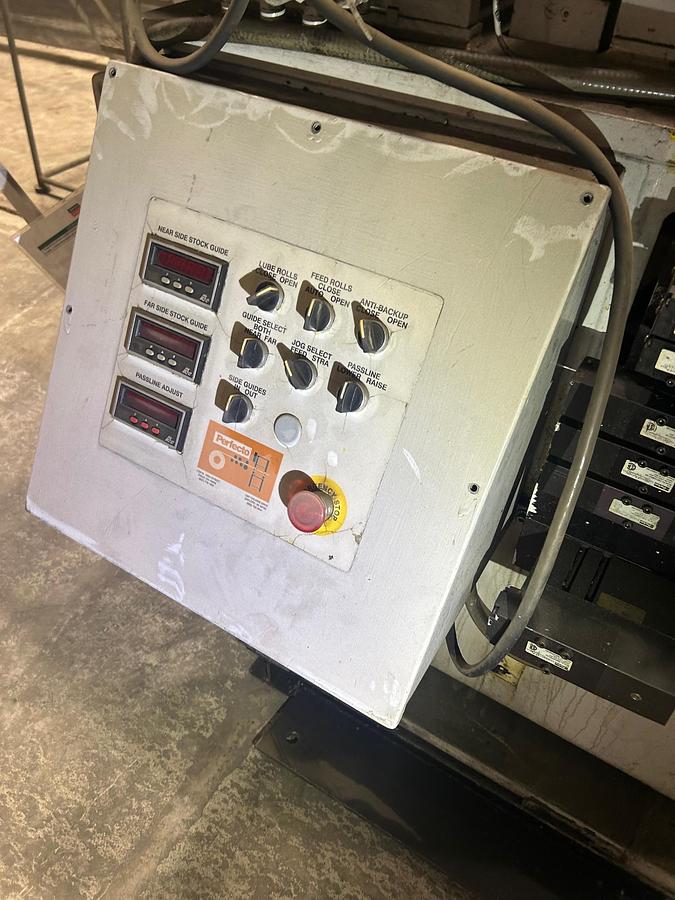

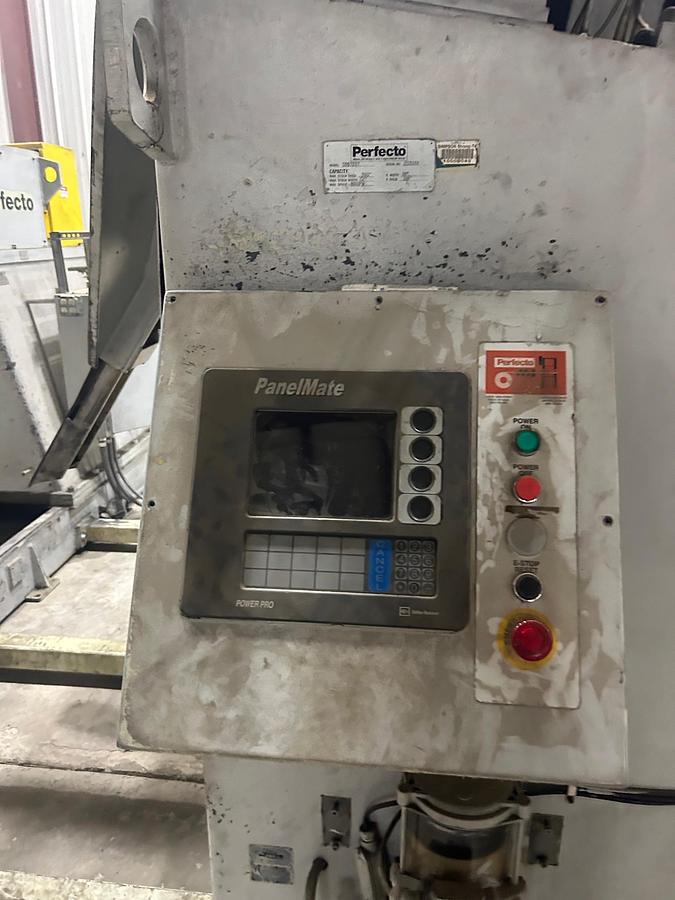

Operator's controls

Loop control

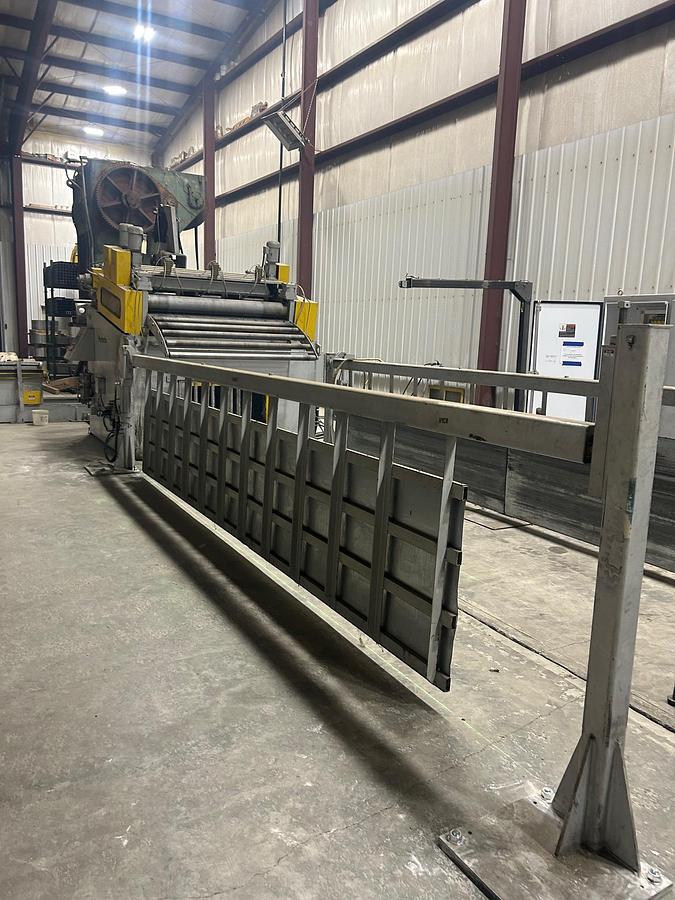

Perfecto Dual Sided Exit Threading Tables

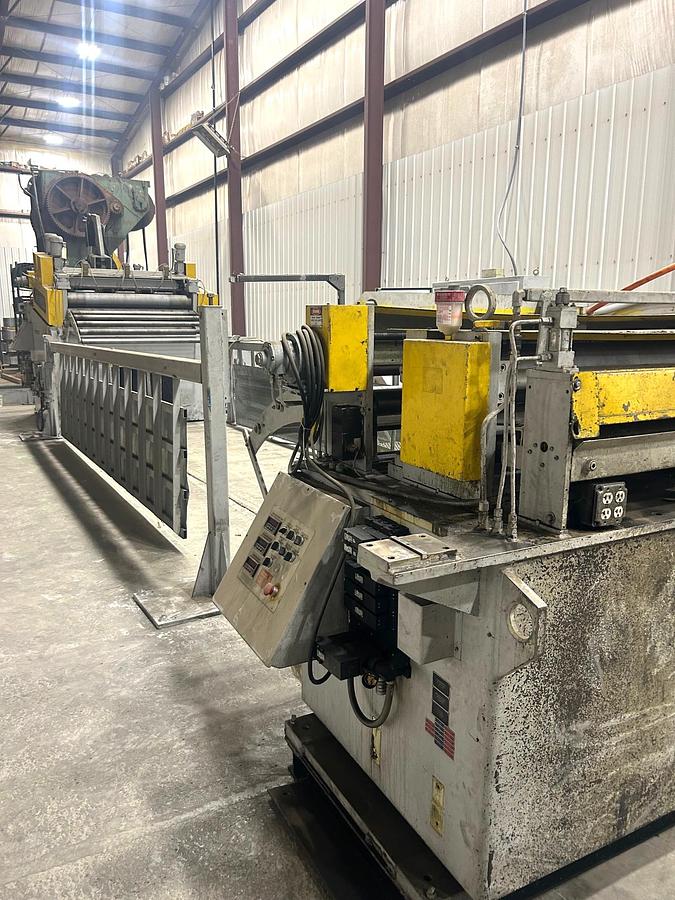

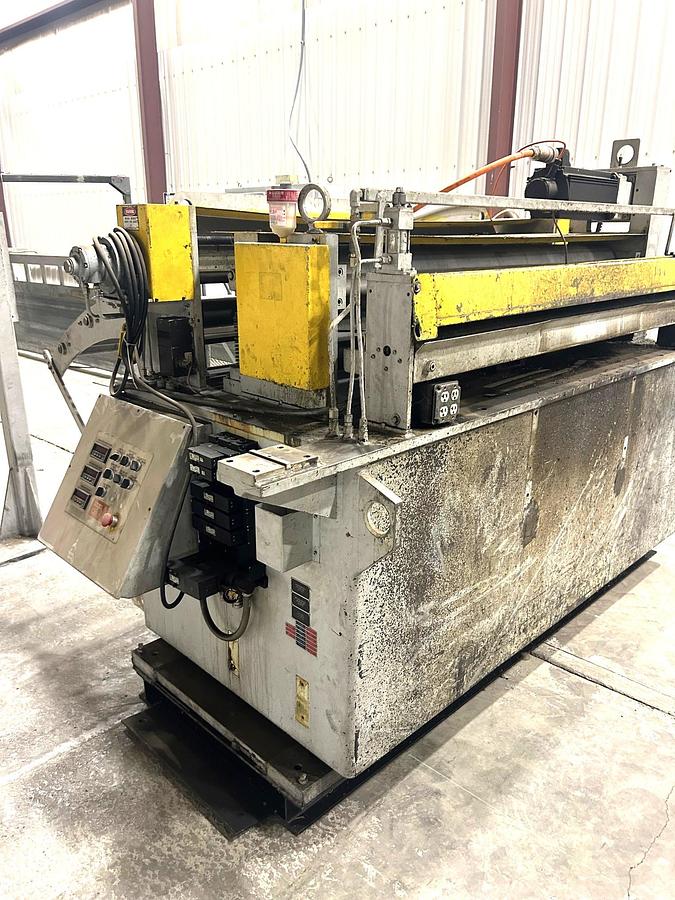

Perfecto Servo Feed Model No 700-72

Piloting upper feed roll

Motorized stock width edge guides

Entry cascade loop support rollers

Anti Back Up Rolls

Cabinet base mounted

Motorized pass line adjustment

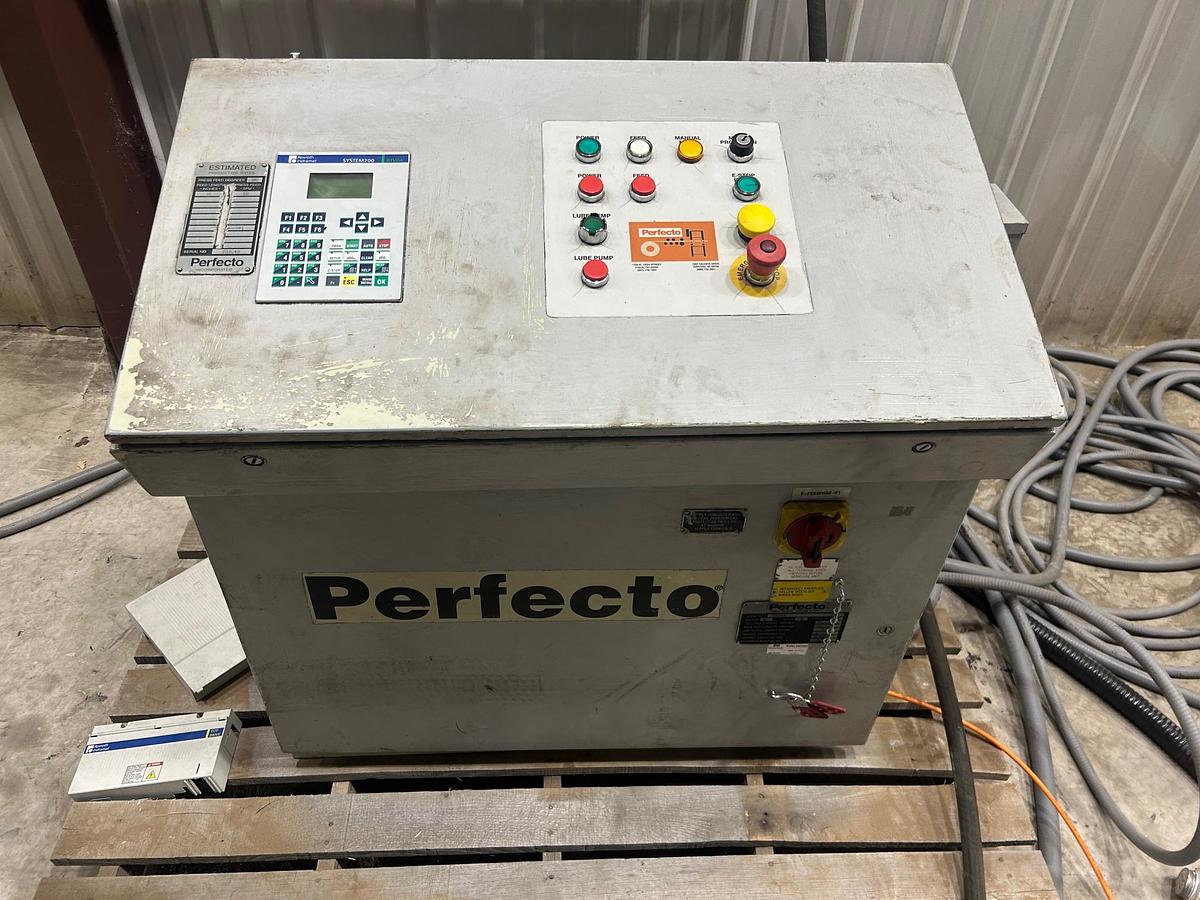

AC Servo controls

(2025) All new machine interconnection wiring, cables and conduit installed and included

(2025) New laser loop control installed and included
