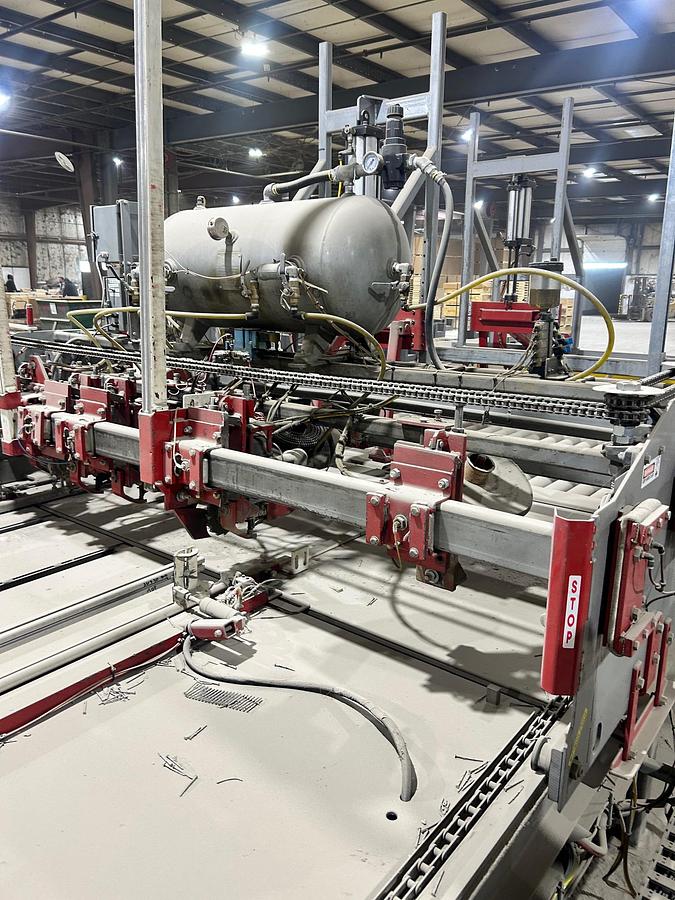

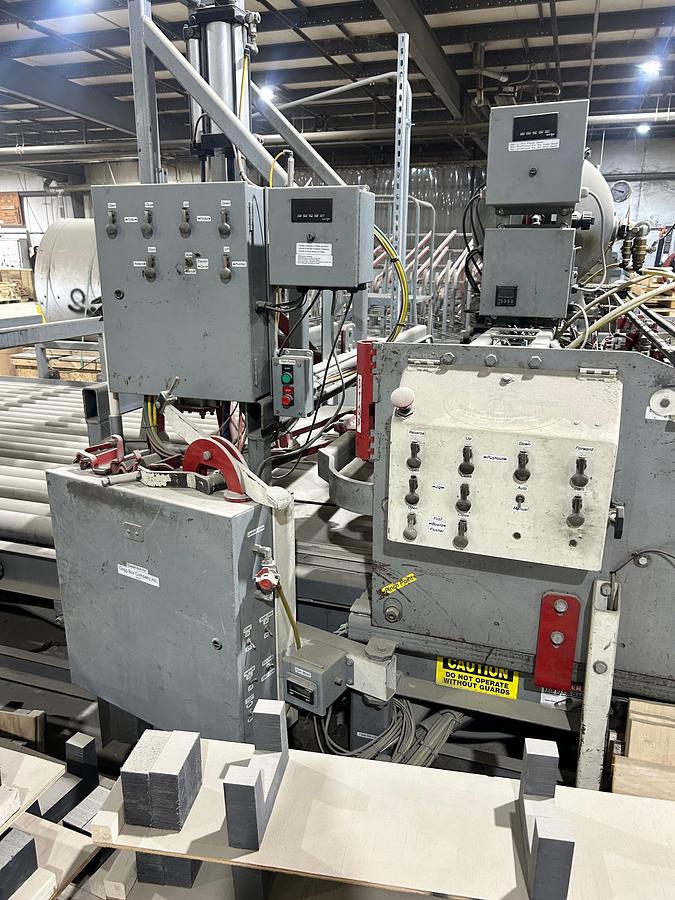

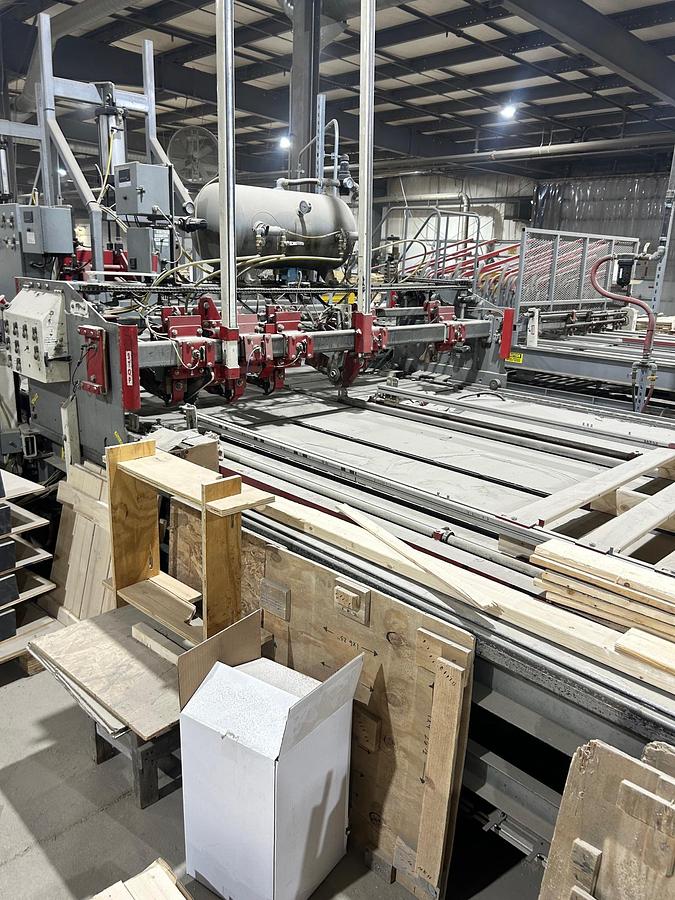

Stutzman Manufacturing, Woodpecker Pallet Nailing Machine, Model: 64"x108"

Stutzman Manufacturing, Woodpecker Pallet Nailing Machine, Model: 64"x108"

Mfg: Stutzman Mfg.

Model: Woodpecker Pallet Nailing Machine 64x108 (2 Available)

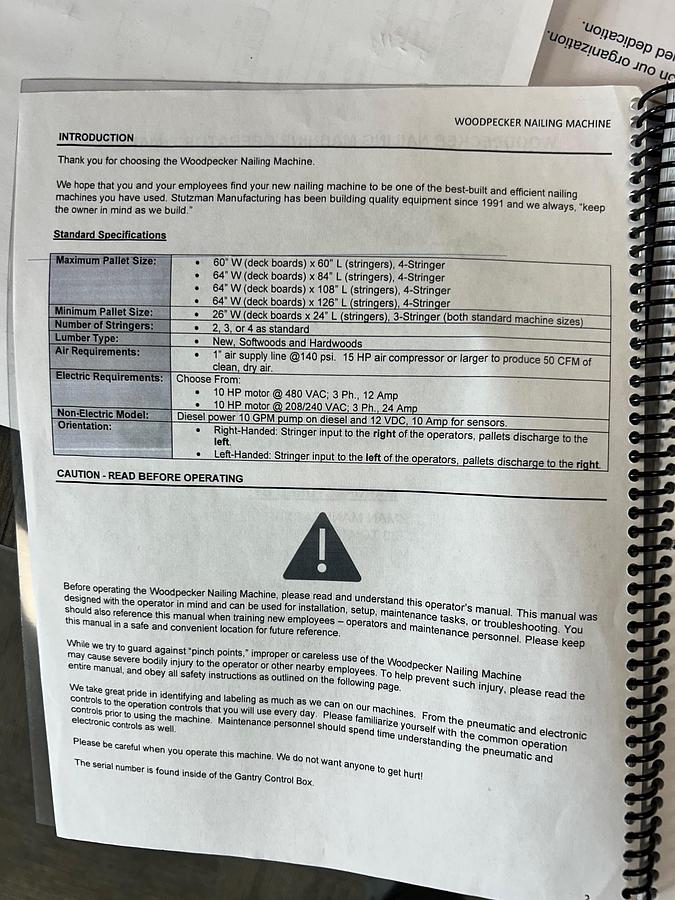

Specifications:

Max. Pallet Size:

60" W (Deck boards) x 60" L (Stringers), 4-Stringer

64" W (Deck boards) x 84" L (Stringers), 4-Stringer

64" W (Deck boards) x 108" L (Stringers), 4-Stringers

60" W (Deck boards) x 126" L (Stringers), 4-Stringers

Min. Pallet Size:

26" W (Deck boards) x 24" L (Stringers), 3-Stringer

Number of Stringers: 2,3, or 4 as Standard

Lumber Type: New, Softwoods & Hardwoods

Air Requirements: 1" Air Supply Line @ 140 psi

Electrical Requirements:

10HP Motor @ 480 VAC, 3 PH, 12 Amp

10HP Motor @ 208/240 VAC, 3 PH, 24 Amp

Non-Electric Model:

Diesel Power 10 GPM Pump on diesel & 12 VDC, 10 Amp for Sensors

Orientation:

Right-Handed:

Stringer input to the right of operators, pallets discharge to the left

Left-Handed: Stringer input to the left of operators, pallets discharge to the right
