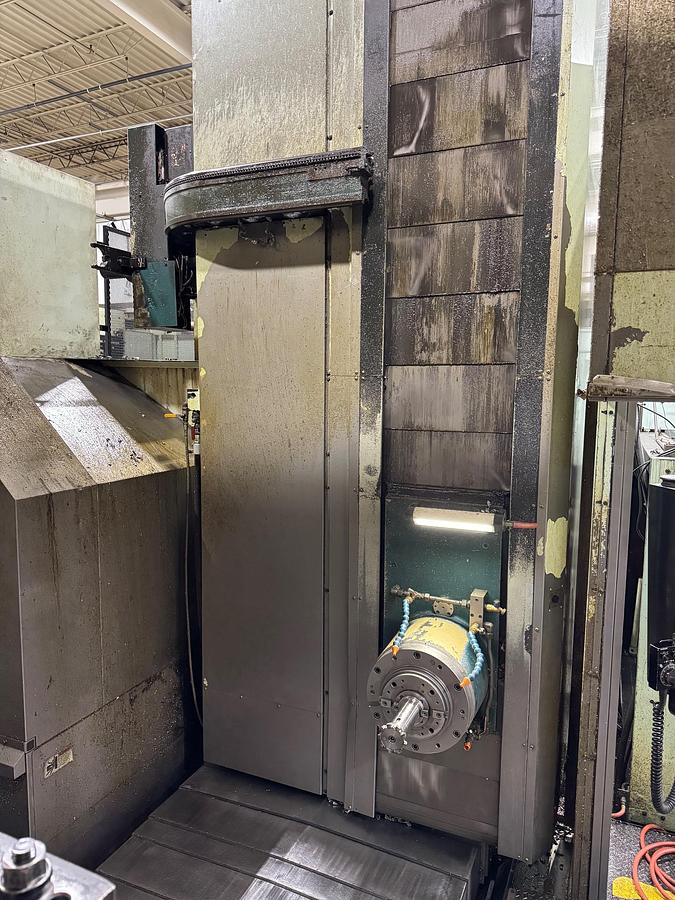

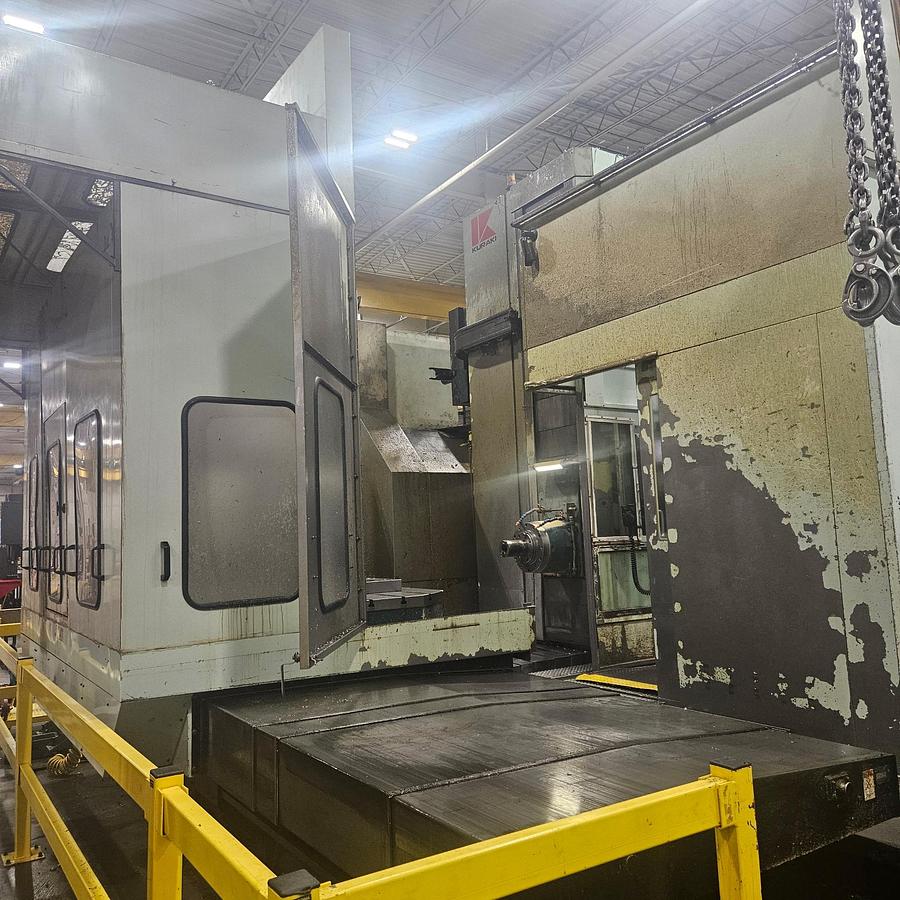

5-Axis CNC Kuraki KBT 13EA CNC Table Type Horizontal Boring Mill

Kuraki KBT 13EA CNC Table Type Horizontal Boring Mill

Model: KBT 13EA

Yom: 2003

Size: 5"

Spindle Size: 5.11"

X-Axis of Travel of Table: 157"

Y-Axis Travel of Head: 90"

HP: 60

RPM: 4,000

Table - Width: 70.87"

Travel - Length: 86.61"

Sprindle Travel: 25.59"

=================

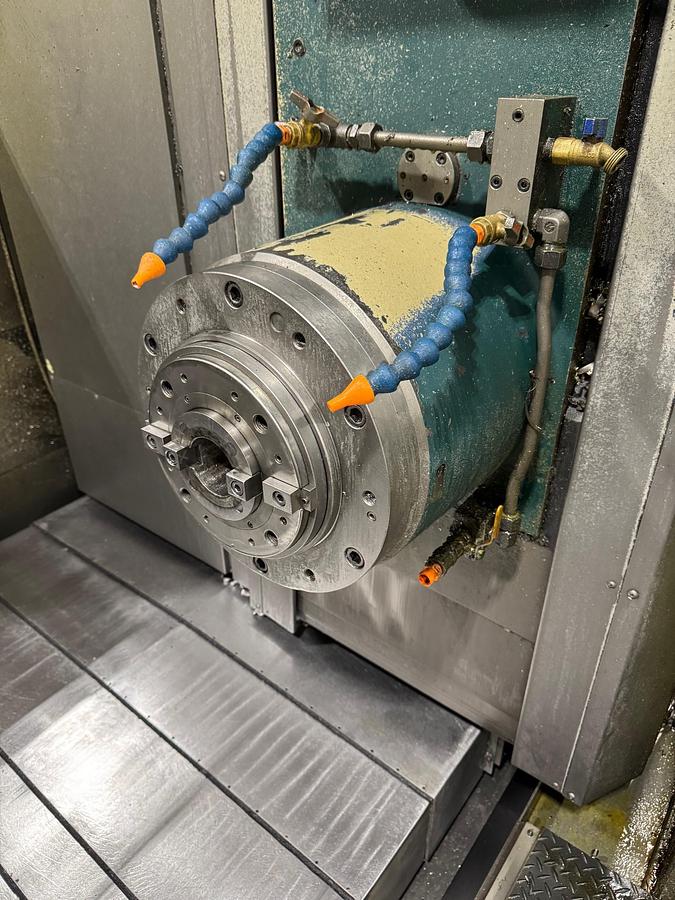

Spindle Diameter: 130 MM- 5.1"

X travel 157.480 / 4000MM Table Travel, X-Axis: 4000 MM

Y travel 90.55 Vertical Head Travel, Y-Axis: 2300 MM

Z travel-51.18 Column Cross Travel, Z-Axis: 1300 MM

W travel-25.59 Spindle Travel, W-Axis: 650 MM

Spindle Taper: BT-50

B-Axis- .001 Degrees

Spindle Speeds: 5-4000 RPM

Main Motor- 60HP 45 KW

Spindle Dia.-5.1

Spindle Taper-50

ATC-60

Table size = 70.875 x 86.5

Table Size: 1800 MM x 2200 MM

Table Load Capacity: 19958 KG

Rotary Table, B-Axis: 0.001 Degrees

Feeds: 4001 MM/MIN

Rapid Traverse, X,Y,Z, Axes: 10000 MM/MIN

Rapid Traverse, W-Axis: 6000 MM/MIN

Floor Space: 6830 MM x 6800 MM

Machine Height: 4798 MM

Machine Weight: 81300 Lbs / 36922 Kg

=====================

EQUIPPED WITH: MUST BE VERIFIED

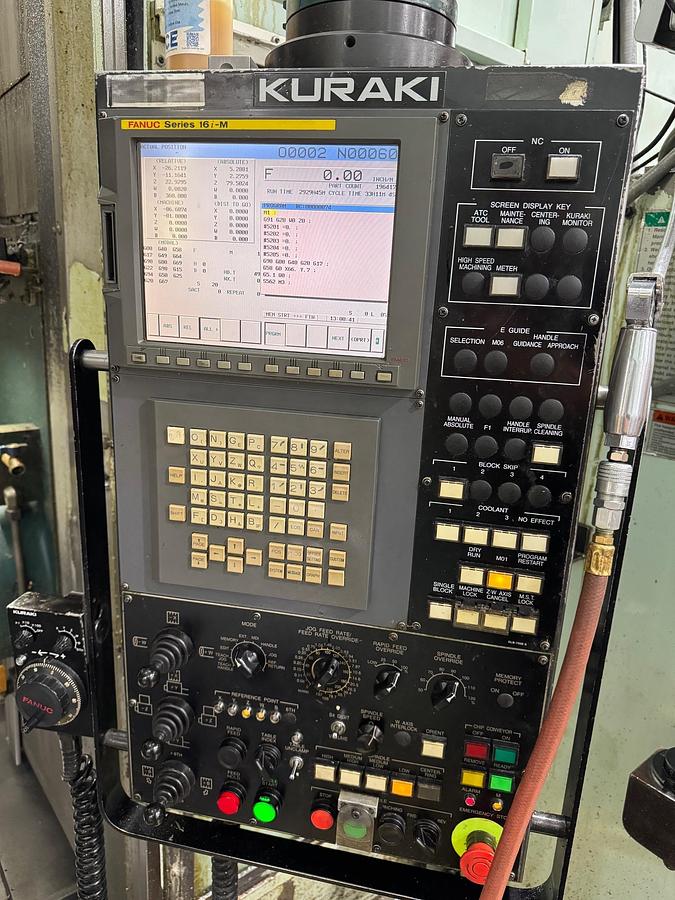

Fanuc Series 16i-MB

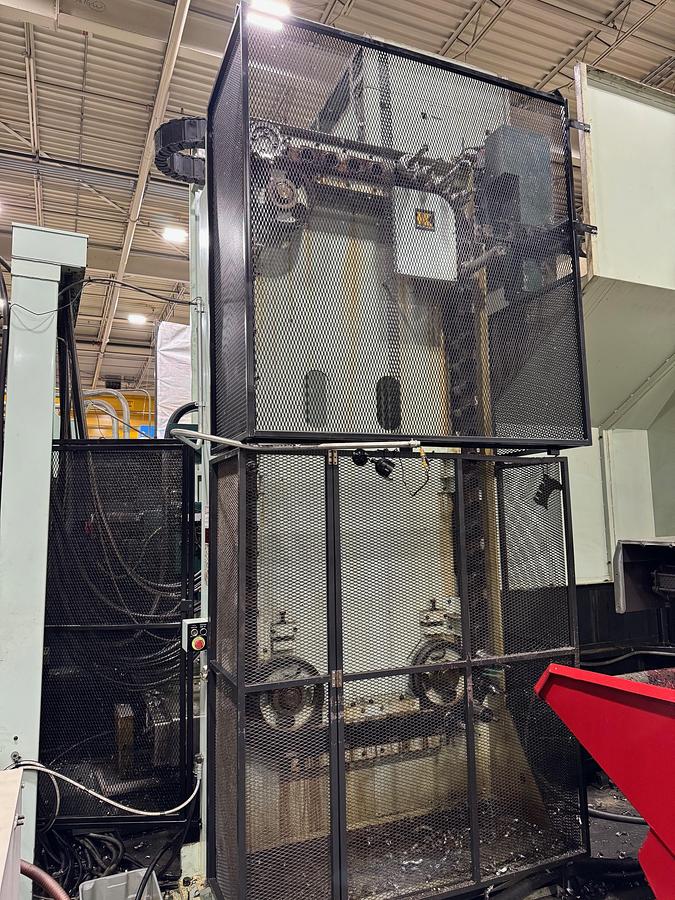

60 Position Automatic Tool Changer

LNS Chip Conveyor

High Guarding Enclosures

Coolant Thru Spindle 1000 PSI

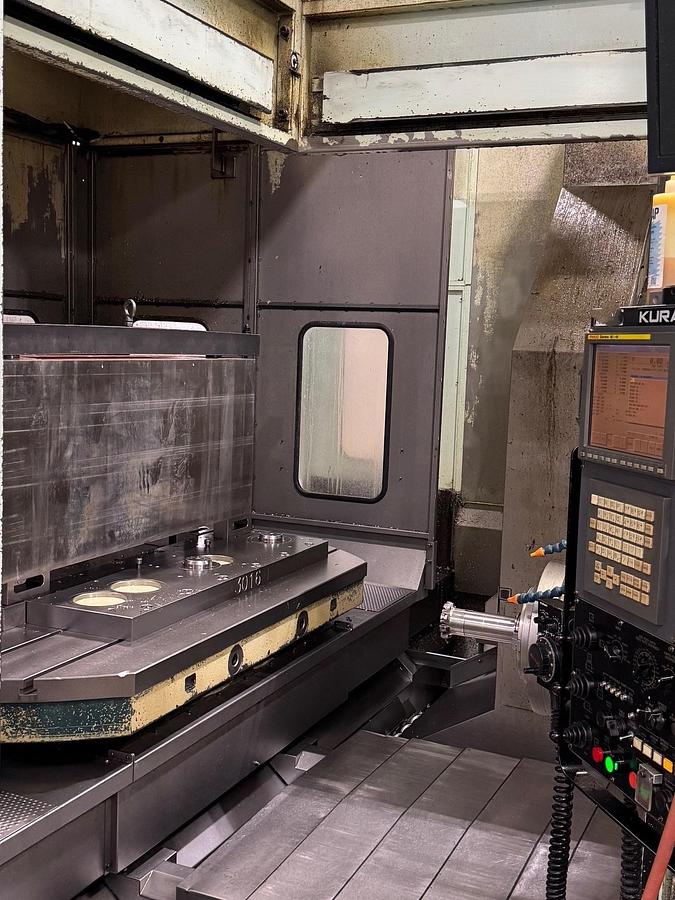

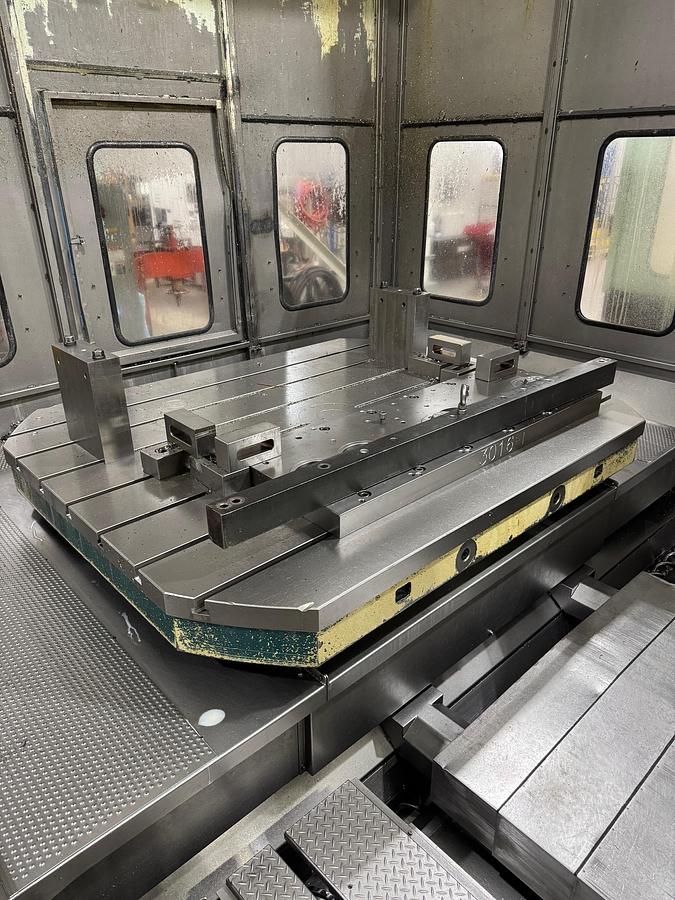

70.87 x 86.61 Built In B-Axis Rotary Table

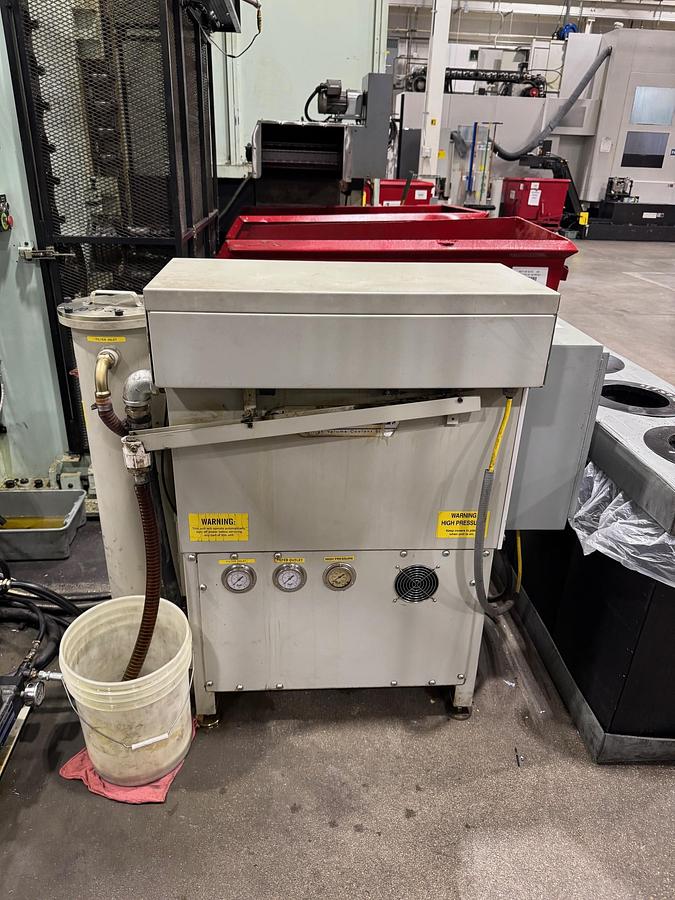

Chip Blaster: 1000 PSI

Full Chip & Splash Enclosure

Telescoping Steel Way Covers

Scale Feedback on All Axis

Chip auger

150 KVA Transformer included, 480 volt, 3 phase.
