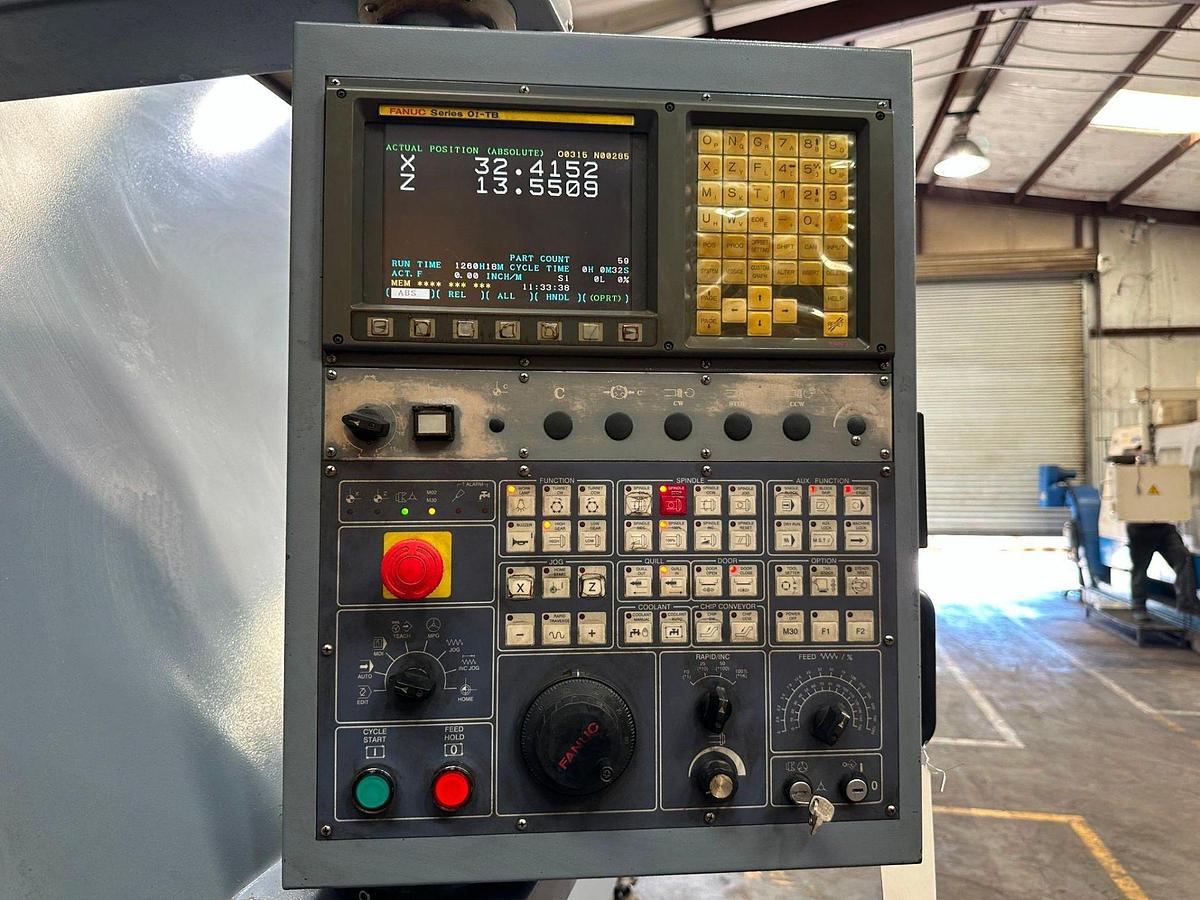

2005 LEADWELL LTC-50BXL CNC LATHE

2005 LEADWELL LTC-50BXL CNC LATHE

21" KITAGAWA B-21 3 JAW,

CHIP CONVEYOR

CAPACITY

MAX. SWING: 850 MM (33.46 IN)

SWING OVER CROSS SLIDE: 800 MM (31.45 IN)

MAX. TURNING DIAMETER: 700 MM (27.55 IN)

MAX. TURNING LENGTH: 3035 MM (119.48 IN)

BAR CAPACITY: 117 MM (4.60 IN)

MAX. WORKPIECE WEIGHT (WITH TAILSTOCK): 1200 KG

TRAVEL

X AXIS: 425 MM (16.73 IN)

Z AXIS: 3100 MM (122.04 IN)

SPINDLE

SPINDLE SPEED RANGE: 15–1500 RPM

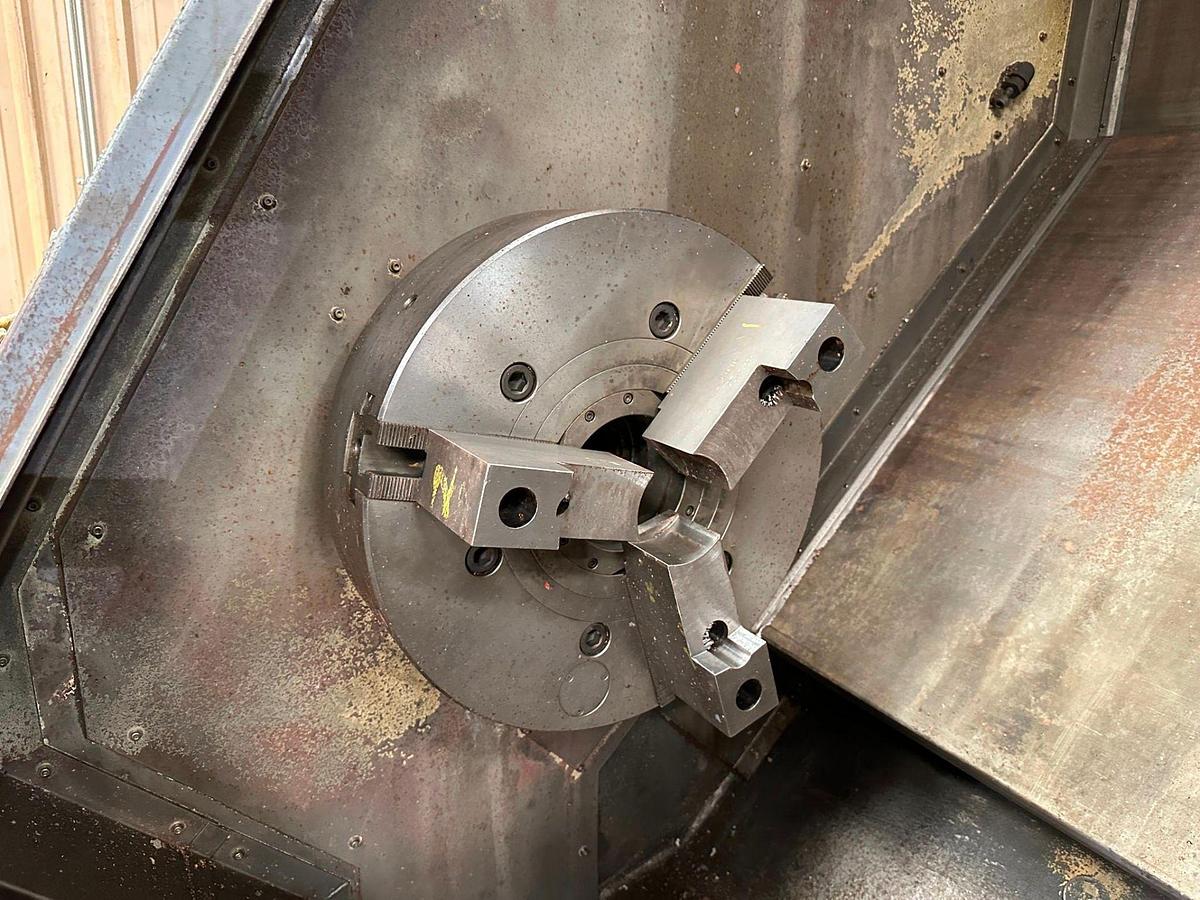

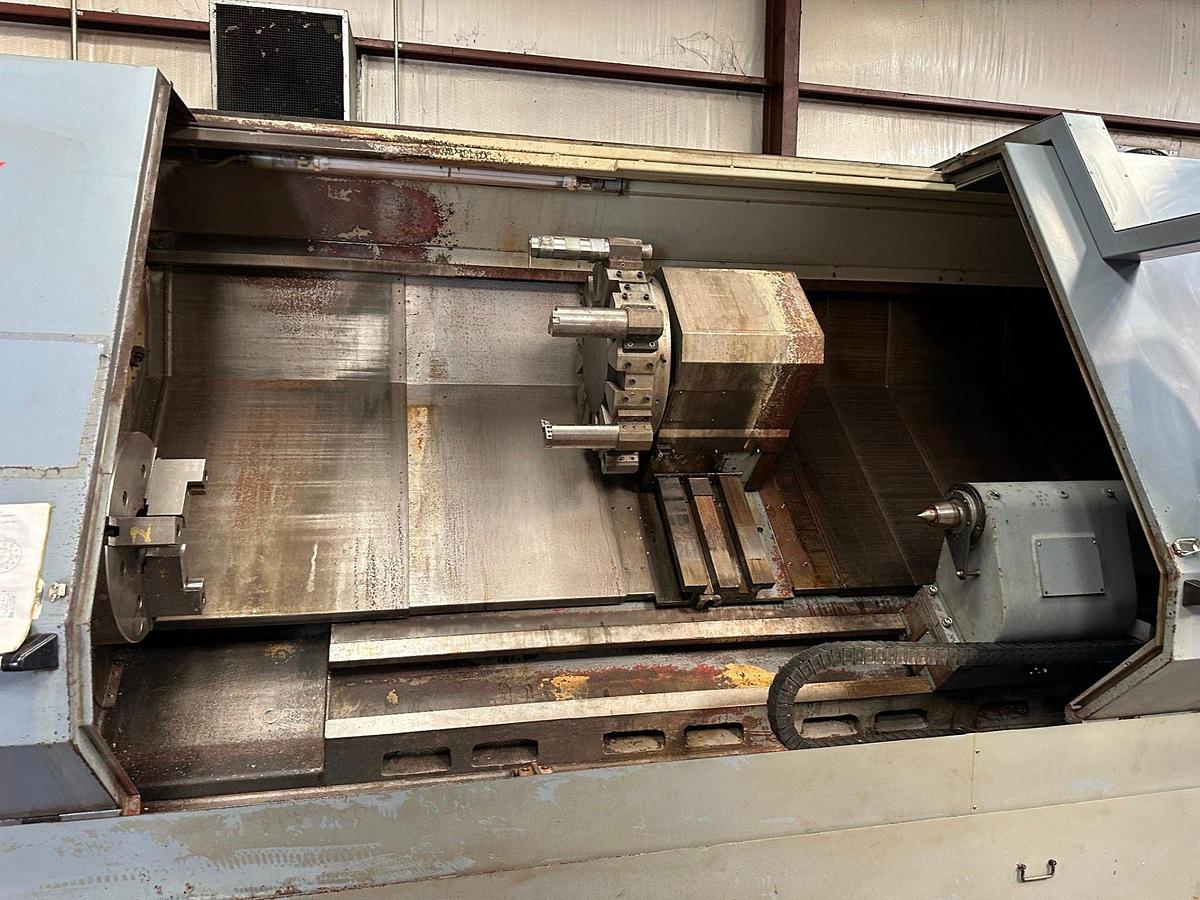

CHUCK SIZE: 21" KITAGAWA B-21 3 JAW

TYPE OF SPINDLE NOSE: A2-11

THRU SPINDLE HOLE DIAMETER: 140 MM (5.51 IN)

SPINDLE MOTOR:

FANUC: 37 / 45 KW (50 / 60 HP)

K.WHP: 37 / 45

MAX. SPINDLE TORQUE: 375.3 N·M

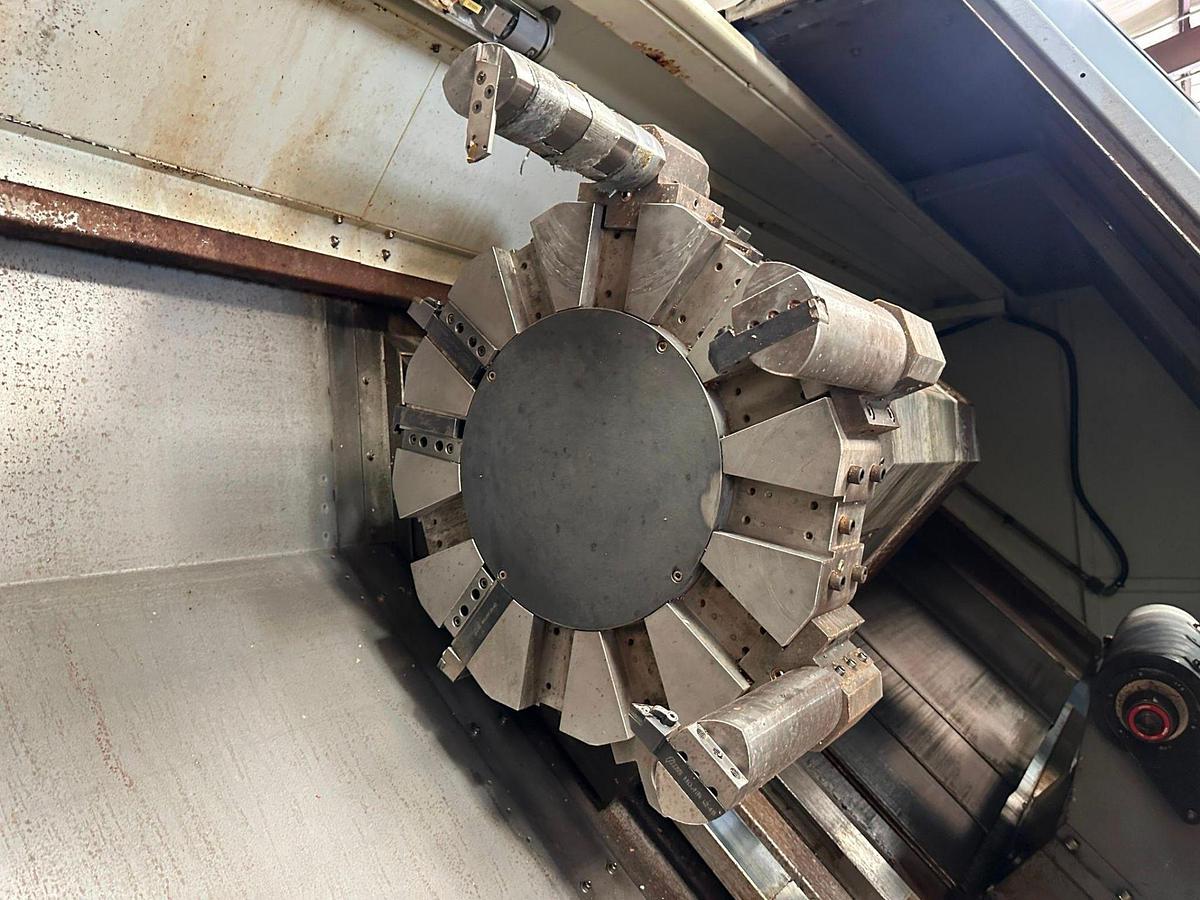

TURRET

NUMBER OF TOOL STATIONS: 12

MAX. INTERFERENCE-FREE DIAMETER: 330 MM (12.99 IN)

TURRET INDEXING TIME (1ST): 0.25 SEC

TURRET INDEXING TIME (ADJACENT): 1.46 SEC

FEEDRATE

RAPID TRAVERSE (X): 10000 MM/MIN (393.7 IN/MIN)

RAPID TRAVERSE (Z): 12000 MM/MIN (472.4 IN/MIN)

BED & SLIDE

OVERALL BED GUIDE WIDTH: 670 MM (26.37 IN)

CROSS SLIDE GUIDE WIDTH: 320 MM (12.6 IN)

ANGLE: 45°

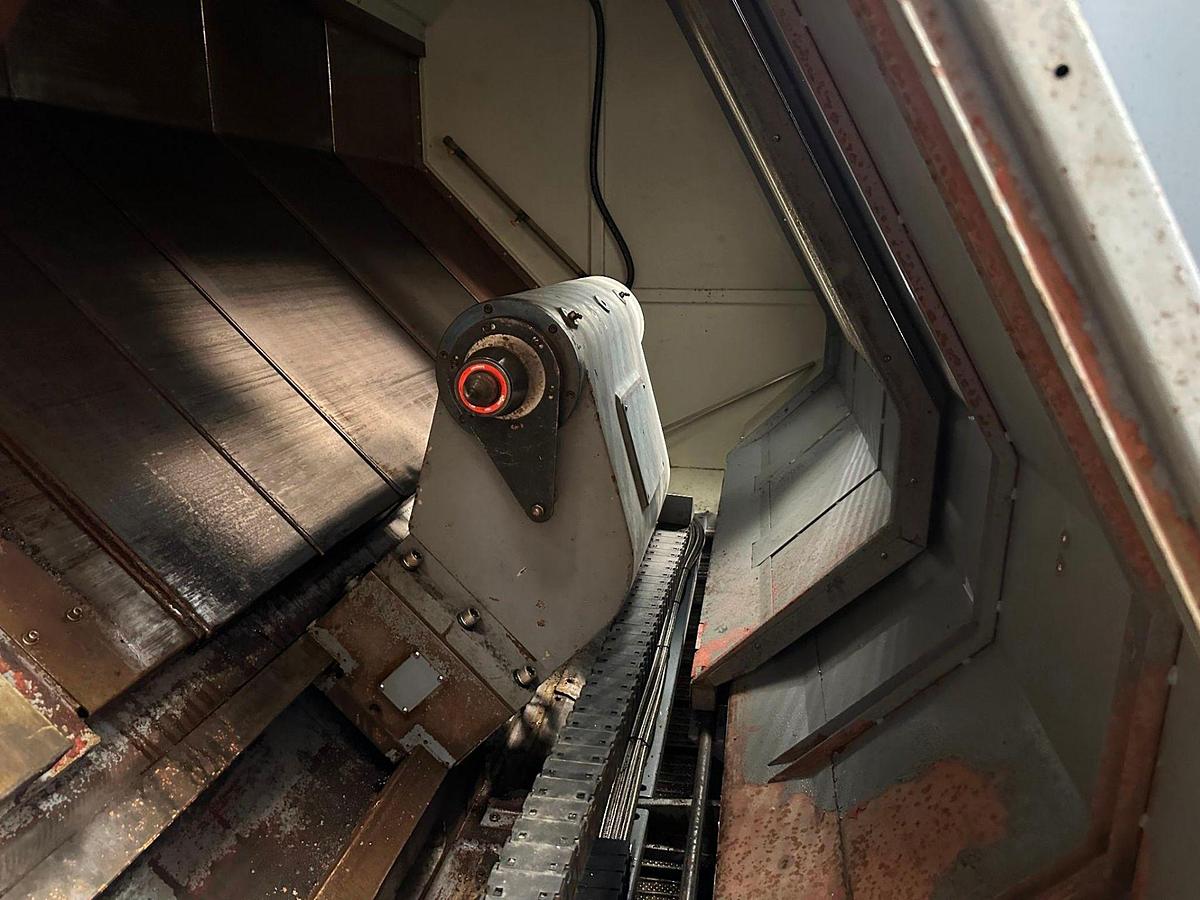

TAILSTOCK

TAILSTOCK MOVEMENT TYPE: AUTO

TAILSTOCK TRAVEL: 2910MM

QUILL MOVEMENT TYPE: HYDRAULIC

QUILL DIA: Ø125 (4.92 IN)

QUILL STROKE: 155 MM (6.1 IN)

QUILL INSIDE TAPER: MT #6

QUILL THRUST (MAX): 1300 KG

COOLANT SYSTEM

PUMP MOTOR: 1.34 HP

PUMP PRESSURE: 3 KG/CM²

TANK CAPACITY: 162 L

COOLANT SYSTEM: CHIP CONVEYOR

CHIP REMOVAL TYPE: HINGED

PUMP CAPACITY: 180 / 270 L/MIN

MACHINE WEIGHT: LTC-50BXL: 17000 KG (37,478 LBS)

MACHINE DIMENSIONS (BXL): 6596 × 2575 × 2426 MM (260" ×105" × 96")

EQUIPPED WITH:

21" KITAGAWA B-21 3 JAW

CHIP CONVEYOR
