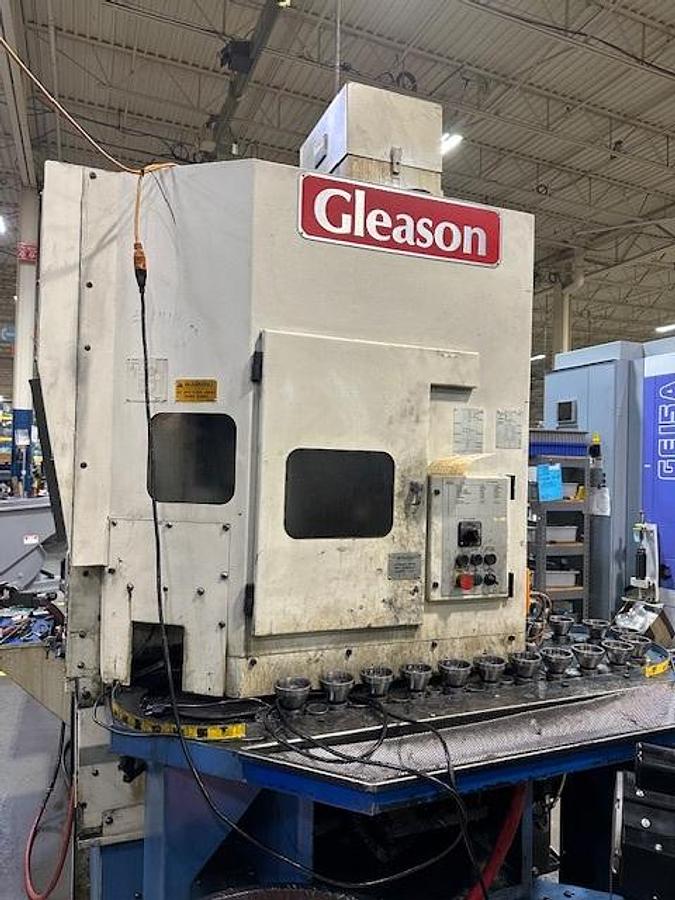

1998 GLEASON 125GH CNC GEAR HOBBER

GLEASON 125GH CNC GEAR HOBBER

Max workpiece diameter 4.52" / 125 mm

Min workpiece Diameter .25" / 6.4 mm

Max Pitch / Module 8 NDP/ 3.2 Module

Max Axial slide travel 11.81"/ 300 mm

Max Hob Head Swivel -180 -+ 40 degrees

Max diameter Hob 4.53" / 115 mm

Max Hob length 8.46" / 215 mm

Max hob Shifting length 7.87" / 200 mm

Max work head speed 1500 rpm

Max work head speed (optional) 3500 rpm

Hob Head drive rating 15 HP

Machine weight 15,000 lbs

Floor space 106" x 65" x 122" High

Equipped with the following:

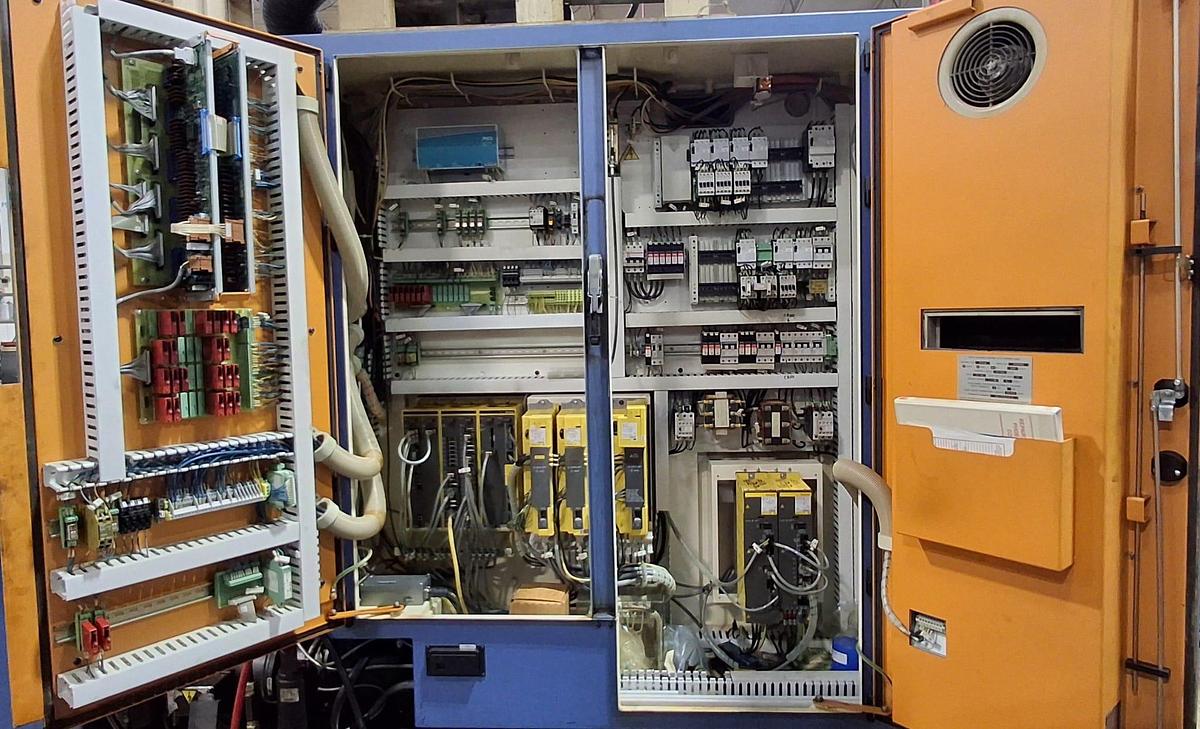

Fanuc 150-M cnc controls

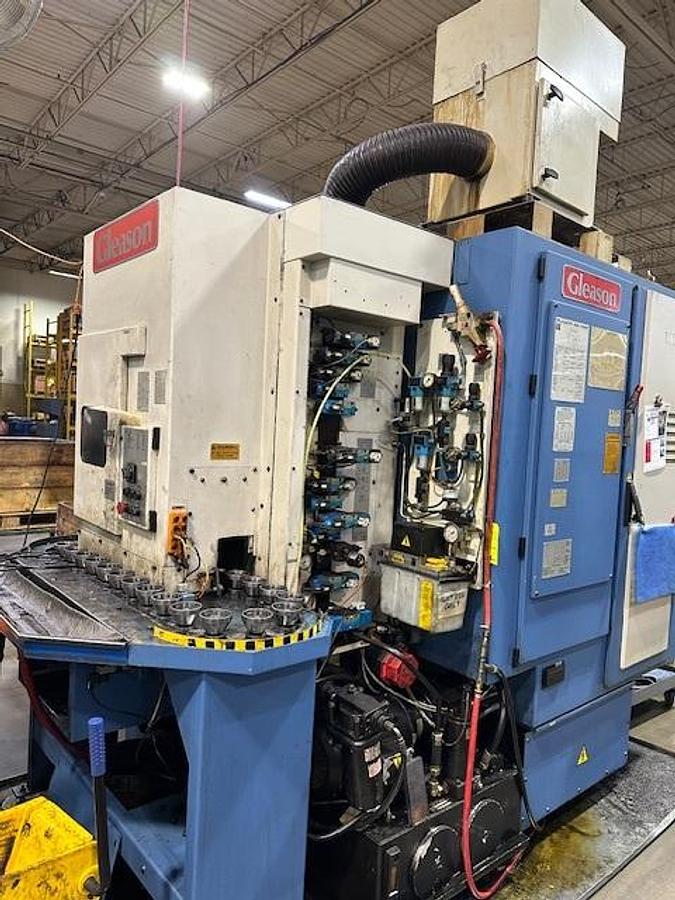

180 position loader with loading station

light curtains

Chip conveyor

Mist collection

books and manuals

Full software upgrade was done to the machine by Gleason works in 2021.
