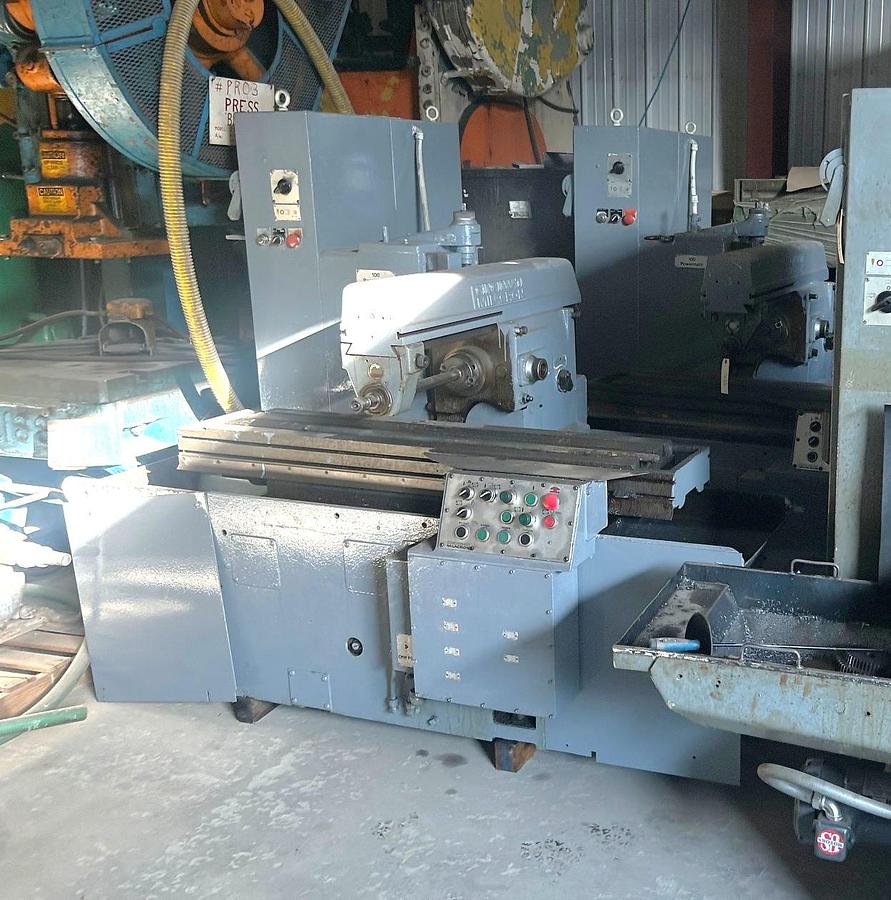

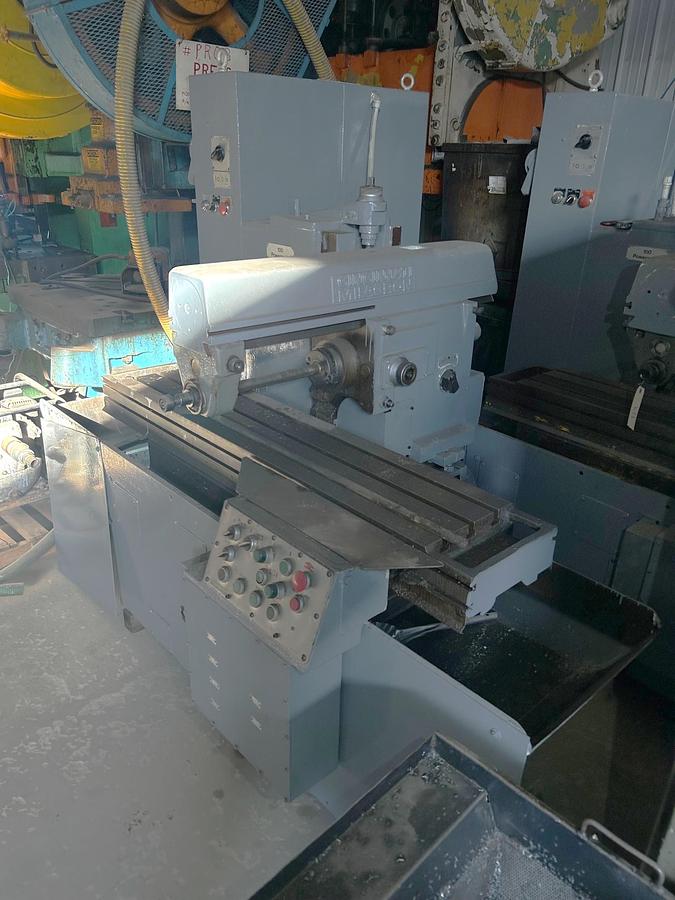

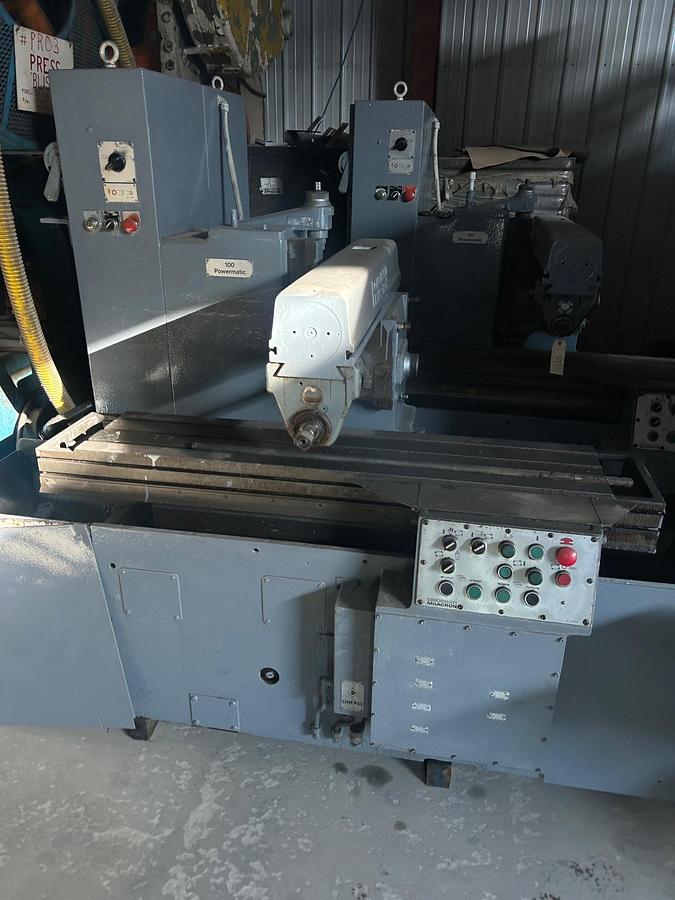

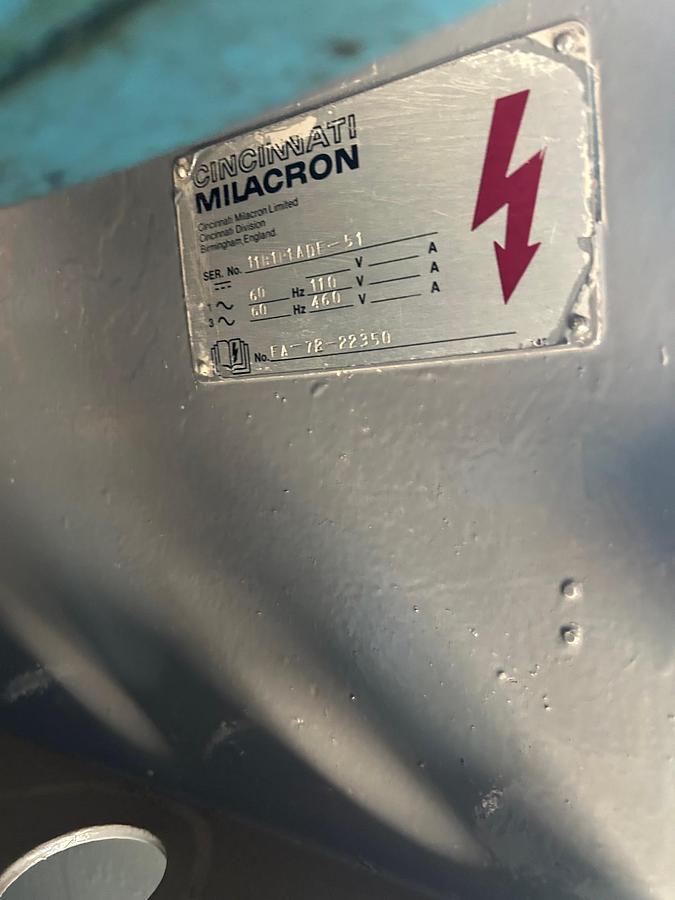

CINCINNATI-MILACRON "POWERMATIC 100" HORIZONTAL-SPINDLE PRODUCTION MILL

105-122 CINCINNATI-MILACRON "POWERMATIC 100" -- 4 Units are Available for Sale

HORIZONTAL-SPINDLE PRODUCTION MILL

W/VERTICAL HEAD ATTACHMENT

Series Powermatic 100 RF,

Model 105-122,

EQUIPPED WITH:

Vertical Head Attachment

Rise and Fall Head Travel

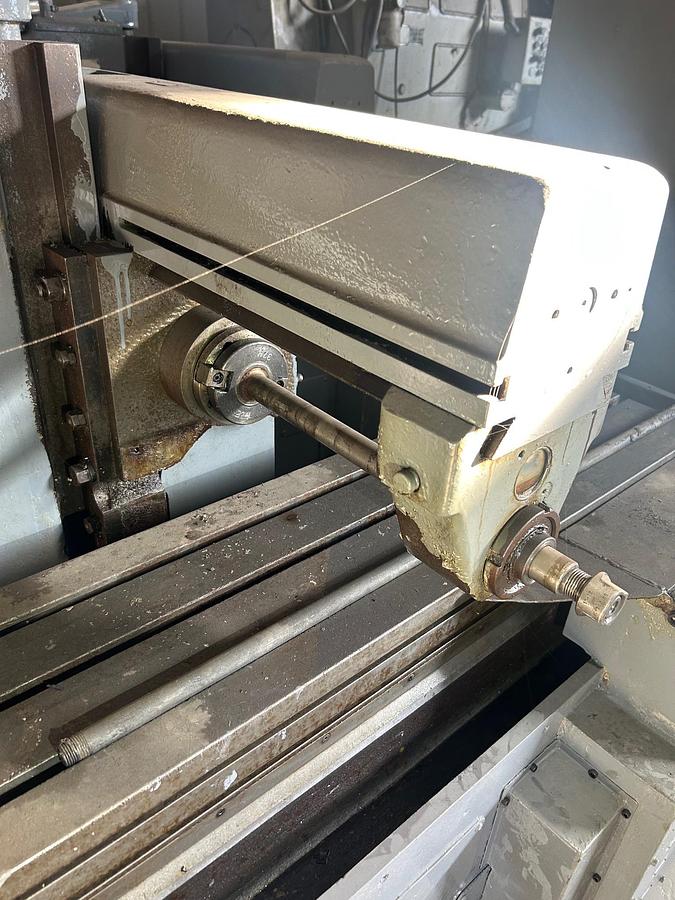

Outboard Arbor Support -Two Arbor Supports

Some Change Gears

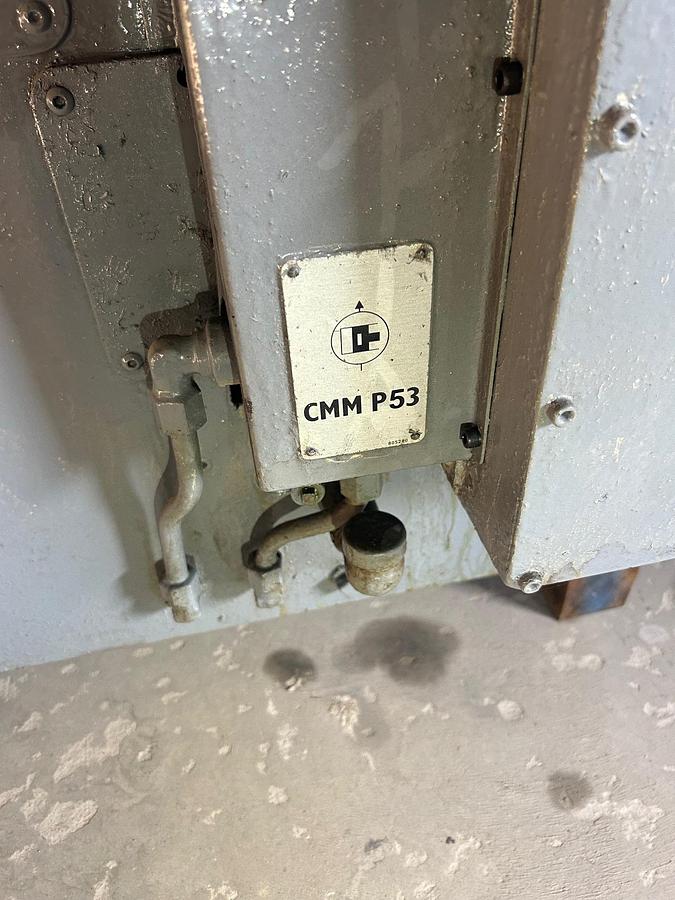

Bijur Automatic Lubrication System

SPECIFICATIONS:

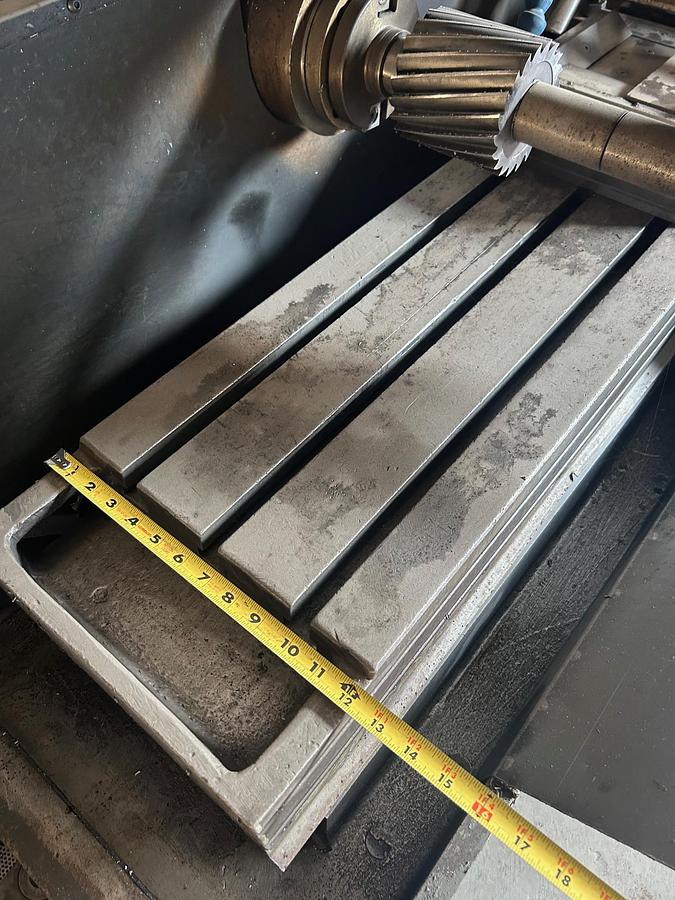

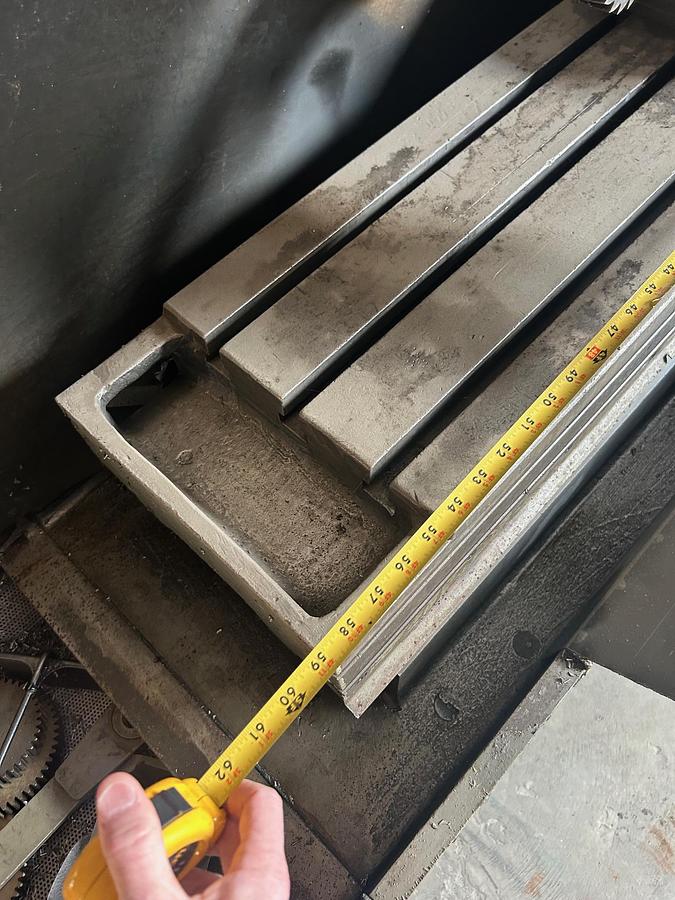

Table Dimensions (Overall) W x L 12" x 54"

Table Working Surface, W x L 12" x 54"

Table Longitudinal Travel (X-Axis) 24"

Spindle-Head Vertical Travel (Y-Axis) 11"

Quill Cross Adjustment (Z-Axis) 3"

Spindle-Center to Table-Top, Minimum 3.25"

Spindle-Center to Table-Top, Maximum 14.25"

Quill Diameter 6"

Spindle Nose Diameter 5.06"

(16) Spindle Speeds, Range 30 to 1200 RPM

Longitudinal Table Feeds, Range 1 to 40 IPM

Vertical Spindle-Carrier Feeds 1 to 40 IPM

Power Rapid Table Traverse 300 IPM

Spindle Motor, Horsepower 7.5 HP

Feed Drive Motor, Horsepower 1.5 HP

Electrical System 220-440/3/60

Floor Space Required, L x D 7'7" x 5'6"

Overall Height 6'

Weight, Approximately 5700 LBS

All Specifications Subject to Buyer's Verification
