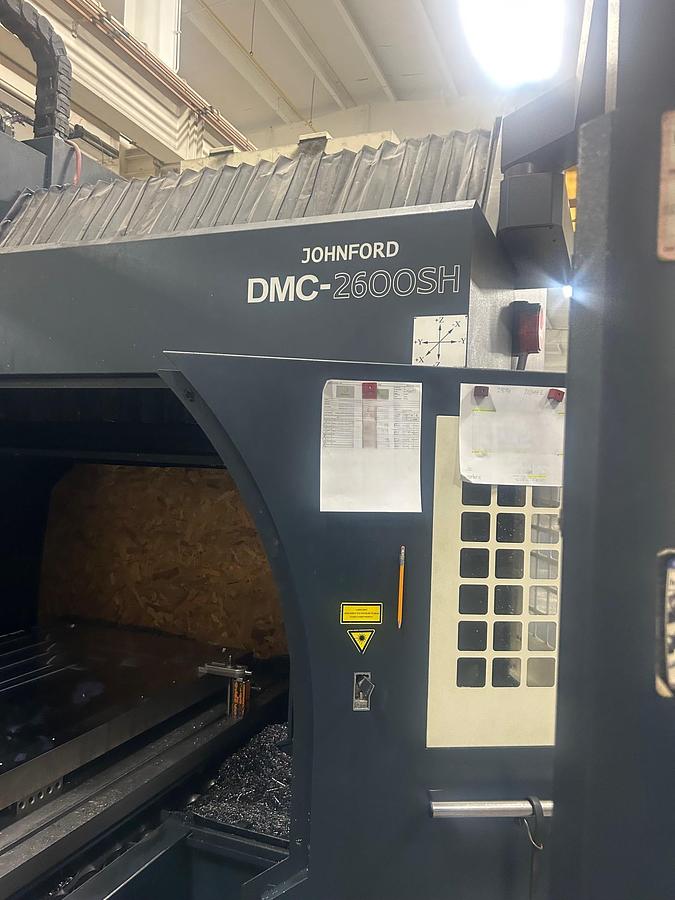

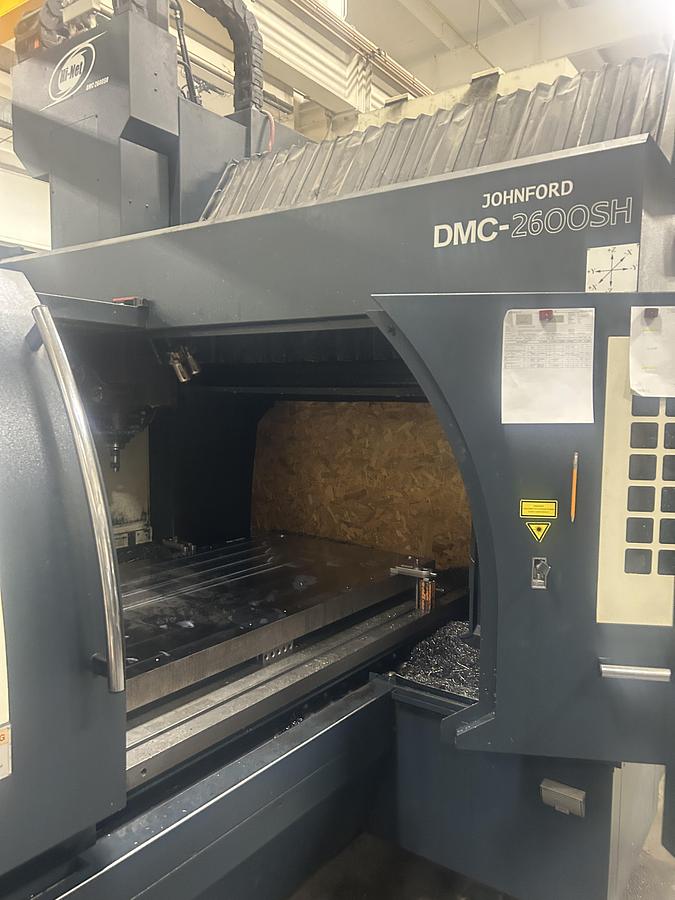

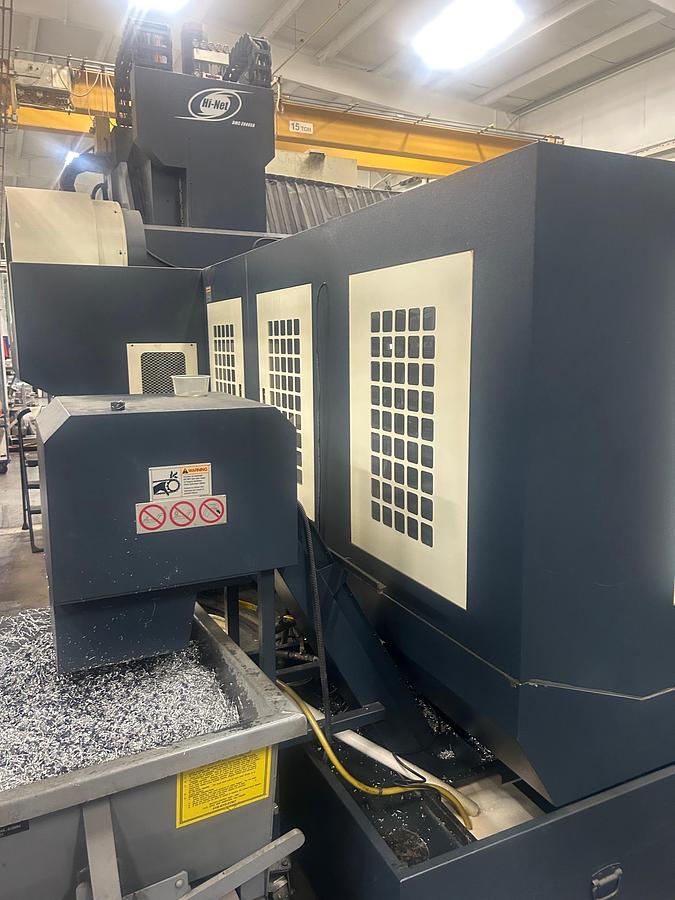

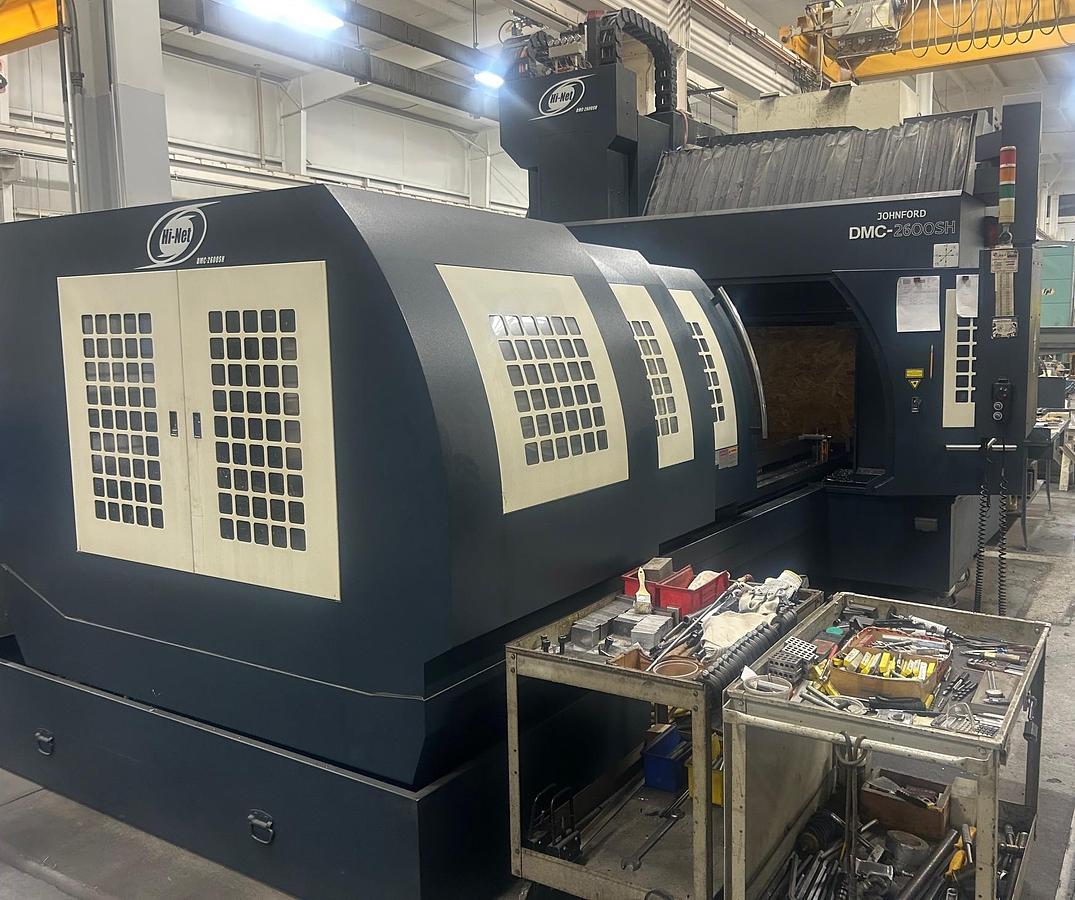

Johnford DMC-2600SH CNC Double Column Bridge Type Vertical Machining Center (2006)

Johnford DMC-2600SH CNC Double Column Bridge Type Vertical Machining Center

Mfg: Johnford

Model: DMC-2600 SH

YOM: 2006

Travels:

Longitudinal Travel X-Axis: 102"

Cross Travel Y-Axis: 70"

Vertical Travel: Z-Axis: 31.5"

Table to Spindle: 5.9" Min / 37.4 Max.

Distance Between Columns: 72"

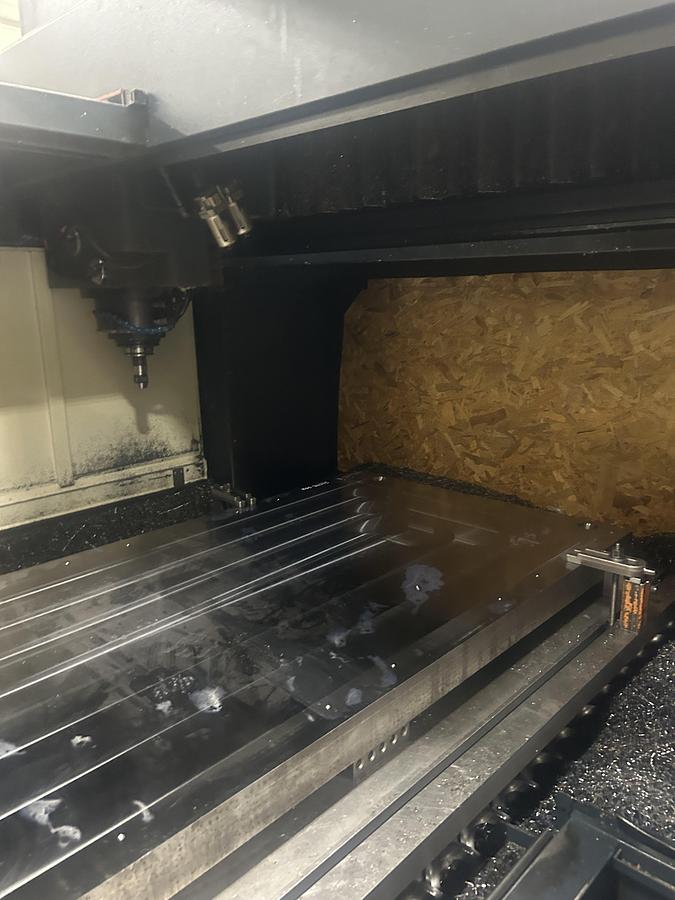

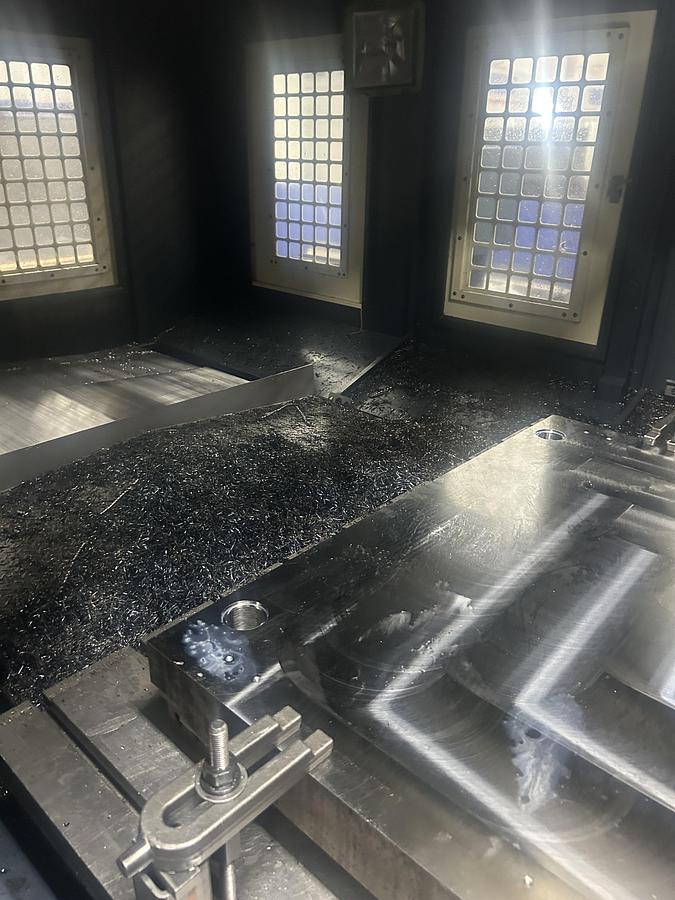

Table:

Table Work Surface: 106.2" x 59"

Max. Workload on Table: 22,000lbs.

Table Surface: Ground / T-Slotted (No. of T-Slots x width) 10 x 18mm

Spindle:

Spindle Motor: 35 HP

Spindle Torque: 575 ft/lbs. at only 375 RPM

Spindle Taper: ISO-50

Spindle Drive System: 2-Speed Gear Box

Spindle Speed: 0-6,000

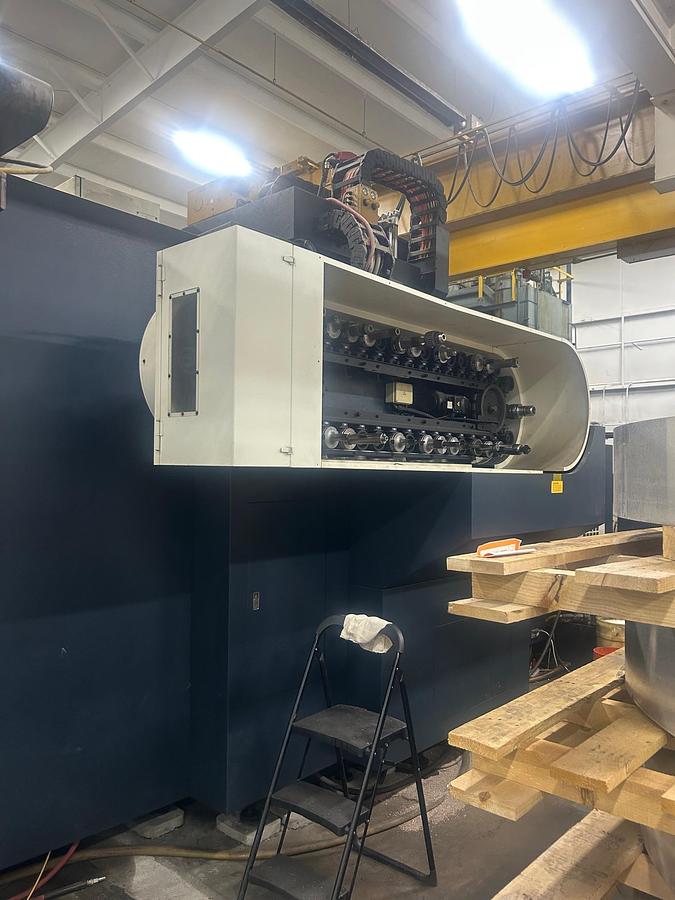

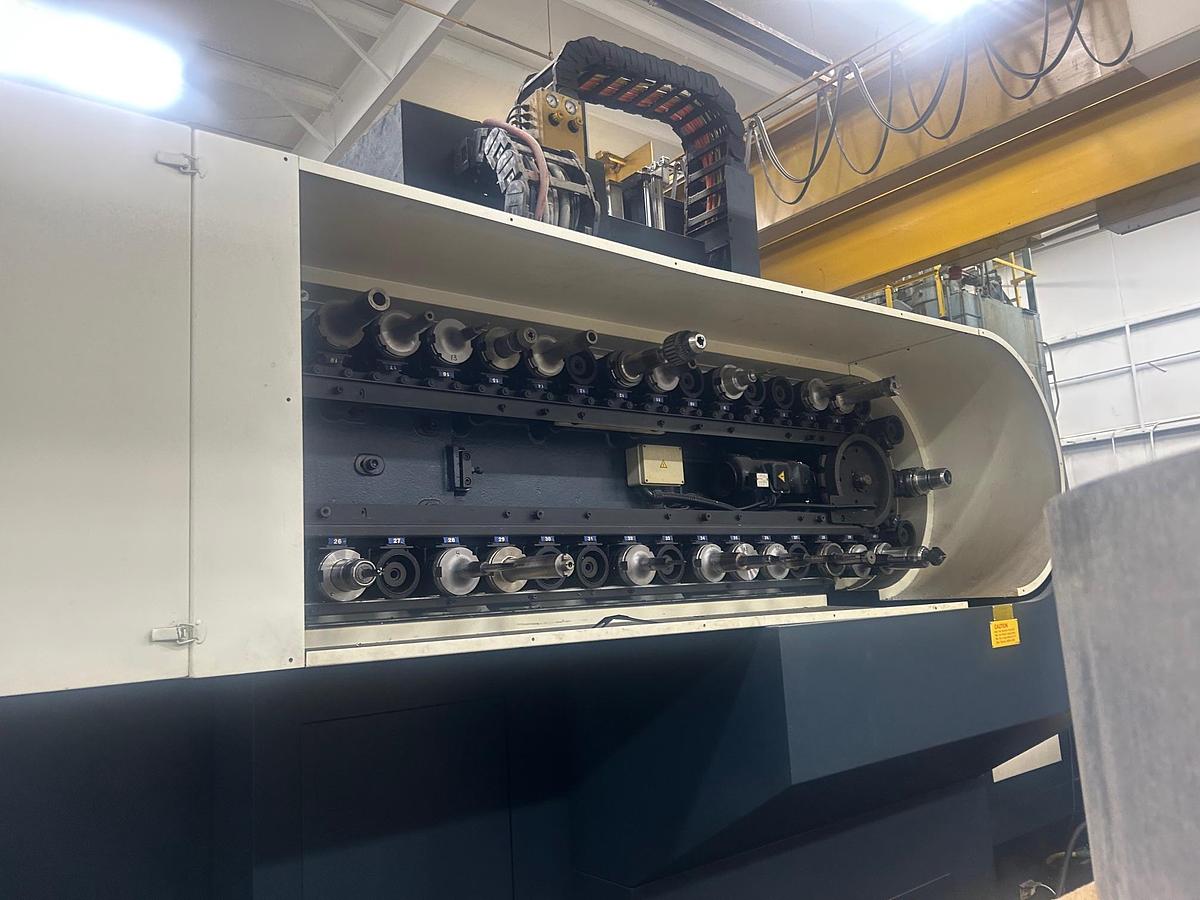

Automatic Tool Changer:

Number of Tools 40 tools

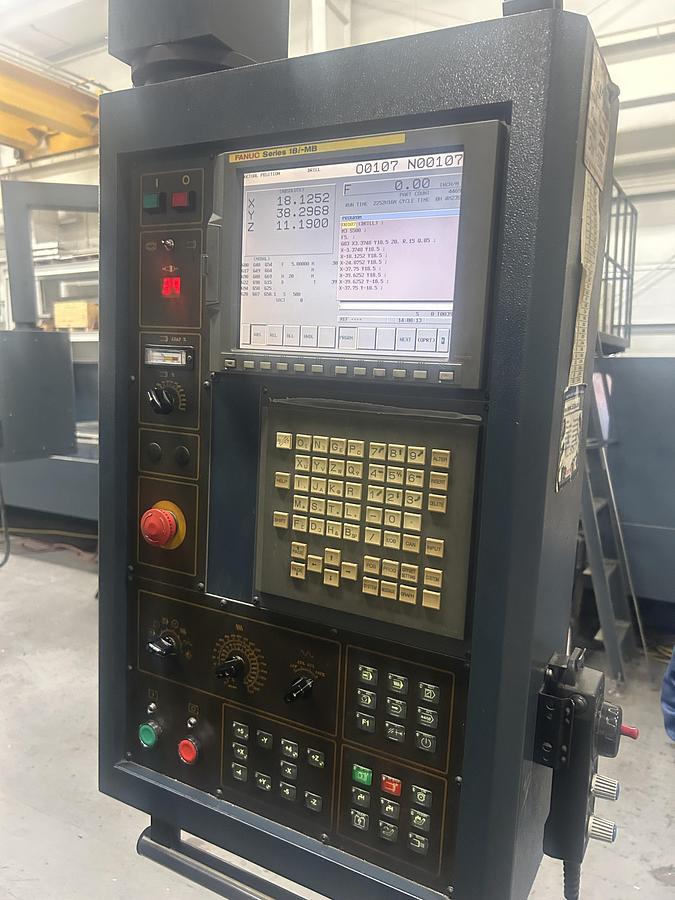

Control: Fanuc Series 18i-MB

All Specifications Subject to Buyer's Verification
