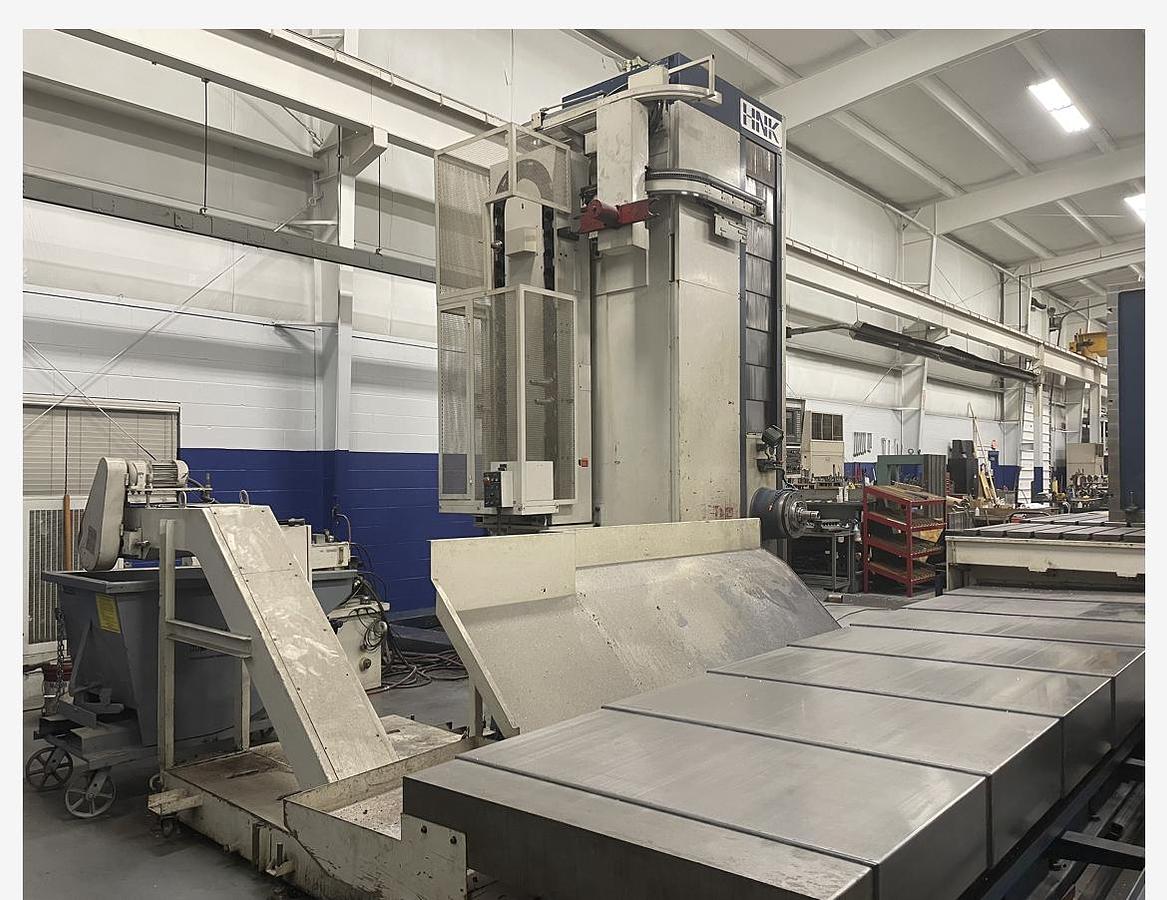

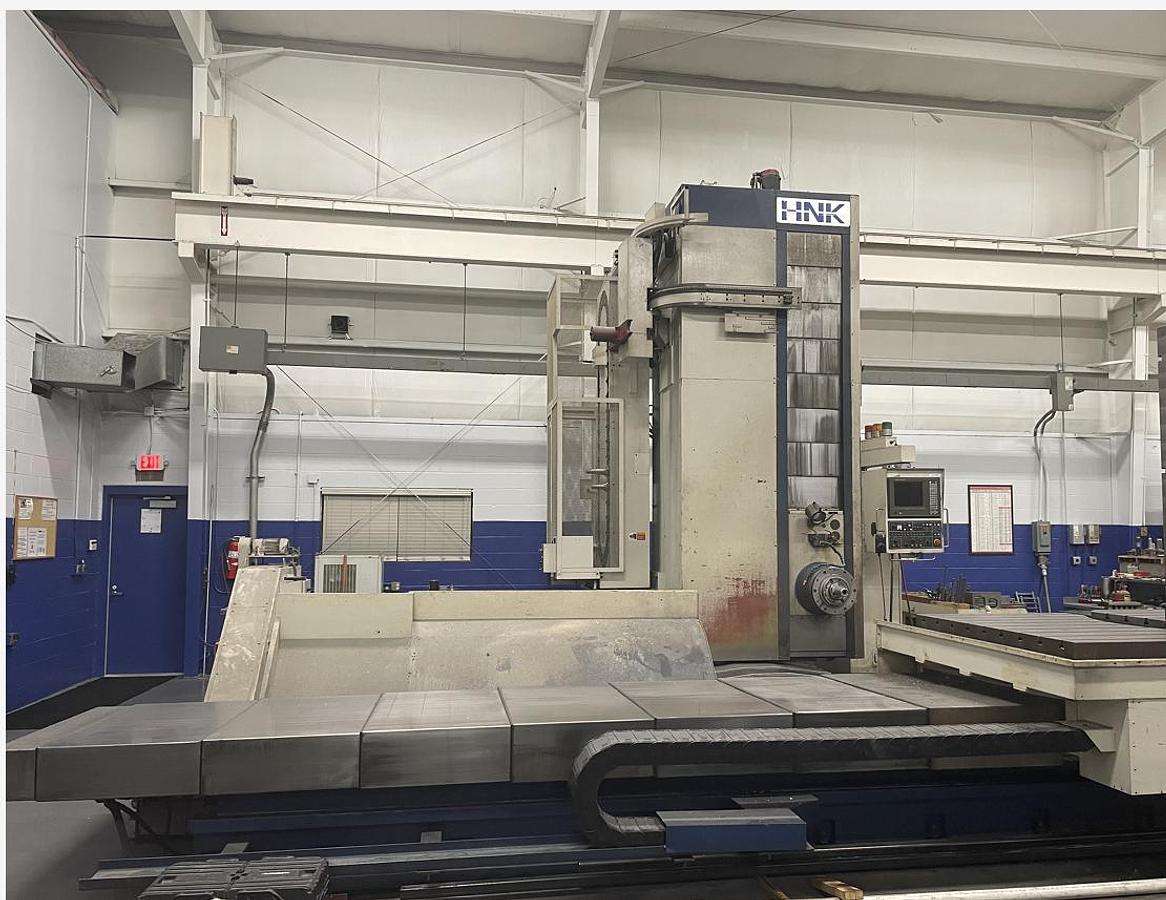

5.12" HNK HB-150 CNC Table Type Horizontal Boring Mill

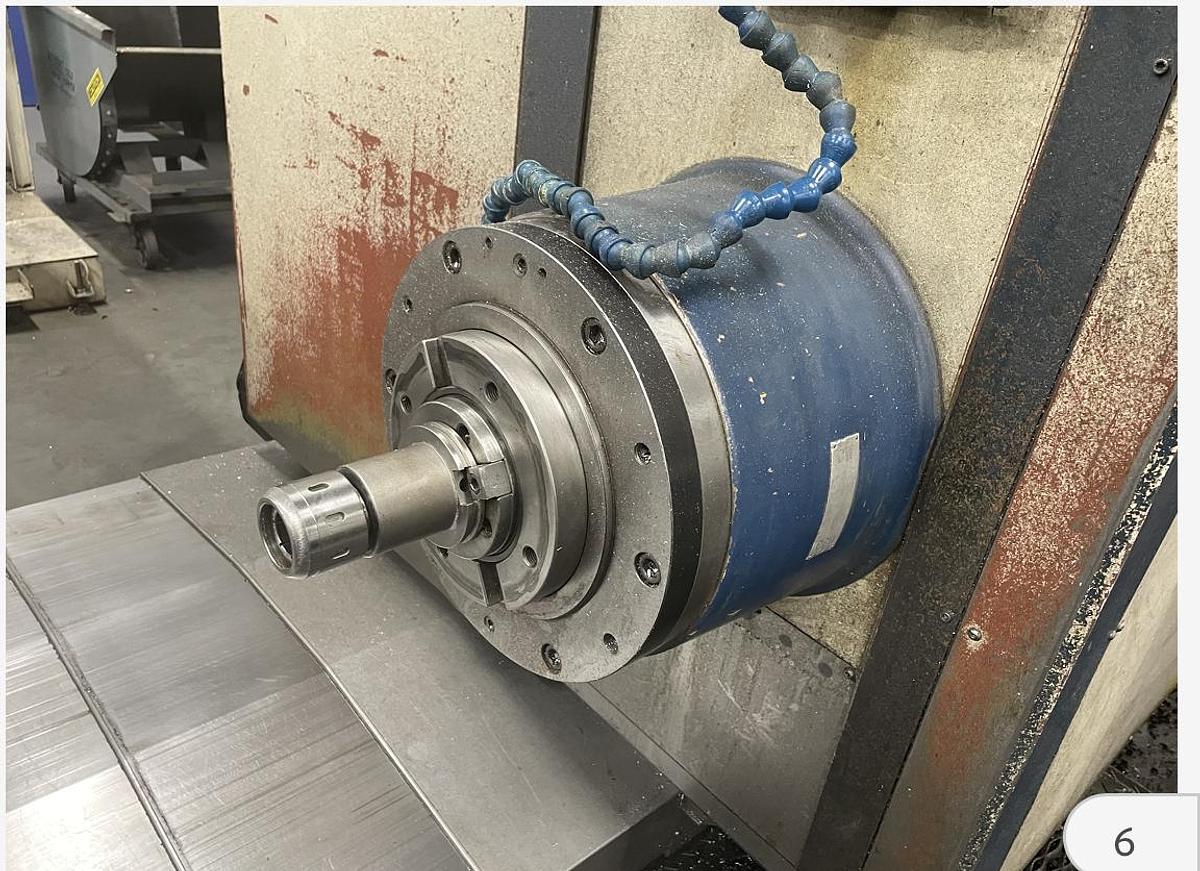

SPINDLE DIAMETER: 5.12"

TABLE TRAVEL, X-AXIS TRAVEL: 157.5"

VERTICAL TRAVEL, Y-AXIS TRAVEL: 90.5"

SADDLE TRAVEL, Z-AXIS TRAVEL: 51.2"

SPINDLE TRAVEL, W-AXIS TRAVEL: 27.6"

SPINDLE TAPER: CAT 50

SPINDLE SPEED: 5-2,500 RPM

SPINDLE MOTOR: 30 HP / 35 HP

TABLE INDEXING: 0.001 DEGREES

PLAIN TABLE SIZE: 63" x 157.5"

ROTARY TABLE SIZE: 63" x 163"

PLAIN TABLE CAPACITY 44,000 LBS.

ROTARY TABLE CAPACITY 33,000 LBS.

MACHINE FOOTPRINT: 397" x 291"

MACHINE HEIGHT: 193"

MACHINE WEIGHT: 108,000 LBS.

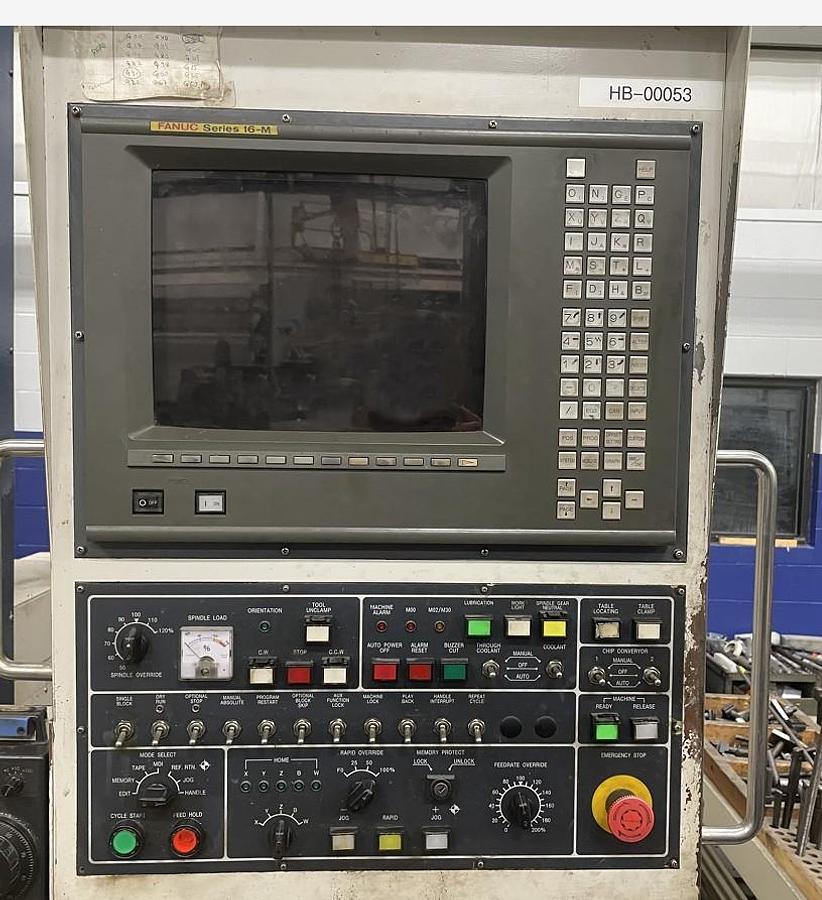

EQUIPPED WITH: FANUC 16-M CNC CONTROL W/ PENDANT

AUTOMATIC TOOL CHANGER: 40-STATION CAPACITY

THROUGH COOLANT SPINDLE, CHIP CONVEYOR, ANGLE PLATES.

ALL SPECIFICATIONS SUBJECT TO BUYER'S VERIFICATION
