Wemo CNC Panel Bender Model: PBL-2550

WEMO CNC Panel Bending Machine

Mfg: Wemo

Model: PBL-2550

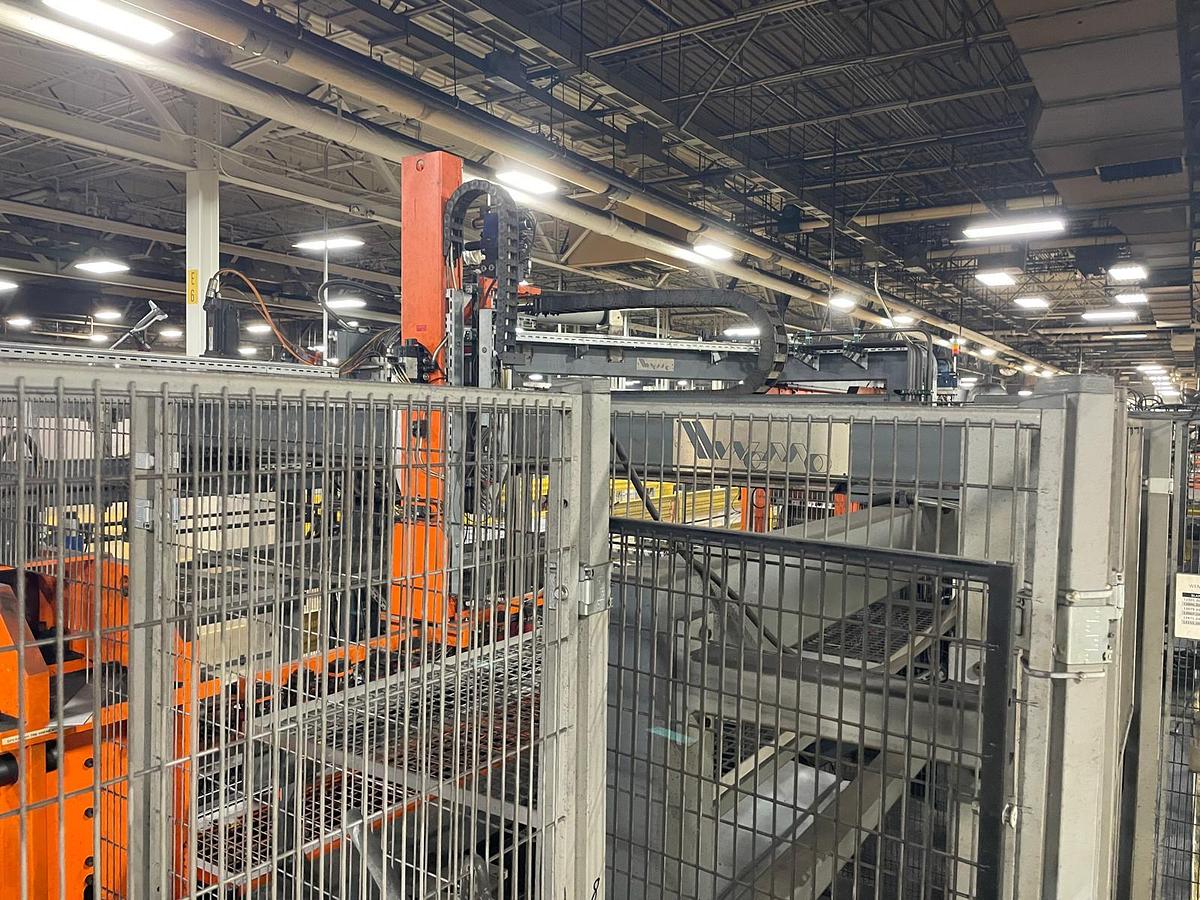

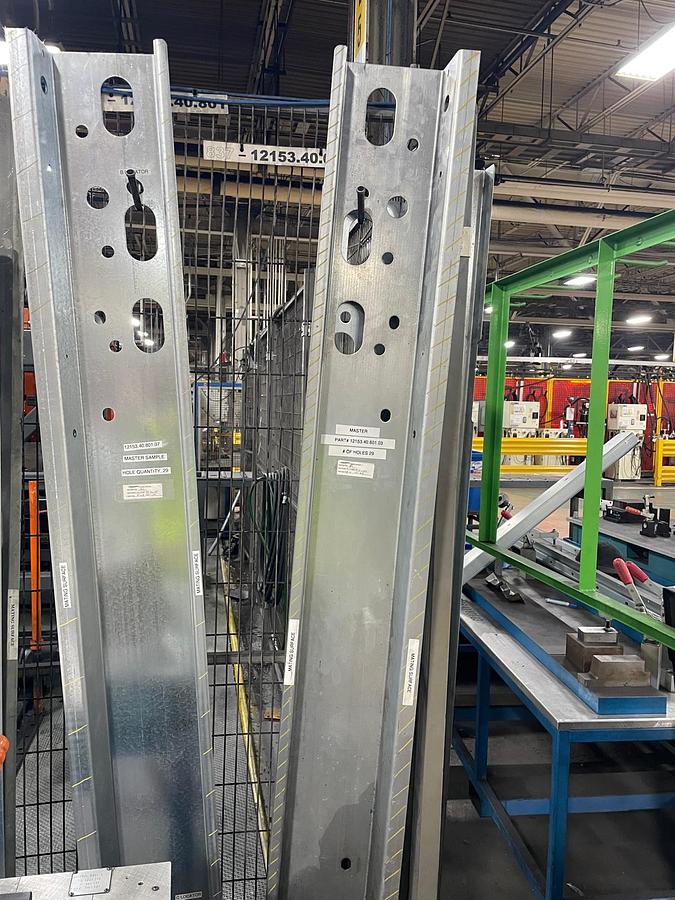

Machine will Form, Bend & Punch sheet metal for production of panels, drawer parts, shelves and other types of panels.

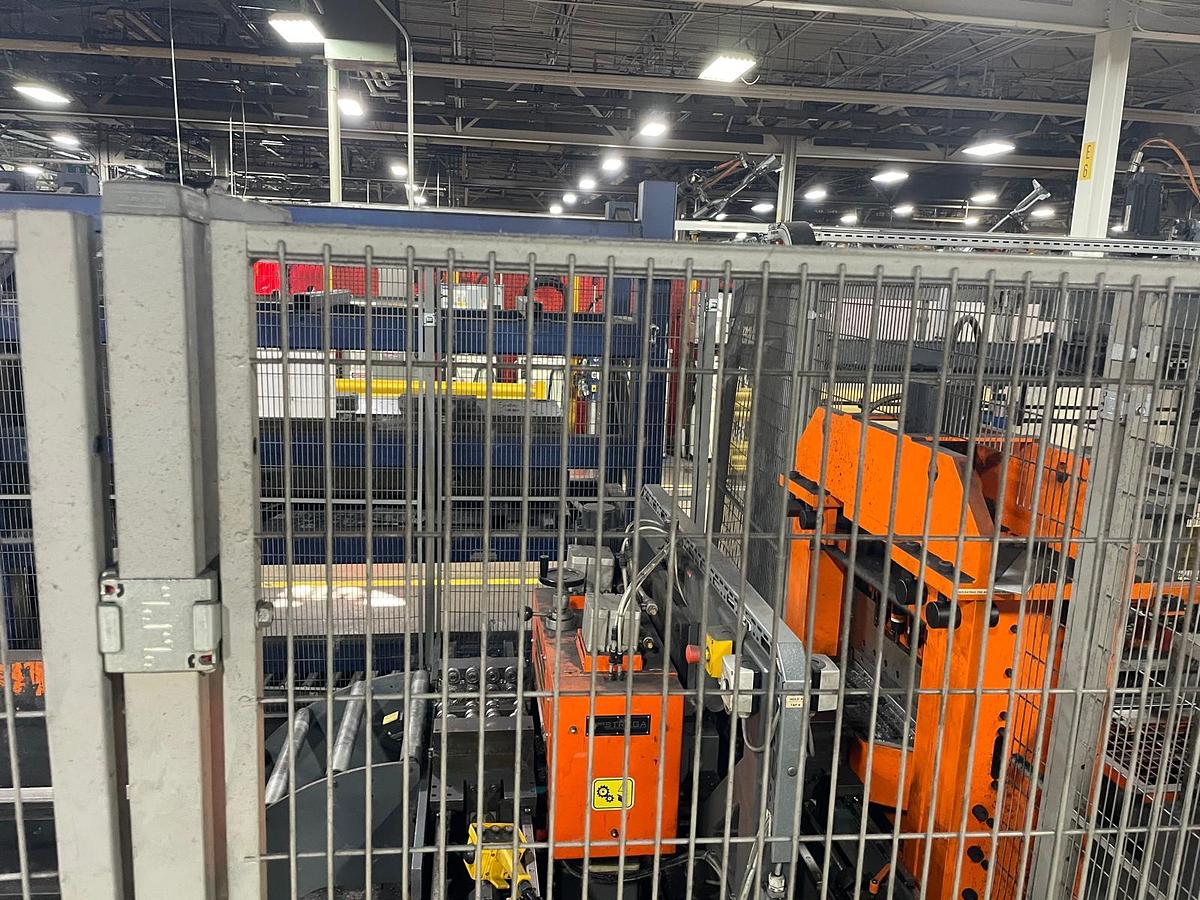

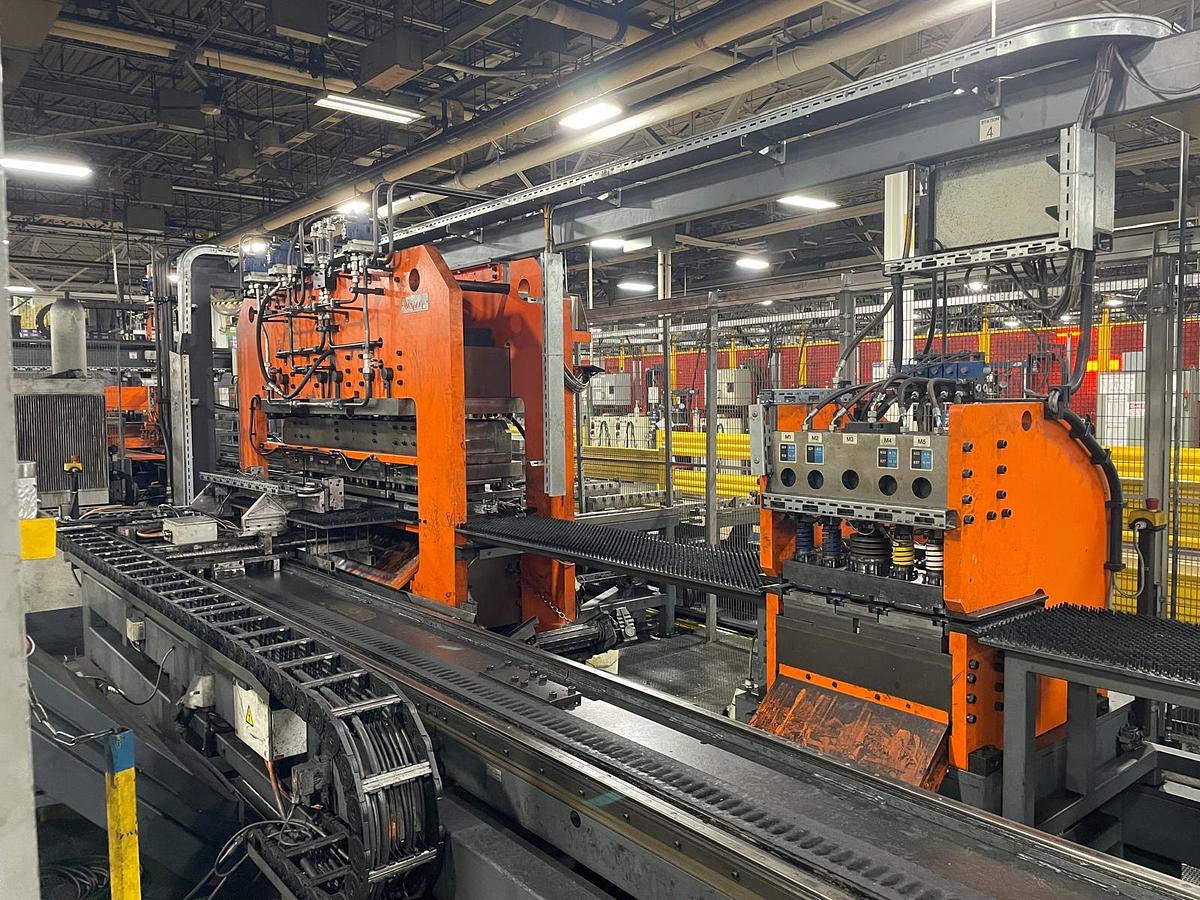

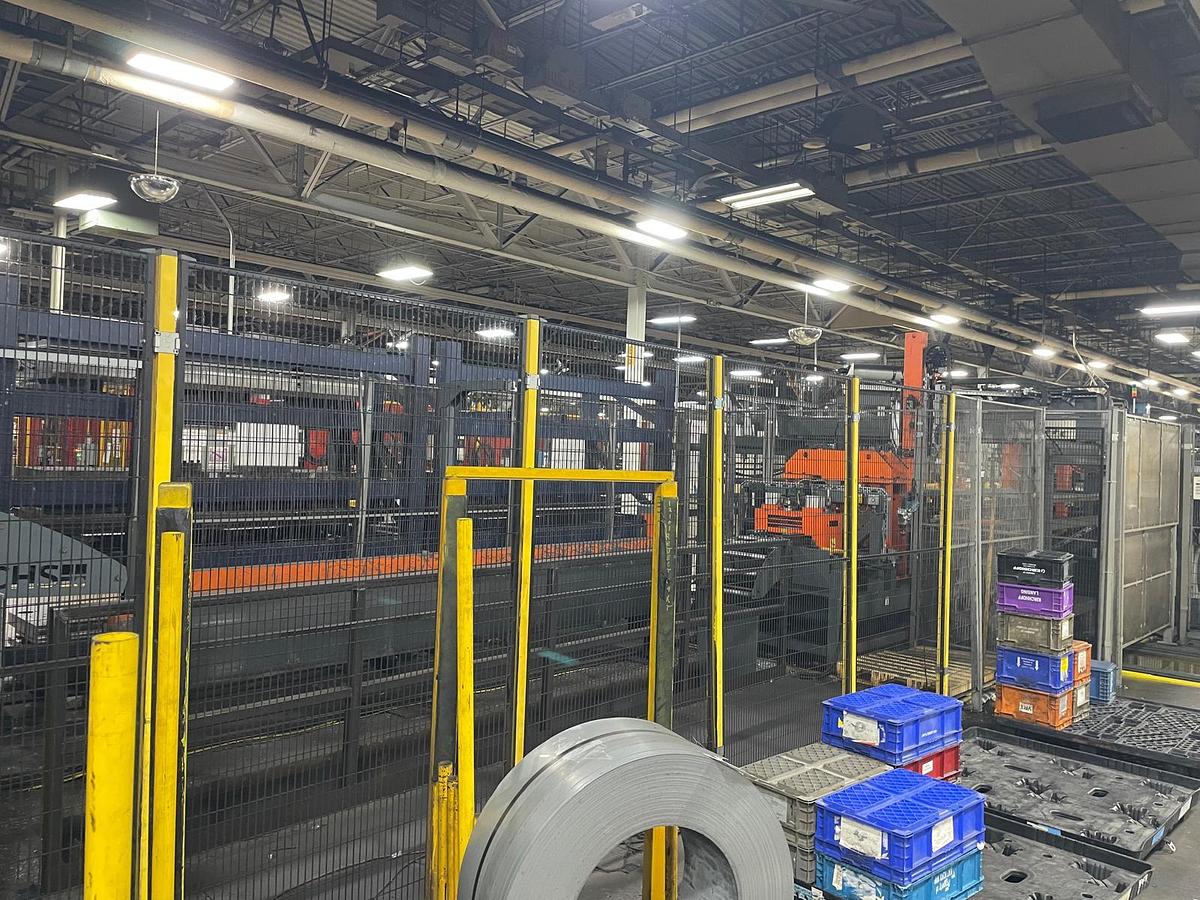

Cell includes, Uncoiler, Feeder, Former, Punch and unloading equipment, as well as unloading roller conveyor and controls.

WEMO CNC Bending Machine (Automated Bending Line)

Basic material : Steel tensile strength 340 and 980 N/mm2.

Type of Material : GMW3399M-ST-S-CR980t/700y-MP-LCE-EG60G60G / UNCOATED + GMW3032-ST-S-240LA-HD60G60G-U.

Material thickness : minimal 0,7 mm, maximal 3,0 mm.

Coil width : minimal 150 mm, maximal 450 mm.

Coil width tolerance : ½ Din 0/+2 mm

Sheet width : minimal 150 mm, maximal 450 mm.

Sheet length : minimal 1200 mm, maximal 2000 mm.

Sheet tolerance : +/-0,2 mm

Pallet weight maximum : 3000 kg.

Bended product width : minimal 64 mm to maximal 430 mm

Bended product length : minimal 1200 mm to maximal 2000 mm

Product height  150 mm.

Bending radius: 4 to 7 mm

Product tolerance: +0,2/-0,5 mm

Burr side: Both Sides

Machine Dimensions

Total length:  22.5 Meters

Maximum width: 14.7 Meters

Working height: 1000mm

Maximal height: 3/3 Meters

Year of manufacturing: 2015

Connection current: 480 V / 60 Hz

Capacity 134 kVA

Hydraulic operating pressure: 240 Bar

Pneumatic operating pressure: 6 Bar

Material thickness: 0,7 / 3,0 mm. (minimal / maximal)

Coil width: 150 / 450 mm. (minimal / maximal)

Sheet width: 150 / 450 mm. (minimal / maximal)

Sheet length: 1200 / 2000 mm. (minimal / maximal)

Machine Stations:

Station 2: Feed-in Station:  Shear in Combination, roll-feeder, measuring wheel, side guiding – Overhead transfer, 2 Buffering Positions, Centering & Transport

Station 3: Punching Station: Longitudinal Bending Station, Transfer XY (later described as station 3A), Punching-press 2 and embossing-press 3 with lay-off table (later described as station 4) Blanks are fed in, punched and transported through press 2 and 3 by means of a linear motor.

Station 4: Punching Station:

Station 5: Rotating Station: Depending of the type of product, left or right version, the blanks has to be turned over 180°, inlet-side becomes outlet-side. Because of the combination of product length and working height, the products are positioned lengthwise asymmetrically when turned over. The blanks are transported into the turning station by servo-controlled conveyor. The blanks stop on a detector and returns to it during turning over.

Station 6: Longitudinal Bending Station:

Station 7: Longitudinal Bending Station:

Station 8: Take-Off Station:

Station 11: Transfer:

Station 3a: Transfer station XY, The unit transports the blanks from start-position, press 1, through press 2 of station 4 towards the lay-off table.

Drawings & Manuals are available upon request

Call for additional details

All Specifications Subject Buyer
