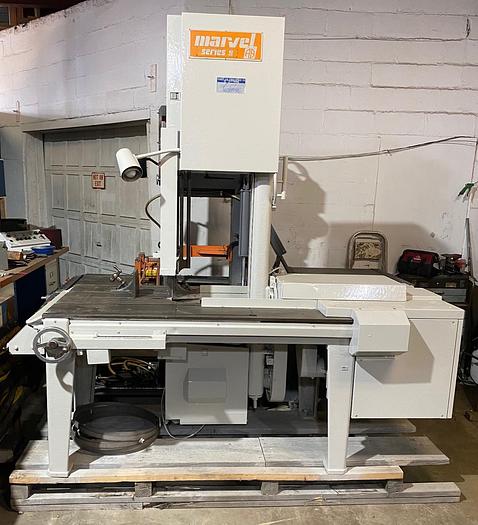

Marvek 8 Vertical Band Saw Model: 8 Mark 1

Marvel 8 Mark 1 Vertical Band Saw

Model........ 8 MARK 1

Throat Capacity........18”

Work Height..............22”

HP.............................2

Feed Range........................0-140 LBS.

Blade Speed.......................50-450 FPM (Variable Speed)

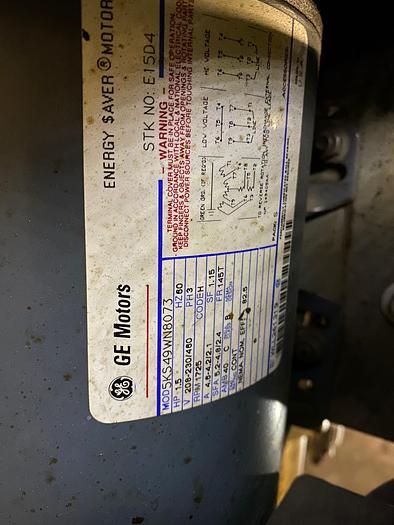

Electrics.......................208-230/460 - Phase: 3

Equipped with:

Nominal Capacity Blade at 90 Degrees 18″ Horizontal-22″ Vertical

Nominal Capacity Blade at 45 Degrees 18″ Horiz. -12 1/4″ Vertical

T-Slotted Work Table 24 1/2″ x 33″

Miter Cutting Column & Blade Tilt up to 45 Degrees to Left & Right

Quick Action Vise 6″ High x 21″ Max. Opening

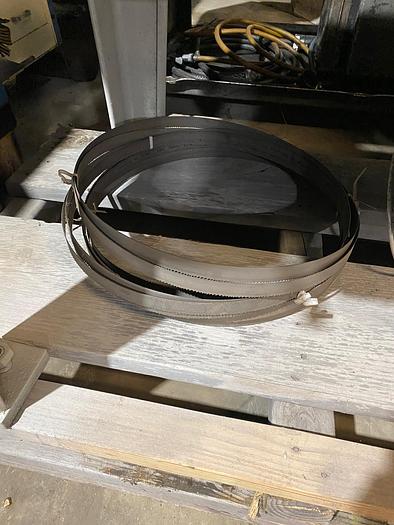

Blade Size 14’6″ x 1″ x 0.035

Manual or Automatic infeed
