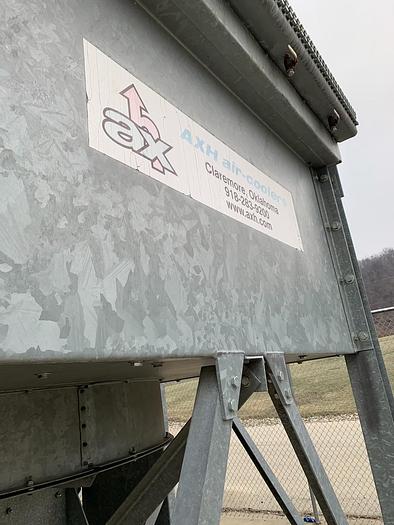

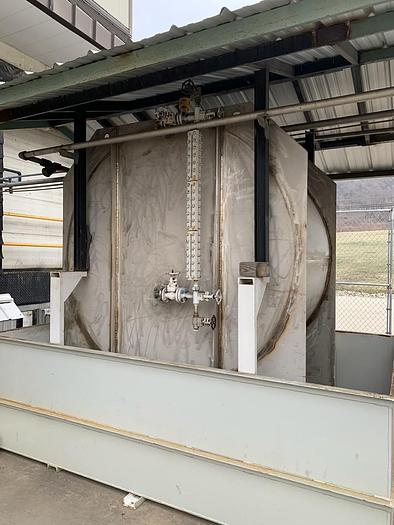

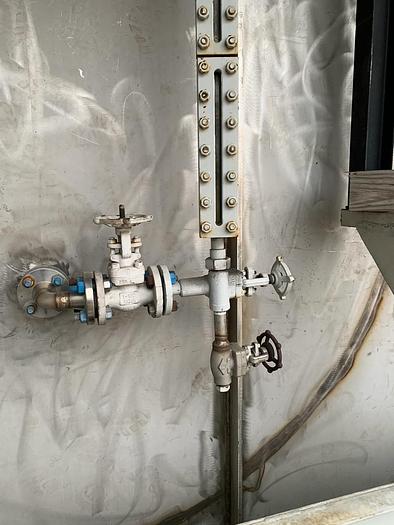

2009 AXH Air Cooler; Model: 93AZF Cooling System 93AZF

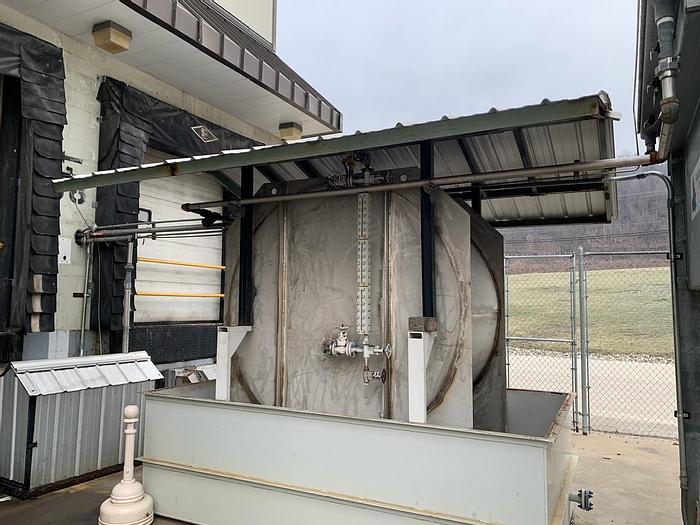

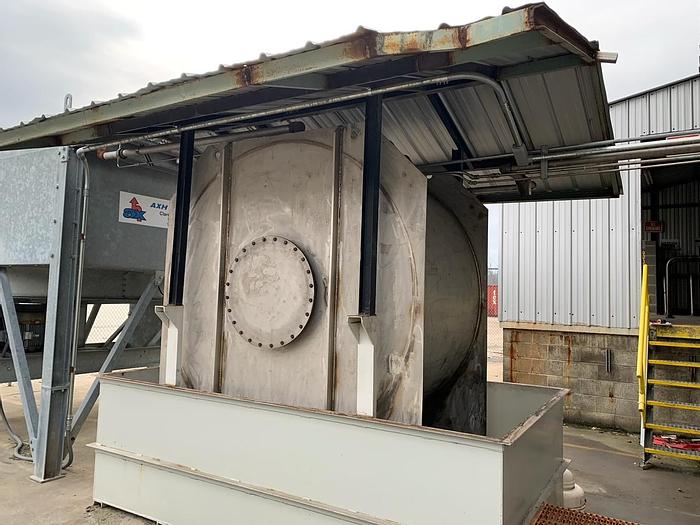

SOLD - AXH Air Cooler; Cooling System

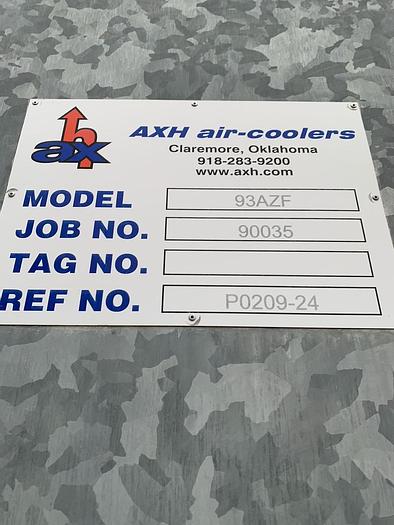

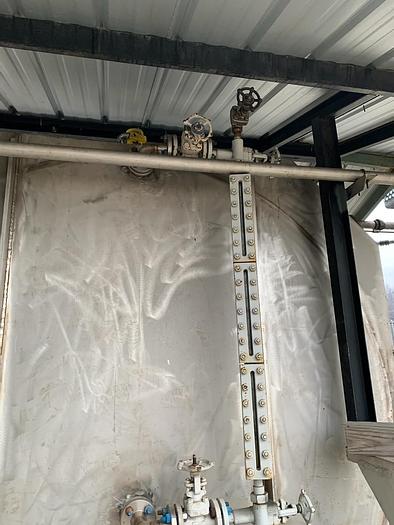

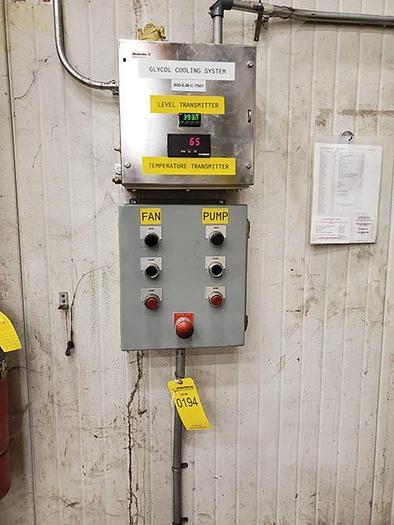

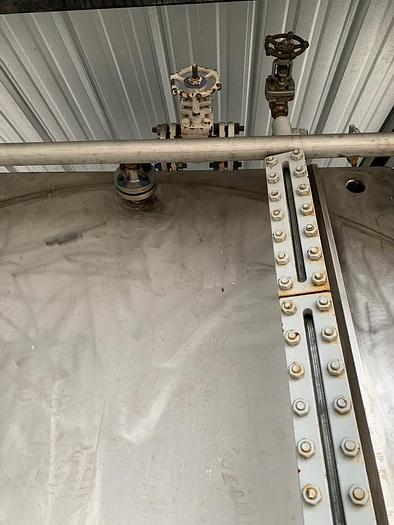

Model: 93AZF

Assembly: Packaged

Draft: Forced

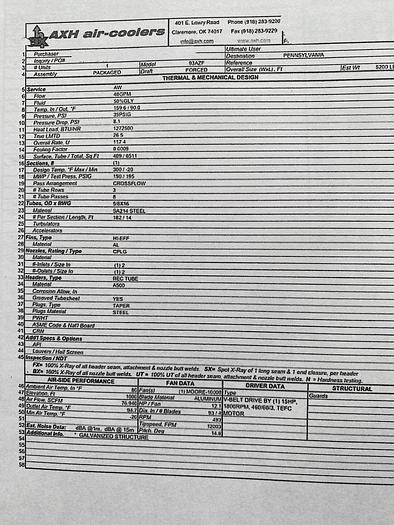

Service: AW

Flow: 40 GPM

Fluid: 50% GLY

Temperature In/Out: 159.6/90.0

Pressure PSI: 35 PSIG

Pressure Drop., PSI: 8.1

Heat Load, BTU/H: 1272500

True LMTD: 26.5

Overall Rate, U: 117.4

Surface, Tube / Total Sq. Ft. 409 / 6511

Sections, #

Design Temp *F Max/Min: 300 / -20

MWP / Test Press PSIG; 150/195

Pass Arrangement: Crossflow

# Tube Rows: 3

# Tube Passes: 8

Tubes; OD x BWG 5/8 x 16

Material: SA214 Steel

# Per Section / Length, FT 182 / 14

Fins, Type: HI-EFF

Material: AL

Nozzles, Rating/Type: CPLG, # Inlets/ Size In: (1) 2

# Outlets/ Size In: (1) 2

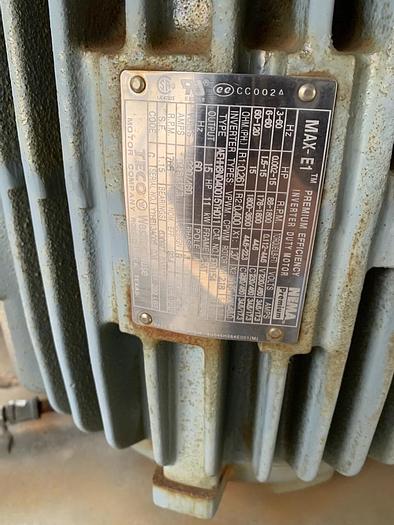

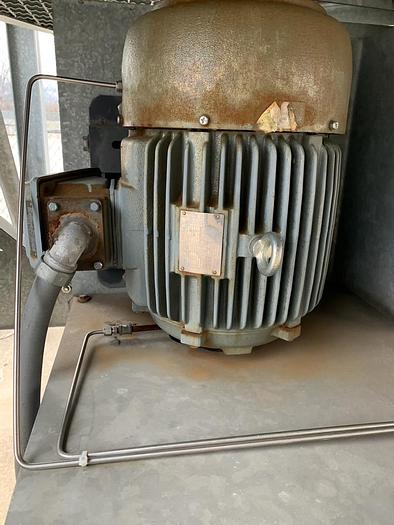

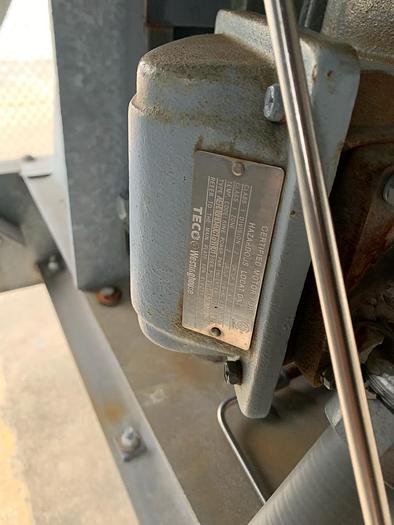

Overall Weight: 5,200 lbs
