Nederman Filtermax - 2 Module Unit Model: 148298 03

Nederman Filtermax - 2 Module Unit

Model: 148298 03

Technical Data

Specifications as per manual & subject to verification

Filtration: Basic Filter: 99% at 0.3 um, PTFE Filter: 99.9% at 0.3 um

Operating Airflow: 1 Module: 3000 m3/ hr, 2 Modules: 6000 m3/ hr

Filter area/Filter Cartridge: 1 Module: 60 m2, 2 Modules: 120 m2

Operating Temperature: -10*C to +60* C

Compressed Air Requirements: >0.6 MPa (6 bar/87 psi) water and oil free

Compressed Air Consumption: 32 N-Liters / Cleaning Pulse, at 0.6 MPa (6 bar/87 psi)

Compressed Air Connection: 1/2" BSP Female (R 15)

Voltage Supply: 24 V, 100V, 120 V, 230 V

Protection Class: IP 54

Relay Voltage: 24 V AC

Working Pressure: 0 to -5 kPa

Digital Input Signal Sensor: External Start/Stop, Pressure Switch, Compressed Air, High Dust Level, Pressure Switch, high dP/Low airflow, Fan Motor thermal protector OK, Explosion / Fire Alarm

Weight Approx.: 2,200 lbs.

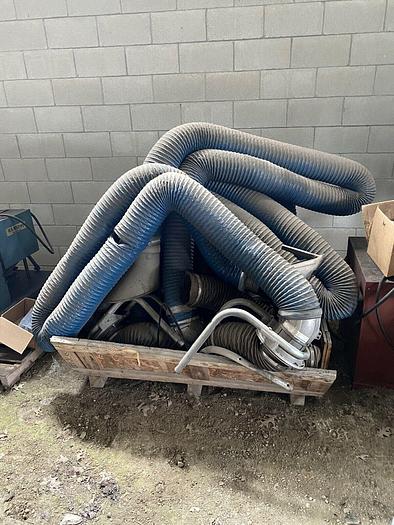

Unit comes with (4) Fume Extractor Arms as on data Tag: Art No: 10522335, Control No.: 02410.00
