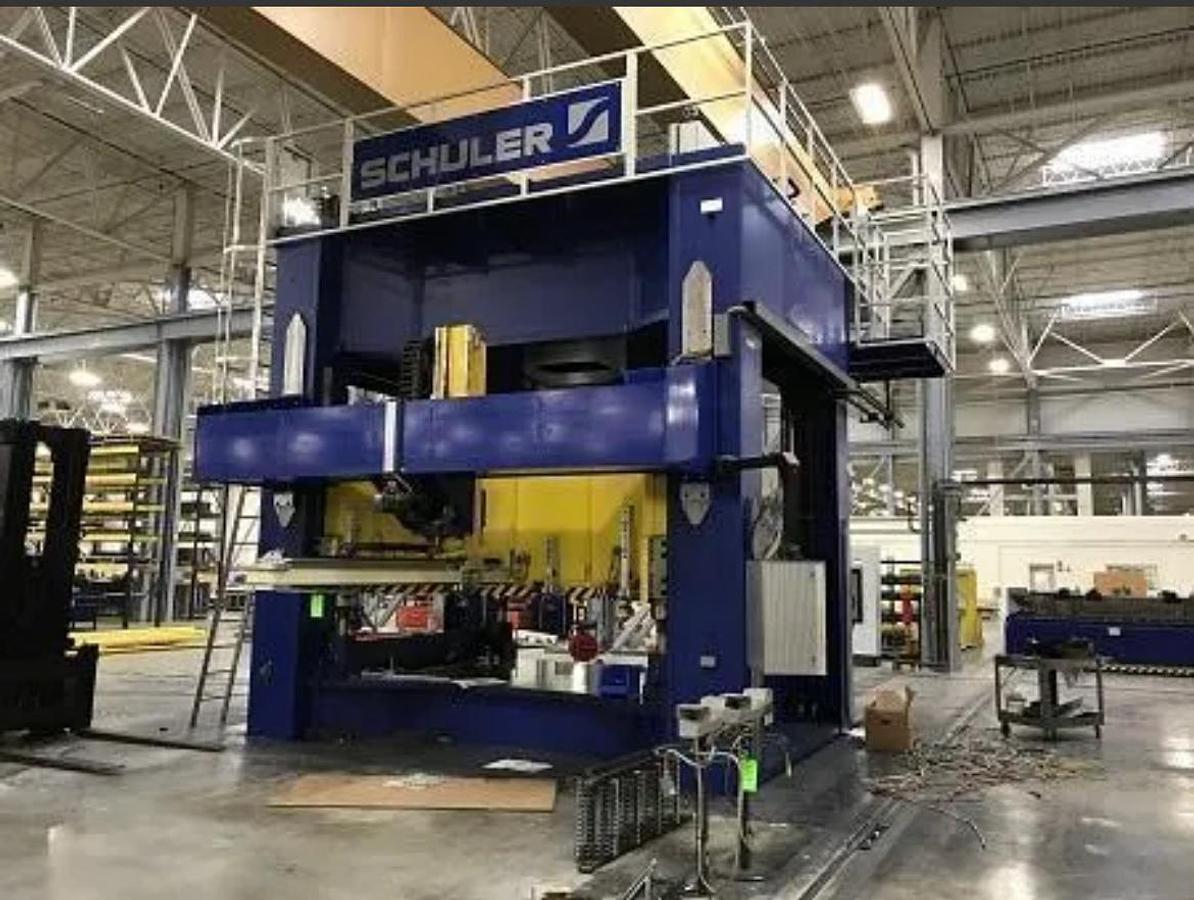

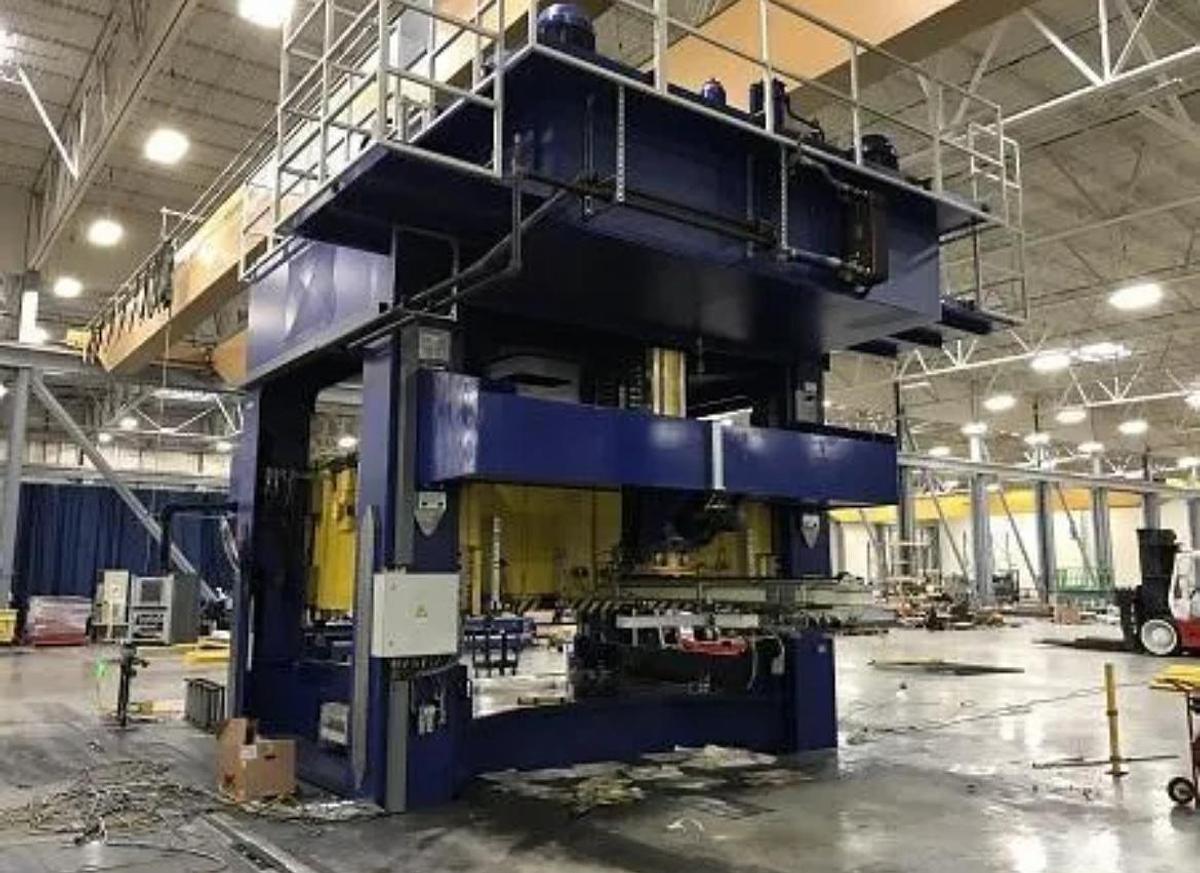

630 TON SCHULER # BH-630-3.8 X 2.3 HYDRAULIC PRESS

630 TON SCHULER # BH-630-3.8 X 2.3 HYDRAULIC PRESS

MODEL: BH-630-3.8x2.3

MANUFACTURER: Schuler

YEAR: 2007

Press Total Weight: (124000 kg) 124-Ton

Nominal Force (Stamping Force): 6300 kN

Nominal Force (Stamping Force): 708 Short Ton

Nominal Force (Stamping Force): 632 Long Ton

Die Space: (1300 mm) 51.18"

Closing Speed: (300 mm/s) 11.81"

Maximum Working Speed: (24 mm/s) .945"

Working Speed at Nominal Force: (47 mm/s) 1.85"

Max. Die Area (BxD): (3700 x 2200 mm) 145.67" x 86.61"

Min. Die Are (BxD) at Nominal Force: (1900 x 1150 mm) 74.80" x 45.27"

Min. Die Height: (500 mm) 19.68"

Max. Die Total Weight: (17.000 kg) 17-Ton

Max. Die Upper Part Weight: (8000 kg) 17,636 Lbs

Admissible Off-Center Load Left-Right: 500 kNm

Admissible Off-Center Load Front-Back: 250 kNm

Installed Load: (260 kW) 348 HP

Nominal Current: 310 A

Voltage: 480 V

Frequency: 60 Hz

Hydraulic Working Pressure: 277 bar

Total Oil Charge: 2500 I

Oil Type: HLP 46 DIN 51524

Air Pressure: -bar
