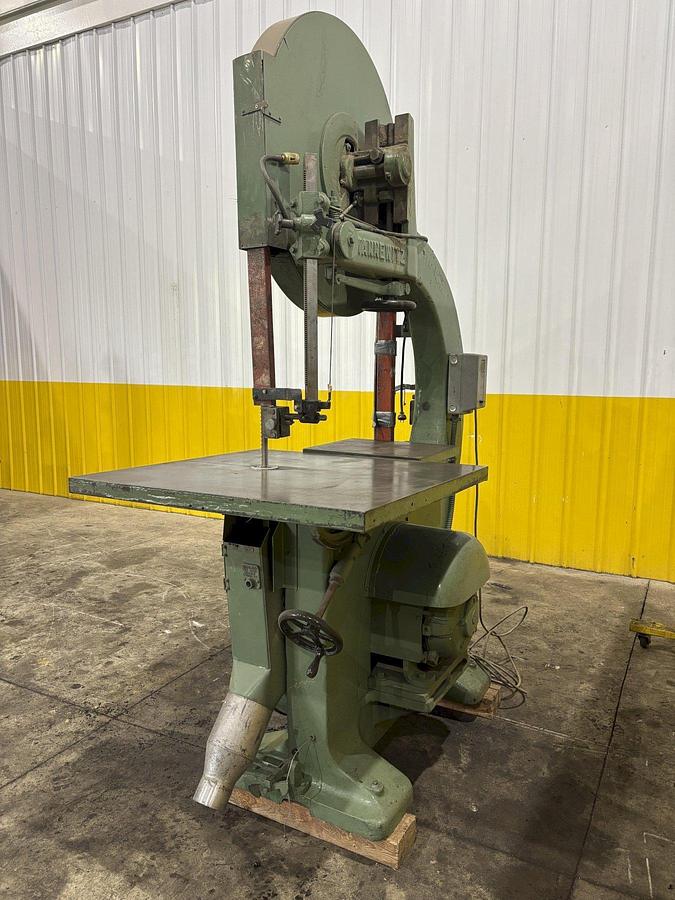

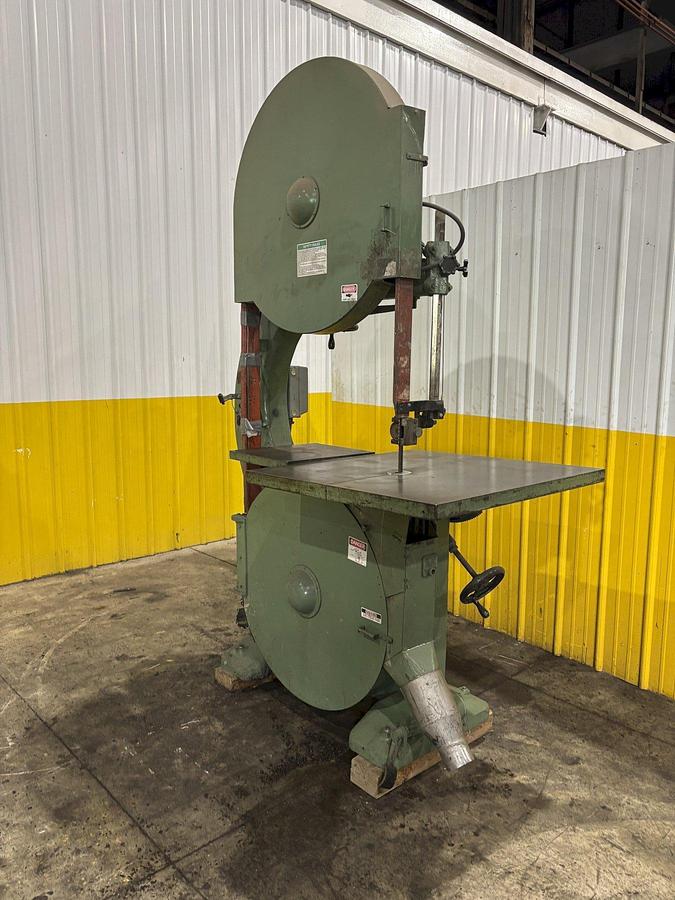

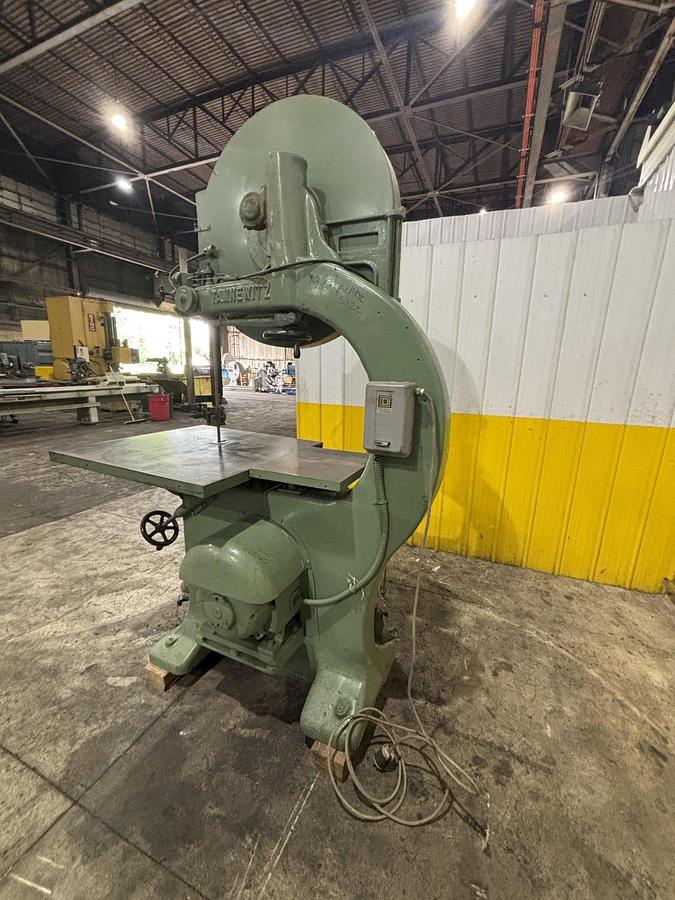

35.5" x 20" TANNEWITZ MODEL #GH VERTICAL BAND SAW

35.5" x 20" TANNEWITZ MODEL #GH VERTICAL BAND SAW

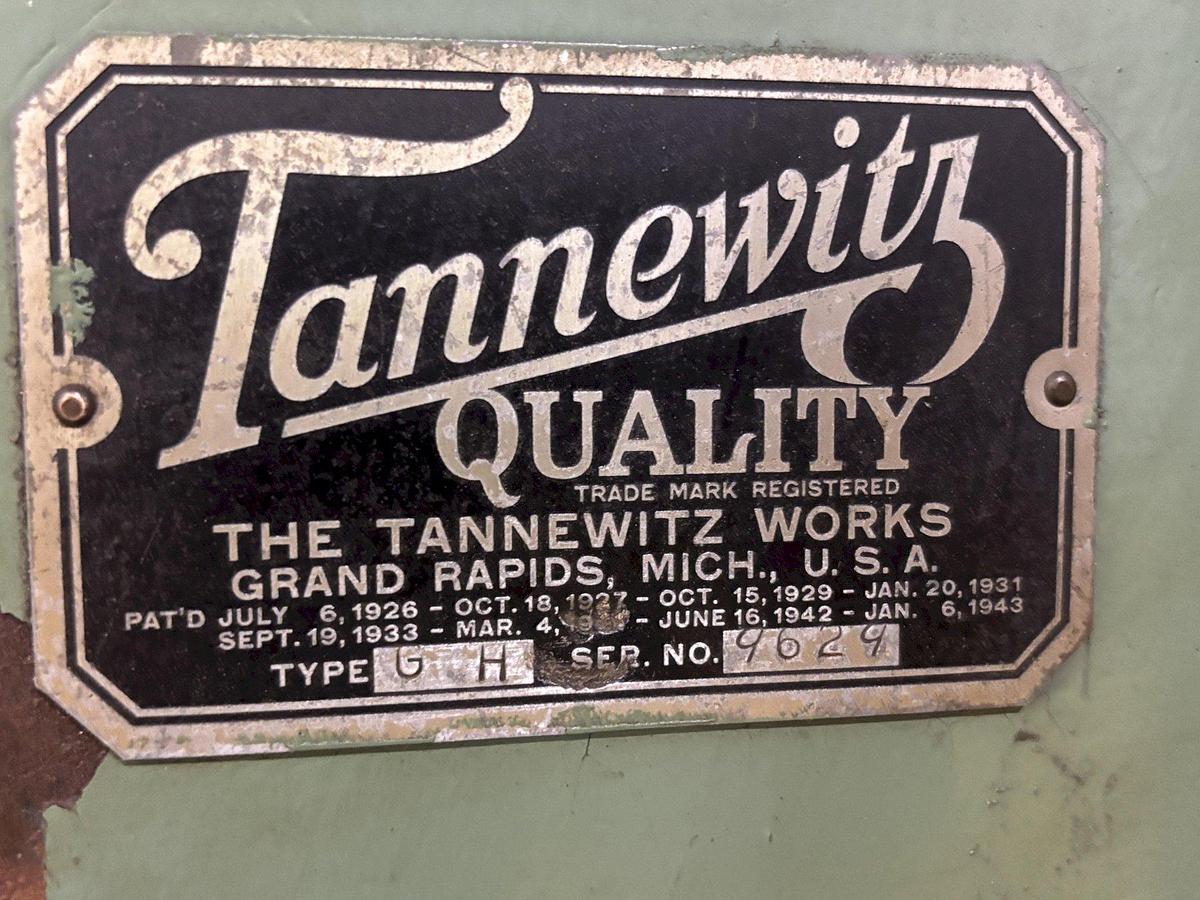

MODEL .......................... GH

NOMINAL CAPACITY ............... 35.5" X 20"

THROAT DEPTH ................... 35.5

AUXILLIARY TABLE DIMENSIONS .... 16"W X 19"L

MAIN TABLE DIMENSIONS .......... 37"W X 36"L

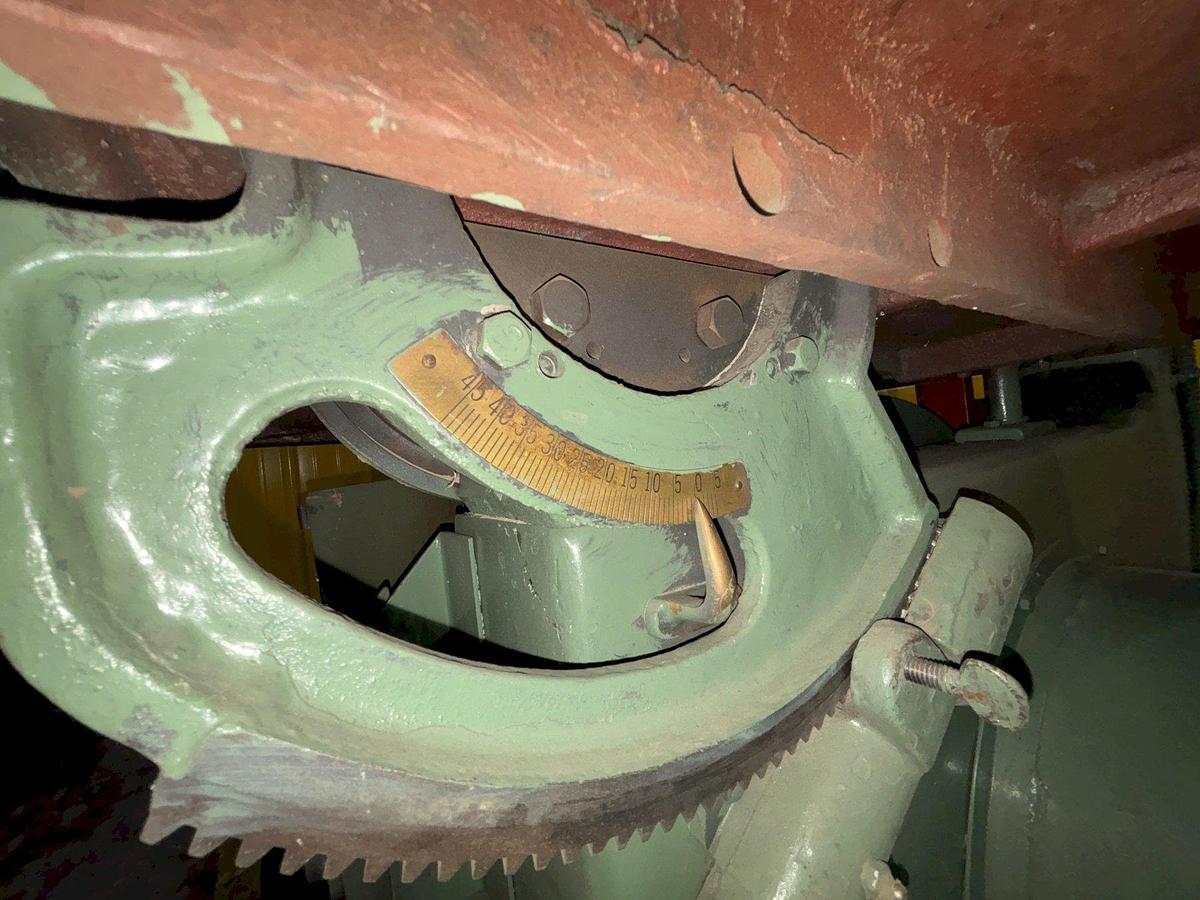

TABLE TILT ..................... LEFT 5°

TABLE TILT ..................... RIGHT 45°

TABLE HEIGHT ................... 41"

BLADE SPEED .................... 8000 FPM

BLADE LENGTH ................... 19'9"

BLADE WIDTH .................... RANGE .125" TO 2"

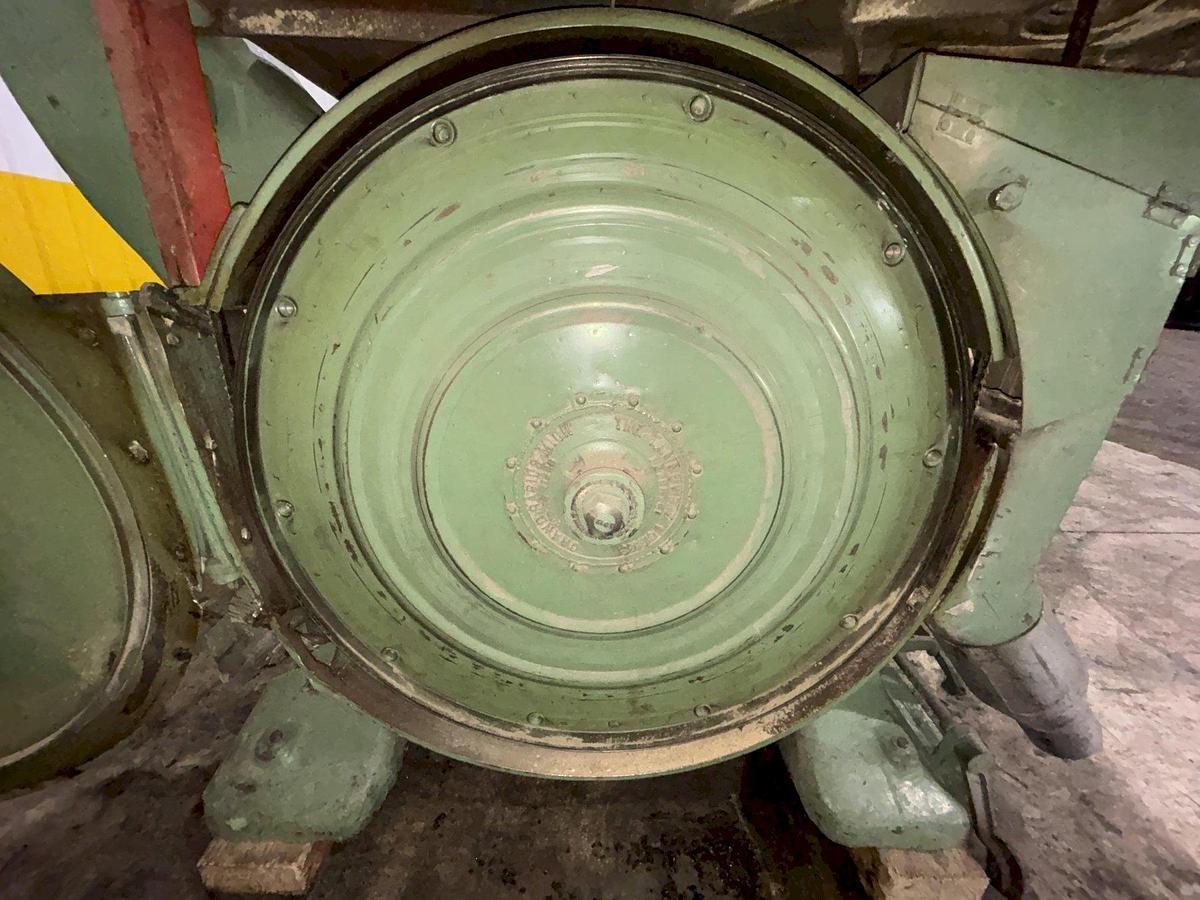

BLADDE WHEEL DIAMETER .......... 36"

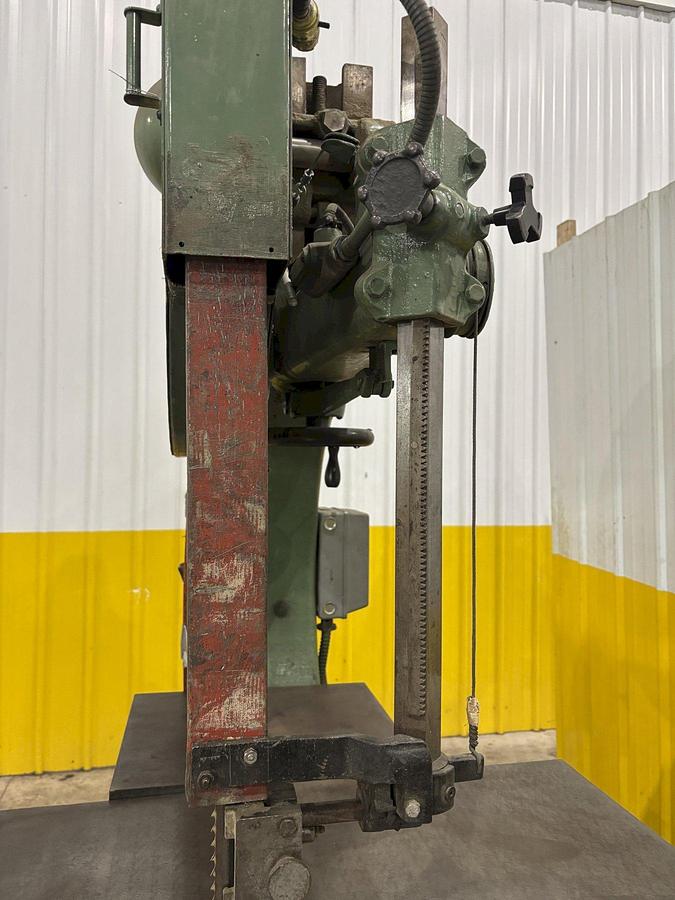

UPPER BLADE WHEEL ADJUSTMENT ... 7"

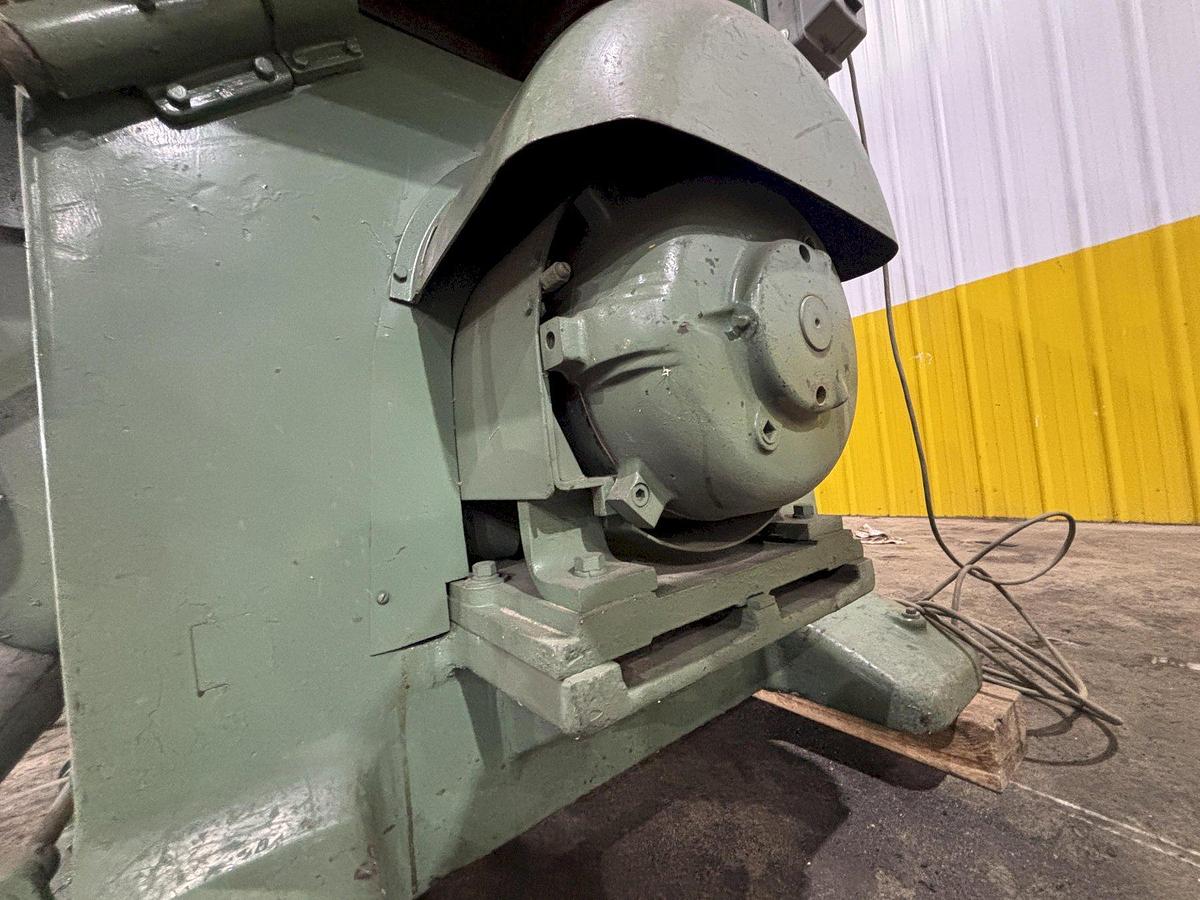

MOTOR .......................... 5HP

FLOOR SPACE REQUIRED ........... 37"W X 65"D

OVERALL HEIGHT ................. 104"

DIRECT MOTOR DRIVE ............. YES

TILTING MAIN TABLE ............. YES

AUXILIARY TABLE ................ YES
