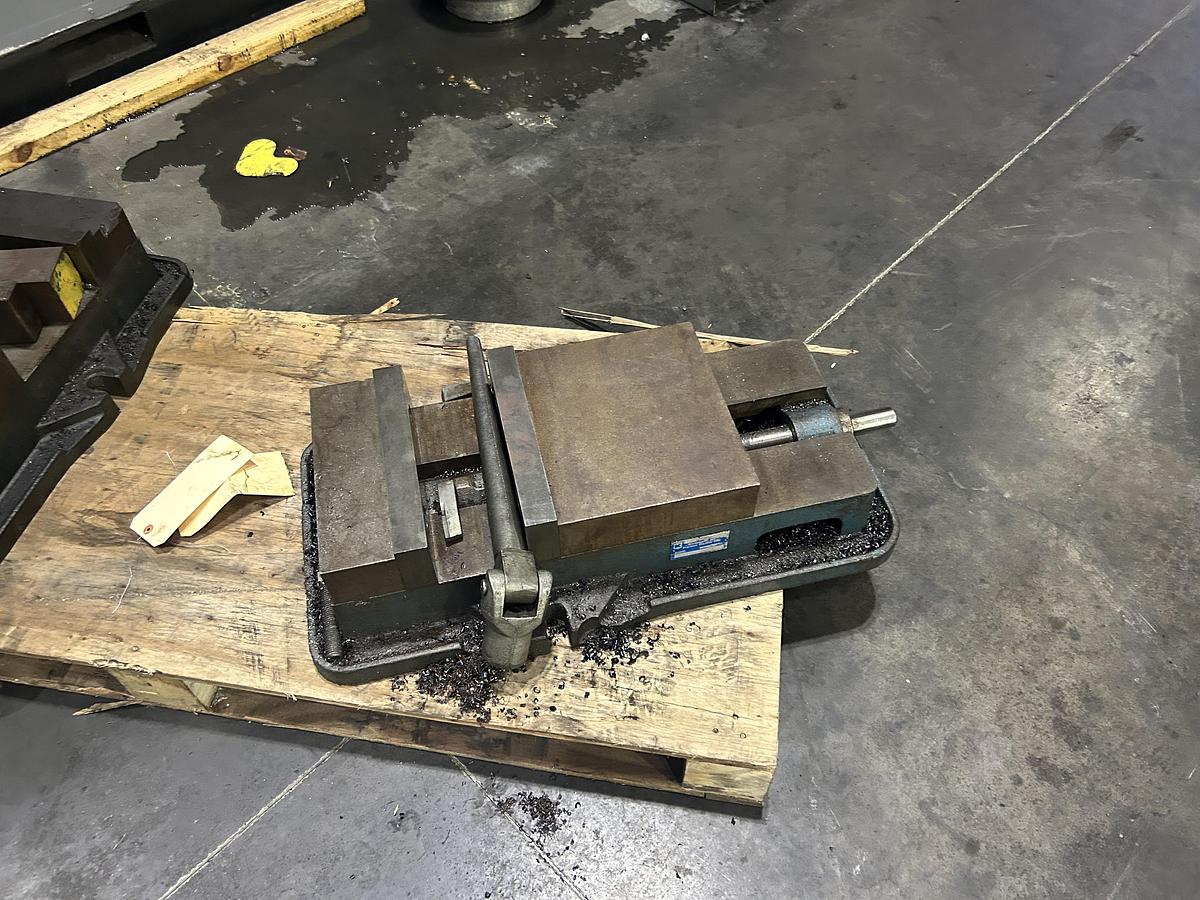

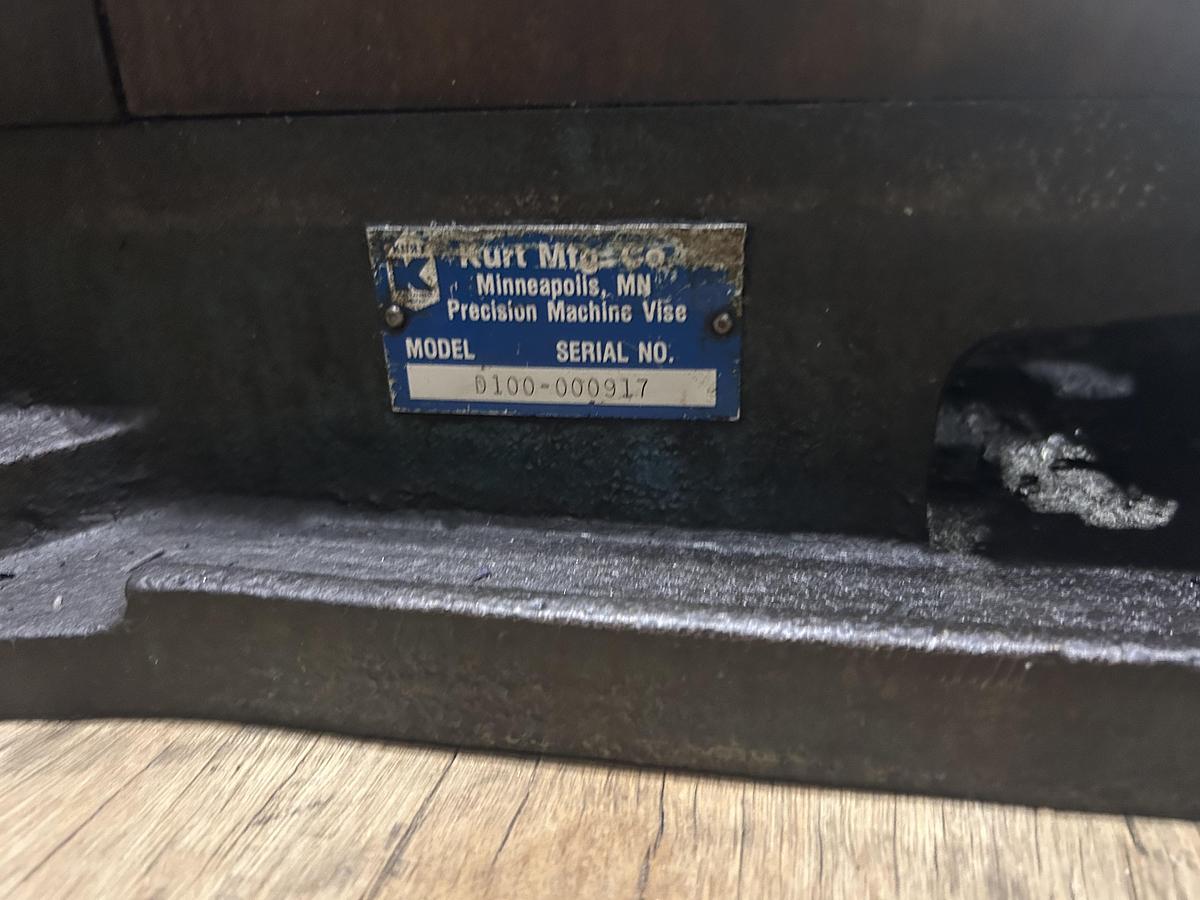

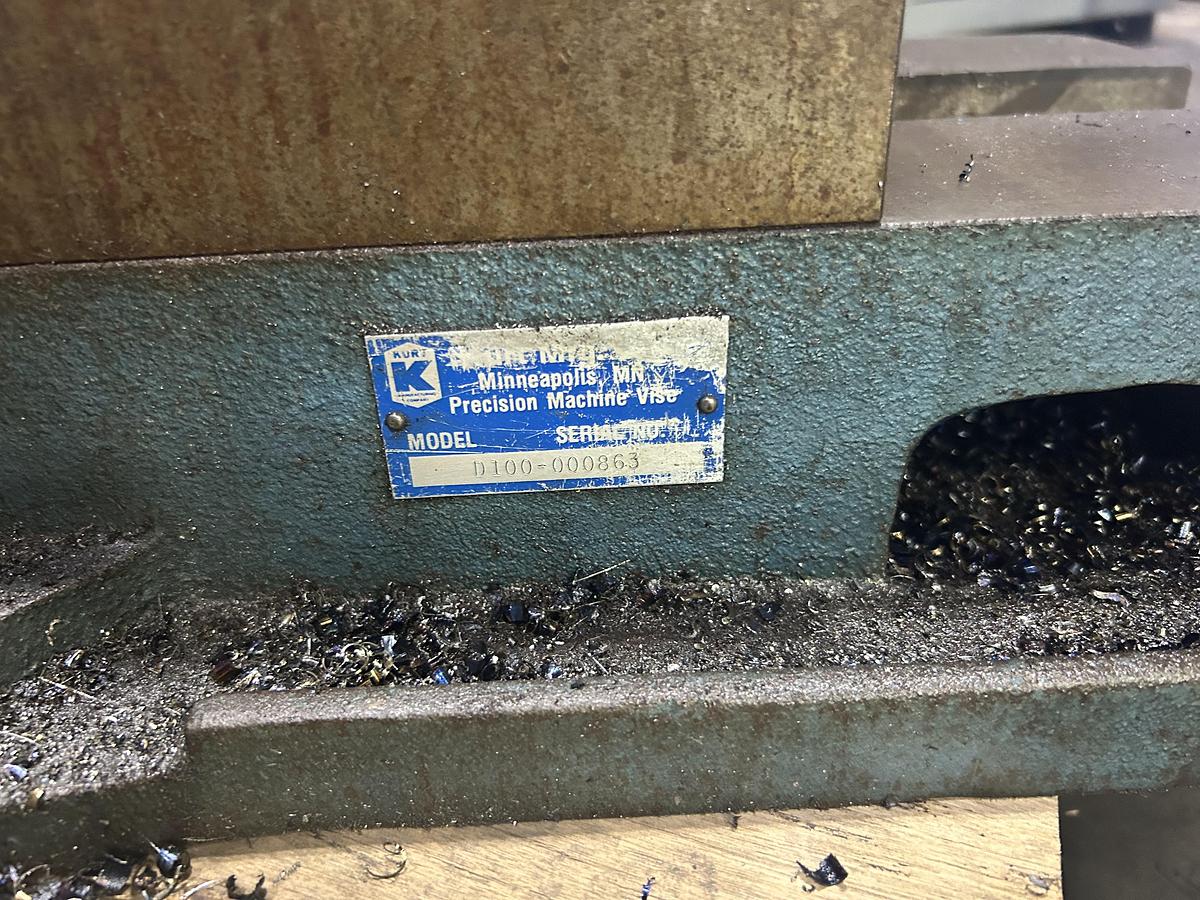

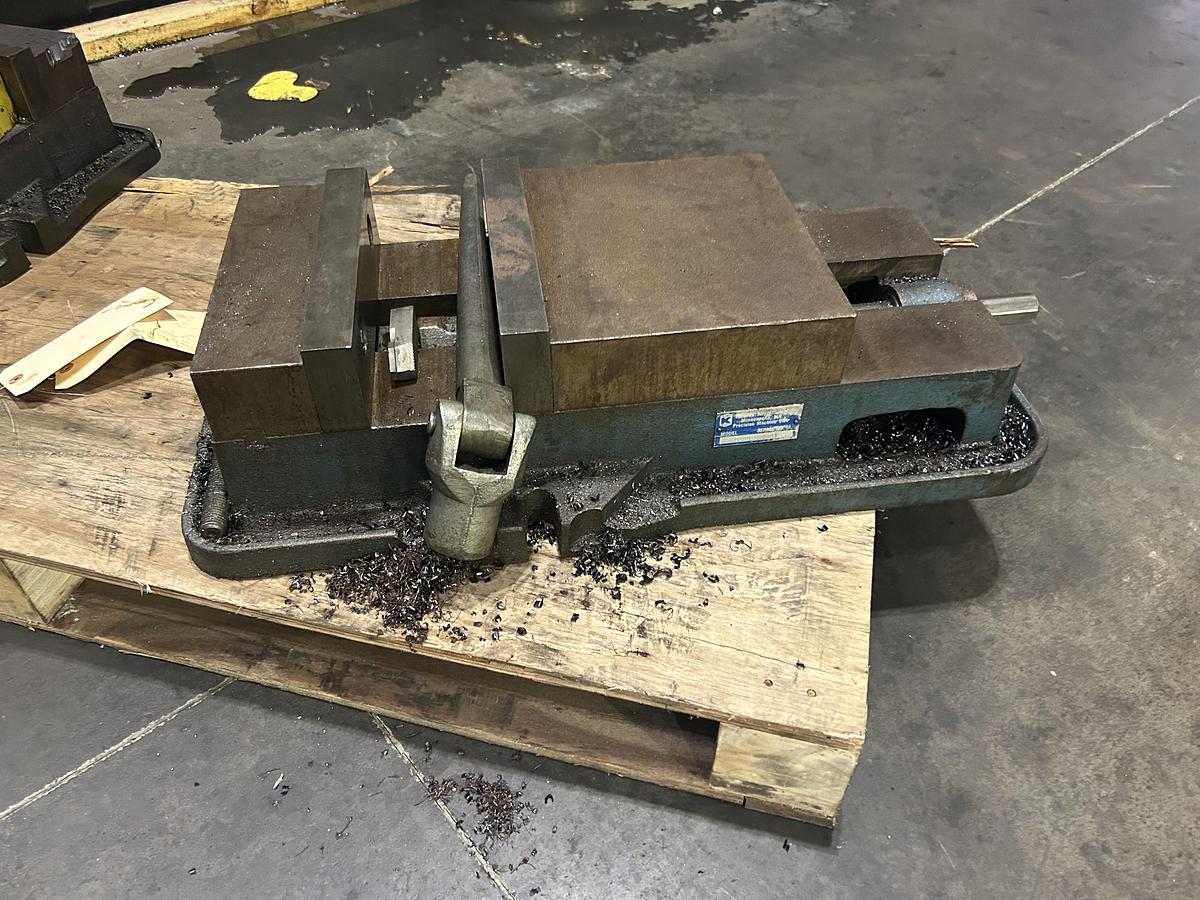

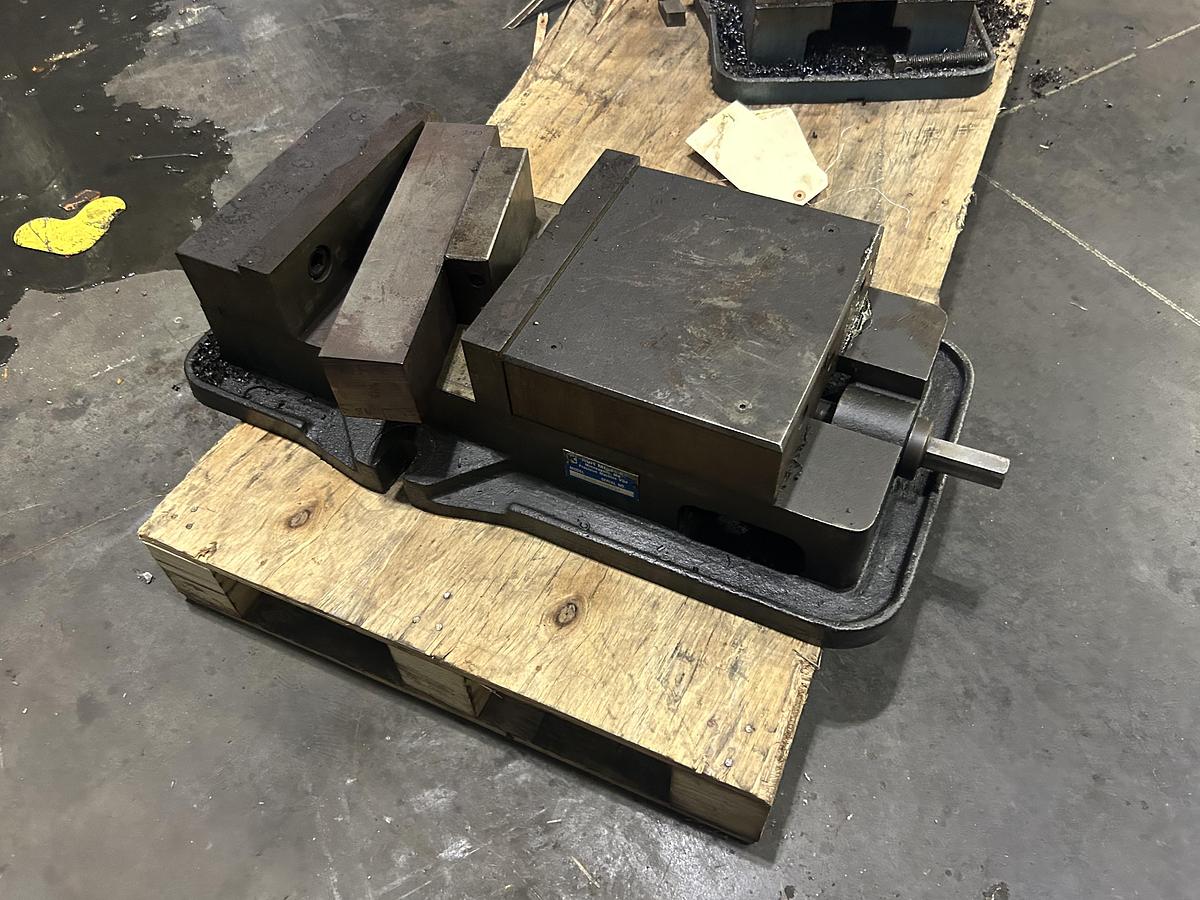

10" Kurt Machine Vise, Model: D100

10" Kurt Machine Vise, Model: D100  (2 Available)

• Jaw Width: 10 inches.
• Jaw Opening: 9.75 inches.
• Maximum Clamping Force: 80,000 psi.
• Load Capacity: 26,277 lbs.
• Base Type: Stationary.
• Operation Type: Manual.
• Orientation: Horizontal.
• Vise Material: Ductile Iron.
• Jaw Material: Steel.
• Weight: Approximately 300 lbs.

Dimensions:

• Base Height: 3.875 inches (3-7/8 inches).
• Base Length: 27.50 inches (decimal) or 27-1/2 inches (inch).
• Jaw Height: 2.5000 inches (2-1/2 inches).
• Overall Height: 6.8120 inches.
• Overall Length: 29.1900 inches.
• Overall Width: 14.5000 inches (14-1/2 inches).
• Throat Depth: 2-15/16 inches.

All Specifications Subject to Buyer's Verification
