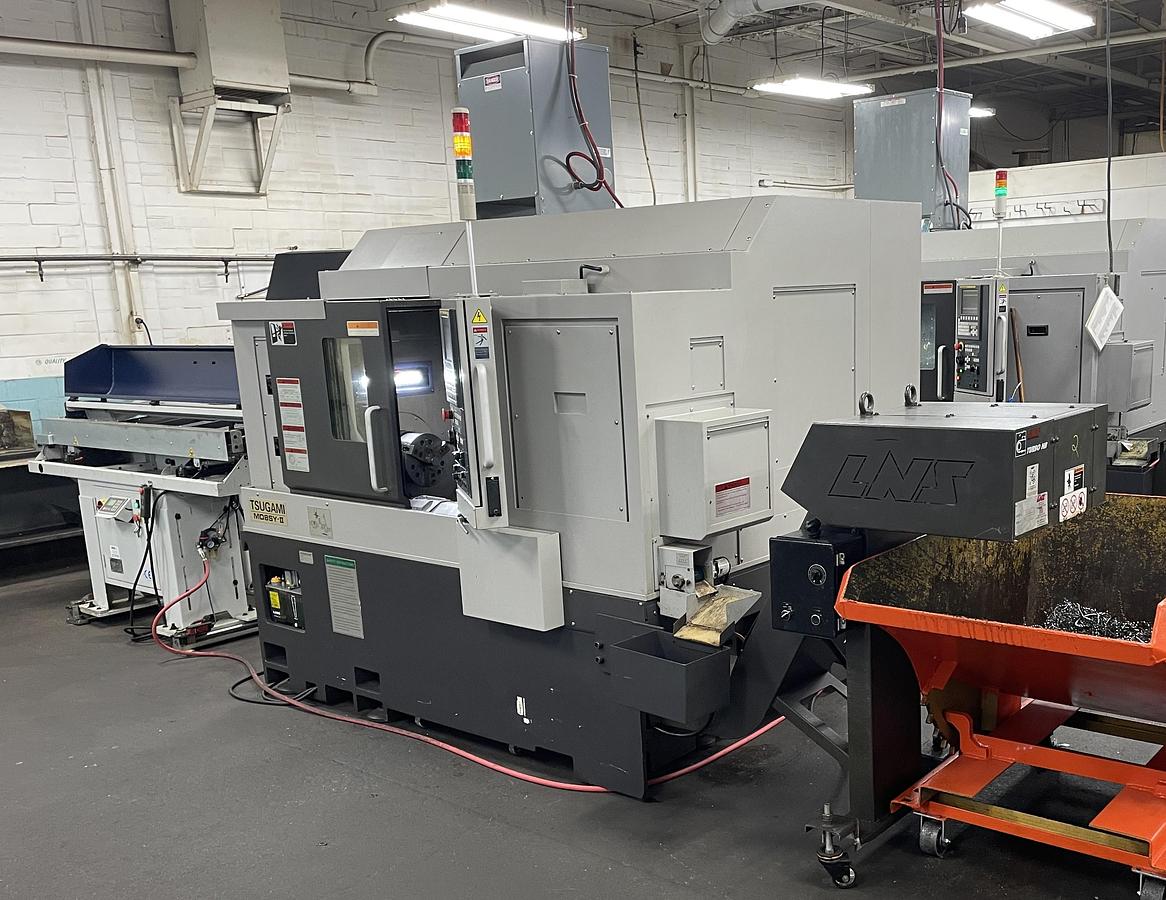

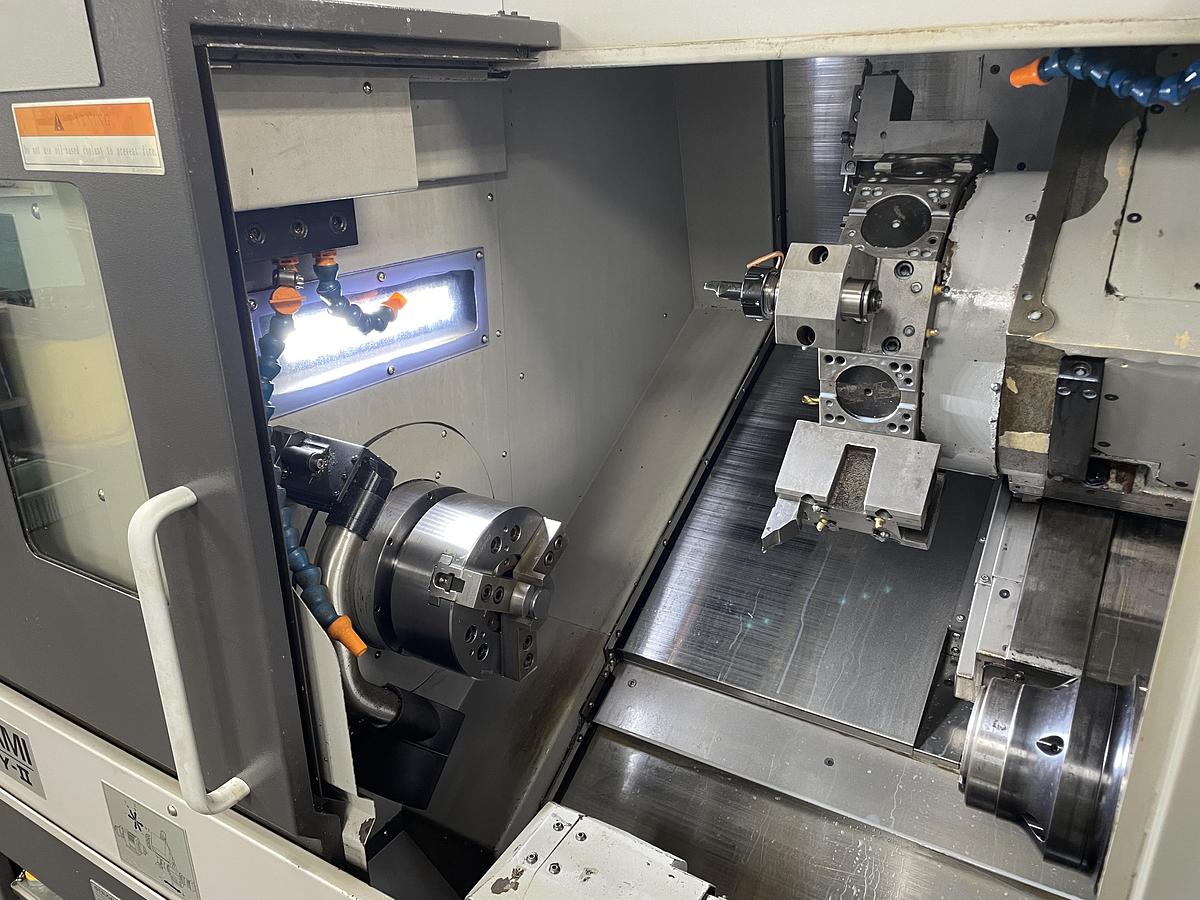

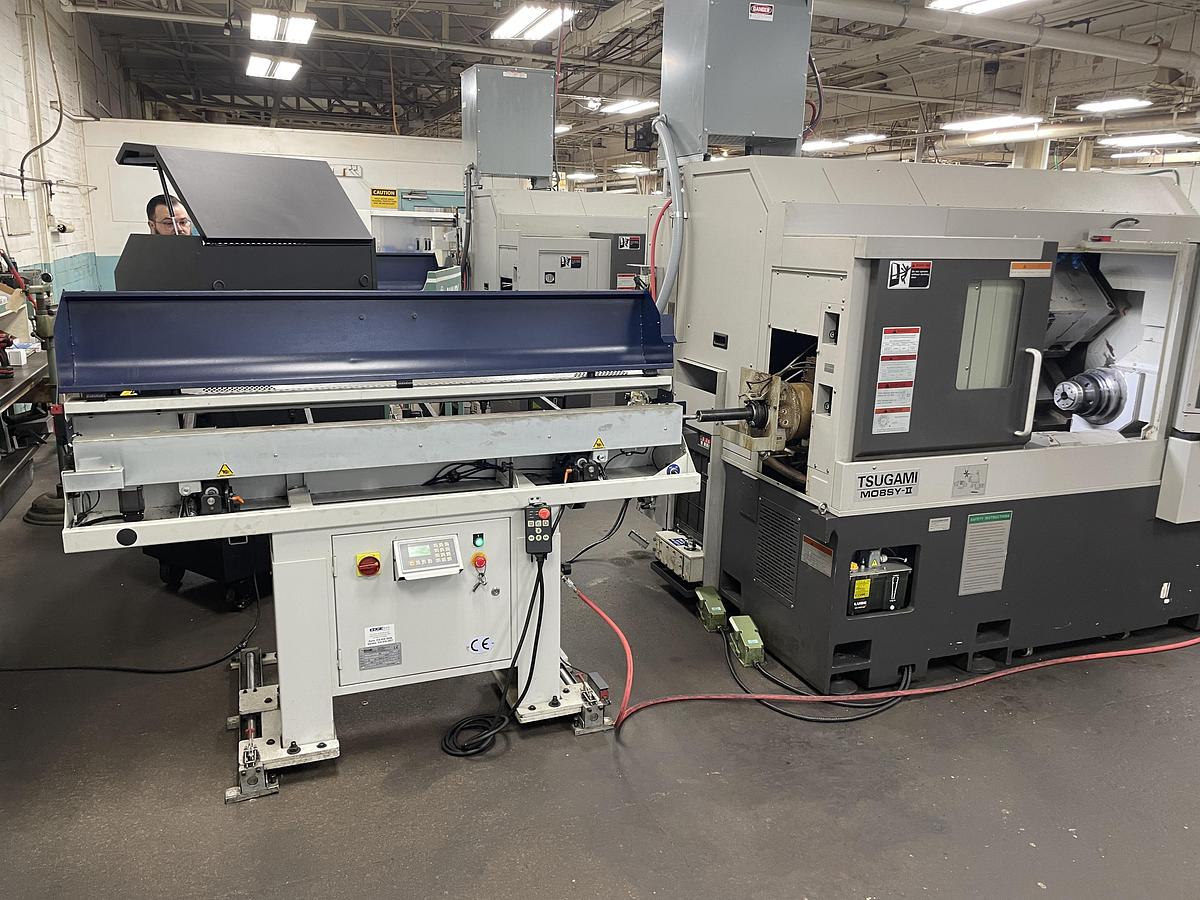

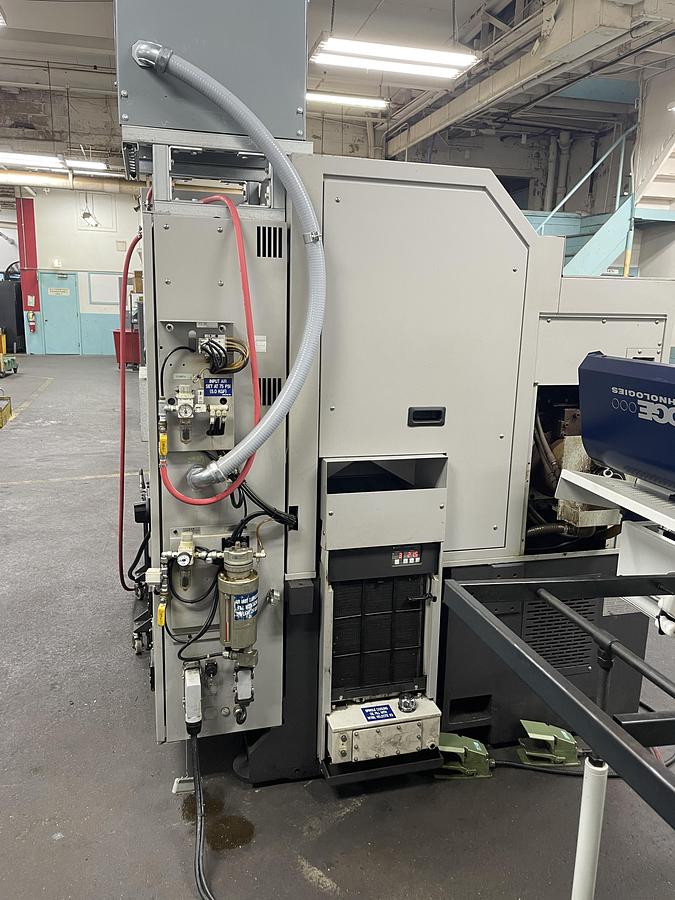

2018 Tsugami Model: M08SY-II 5-Axis CNC Lathe Edge Technologies Rebel V-65 Bar Feeder

2018 5-Axis Tsugami CNC Lathe Edge Technologies Rebel V-65 Bar Feeder

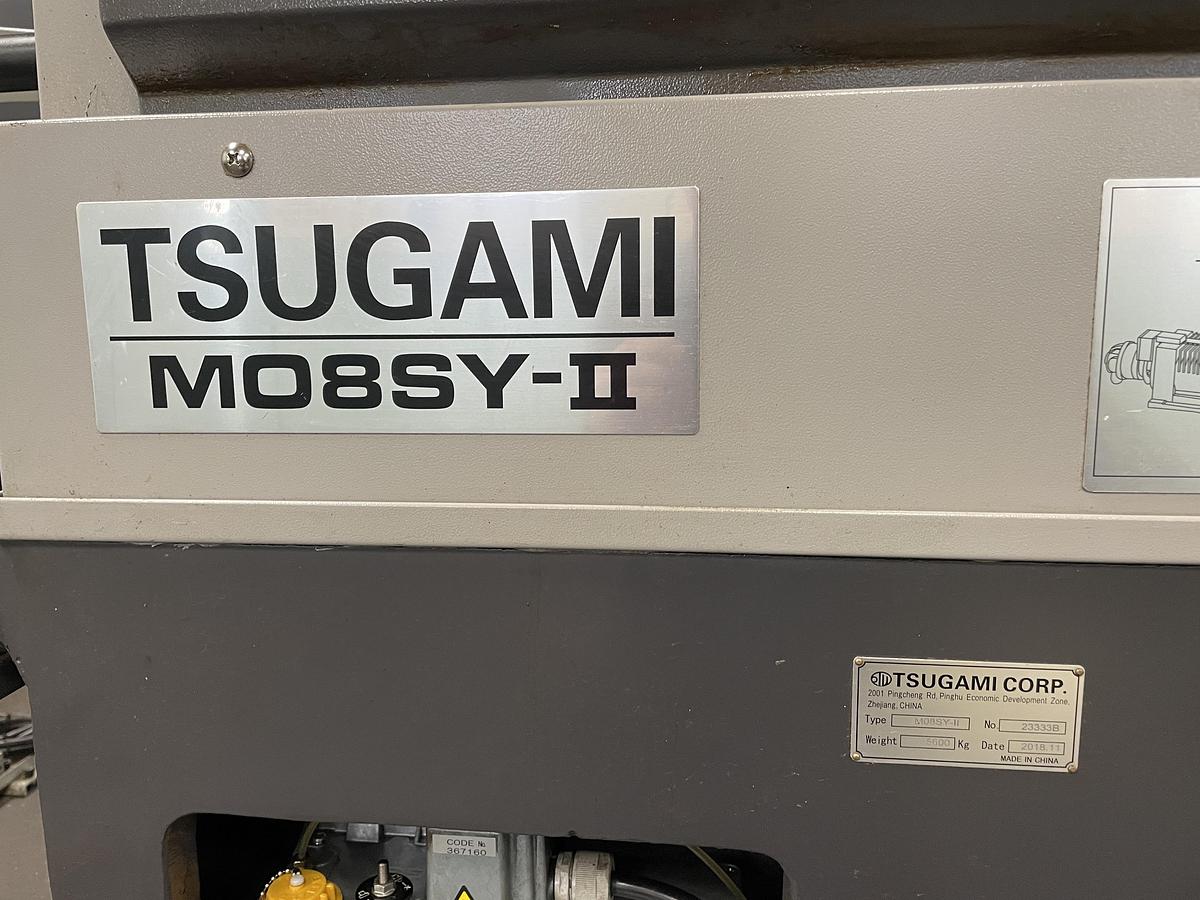

Mfg: Tsugami

Model: M08SY-II

YOM: 2018

SPECIFICATIONS:

Bar Capacity: 2″

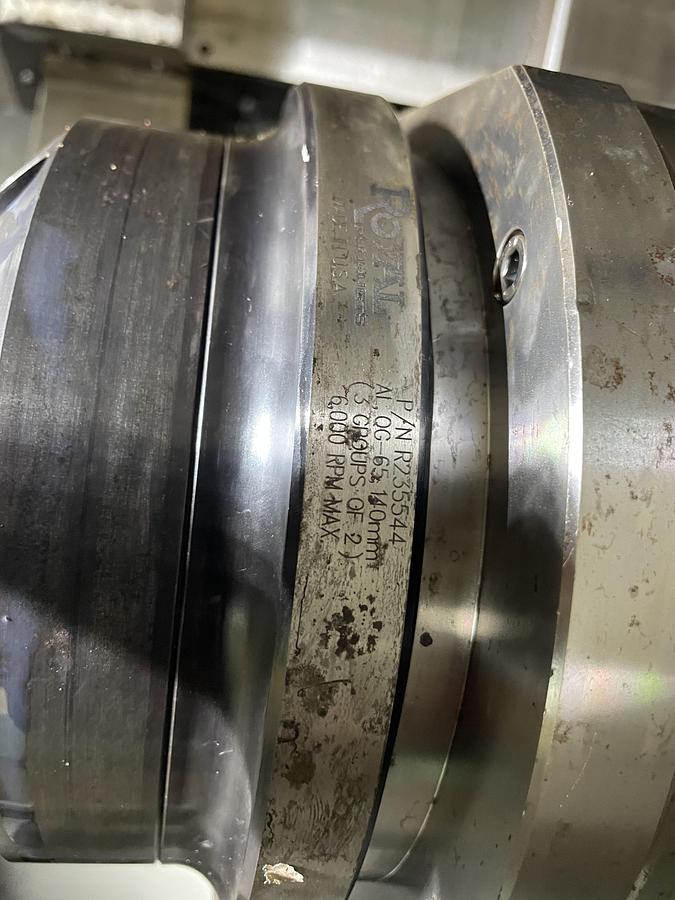

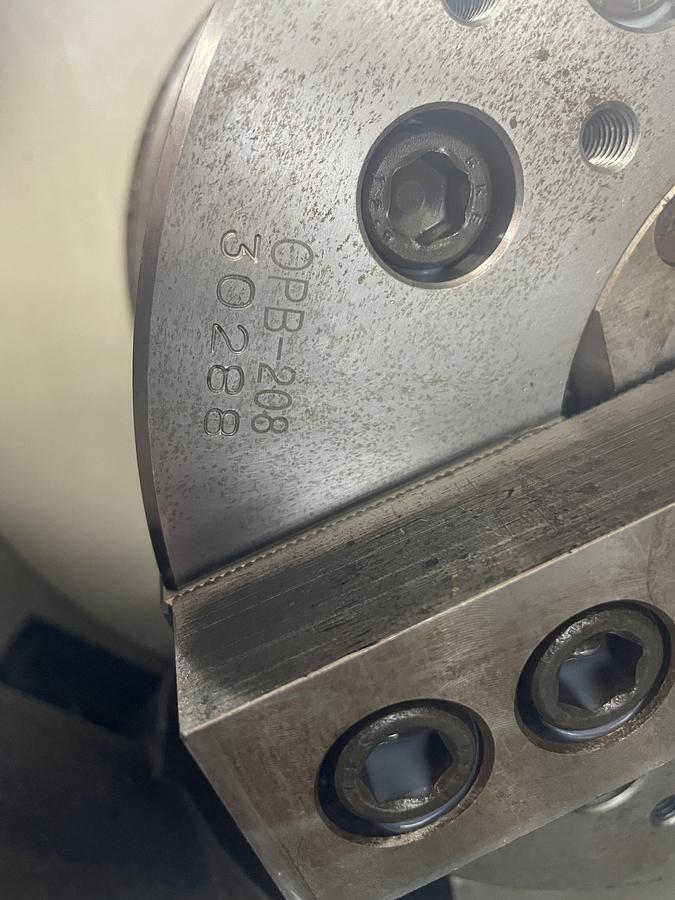

Chuck Size: 8″

Sub Spindle: 6″

Spindle Speed: 4,500 RPM

Live Tooling: 5,000RPM

Spindle Motor: 14.8 HP

X Axis Travel: 8.7″

Z Axis Travel: 15.75″

Y Axis Travel: 3.94″

C Axis Travel: .001Deg

W Axis Travel: 19.92″

Rapid Rate Z Axis: 1,062 IPM

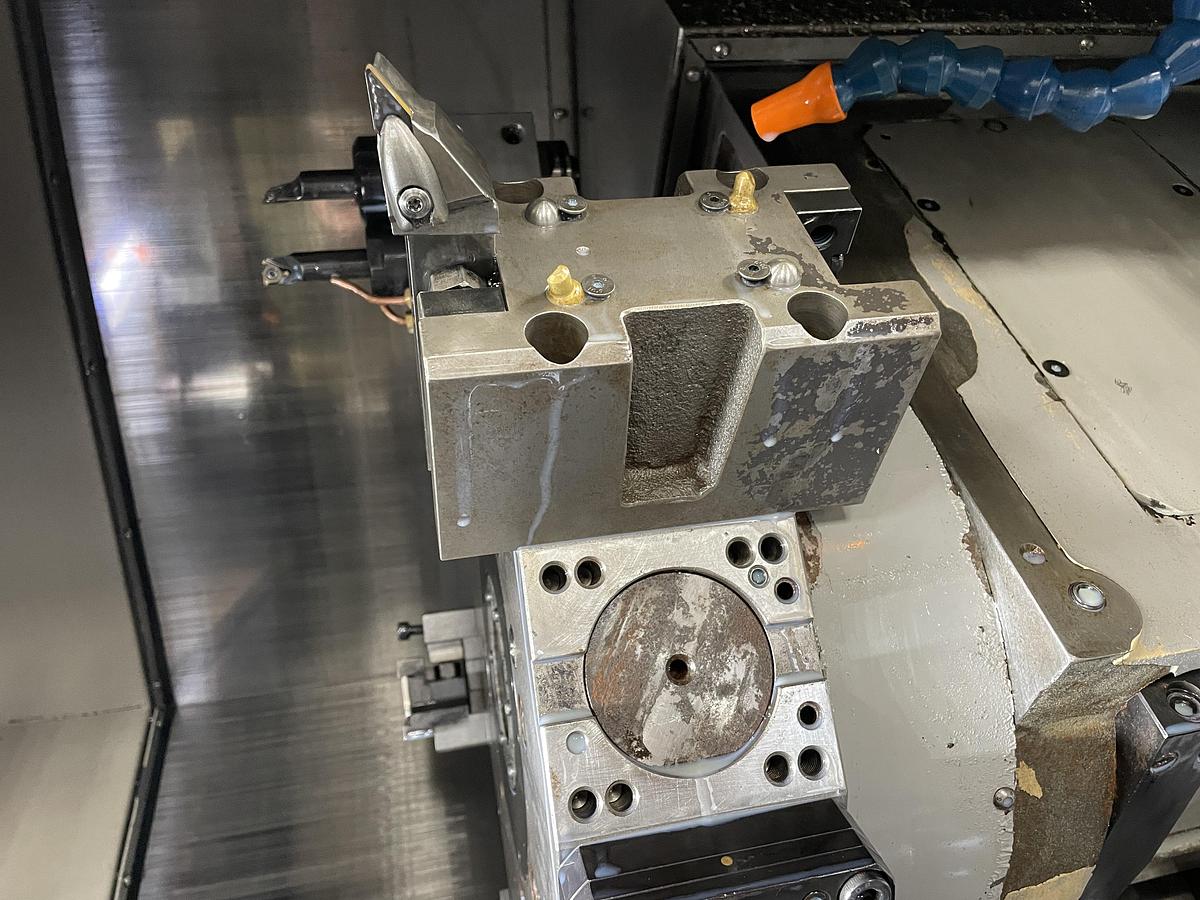

Turret Tools: 12 Station

Rapid Rate X Axis: 945 IPM

Max Turning Dia: 11″

Max Turning Length: 14.96″

Dimensions: 97.24″ x 72.83″ x 75.98″

Weight: 13,000 LBS

EQUIPPED WITH:

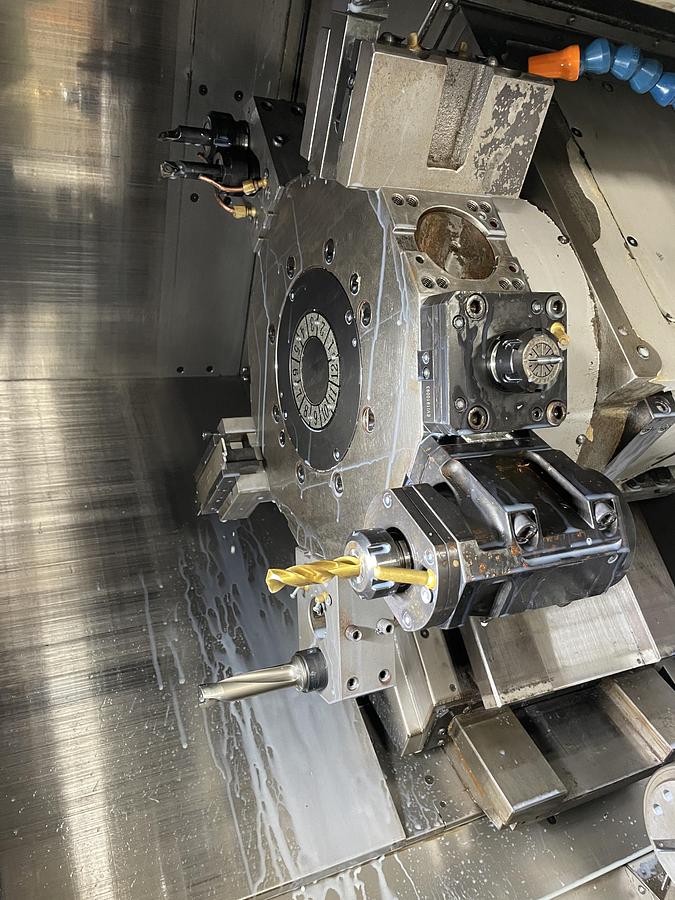

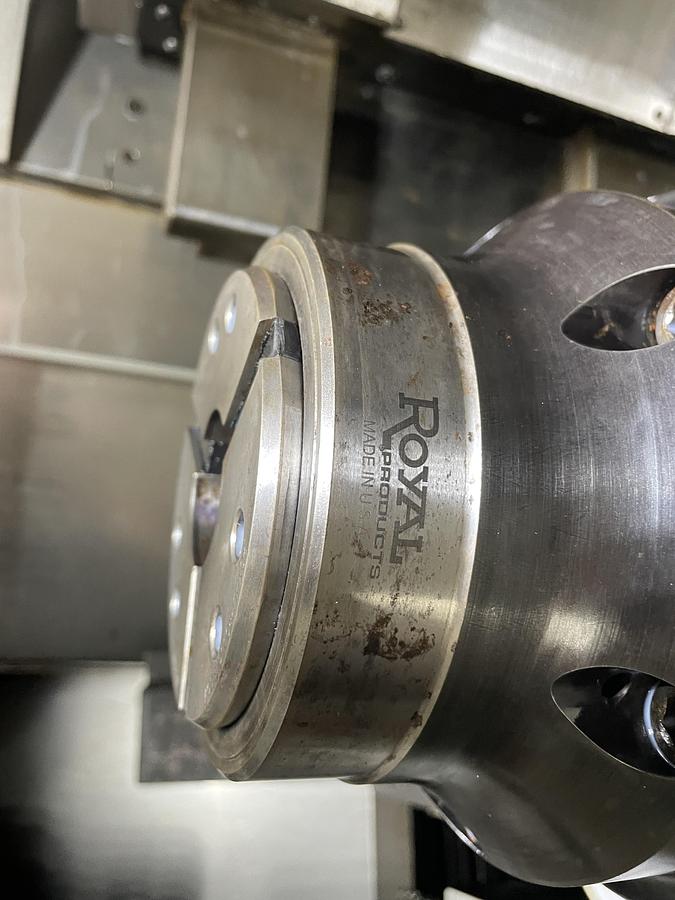

Live tooling: (1) axial milling and (1) radial milling attachments included

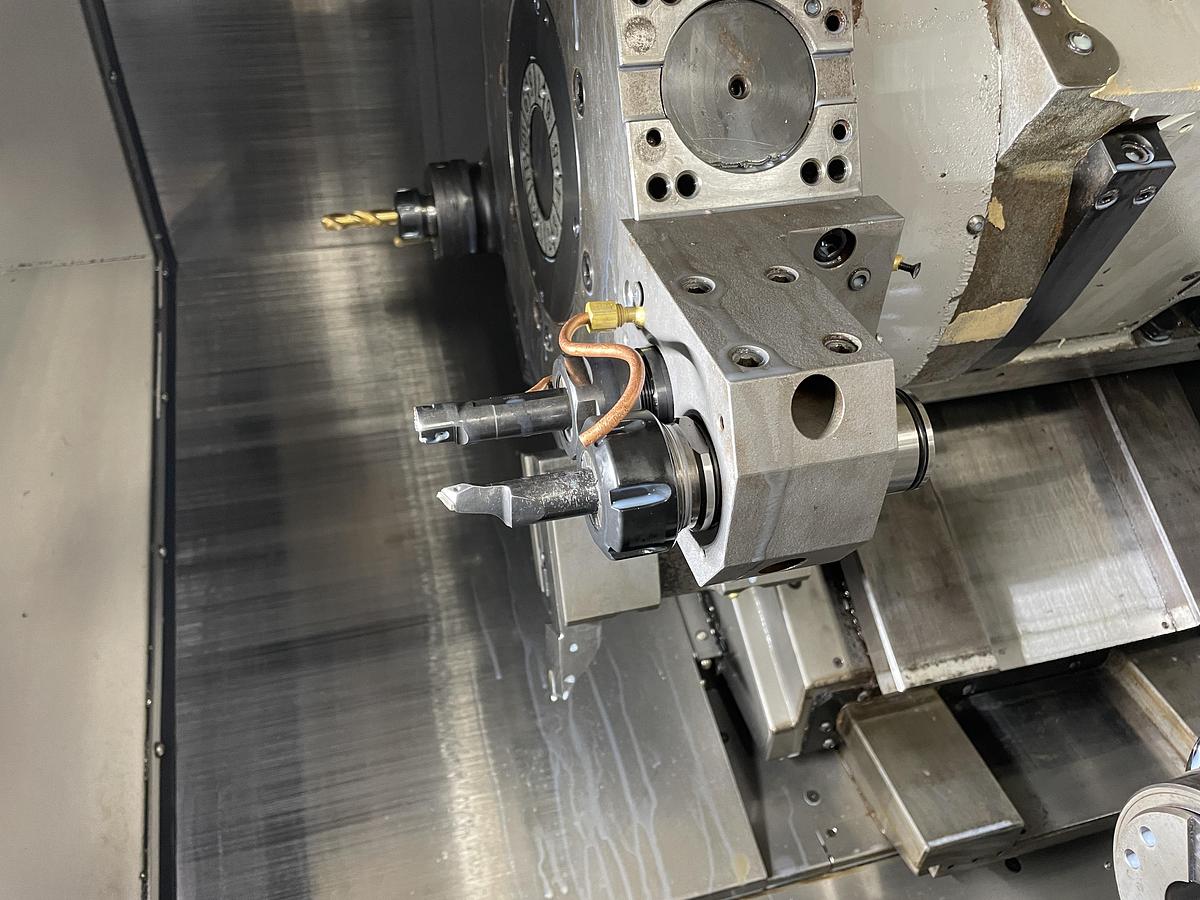

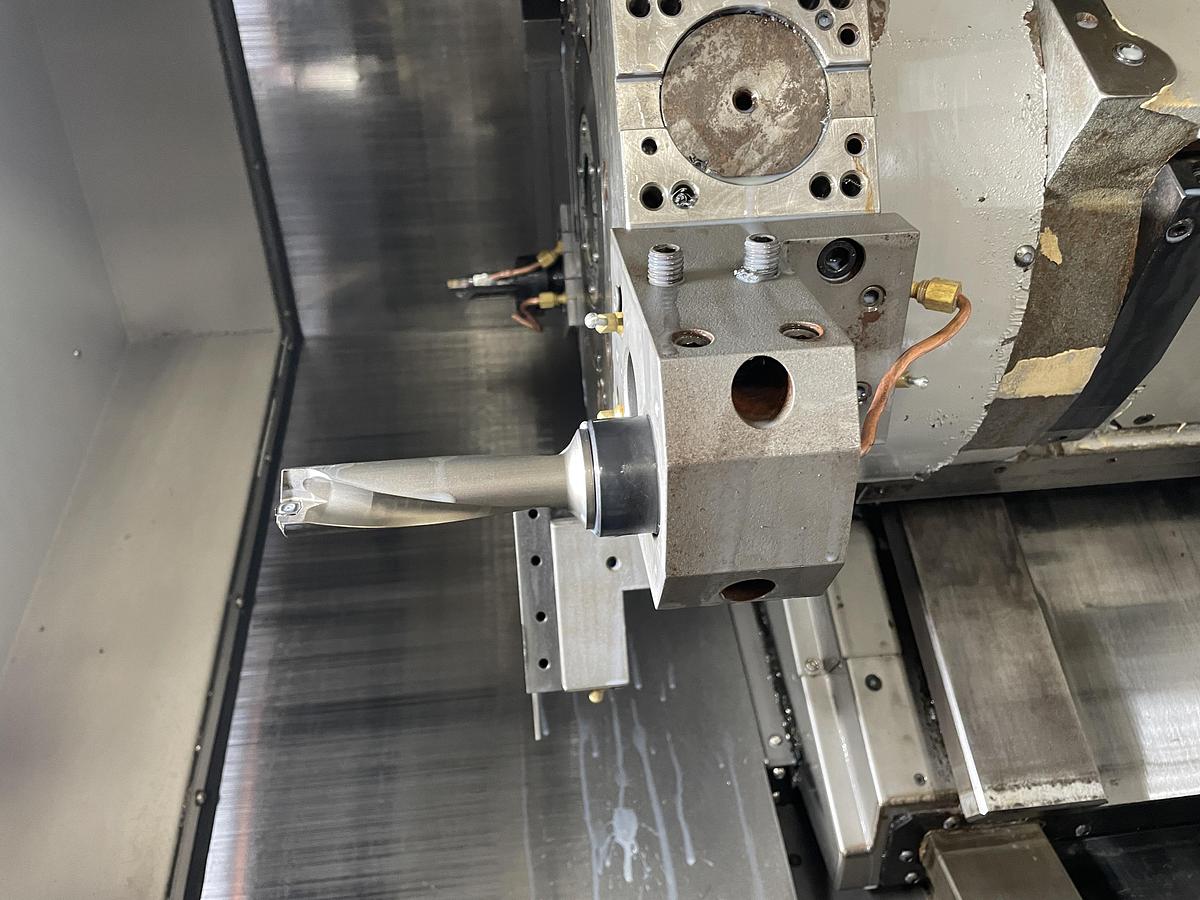

Static tooling: Complete tooling package included. OD Type-I OD Type-II ID Single Bore ID Double Bore

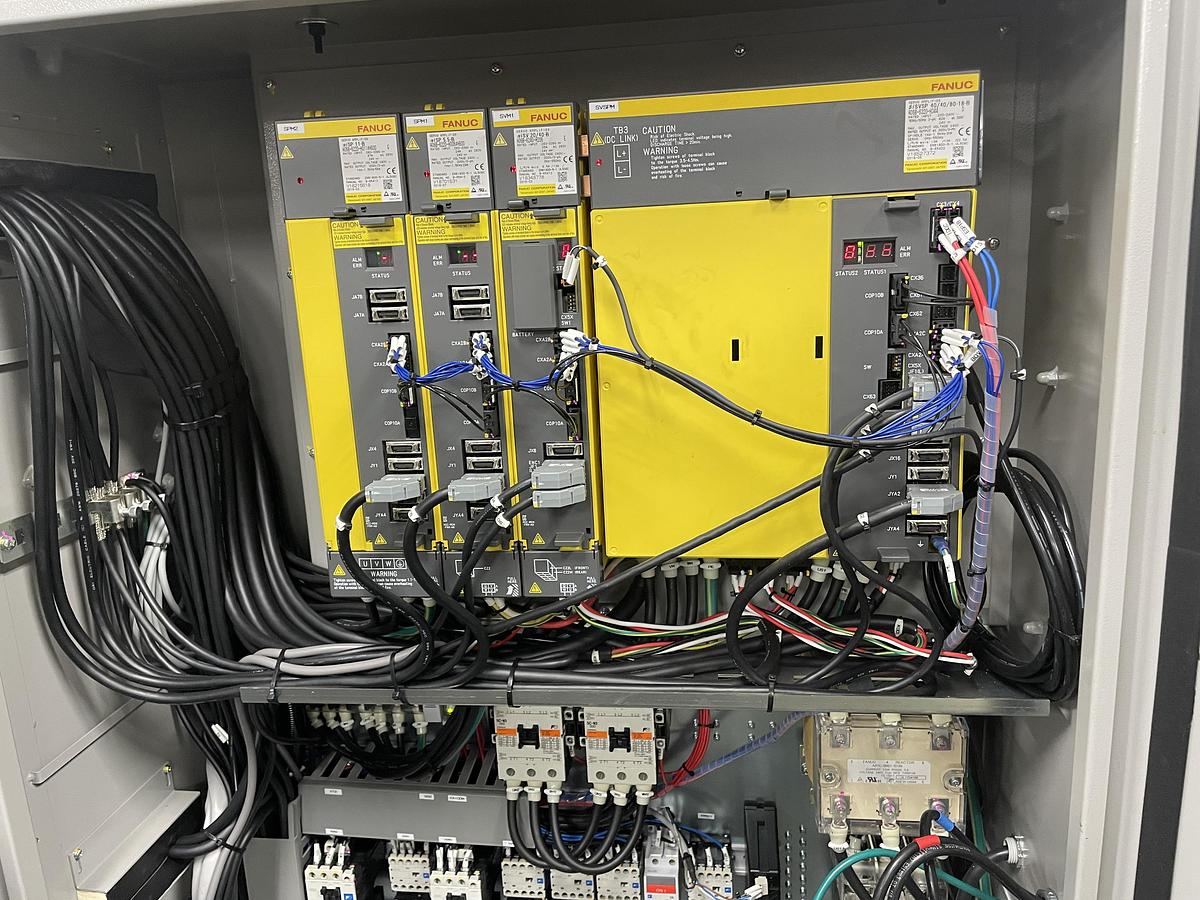

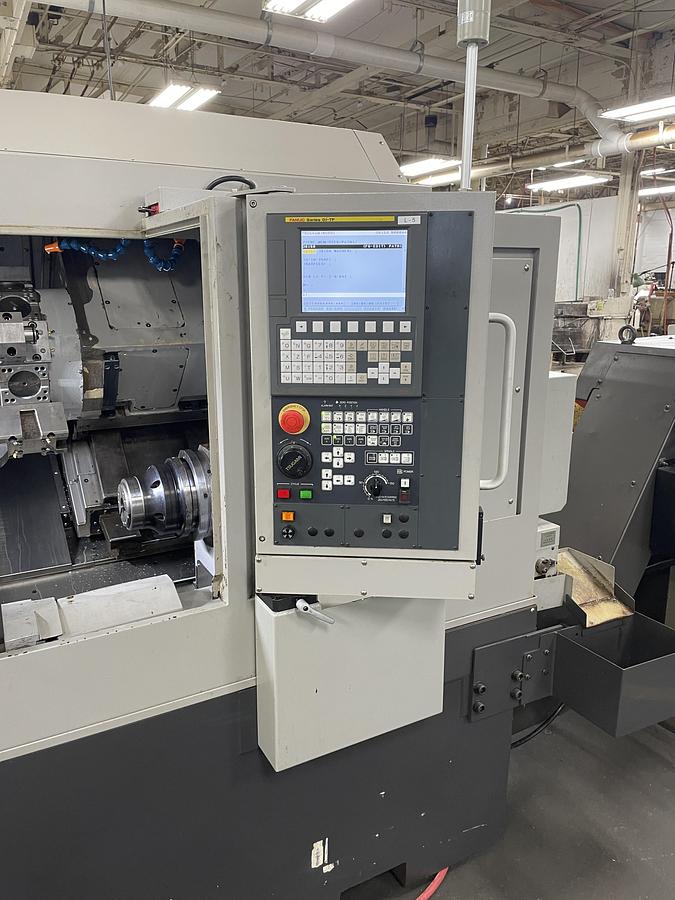

Fanuc 0i-TF

Chip Conveyor Included

Tool Presetter Included

Bar Feeder Included

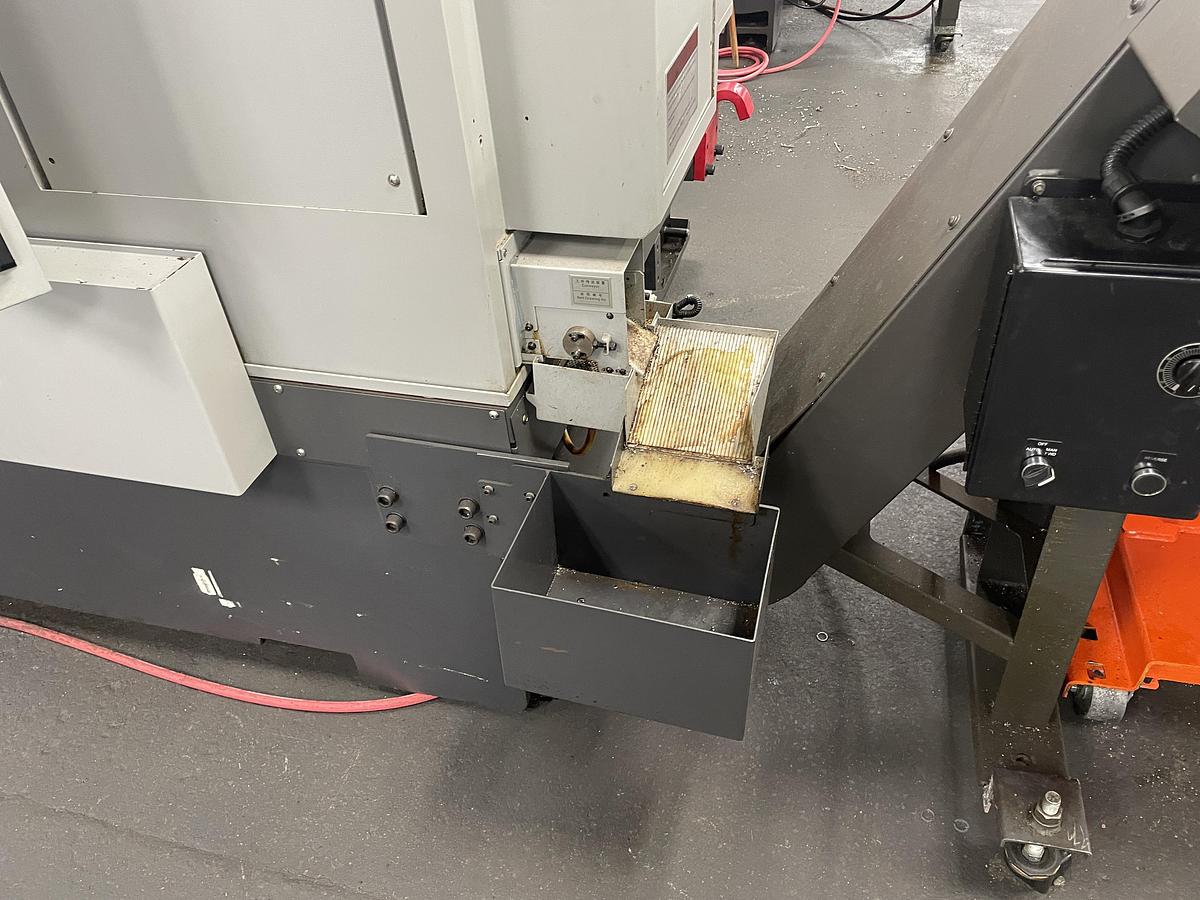

Parts Catcher Included

Live Tooling Included

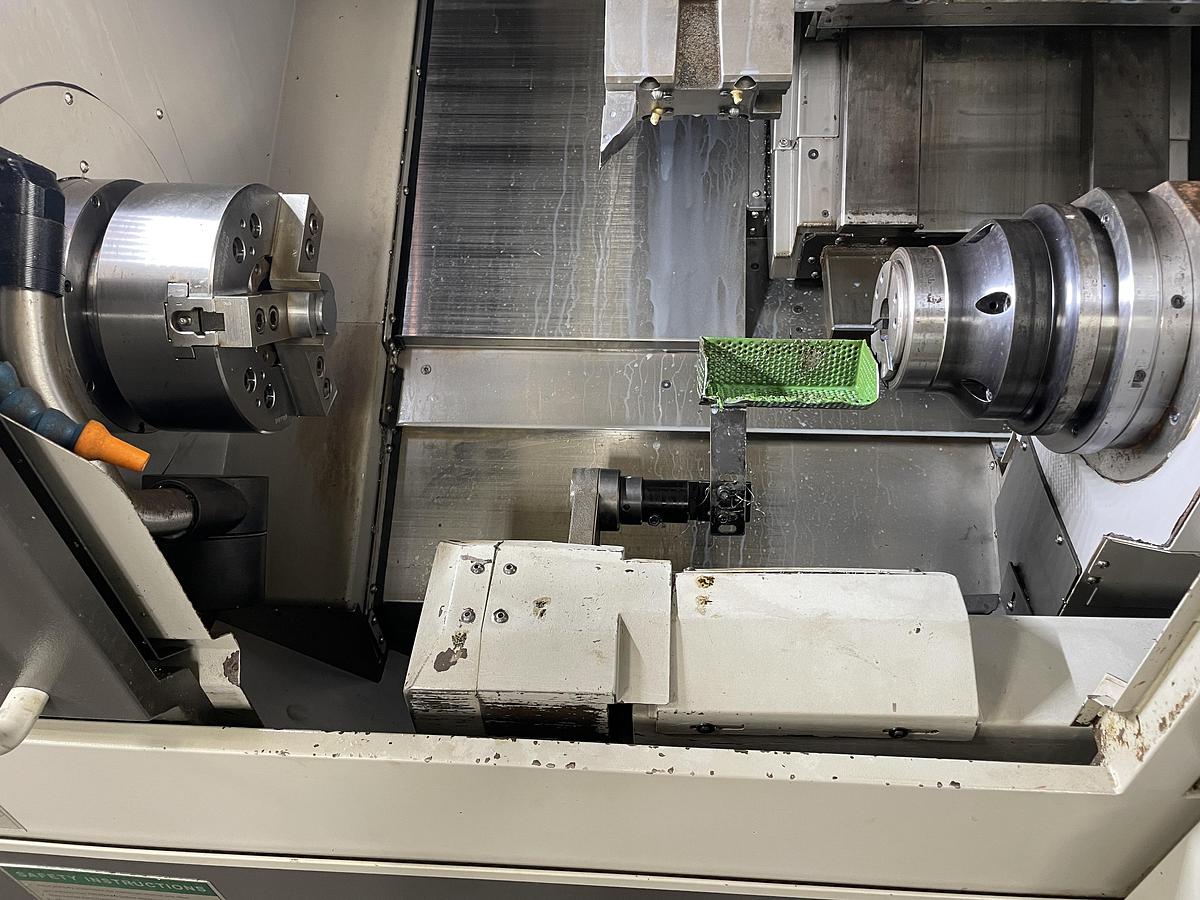

Sub Spindle Included

Y Axis Included

5 Axis Included

Included

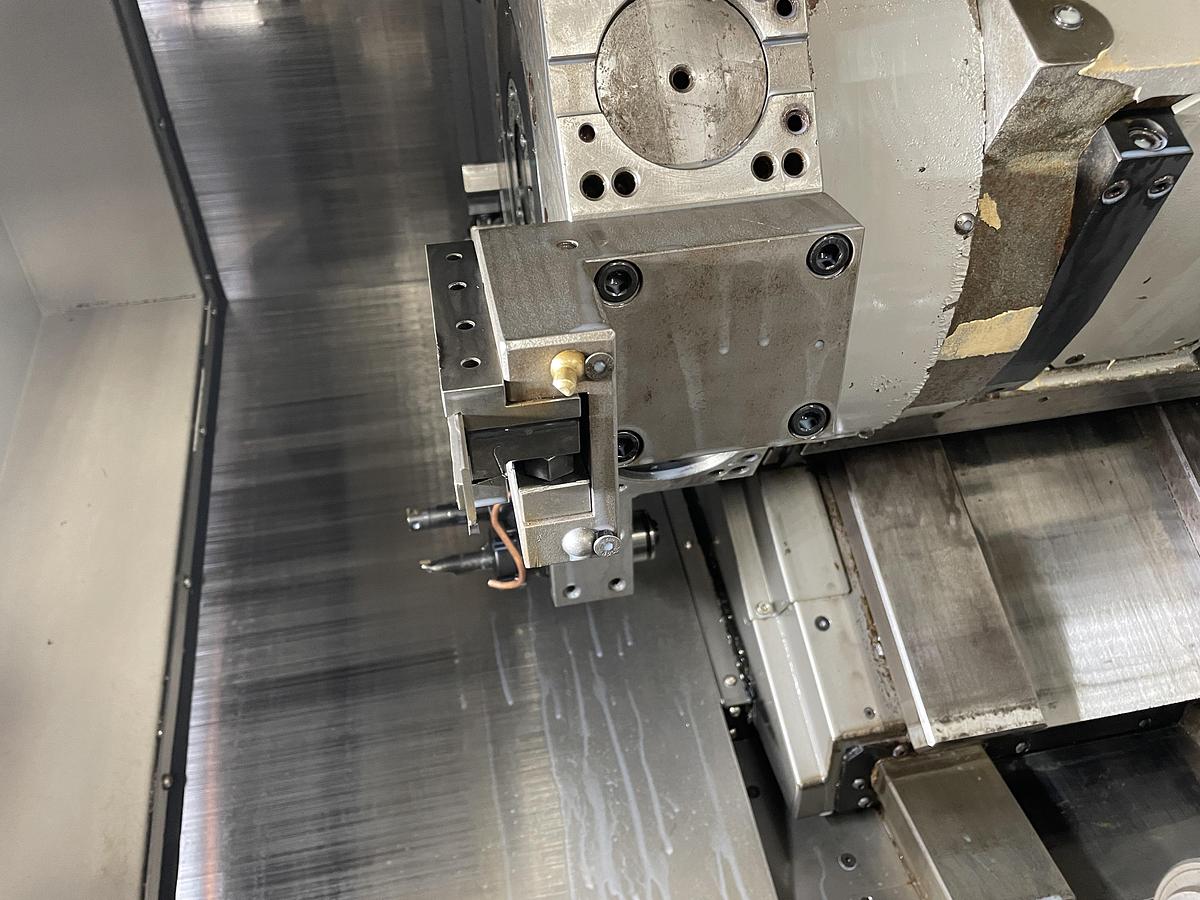

Tool Touch Setter Included
