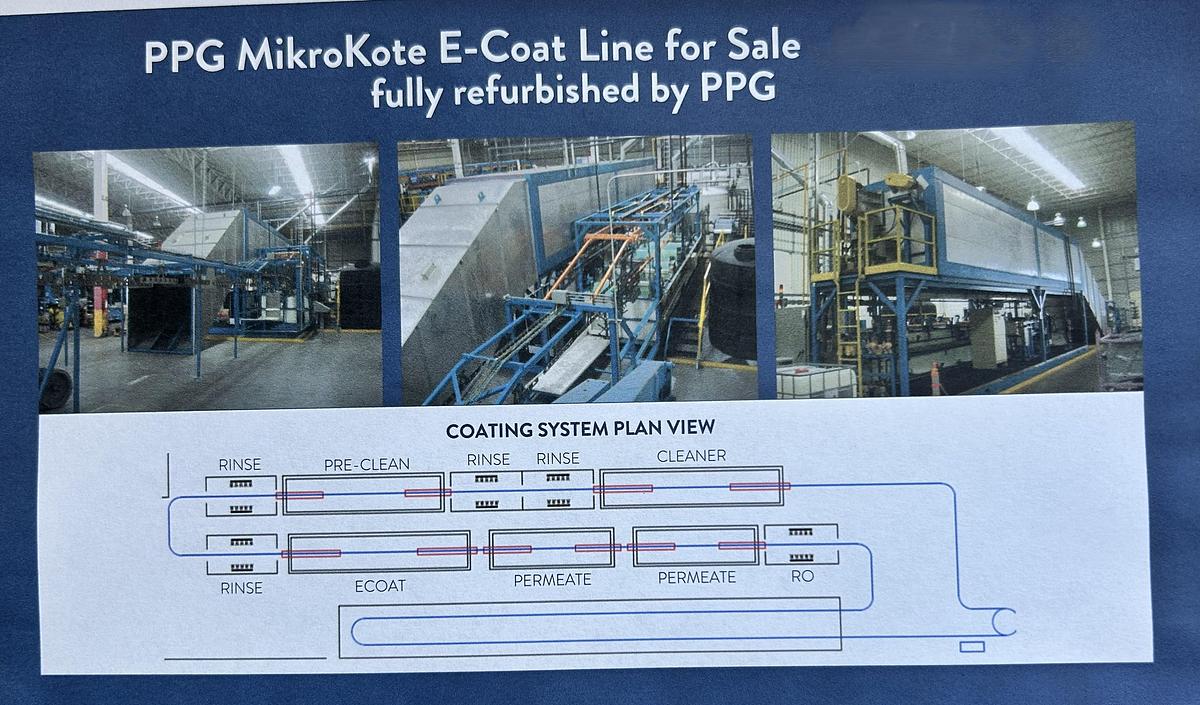

9-Stage PPG MikroKote Overhead Monorail Indexing Ecoat Line

9-Stage PPG MikroKote Overhead Monorail Indexing Ecoat Line

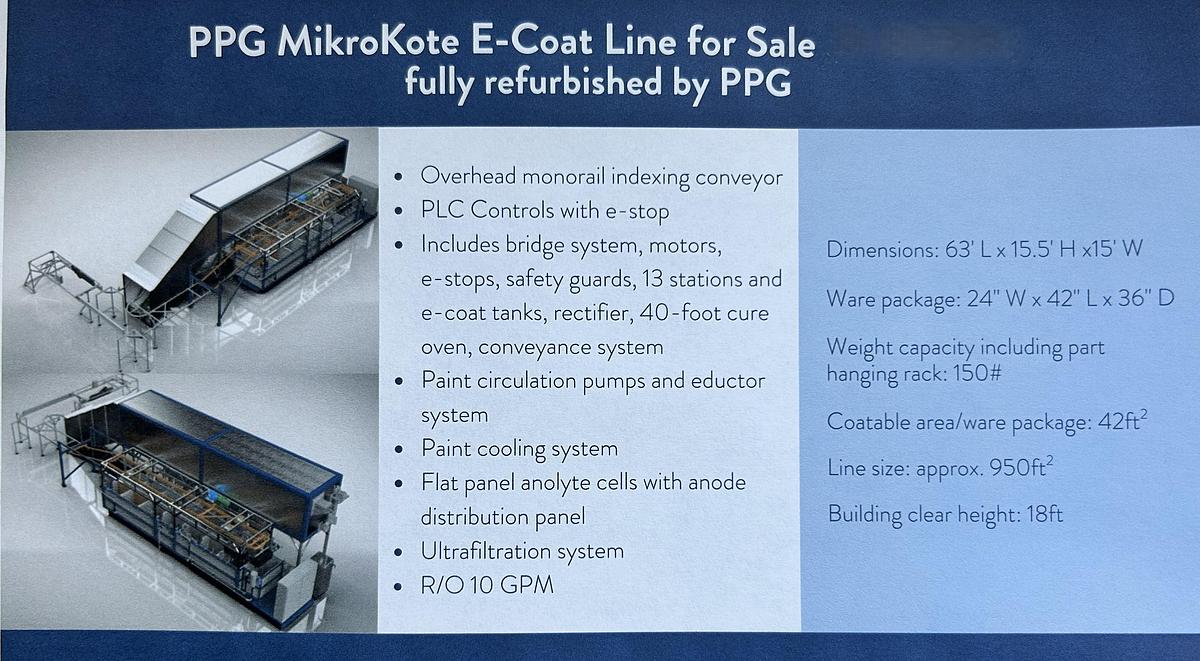

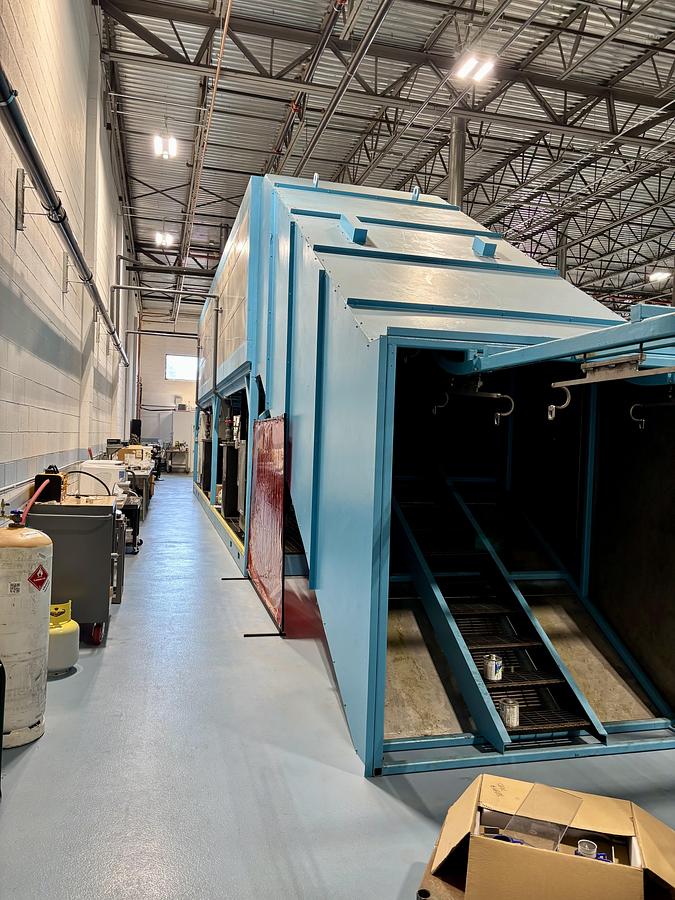

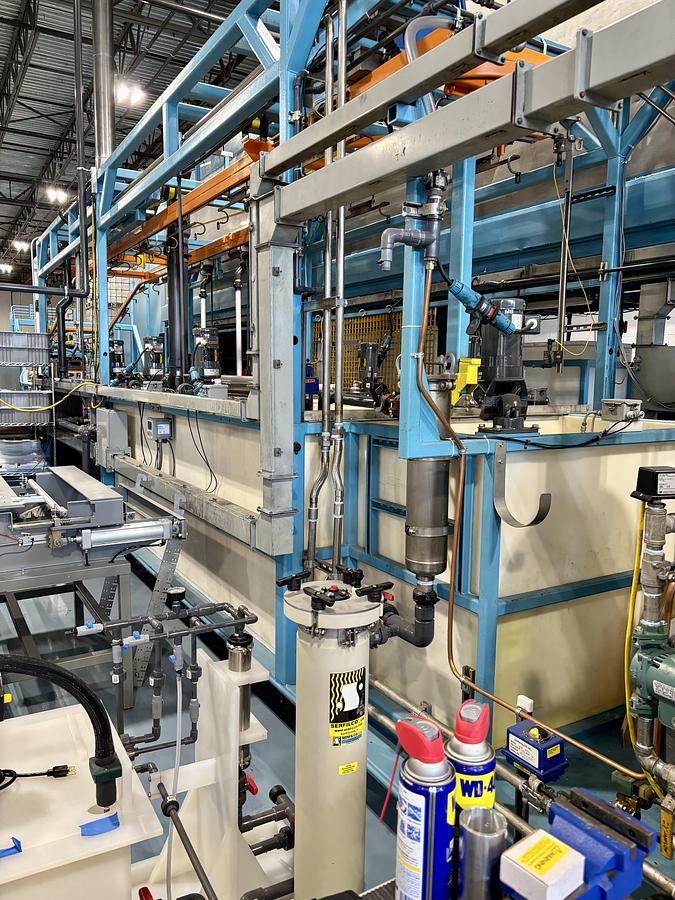

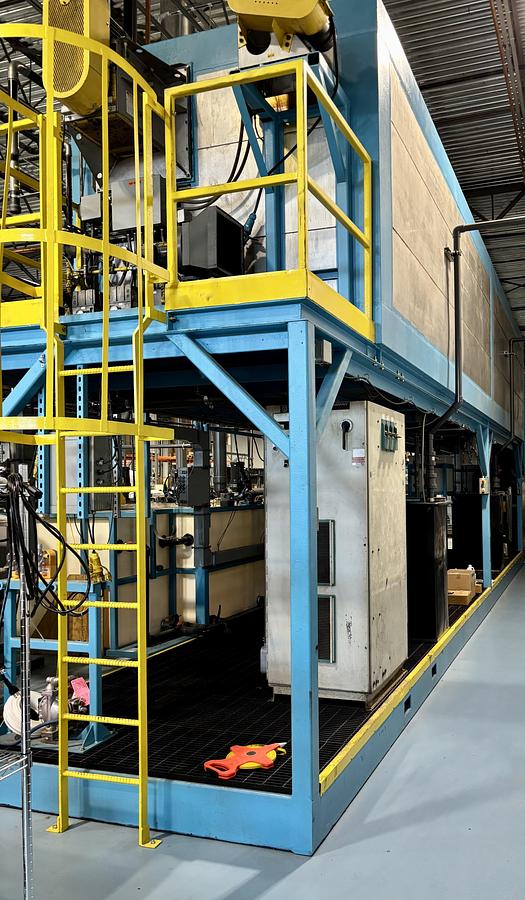

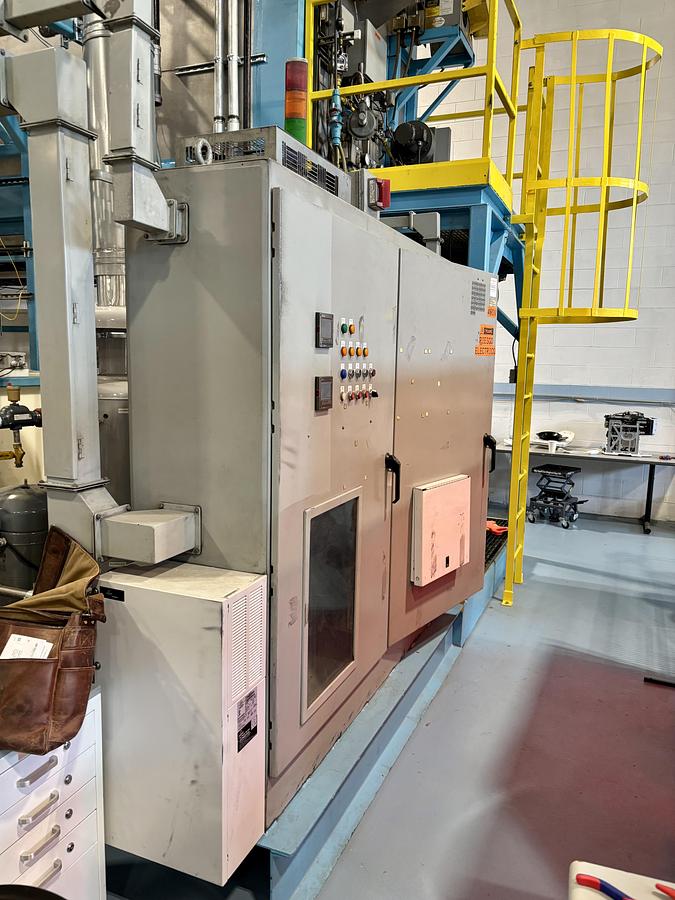

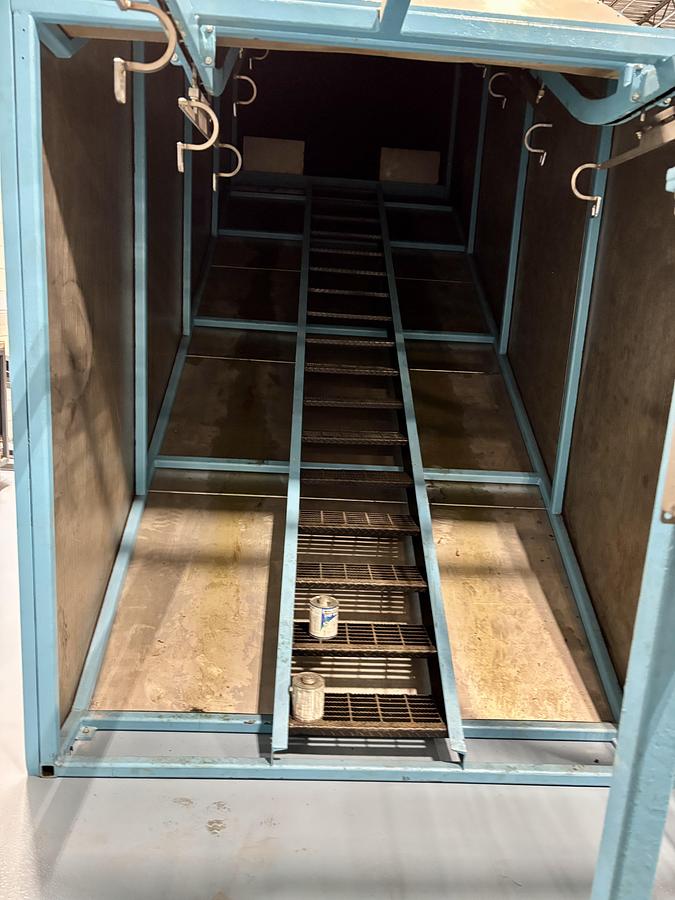

Includes: 9-Stage zirconium Pre-treatment & E-Coat Tanks, Rectifer, Cure Oven, Conveyor Bridge System, Motors, E-Stops, Safety Guards

2:30-3:00 Minute Dwell Time Per Tank

Part Window: 36" H x 36" L x 18" W

Each Load Bar has 120 Part Capacity

Weight Capacity Per Rack: 150 Lbs.

Up To 42 SF Coated per rack

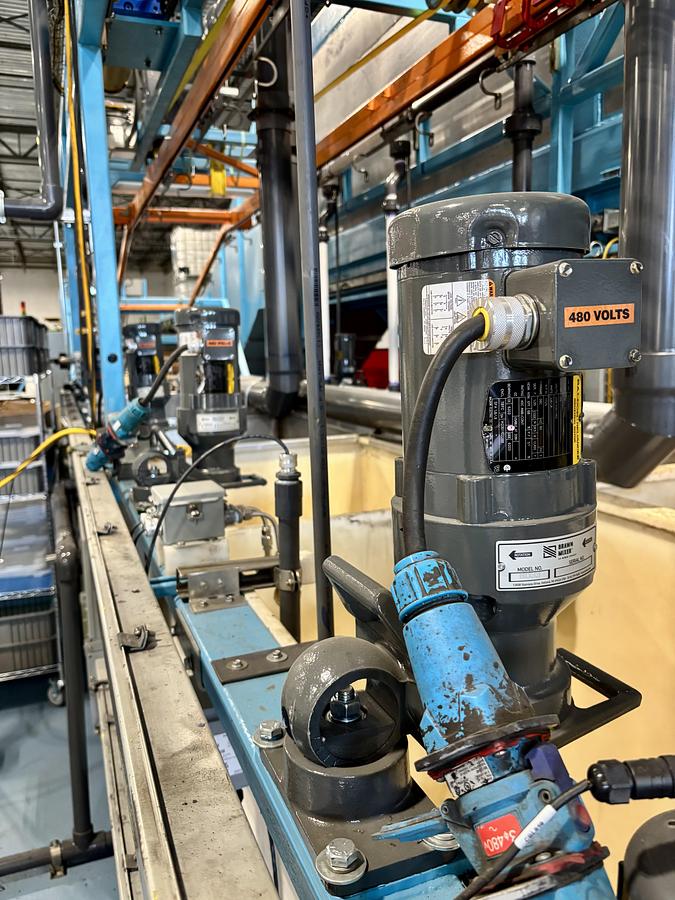

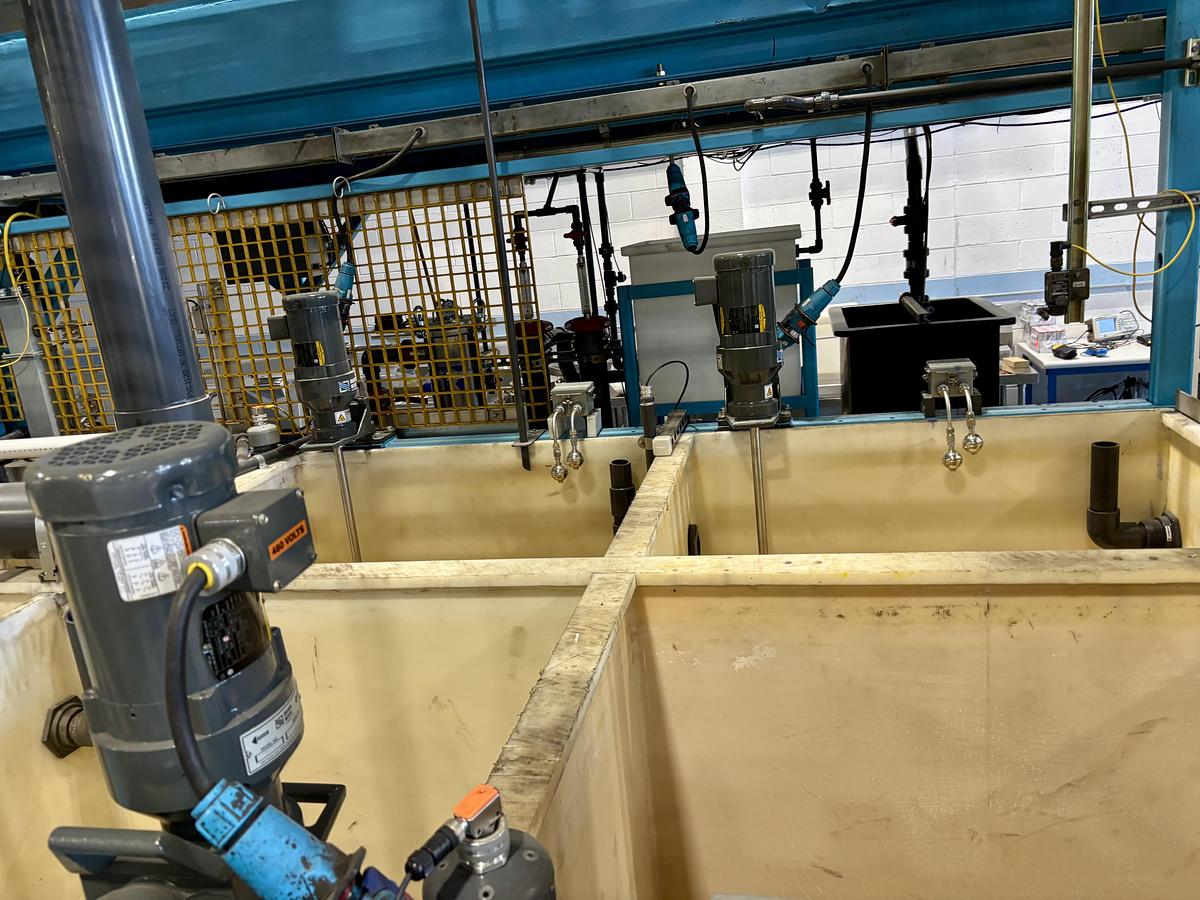

Paint Circulation Pumps & Educator System

Paint Cooling System

Flat Panel Anolyte Cells with Anode Distribution Panel

Ultrafiltration System

Include the Following Support Equipment:

Heat Exchanger/Chiller System

Wastewater Treatment System

RO Water Generation

Line Space Approx. 950 ft2

Line Max. Height Required: 18' - Line Dimensions: 63' L x 15.5' H x 15' W

Drawings & Additional Information Available Upon Request
