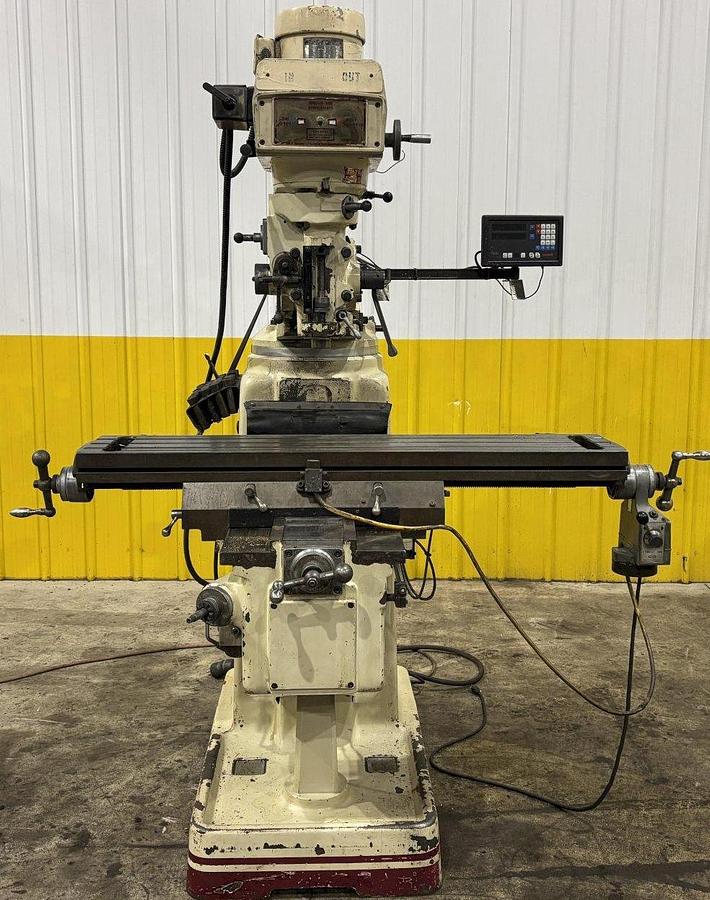

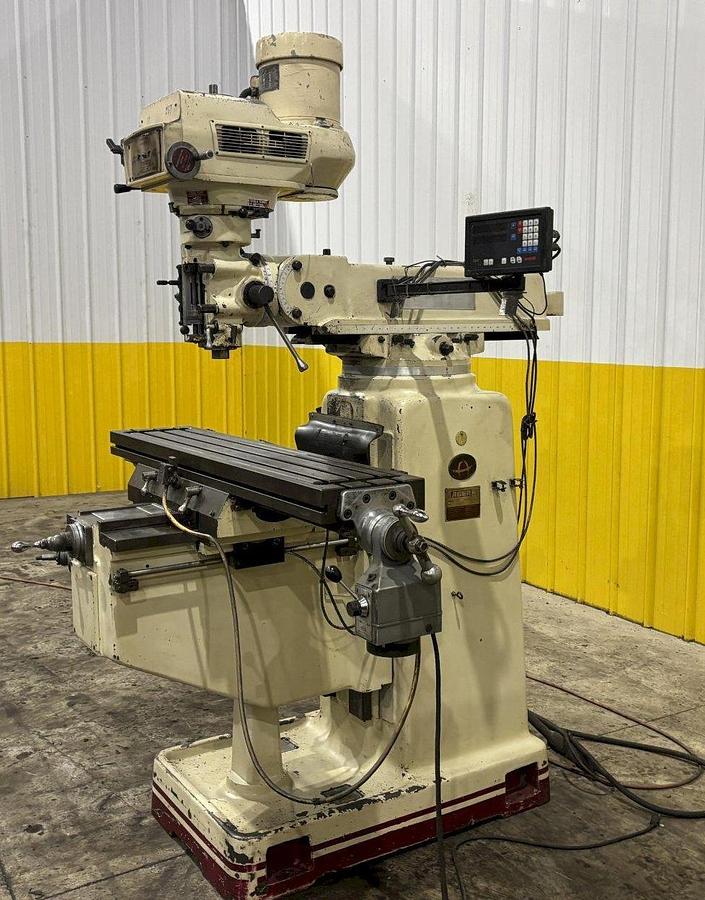

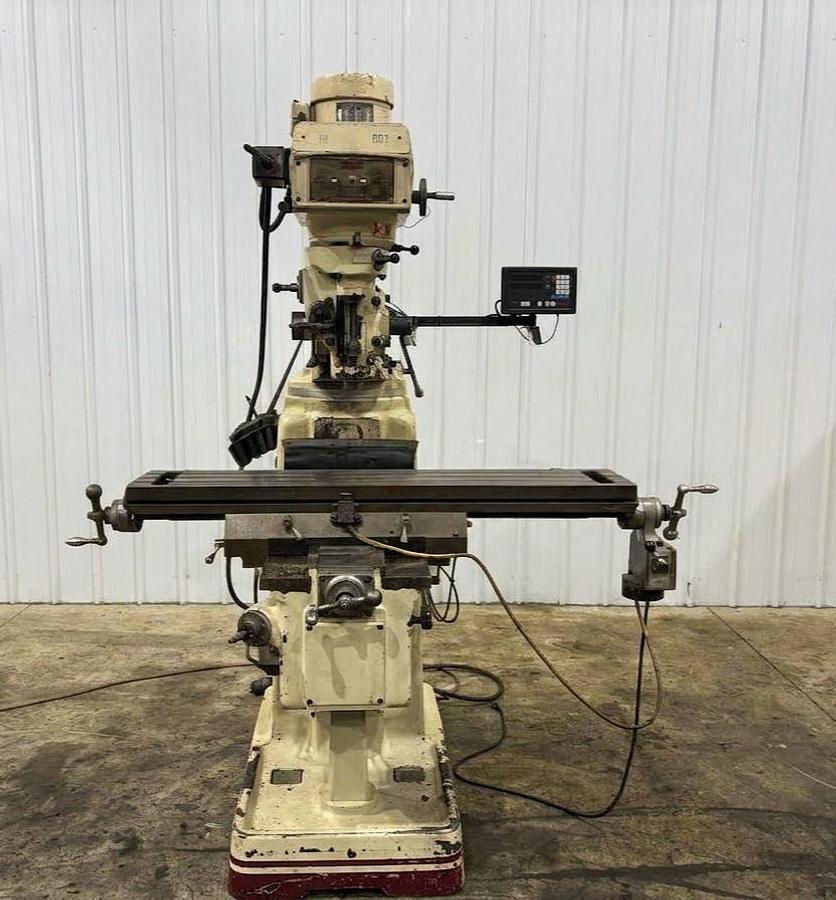

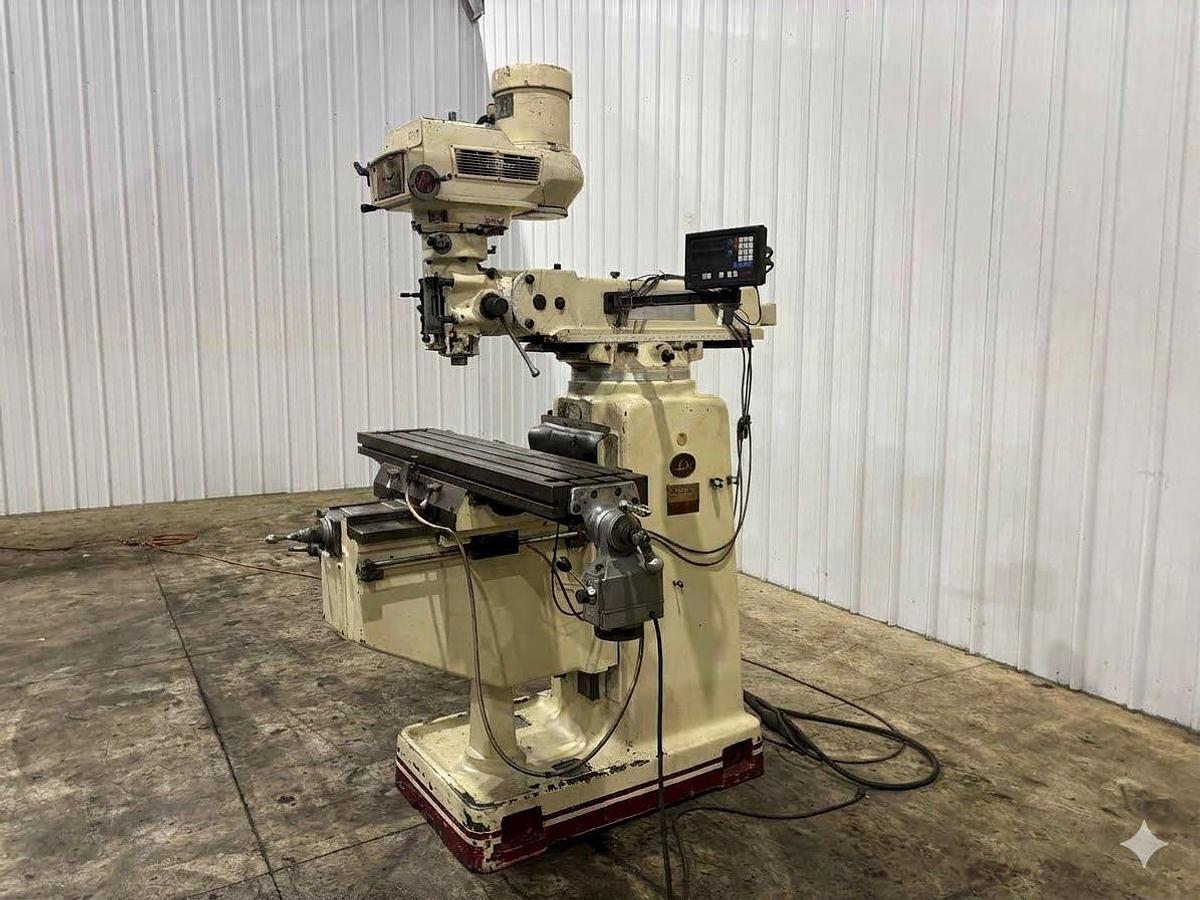

3 HP ACER MODEL #3VKH RAM TYPE VERTICAL MILL W/ DIGITAL READ OUT

3 HP ACER MODEL #3VK3-HP RAM TYPE VERTICAL MILL WITH DIGITAL READ OUT

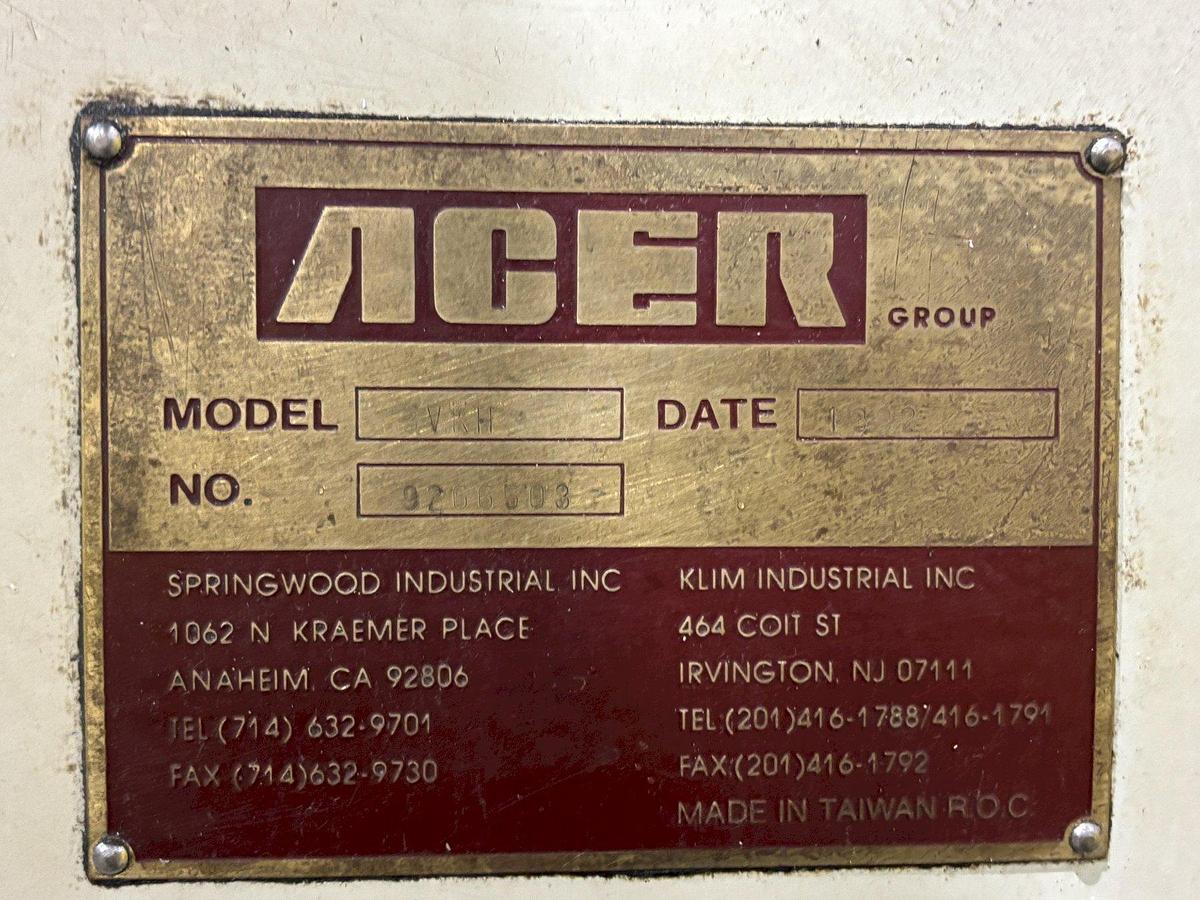

MODEL: 3VKH

TABLE AREA (T-SLOTTED): 50" X 10"

LONGITUDINAL TABLE TRAVEL: 34"

CROSS TABLE TRAVEL: 16"

VERTICAL TABLE TRAVEL: 16"

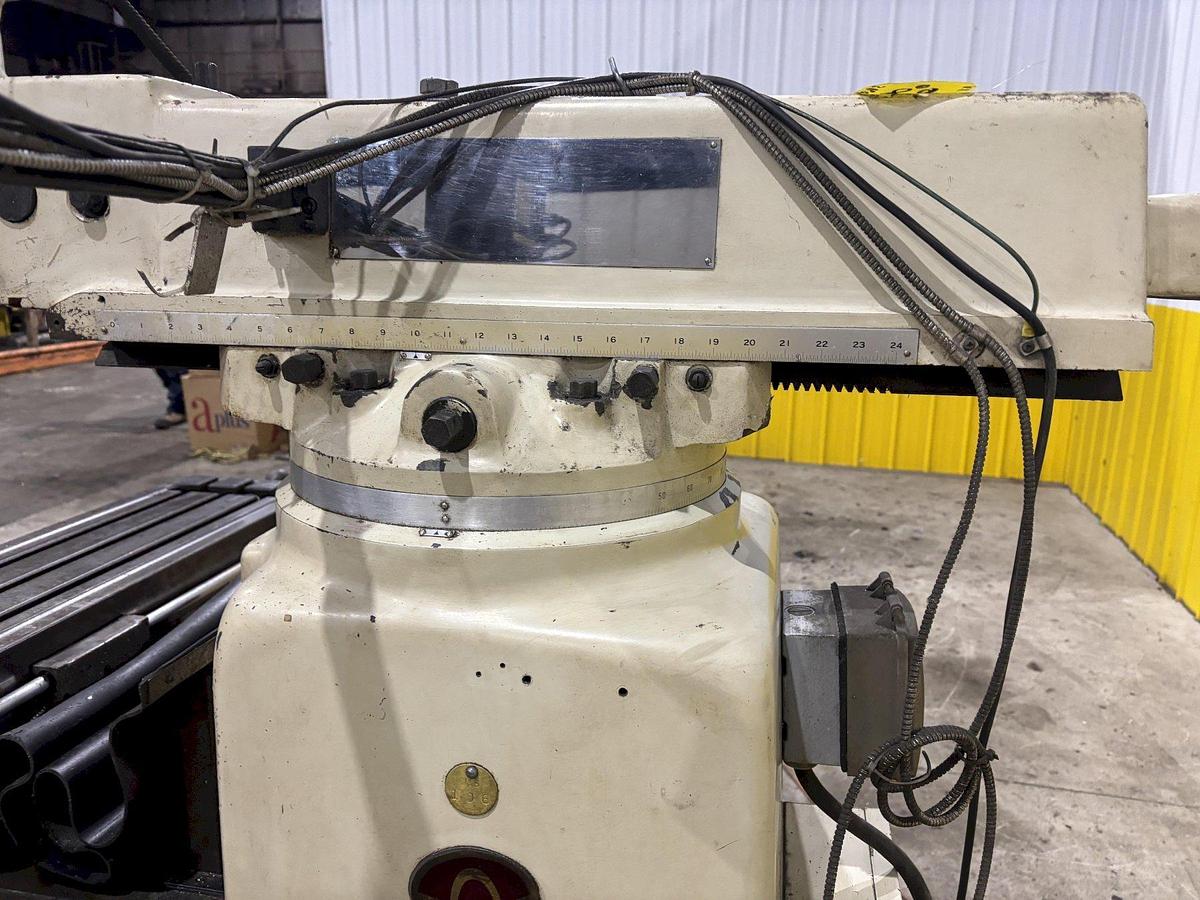

RAM TRAVEL: 20"

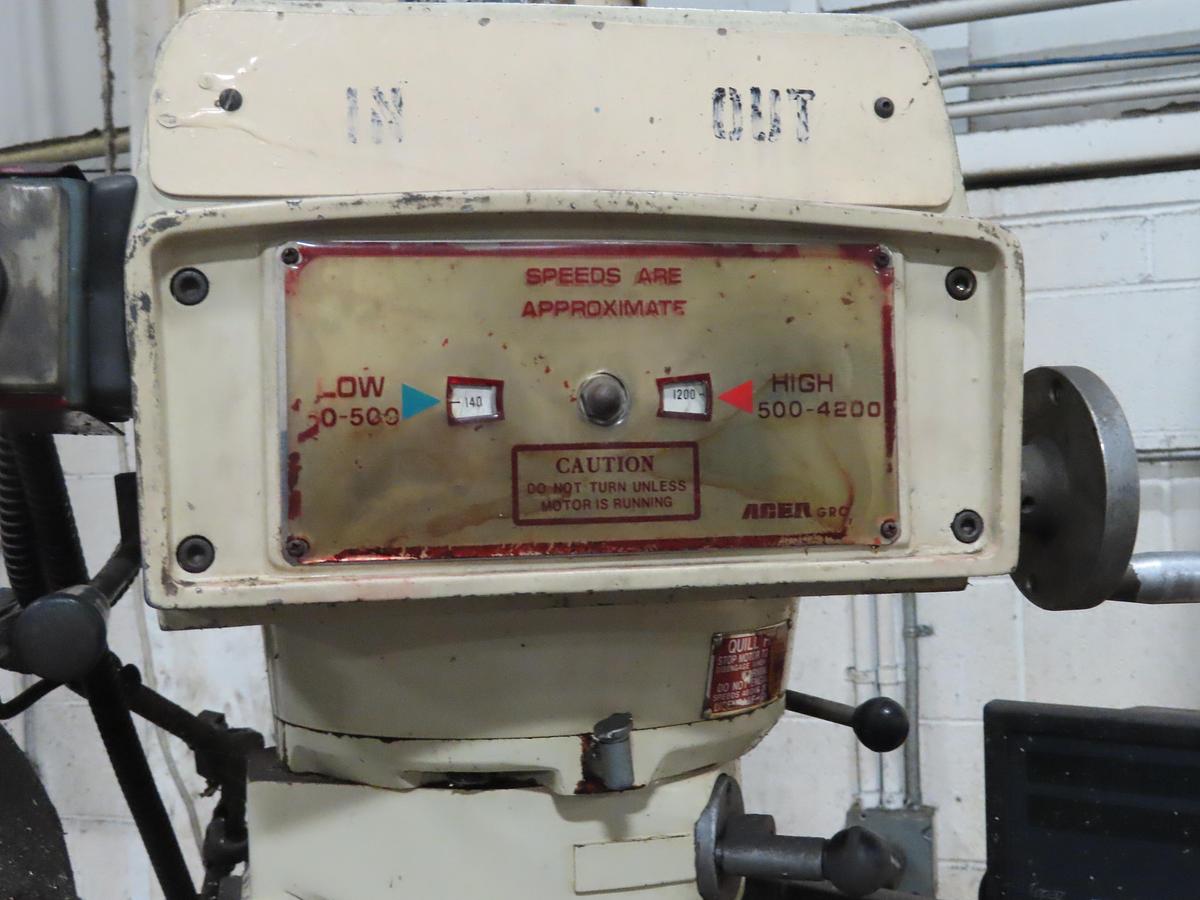

SPINDLE SPEEDS (VARIABLE): 60 TO 4200 RPM

SPINDLE TAPER: R-8

SPINDLE FEEDS: .OO15, .003, .006 IPR

QUILL DIAMETER: 3-3/8"

QUILL STROKE: 5"

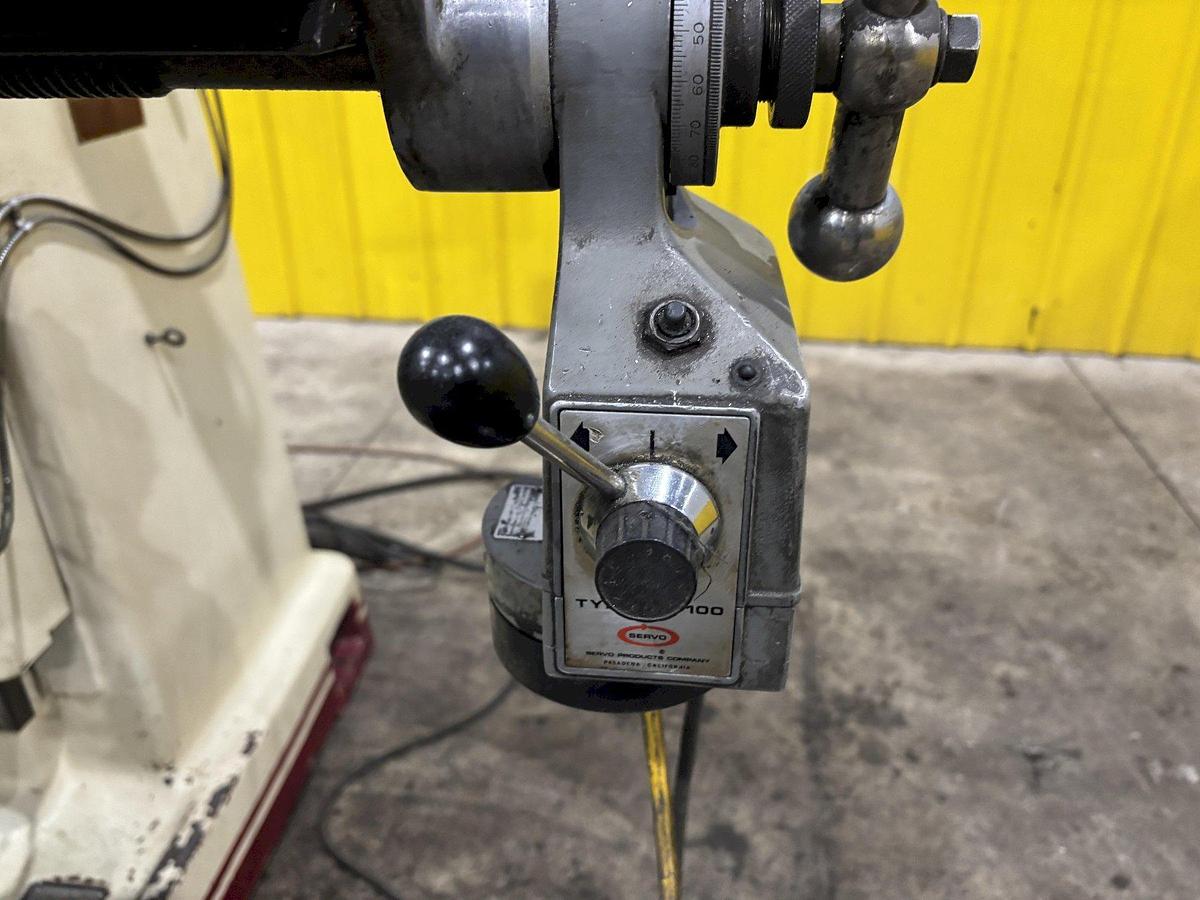

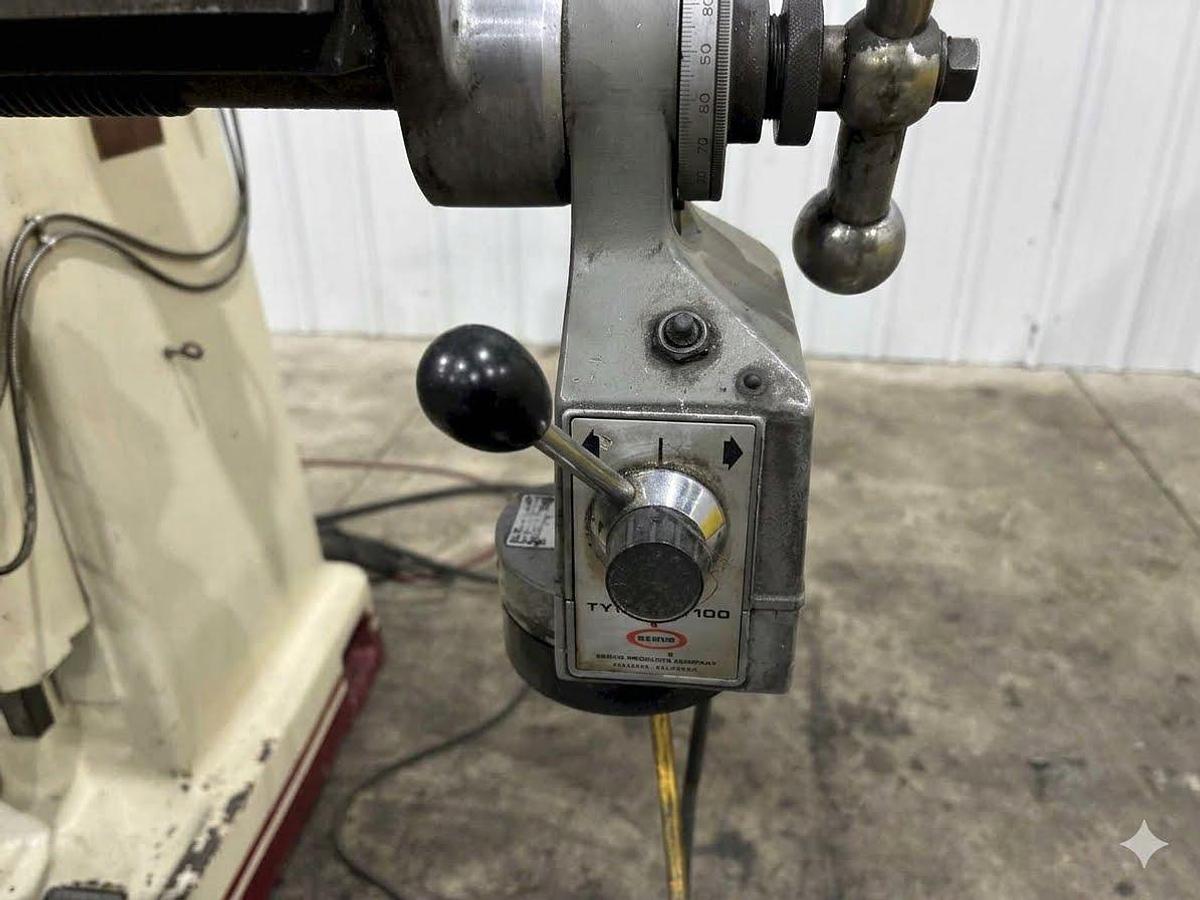

LONGITUDINAL SERVO TABLE FEED: YES

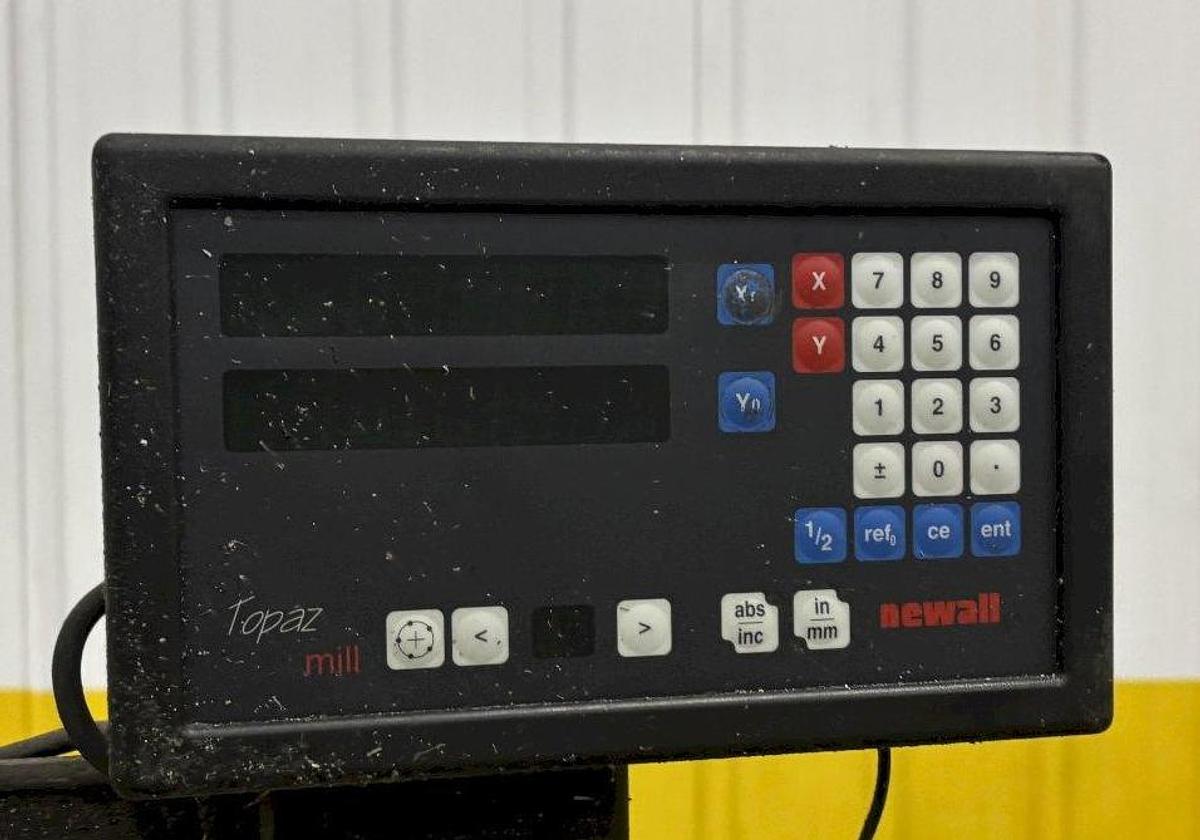

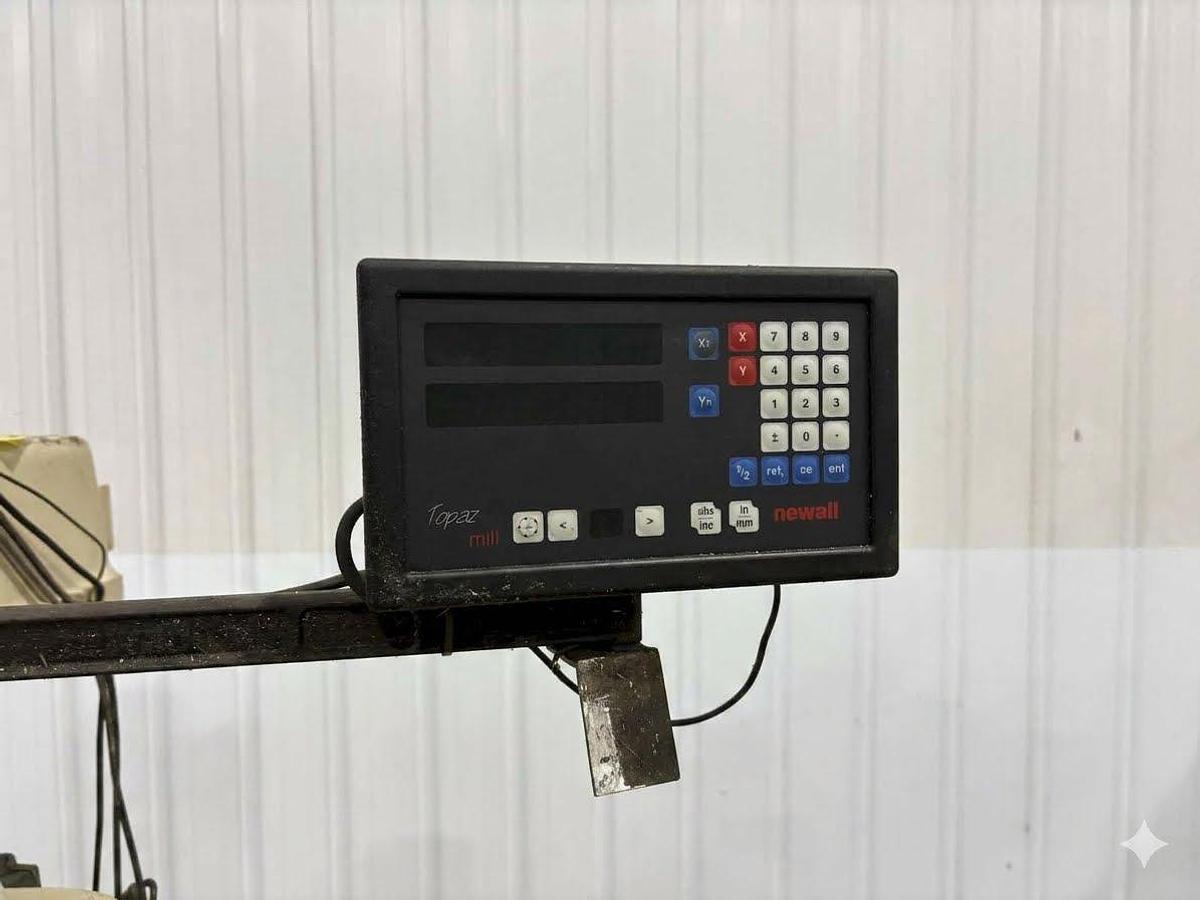

2 AXIS DIGITAL READOUTS: NEWALL TOPAZ

1 SHOT LUBE: YES

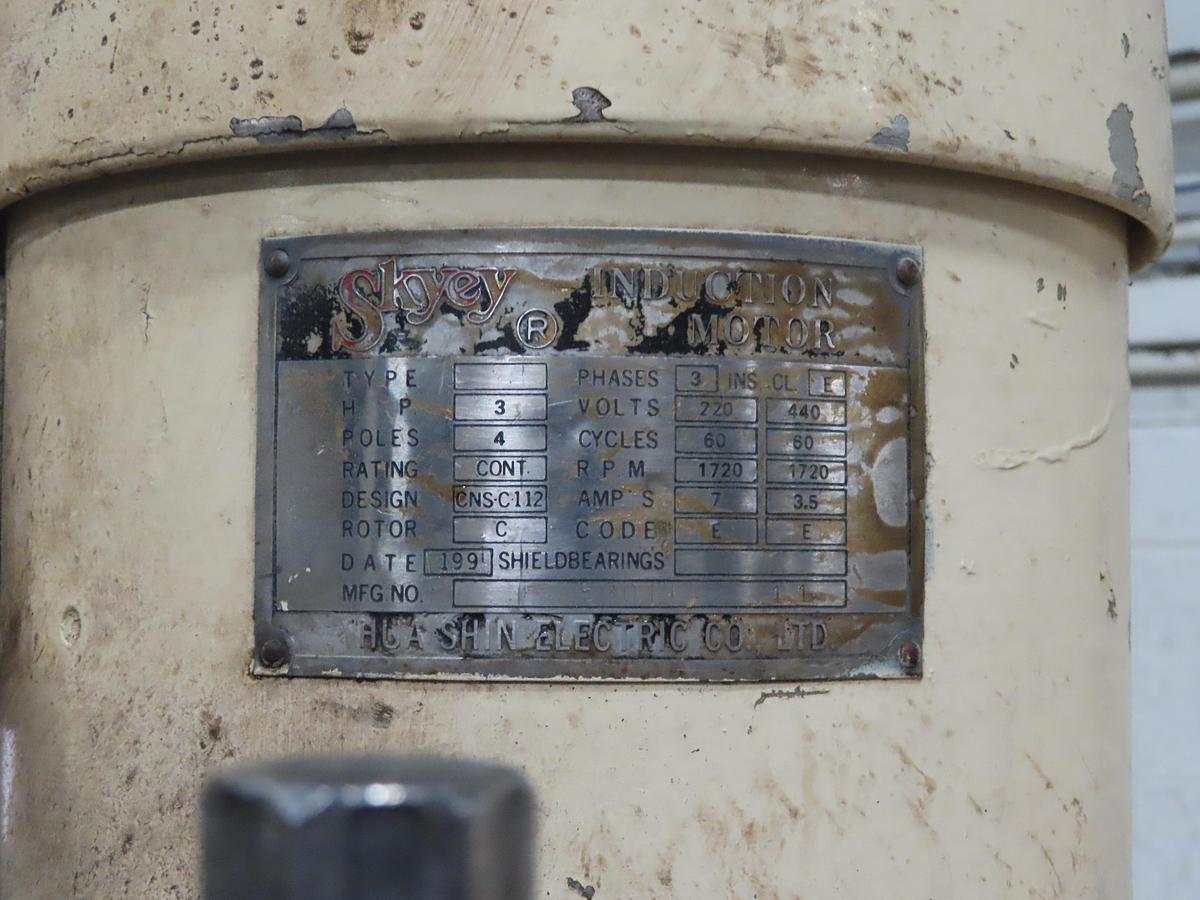

MOTOR: 3 HORSEPOWER
