18-Stage TTX SlideRail Square Transfer, Indexing Type E-Coat Line (2019)

18-Stage TTX SlideRail Square Transfer E-Coat Line

Mfg: TTX

Model: Square Rail Square Transfer

YOM: 2018

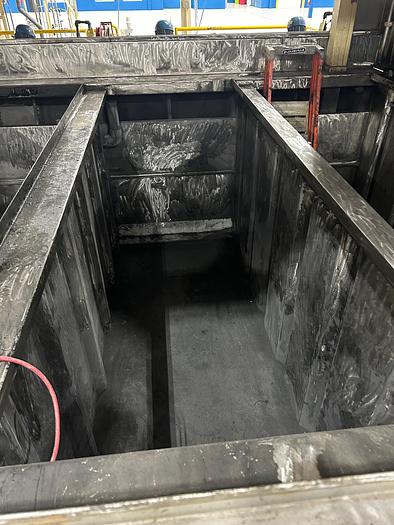

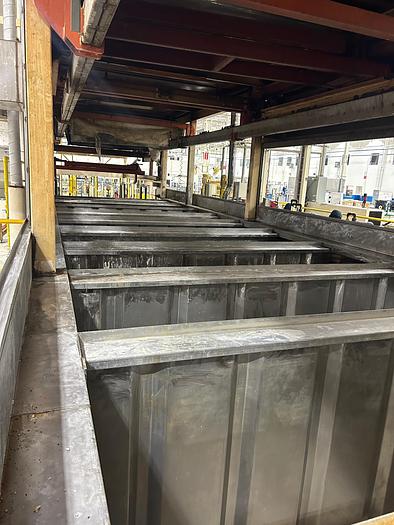

Stages: (Tank Size: 4'-0" W x 5'0" Deep x 11'-0" L)

1st Stage: Alkaline Spray Cleaner - 140* - 740 Gallon (SS304) Tank

2nd Stage: Alkaline Immersion - Cleaner - 140* - 1840 Gallon (SS304) Tank

3rd Stage: Alkaline Immersion - Cleaner - 140* - 1780 Gallon (SS304) Tank

4th Stage: RO Rinse Immersion -- 1630 Gallon (SS304) Tank

5th Stage: RO Rinse Immersion -- 1630 Gallon (SS304) Tank

6th Stage: Acid Clean Immersion -- 1670 Gallon (SS316) Tank

7th Stage: Neutral Rinse Immersion -- 1700 Gallon (SS316) Tank

8th Stage: RO Rinse Immersion -- 1730 Gallon (SS304) Tank

9th Stage: Conditioner Rinse Immersion - 1670 Gallon (SS304) Tank

10th Stage: Zinc Phosphate Immersion - 1670 Gallon (SS304) Tank

11th Stage: RO Rinse Immersion -- 1700 Gallon (SS304) Tank

12th Stage: NC Seal Rinse Immersion - 1700 Gallon (SS304) Tank

13th Stage: Polished RO Rinse Immersion - 1730 Gallon (SS304) Tank

14th Stage: Polished RO Rinse Immersion - 1680 Gallon (SS304) Tank

15th Stage: E-Coat - 2000 Gallon (SS304) Tank

16th Stage: Permeate Immersion - 1670 Gallon (SS304) Tank

17th Stage: Permeate Immersion - 1770 Gallon (SS304) Tank

18th Stage: Permeate Immersion - 1800 Gallon (SS304) Tank

Equipment Includes:

Cleaner Holding Tank 2253 Gallons, RO Pass 1 Holding Tank (2100 Gallons), RO Pass 2 Holding Tank (2100 Gallons), Iron Removal Rinse Water Storage Tank (1500 Gallons), Iron Removal Regen Waste Tank (3000 Gallons), Zinc Phosphate Holding Tank (2616 Gallons),

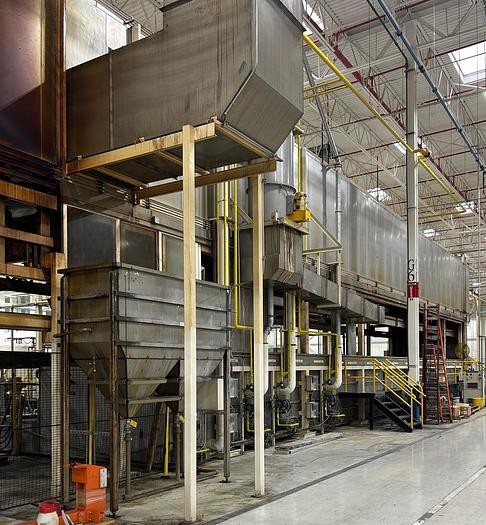

Clarifier, Zinc Filter Press, Carrier Chiller

Oven Information:

OVEN PANELS: 6" THICK CONSTRUCTION 6" THICK CONSTRUCTION

ACTIVE DEHYDRATION OVEN: 4 STAGES @ 3 MIN. EA. (12.0 MIN. TOTAL) 4 STAGES @ 3 MIN. EA. (12.0 MIN. TOTAL)

ACTIVE CURE OVEN.: 11 STAGES @ 3 MIN. EA. (33.0 MIN. TOTAL)

COOLING TUNNEL: 5 STAGES @ 3 MIN. EA. (15.0 MIN. TOTAL) 5 STAGES @ 3 MIN. EA. (15.0 MIN. TOTAL) DEHYDRATION OVEN BURNER: 1,00,000 BTU/HR (1,000,000 BTU/FT) 1,00,000 BTU/HR (1,000,000 BTU/FT)     0.5 HP 172 SCFM BLOWER 480/3/60 0.5 HP 172 SCFM BLOWER 480/3/60

CURE OVEN BURNER: 2.0 FT MAXON APX (1) 2.0 FT MAXON APX     2,00,000 BTU/HR (1,000,000 BTU/FT) 2,00,000 BTU/HR (1,000,000 BTU/FT)     1.0 HP 345 SCFM BLOWER 480/3/60 1.0 HP 345 SCFM BLOWER 480/3/60

OVEN TEMPERATURE: ZONE 1: 230 F NOMINAL/ 250 F MAX. ZONE 1: 230° F NOMINAL/ 250°F MAX.

 ZONE 2: 380° F NOMINAL/ 450°F MAXTOTAL OVEN VOLUME 10,103 CU. FT 10,103 CU. FT TOTAL

OVEN PURGE TIME 22 MIN. TIMER @ 1837 SCFM 22 MIN. TIMER @ 1837 SCFM  2894 ACFM @ 375 F 2894 ACFM @ 375°F

Auxillary Equipment: E-Coat Rectifier, Anodes (16 Tubural Anodes, Chiller (Carrier 16.1 Tons), Hydraulic Unit, Lights, Water Heater, Burners: (4) Maxon Tube-O-Therm Burners - Fans: Pre-Treat Exhaust Fan, Dehydration Oven Recirc Blower, Cure Oven Recirc Blower, Oven Exhaust Fan, Cooling Tunnel Exhaust Fan, Cooling Tunnel Supply Fan

ALL SPECIFICATIONS SUBJECT TO BUYER VERIFICATION

ADDITIONAL INFORMATION AVAILABLE UPON REQUEST
