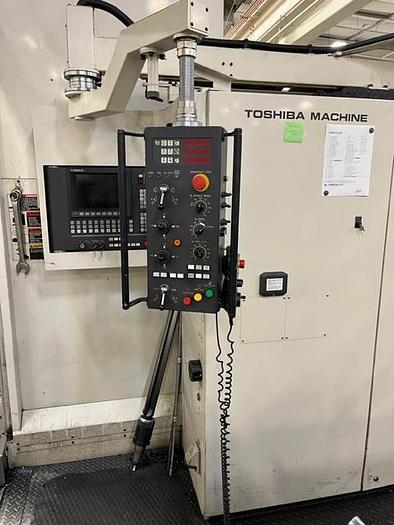

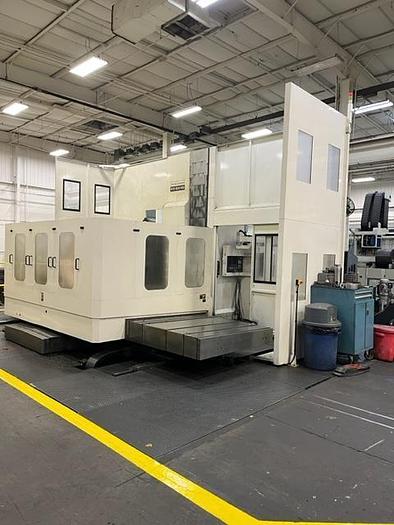

5" TOSHIBA BTD-130H.R22 CNC BORING MILL.

5" TOSHIBA BTD-130H.R22 CNC BORING MILL. (NEW IN 2018)

MODEL.................................: BTD-130H.R22

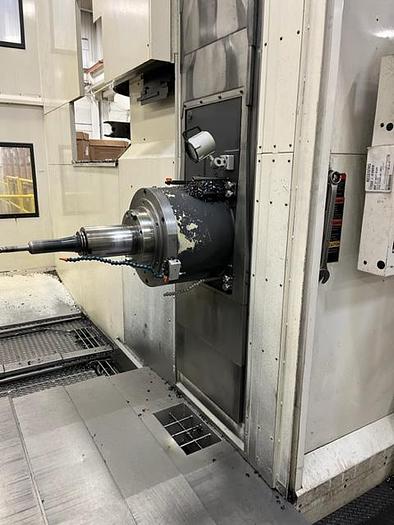

SPINDLE DIAMETER......................: 5"

VERTICAL TRAVEL.......................: 90"

TABLE TRAVEL..........................: 118"

SADDLE TRAVEL.........................: 55"

SPINDLE SPEEDS........................: 2500 RPM

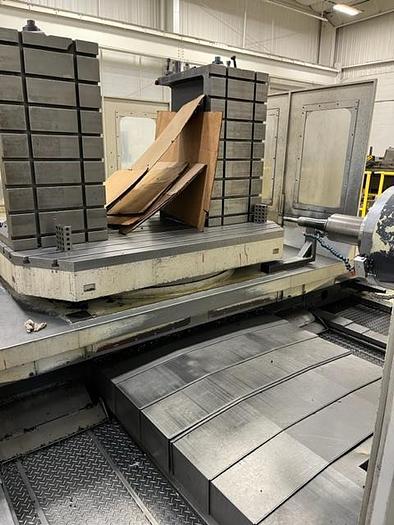

TABLE SIZE............................: (ROTARY)86" X 72"

TOOL CHANGER..........................: 40 ATC

MACHINE HOURS:

POWER ON: 31,205

CYCLE TIME: 8,983

SPINDLE ON: 9,817

CUTTING TIME: 8,950

EQUIPPED WITH:

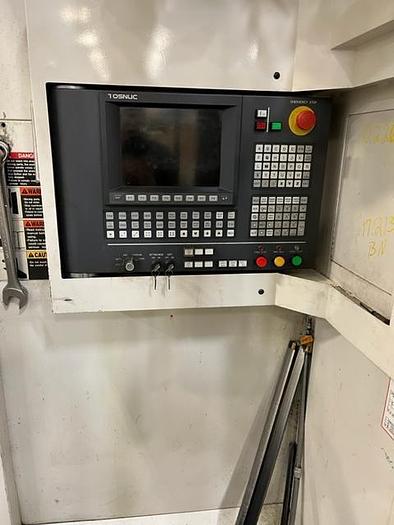

TOSNAC 999 CNC CONTROL

CAT 50 TAPER

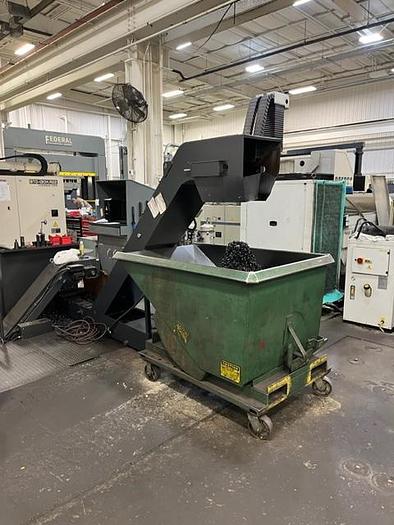

CHIP CONVEYOR

44,000 LB TABLE LOAD

COOLANT THROUGH SPINDLE

ALL SPECIFICATIONS SUBJECT TO BUYER VERIFICATION
