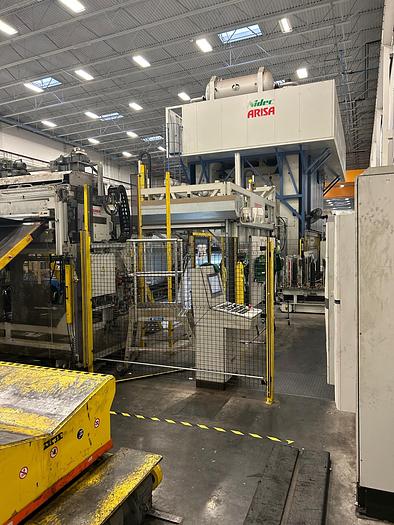

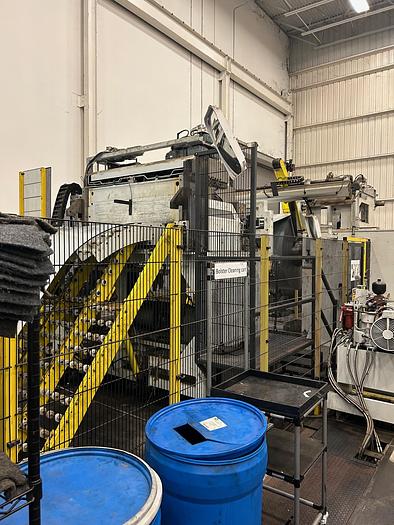

2000-Ton Arisa Transfer Press, Model: S-4-2000-600-250-FD

2000-Ton Arisa Transfer Press, Model: S-4-2000-600-250-FD

Mfg: Arisa

YOM: 2017

Tonnage: 2000

Stroke: 23.62

Shut-Height: 55.11"

Slide Adjustment: 11.81'

SPM: 6-28

Force kN: 20000

Force Point mm: 13

Stroke min - max/ mm: 600 mm

Shut-Height: 1400 mm

Slide Adjustment: 300 mm

Speed min/max: 6-28 SPM

Power: 350 kW

Electrical Connection V-Hz: 480-60

Connection Section: 5 (3 x 95) + (3 x 95)

Pneumatic Connection Bar: G": 6-1"

Hydraulic Pressure Bar: 276

Weight Press: 540,000 kg

Normal Stop of Slide: TDC

Time for Safety Distance: (12SPM) s: 232

Maximum Speed Flywheel: 616 RPM

Clutch-Brake Coupling/Min: 5

Clutch-Brake Coupling/Min-Max Pressure Bar: 55-63

Upper Die Max. Long x Wide mm: 6000x2500

Upper Die Max. Weight: 60,000 KG

Equipped with: Dreher Automation Uncoiler with Coil Car, Straightener & Feeder, Siemens Controls

Please Call for more details
