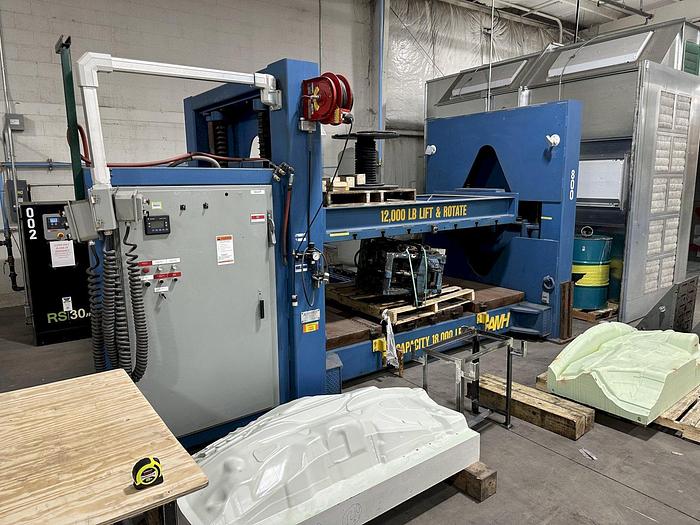

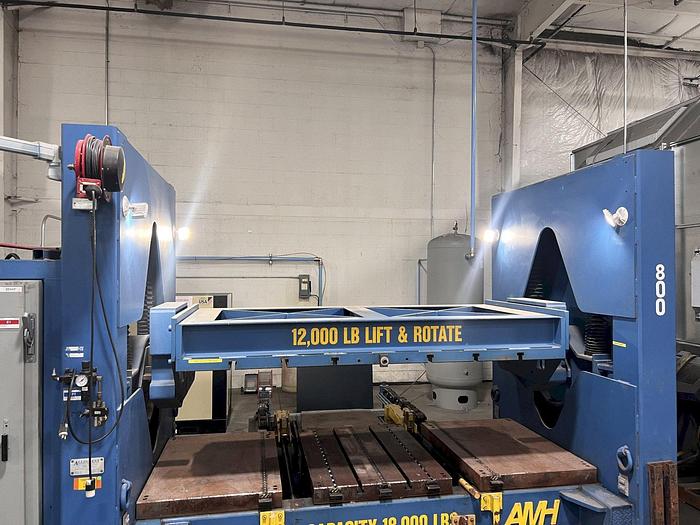

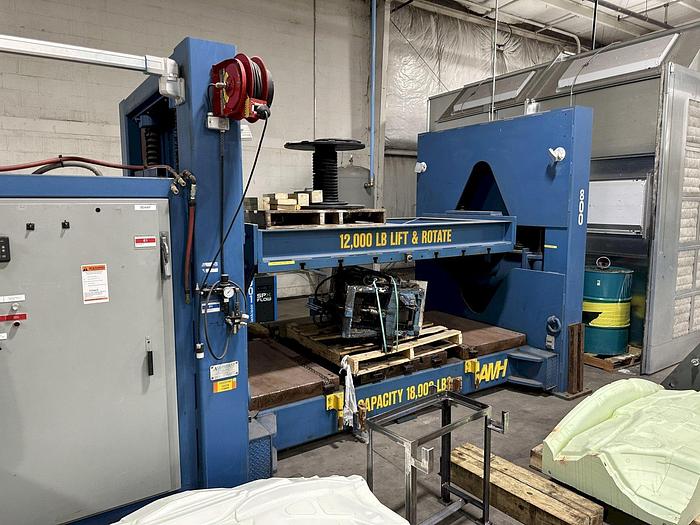

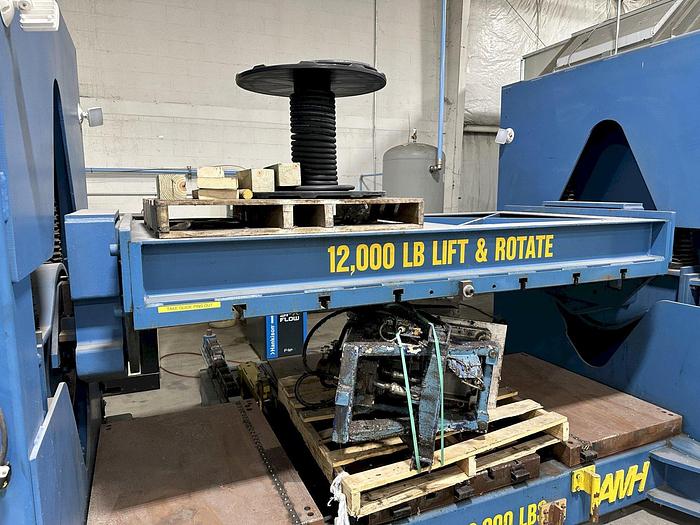

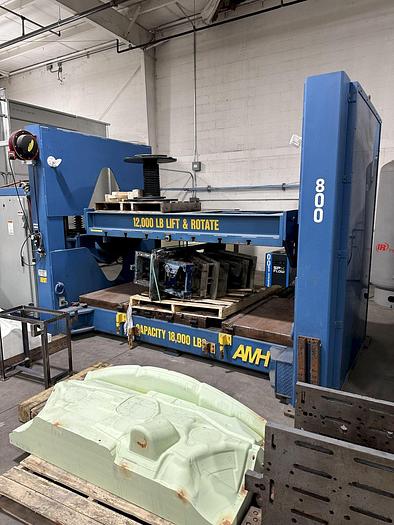

18,000 LB ALLEGHENY DS-180-96-48 ROTATING DIE HANDLER SEPARATOR

18,000 LB ALLEGHENY DS-180-96-48 ROTATING DIE HANDLER SEPARATOR

MFG...................................:ALLGEGHENY

MODEL.............................: DS-180-96-48

YEAR NEW..........................: 2005

LOAD CAPACITY.....................: 18,000 LBS

LIFT & ROTATE CAPACITY............: 12,000 LBS

PLATEN SIZE.......................: 96" X 48" L-R X F-B

MAX OPEN HEIGHT...................: 60"

MAX UPPER PLATEN LIFT TRAVEL......: 42"

ROTATING POSITION UPPER PLATEN....: 0 - 180 DEGREES

EQUIPPED WITH:

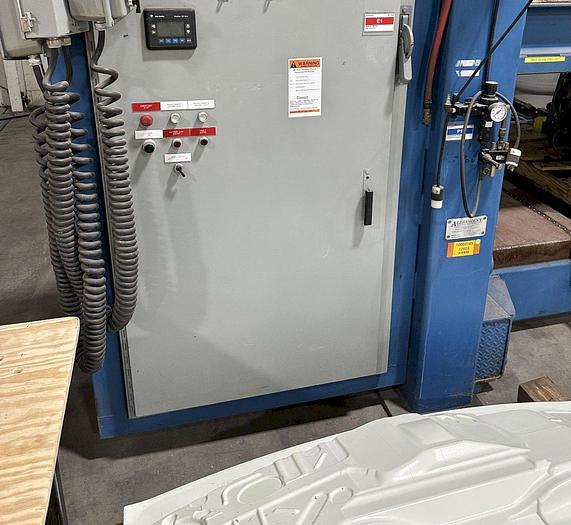

-ALLEN BRADLEY PANELVIEW 300 MICRO CONTROL

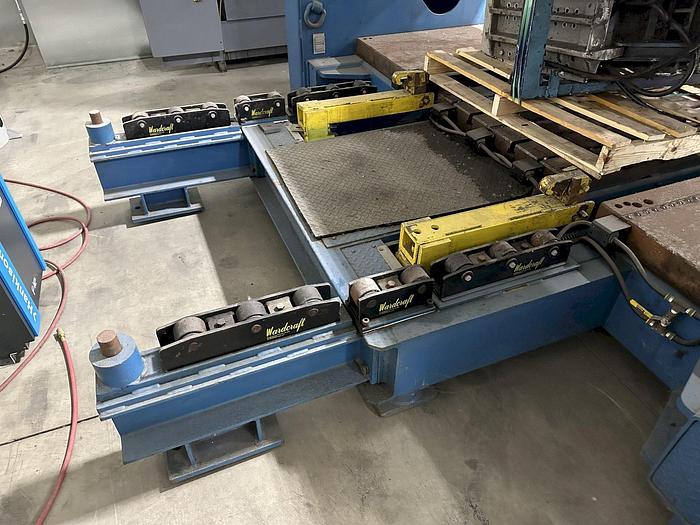

-T SLOTTED SLIDING BOLSTER WITH ROLLER SUPPORTS

-T SLOTTED UPPER PLATEN

-POWERED LIFT AND ROTATE ADJUSTMENT

-REMOTE HAND PUSH BUTTON CONTROL PENDANT

DIMENSIONS:

(L X W X H)188" X 100" X 100"

WEIGHT: 26,000 LBS
