CHEVALIER FVM 3016 CNC BRIDGE MILL (Less than 2500 Hours)

CHEVALIER FVM 3016 CNC BRIDGE MILL (Less than 2500 Hours)

Contact us for price

Location:Toledo, OH

orCall 419-350-2986

Description

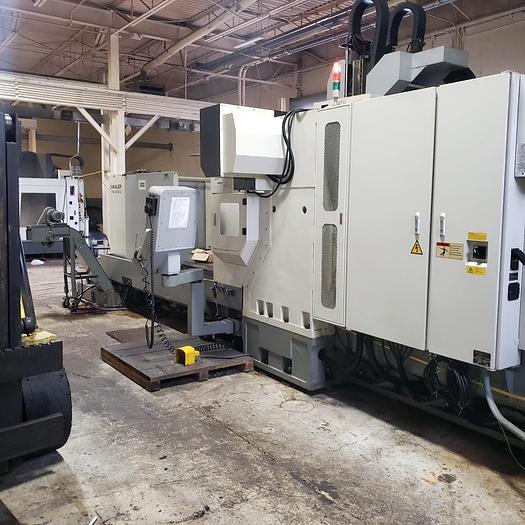

CHEVALIER FVM 3016 CNC BRIDGE MILL

Mfg: Chevalier

Model: FVM 3016

YOM: 2011 (New in 2011, Installed in 2013)

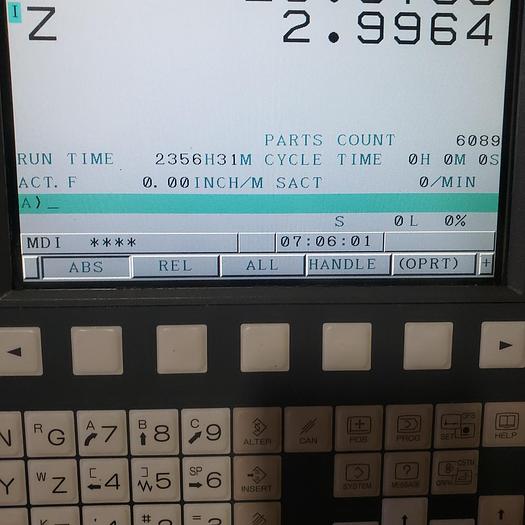

Run Hours: LESS than 2500 HOURS

Max work piece weight:                       14330 lbs

Machining Capacity:                          122" x 63" x 33.6"

Distance between columns:                     66.9"

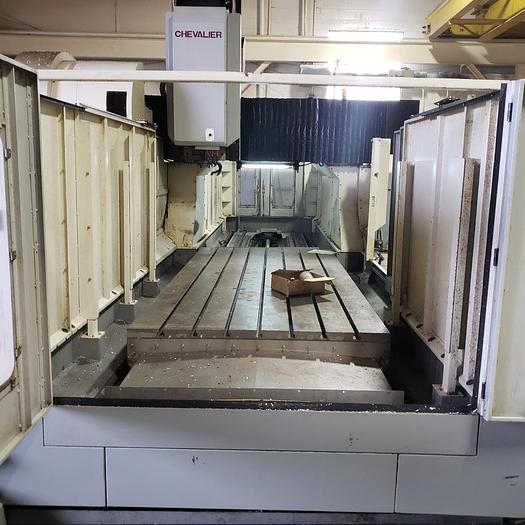

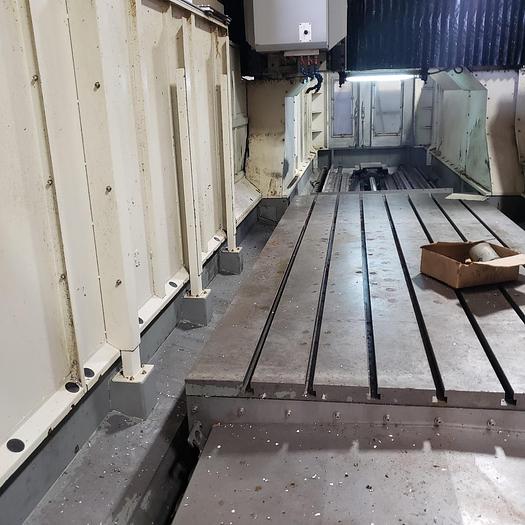

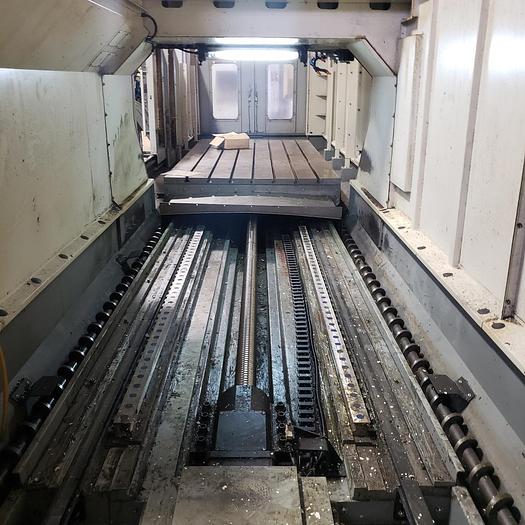

Table Size:                                 122" x 57"

X -axis travel:                                                           122"

Y-axis travel:                                                             61"

Z-axis travel:                                                             30.7"

SPINDLE

Spindle speed:                                                          6000 RPM

taper:                                                                         BT50

Spindle nose to table surface:                                  7.87" - 38.5"

FEED RATE

X-axis rapid traverse:                                                15m/min

Y-axis rapid traverse:                                                15m/min

Z-axis rapid traverse:                                                15m/min

Cutting feed (x/y/z/):                                                  1-7m/min

AUTOMATIC TOOL CHANGER

Tool storage capacity:                                                20 ATC

Max tool weight:                                                         33 lbs

Max tool length:                                                         11.8"

Tool change time:                                                       5 sec

MOTORS

Spindle motor:                                                            25/30 HP

Drive motors (x/y/z):                                                   10/10/5 HP

Oil lubrication motor:                                                  1/3 HP

Hydraulic motor:                                                          7.5 HP

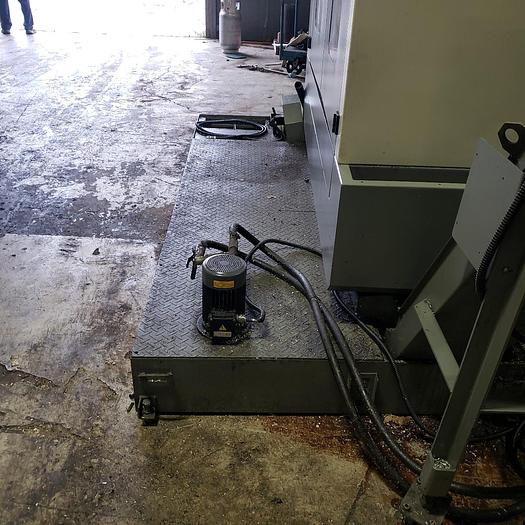

Coolant motor:                                                            1.5 HP

Chip conveyor motor:                                                 1/4 HP

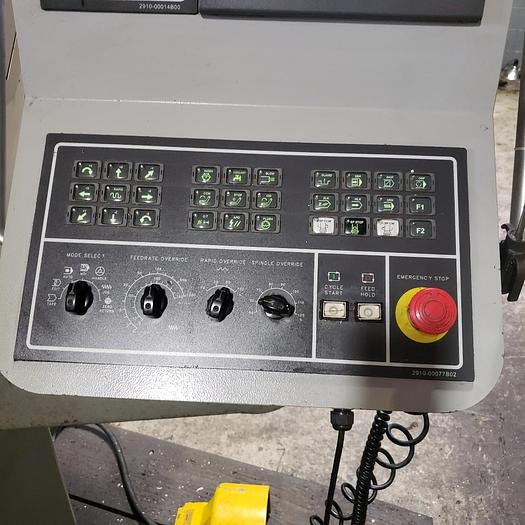

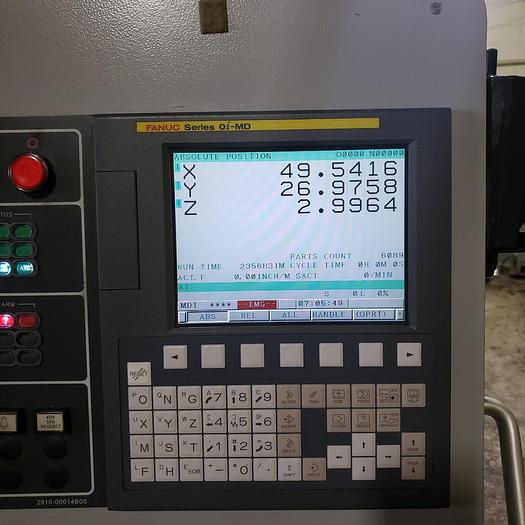

Fanuc Oi-MD control

50 Kva, 220v

EQUIPPED WITH:

Spindle air curtain system

Air blast chip blower

Auto lubrication system

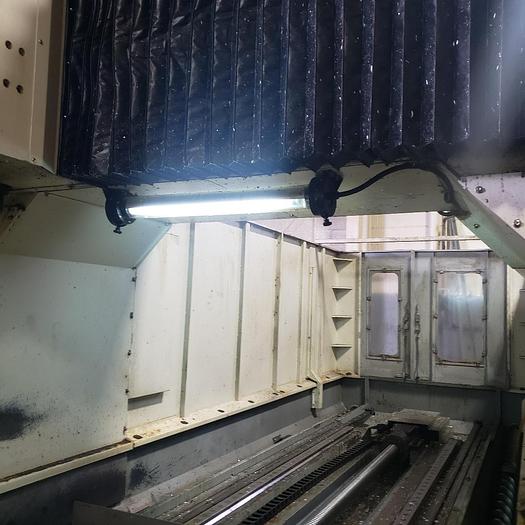

Work light

Pilot light

spindle/gear head oil chiller

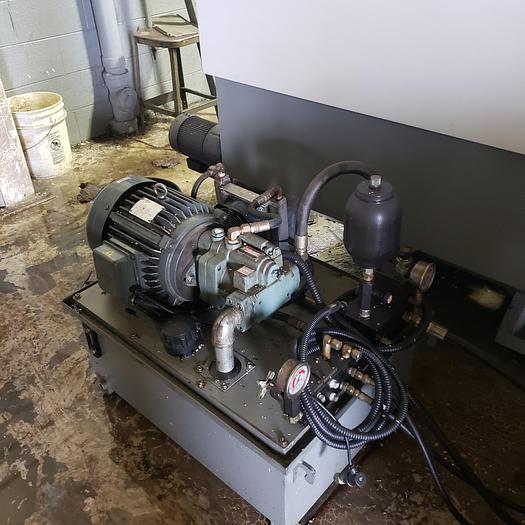

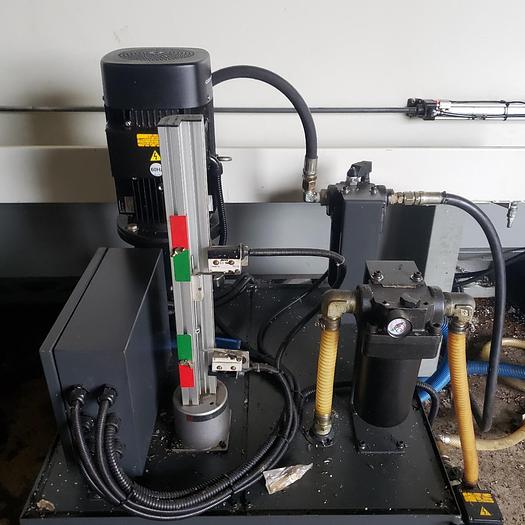

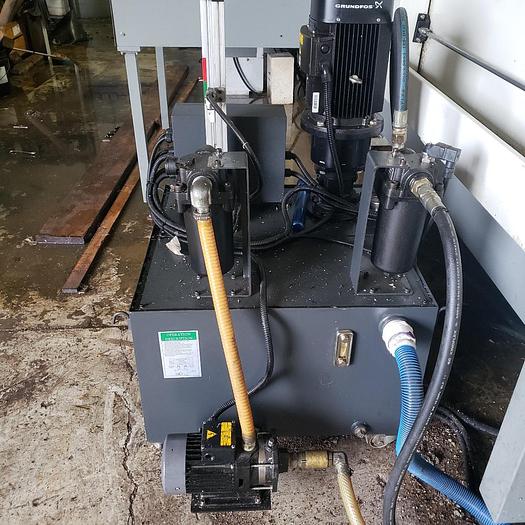

Hydraulic system

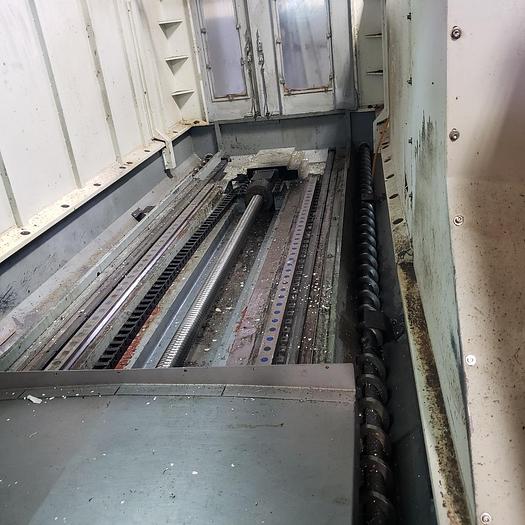

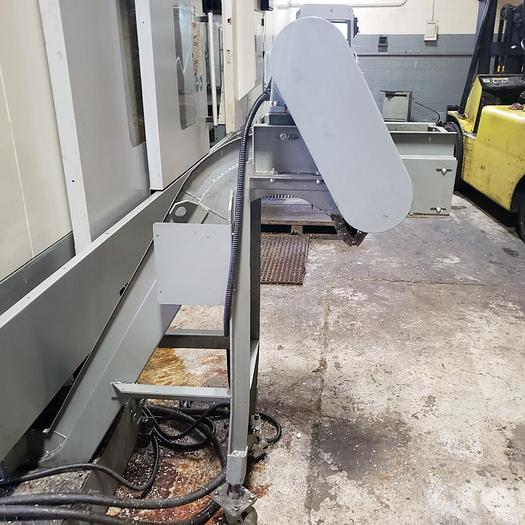

Screw type chip conveyor x-axis

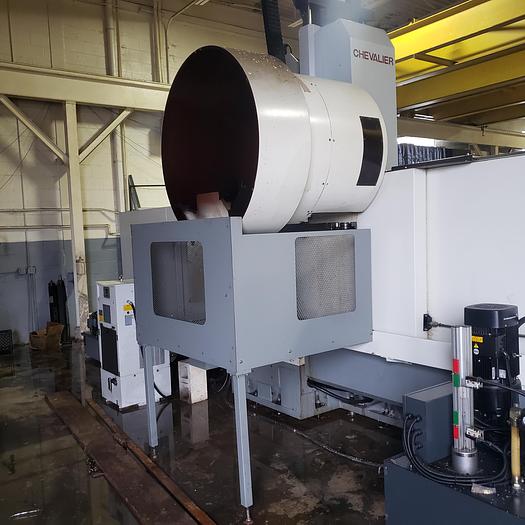

Chain type chip conveyor y-axis

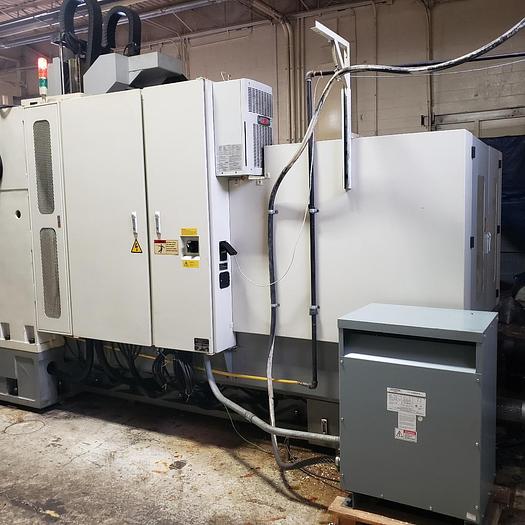

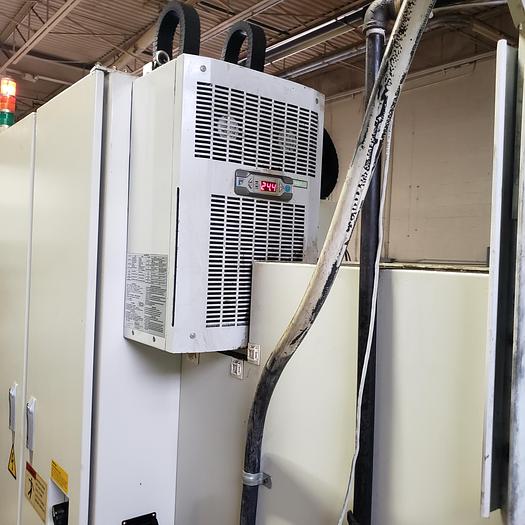

Air conditioned electric cabinet

Foot pedal for tool clamping and unclamping

Rigid tapping

RS232 interface

under 2500 cutting hours

Manuals included

Specifications

ManufacturerChevalier
ModelFVM 3016
Year2011
ConditionUsed
Stock Number0307587
